PREFACE

Introduction

The Owner's Handbook

This handbook describes all of the vehicles and standard
equipment specification within the model range. Some of
the information therefore, may not apply to your particular
car.

Always remember that if you have any queries concerning
the operation or specification of your car, your MG
Authorised Repairer will be glad to advise you.

Status at Time of Printing

MG operates a policy of constant product improvement
and therefore reserves the right to change specifications
without notice at any time.

Whilst every effort is

made to ensure complete accuracy of the information
in this publication, no liabilities for inaccuracies or the
consequences thereof, including loss or damage to
property, or injury to persons, can be accepted by the
manufacturer or MG Authorised Repairer who supplied
the publication, except in respect of personal injury caused
by the negligence of the manufacturer or MG Authorised
Repairer.

Symbols Used

The following symbols used within the handbook call your
attention to specific types of information.

Warning

This warning symbol identifies procedures
that

must

be

followed

precisely,

or

information that must be considered with
great care, in order to reduce the risk of
personal injury or serious damage to the car.

Important

IMPORTANT

The statements stated here must be followed strictly,
otherwise your car could be damaged.

Note

Note: This describes helpful information.

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PREFACE

This symbol indicates parts described must be disposed
of by authorised persons or bodies to protect the
environment.

Asterisk

An asterisk (*) appearing within the text, identifies features
or items of equipment that are either optional, or are only
fitted to some vehicles in the model range.

Illustration Information

Identifies components being explained.

Identifies movement of components being
explained.

In an Emergency

IMPORTANT

Remember the breakdown safety code

If a breakdown occurs while travelling:

• Wherever possible, consistent with road safety and

traffic conditions, the car should be moved off the
main thoroughfare, preferably into a lay-by.

If a

breakdown occurs on a motorway, pull well over to
the inside of the hard shoulder.

• Switch on hazard lights.

• If available, position a warning triangle or a flashing

amber light 150 to 500 ft behind your vehicle to warn
approaching traffic. Note it is a legal requirement
of some countries that a warning triangle is carried
in the vehicle, if in doubt consult the local highways
agency for further information.

• Consider evacuating passengers through nearside

doors onto the verge as a precaution in case your
vehicle is accidentally struck by other traffic.

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PREFACE

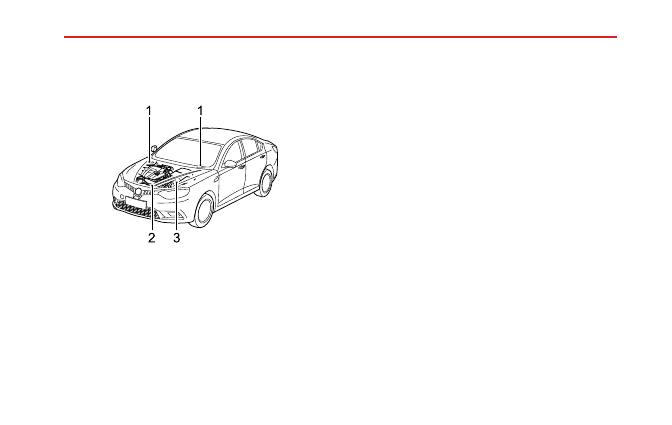

Vehicle Identification Information

Vehicle Identification

1 Vehicle Identification Number (VIN)

2 Engine Number

3 Transmission Number

Always quote the Vehicle Identification Number (VIN)
when communicating with your MG Authorised Repairer.

Vehicle Identification Location

VIN Location

• Stamped on a plate visible through the bottom left hand

corner of the windscreen.

• On the identification plate.

• On the top of the front RH suspension unit.

Engine Number Location

Stamped on the rear - right of the cylinder block. (View
from the front of the engine)

Manual Transmission Number Location

On a label attached to the upper face of the transmission
housing.

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PREFACE

Vehicle Identification Label

M

G  M O T O R  U K  L td

P

A IN T

T R IM

1

-

2 -

k g

k g

k g

k g

The vehicle identification label contains the following
information.

• Type Approval Number

• Vehicle Identification Number (VIN)

• Gross Vehicle Weight

• Gross Train Weight

• Max Front Axle Weight

• Max Rear Axle Weight

• Paint Code

• Diesel Smoke Limit Value

• Trim Code

Location of Vehicle Identification Label

The Vehicle Identification Label is located adjacent to the
top hinge on the right hand front door.

4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

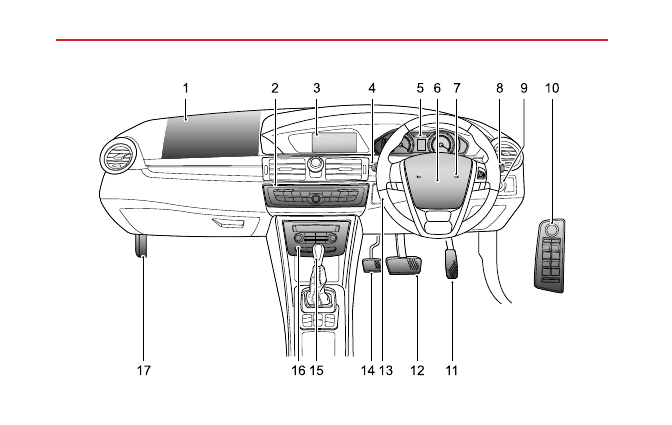

Instruments and Controls Overview

1 6 1 5

1 4

1 2

1 3

1 7

1 1

1

2

3

7

9

8

4

1 0

5

6

6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

1

Passenger Airbag

10

Electric Exterior Mirror and Window Controls

2

Entertainment Control Faceplate

11

Accelerator Pedal

3

In Car Entertainment Display

12

Brake Pedal

4

Direction Indicators/Main Beam Lever

13

Ignition Switch

5

Instrument Pack

14

Clutch Pedal

6

Driver Airbag

15

Gear Shift Lever

7

Horn

16

Heater/Air Conditioning Controls

8

Wiper/Washer Controls

17

Bonnet Release

9

Master Lighting Switch

7

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

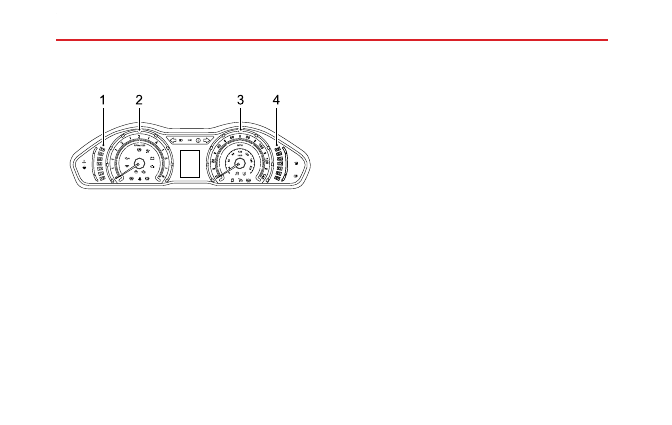

Instrument Pack

1 Engine Coolant Temperature Gauge

2 Tachometer

3 Speedometer

4 Fuel Gauge

Engine Coolant Temperature Gauge

The engine coolant temperature is indicated by the number
and colour of segments illuminated (figure 1).

When the coolant temperature is low, the first (lowest)
segment is illuminated blue. When the engine is operating
at its normal temperature, the first to fifth white segments
are illuminated white.

When sixth red segment is

illuminated, the high temperature warning indicator
located in the instrument pack illuminates and the message

High Engine Temp

will appear in the message centre.

When the coolant temperature rises above the 7th
segment

temperature

threshold,

the

high

coolant

temperature warning lamp will flash simultaneously with
the message

High Engine Temp

appearing again in the

message centre.

High engine coolant temperature could result severe
damage. Stop the vehicle and switch off the engine as soon
as safety permits and seek MG Authorised Repairer at the
earliest opportunity.

If the engine coolant temperature sensor malfunctions, all
segments will extinguish and the high temperature warning

8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

indicator will flash with the message

Temperature

Sensor Fault

appearing in the message centre.

Tachometer

Indicates engine speed (figure 2) , in revolutions per
minute (×1000).

IMPORTANT

To protect the engine from damage, never allow the
pointer to remain in the red sector of the gauge for
prolonged periods.

Speedometer

Indicates road speed (figure 3).

Fuel Gauge

The quantity of fuel in the tank is indicated by the number of
segments illuminated (figure 4). There are seven segments
in total. When one segment remains illuminated, the low
fuel warning indicator on the right hand side illuminates,
with the message

Low Fuel

appearing in the message

centre and an audible warning heard. If the fuel continues

to fall to a critical state, the fuel lamp will flash along with
the 1st segment. The

Low Fuel

message will appear in

the message centre and an audible warning will sound again.

IMPORTANT

If the low fuel warning light indicator illuminates, refuel
at the earliest opportunity.

If the cluster detects an out-of-range fuel sender value
when the ignition is in position Ⅱ, the bottom fuel segment
will flash along with the low fuel lamp, with the message

Fuel Signal Error

appearing in the message centre.

An arrow next to the low fuel warning light indicates that
the fuel filler is located on the right hand side of the car.

9

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

Message Centre

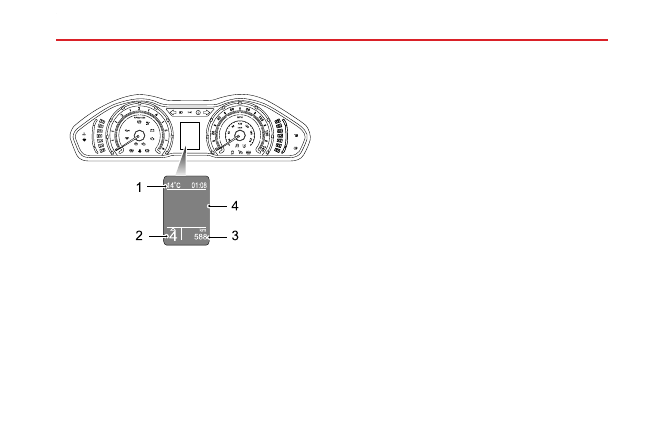

The message centre display is in the centre of the
instrument pack. It is divided into four zones, containing
the following information.

1 Temperature and clock

2 Gear position display/gear change reminder (if

enabled)

3 Odometer

4 Vehicle information display

Temperature and Clock

When the ignition is in position Ⅱ, the current ambient
temperature and time are displayed.

Gear

Position

Display/Gear

Change

Reminder

Gear position (1, 2, 3, 4, 5, 6, R, N) is displayed in this zone
when the function is enabled.

When a gear change is advised, an up or down arrow will
be displayed above the gear position. To set this function
refer to Vehicle Information Display.

Odometer

When the ignition is in position Ⅱ, the display shows the
total distance the car has travelled.

10

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

Vehicle Information Display

3

2

1

0

6

5

4

O F F

M P H

k m /h

1 2 0

1 5

0

1

8

0

2

1

0

9 0

6

0

3

0

R P M

1 0 0 0

6 0

8 0

1 0

0

1

2

0

1

4

0

4 0

2

0

0

0

1 :0 8

1 4

c

7 .8

A

B

C

k m

5 8 8

k m

5 8 8

k m

5 8 8

4

4

4

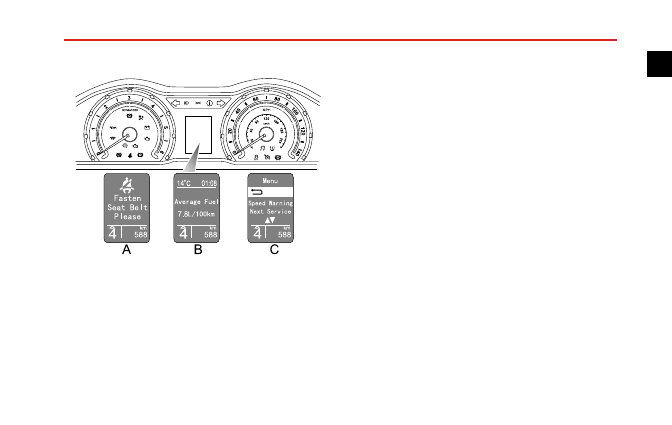

The vehicle information display contains the following
information:

1 Warning information (figure A)

2 Trip computer menu (figure B)

3 Menu (figure C)

Warning Information

The vehicle information display uses two methods to
convey warning information to the driver. These are:

• A message accompanied by a symbol

• A view of the vehicle with an open door, bonnet or

boot/tailgate

Some warning messages are re-enforced by an audible
warning.

Warning Messages and Symbols

Two types of warning messages are displayed:

• Messages re-enforced by a red or yellow symbol and the

illumination of a warning light.

• Messages supported by a red or yellow symbol only.

When a fault is detected, the appropriate warning message
together with a symbol will appear in the display. The
message will disappear after 3 seconds. If the warning is not
supported by a warning light, the System Fault Warning will
display in yellow or red. The static symbol of the warning
can be accessed by the operation of the trip computer
switch. If a warning indicator is also illuminated, this will
remain illuminated, until the fault is rectified.

11

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

The following messages appear in the message centre but
are not supported by dedicated warning lights; instead their
status is shown by the System Fault Warning (with the
exception of the Beware of Ice warning).

Icon

Message

Action

Beware

of Ice

Drive carefully
as the road may
be slippery.

/

Indicates an
open panel,
please close
indicated panel.

Engine

Disabled

An incorrect
handset has been
inserted in the
docking station.
The engine is
immobilised.
Use correct
handset.

Icon

Message

Action

Key

Battery

Low

See ‘Handset
Battery
Removing and
Refitting’ in
‘Starting &
Driving’.

1 2 0

Overspeed

Warning

Slow down until
the speed of the
car is below the
set limit.

Inertia
Switch

Tripped

See ‘Inertia
Switch’ in
‘Starting &
Driving’.

Fuel

System

Fault

Consult MG
Authorised
Repairer at
the earliest
opportunity.

12

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

Icon

Message

Action

Low

Coolant

See ‘Coolant
Check and
Top Up’ in
‘Maintenance’.

Lamp

Failure

A dipped beam
or direction
indicator bulb
has failed,
replace at
the earliest
opportunity.

Lights On

Switch the lights
off before leaving
the car.

Lights

off Delay

Active

for X.X

min

Information.

Icon

Message

Action

Alarm

Triggered

Information.

Door

Locked

Information.

Door

UnLocked

/ Fail To

Lock

Information.

Headlamp

Washer

Fluid Low

See ‘Windscreen
and Front Lamp
Washer Check
and Top Up’ in
‘Maintenance’.

Stop

Start On

Stop/Start is
initiated.

13

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

Icon

Message

Action

Stop

Start Off

/ Stop

Start
Fault

See ‘Stop/Start
Intelligent
System’ in
‘Starting &
Driving’.

Use Key

to Start

Indicates that
a key restart is
required.

Close

Driver

Door

Indicates the
need to close
the driver’s
door to enable
the engine to
restart.

Icon

Message

Action

Fasten

Seatbelt

to

Restart

Indicates the
need to fasten
the driver’s seat
belt to enable
the engine to
restart.

Head
Lamp

Control

Fault

Indicated that
AFS system has
a fault.

A

B

C

Fully

Press

Clutch

Indicating the
driver to press
clutch.

A

B

C

Press

Brake

Pedal

Indicating the
driver to press
brake pedal.

14

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

Icon

Message

Action

A

B

C

Clutch
Switch

Fault

Consult MG
Authorised
Repairer at
the earliest
opportunity.

Select

Neutral

To

Restart

Indicating the
driver to select
neutral.

Parking

Brake
Force

Not

Enough

Consult MG
Authorised
Repairer at
the earliest
opportunity.

Release

EPB by

Switch

Please

Requesting the
driver to release
the EPB using
the switch.

Icon

Message

Action

Gradient

High

Indicating
gradient is high.

A

B

C

Press

Brake

Release

EPB

Indicating to the
driver the need
to press the
brake to release
EPB.

Front

Brake

Pads

Worn

/ Rear

Brake

Pads

Worn

Consult MG
Authorised
Repairer at
the earliest
opportunity.

Hill Hold

Unavaliable

Indicating hill
hold is currently
unavailable.

15

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

Icon

Message

Action

Caution!

Wheels

not

Straight

Requesting the
driver to adjust
the steering
wheel.

Caution!

Wheels

not

Straight

Requesting the
driver to adjust
the steering
wheel.

Limited

Engine
Power

Consult MG
Authorised
Repairer at
the earliest
opportunity.

Vehicle

Network

Fault

Consult MG
Authorised
Repairer at
the earliest
opportunity.

Icon

Message

Action

/

Requesting the
driver to change
gear in direction
of arrow.

Diesel

Particle

Filter

Consult MG
Authorised
Repairer at
the earliest
opportunity.

Water in

Fuel

Indicates that
the fuel water
filter is full
and requires
emptying.

Door, Bonnet, Boot Open Indicator

If any door or bonnet or boot is opened when the ignition
is switched on, a plan and (or) side view of the car will
displayed. It will disappear after 3 seconds, If, however

16

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..       1      2     ..
