MG 316. Service Manual - part 1





PREFACE

Introduction

The Owner's Handbook

This handbook describes all of the vehicles and standard
equipment specification within the model range. Some of
the information therefore, may not apply to your particular
car.

Always remember that if you have any queries concerning
the operation or specification of your car, your MG
Authorised Repairer will be glad to advise you.

Status at Time of Printing

MG operates a policy of constant product improvement
and therefore reserves the right to change specifications
without notice at any time.

Whilst every effort is

made to ensure complete accuracy of the information
in this publication, no liabilities for inaccuracies or the
consequences thereof, including loss or damage to
property, or injury to persons, can be accepted by the
manufacturer or MG Authorised Repairer who supplied
the publication, except in respect of personal injury caused
by the negligence of the manufacturer or MG Authorised
Repairer.

Symbols Used

The following symbols used within the handbook call your
attention to specific types of information.

Warning

This warning symbol identifies procedures
that

must

be

followed

precisely,

or

information that must be considered with
great care, in order to reduce the risk of
personal injury or serious damage to the car.

Important

IMPORTANT

The statements stated here must be followed strictly,
otherwise your car could be damaged.

Note

Note: This describes helpful information.

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PREFACE

This symbol indicates that parts described must be
disposed of by authorised persons or bodies to protect
the environment.

Asterisk

An asterisk (*) appearing within the text, identifies features
or items of equipment that are either optional, or are only
fitted to some vehicles in the model range.

Illustration Information

Identifies components being explained.

Identifies movement of components being
explained.

All illustrations in this handbook are based on a RHD
vehicle except where LHD model is stated.

In an Emergency

IMPORTANT

Remember the breakdown safety code

If a breakdown occurs while travelling:

• Wherever possible, consistent with road safety and

traffic conditions, the car should be moved off the
main thoroughfare, preferably into a lay-by.

If a

breakdown occurs on a motorway, pull well over to
the inside of the hard shoulder.

• Switch on hazard lights.

• If available, position a warning triangle or a flashing

amber light 50 to 150 metres (150 to 500 ft) behind
your vehicle to warn approaching traffic. Note it is a
legal requirement of some countries that a warning
triangle is carried in the vehicle, if in doubt consult
the local highways agency for further information.

• Consider evacuating passengers through nearside

doors onto the verge to reduce risk of injury in the
event of collision.

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PREFACE

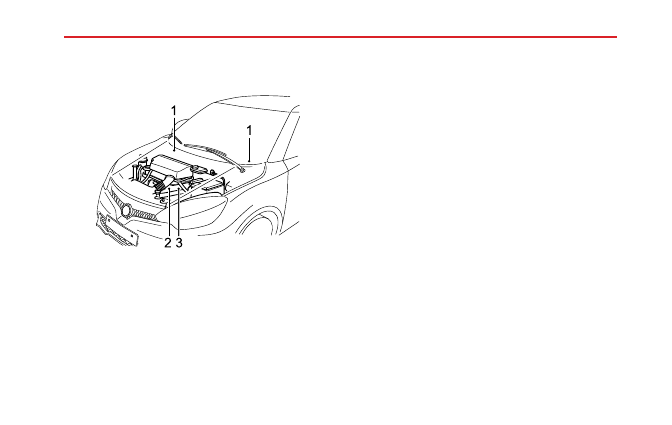

Vehicle Identification Information

Vehicle Identification

1 Vehicle Identification Number (VIN)

2 Engine Number

3 Transmission Number

Always quote the Vehicle Identification Number (VIN)
when communicating with your MG Authorised Repairer.

VIN Location

• Stamped on a plate visible through the bottom left hand

corner of the windscreen.

• On the identification plate.

• On the right side panel upper frame in the engine

compartment.

Engine Number Location

Stamped on the rear of the cylinder block. (View from the
front of the engine)

Transmission Number Location

On a label attached to the upper face of the transmission
housing.

3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PREFACE

Vehicle Identification Label

The vehicle identification label contains the following
information.

• Type Approval Number

• Vehicle Identification Number (VIN)

• Gross Vehicle Weight

• Gross Train Weight

• Max Front Axle Weight

• Max Rear Axle Weight

• Paint Code

• Trim Code

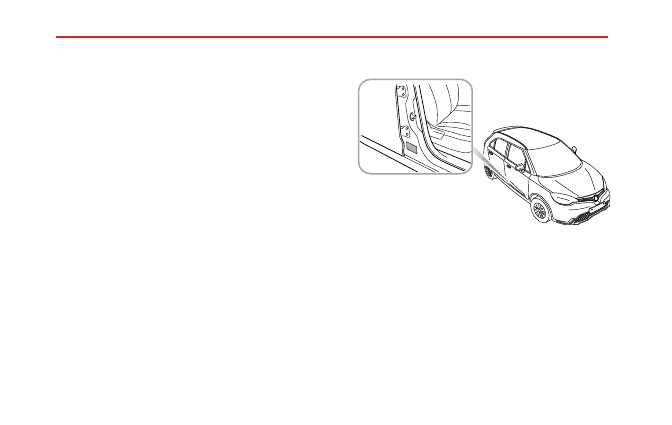

Location of Vehicle Identification Label

The Vehicle Identification Label is located on the bottom
of the right side pillar B.

4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

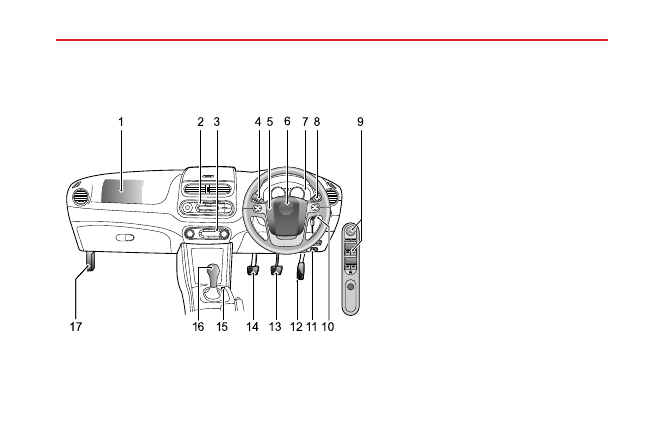

Instruments and Controls Overview

Instruments and Controls

RHD

L

R

1 Front Passenger Airbag
2 Entertainment System
3 Heating and Air Conditioning Control Switch
4 Main Lights Switch/Direction Indicators/Main

Beam Switch/Rear Fog Lights

5 Horn
6 Driver Airbag
7 Instrument Pack
8 Wiper/Washer Switch
9 Electric Exterior Mirror and Window Controls

10 Ignition Switch
11 Fuel Filler Flap Release Handle
12 Accelerator Pedal
13 Brake Pedal
14 Clutch Pedal
15 SCS OFF Switch
16 Gear Shift Lever
17 Bonnet Release

6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

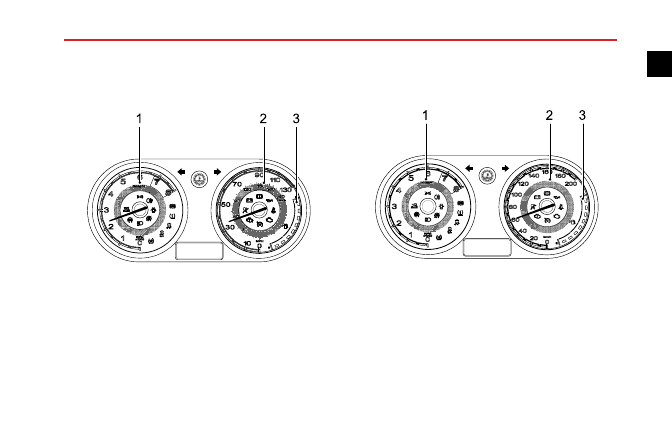

Instrument Pack

Imperial Instrument Pack

*

1

2

3

Metric Instrument Pack

*

1

2

3

Note: The speedometer in the Imperial Instrument Pack is measured in both MPH and km/h. The speedometer
in the Metric Instrument Pack is measured in km/h.

7

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

Tachometer

Indicates the engine speed (figure 1) in revolutions per
minute (×1000).

IMPORTANT

To protect the engine from damage, never allow the
pointer to remain in the red sector of the gauge for
prolonged periods.

Speedometer

Indicates the road speed (figure 2), The speedometer of
the Imperial Instrument Pack is measured in MPH and
km/h. The speedometer of the Metric Instrument Pack is
measured in km/h.

Fuel Gauge

The quantity of fuel in the tank is indicated by the number
of segments illuminated. there are eight segments in total
(figure 3). When the fuel level is full, all eight segments are
illuminated in white. When the fuel level is low, the lowest
segment changes to yellow from white, and a warning
sound will be heard. If the fuel level continues to fall to
a critical state, the lowest segment will flash and an audible
warning will sound again.

IMPORTANT

When the fuel level is low, refuel at the earliest
opportunity. Never allow the car to run out of fuel.
The resultant misfire could damage the catalytic
converter.

The arrow next to the low fuel warning light indicates that
the fuel filler is located on the right hand side of the vehicle.

8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

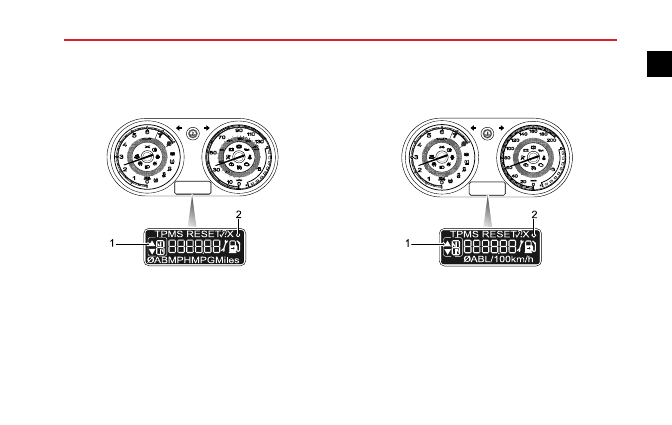

Message Centre

Imperial Message Centre

*

A

B M P H M P G M ile s

0

2

T P M S  R E S E T   X

1

Metric Message Centre

*

A

B L /1 0 0 k m /h

0

2

T P M S  R E S E T   X

1

The message centre is located at the bottom of the instrument pack, and it provides the following information:

1 Gear Selection Display
2 Vehicle Information Display

Note: The Imperial Message Centre is measured in imperial units. The Metric Message Centre is measured in
metric units.

9

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

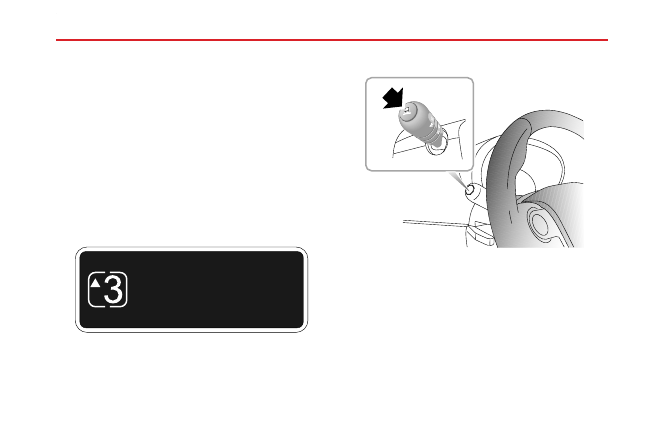

Gear Selection Display

This segment of the message centre indicates the current
gear lever position.

When the car is stationary and neutral position is selected,
the display will indicate N. When reverse gear is selected,
the display will indicate R.

When the car is in motion, the display area will indicate the
current gear selected (e.g. N, R, 1, 2, 3, 4, 5). An indicator
will be displayed in this area when a gear change is advised.
The up or down arrows flashes to remind the driver to
upshift or downshift.

Note: If the clutch is pressed, the gear display is
inhibited.

Vehicle Information Display

The vehicle information display screen provides the
following information:

• Odometer

• Trip Distance A

• Trip Distance B

• Ambient Temperature Display

• Fuel Range to Empty

• Instantaneous Fuel Consumption

10

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

• Average Fuel Consumption

• Average Speed

• Next Service

• TPMS Reset

Repeatedly press the button on the end of the main light
switch (indicated by arrow in diagram) for less than 2
seconds, and then the above information will be displayed
in cycles.

By pressing and holding the button on the end of the main
lamp switch for longer than 2 seconds, the selected display
can be reset (including trip distance A, trip distance B,
average fuel consumption or average speed).

Vehicle Information In Imperial Message
Centre

*

Odometer

Shows the total distance that the car has travelled.

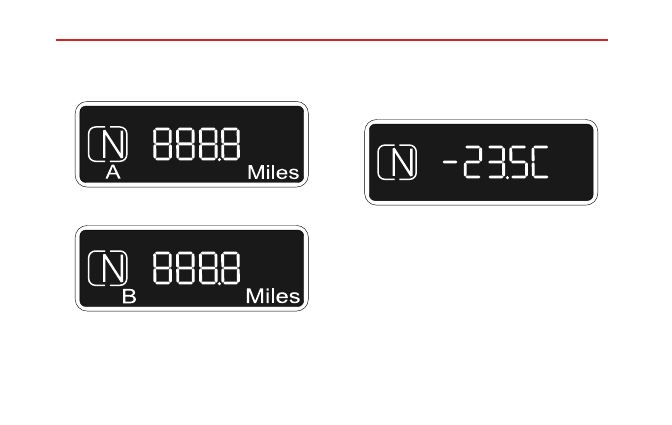

Trip Distance A and Trip Distance B

This display shows the distance travelled since the trip
record was last reset.

Trip distance A and trip distance B are independent
distance records, Display range of 0 - 9999 miles, If
the mileage is less than 1000 miles, it changes in 0.1
mile increments, more than 1000 miles, it changes in 1
mile increments to a maximum of 9999 miles when it is

11

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

automatically reset, trip A and trip B can be reset at any
time, so as to record vehicle mileage.

Ambient Temperature Display

Display indicates the ambient air temperature of the air
outside the vehicle.

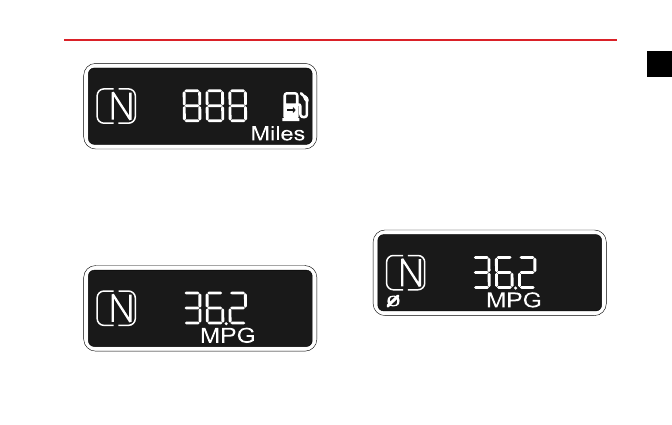

Fuel Range to Empty

Displays the approximate remaining distance that can be
travelled before the vehicle needs refuelling. The distance
will change when the vehicle is refuelled.

Fuel range to empty is calculated according to fuel
remaining and the average fuel consumption is based
on a combination of current driving style and the fuel
consumption recorded by the computer during the
previous few minutes.

12

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

Instantaneous Fuel Consumption

This function is automatic and indicates the instantaneous
fuel consumption. When the vehicle stops moving or stops
using fuel, then the instantaneous fuel consumption display
shows “— MPG”.

Average Fuel Consumption

This function is automatic and indicates the average fuel
consumption since the last time the trip computer was
reset (average consumption is calculated by dividing the
distance travelled by the amount of fuel used).

The

consumption value can be reset at any time to begin
calculating new consumption values for a particular journey
or driving conditions.

The average fuel consumption shall be calculated after the
engine starts when the vehicle speed exceeds 3 MPH.

0

Note:

Average consumption is related to driving

habits, road condition, load, tyre pressure, the quality
of oil, etc.

13

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

Average Speed

This function is automatic and indicates the average speed
since the last time it was reset. The average speed display
can be reset at any time to begin calculating a new average
speed value for a particular journey or driving condition.

Next Service

Shows the service interval announcement symbol, the
estimated distance of the next service remaining before it
should be carried out.

Note:

The

Service

Interval

Announcement

information can only be reset by an MG Authorised
Repairer.

TPMS Reset

Enter ‘TPMS RESET?’ display interface. By pressing and
holding the button for longer than 2 seconds. If the text
‘TPMS RESET √’ is displayed . It indicates TPMS reset
successful. If the text ‘TPMS RESET X’ is displayed . It
indicates TPMS reset fail. consult your MG Authorised
Repairer.

14

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

T P M S  R E S E T  ?

Note:

The TPMS reset menu will only be made

available when the car is stationary, with the hand
brake applied and ignition on position II.

Vehicle

Information

In

Metric

Message

Centre

*

Odometer

Shows the total distance that the car has travelled.

Trip Distance A and Trip Distance B

The display shows the distance travelled since the trip
record was last resert.

Trip distance A and trip distance B are independent
distance records, Display range of 0 - 9999 km, If
the distance is less than 1000 km, it changes in 0.1
km increments, more than 1000 km, it changes in 1
km increments to a maximum of 9999 km when it is

15

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENTS AND CONTROLS

automatically reset, trip A and trip B can be reset at any
time, so as to record vehicle mileage.

Ambient Temperature Display

Display indicates the ambient temperature of the air
outside the vehicle.

Fuel Range to Empty

Displays the approximate remaining distance that can be
travelled before the vehicle needs refuelling. The distance
will change when the vehicle is refuelled.

Fuel range to empty is calculated according to fuel
remaining and the average fuel consumption is based
on a combination of current driving style and the fuel
consumption recorded by the computer during the
previous few minutes.

16

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..       1      2     ..
