Maserati Grandturismo Sport. Service Manual - part 13

7

200

Capacities: Quantity and specifications of the products to use

Capacities and recommended products (*)

Parts to be refilled

Quantity

Product specifications

Fuel tank

(including low fuel
sector)

approximately 22.72 US gal

(86 liters)

Premium unleaded gasoline with no less than 91 AKI.

Fuel reserve

approximately 4.75 US gal

(18 liters)

Engine oil:

Entirely synthetic multigrade lubricants SAE 5W/40 that
meet API SL/CF and ACEA A3, B3, B4 specifications.

Oil type Pennzoil Platinum Euro 5W-40.

- periodical
replacement

2.37 US gal (9.0 liters)

- top up from the MIN
to the MAX level

0.4 US gal (1.5 liters)

WARNING: Do not top up with oil having
characteristics other than those of the oil already used.

WARNING: Engine oil consumption depends on the
driving style and on the use of the vehicle.

Windshield/headlight
washer fluid tank

1.72 US gal (6.5 liters)

Mix of water and detergent fluid, in the proportions
indicated on the product package.

Detergent fluid: Mix of CUNA NC 956-II surfactants
and alcohols. Recommended fluid: Wuerth Windshield
Washer Fluid with antifreeze or Arexons DP1..

WARNING: If the temperature is below -4 °F (–20°C),
use pure detergent fluid.

(*) We reserve the right to change specifications without prior notification.

7

201

Parts to be refilled

Quantity

Product specifications

Engine cooling system

3.43 US gal (13 liters)

Mix of water and coolant, in the proportions indicated
on the product package.

Coolant: Inhibited monoethylene glycol-based
protective fluid with anti-freezing action: CUNA NC
956-16.

Type GlycoShell/GlycoShell Long Life.

Hydraulic power
steering

-

Oil Type: Shell Spirax S1 ATF TASA.

Oil Type ATF Type A - MB 236.2 - ZF ML09/12
Shell Donax TM

Gearbox oil

2.65 US gal (10.03 liters)

Oil Type Shell M1375.4 DEXTRON III

Differential oil

2.4 lb (1.1 kg)

Oil Type Shell SPIRAX S 75W140.

Braking system

-

Synthetic fluid: USA FMVSS n. 116 DOT 4, ISO 4925
Class 4, JIS K 2233 Class 5, AS/NZ 1960 Class 3, SAE
J1704, CUNA NC 956-01.

Type: Petronas Tutela TOP 5 FF.
IMPORTANT: Please contact the Authorized Maserati
Dealer for any refill and/or replacement operations.

Air conditioning
coolant

1.32 lb +/- 0.066 lb

(600 gr +/- 30 gr)

R134a PAG RL 897

Air conditioning
compressor oil

0.053 US gal +/- 0.0026 US gal

(200 ml +/- 10 ml)

Oil Type Ucon RL 897

7

202

Technical specifications

Engine

Injection – Ignition

The ignition and injection system is
controlled by a single microprocessor
ECU. This is designed to enhance
engine performance, improving
vehicle handling, and to reduce fuel
consumption by optimizing engine
performance with partial loads.

Injection

-  Type Bosch Motronic ME9.

Ignition

- Static

ignition

-  Ignition sequence:

1-8-6-2-7-3-4-5

-  Ignition coil: ELDOR
-  Spark plugs: NGK PMR8C-H.

Battery

FIAMM 12V 100 Ah 850A.

Electric alternator

NIPPONDENSO SC2 150A.

General

Vehicle ID code

M145B

Cycle

Otto

Cylinder number and position

8 - 90° V

Number of valves per cylinder

4

Bore and stroke

mm

94x84.5

Total displacement

cm

3

4691

Compression ratio

11.2±0.2:1

(*) Maximum power (EC)

kW

338

HP

454

Corresponding RPM

RPM

7000

Maximum torque (EC)

Nm

520

ft.lb

384

Corresponding RPM

RPM

4750

(*) Values obtained in SPORT mode with 98 R.O.N. unleaded gasoline.

7

203

Lubrication system

The lubrication system is controlled by
the wet sump system through an oil
pump and the relative suction screen,
incorporated in the crankcase.

Cooling system

Engine cooling is obtained by
means of an anti-freeze mixture
circulating inside a circuit equipped
with radiator, centrifugal pump and
expansion tank.

Transmission

Electro-hydraulically controlled
gearbox with 6 gears, torque
converter, lock-up clutch and anti-slip
function.
TRANSAXLE-type transmission.
Traction system equipped with rear
self-locking differential.

Gearshifting

Six gears plus reverse.

Gear

Gearbox ratios

Total reduction ratios
(engine revolutions/
wheel revolutions)

1

st

 gear

4.171

15.55

2

nd

 gear

2.340

8.72

3

rd

 gear

1.521

5.67

4

th

 gear

1.143

4.26

5

th

 gear

0.867

3.23

6

th

 gear

0.691

2.58

Reverse

3.403

12.68

Differential

The ratios are:

Differential reduction ratio

3.54

7

204

Brakes

Service and emergency brakes

Self-ventilating disc brakes on the
four wheels.
Two diagonally opposed and
independent hydraulic control circuits.
Vacuum brake servo.
4-channel ABS system with Electronic
Brake force Distribution (EBD) and
braking assistance system (HBA) for
emergency braking.

Electric parking brake

The electric parking brake (EPB) acts
on the rear wheels.
It is activated manually, by lifting the
lever found in the central panel of the
center console (see page 163).

Suspension:

Front and rear

Articulated quadrilateral suspensions.

Suspension with Skyhook
adjustable damping

This system allows the driver to
choose two settings for the shock
absorbers, depending on the road
surface conditions, speed and
comfort.

Speed-sensitive steering wheel

Rack and pinion hydraulic steering,
with pump driven by the drive
shaft and tank. Articulated steering
column, with energy absorption and
adjustable inclination and height.
Speed-sensitive, it gets more rigid as
the speed increases.
-  Steering diameter = 11.7 yd

(10.7 m)

-  No. of steering wheel turns = 1.5

(to the left and right)

7

205

Wheels

Wheel rims and tires

Wheel rim size

Tire size

Winter tires

front

8.5”J x 20”

245/35 ZR20

245/35 ZR20

8.5”J x 19” (°)

245/40 ZR19 (°)

245/40 ZR19 (°)

rear

10.5”J x 20”

285/35 ZR20

285/35 ZR20

10.5”J x 19” (°)

285/40 ZR19 (°)

285/40 ZR19 (°)

(°) Rims and tires available on request



Alternatively, you may use winter tires having the same dimensions as those provided with the vehicle.

WARNING: While respecting the specified sizes, for the safe operation of the vehicle it is also essential that it is equipped
with the same brand and type of tires on all wheels.

WARNING: Do not use an inner tube with Tubeless tires.

Snow chains

Maximum radial protrusion permitted over the tire profile: 0.4 in (9 mm).

Rear tire

Snow chains: brand/type

285/35 ZR20

Konig / Supermagic

285/40 ZR19 (°)

Konig / Supermagic

(°) Tires available on request

WARNING: The snow chains must be fitted only where permitted and only on rear tires. For purchasing snow chains,
please contact your Authorized Maserati Dealer.

7

206

Performance (*)

Maximum speed

mph

km/h

185

298


The maximum speed reachable with winter tires is indicated by the tire manufacturer.
Always comply with the regulations in force in the State you are driving in.

Accelerations at standing start (in seconds)

0-60 mph
(0-100 km/h)

4.8 sec.

(*) Values obtained in SPORT mode with 98 R.O.N. unleaded gasoline.

Weights

Weights

Unladen vehicle weight (with tanks filled, tools and accessories)

4160 lb (1890 kg)

Weight with full load (4 persons plus luggage)

4820 lb (2190 kg)

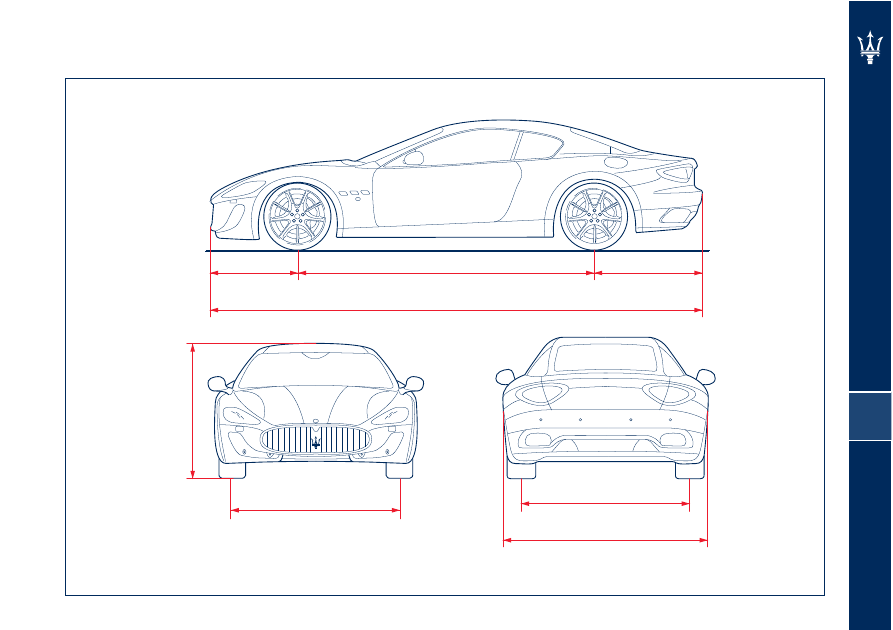

873 mm

(34.37 in)

2942 mm

(115.83 in)

1066 mm

(41.97 in)

4881 mm

(192.17 in)

1353 mm

(53.27 in)

1586 mm

(62.44 in)

1590 mm
(62.60 in)

1915 mm

(75.39 in)

7

207

Dimensions

7

208

Tire pressure

Tire inflation pressure when cold (psi/bar).

Wheel rim size

Tire size

Winter tires

Inflation pressure
when cold - psi (bar)

front

8.5”J x 20”

245/35 ZR20

245/35 ZR20

32 (2.2)

8.5”J x 19” (°)

245/40 ZR19 (°)

245/40 ZR19 (°)

32 (2.2)

rear

10.5”J x 20”

285/35 ZR20

285/35 ZR20

32 (2.2)

10.5”J x 19” (°)

285/40 ZR19 (°)

285/40 ZR19 (°)

32 (2.2)

(°) Rims and tires available on request



Alternatively, you may use winter tires having the same dimensions as those provided with the vehicle.


The maximum speed reachable with winter tires is indicated by the tire manufacturer. Always comply with the
regulations in force where you are driving.


Never exceed the maximum speed indicated for the winter tires: failure to respect the max. speed may damage
these tires. Danger: risk of accident!

8

209

Maintenance

Maintenance Schedule

210

Additional checks

212

Level checks

213

Air filter

217

Dust/pollen filter

217

Battery 217
Electronic control units

220

Spark plugs

221

Wheels and tires

221

Windshield wipers

223

Air conditioning system

224

Bodywork 224
Interiors 226
If the vehicle is stored for long periods

227

Conversion table

230

8

210

Maintenance Schedule

Correct maintenance is the optimal
way to help maintain vehicle
performance and safety features,
ensure respect for the environment
and low operating costs.

WARNING: Also remember that
thorough observance of the
maintenance procedures is essential
for keeping your vehicle operating
properly. Not adhering to the
maintenance schedule can impact
your vehicle’s warranty.

For this reason, MASERATI has
provided for a series of checks and
maintenance operations involving the
1

st

 service when the vehicle mileage

reaches 12500 mi (20000 km) or after
two years of the vehicle life, and
subsequently every 12500 mi
(20000 km) or every two years.

After the 12

th

 maintenance

service

After the 12

th

 maintenance service,

Maintenance Schedule services are
restarted with the same operations
performed for the 1

st

, 2

nd

, 3

rd

 Services.

WARNING: The Maintenance
Schedule services are prescribed by
the Manufacturer. Failure to have the
services performed can affect your
warranty.

Maintenance Schedule Services
are provided by your Authorized
Maserati Dealer. In the event that,
when a service is performed, further
replacements or repairs are found
to be necessary in addition to the
scheduled operations, these can be
performed only with the specific
consent of the Customer.

WARNING: You are advised to notify
your Authorized Maserati Dealer
of any minor operating problems,
without waiting for the next service.

The Maintenance Schedule is
contained in the “Warranty and
Maintenance Schedule” book.

8

211

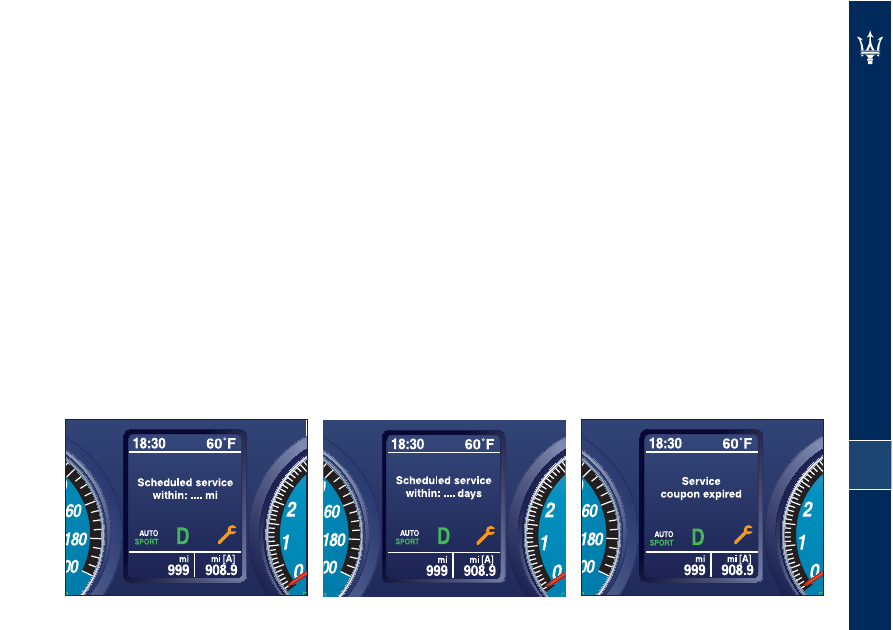

When the deadlines for Maintenance
Schedule services are approaching, a
message on the display indicates that
service is due. The deadline may be
expressed in kilometers/miles or days,
whichever comes first.
The message is displayed only once,
upon activating the instrument panel,
at decreasing intervals expressed in
mi/km (1100, 990, 60, 30) or in days
(27, 24, ........ 6, 3), accompanied by a
specific symbol (wrench):
Once the set limit in kilometers/miles
or the expiration date is reached,
every time the instrument panel is
turned on thereafter, the message
“Service coupon expired” will be
displayed.

Selecting the “SERVICE INFO”
function on the Multi Media System,
you can view the date when the next
service is due (see section 6 “On board
computer (TRIP)” in the Multi Media
System manual). The number of
kilometers/miles left before reaching
the maintenance service deadline is
always indicated. The days remaining
before the scheduled date instead,
are only indicated starting from the
511

th

 day (approximately 17 months).

WARNING: Every time the battery is
disconnected, the Multi Media System
must be set following the instructions
in the “Multi Media System” manual,
section 7, “Configuration”. Failure
to reset the system may cause it to
malfunction and indicate wrong
maintenance service intervals.

8

212

Additional checks

Every 300 mi (500 km) or before
long journeys, check and if necessary
correct:
-  Engine coolant level
-  Windshield washer fluid level
-  Tire pressure and condition.

WARNING - Engine oil

If the vehicle is used mainly in one of
the following heavy-duty conditions:
- dusty

roads;

-  short repetitive trips (less than 4-5

mi / 7-8 km) when the external
temperature is below zero;

-  engine running frequently at idle

speed or without reaching steady
operating temperatures;

replace the engine oil more
frequently than indicated in the
Maintenance Schedule.

WARNING - Air filter

When using the vehicle on dusty
roads, replace the air filters more
frequently than indicated in the
Maintenance Schedule.
Contact your Authorized Maserati
Dealer if you have any doubts about
the frequency for engine oil and air
filter replacements, in the relation to
the vehicle conditions of use.

WARNING: Vehicle maintenance
services must be performed by your
Authorized Maserati Dealer. For
those routine and minor maintenance
operations which you can perform
yourself, always make sure that
you are using the right equipment,
genuine Maserati spare parts and
the recommended fluids; in any case,
never perform these operations if you
are unexperienced.

1

2

3

4

5

8

213

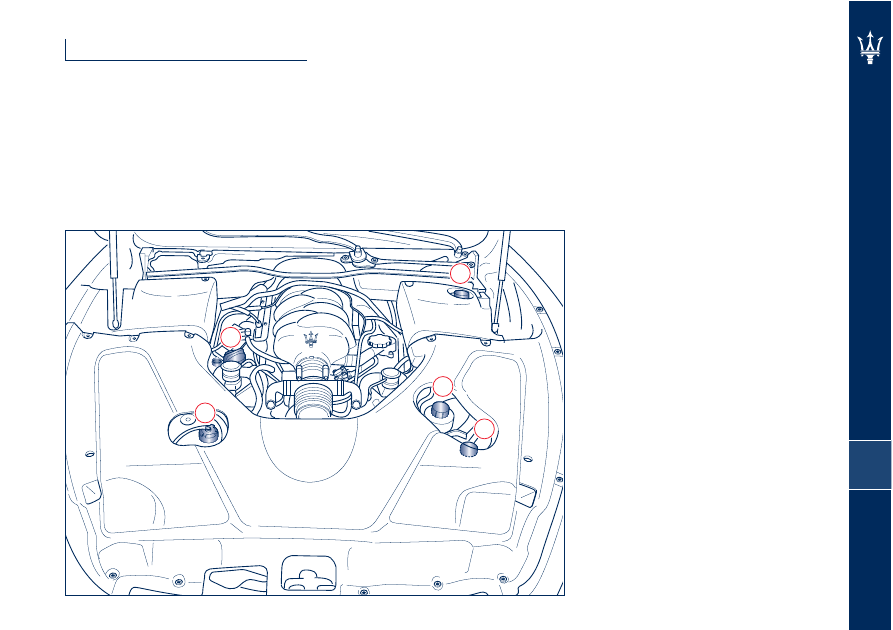

Level checks

1) Engine

oil

2) Engine

coolant

3) Windshield/headlight

washer

fluid

4) Brake

fluid

5)  Power steering fluid

MAX

MIN

A

8

214

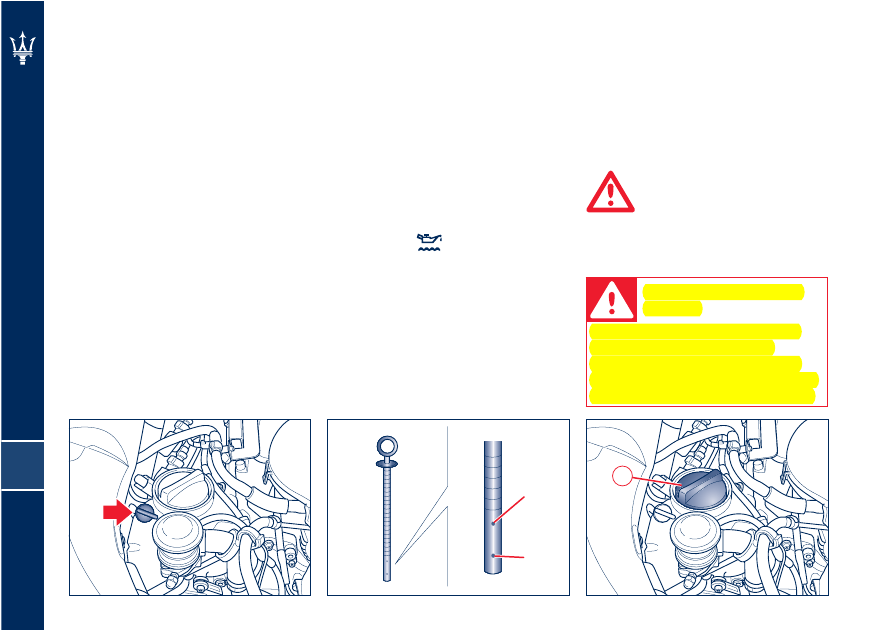

Engine oil

The level must be checked with the
vehicle on a flat surface, following the
procedure below:
-  start the vehicle and warm it up

until the temperature stabilizes;

-  turn off the engine, remove the

filler cap A and wait 5 minutes to
allow the oil to flow into the sump;

-  measure the level and top up if

necessary.

The oil level must be between the
MIN and MAX notches on the dipstick.
The interval between MIN and MAX
corresponds to approximately 0.4 US
gal (1.5 liters) of oil.

WARNING: Do not exceed the MAX
level!

If the oil level is near or even below
the MIN reference notch, top up with
oil pouring it through the filler neck
plugged by cap A, until reaching
the MAX reference notch. The oil
level should never exceed the MAX
reference notch.

WARNING: Do not top up with oil
whose specifications differ from those
of the oil already used in the engine.

After topping up, the engine oil level
warning light

 may not go off

for some time while the system is
performing the necessary checks. This
is normal.
After topping up or replacing the oil,
check its level once again.

WARNING: The engine oil used
and the oil filter replaced contain
substances that are dangerous for the
environment. For replacing the oil and

the filters you are advised to contact
your Authorized Maserati Dealer ,
who has all the necessary equipment
to dispose of the used oil and filters
in compliance with the regulations in
force and in an environment-friendly
manner.

Used engine oil contains
chemicals that have caused
cancer in laboratory animals.

Always protect your skin by washing
the affected areas thoroughly with
soap and water.

California Proposition 65
Warning

THIS MOTOR VEHICLE CONTAINS
CHEMICALS KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE
CANCER, BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM (see page 7)

D

MAX

MIN

8

215

Gearbox oil

Contact your Authorized Maserati
Dealer for the oil level check.

WARNING: Do not top up with oil
having characteristics other than
those of the oil already used in the
engine.

WARNING: Waste transmission
oil contains substances that are
dangerous for the environment. For
replacing the oil, you are advised to
contact your Authorized Maserati
Dealer, who has the necessary
equipment to dispose of the used oil
in compliance with the regulations in
force and in an environment-friendly
manner.

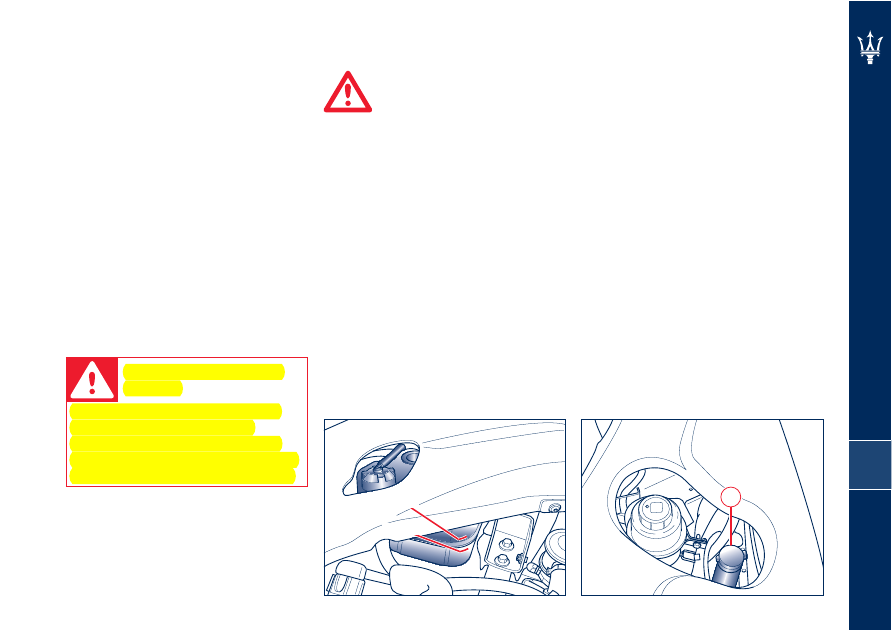

Engine coolant

When the engine is very hot,
do not remove the tank cap:
risk of burns!

The fluid level must be checked with
the engine cold and must be between
the MIN and MAX reference notches
visible on the tank.
If the level is low, slowly pour the
prescribed fluid through the filler
neck on the tank, until the level is
close to the MAX reference notch.

Windshield/headlight washer
fluid

To top up with fluid, open the cover
D, pull out the filler neck extension
and pour in a mixture of water and
detergent fluid, in the proportions
indicated on the product packaging.

WARNING: If the temperature
is below -4 °F (-20°C), use pure
detergent fluid.

WARNING: Do not drive with the
windshield washer tank empty:
proper operation of the windshield
washer is essential for improving
visibility.

California Proposition 65
Warning

THIS MOTOR VEHICLE CONTAINS
CHEMICALS KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE
CANCER, BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM (see page 7)
