Radio

The RADIO mode is activated
by pressing button MODE. If in
“Configuration” mode the “Radio”
option under “Info repetition on
instrument panel” is activated, the
radio station selected or “SEARCH”
function is shown on the instrument
panel display, depending on the
operation the system is performing.
Press the right-hand knob to access
the main functions:
- enter

frequency;

-  deactivate RDS search;
-  activate regional mode;
-  deactivate radio text.

Note: SIRIUS satellite radio, U.S.
service only available in the 48
United States and Canadian Markets.
Subscription is required.

CD, MP3 and Jukebox

The CD/MP3 and Jukebox modes
are activated by pressing the MODE
button. If in “Configuration” mode
the “Radio” option under “Info
repetition on instrument panel” is
activated, the CD, MP3 or Jukebox
and the track played are shown on
the instrument panel display.
In CD /MP3 mode, press the right-
hand knob to access the main
functions:
-  copy CD to Jukebox;
- activate

Introscan;

-  activate random mode;
- activate

repeat.

In Jukebox mode, press the right-hand
knob to access the main functions:
- control

Jukebox;

- configure

Jukebox;

-  delete Jukebox data.

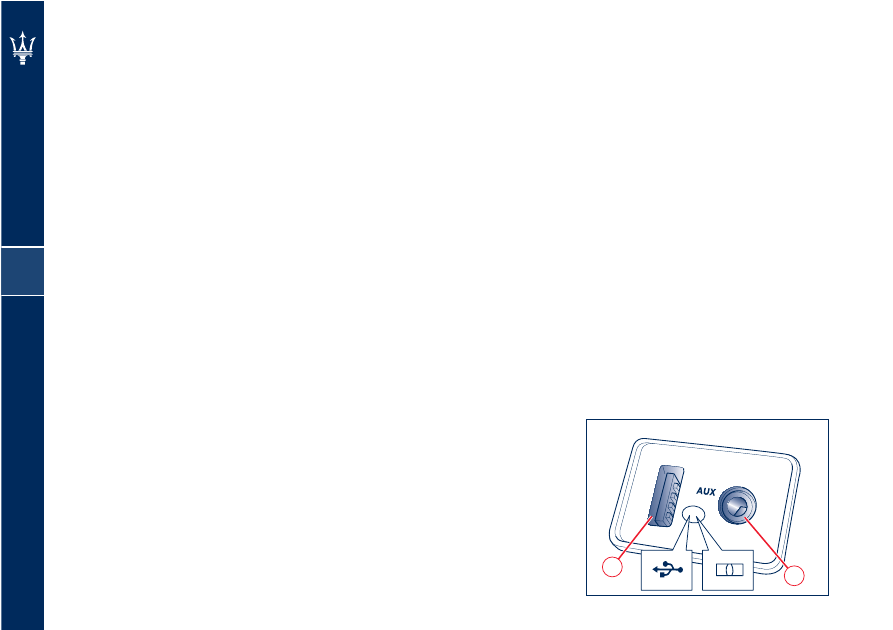

AUX module*

Positioned in the glove compartment,
the AUX auxiliary input A has the
following characteristics:
-  Typical input impedance between

AUX-IN and AUX_REF: 13Kohm.

-  Max. applicable voltage: 0.75Vrms

at 1kHz.

-  Input compatible only with 3.5 mm

(not included).

Therefore, any player that has these
characteristics as well as an analog
audio output (like an headset output)
can be connected to the Multi Media
System.
The MMS system is capable of
autonomously recognizing whether
it is connected to a player socket and,
in this case, it enables access to the
audio functions connected to this
source.

4

121

USB Socket*

The socket B is available in two
different versions: the type provided
with your vehicle can be identified by
the symbol shown next to it:

  - USB Recharge

  - USB Full

USB Recharge Socket

Socket exclusively dedicated to
powering the external source, of
course if this is designed for this
purpose (e.g. iPod).
This socket cannot be used for data
exchange.

USB Full Socket

This socket allows you to exchange
data and power the connected source.
If there are MP3 files on the USB key,
they will automatically start playing.
This will not occur if you are already
listening to a music source; in this
case, you need to select the USB
function by repeatedly pressing
button SOURCE.

iPod Connection*

An iPod can be connected to the
system via the USB (full) and AUX
sockets by means of a special cable
(optional) The Multi Media System
will then control the following
functions: play, pause, fast forward,
rewind, next track, previous track,
random or repeat mode, selection and
navigation of  playlist/genre/artist/
album/Podcast.

Note: On the Maserati website, at
www.maserati.com, or through the
Authorized Maserati Dealer you
can consult the list of iPod devices
compatible with the Multi Media
System, together with their level of
compatibility.

Onboard Trip computer

The on-board Computer mode is
activated by pressing the MODE
button. Press the right-hand knob to
access the main functions:
- service

info

- function

status

-  reset Trip A
-  reset Trip B.

4

122

Bluetooth

®

 function

The Multi Media System uses the
Bluetooth

®

 technology to make

and receive calls using a mobile
device enabled and compatible
with Bluetooth

®

. After pairing your

mobile to the system, the incoming
and dialed calls will be identified
and shown on the Multi Media
System display and on the instrument
panel (if this feature is enabled).
After pairing the system to a mobile
device, all the contact list information
currently stored on the mobile will
be uploaded to the system and it will
be updated every time the pairing
procedure is performed.

Note: On the Maserati web site, at
www.maserati.com, or through the
Authorized Maserati Dealer you
may consult the list of telephones
that are compatible with the Multi
Media System, and their level of
compatibility.

Navigator

When “Navigation” mode is active,
the “Navigator” option under “Info
repetition on instrument panel”
is activated and the following
information is shown on the
instrument panel display:
-  name of the next road to take
-  distance to the next maneuver
-  pictogram of the next maneuver.
Press the right-hand knob to access
the main functions:
- select

destination;

-  layovers and route;
-  route guidance options;
-  stop guidance (only when

navigation mode is active).

* Options depending on the model
and market availability.

A

A

B

E

F

C

D

D

A

4

123

Air conditioning

I

J

4

124

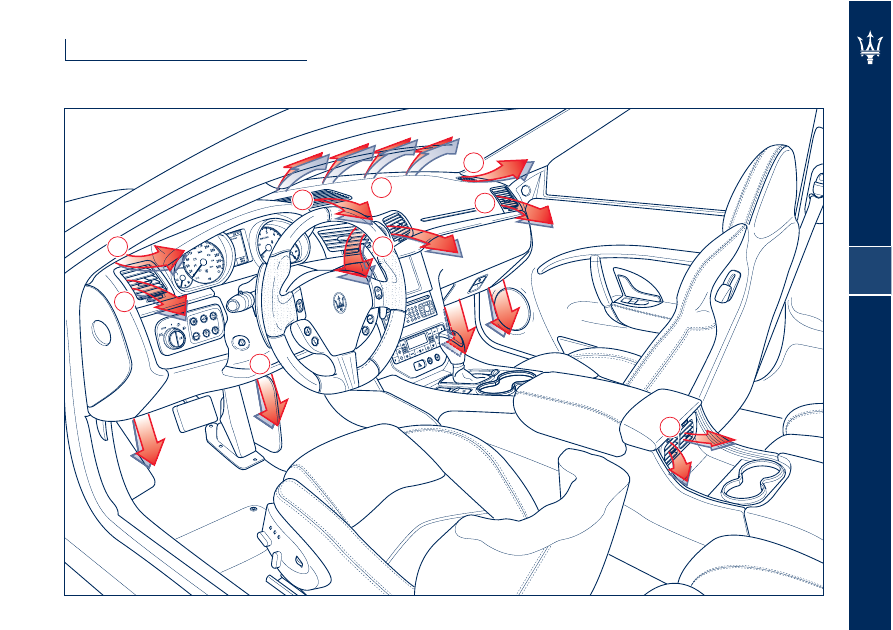

A  - Front central and side vents
B  - Upper dashboard vent
C  - Lower dashboard vents
D  - Upper side dashboard vents
E - Windshield vents
F  - Rear central vents

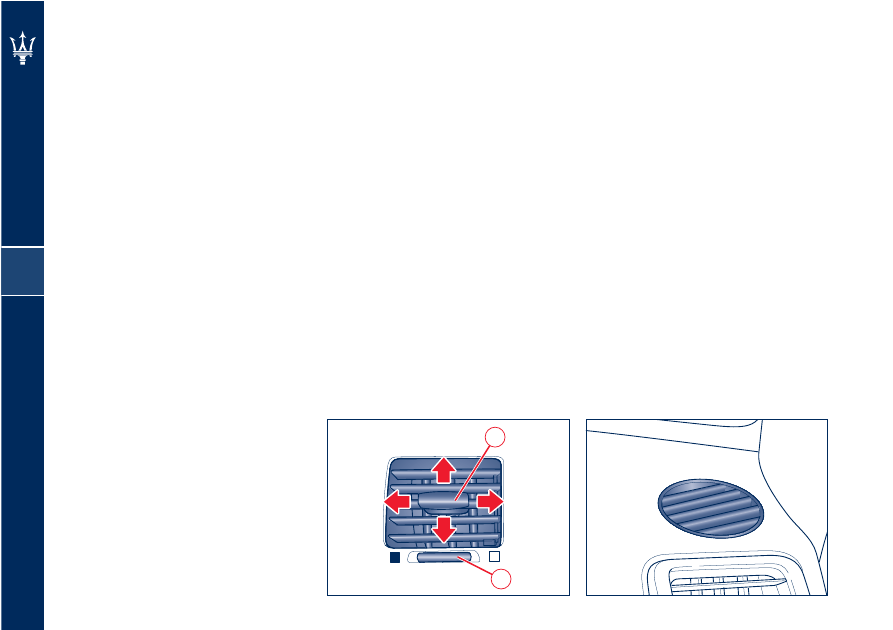

Adjustable vents

These can be positioned vertically and
longitudinally using control I.
Using control J, the air flow
distribution can be adjusted.
Vents A and F have these features.

Fixed air distribution vents

These cannot be adjusted and are
designed specifically for demisting/
defrosting or cooling/heating certain
areas.
Vents B, C, D and E have these
features.

10

9

1

11

7

3

6

8

2

12

10

4

5

13

4

125

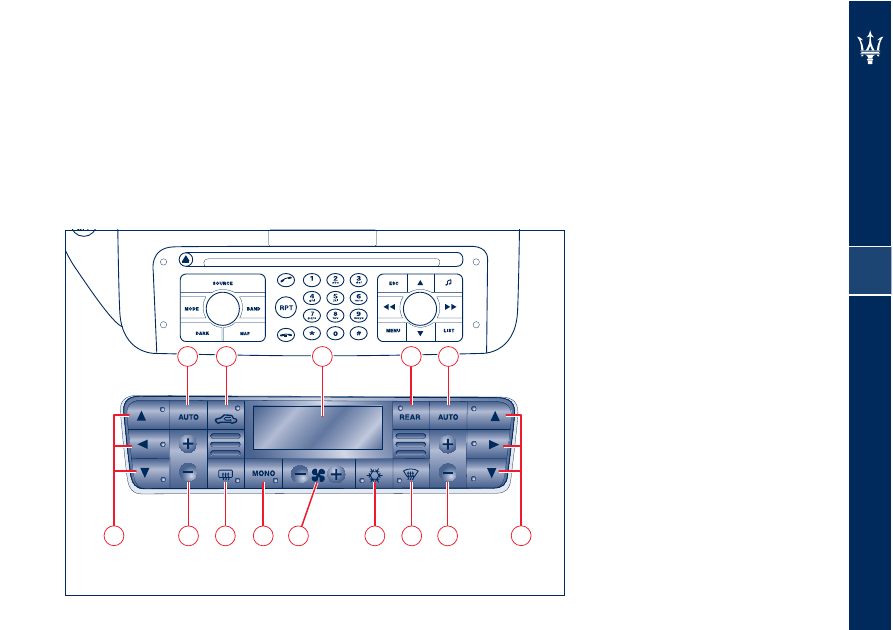

Automatic air conditioning
system control

1)  left-hand side temperature

setting

2)  right-hand side temperature

setting

3)  fan speed adjustment control
4)  air distribution on 7 positions to

the left-hand side

5)  air distribution on 7 positions to

the right-hand side

6)  air conditioning system

compressor activation/
deactivation button

7)  single/dual zone selection button
8) defrosting/demisting

activation/

deactivation button (MAX DEF
function)

9)  air recirculation activation/

deactivation button

10)  automatic/manual system control

button

11)  heated rear window activation/

deactivation button

12)  opening/closing of air duct

leading to rear vents

13)  Air conditioning display, showing

the following informations:

s

graph diagram;

s

for each side.

When the system is in OFF condition,
no indications appear on the display.

4

126

General

The vehicle is equipped with an
automatic dual-zone air conditioning
system.
This systems adjusts the air
temperature, distribution and flow in
the passenger compartment, in two
separate zones: left-hand side and
right-hand side.
Through the panel incorporated
in the center console the user can
control the following parameters/
functions:
-  left-hand/right-hand vent air

temperature

-  left-hand/right-hand vent air

distribution

-  fan speed (stepless change)
- compressor

activation

- air

recirculation.

All the functions listed above can be
modified manually, i.e., the user can
select one or more of these functions
as desired, using the control panel.
The manual selections always have
priority over the automatic ones and
are memorized until the user chooses
the automatic control again.

When a function has been set
manually, the other automatic
functions will not be affected.
The following parameters/functions
can be set/modified manually:
-  left-hand/right-hand side air

temperature

- fan

speed

-  air distribution on 7 positions (left-

hand/right-hand)

- compressor

activation

- single/dual-zone

distribution

priority

- defrosting/demisting

function

(MAX DEF)

- air

recirculation

-  automatic/manual control of the

system

-  heated rear window
- system

deactivation

-  opening/closing of air duct leading

to rear vents.

The system is equipped with a
demisting system which, by means
of a sensor (positioned behind the
internal rear-view mirror) “checks”
a predefined surface area of the
windshield and automatically
activates a special strategy to prevent
or reduce misting up. The sensor can
be disabled by operating any system

control when the strategy is active.
The sensor is enabled upon ignition
and whenever the user presses one of
the buttons 10 AUTO.

WARNING: To ensure proper
functioning of the sensor, do not
apply adhesive parking stickers, etc.
in the “checking” area between the
sensor and the windshield. Therefore,
keep the windshield and the sensor
clean to prevent accumulation of dust
or other impurities.

4

127

Activation

The system can be started up in
a number of ways. It is however
advisable to begin by pressing one
of the buttons 10 AUTO and using
the buttons 1 or 2 to set the desired
temperature. This way the system
will operate in fully automatic mode
so that the temperatures set will be
reached as quickly as possible.
In this condition, manual operations
will activate the following functions:
- MONO

button

7 adjusts the air

temperature and distribution in the
two heating/air conditioning areas.

- REAR

button

12 enables/disables

the air flow to the rear vents

- button

6 turns off the compressor

- button

8 activates/deactivates the

defrosting/demisting function on
the front side windows

- button

11 activates/deactivates the

heated rear window.

By altering any other parameter
manually, such as the air temperature
or distribution, these features switch
from the fully automatic control
mode (FULL AUTO) to manual mode
(AUTO).

On starting the vehicle after stopping,
the various parameters are controlled
manually or automatically, depending
on the options selected by the user
before turning the engine off.
Therefore all the manual operations
performed before the vehicle is
turned off are stored and maintained
for the next start up.
This also applies to the OFF function
described in the following.

System deactivation (OFF function)

If the compressor is deactivated by
setting the fan speed control 3 below
the first bar, the A/C system will be
turned off.
When set to OFF, the heated rear
window button 11 and recirculation
button 9 are controlled normally
without activating the air
conditioning system.
Exiting the OFF mode, the
recirculation function will switch back
to Automatic mode.
To reactivate the A/C system when
OFF select one of the following
options:
-  fan speed ‘’+’’;
- A/C

compressor;

- MAX

DEF;

- AUTO.

Recirculation
This function is activated by pressing
button 9 and allows only the air
already in the passenger compartment
to circulate.
The recirculation function has various
operation modes:
-  Forced closed recirculation (LED on

button illuminated)

-  Forced open recirculation (LED on

button off).

4

128

Automatic mode
When the compressor is deactivated
or outside temperatures are
below 37.4 °F (3˚C), the automatic
recirculation function is deactivated
automatically.
After prolonged operation (over
15 minutes in a row), the system
deactivates the recirculation function
automatically for safety reasons,
allowing the exchange of air once
again.

Forced closed recirculation
In this operating mode, the
illumination of the amber LED
indicates that the recirculation vent is
closed.

Forced open recirculation
In this operating mode, the LED
turned off indicates that the outside
air vent is opening.

AUTO mode

When this button is pressed (one
button per zone), automatic mode
will control the following functions
once again:
-  air distribution (for the side

concerned)

- fan

speed

-  compressor operation (illumination

of the ECON LED)

- air

recirculation.

REAR mode

Press the button REAR 12 (relative LED
illuminated) to:
-  Open/close the air flow to the rear

vents.

This function is active in both
“MONO” and “DUAL-ZONE” modes.

System initialization

Every time the battery is reconnected,
when the vehicle is started the system
must be initialized by activating the
compressor. The display automatically
shows the passenger compartment
temperatures set to 71.6 °F (22˚C).
The system is configured as follows:
-  AUTO (automatic operation, the

words “FULL AUTO” appear on the
display).

-  Compressor enabled (the LED on

the button is illuminated).

- Defrosting/demisting

function

(MAX DEF) deactivated (the LED on
the button is off).

-  Heated rear window deactivated

(the LED on the button is off).

- Open

recirculation.

-  Air ventilation and distribution are

set by the system.

-  REAR disabled (the LED on the

button is off), the air flows to the
rear vents.

3

5

2

4

1

2

9

6

7

8

6

4

129

Bose

®

 Surround Sound

System

The digital Hi-Fi system, developed
in association with BOSE

®

 Surround

Sound System, incorporates exclusive
accessories such as the innovative
speakers with neodymium technology,
and makes use of other systems
such as AudioPilot

®

, Centerpoint

®



active electronic equalization and
SurroundStage

®

 amplifier system.

AudioPilot

®

 system

The AudioPilot

®

 technology detects

and measures the ambient noise
and continuously adjusts a number
of acoustic signal parameters
accordingly, in order to help ensure
optimal sound quality levels inside the
passenger compartment.

Centerpoint

®

Equalizing system that converts the
stereo recordings into 8 separate
channels, thus helping to ensure
optimal precision with any volume
level. The automatic output frequency
balancing makes manual adjustments
through switches or dials unnecessary.

Diversity system

It is made up of two antennas coupled
to each other which, by combining
the signal, help the tuner receive a
strong frequency and optimize any
search for ultra-short waves.

4

130

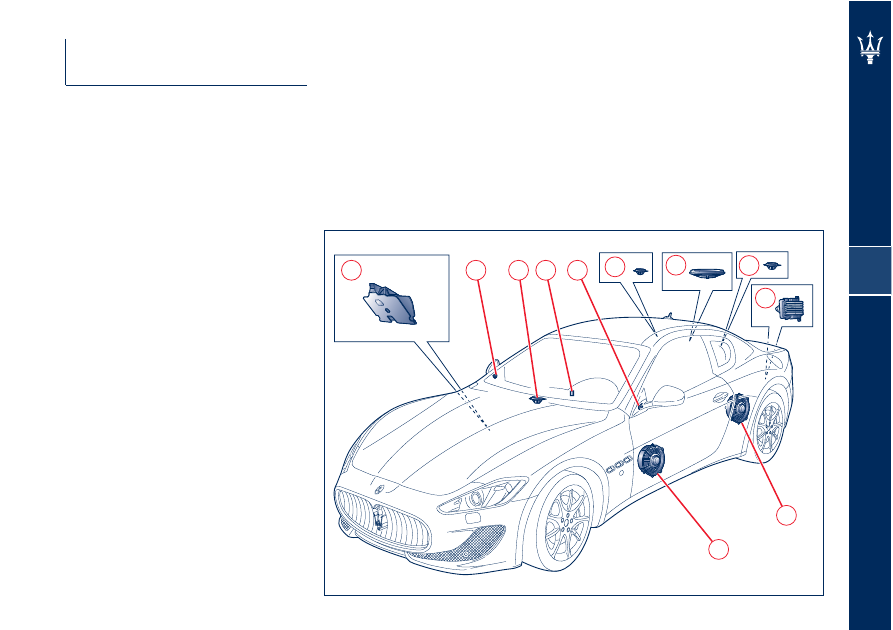

The car radio system is made up of the
following parts:
1)  One 3.1 in (80 mm) Nd

(Neodymium) Twiddler for
high and medium frequencies,
positioned centrally on the
dashboard;

2)  Two 1.4 in (36 mm) Nd

(Neodymium) Tweeters positioned
in the passenger compartment,
near the external rear-view
mirrors;

3)  Two 6.5 in (165 mm) Nd

(Neodymium) speakers for low
and medium frequencies on each
of the door panels;

4)  One 5.1 in (13 cm) Nd

(Neodymium) Woofer

®

 Richbass

®



powered by an amplifier with
two-stage modulation, fitted on
the passenger-side footrest;

5)  Two 6.5 in (165 mm) Nd

(Neodymium) speakers for low
and medium frequencies, on the
side panels of the rear seats;

6)  Two 3.1 in (80 mm) Nd

(Neodymium) Twiddlers for
high and medium frequencies,
positioned on the side of the rear
luggage shelf;

7)  One 10 in (255 mm) Nd Power

®



woofer powered by an amplifier,
positioned centrally on the rear
luggage shelf;

8)  Digital amplifier (with

Centerpoint

®

, SurroundStage

®



and AudioPilot

®

 technology,

and personalized 8-channel
equalization) located on inner
left-hand side of luggage
compartment;

9)  AudioPilot

®

 sensor, located to the

right of the steering wheel.

5

131

Using the vehicle

Starting the engine

132

Electronic automatic gearbox

134

Fuel economy

146

Using the brakes

147

Using the engine

148

Cruise Control

150

Skyhook suspension

153

Headlights 156
Driving conditions

157

Emission control devices

161

Parking 163
Tires 166
Useful accessories to keep in the vehicle

172

California Proposition 65
Warning

THIS MOTOR VEHICLE CONTAINS
CHEMICALS KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE
CANCER, BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM (see page 7)

5

132

Starting the engine

Hold the brake pedal down
when starting the engine.

It is dangerous to operate
the engine in a closed
space. The engine consumes

oxygen and discharges carbon
dioxide, carbon monoxide and other
toxic gases.

WARNING: Before start-up, turn off
the electrical devices with a high
power absorption (air-conditioning
and heating system, heated rear
window, headlights, etc.).

WARNING: Do not start the engine if
the fuel level in the tank is low.

1)  Make sure that the electric

parking brake is applied and that
the doors are closed.

2)  Hold the brake pedal down when

starting the engine.

3)  Do not press the accelerator

pedal.

4)  Check that the letter P (PARK)

or N (NEUTRAL) is shown on
the gear display and on the
instrument panel.

5)  Turn the key to position AVV and

release it as soon as the engine
starts. Do not hold the key in
position AVV for a long time. If
the engine does not start, turn
the key to position STOP (OFF),
wait for the gear display to go
off and then repeat the entire
procedure.

The engine can only be started when
the gearshift lever is in P (PARK) or N
(NEUTRAL).
With the engine started, release the
key, which will automatically return to
position MAR (ON).
If the engine does not start, turn the
key to position STOP (OFF), wait for
the gear display to go off and then
repeat the entire procedure.

Starting-off when the engine is
cold

Start-off slowly, avoiding sudden
accelerations and run the engine
at low-medium speeds. High-
performance driving should be
avoided until the coolant temperature
reaches 149-158 °F (65–70 °C).

Emergency starting with
auxiliary battery

If the battery is dead, the engine
can be started using another battery
having the same or slightly higher
capacity than the dead one.
Follow the below instructions:
1)  Connect the positive terminals (+)

of the two batteries with a special
cable.

2)  Connect the negative terminals (-)

of the two batteries with a special
cable.

WARNING: The battery is secured to
the vehicle with a metal clamp, so be
extremely careful not to let the clips
on the end of the cables come into
contact with the clamp.

3)  Start the engine.
4)  When the engine starts, remove

the cables in reverse order.

A

California Proposition 65
Warning

THIS MOTOR VEHICLE CONTAINS
CHEMICALS KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE
CANCER, BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM (see page 7)

5

133

If the engine does not start after a
number of attempts, do not continue
but consult your Authorized Maserati
Dealer.

Do not perform this
procedure if you are
unexperienced: incorrect

maneuvers can cause high electrical
discharges and can even cause the
battery to explode.

You are also advised not to
approach the battery with
open flames or lit cigarettes

and not to cause sparks: Risk of
explosion and fire!

WARNING: Never use a battery-
charger for emergency starting
under any circumstances: you could
damage the electronic systems and
in particular the ECUs that control
ignition and fuel supply functions.

Remember that when the
engine is not started, the
brake servo and power

steering systems are not functioning
and therefore the effort required on
the brake pedal and steering wheel is
much greater.

Turning off the engine

With the engine idling, turn the
ignition key to STOP (OFF).
A burst on the accelerator pedal
before turning off the engine has
no purpose and increases fuel
consumption.

WARNING: The ignition key can only
be removed from the switch when
the gearshift lever is in position P
and within 30 seconds after turning
the key to STOP (OFF). If you do not
remove the key within 30 seconds,
you will need to turn it back to MAR
(ON) and then to STOP (OFF) to have
a further 30 seconds within which to
remove the key.

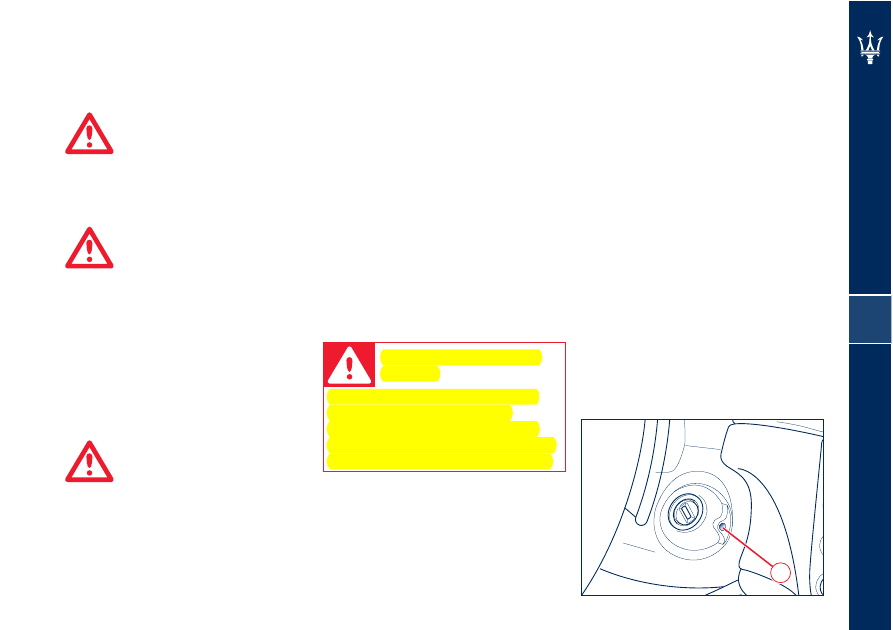

In the event that the key unlocking
system fails or if it is not possible
to shift the gearshift lever to P, to
remove the key you must turn it to
STOP (OFF), then remove the cap A
using a pen or sufficiently pointed
tool, then press the button just
uncovered and at the same time
extract the key. Once the key has
been removed, refit the cap A.

C

D

B

E

F

A

5

134

Electronic automatic
gearbox

The electronically-controlled gearbox
has six forward gear ratios and one
reverse gear. The gears can also be
engaged manually once you have
shifted the gearshift lever to the
sector provided.

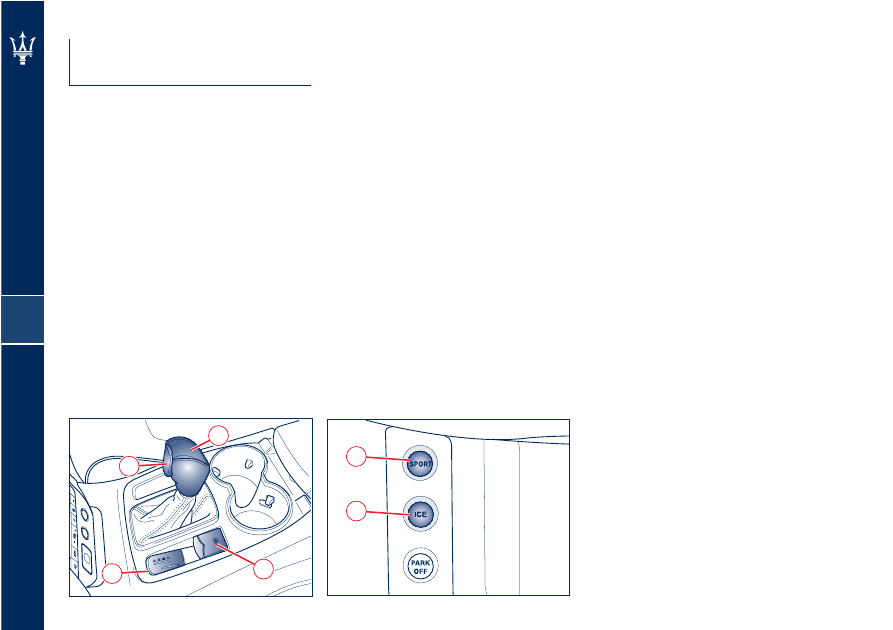

The gearbox controls are the
following:
A  - gearshift mode selection lever;
B  - button on the gearbox lever to

engage R (Reverse) and P (PARK);

C - button SPORT;
D - button ICE (low grip);
E - gear display.

The SPORT and ICE modes can be
selected both when the gearbox
is set to automatic (AUTO) and
to sequential manual (MANUAL)
operation.

The gearbox operating mode is
controlled by the lever A.
This lever can be moved to the
following positions:
P – (PARK)
R – (REVERSE)
N – (NEUTRAL)
D – (DRIVE)
+ / - – (MANUAL)
The position of the gearshift lever A
is shown on the gear display E by the
illumination of the corresponding
letter. This letter is also shown on the
instrument panel display.

WARNING: In order to correctly use
the automatic gearbox, it is essential
that you first read through this whole
chapter so that you can learn which
operations are correct and permitted.

The gearbox is also equipped with
Shift-Lock and Key-Lock safety
systems.

Shift-Lock

This safety system allows you to shift
from P (PARK) to another position
only if the brake pedal is depressed.
This prevents the vehicle from
involuntarily jumping forward or
backward.

Key-Lock

This function allows you to remove
the key from the ignition switch
only when the gearshift lever A is
in position P and within a maximum
time of 30 seconds; when this time
has elapsed, the key can no longer be
removed.

5

135

Starting the engine

The engine can only be started when
the gearshift lever A is in P or N.

Always start the engine
holding the brake pedal
depressed.

WARNING: After starting the engine
and setting off, do not depress the
accelerator pedal before and while
shifting the gearshift lever A.
This is particularly important when
the engine is cold.

Driving the vehicle

After starting the vehicle, with the
engine idling and the brake pedal
depressed (Shift-lock safety), move
the gearshift lever A to position D or
in the position for sequential manual
gearshifting +o -.
Release the brake pedal and gradually
depress the accelerator pedal.

WARNING:The gearshift lever can
be moved to position P only when
the ignition key is in the MAR (ON)
position and the button B and the
brake pedal are pushed (Shift-lock
safety).

For safety reasons, the gearshift lever
A can be moved from position D to
positions R and P only when button
B is pushed. It is also advisable to
depress the brake pedal during this
maneuver.

WARNING: Do not run the engine at
top RPM until it has reached stable
operating temperature.

WARNING: In the case of performance
starting, check that the electric
parking brake is disengaged.

Do not keep the vehicle
stationary for a long time
with the brake pedal

depressed, the gearshift lever in D
and the engine running, as this may
lead to malfunctions.

WARNING: For more comfortable
starting (with the gearshift lever in D,
R or Manual and the electric parking
brake - EPB - engaged), push the
brake pedal, manually deactivate the
EPB system by pulling up the lever F,
and push the accelerator pedal.

Hill Holder Strategy

The Hill Holder system helps the driver
when starting-off on uphill slopes.
It activates only following a vehicle
stop when the brake pedal is released,
keeping the vehicle stationary for
a moment, so as to allow the driver
to move his foot from the brake to
the accelerator pedal. The system is
activated on slopes with a gradient of
more than 15°.

Stopping the vehicle

Regardless of the position of the
gearshift lever A, you must only
depress the brake pedal to stop the
vehicle.

When the gearshift lever is
in position D, R or MANUAL,
the engine idling and the

vehicle on an even surface, if the
brake pedal is not depressed, the
vehicle can move.

The ignition key can be removed from
the switch only when the gearshift
lever A is in position P and within 30
seconds from turning the key to STOP
(OFF). The letter P (Key-Lock safety) is
displayed on the instrument panel for
this entire time.
If you do not remove the key within
30 seconds, you will need to turn it
back to MAR (ON) and then to STOP
