Buick Enclave (2009 year). Manual - part 23





Finish Damage

Any stone chips, fractures or deep
scratches in the finish should
be repaired right away. Bare metal
will corrode quickly and may
develop into major repair expense.

Minor chips and scratches can
be repaired with touch-up materials
available from your dealer/retailer.
Larger areas of finish damage
can be corrected in your dealer’s/
retailer’s body and paint shop.

Underbody Maintenance

Chemicals used for ice and snow
removal and dust control can collect
on the underbody. If these are not
removed, corrosion and rust can
develop on the underbody parts such
as fuel lines, frame, floor pan, and
exhaust system even though they
have corrosion protection.

At least every spring, flush these
materials from the underbody
with plain water. Clean any areas
where mud and debris can collect.

Dirt packed in close areas of the
frame should be loosened before
being flushed. Your dealer/retailer or
an underbody car washing system
can do this.

Chemical Paint Spotting

Some weather and atmospheric
conditions can create a chemical
fallout. Airborne pollutants can
fall upon and attack painted surfaces
on the vehicle. This damage can
take two forms: blotchy, ring-shaped
discolorations, and small, irregular
dark spots etched into the paint
surface.

Although no defect in the paint job
causes this, we will repair, at no
charge to the owner, the surfaces of
new vehicles damaged by this
fallout condition within 12 months or
12,000 miles (20 000 km) of
purchase, whichever occurs first.

Vehicle Identification

Vehicle Identification
Number (VIN)

This is the legal identifier for your
vehicle. It appears on a plate in the
front corner of the instrument
panel, on the driver side. It can be
seen through the windshield
from outside the vehicle. The VIN
also appears on the Vehicle
Certification and Service Parts
labels and the certificates of title and
registration.

5-90

Service and Appearance Care

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Engine Identification

The eighth character in the VIN is
the engine code. This code
helps identify the vehicle’s engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
on page 5-98 for your vehicle’s
engine code.

Service Parts
Identification Label

This label is on the inside of the
glove box. It is very helpful if
you ever need to order parts. The
label has the following information:

Vehicle Identification
Number (VIN)

Model designation

Paint information

Production options and special
equipment

Do not remove this label from the
vehicle.

Electrical System

High Voltage Devices and
Wiring

{

CAUTION

Exposure to high voltage can
cause shock, burns, and even
death. The high voltage systems
in your vehicle can only be
serviced by technicians with
special training.

High voltage devices are identified
by labels. Do not remove, open,
take apart, or modify these
devices. High voltage cable or
wiring has orange covering. Do not
probe, tamper with, cut, or modify
high voltage cable or wiring.

Add-On Electrical
Equipment

Notice: Do not add anything
electrical to the vehicle unless
you check with your dealer/
retailer first. Some electrical
equipment can damage the
vehicle and the damage would
not be covered by the vehicle’s
warranty. Some add-on electrical
equipment can keep other
components from working as
they should.

Add-on equipment can drain the
vehicle’s battery, even if the vehicle
is not operating.

The vehicle has an airbag system.
Before attempting to add anything
electrical to the vehicle, see
Servicing Your Airbag-Equipped
Vehicle
on page 1-56.

Service and Appearance Care

5-91

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Windshield Wiper Fuses

The windshield wiper motor is
protected by a circuit breaker and a
fuse. If the motor overheats due
to heavy snow or ice, the wiper will
stop until the motor cools. If the
overload is caused by some
electrical problem, have it fixed.

Power Windows and
Other Power Options

Circuit breakers in the fuse block
protect the power windows and
other power accessories. When the
current load is too heavy, the
circuit breaker opens and closes,
protecting the circuit until the
problem is fixed or goes away.

Fuses and Circuit
Breakers

The wiring circuits in your vehicle are
protected from short circuits by
a combination of fuses, circuit
breakers and fusible thermal links.
This greatly reduces the chance of
fires caused by electrical problems.

Look at the silver-colored band
inside the fuse. If the band is broken
or melted, replace the fuse. Be sure
you replace a bad fuse with a new
one of the identical size and rating.

Fuses of the same amperage can be
temporarily borrowed from another
fuse location, if a fuse goes out.
Replace the fuse as soon as
you can.

Instrument Panel Fuse
Block

The instrument panel fuse block is
located under the instrument
panel on the passenger side of the
vehicle. Pull down on the cover
to access the fuse block.

5-92

Service and Appearance Care

-------------------------------------------------------------------------------------------------------------------------------------------------------------

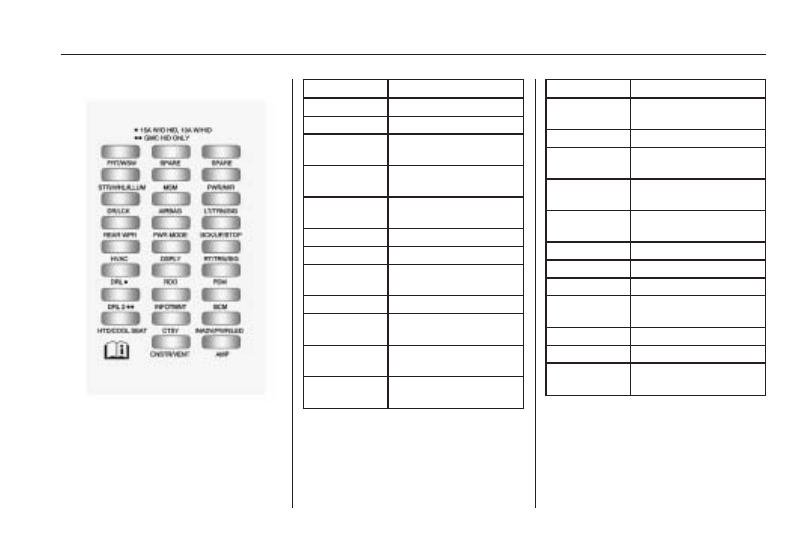

Fuses

Usage

AIRBAG

Airbag

AMP

Amplifier

BCK/UP/

STOP

Back-up
Lamp/Stoplamp

BCM

Body Control
Module

CNSTR/

VENT

Canister Vent

CTSY

Courtesy

DR/LCK

Door Locks

DRL

Daytime Running
Lamps

DSPLY

Display

FRT/WSW

Front Windshield
Washer

HTD/COOL

SEAT

Heated/Cooling
Seats

HVAC

Heating, Ventilation
and Air Conditioning

Fuses

Usage

IADV/

PWR/LED

Inadvertent
Power LED

INFOTMNT Infotainment

LT/TRN/SIG

Driver Side Turn
Signal

MSM

Memory Seat
Module

PWR

MODE

Power Mode

PWR/MIR

Power Mirrors

RDO

Radio

REAR WPR Rear Wiper

RT/TRN/SIG

Passenger Side
Turn Signal

SPARE

Spare

SPARE

Spare

STR/WHL/

ILLUM

Steering Wheel
Illumination

Fuse Side

Service and Appearance Care

5-93

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Relays

Usage

LT/

PWR/SEAT

Driver Side Power
Seat Relay

RT/

PWR/SEAT

Passenger Side
Power Seat Relay

PWR/

WNDW

Power Windows
Relay

PWR/

COLUMN

Power Steering
Column Relay

Relays

Usage

L/GATE

Liftgate Relay

LCK

Power Lock Relay

REAR/WSW

Rear Window
Washer Relay

UNLCK

Power Unlock Relay

DRL2

Daytime Running
Lamps 2 Relay

LT/UNLCK

Driver Side Unlock
Relay

DRL

Daytime Running
Lamps Relay

SPARE

Spare

FRT/WSW

Front Windshield
Washer Relay

Underhood Fuse Block

The underhood fuse block is located
in the engine compartment, on
the passenger side of the vehicle.

Lift the cover for access to the
fuse/relay block.

Notice: Spilling liquid on any
electrical components on the
vehicle may damage it. Always
keep the covers on any electrical
component.

To remove fuses, hold the end of the
fuse between your thumb and index
finger and pull straight out.

Relay Side

5-94

Service and Appearance Care

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fuses

Usage

A/C

CLUTCH

Air Conditioning
Clutch

ABS MTR

Antilock Braking
System (ABS) Motor

AFS

Adaptive Forward
Lighting System

AIRBAG

Airbag System

Fuses

Usage

AUX

POWER

Auxiliary Power

AUX VAC

PUMP

Auxiliary Vacuum
Pump

AWD

All-Wheel-Drive
System

BATT 1

Battery 1

Fuses

Usage

BATT 2

Battery 2

BATT 3

Battery 3

ECM

Engine Control
Module

ECM 1

Engine Control
Module 1

EMISSION 1 Emission 1
EMISSION 2 Emission 2

EVEN

COILS

Even Injector Coils

FAN 1

Cooling Fan 1

FAN 2

Cooling Fan 2

FOG LAMP Fog Lamps

FSCM

Fuel System Control
Module

HORN

Horn

HTD WASH

Heated Windshield
Washer Fluid

HTD MIR

Heated Outside
Rearview Mirror

HVAC

BLWR

Heating, Ventilation
and Air Conditioning
Blower

Service and Appearance Care

5-95

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fuses

Usage

LT HI

BEAM

Left High-Beam
Headlamp

LT LO
BEAM

Left Low-Beam
Headlamp

LT PRK

Left Parking Lamp

LT TRLR

STOP/TRN

Trailer Left
Stoplamp and Turn
Signal

ODD

COILS

Odd Injector Coils

PCM IGN

Powertrain Control
Module Ignition

PWR

L/GATE

Power Liftgate

PWR

OUTLET

Power Outlet

REAR

CAMERA

Rear Camera

RR APO

Rear Accessory
Power Outlet

RR DEFOG Rear Defogger

Fuses

Usage

RR HVAC

Rear Climate
Control System

RT HI

BEAM

Right High-Beam
Headlamp

RT LO

BEAM

Right Low-Beam
Headlamp

RT PRK

Right Parking Lamp

RT TRLR

STOP/TRN

Trailer Right
Stoplamp and Turn
Signal

RVC SNSR

Regulated Voltage
Control Sensor

S/ROOF/

SUNSHADE

Sunroof

SPARE

Spare

SPARE

Spare

SPARE

Spare

SPARE

Spare

Stop Lamps

(China

Only)

Stop Lamps
(China Only)

Fuses

Usage

STRTR

Starter

TCM

Transmission
Control Module

TRANS

Transmission

TRLR

BCK/UP

Trailer Back-up
Lamps

TRLR BRK

Trailer Brake

TRLR PRK

LAMP

Trailer Parking
Lamps

TRLR PWR Trailer Power

WPR/WSW

Windshield
Wiper/Washer

5-96

Service and Appearance Care

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Relays

Usage

A/C

CMPRSR

CLTCH

Air Conditioning
Compressor Clutch

AUX VAC

PUMP

Auxiliary
Vacuum Pump

CRNK

Switched Power

FAN 1

Cooling Fan 1

FAN 2

Cooling Fan 2

FAN 3

Cooling Fan 3

FOG LAMP Fog Lamps

HI BEAM

High-Beam
Headlamps

HID/LO

BEAM

High Intensity
Discharge (HID)
Low-Beam
Headlamps

HORN

Horn

IGN

Ignition Main

Relays

Usage

LT TRLR

STOP/TRN

Trailer Left
Stoplamp and Turn
Signal Lamp

PRK LAMP Park Lamp

PWR/TRN

Powertrain

RR DEFOG

Rear Window
Defogger

RT TRLR

STOP/TRN

Trailer Right
Stoplamp and Turn
Signal Lamp

Stop Lamps

(China

Only)

Stop Lamps
(China Only)

TRLR

BCK/UP

Trailer Back-up
Lamps

WPR

Windshield Wiper

WPR HI

Windshield Wiper
High Speed

Service and Appearance Care

5-97

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Capacities and Specifications

The following approximate capacities are given in English and metric conversions. See Recommended Fluids and
Lubricants
on page 6-12 for more information.

Application

Capacities

English

Metric

Air Conditioning Refrigerant R134a

For the air conditioning system refrigerant charge

amount, see the refrigerant caution label located

under the hood. See your dealer/retailer for more

information.

Cooling System

11.4 qt

10.8 L

Engine Oil with Filter

5.5 qt

5.2 L

Fuel Tank

22.0 gal

83.3 L

Transmission Fluid*

5.3 qt

5.0 L

Wheel Nut Torque

140 lb ft

190

Y

*Transmission fluid capacity is approximate. See Automatic Transmission Fluid on page 5-15 for information on
checking fluid level.
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.

Engine Specifications

Engine

VIN Code

Transmission

Spark Plug Gap

3.6L V6 Engine

D

Automatic

0.043 in (1.10 mm)

5-98

Service and Appearance Care

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance
Requirements

Notice: Maintenance intervals,
checks, inspections, replacement
parts, and recommended fluids
and lubricants as prescribed
in this manual are necessary to
keep this vehicle in good working
condition. Any damage caused
by failure to follow scheduled
maintenance might not be
covered by the vehicle warranty.

Your Vehicle and the
Environment

Proper vehicle maintenance not only
helps to keep the vehicle in good
working condition, but also helps the
environment. All recommended
maintenance is important. Improper
vehicle maintenance can even
affect the quality of the air we
breathe. Improper fluid levels or the
wrong tire inflation can increase
the level of emissions from the
vehicle. To help protect the

environment, and to keep the
vehicle in good condition, be sure to
maintain the vehicle properly.

Using the Maintenance
Schedule

We want to help keep this vehicle in
good working condition. But we
do not know exactly how you
will drive it. You might drive very
short distances only a few times a
week. Or you might drive long
distances all the time in very hot,
dusty weather. You might use
the vehicle in making deliveries. Or
you might drive it to work, to do
errands, or in many other ways.

Because of all the different
ways people use their vehicles,
maintenance needs vary. You might
need more frequent checks and
replacements. So please read the
following and note how you
drive. If you have any questions on
how to keep the vehicle in good
condition, see your dealer/retailer.

This schedule is for vehicles that:

carry passengers and cargo
within recommended limits on the
Tire and Loading Information
label. See Loading the Vehicle on
page 4-16
.

are driven on reasonable road
surfaces within legal driving
limits.

use the recommended fuel. See
Gasoline Octane on page 5-5.

The services in Scheduled
Maintenance
on page 6-3 should be
performed when indicated. See
Additional Required Services
on page 6-6 and Maintenance
Footnotes
on page 6-7 for further
information.

6-2

Maintenance Schedule

-------------------------------------------------------------------------------------------------------------------------------------------------------------

{

CAUTION

Performing maintenance work on
a vehicle can be dangerous. In
trying to do some jobs, you can
be seriously injured. Do your own
maintenance work only if you
have the required know-how and
the proper tools and equipment
for the job. If you have any doubt,
see your dealer/retailer to have a
qualified technician do the work.
See Doing Your Own Service
Work
on page 5-4.

Some maintenance services can be
complex. So, unless you are
technically qualified and have the
necessary equipment, have
your dealer/retailer do these jobs.

When you go to your dealer/retailer
for service, trained and supported
service technicians will perform
the work using genuine parts.

To purchase service information,
see Service Publications Ordering
Information
on page 7-13.

Owner Checks and Services on
page 6-8
tells what should be
checked, when to check it, and what
can easily be done to help keep
the vehicle in good condition.

The proper replacement parts,
fluids, and lubricants to use
are listed in Recommended Fluids
and Lubricants
on page 6-12
and Maintenance Replacement
Parts
on page 6-14. When the
vehicle is serviced, make sure these
are used. All parts should be
replaced and all necessary repairs
done before you or anyone else
drives the vehicle. We recommend
the use of genuine parts from
your dealer/retailer.

Scheduled Maintenance

When the CHANGE ENGINE
OIL SOON message displays,
service is required for the vehicle.
Have the vehicle serviced as
soon as possible within the next
600 miles (1 000 km). It is possible
that, if driving under the best
conditions, the engine oil life system
might not indicate that vehicle
service is necessary for over a year.
However, the engine oil and filter
must be changed at least once
a year and at this time the system
must be reset. Your dealer/retailer
has trained service technicians
who will perform this work using
genuine parts and reset the system.

If the engine oil life system is ever
reset accidentally, service the vehicle
within 3,000 miles (5 000 km) since
the last service. Remember to reset
the oil life system whenever the oil is
changed. See Engine Oil Life
System
on page 5-13 for information
on the Engine Oil Life System and
resetting the system.

Maintenance Schedule

6-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When the CHANGE ENGINE OIL
SOON message appears, certain
services, checks, and inspections
are required. Required services
are described in the following
for “Maintenance

I

” and

“Maintenance

II

.” Generally, it is

recommended that the first service
be Maintenance

I

, the second

service be Maintenance

II

, and then

alternate Maintenance

I

and

Maintenance

II

thereafter. However,

in some cases, Maintenance

II

may be required more often.

Maintenance

I

— Use

Maintenance

I

if the CHANGE

ENGINE OIL SOON message
displays within 10 months since the
vehicle was purchased or
Maintenance

II

was performed.

Maintenance

II

— Use

Maintenance

II

if the previous

service performed was
Maintenance

I

. Always use

Maintenance

II

whenever the

message displays 10 months or
more since the last service or if the
message has not come on at all
for one year.

Scheduled Maintenance

Service

Maintenance

I

Maintenance

II

Change engine oil and filter. See Engine Oil on page 5-11. Reset oil life
system. See Engine Oil Life System on page 5-13An Emission Control
Service.

Visually check for any leaks or damage. See footnote (g).

Inspect engine air cleaner filter. If necessary, replace filter. See Engine Air
Cleaner/Filter
on page 5-14See footnote (l).

Rotate tires and check inflation pressures and wear. See Tire Inspection and
Rotation
on page 5-48 and “Tire Wear Inspection” in At Least Once a Month
on page 6-9.

Inspect brake system. See footnote (a).

Check engine coolant and windshield washer fluid levels and add fluid
as needed.

6-4

Maintenance Schedule

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Scheduled Maintenance (cont’d)

Service

Maintenance

I

Maintenance

II

Perform any needed additional services. See “Additional Required Services” in
this section.

Inspect suspension and steering components. See footnote (b).

Inspect engine cooling system. See footnote (c).

Inspect wiper blades. See footnote (d).

Inspect restraint system components. See footnote (e).

Lubricate body components. See footnote (f).

Inspect throttle system. See footnote (j).

Maintenance Schedule

6-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Additional Required Services

The following services should be performed at the first maintenance service (

I

or

II

) after the indicated miles

(kilometers) shown for each item.

Additional Required Services

Service and Miles (Kilometers)

25,000

(40 000)

50,000

(80 000)

75,000

(120 000)

100,000

(160 000)

125,000

(200 000)

150,000

(240 000)

Inspect fuel system for damage
or leaks.

Inspect exhaust system for loose or
damaged components.

Replace engine air cleaner filter. See
Engine Air Cleaner/Filter on page 5-14.

Change automatic transmission fluid
(severe service). See footnote (h).

Change automatic transmission fluid
(normal service).

All-wheel-drive vehicles: Change
transfer case fluid (severe service).
See footnote (m).

All-wheel-drive vehicles: Change
transfer case fluid (normal service).

Replace spark plugs and inspect spark
plug wires. An Emission Control
Service.

6-6

Maintenance Schedule

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Additional Required Services (cont’d)

Service and Miles (Kilometers)

25,000

(40 000)

50,000

(80 000)

75,000

(120 000)

100,000

(160 000)

125,000

(200 000)

150,000

(240 000)

Engine cooling system service
(or every five years, whichever occurs
first). An Emission Control Service.
See footnote (i).

Inspect engine accessory drive belt.
An Emission Control Service.
See footnote (k).

Maintenance Footnotes

(a) Visually inspect brake lines
and hoses for proper hook-up,
binding, leaks, cracks, chafing, etc.
Inspect disc brake pads for wear
and rotors for surface condition.
Inspect other brake parts, including
calipers, parking brake, etc.
Check parking brake adjustment.

(b) Visually inspect front and
rear suspension and steering
system for damaged, loose, or
missing parts or signs of wear.

Inspect power steering lines and
hoses for proper hook-up, binding,
leaks, cracks, chafing, etc.

(c) Visually inspect hoses and have
them replaced if they are cracked,
swollen, or deteriorated. Inspect all
pipes, fittings and clamps; replace
with genuine parts as needed. To
help ensure proper operation, a
pressure test of the cooling system
and pressure cap and cleaning the
outside of the radiator and air
conditioning condenser is
recommended at least once a year.

(d) Inspect wiper blades for wear,
cracking, or contamination. Clean the
windshield and wiper blades, if
contaminated. Replace wiper blades
that are worn or damaged. See
Windshield Wiper Blade
Replacement
on page 5-36 and
Windshield, Backglass, and Wiper
Blades
on page 5-88 for more
information.

(e) Make sure the safety belt
reminder light and safety belt
assemblies are working properly.
Look for any other loose or
damaged safety belt system parts.

Maintenance Schedule

6-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     21      22      23      24     ..
