Gate Operator and Canadian
Programming

Canadian radio-frequency laws require transmitter
signals to “time out” or quit after several seconds of
transmission. This may not be long enough for
HomeLink

®

to pick up the signal during programming.

Similarly, some U.S. gate operators are manufactured
to “time out” in the same manner.

If you live in Canada, or you are having difficulty
programming a gate operator by using the “Programming
HomeLink

®

” procedures (regardless of where you live),

replace Step 3 under “Programming HomeLink

®

” with

the following:

Continue to press and hold the HomeLink

®

button while

you press and release every two seconds (cycle)
your hand-held transmitter until the frequency signal has
been successfully accepted by HomeLink

®

. The

indicator light will flash slowly at first and then rapidly.
Proceed with Step 4 under “Programming HomeLink

®

to complete.

Using HomeLink

®

Press and hold the appropriate HomeLink

®

button for

at least half of a second. The indicator light will come on
while the signal is being transmitted.

Erasing HomeLink

®

Buttons

To erase programming from the three buttons do the
following:

1. Press and hold down the two outside buttons until

the indicator light begins to flash, after 20 seconds.
Do not hold the two outside buttons for longer
than 30 seconds.

2. Release both buttons.

HomeLink

®

is now in the train (learning) mode and

can be programmed at any time beginning with Step 2
under “Programming HomeLink

®

” shown earlier in

this section.

Individual buttons cannot be erased, but they can
be reprogrammed. See “Reprogramming a Single
HomeLink

®

Button” following this section.

2-47

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Reprogramming a Single HomeLink

®

Button

To program a device to HomeLink

®

using a HomeLink

®

button previously trained, follow these steps:

1. Press and hold the desired HomeLink

®

button.

Do not release the button.

2. The indicator light will begin to flash after

20 seconds. While still holding the HomeLink

®

button, proceed with Step 2 under “Programming
HomeLink

®

” shown earlier in this section.

Resetting Defaults

To reset HomeLink

®

to default settings do the following:

1. Hold down the two outside buttons for about

20 seconds until the indicator light begins to flash.

2. Continue to hold both buttons until the HomeLink

®

indicator light turns off.

3. Release both buttons.

For questions or comments, contact HomeLink

®

at 1-800-355-3515, or on the Internet at
www.homelink.com.

Storage Areas

Your vehicle’s large carrying capacity can store many
items. If the vehicle has an extended wheelbase,
it can carry even larger items. The floor pins that are
used to attach the seats, can be used to secure larger
loads. There may be additional storage areas behind
the seats.

Glove Box

If the glove box has a lock, put your key into the
lock and turn the key counterclockwise. To open the
glove box, pull the latch release.

The glove box door has a detent to prevent the door
from lowering too far. Open the glove box until the door
is partway open, then pull the door down if you need
it fully opened.

To close the glove box, the door must be pushed up
past the detent. To lock the glove box, put your key
into the lock and turn the key clockwise.

2-48

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Cupholder(s)

There are cupholders located below the center
instrument panel switchbank. The cupholders have a
rubber liner that can be removed, so that larger cups can
fit into the cupholders. You can also remove the liner
to clean it.

To use the cupholders, pull the tray out. Push the tray
back when not in use.

Overhead Console (With Rail)

If your vehicle is equipped with an overhead console,
it may contain the following:

Reading lamps. See Front Reading Lamps on
page 3-19
or Rear Reading Lamps on page 3-19.

Switchbank. See Overhead Console Switchbank
on page 3-20.

OnStar

®

System buttons. See OnStar

®

System

on page 2-42.

Driver Information Center (DIC). See Driver
Information Center (DIC)
on page 3-45.

HomeLink

®

Transmitter buttons. See HomeLink

®

Wireless Control System on page 2-44.

Storage Bin

Your vehicle may have a storage bin located on the
overhead rail that you can use for storage.

1. Place the storage bin on to the rails in the desired

location.

2. Push firmly upward on the bin while supporting it

with one hand.

3. Push in on the latch and then rotate it 90 degrees.

2-49

-------------------------------------------------------------------------------------------------------------------------------------------------------------

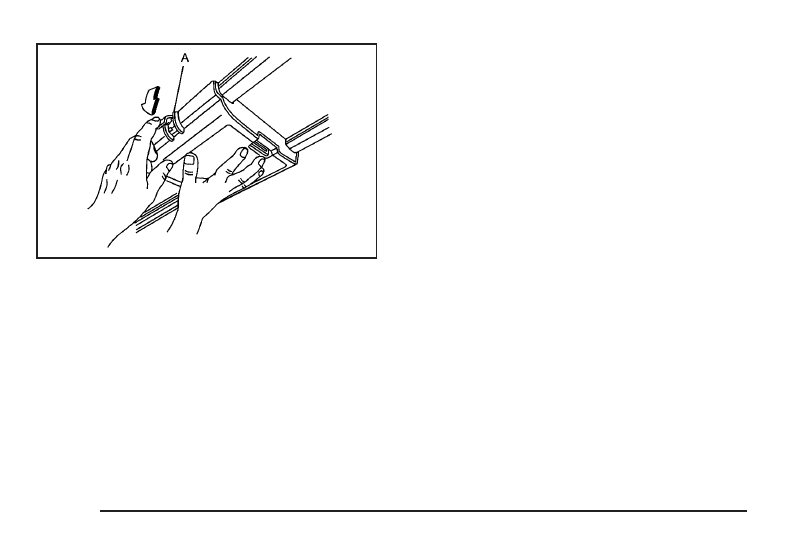

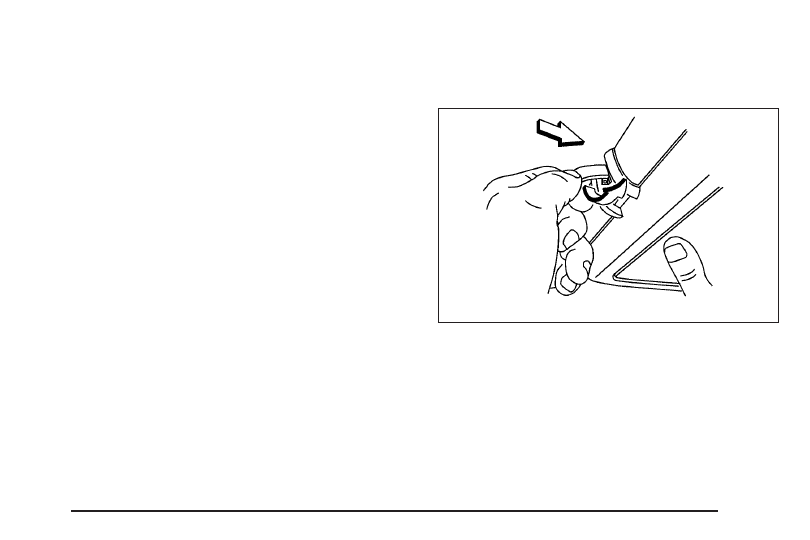

4. Firmly press down making sure the latch is flat

with the ribs (A) on the storage bin.

5. Switch hands and repeat Steps 2 through 4 for

the latch on the opposite side of the storage bin.

6. Reverse these steps in order to remove the

storage bin.

The contents of the bin should never weigh more than
1.5 lbs (0.7 kg).

Always make sure to close and latch the bin before
driving.

Overhead Console (Without Rail)

If your vehicle has an overhead console without the
rail system, it has two reading lights, a courtesy
light, and a switchbank. See Overhead Console
Switchbank
on page 3-20 for more information.

Floor Console Storage Area

If your vehicle has a storage compartment located on the
front console below the front cupholders. Pull up and then
forward on the handle to open the storage compartment.

2-50

-------------------------------------------------------------------------------------------------------------------------------------------------------------

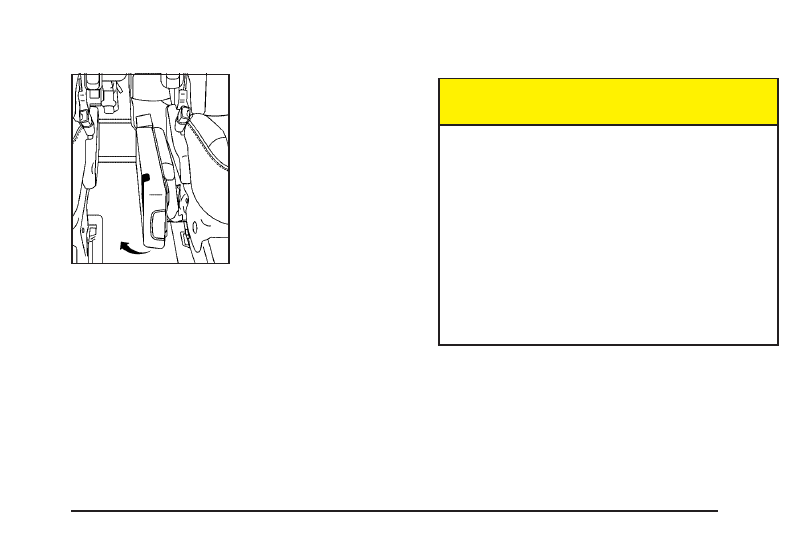

Folding Tray

Your vehicle may be equipped with folding convenience
trays located between seats. To use each tray lift up
on the handle located on its front end, while pulling
up on the tray to lock it into place. There are four
cupholders on each tray.

Luggage Carrier

{

CAUTION:

If you try to carry something on top of your
vehicle that is longer or wider than the luggage
carrier — like paneling, plywood, a mattress
and so forth — the wind can catch it as you
drive along. This can cause you to lose
control. What you are carrying could be
violently torn off, and this could cause you or
other drivers to have a collision, and of course
damage your vehicle. You may be able to carry
something like this inside. But, never carry
something longer or wider than the luggage
carrier on top of your vehicle.

If you have the luggage carrier, you can load things on
top of your vehicle.

Notice: Loading cargo on the luggage carrier that
weighs more than 150 lbs (68 kg) or hangs over
the rear or sides of the vehicle may damage your
vehicle. Load cargo so that it rests on the slats
as far forward as possible and against the side rails,
making sure to fasten it securely.

2-51

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Don’t exceed the maximum vehicle capacity when
loading your vehicle. For more information on vehicle
capacity and loading, see Loading Your Vehicle on
page 4-32
.

To prevent damage or loss of cargo as you’re driving,
check now and then to make sure the cargo is still
securely fastened.

Convenience Net (With Rear
Convenience Center)

Your vehicle may have a convenience net. The
convenience net is designed to help keep small loads,
from falling out of the vehicle when the liftgate is
opened. Install the convenience net at the rear of your
vehicle, inside the liftgate.

To use the convenience net, do the following:

1. Attach the upper loops to the posts on both sides of

the liftgate opening. The label on the net should be
in the upper left corner.

2. Attach the lower loops to the tabs at the rear edge

of the rear convenience center.

When not in use, it is recommended that you take
down the convenience net to extend the life of the net
and to help retain its elasticity, and to keep the rear
exit clear.

Convenience Net (Without Rear
Convenience Center)

Your vehicle may have a convenience net. The
convenience net is designed to help keep small
loads, like grocery bags, from falling over. Install the
convenience net at the rear of your vehicle, inside
the liftgate.

To use the convenience net, do the following:

1. Attach the upper loops to the posts on both sides

of the liftgate opening. The label on the net should
be in the upper left corner.

2. Attach the lower hooks to the metal rings on

the floor.

3. Once you have loaded items into the net, stretch

the higher side of the net up and over the top of
the load to hold it firmly in place.

The convenience net has a maximum capacity of
100 lbs (45 kg). It is not designed to hold larger, heavier
loads. Store such loads on the floor of your vehicle,
as far forward as you can.

When not in use, it is recommended that you take
down the convenience net to extend the life of the net
and to help retain its elasticity, and to keep the rear
exit clear.

2-52

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Center

{

CAUTION:

If any removable convenience item is not
secured properly, it can move around in a
collision or sudden stop. People in the vehicle
could be injured. Be sure to secure any such
item properly.

Your vehicle may have a convenience center. It provides
extra storage space for the rear of the vehicle.

To open the convenience center, pull up on the door
latch located on the front of the cover. The convenience
center cover has two automatic prop rods to hold it
up and in place.

To close the convenience center cover, you must pull
one of the prop rod linkages toward you while holding
onto the door latch and lower the convenience
center cover to close it.

Removing the Convenience Center

1. Make sure that all items are off the convenience

center and that it is empty.

2. Turn the hand knob, located at the rear of the

convenience center, counterclockwise until the
knob is loose.

3. Lift up on the hand knob, then grip and pull up

on the convenience center to remove it from the
vehicle.

Replacing the Convenience Center

1. Make sure the third row seat is properly installed in

the vehicle. See Third Row Seat on page 1-12 for
more information. If the third row seat is not in
the vehicle with the convenience center, the
convenience center will not be locked into the
correct position in the vehicle.

2. Make sure that the convenience center is empty

and closed.

3. Lift the convenience center up and into the rear

of the vehicle.

2-53

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. Slide the convenience center in and align it to the

rear seat.

5. Press down on the front of the convenience center

so the center is aligned on the sill mounting
bracket.

6. Turn the hand knob clockwise until it is tight.

7. Pull up on the convenience center to make sure it

is locked into place.

The cover of the convenience center can be left in its
upright position while the vehicle is moving.

The convenience center and the third row seat both
have a maximum weight capacity of 400 lbs (181.6 kg).

Notice: Overloading your vehicle may cause
damage. Repairs would not be covered by your
warranty. Do not overload your vehicle.

Vehicle Personalization

Memory Seat

If your vehicle has this
feature, the controls for
the memory function
are located on the
driver’s door.

These buttons are used to program and recall memory
settings for the driver’s seating position. The settings
for these features can be personalized for both driver 1
and driver 2. Driver 1 or driver 2 corresponds to the
memory buttons labelled 1 and 2 on the driver’s door.

2-54

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To store the memory settings, do the following:

1. Adjust the driver’s seat to your preference.

2. Press and hold the 1 or 2 button of the memory

control for three seconds. A double chime will sound
to let you know that the position has been stored.

To repeat the procedure for a second driver, follow the
preceding steps, but press the other numbered
memory control button.

To recall the memory settings, press and release
button 1 or 2 while the vehicle is in PARK (P). A single
chime will sound and the memory position will be
recalled.

To stop recall movement of the memory seat feature at
any time, press one of the memory buttons or power
seat controls.

Easy Exit Seat

The control for the easy exit seat function is located on
the driver’s door below the memory buttons 1 and 2.
The easy exit seat button is used to program and recall
the desired driver’s seat position when exiting/entering
the vehicle. The seat position can be personalized
for both driver 1 and driver 2.

To store the easy exit seat position for driver 1 or 2,
do the following:

1. Press and release the 1 or 2 button of the memory

control. The seat will move to the stored memory
position.

2. Adjust the seat to the desired exit position.

3. Press and hold the easy exit seat button for three

seconds. A double chime will sound to let you
know that the position has been stored for
the identified driver 1 or 2.

To repeat the procedure for a second driver, follow the
preceding steps, but press the other numbered
memory control button.

To recall the easy exit seat position, press the easy exit
seat button on the memory control while the vehicle
is in PARK (P). A singe chime will sound and the seat
will move to the stored exit position.

If an easy exit seat position has not been stored, the
default position is all the way rearward.

2-55

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instrument Panel Overview ...............................3-4

Hazard Warning Flashers ................................3-6
Other Warning Devices ...................................3-6
Horn .............................................................3-6
Tilt Wheel .....................................................3-6
Turn Signal/Multifunction Lever .........................3-7
Turn and Lane-Change Signals ........................3-7
Headlamp High/Low-Beam Changer ..................3-8
Flash-to-Pass .................................................3-8
Windshield Wipers ..........................................3-9
Windshield Washer .........................................3-9
Cruise Control ..............................................3-10
Exterior Lamps .............................................3-14
Wiper Activated Headlamps ............................3-15
Headlamps on Reminder ................................3-15
Daytime Running Lamps (DRL)/

Automatic Headlamp System .......................3-15

Instrument Panel Brightness ...........................3-16
Interior Lamps Control ...................................3-17
Dome Lamp .................................................3-17
Entry Lighting ...............................................3-17
Delayed Lighting ...........................................3-18
Exit Lighting .................................................3-18
Front Reading Lamps ....................................3-19

Rear Reading Lamps ....................................3-19
Cargo Lamp .................................................3-19
Battery Run-Down Protection ..........................3-19
Overhead Console Switchbank .......................3-20
Ultrasonic Rear Parking Assist (URPA) ............3-20
Accessory Power Outlets ...............................3-23
Power Outlet 115 Volt Alternating Current ........3-24

Climate Controls ............................................3-25

Dual Climate Control System ..........................3-25
Outlet Adjustment .........................................3-28
Rear Climate Control System .........................3-29

Warning Lights, Gages, and Indicators ............3-31

Instrument Panel Cluster ................................3-32
Speedometer and Odometer ...........................3-33
Trip Odometer ..............................................3-33
Tachometer .................................................3-33
Safety Belt Reminder Light .............................3-33
Passenger Safety Belt Reminder Light .............3-34
Airbag Readiness Light ..................................3-34
Passenger Airbag Status Indicator ...................3-35
Charging System Light ..................................3-37
Brake System Warning Light ..........................3-37
Anti-Lock Brake System Warning Light .............3-38

Section 3

Instrument Panel

3-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Traction Control System (TCS) Warning Light ......3-39
Engine Coolant Temperature Gage ..................3-39
Malfunction Indicator Lamp .............................3-40
Oil Pressure Light .........................................3-42
Security Light ...............................................3-43
Cruise Control Light ......................................3-43
Highbeam On Light .......................................3-44
Fuel Gage ...................................................3-44
Low Fuel Warning Light .................................3-44

Driver Information Center (DIC) .......................3-45

DIC Operation and Displays ...........................3-46
DIC Warnings and Messages .........................3-51
DIC Vehicle Personalization (Uplevel Only) .......3-68

Audio System(s) .............................................3-77

Setting the Time ...........................................3-77
Radio with CD ..............................................3-77
Navigation/Radio System ...............................3-96
Rear Seat Entertainment System ....................3-96
Rear Seat Audio (RSA) ................................3-110
Theft-Deterrent Feature ................................3-112
Audio Steering Wheel Controls ......................3-112
Radio Reception .........................................3-113
Care of Your CDs and DVDs ........................3-113
Care of Your CD and DVD Player .................3-114
Fixed Mast Antenna ....................................3-114
XM™ Satellite Radio Antenna System ............3-114

Section 3

Instrument Panel

3-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instrument Panel Overview

3-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

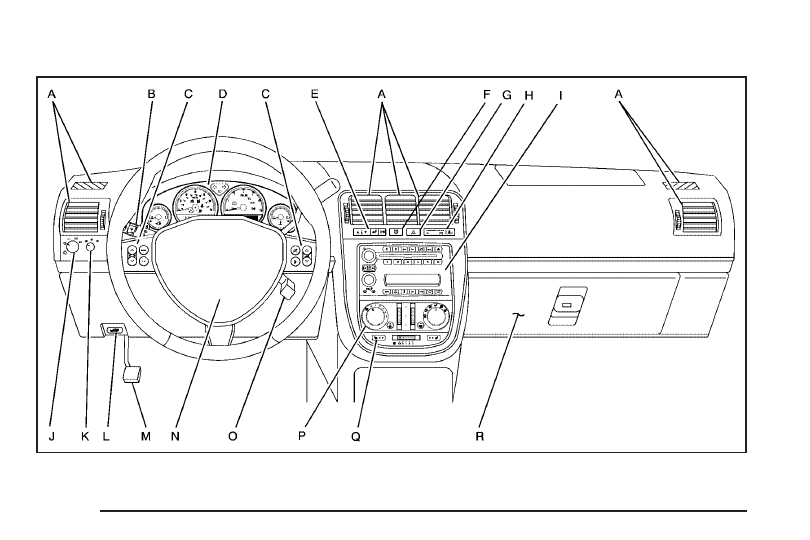

The main components of the instrument panel are the following:

A. Air Outlets. See Outlet Adjustment on page 3-28.

B. Turn Signal/Multifunction Lever. See Turn

Signal/Multifunction Lever on page 3-7.

C. Audio Steering Wheel Controls (If Equipped). See

Audio Steering Wheel Controls on page 3-112.

D. Instrument Panel Cluster. See Instrument Panel

Cluster on page 3-32.

E. DIC Controls (If Equipped). See Driver Information

Center (DIC) on page 3-45.

F. Traction Control System Button. See Traction

Control System (TCS) on page 4-9.

G. Hazard Warning Flasher Switch. See Hazard

Warning Flashers on page 3-6.

H. Passenger Airbag Status Indicator. See Passenger

Airbag Status Indicator on page 3-35.

I. Audio System. See Audio System(s) on page 3-77.

J. Exterior Lamps Control. See Exterior Lamps on

page 3-14.

K. Interior Lamps Control. See Interior Lamps Control

on page 3-17. Instrument Panel Brightness Control.
See Instrument Panel Brightness on page 3-16.

L. Hood Release. See Hood Release on page 5-11.

M. Parking Brake. See Parking Brake on page 2-37.

N. Horn. See Horn on page 3-6.

O. Cruise Controls (If Equipped). See Cruise Control

on page 3-10.

P. Climate Controls. See Dual Climate Control System

on page 3-25.

Q. Heated Seat Controls (If Equipped). See Heated

Seats on page 1-4.

R. Glove Box. See Glove Box on page 2-48.

3-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Hazard Warning Flashers

Your hazard warning flashers let you warn others. They
also let police know you have a problem. Your front
and rear turn signal lamps will flash on and off.

The hazard warning
flasher button is located
near the center of the
instrument panel.

Your hazard warning flashers work no matter what
position your key is in, and even if the key is not in.

Press the button to make the front and rear turn signal
lamps flash on and off. Press the button again to
turn the flashers off.

When the hazard warning flashers are on, your turn
signals will not work.

Other Warning Devices

If you carry reflective triangles, you can set them up at
the side of the road about 300 feet (100 m) behind
your vehicle.

Horn

Press near or on the horn symbols on your steering
wheel pad to sound the horn.

Tilt Wheel

A tilt wheel allows you to adjust the steering wheel
before you drive. You can raise the steering wheel to
the highest level to give your legs more room when you
enter and exit the vehicle.

The lever that allows you to tilt the steering wheel is
located on the left side of the steering column.

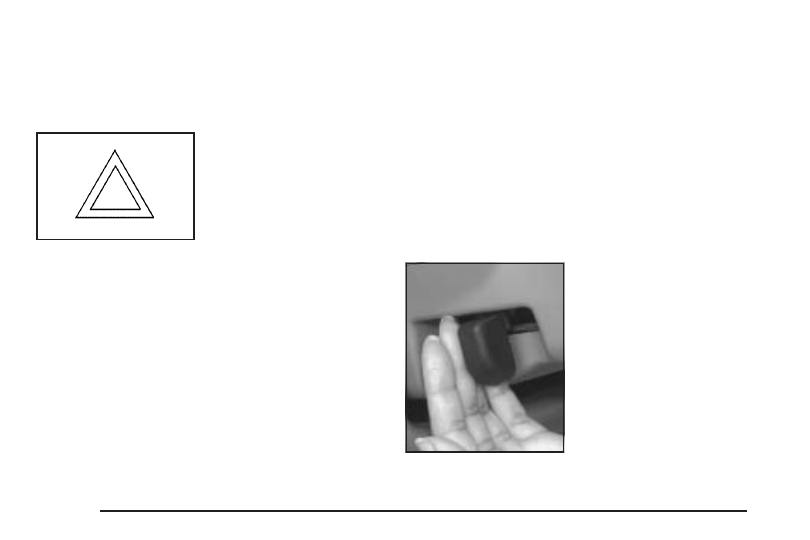

To tilt the wheel, hold the
wheel and pull the lever.
Then move the wheel
to a comfortable position
and release the lever
to lock the wheel in place.

3-6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

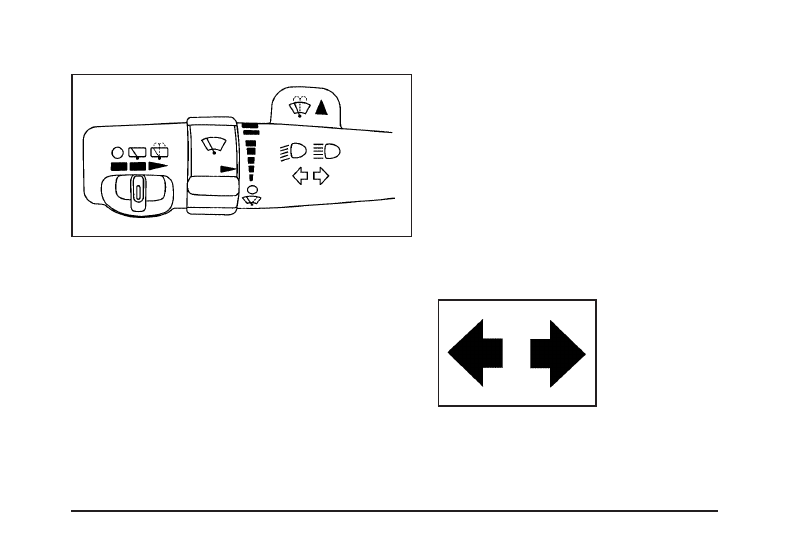

Turn Signal/Multifunction Lever

The lever on the left side of the steering column
includes the following:

G

Turn and Lane Change Signals. See Turn and

Lane-Change Signals on page 3-7.

3

Headlamp High/Low-Beam Changer. See

Headlamp High/Low-Beam Changer on page 3-8.

Flash-to-Pass. See Flash-to-Pass on page 3-8.

N

Windshield Wipers. See Windshield Wipers

on page 3-9.

L

Windshield Washer. See Windshield Washer

on page 3-9.

Z

Rear Window Wiper. See Windshield Washer

on page 3-9.

=

Rear Window Washer. See Windshield Washer

on page 3-9.

For information on the headlamps, see Exterior Lamps
on page 3-14.

Turn and Lane-Change Signals

The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow you
to signal a turn or a lane change.

To signal a turn, move the lever all the way up or
down. When the turn is finished, the lever will return
automatically.

An arrow on the
instrument panel cluster
will flash in the direction of
the turn or lane change.

To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it.

3-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

As you signal a turn or a lane change, if the arrow
flashes faster than normal, a signal bulb may be burned
out and other drivers will not see your turn signal.

If a bulb is burned out, replace it to help avoid an
accident. If the arrows do not go on at all when you
signal a turn, check for burned-out bulbs and check the
fuse. See Bulb Replacement on page 5-42 and Fuses
and Circuit Breakers
on page 5-87.

If you have a trailer towing option with added wiring for
the trailer lamps, the signal indicator will flash at a
normal rate even if a turn signal bulb is burned
out. Check the front and rear turn signal lamps regularly
to make sure they are working.

Turn Signal On Chime

If either turn signal is left on for more than 3/4 mile
(1.2 km), a chime will sound to let the driver know to
turn it off. If you need to leave the signal on for
more than 3/4 mile (1.2 km), turn off the signal and
then turn it back on.

Headlamp High/Low-Beam Changer

To change the headlamps from low beam to high
beam, push the turn signal/multifunction lever away
from you.

When the high beams
are on, this light will
appear on the instrument
panel cluster.

To change the headlamps from high beam to low beam,
pull the turn signal/multifunction lever toward you.

Flash-to-Pass

When the headlamps are off, pull the lever toward you to
momentarily turn on the high beams. This will signal that
you are going to pass. When you release the lever, they
will turn off.

3-8

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     6      7      8      9     ..
