Vauxhall Mokka (2016 year). Manual - part 4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

56

Storage

Underseat storage

Centre console storage

Rear carrier system

Rear carrier system for three

bicycles

Lift drawer at the front and pull out. To

Push down the button and slide cover

close, push the drawer in and

backwards.

engage.

The rear carrier system (Flex-Fix

system) allows one bicycle to be

attached to a pull-out carrier

integrated into the vehicle floor. It is

possible to attach two further bicycles

on an adapter. The transportation of

other objects is not permitted.

The maximum load of the rear carrier

system is 60 kg with attached adapter

and 30 kg without attached adapter.

This allows the attachment of an

-------------------------------------------------------------------------------------------------------------------------------------------------------------

57

Storage

electrically-powered bicycle to the

Pull release lever up. The rear carrier

Caution

pull-out carrier. The maximum load

system disengages and travels

per bicycle on the adapter is 20 kg.

quickly out of the rear bumper.

Consult your bicycle dealer before

The wheelbase of a bicycle must not

attaching bicycles with carbon

exceed 1.15 metres. Otherwise the

frames. The bicycles may get

secure fastening of a bicycle is not

damaged.

possible.

If not in use, the carrier system must

Extending

be slid back into the vehicle floor.

Open the tailgate.

There must not be any objects on the

bicycles that could become loose

9 Warning

during transportation.

No-one should be in the extension

Caution

zone of the rear carrier system,

risk of injury.

If the rear carrier system is

Completely pull out the rear carrier

extended and the vehicle is fully

system until you hear it engage.

loaded, the chassis clearance will

Ensure that it is not possible to push

be reduced.

in the rear carrier system without

Drive carefully whenever the road

pulling the release lever again.

has a strong inclination or when

driving over a ramp, bump, etc.

9 Warning

It is only permissible to fit objects

to the rear carrier system if the

system has been correctly

engaged. If the rear carrier system

will not engage correctly, do not fit

-------------------------------------------------------------------------------------------------------------------------------------------------------------

58

Storage

Fold out tail lamps

objects to the system and slide the

system back. Seek the assistance

of a workshop.

Unfold number plate holder

Push the tail lamps into the retainer

(1) and reinstall screws (2) to fix the

To install the tail lamps, remove both

lamps.

screws (1). Pull tail lamps out of the

retainer to the front (2) and

Fold out wheel recess

downwards and swivel them to the

side.

Lift the number plate holder and fold

it backwards.

Affix the number plate before first

usage of the rear carrier system.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

59

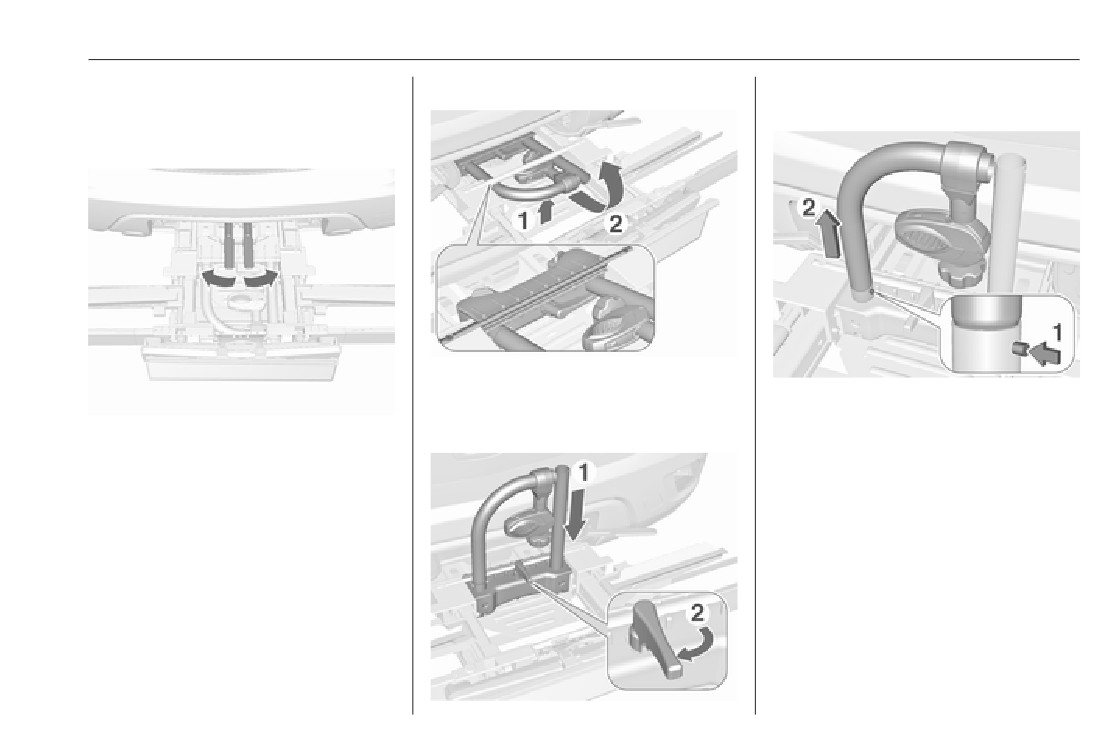

Remove strap and fold out the wheel

Assembling the bicycle rack

Push down the rack (1) and swivel

recess.

handle (2) backwards to engage.

Lock the rear carrier system

Lift the rack at the rear (1) and pull it

backwards.

Press button (1) and remove left part

of rack (2).

Fold up the rack (2).

Remove strap and swivel both

Press button (1) and insert left part of

clamping levers sidewards as far as

rack into the right part (2).

they will go.

Otherwise safe functionality is not

guaranteed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

60

Storage

Make sure that the bicycle stands

3. Secure both bicycle wheels to the

centrally on the wheel recesses.

wheel recesses using the strap

retainers.

4. Check the bicycle to make sure it

is secure.

Caution

Ensure gap between bicycle and

vehicle is at least 5 cm. If

necessary, loosen handlebar and

swivel sideways.

Attaching a bicycle

Attaching the adapter

When carrying more than one bicycle,

2. Attach the short mounting bracket

the adapter must be fixed.

to the bicycle frame. Turn the

knob clockwise to fasten.

1. Rotate the pedals into position, as

shown in the illustration, and put

the bicycle on the wheel recess.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

61

1. Apply the adapter to the rear

carrier system, as shown in the

illustration.

4. Guide the strap attached to the

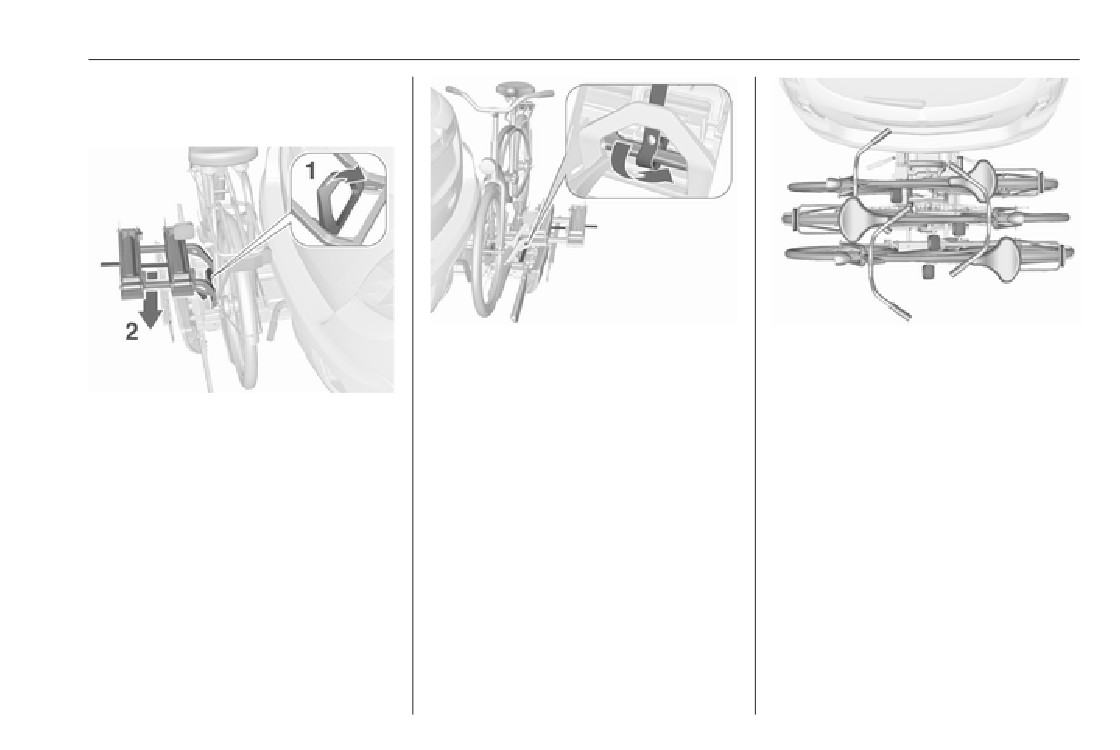

3. Position the bicycles on the rear

adapter underneath the lever

carrier system alternately aligned

when folding back the rear carrier

to the left and to the right.

system. Fasten the strap.

2. Turn the lever (1) forwards and

4. Align the bicycles to the one

hold, then lower the adapter (2) at

attached before. The wheel hubs

Attaching further bicycles

the rear.

of the bicycles must not touch

The attachment of further bicycles is

each other.

3. Release lever and check if the

similar to the attachment of the first

adapter is engaged securely.

bicycle. Additionally, some steps

5. Attach the bicycles with mounting

must be considered:

brackets and strap retainers as

described for the first bicycle. The

1. Before putting on the bicycle,

mounting brackets should be

always unfold the wheel recesses

fixed in parallel.

for the next bicycle if necessary.

Use the long mounting bracket to

2. Always rotate the pedals into an

attach the second bicycle to the

appropriate position before

rack.

putting on the bicycle.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

62

Storage

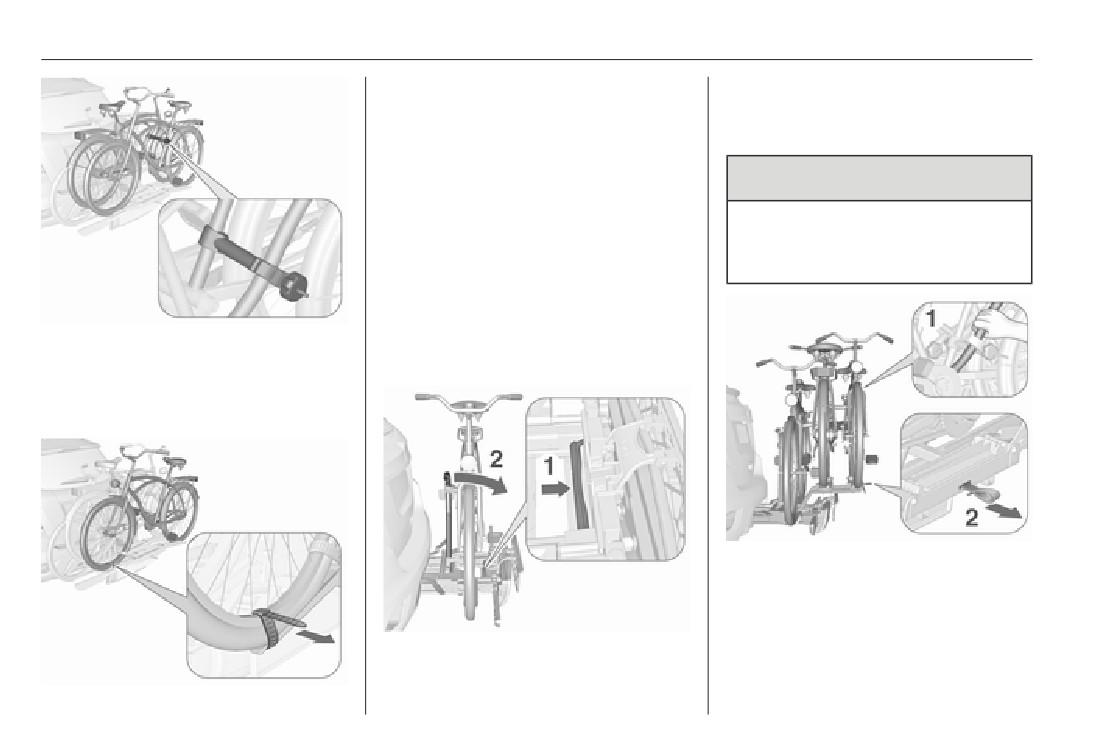

6. Additionally, secure both bicycle

Pull the rack (2) backwards to

wheels of the third bicycle to the

fold the rear carrier system.

wheel recesses using the

● With attached adapter:

tensioning straps.

It is recommended to attach a

9 Warning

warning sign at the rearmost bicycle,

to increase visibility.

Take care when disengaging the

rear carrier system as it will tilt

Fold the rear carrier system

backwards. Risk of injury.

backwards

The rear carrier system can be folded

backwards to gain access to the load

Use the short accessory mounting

compartment.

bracket to attach the third bicycle.

● Without attached adapter:

The bracket must be fixed

between the frames of the second

and third bicycle.

Hold frame (1) of rearmost

bicycle with one hand and pull the

loop (2) to disengage.

Hold rearmost bicycle with both

Push the lever (1) to disengage

hands and fold the rear carrier

and hold.

system backwards.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

63

To increase visibility, the tail lights of

Disassembling the bicycle rack

the vehicle are activated when the

rear carrier system is folded back.

9 Warning

When folding the rear carrier

system forwards again, take care

that the system is engaged

securely.

Removing bicycles

Undo strap retainers on both bicycle

2. Unbutton the strap.

tyres.

Press button (1) and remove upper

Turn knob anticlockwise and remove

part of rack (2).

mounting brackets.

Detaching adapter

Detach the adapter before removing

the bicycle on the rear carrier system.

1. Fold in wheel recesses.

3. Turn the lever (1) forwards and

hold.

4. Lift the adapter (2) at the rear and

remove.

Press button (1) and reinstall rack (2).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

64

Storage

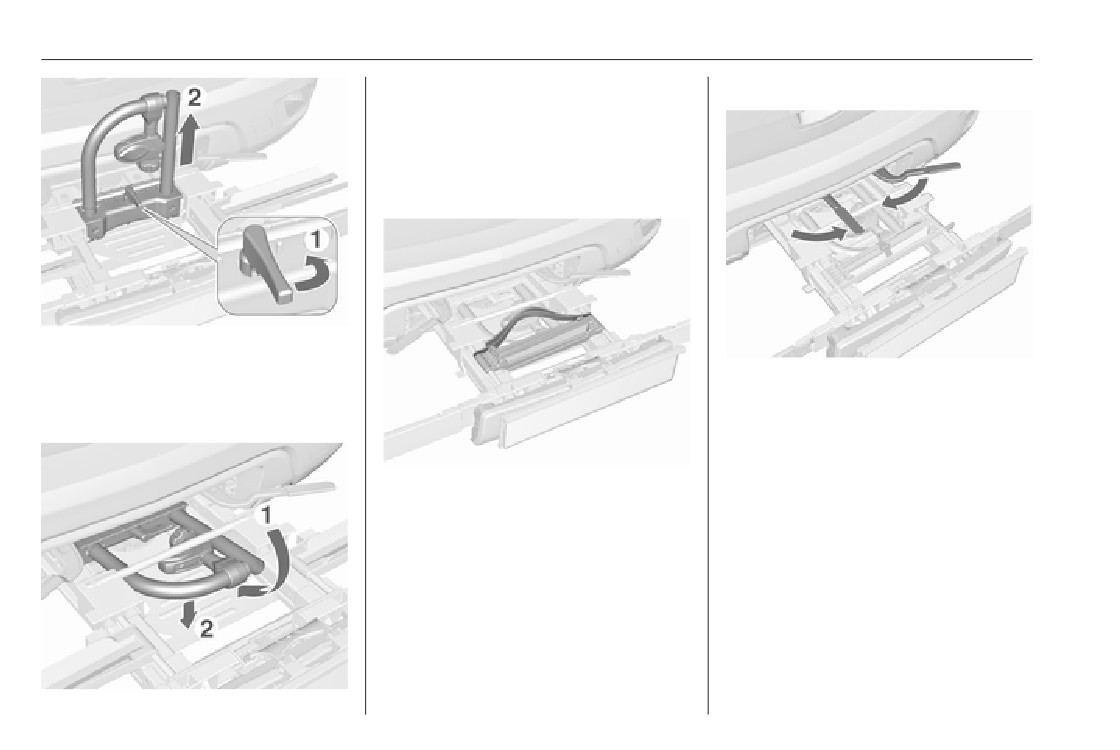

Fold the rack backwards, then push

Unlock the rear carrier system

forwards until it stops (1).

Press the rack down at the rear (2).

Fold in wheel recess

Fold in wheel recess. Fasten strap.

Arrange mounting brackets as shown

in the illustration.

Swivel both clamping levers inwards

Swivel handle (1) sidewards to

as far as they will go. Fasten strap.

disengage and lift the rack (2).

Fold in tail lamps

Remove both screws. Pull tail lamps

Stow the strap retainers accurately.

out of the retainer and swivel them

forwards.

Push the tail lamps into the retainer

and reinstall screws to fix the lamps

Fold in number plate holder

Lift the number plate holder and fold

it forwards.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

65

Retracting the rear carrier system

Load compartment

9 Warning

Caution

If the system cannot be correctly

Load compartment extension

engaged, please seek the

Take care that all foldable parts,

assistance of a workshop.

e.g. wheel recesses and mounting

Caution

brackets, are stowed accurately.

Otherwise the rear carrier system

First fold down the rear seat

may get damaged when trying to

cushion before folding the rear

retract it.

seat backrest.

Disregard may lead to damage to

the rear seat.

1. Push head restraints down by

pressing the catch.

Notice

To ensure sufficient room for rear

seat cushion operation, slide the

front seat forward and move the front

seat backrest upright.

Push the release lever up and hold.

Lift the system slightly and push it into

the bumper until it engages.

Release lever must return to original

position.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

66

Storage

To return the backrest to the original

position, pull out the seat belt from the

belt guides and lift backrest up.

Push backrest firmly into place.

9 Warning

When folding up, ensure that

backrests are securely engaged in

position before driving. Failure to

do so may result in personal injury

or damage to the load or vehicle in

2. Pull the loop under the seat

4. Fold the backrest forward and

the event of hard braking or a

cushion and fold down the seat

down.

collision.

cushion.

Ensure the seat belts are not pinched

by the latch.

The centre rear seat belt may lock

when you raise the backrest. If this

happens, allow the belt go back all the

way and repeat operation.

If the seat belt is still locked, fold down

the seat cushion and try again.

To return the rear seat cushion, put

the rear part of the seat cushion in its

original position ensuring that the

5. Put the seat belts for the outboard

seat belt buckle straps are not twisted

3. Pull the release lever on top of the

seats into the belt guides.

rear backrest.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

67

or caught under the seat cushion,

Load compartment cover

Rear floor storage cover

then push the front part of the seat

cushion firmly down until it latches.

Rear floor cover

Caution

When returning rear seat backrest

to the upright position, place the

rear seat belt and buckles

between the rear seat backrest

and one cushion. Make sure the

rear seat belt and buckles do not

get pinched under the rear seat

cushion.

Ensure the seat belts are not

Do not place any objects on the cover.

twisted or caught in the seat

backrest and are arranged in their

Removing

Grasp the handle and lift the cover.

proper position.

Unhook retaining straps from tailgate.

Lift cover at the rear and push it

upwards at the front.

Remove the cover.

Fitting

Engage cover in side guides and fold

downwards.

Attach retaining straps to tailgate.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

68

Storage

Mount the cover to the hook at the

First aid kit

Roof rack system

sidewall.

Roof rack

Lashing eyes

The lashing eyes are designed to

secure items against slippage, e.g.

using lashing straps or luggage net.

Warning triangle

Stow the first aid kit in the storage

compartment at the left sidewall of the

load compartment.

The roof rack has side rails attached

to the roof.

For safety reasons and to avoid

damage to the roof, the vehicle

approved roof rack system is

recommended. For further

information contact your workshop.

Stow the warning triangle below the

floor cover in the load compartment.

Secure it with the strap.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

71

Controls

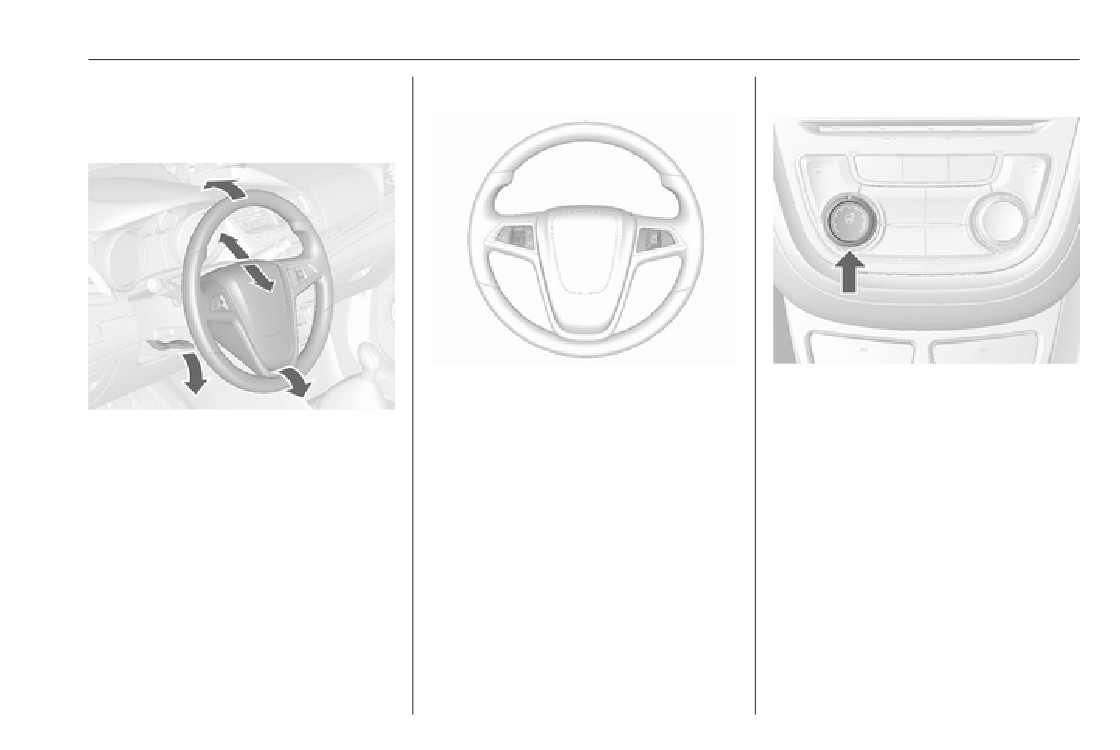

Steering wheel controls

Heated steering wheel

Steering wheel adjustment

The Infotainment system and the

Activate heating by pressing *.

cruise control can be operated via the

Activation is indicated by the LED in

Unlock lever, adjust steering wheel,

controls on the steering wheel.

the button.

then engage lever and ensure it is

Further information is available in the

Heating is operational when the

fully locked.

Infotainment manual.

engine is running.

Do not adjust steering wheel unless

Cruise control 3 139

vehicle is stationary and steering

wheel lock has been released.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

72

Instruments and controls

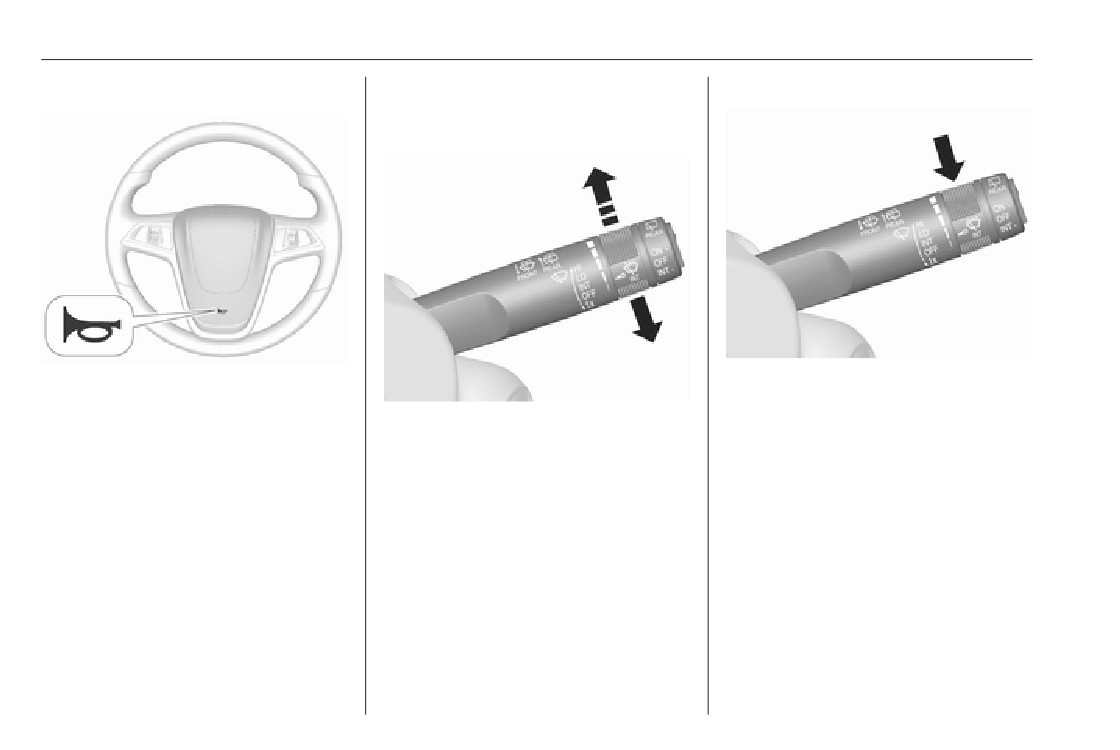

Adjustable wiper interval

Horn

Windscreen wiper/washer

Windscreen wiper

Wiper lever in position INT.

Press j.

Turn the adjuster wheel to adjust the

HI

: fast

desired wipe interval:

LO

: slow

short interval

: turn adjuster

INT

: interval wiping or automatic

wheel upwards

wiping with rain sensor

long interval

: turn adjuster

OFF : off

wheel downwards

For a single wipe when the

windscreen wiper is off, press the

lever down to position 1x.

Do not use if the windscreen is frozen.

Switch off in car washes.

Content      ..     2      3      4      5     ..
