Driving and operating
209
Speed limit signs and no passing
Traffic sign detection page in the
signs are displayed in the Driver
Driver Information Centre, see
Information Centre until the next
"Display indication" below.
speed limit sign or end of speed limit
The system is active up to a speed of
is detected or up to a defined sign
125 mph depending on the lighting
timeout.
conditions. At night the system is
active up to a speed of 100 mph.
As soon as the speed becomes
slower than 34 mph the display will be
reset and the content of the traffic sign
page will be cleared, e.g. when
entering a city zone. The next
recognized speed indication will be
On Baselevel display, select Settings
Indication of multiple signs on the
displayed.
X
by pressing MENU and select
display is possible.
Traffic sign detection entry with the
Display indication
adjuster wheel on the turn signal lever
3 110.
Traffic signs are displayed on the
Traffic sign detection page in the
Driver Information Centre.
An exclamation mark in a frame
indicates that there is an additional
sign detected which cannot be clearly
identified by the system.
A positive sign in an orange box
indicates that there is an additional
information which is explained on the

-------------------------------------------------------------------------------------------------------------------------------------------------------------

210
Driving and operating
On Midlevel and Uplevel display
Illustration shows baselevel Driver
select Info menu with the right
Information Centre.
steering wheel buttons and press P
to select Traffic sign detection 3 110.
When another page on the Driver
Information Centre menu was
selected and then Traffic sign
detection page is chosen again, the
last recognised traffic sign will be
displayed.
Alert function
The alert function can be activated or
deactivated in the setting menu of the
traffic sign assistant page by pressing
Illustration shows midlevel or uplevel
SET/CLR on the turn signal lever or
Driver Information Centre.
9 on the steering wheel.
When the setting page is displayed,
select Off or set alerts I to deactivate
alert function. Reactivate by selecting
On or alerts J.
When switching on the ignition, alert
function is deactivated.
Pop-up alert is displayed for approx.
Once activated, speed limit and no
eight seconds in the Driver
passing signs are displayed as pop-
Information Centre.
up alerts in the Driver Information
Centre.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving and operating
211
System reset
Fault
Caution
The content of the traffic sign memory
The traffic sign assistant system may
can be cleared in the setting menu of
not operate correctly when:
The system is intended to help the
the traffic sign assistant page by
driver within a defined speed
The area of the windscreen,
selecting Reset and confirm by
range to recognise certain traffic
where the front camera is
pressing SET/CLR on the turn signal
signs. Do not ignore traffic signs
located, is not clean or affected
lever or 9 on right steering wheel
which are not displayed by the
by foreign items, e.g. stickers.
control. Upon successful reset, a
system.
Traffic signs are completely or
chime will sound and the following
The system does not recognise
partially covered or difficult to
symbol is indicated until the next
any other than the conventional
discern.
traffic sign is detected.
traffic signs that might give or end
There are adverse environmental
a speed limit.
conditions, e.g. heavy rain, snow,
Do not let this special feature
direct sunlight or shadows. In this
tempt you into taking risks when
event, No Traffic Sign Detection
driving.
due to Weather is indicated on
the display.
Always adapt speed to the road
conditions.
Traffic signs are incorrectly
In some cases, traffic sign assistant is
mounted or damaged.
The driver assistance systems do
cleared up automatically by the
not relieve the driver from full
Traffic signs do not comply with
system.
responsibility for vehicle
the Vienna Convention on traffic
operation.
signs (Wiener Übereinkommen
über Straßenverkehrszeichen).
Lane departure warning
The lane departure warning system
observes the lane markings between
which the vehicle is driving, via a front
camera. The system detects lane

-------------------------------------------------------------------------------------------------------------------------------------------------------------

212
Driving and operating
changes and warns the driver in the
The lane departure warning system is
Fault
event of an unintended lane change
activated by pressing ). The
The lane departure warning system
by visual and acoustic signals.
illuminated LED in the button
may not operate properly when:
indicates that the system is switched
Criteria for the detection of an
on. When the control indicator ) in
● The windscreen is not clean or
unintended lane change are:
the instrument cluster illuminates
affected by foreign items, e.g.
● No operation of turn signals.
green, the system is ready to operate.
stickers.
● No brake pedal operation.
The system is only operable at
● There are adverse environmental
● No active accelerator operation
vehicle speeds above 35 mph and if
conditions, e.g. heavy rain, snow,
or speeding-up.
lane markings are available.
direct sunlight or shadows.
● No active steering.
When the system recognises an
The system cannot operate when no
If the driver is active, no warning will
unintended lane change, the control
lane marking is detected.
be issued.
indicator ) changes to yellow and
flashes. Simultaneously a chime
Activation
sound is activated.
Deactivation
The system is deactivated by
pressing ); the LED in the button
extinguishes.
At speeds below 35 mph the system
is inoperable.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving and operating
213
Do not use marine diesel oils, heating
Fuel
Caution
oils, Aquazole and similar diesel-
water emulsions. Diesel fuels must
Fuel for petrol engines
Use of fuel that does not comply to
not be diluted with fuels for petrol
Only use unleaded fuel that complies
EN 228 or E DIN 51626-1 or
engines.
with European standard EN 228 or
equivalent can lead to deposits or
E DIN 51626-1 or equivalent.
engine damage.
Fuel for liquid gas operation
The engine is capable of running with
Liquid gas is known as LPG
fuel that contains up to 10% ethanol
Caution
(Liquefied Petroleum Gas) or under
(e.g. named E10).
its French name GPL (Gaz de Pétrole
Use fuel with the recommended
Use of fuel with too low an octane
Liquéfié). LPG is also known as
octane rating. The engine-specific
rating could lead to uncontrolled
Autogas.
requirements are given in the engine
combustion and engine damage.
LPG consists mainly of propane and
data overview 3 281. A country-
butane. The octane rating is between
specific label at the fuel filler flap can
Fuel for diesel engines
105 and 115, depending on the
supersede the requirement.
Only use diesel fuel that complies
butane proportion. LPG is stored as a
with EN 590.
liquid at a pressure of approximately
Caution
In countries outside the European
five to ten bar.
Do not use fuel or fuel additives
Union use Euro-Diesel fuel with a
The boiling point depends on the
that contain metallic compounds
sulfur concentration below 50 ppm.
pressure and the mixing ratio. At
such as manganese-based
ambient pressure, it is between
additives. This may cause engine
Caution
-42 °C (pure propane) and -0.5 °C
damage.
(pure butane).
Use of fuel that does not comply to
EN 590 or similar can lead to
engine powerloss, increased wear
or engine damage.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

214
Driving and operating
minimum engine speed) have been
As soon as the liquid gas tank is
Caution
reached. The requirements are
empty, petrol operation is
usually fulfilled after approximately
automatically engaged until the
The system works at an ambient
60 seconds (depending on exterior
ignition is switched off.
temperature of approx. -8 °C to
temperature) and the first firm press
When switching automatically
100 °C.
on the accelerator. The status LED
between petrol or gas operation, a
shows the current operating mode.
brief delay of engine tractive power
Full functioning of the LPG system
1 off
:
petrol operation
may be noticeable.
can only be guaranteed with liquid
1 flashes
:
checking conditions
gas which complies with the minimum
Every six months, run the petrol tank
for fuel transition to
requirements of DIN EN 589.
down until control indicator
I
or
liquid gas operation.
Y illuminates, then refuel. This helps
Fuel selector
Illuminates if
maintain fuel quality and system
conditions are fulfilled.
function for petrol operation.
1 illumi-
:
liquid gas operation
Fill the tank completely at regular
nates
intervals to prevent corrosion in the
1 flashes
:
liquid gas tank is
tank.
five times
empty or failure in
and extin-
liquid gas system. A
Faults and remedies
guishes
message is displayed
If gas mode is not possible, check the
in the Driver
following:
Information Centre.
● Is there enough liquid gas
If the fuel tank is empty, the engine
present?
will not start.
● Is there enough petrol present for
The selected fuel mode is stored and
starting?
reactivated at the next ignition cycle if
Press LPG to switch between petrol
conditions allow.
and liquid gas operation as soon as
the required parameters (coolant
temperature, gas temperature and

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving and operating
215
Due to extreme temperatures in
If no further gas odour is perceptible
9 Warning
combination with the gas
when the manual shut-off valve is
composition, it may take slightly
closed, the vehicle can be used in
If you smell gas in the vehicle or in
longer before the system switches
petrol mode. If the gas odour persists,
the immediate vicinity, switch to
from petrol to gas mode.
do not start the engine. Have the
petrol mode immediately. No
cause of the fault remedied by a
In extreme situations, the system may
smoking. No naked flames or
workshop.
also switch back to petrol mode if the
ignition sources.
minimum requirements are not
When using underground car parks,
fulfilled. If conditions allow, it may be
follow the instructions of the operator
If the gas odour persists, do not start
possible to manually switch back to
and local laws.
the engine. If possible, close the
liquid gas operation.
manual shut-off valve on the
Notice
Seek the assistance of a workshop in
multivalve. The multivalve is located
In the event of an accident, switch off
the event of all other faults.
on the liquid gas tank in the load
the ignition and lights. Close the
compartment, underneath the rear
manual shut-off valve on multivalve.
Caution
floor storage cover 3 74.
Refuelling
Repairs and adjustments may only
be made by trained specialists in
order to maintain the safety and
warranty on the LPG system.
Liquid gas is given a particular odour
(odorised) so that any leaks can be
detected easily.
Turn the thumb wheel clockwise.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

216
Driving and operating
9 Danger
Before refuelling, switch off
ignition and any external heaters
with combustion chambers.
Follow the operating and safety
instructions of the filling station
when refuelling.
9 Danger
Fuel is flammable and explosive.
The fuel filler flap can only be opened
The fuel filler cap can be retained in
No smoking. No naked flames or
if the vehicle is unlocked. Release the
the bracket on the fuel filler flap.
sparks.
fuel filler flap by pushing the flap.
To refuel, fully insert the pump nozzle
If you can smell fuel in your
and switch it on.
Petrol and Diesel refuelling
vehicle, have the cause of this
After the automatic cut-off, the tank
remedied immediately by a
To open, turn the cap slowly
can be topped up by operating the
workshop.
anticlockwise.
pump nozzle a maximum of two more
times.
Caution
Caution
In case of misfuelling, do not
switch on ignition.
Wipe off any overflowing fuel
immediately.
Fuel filler flap is located at right rear
side of vehicle.
To close, turn the fuel filler cap
clockwise until it clicks.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving and operating
217
Close the flap and allow it to engage.
The misfuel inhibitor ensures that the
The funnel is located in the load
flap of the fuel filler neck can only be
compartment.
Vehicles with misfuel inhibitor
opened by using a nozzle for diesel
Place the funnel in straight position to
fuel or a funnel for emergency
the filler neck and press with slight
9 Warning
refilling.
force to insert.
Turn the fuel filler cap slowly anti-
Use the funnel to fill in the diesel fuel
Do not try to open the flap of the
clockwise.
into the filler neck.
fuel filler neck manually on
The cap can be retained in the
vehicles with misfuel inhibitor.
After topping-up, put the funnel into
bracket on the fuel filler flap.
the plastic bag and stow it in the load
Disregarding this could lead to
Place the nozzle in straight position to
compartment.
trapping of the fingers.
the filler neck and press with slight
Selective catalytic reduction system
force to insert.
Vehicles with a selective catalytic
3 164.
reduction system are equipped with a
In case of an emergency, refil with a
misfuel inhibitor.
canister. A funnel must be used to
Liquid gas refuelling
open the cap of the filler neck.
Follow the operating and safety
instructions of the filling station when
refuelling.
The filling valve for the liquid gas is
behind the fuel filler cap.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

218
Driving and operating
Press the button at the liquid gas
supply point. The filling system stops
or begins to run slowly when 80% of
the tank volume is reached
(maximum fill level).
Release button on filling system and
the filling process stops. Release the
locking lever and remove the filler
nozzle. A small quantity of liquid gas
may escape.
Remove adapter and stow in vehicle.
Fit protective cap to prevent the
Unscrew protective cap from the filler
ACME Adapter: Screw the nut of the
penetration of foreign bodies into the
neck.
filling nozzle onto the adapter. Press
filler opening and the system.
locking lever on filler nozzle down.
DISH filler neck: Place the filler nozzle
9 Warning
into the adapter. Press locking lever
on filler nozzle down.
Due to the system design, an
Bayonet filler neck: Place filler nozzle
escape of liquid gas after
on the adapter and turn clockwise or
releasing the locking lever is
anticlockwise through one quarter
unavoidable. Avoid inhaling.
turn. Pull locking lever of filler nozzle
fully.
9 Warning
EURO filler neck: Press the filler
nozzle onto the adapter until it
The liquid gas tank should only be
engages.
filled to 80% capacity, for safety
Screw the required adapter hand-
reasons.
tight onto the filler neck.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving and operating
219
The multivalve on the liquid gas tank
automatically limits the fill quantity. If
a larger quantity is added, we
recommend not exposing the vehicle
to the sun until the excess amount
has been used up.

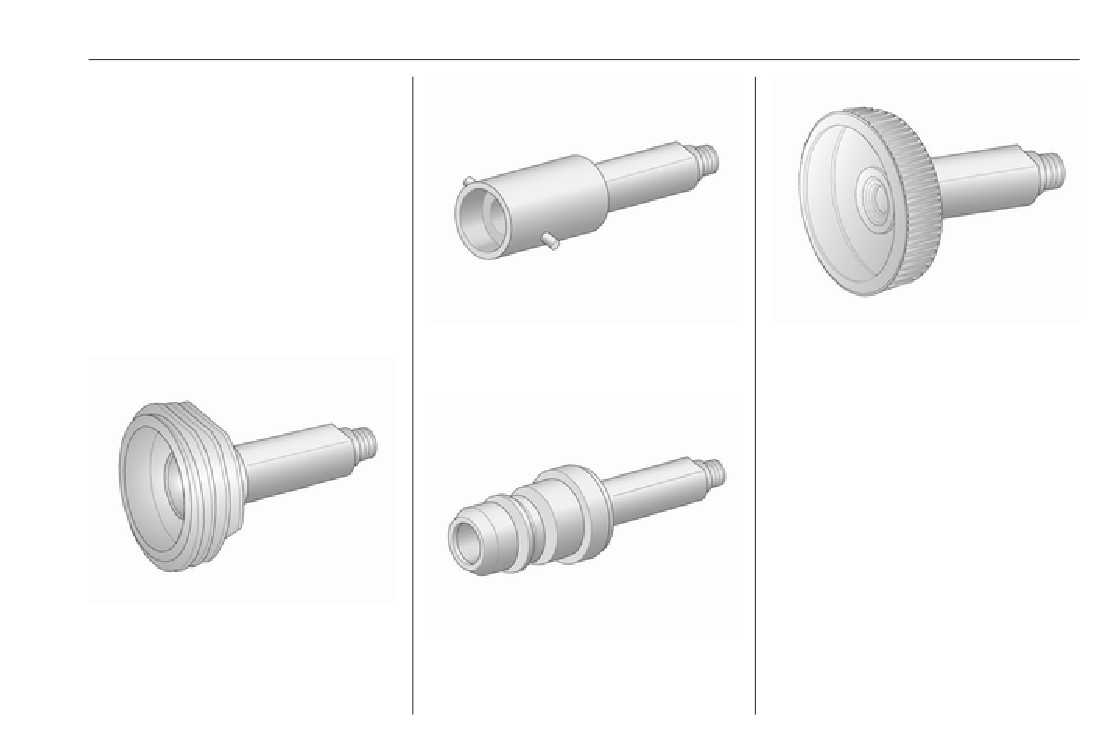

Filling adapter
As filling systems are not
standardised, different adapters are
required which are available from
Vauxhall Distributors and from
Vauxhall Authorised Repairers.
Bayonet adapter: Netherlands,
DISH adapter: Austria, Bosnia-
Norway, Spain, United Kingdom
Herzegovina, Bulgaria, Croatia,
Czech Republic, Denmark, Estonia,
France, Greece, Hungary, Italy,
Latvia, Lithuania, Macedonia,
Poland, Portugal, Romania, Serbia,
Slovakia, Slovenia, Sweden,
Switzerland, Turkey, Ukraine
Fuel filler cap
Only use genuine fuel filler caps.
Diesel-engined and Ethanol-engined
vehicles have special fuel filler caps.
ACME adapter: Belgium, Germany,
Ireland, Luxembourg, Switzerland
EURO adapter: Spain

-------------------------------------------------------------------------------------------------------------------------------------------------------------

220
Driving and operating
The figures are provided only for the
Fuel consumption - CO2-
Trailer hitch
purpose of comparison between
Emissions
different vehicle variants and must
General information
The fuel consumption (combined) of
not be taken as a guarantee for the
the model Vauxhall Insignia is within
actual fuel consumption of a
The factory-fitted towing equipment is
a range of 25.9 to 75.4 mpg.
particular vehicle. Additional
folded up under the rear bumper
equipment may result in slightly
fascia.
The CO2 emission (combined) is
higher results than the stated
Entrust retrofitting of towing
within a range of 252 to 99 g/km.
consumption and CO2 figures.
equipment to a workshop. It may be
For the values specific for your
Furthermore, fuel consumption is
necessary to make changes that
vehicle, refer to the EEC Certificate of
dependent on personal driving style
affect the cooling system, heat
Conformity provided with your vehicle
as well as road and traffic conditions.
shields or other equipment. Only use
or other national registration
towing equipment that has been
documents.
approved for your vehicle.
To avoid vehicle damage, the power
General information
tailgate cannot be operated with the
The official fuel consumption and
radio remote control when a trailer is
specific CO2 emission figures quoted
electrically connected.
relate to the EU base model with
The bulb outage detection function for
standard equipment.
trailer brake light cannot detect a
Fuel consumption data and CO2
partial bulb outage, e.g. in case of four
emission data are determined
times five watt bulbs, the function only
according to regulation R (EC) No.
detects lamp outage when only a
715/2007 (in the version respectively
single five Watt lamp remains or none
applicable), taking into consideration
remain.
the vehicle weight in running order, as
Fitting of towing equipment could
specified by the regulation.
cover the opening of the towing eye.
If this is the case use the coupling ball
bar for towing.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving and operating
221
The permissible gross train weight
Driving characteristics and
Trailer towing
must not be exceeded. This weight is
towing tips
Trailer loads
specified on the identification plate
Before attaching a trailer, lubricate
3 276.
the coupling ball. However, do not do
The permissible trailer loads are
so if a stabiliser, which acts on the
vehicle and engine-dependent
Vertical coupling load
coupling ball, is being used to reduce
maximum values which must not be
The vertical coupling load is the load
snaking movements.
exceeded. The actual trailer load is
exerted by the trailer on the coupling
the difference between the actual
For trailers with low driving stability
ball. It can be varied by changing the
gross weight of the trailer and the
and trailers with a permitted gross
weight distribution when loading the
actual coupling socket load with the
vehicle weight of more than 1400 kg
trailer.
trailer coupled.
(Front-wheel drive)/1600 kg (All-
The maximum permissible vertical
wheel drive) the use of a stabiliser is
The permissible trailer loads are
coupling load (85 kg) is specified on
strongly recommended when driving
specified in the vehicle documents. In
the towing equipment identification
above 50 mph.
general, they are valid for gradients
plate and in the vehicle documents.
up to max. 12%.
If the trailer starts snaking, drive more
Always aim for the maximum load,
slowly, do not attempt to correct the
The permitted trailer load applies up
especially in the case of heavy
steering and brake sharply if
to the specified incline and up to an
trailers. The vertical coupling load
necessary.
altitude of 1000 metres above sea
should never fall below 25 kg.
level. Since engine power decreases
When driving downhill, drive in the
as altitude increases due to the air
same gear as if driving uphill and
becoming thinner, therefore reducing
drive at a similar speed.
climbing ability, the permissible gross
Adjust tyre pressure to the value
train weight also decreases by 10%
specified for full load 3 292.
for every 1000 metres of additional
altitude. The gross train weight does
not have to be reduced when driving
on roads with slight inclines (less than
8%, e.g. motorways).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

222
Driving and operating
Rear axle load
9 Warning
When the trailer is coupled and the
towing vehicle fully loaded, the
Make sure that no one is in the
permissible rear axle load (see
pivot zone of the coupling ball bar.
identification plate or vehicle
Risk of body injury.
documents) may be exceeded by
When releasing the stowed
90 kg for the 5-door Hatchback/4-
coupling ball bar, make sure to
door Saloon and 85 kg for the Sports
stand left of the grip.
Tourer/Country Tourer, the gross
vehicle weight rating may be
Release stowed coupling ball bar
exceeded by 65 kg for the 5-door
Hatchback/4-door Saloon and 60 kg
for the Sports Tourer/Country Tourer.
A buzzing tone sounds as a warning
If the permissible rear axle load is
when the release handle is pulled out
exceeded, a maximum speed of
and the ball neck is disengaged.
60 mph applies.
Take the released coupling ball bar
and raise it up until it engages.
Towing equipment
Ensure the coupling ball bar is
correctly engaged and the released
Caution
handle is guided back to its hidden
initial position, otherwise the buzzing
The folding coupling ball bar
tone will not stop.
cannot be removed from the
vehicle. When driving without a
Pull the grip located left to the number
trailer, fold in the coupling ball bar.
plate under the rear bumper fascia at
an angle of approx. 45° to the ground.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving and operating
223
Stow/hide coupling ball bar
A buzzing tone sounds as a warning
release handle is impossible to
when the release handle is pulled out
guide to its hidden initial position in
and the ball neck is disengaged.
the housing or if the buzzing tone
sounds after engaging the
coupling ball bar, seek the
assistance of a workshop.
Eye for break-away stopping cable
Attach break-away stopping cable to
eye.
Trailer stability assist
If the system detects snaking
Pull the grip located left of the number
movements, engine power is reduced
plate under the rear bumper fascia at
and the vehicle/trailer combination is
an angle of approx. 45° to the ground.
With the flat of the hand, swivel the
selectively braked until the snaking
released coupling ball bar to the right
ceases. While system is working keep
until it engages under the floor. Make
steering wheel as still as possible.
sure that the release handle is back in
Trailer stability assistant is a function
its hidden initial position, otherwise
of the Electronic Stability Control
the buzzing tone will not stop.
3 176.
9 Warning
Towing a trailer is permitted only
when the coupling ball bar is fitted
correctly. If the coupling ball bar
does not engage correctly or if the

-------------------------------------------------------------------------------------------------------------------------------------------------------------

224
Vehicle care
Interior lights
244
Appearance care
270
Vehicle care
Instrument panel illumination ... 244
Exterior care
270
Electrical system
244
Interior care
272
Fuses
244
General Information
225
Engine compartment fuse box . 246
Accessories and vehicle
Instrument panel fuse box
248
modifications
225
Load compartment fuse box
249
Vehicle storage
225
Vehicle tools
251
End-of-life vehicle recovery
225
Tools
251
Vehicle checks
226
Wheels and tyres
252
Performing work
226
Winter tyres
252
Bonnet
226
Tyre designations
252
Engine oil
227
Tyre pressure
252
Automatic transmission fluid
228
Tyre pressure monitoring
Engine coolant
229
system
254
Power steering fluid
230
Tread depth
255
Washer fluid
230
Changing tyre and wheel size . 256
Brakes
231
Wheel covers
256
Brake fluid
231
Tyre chains
257
Vehicle battery
231
Tyre repair kit
257
Diesel fuel system bleeding
233
Wheel changing
260
Wiper blade replacement
233
Spare wheel
262
Bulb replacement
234
Jump starting
265
Halogen headlights
235
Towing
266
Xenon headlights
237
Towing the vehicle
266
Fog lights
239
Towing another vehicle
268
Tail lights
240
Side turn signal lights
242
Number plate light
243

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
225
● Open bonnet, close all doors and
General Information
Vehicle storage
lock the vehicle.
Storage for a long period of time
● Disconnect the clamp from the
Accessories and vehicle
negative terminal of the vehicle
modifications
If the vehicle is to be stored for several
battery. Beware that all systems
months:
We recommend to use genuine parts
are not functional, e.g. anti-theft
and accessories and factory
Wash and wax the vehicle.
alarm system.
approved parts specific for your
Have the wax in the engine
vehicle type. We cannot assess or
compartment and underbody
Putting back into operation
guarantee reliability of other products
checked.
When the vehicle is to be put back into
- even if they have a regulatory or
Clean and preserve rubber seals.
operation:
otherwise granted approval.
Fill up fuel tank completely.
● Connect the clamp to the
Do not make any modifications to the
Change engine oil.
negative terminal of the vehicle
electrical system, e.g. changes of
battery. Activate the electronics
electronic control units (chip tuning).
Drain washer fluid reservoir.
of the power windows.
Check coolant antifreeze and
Caution
● Check tyre pressure.
corrosion protection.
● Fill up the washer fluid reservoir.
Adjust tyre pressure to the value
When transporting the vehicle on
specified for full load.
● Check the engine oil level.
a train or on a recovery vehicle, the
mud flaps might be damaged.
Park vehicle in dry, well
● Check the coolant level.
ventilated place. Engage first or
● Fit the number plate if necessary.
reverse gear or set selector lever
to P. Prevent the vehicle from
End-of-life vehicle recovery
rolling.
Information on end-of-life vehicle
Do not apply parking brake.
recovery centres and the recycling of
end-of-life vehicles is available on our















Content      ..     11      12      13      14     ..
