Vauxhall Cascada (2016 year). Manual

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

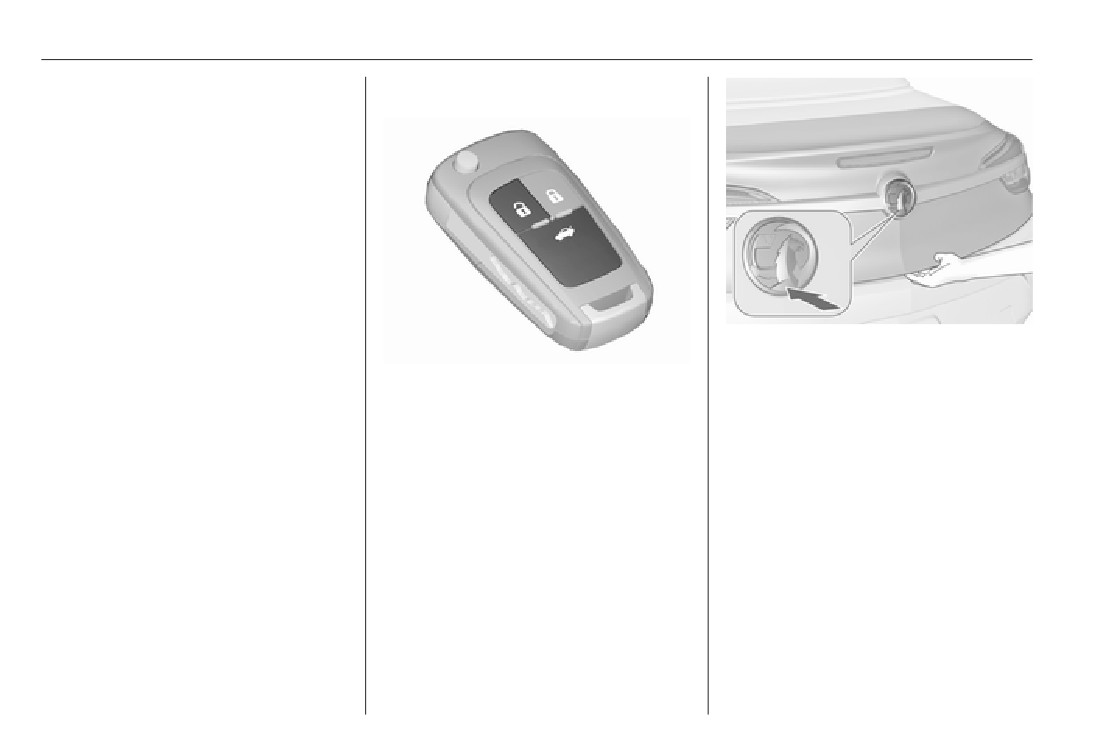

Vehicle unlocking

In brief

Initial drive information

To open the boot lid, push the brand

emblem at the bottom half.

Press c briefly to unlock the doors

Pressing

opens the boot lid while

and boot lid. Open the doors by

the vehicle remains locked.

pulling the handles.

Radio remote control 3 20, Central

Soft top 3 34, Windows 3 31.

locking system 3 22, Load

compartment 3 24.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

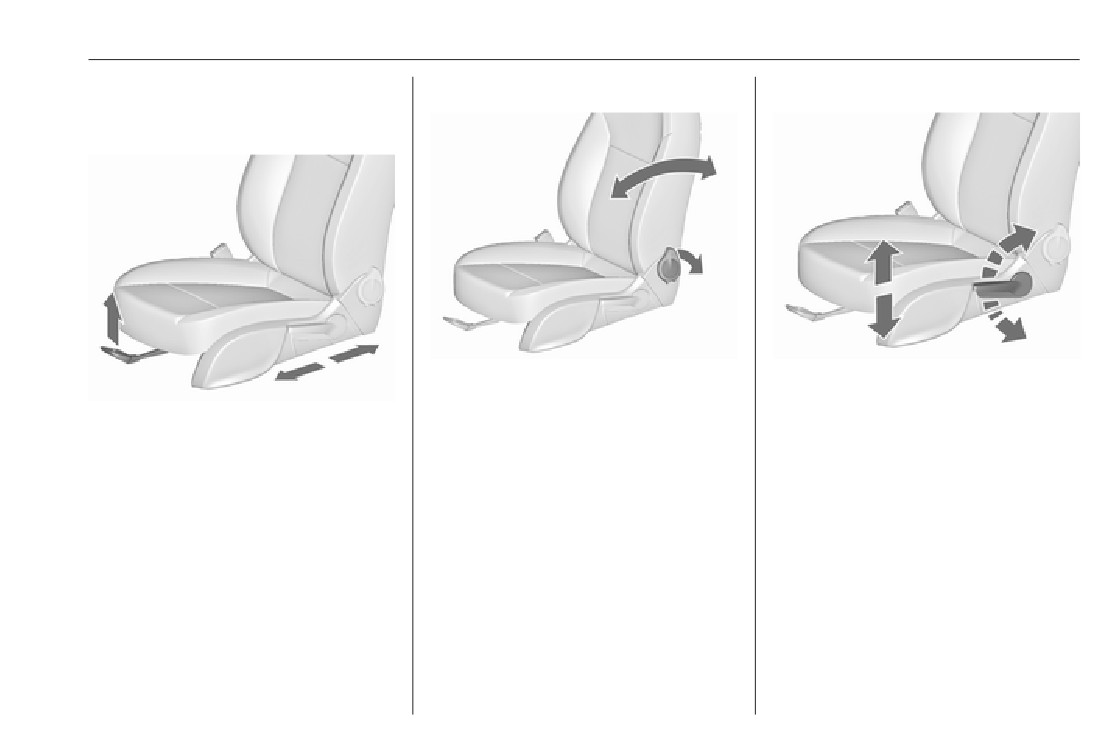

Seat adjustment

Backrest inclination

Seat height

Longitudinal adjustment

Turn lever to the rear, adjust

Lever pumping motion

inclination and release lever. Allow

: seat higher

Pull handle, slide seat, release

the seat to engage audibly.

down : seat lower

handle. Try to move the seat back and

Seat position 3 47, Manual seat

forth to ensure that the seat is locked

Seat position 3 47, Manual seat

adjustment 3 48, Power seat

in place.

adjustment 3 48, Power seat

adjustment 3 51, Seat folding

adjustment 3 51.

Seat position 3 47, Manual seat

3 50.

adjustment 3 48, Power seat

adjustment 3 51.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

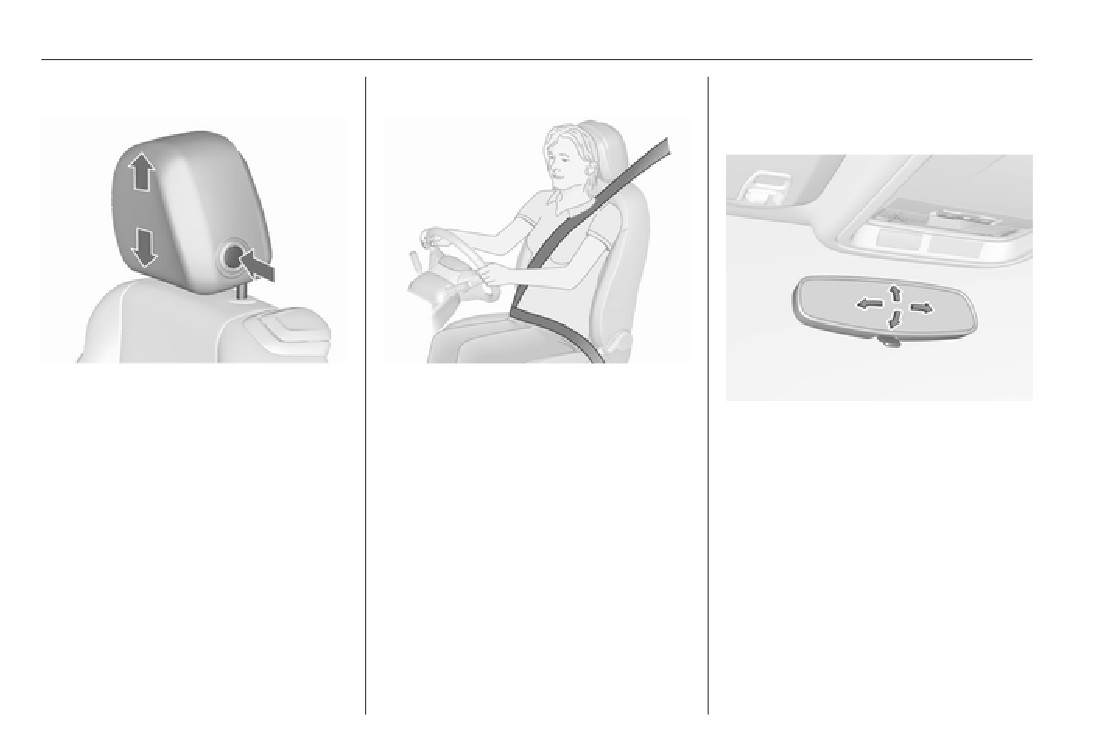

Head restraint adjustment

Seat belt

Mirror adjustment

Interior mirror

Press release button, adjust height,

Pull out the seat belt and engage in

engage.

belt buckle. The seat belt must not be

twisted and must fit close against the

To adjust the mirror, move the mirror

Head restraints 3 45.

body. The backrest must not be tilted

housing in the desired direction.

back too far (maximum approx. 25 °).

Manual anti-dazzle interior mirror

To release belt, press red button on

3 30.

belt buckle.

Automatic anti-dazzle interior mirror

Seat position 3 47, Seat belts

3 30.

3 54, Seat belt presenter 3 54,

Airbag system 3 57.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

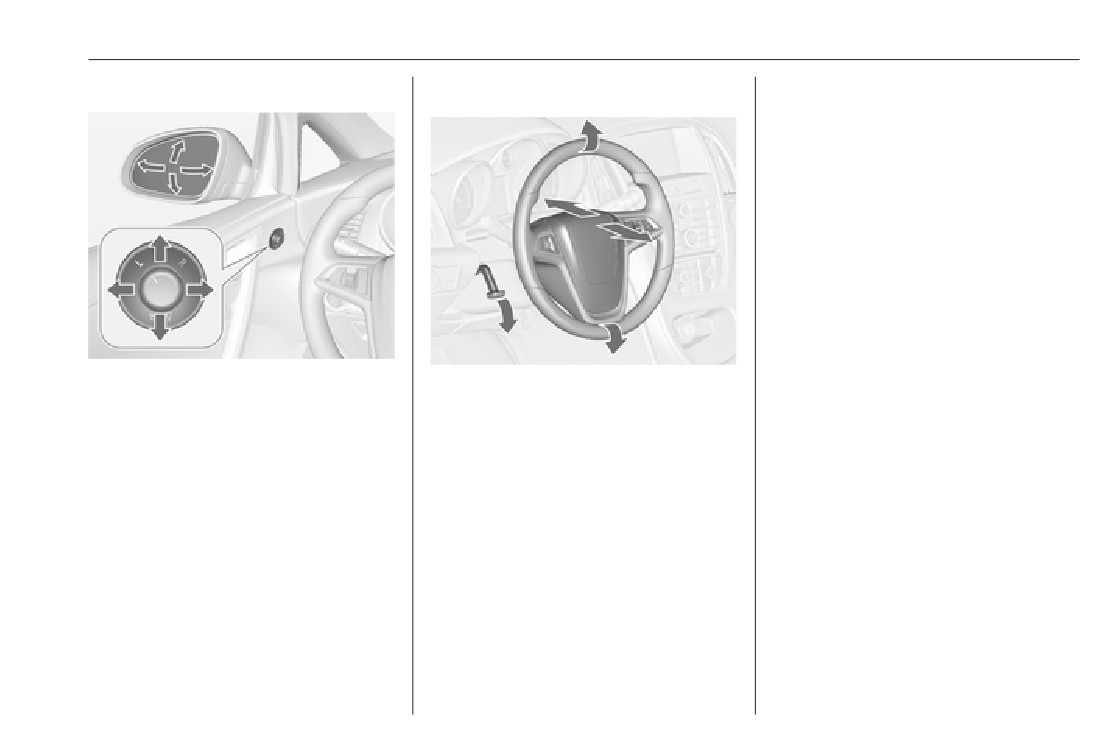

Exterior mirrors

Steering wheel adjustment

Select the relevant exterior mirror and

Unlock the lever, adjust the steering

adjust it.

wheel, then engage the lever and

Convex exterior mirrors 3 29,

ensure it is fully locked.

Electric adjustment 3 29, Folding

Do not adjust the steering wheel

exterior mirrors 3 29, Heated

unless the vehicle is stationary and

exterior mirrors 3 30.

the steering wheel lock has been

released.

Airbag system 3 57, Ignition

positions 3 137.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

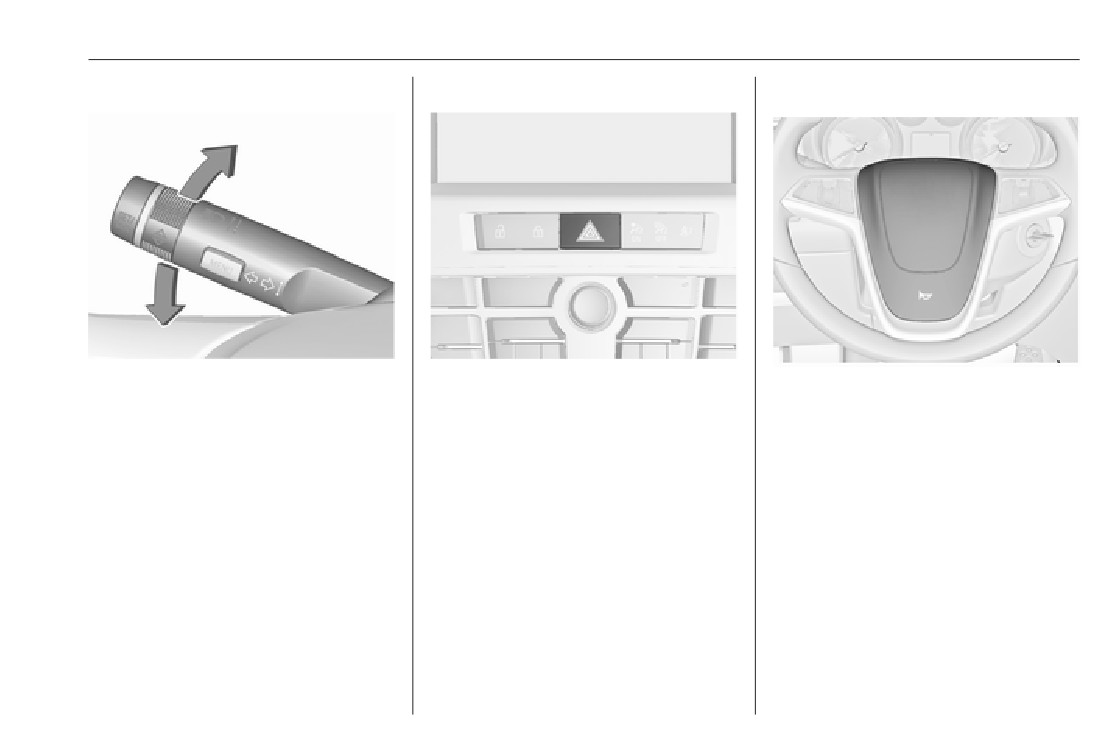

Power windows

Hazard warning flashers

119

Soft top operation switch

Exterior mirrors

Control indicator for airbag

Central window switch

Cruise control

157

deactivation

Selector lever, transmission

Speed limiter

158

Control indicator for front

Parking brake, manual or

passenger seat belt

electric operation

151

Forward collision alert

160

Ignition switch with

Side air vents

133

Tour mode

155

steering wheel lock

137

Turn and lane-change

Info-Display

Horn

signals, headlight flash,

Anti-theft alarm system

low beam and high beam,

status LED

Driver airbag

high beam assist

120

Centre air vents

133

Bonnet release lever

189

Exit lighting

123

Glovebox, lockable

Storage compartment

Parking lights

121

Fuse box

206

Fuse box

206

Buttons for Driver

Traction Control system

Steering wheel adjustment . . 77

Information Centre

(TC)

153

Light switch

112

Instruments

Electronic Stability Control

Rear fog light

120

Steering wheel controls

(ESC)

154

Instrument illumination

121

Driver Information Centre

Parking assist systems

163

Headlight range

Windscreen wiper,

Lane departure warning

177

adjustment

115

windscreen washer

Eco button for stop-start

system, headlight washer

Front fog lights

120

system

138

system

Climate control system

125

Sport mode

155

AUX input, USB input

Central locking system

Power outlet

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

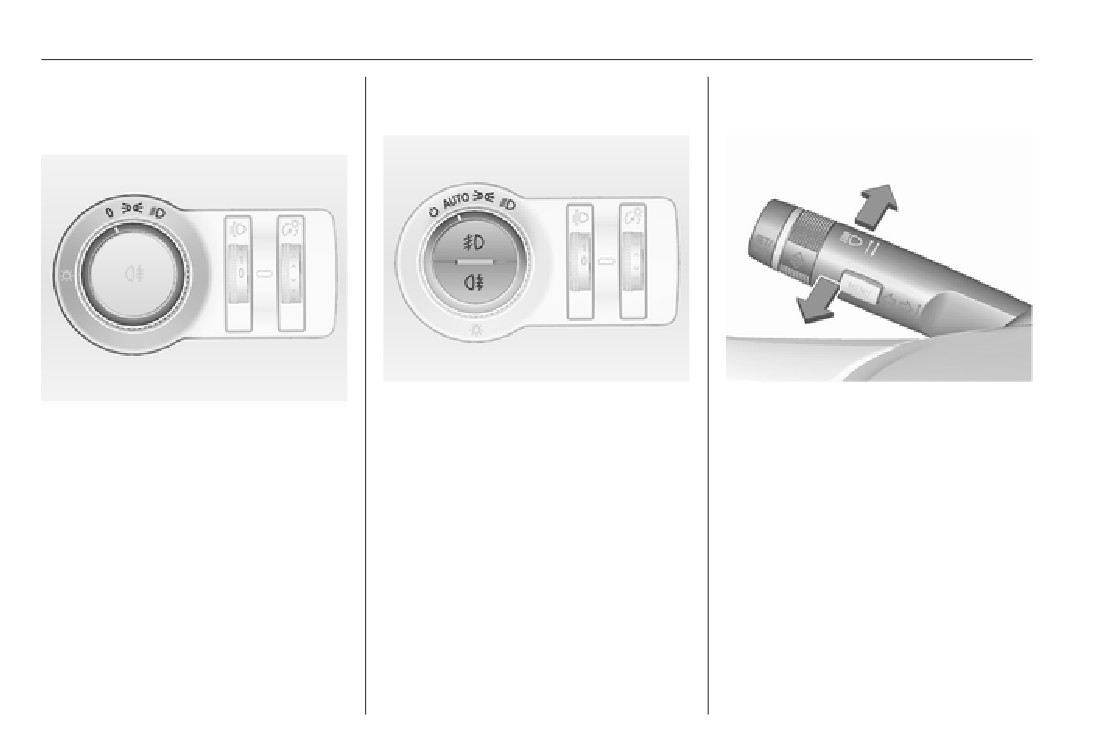

Exterior lighting

Light switch with automatic light

Headlight flash, high beam and

control

low beam

Light switch

AUTO : automatic light control:

headlight flash : pull lever

Turn light switch:

headlights are switched on

high beam

: push lever

and off automatically

low beam

: pull lever

: lights off

: activation or deactivation of

8 : sidelights

High beam 3 114, Headlight flash

the automatic light control

9 : headlights

3 115.

: sidelights

: headlights

Automatic light control 3 113, High

beam assist 3 114, Adaptive forward

Fog lights

lighting 3 116.

Press light switch:

> : front fog lights

r : rear fog light

Lighting 3 112.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

Washer and wiper systems

Windscreen and headlight

Climate control

washer systems

Windscreen wiper

Heated rear window, heated

exterior mirrors

Pull lever.

: fast

Windscreen and headlight washer

: slow

The heating is operated by pressing

system 3 78, Washer fluid 3 192.

INT

: interval wiping

Ü.

Heated rear window 3 33.

automatic wiping with rain

sensor

OFF : off

For a single wipe when the

windscreen wiper is off, press the

lever down to position 1x.

Windscreen wiper 3 78.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

Demisting and defrosting the

Transmission

windows, Air conditioning system

windows, Electronic climate

control

Manual transmission

Press V.

Reverse: with the vehicle stationary,

Set the temperature control to the

depress clutch pedal, press the

highest level.

Temperature and air distribution are

release button on the selector lever

Switch on heated rear window Ü.

set automatically and the fan runs at

and engage the gear.

high speed.

Air conditioning system 3 126.

If the gear does not engage, set the

Switch on heated rear window Ü.

lever to neutral, release the clutch

Electronic climate control 3 128.

pedal and depress again; then repeat

gear selection.

Manual transmission 3 149.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

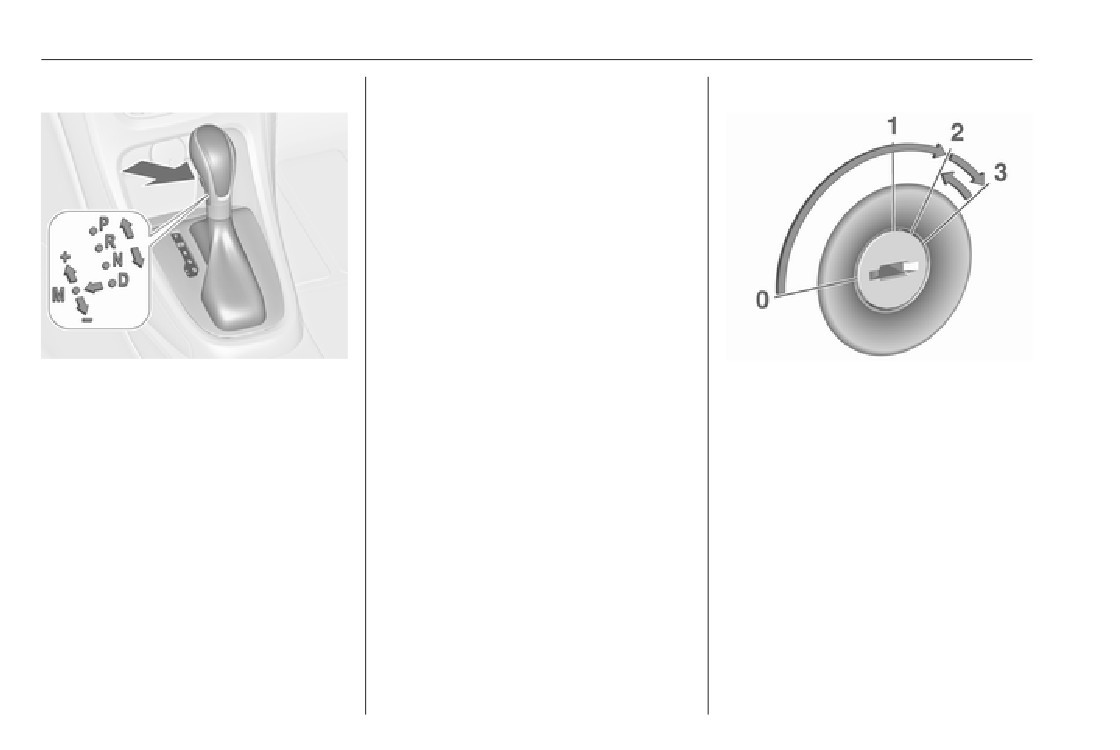

Automatic transmission

Starting off

Starting the engine

Check before starting off

●

Tyre pressure and condition

3 214, 3 247.

●

Engine oil level and fluid levels

3 190.

●

All windows, mirrors, exterior

lighting and number plates are

free from dirt, snow and ice and

are operational.

●

Proper position of mirrors, seats

and seat belts 3 29, 3 47,

P : park

●

Turn key to position 1.

3 55.

R : reverse

●

Move the steering wheel slightly

N : neutral

●

Soft top must be completely

to release the steering wheel

D : automatic mode

opened or closed 3 34.

lock.

M : manual mode: move selector

●

Brake function at low speed,

●

Manual transmission: operate

lever from D to the left.

particularly if the brakes are wet.

clutch and brake pedal.

< : manual mode upshifting

] : manual mode downshifting

Automatic transmission: operate

brake pedal and move selector to

The selector lever can only be moved

P or N.

out of P when the ignition is on and

●

Do not operate accelerator pedal.

the brake pedal is applied. To engage

P or R, press the release button.

Automatic transmission 3 146.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

● Diesel engines: turn the key to

Stop-start system

Parking

position 2 for preheating and wait

until control indicator !

9 Warning

extinguishes.

● Turn key to position 3 and

●

Do not park the vehicle on an

release.

easily ignitable surface. The

Starting the engine 3 137.

high temperature of the

exhaust system could ignite the

surface.

●

Always apply the parking

brake. Activate the manual

parking brake without pressing

the release button. Apply as

firmly as possible on a downhill

If the vehicle is at a low speed or at a

slope or uphill slope. Depress

standstill and certain conditions are

brake pedal at the same time to

fulfilled, activate an Autostop as

reduce operating force.

follows:

For vehicles with electric

● Depress the clutch pedal.

parking brake, pull switch m for

● Set the lever in neutral.

approx. one second.

● Release the clutch pedal.

The electric parking brake is

An Autostop is indicated by the

applied when control indicator

needle at the AUTOSTOP position in

m illuminates 3 90.

the tachometer.

●

Switch off the engine.

To restart the engine, depress the

●

If the vehicle is on a level

clutch pedal again.

surface or uphill slope, engage

Stop-start system 3 138.

first gear or set the selector

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

Activate the anti-theft alarm

lever to position P before

system 3 26.

removing the ignition key. On

an uphill slope, turn the front

● The engine cooling fans may run

wheels away from the kerb.

after the engine has been

switched off 3 189.

If the vehicle is on a downhill

slope, engage reverse gear or

Caution

set the selector lever to position

P before removing the ignition

After running at high engine

key. Turn the front wheels

speeds or with high engine loads,

towards the kerb.

operate the engine briefly at a low

●

Close the windows and the soft

load or run in neutral for

top.

approx. 30 seconds before

●

Remove the ignition key from

switching off, in order to protect

the ignition switch. Turn the

the turbocharger.

steering wheel until the

steering wheel lock is felt to

Keys, locks 3 19, Laying the vehicle

engage.

up for a long period of time 3 188.

For vehicles with automatic

transmission, the key can only

be removed when the selector

lever is in position P.

● Lock the vehicle with e on the

radio remote control.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

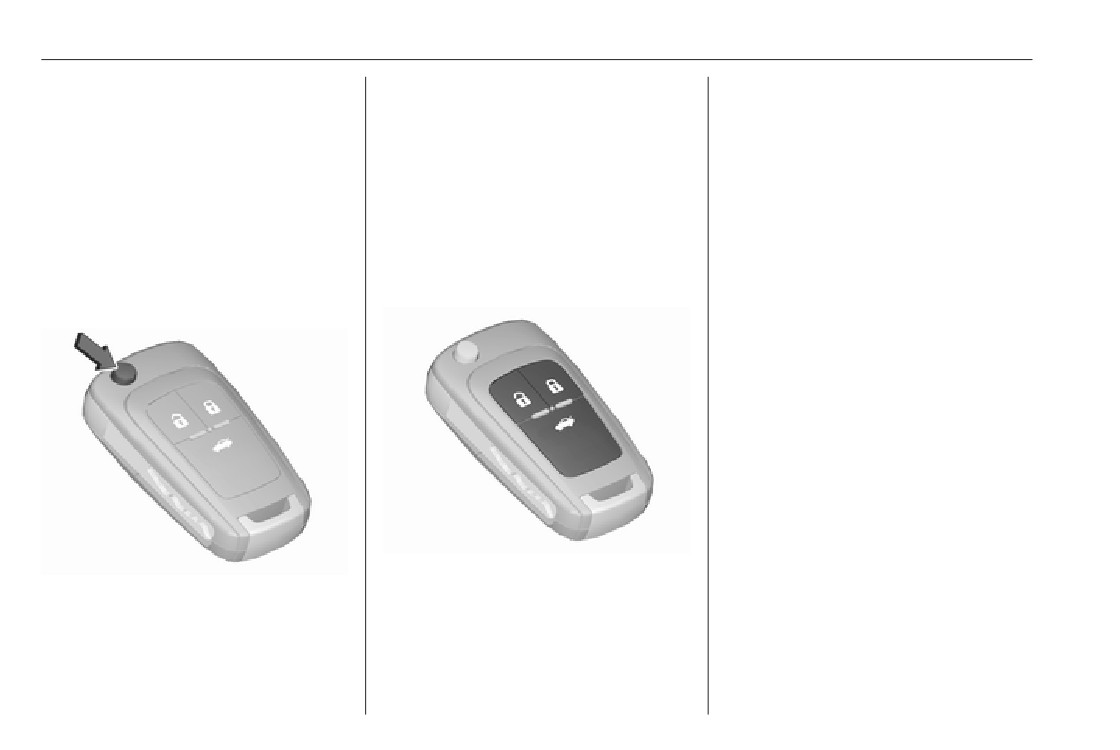

Keys, doors and windows

Power windows

Keys, doors and

Keys, locks

Heated rear window

windows

Sun visors

Keys

Roof

Soft top

Caution

Wind deflector

Keys, locks

Rollover protection system

Do not attach heavy or bulky items

Keys

to the ignition key.

Car Pass

Radio remote control

Memorised settings

Replacement keys

Central locking system

The key number is specified in the

Automatic locking

Car Pass or on a detachable tag.

Doors

The key number must be quoted

Load compartment

when ordering replacement keys as it

Vehicle security

is a component of the immobiliser

Anti-theft locking system

system.

Anti-theft alarm system

Locks 3 229.

Immobiliser

The code number of the adapter for

Exterior mirrors

the locking wheel nuts is specified on

Convex shape

a card. It must be quoted when

Electric adjustment

ordering a replacement adapter.

Folding mirrors

Heated mirrors

Wheel changing 3 220.

Interior mirrors

Manual anti-dazzle

Automatic anti-dazzle

Windows

Windscreen

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Keys, doors and windows

Lock cylinders

● soft top

Car Pass

● power windows

Designed to free-wheel if they are

The Car Pass contains security

forcefully rotated without the correct

related vehicle data and should

The radio remote control has a range

key or if the correct key is not fully

therefore be kept in a safe place.

of approx. 20 metres. It can be

inserted. To reset, turn cylinder with

restricted by external influences. The

When the vehicle is taken to a

the correct key until its slot is vertical,

hazard warning flashers confirm

workshop, this vehicle data is needed

remove key then re-insert it. If the

operation.

in order to perform certain operations.

cylinder still free-wheels, turn the key

Handle with care, protect from

through 180° and repeat operation.

moisture and high temperatures and

Radio remote control

avoid unnecessary operation.

Key with foldaway key section

Fault

If the central locking system cannot

be operated with the radio remote

control, it may be due to the following:

● Range is exceeded.

● Battery voltage is too low.

● Frequent, repeated operation of

the radio remote control while not

in range, which will require re-

synchronisation.

Used to operate:

● Overload of the central locking

Press button to extend. To fold the

system by operating at frequent

● central locking system

key, first press the button.

intervals, the power supply is

● anti-theft locking system

interrupted for a short time.

● anti-theft alarm system

● Interference from higher-power

radio waves from other sources.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Keys, doors and windows

Unlocking 3 22.

Key with foldaway key section

Memorised settings

Basic settings

Whenever the key is removed from

the ignition switch, the following

Some settings can be changed in the

settings are automatically memorised

Settings menu in the Info-Display.

by the key:

Vehicle personalisation 3 103.

● lighting

Radio remote control battery

● presets for Infotainment system

replacement

● central locking system

Replace the battery as soon as the

● Sport mode settings

range reduces.

● comfort settings

The saved settings are automatically

used the next time the memorised key

Extend the key and open the unit

is inserted into the ignition switch and

sideways. Replace the battery

turned to position 1 3 137.

(battery type CR 2032), paying

Graphic-Info-Display

attention to the installation position.

A precondition is that Personalization

Close the unit and synchronise.

Batteries do not belong in household

by driver is activated in the personal

waste. They must be disposed of at

Radio remote control

settings. This must be set for each

an appropriate recycling collection

synchronisation

key used.

point.

Colour-Info-Display

After replacing the battery, unlock the

door with the key in the driver's door

The personalisation is permanently

lock. The radio remote control is

activated.

synchronised when the ignition is

Vehicle personalisation 3 103.

switched on.

Vauxhall Cascada (2016 year). Manual - part 1
