Service, maintenance

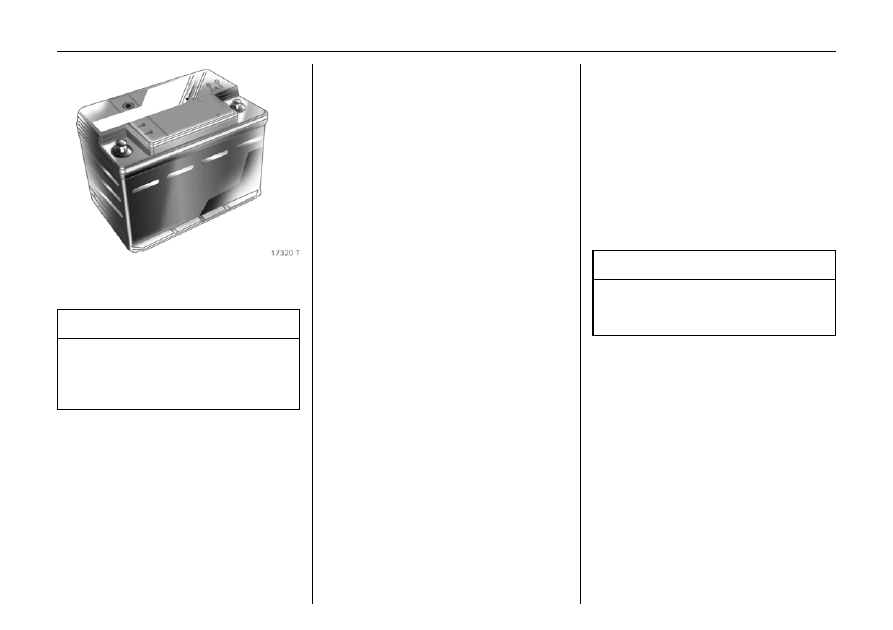

Battery

The battery is maintenance-free.

Fitting of electrical or electronic accessories

at a later date can discharge or add extra

load to the battery. Take advice on the

technical possibilities, e.g. use of a more

powerful battery.

Parking the vehicle for more than 4 weeks

can lead to battery discharging. This may

reduce the service life of the battery.

Disconnect battery from on-board power

supply by disconnecting the negative

terminal.
The Vauxhall alarm system 3 siren must be

deactivated as follows: switch the ignition

on then off, disconnect the vehicle’s

battery within 15 seconds.
Ensure that ignition is switched off before

connecting battery. Then perform the

following actions:
z Setting date and time in the information

display, see pages 124, 127, 132.

z If necessary activate the window and

sunroof electronics 3, see pages 51, 54.

In order to prevent the battery from

discharging, some consumers such as the

courtesy light automatically switch off

after approx. 20 minutes.
Disconnecting/connecting the battery

from/to the electrical system

Before charging, isolate the battery from

the on-board network. First remove the

negative and then the positive terminal.
Do not reverse the polarity of the battery,

i.e. the terminals for the positive and

negative leads. When connecting, start

with the positive lead and then connect the

negative lead.

Protecting electronic components

In order to prevent faults in electronic

components in the electrical system, never

connect or disconnect battery with engine

running or ignition switched on. Never start

engine with battery disconnected, e.g.

when starting using jump leads.
To avoid damaging the vehicle, do not

make any modifications to the electrical

system, e.g. connecting additional

consumers or tampering with electronic

control units (chip tuning).

9

 Warning

Have the battery change performed by a

workshop. Please comply with the legal,

environmental and health regulations as

regards the disposal of old batteries.

9

 Warning

Electronic ignition systems generate very

high voltages. Do not touch the ignition

system; high voltage can be fatal.

307

Service, maintenance

Vehicle decommissioning

Observe national regulations.
If the vehicle is to be parked for several

months, to avoid damage have the

following work performed by a workshop.
z Wash and preserve the vehicle, see

page 289.

z Check corrosion protection in engine

compartment and on underbody and

repair if necessary.

z Clean and wax the rubber seals of the

bonnet, doors and roof. Intermediate

position of the Astra TwinTop roof for

cleaning – see page 58.

z Change engine oil, see page 300.
z Check antifreeze and corrosion

protection, see page 301.

z Check the coolant level, top up with

antifreeze if necessary, see page 301.

z Empty windscreen wash system and

headlight wash system.

z Increase tyre pressure to value specified

for full load, see page 337.

Vehicle storage

z Park vehicle in dry, well ventilated place.

With manual transmission or

Easytronic 3, engage 1st or reverse

gear. With automatic transmission 3,

move selector lever to P. Use chocks or

the like to prevent the vehicle from

rolling.

z Do not apply handbrake.
z Disconnect battery by disengaging

negative terminal from vehicle electrical

system, see page 306.

Vehicle recommissioning

Observe national regulations.
Perform the following work before

recommissioning the vehicle:
z Connect battery, see page 306.
z Check tyre pressure and correct if

necessary, see page 337.

z Fill up windscreen wash system, see

page 305.

z Check engine oil level, see page 298.
z Check the coolant level; top up with

antifreeze if necessary, see page 301.

z Fit the number plates if necessary.

308

Technical data

Technical data

Vehicle documents,

identification plate

The technical data is determined in

accordance with European Community

standards. We reserve the right to make

modifications. Specifications in the vehicle

documents always have priority over those

given in this manual.

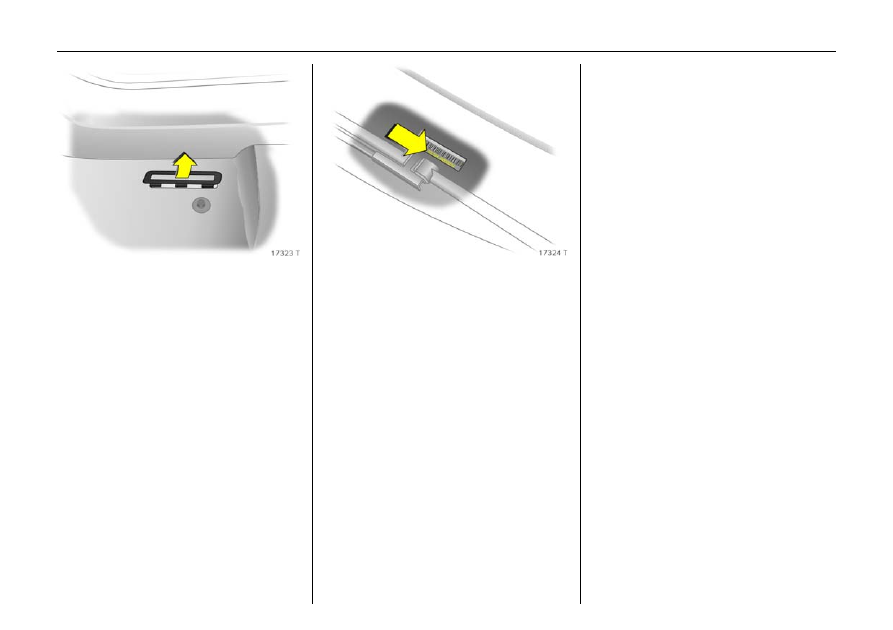

The identification plate is affixed to the

front right door frame.

Information on identification plate:

Vehicle documents,

identification plate............................ 308

Vehicle identification data..................  309
Coolant, brake fluid, oils .....................  309
Engine data..........................................  310
Performance......................................... 312
Fuel consumption, CO

2

 emissions ......  316

Weights, payload and roof load ........  325
Tyres ..................................................... 337
Electrical system ..................................  345
Capacities ............................................ 346
Dimensions........................................... 347
Installation dimensions of

trailer towing equipment..................  348

1

Manufacturer

2

Type approval number

3

Vehicle identification number

4

Gross vehicle weight rating

5

Permissible gross train weight

6

Maximum permissible front axle load

7

Maximum permissible rear axle load

8

Vehicle-specific or country-specific

data

309

Technical data

Vehicle identification data

The vehicle identification number is

stamped on the identification plate in the

vehicle floor, on the right-hand side under

a cover between the driver’s door and seat.

The vehicle identification number may be

embossed on the instrument panel.
Engine code and engine number: stamped

on left-hand side of engine on crankcase.

Coolant, brake fluid, oils

Only use approved fluids.
Use of unsuitable fluids can cause serious

damage to the vehicle.
Engine oils

Information on engine oils is found in the

Service Booklet.

310

Technical data

Engine data

Sales designation

Engine identifier code

1.4

Z 14 XEP

1.6

Z 16 XER

1.6

Z 16 LET

1.8

Z 18 XER

VXR

Z 20 LEH

Number  of  cylinders

4

4

4

4

4

Piston displacement (cm

3

) 1364

1598

1598

1796

1998

Brake horse power (kW)

 at rpm

66

5600

85

6000

132

5500

103

6300

177

5600

Torque (Nm)

 at rpm

125

4000

155

4000

230

1980 to 5500

175

1)

3800

1)

For versions with automatic transmission 170 Nm.

320

4000 to 5000

Type of fuel

Petrol

Petrol

Petrol

Petrol

Petrol

Octane requirement (RON)

2)

unleaded

or unleaded

or unleaded

2)

Standard high-quality fuels, e.g. unleaded DIN EN 228; value printed in bold: recommended fuel.

95 (S)

3)



4)

98 (SP)

3)

91 (N)

3)

3)

Knock control system automatically adjusts ignition timing according to type of fuel used (octane number).

95 (S)

3)

98 (SP)

3)

91 (N)

3)4)

4)

Use of 91 RON fuel reduces power and torque.

95 (S)

3)

98 (SP)

3)

–

5)

5)

The use of fuel with an octane number of 91 RON is not permitted.

95 (S)

3)

98 (SP)

3)

91 (N)

3)6)

6)

If no unleaded Premiun fuel is available, 91 RON can be used to avoid high engine load or full load as well as for driving in mountainous terrain with

a caravan/ trailer load or high payload.

95 (S)

3)7)

98 (SP)

3)

91 (N)

3)6)

7)

Use of 95 RON fuel reduces power and torque. Slight increase in fuel consumption.

Max. permissible engine speed,

continuous operation (rpm)

approx. 6200

6500

6500

6800

6400

Oil consumption (l/1000 km)

0.6

0.6

0.6

0.6

0.6

311

Technical data

Engine data

Sales designation

Engine identifier code

1.7 CDTI

Z 17 DTH

1.9 CDTI

Z 19 DT

1.9 CDTI

Z 19 DTH

Number of cylinders

4

4

4

Piston displacement (cm

3

) 1686

1910

1910

Brake horse power (kW)

 at rpm

74

4400

88

3500

110

4000

Torque (Nm)

 at rpm

240

2300

280

2000 to 2750

320

2000 to 2750

Type of fuel

Diesel

Diesel

Diesel

Cetane requirement (CN)

1)

1)

Standard high-quality fuels, e.g. Diesel DIN EN 590; value printed in bold: recommended fuel.

49 (D)

2)

2)

A lower value is possible with winter fuels.

49 (D)

2)

49 (D)

2)

Max. permissible engine speed,

continuous operation (rpm)

approx.

5100 to 5200

5020 to 5180

5020 to 5180

Oil consumption (l/1000 km)

0.6

0.6

0.6

312

Technical data

Performance

(approx. mph / km/h)

, 5-door Hatchback

Engine

1)

1)

Sales designation, see pages 310 and 311.

Z 14 XEP

Z 16 XER

 Z 16 LET

Z 18 XER

Maximum speed

2)

Manual transmission

Easytronic

Automatic transmission

2)

The maximum speed indicated is achievable at kerbweight (without driver) plus 200 kg payload. Optional equipment could reduce the specified

maximum speed of the vehicle.

111/178

110/176

–

191

192

–

137/221

–

–

129/208

–

117/188

Engine

1)

Z 20 LEH

Z 17 DTH

Z 19 DT

Z 19 DTH

Maximum speed

2)

Manual transmission

Easytronic

Automatic transmission

143/230

–

–

112/180

–

–

121/194

–

117/188

129/208

3)

–

–

3)

The maximum speed is limited electronically.

313

Technical data

Performance

(approx. mph / km/h)

, 3-door Hatchback

Engine

1)

1)

Sales designation, see pages 310 and 311.

Z 14 XEP

Z 16 XER

 Z 16 LET

 Z 18 XER

Maximum speed

2)

Manual transmission

Easytronic

Automatic transmission

2)

The maximum speed indicated is achievable at kerbweight (without driver) plus 200 kg payload. Optional equipment could reduce the specified

maximum speed of the vehicle.

112/180

111/178

–

120/193

121/194

–

139/223

–

–

130/210

–

118/190

Engine

2)

Z 20 LEH

Z 17 DTH

Z 19 DT

Z 19 DTH

Maximum speed

2)

Manual transmission

Easytronic

Automatic transmission

152/244

–

–

113/182

–

–

122/196

–

118/190

130/210

3)

–

–

3)

The maximum speed is limited electronically.

314

Technical data

Performance

(approx. mph / km/h)

, Estate

Engine

1)

1)

Sales designation, see pages 310 and 311.

Z 14 XEP

 Z 16 XER

 Z 16 LET

Z 18 XER

Maximum speed

2)

Manual transmission

Easytronic

Automatic transmission

2)

The maximum speed indicated is achievable at kerbweight (without driver) plus 200 kg payload. Optional equipment could reduce the specified

maximum speed of the vehicle.

111/178

–

–

119/191

119/192

–

137/221

–

–

129/207

–

117/188

Engine

1)

Z 17 DTH

Z 19 DT

Z 19 DTH

Maximum speed

2)

Manual transmission

Easytronic

Automatic transmission

112/180

–

–

120/193

–

116/187

129/207

3)

–

–

3)

The maximum speed is limited electronically.

315

Technical data

Performance

(approx. mph / km/h)

, Van

Engine

1)

1)

Sales designation, see pages 310 and 311.

Z 14 XEP

Z 16 XER

Z 17 DTH

Z 19 DT

Z 19 DTH

Maximum speed

2)

Manual transmission

Easytronic

Automatic transmission

2)

The maximum speed indicated is achievable at kerbweight (without driver) plus 200 kg payload. Optional equipment could reduce the specified

maximum speed of the vehicle.

111/178

–

–

119/191

119/192

–

112/180

–

–

120/193

–

116/187

129/207

–

–

Performance

(approx. mph / km/h)

, TwinTop

Engine

1)

Z 16 XER

Z 16 LET

Z 18 XER

Z 19 DTH

Maximum speed

2)

Manual transmission

Easytronic

Automatic transmission

119/192

120/193

–

142/228

–

–

129/209

–

117/189

132/213

–

–

316

Technical data

Fuel consumption, CO

2

 emissions

Directive 80/1268/EEC (last modified

by 2004/3/EC) has applied for the

measurement of fuel consumption

since 1996.

The directive is oriented to actual driving

practices: Urban driving is rated at

approx.

1

/

3

and off-road driving with

approx.

2

/

3

 (urban and extra-urban

consumption). Cold starts and acceleration

phases are also taken into consideration.
The specification of CO

2

 emission is also a

constituent of the directive.

The figures given must not be taken as a

guarantee for the actual fuel consumption

of a particular vehicle.
All values are based on the EU base model

with standard equipment.
The calculation of fuel consumption as

specified by directive 2004/3/EC takes

account of the vehicle’s kerbweight,

ascertained in accordance with these

regulations. Optional extras may result in

slightly higher fuel consumption and CO

2



emission levels than those quoted.
To convert l/100 km into mpg, divide 282

by number of litres/100 km.
Saving fuel, protecting the environment,

see page 200.

317

Technical data

Fuel consumption

(approx. l/100 km)

,

 CO

2

 emissions

(approx. g/km)

,

Hatch 5-door

(up to tyre width of 205 mm

1)

)

1)

On engine Z 17 DTH with Easytronic up to tyre width 195 mm.

Engine

2)

2)

Sales designation, see pages 310 and 311.

Z 14 XEP

Z 16 XER

Z 18 XER

Z 17 DTH

Manual transmission/Easytronic/Automatic

transmission

urban

extra-urban

total

CO

2

8.0/ 7.7/–

5.0/ 4.9/–

6.1/ 5.9/–

146/ 142/–

8.7/ 8.5/–

5.2/ 5.0/–

6.5/ 6.3/–

156/ 151/–

9.9/–/10.5

5.8/–/ 6.2

7.3/–/ 7.8

175/–/ 187

6.4/–/–

4.2/–/–

5.0/–/–

135/–/–

318

Technical data

Fuel consumption

(approx. l/100 km)

,

 CO

2

 emissions

(approx. g/km)

,

Hatch 5-door

(up to tyre width of 225 mm

1)

)

Engine

2)

Z 14 XEP

Z 16 XER

Z 16 LET

Z 18 XER

Manual transmission/Easytronic/Automatic

transmission

urban

extra-urban

total

CO

2

8.2/ 7.9/–

5.2/ 5.1/–

6.3/ 6.1/–

151/ 146/–

8.9/ 8.7/–

5.4/ 5.2/–

6.7/ 6.5/–

161/ 156/–

10.3/–/–

6.2/–/–

7.7/–/–

185/–/–

10.1/–/10.7

6.0/–/ 6.4

7.5/–/ 8.0

180/–/ 192

Engine

2)

Z 17 DTH

Z 19 DT

Z 19 DTH

Manual transmission/Easytronic/Automatic

transmission

urban

extra-urban

total

CO

2

6.5/–/–

4.3/–/–

5.1/–/–

138/–/–

7.4/–/ 9.7

4.9/–/ 5.4

5.8/–/ 7.0

157/–/ 189

7.4/–/–

4.9/–/–

5.8/–/–

157/–/–

1)

For Z 17 DTH engine - tyre width up to 195 mm.

2)

Sales designation, see pages 310 and 311.

319

Technical data

Fuel consumption

(approx. l/100 km)

,

 CO

2

 emissions

(approx. g/km)

,

Hatch 3-door

(up to tyre width of 205 mm

1)

)

Engine

2)

Z 14 XEP

Z 16 XER

Z 18 XER

Z 17 DTH

Manual transmission/Easytronic/Automatic

transmission

urban

extra-urban

total

CO

2

8.0/ 7.7/–

5.0/ 4.9/–

6.1/ 5.9/–

146/ 142/–

8.7/ 8.5/–

5.2/ 5.0/–

6.5/ 6.3/–

156/ 151/–

9.9/–/10.4

5.8/–/ 6.1

7.3/–/ 7.7

175/–/ 185

6.4/–/–

4.2/–/–

5.0/–/–

135/–/–

1)

For Z 17 DTH engine - tyre width up to 195 mm.

2)

Sales designation, see pages 310 and 311.

320

Technical data

Fuel consumption

(approx. l/100 km)

,

 CO

2

 emissions

(approx. g/km)

,

Hatch 3-door

(up to tyre width of 225 mm

1)

)

1)

For Z 20 LEH engine - tyre width up to 235 mm.

Engine

2)

2)

Sales designation, see pages 310 and 311.

Z 14 XEP

Z 16 XER

Z 16 LET

Z 18 XER

Manual transmission/Easytronic/Automatic

transmission

urban

extra-urban

total

CO

2

8.2/ 7.9/–

5.2/ 5.1/–

6.3/ 6.1/–

151/ 146/–

8.9/ 8.7/–

5.4/ 5.2/–

6.7/ 6.5/–

161/ 156/–

10.3/–/–

6.2/–/–

7.7/–/–

185/–/–

10.1/–/10.6

6.0/–/ 6.3

7.5/–/  7.9

180/–/  190

Engine

2)

Z 20 LEH

Z 17 DTH

Z 19 DT

Z 19 DTH

Manual transmission/Easytronic/Automatic

transmission

urban

extra-urban

total

CO

2

13.0/–/–

 7.0/–/–

9.2/–/–

221/–/–

6.5/–/–

 4.3/–/–

5.1/–/–

138/–/–

7.4/–/ 9.6

4.9/–/ 5.3

5.8/–/ 6.9

157/–/ 186

7.4/–/–

4.9/–/–

5.8/–/–

157/–/–

321

Technical data

Fuel consumption

(approx. l/100 km)

,

 CO

2

 emissions

(approx. g/km)

,

Estate

(up to tyre width of 205 mm

1)

)

1)

For Z 17 DTH engine - tyre width up to 195 mm.

Engine

2)

2)

Sales designation, see pages 310 and 311.

Z 14 XEP

Z 16 XER

Z 18 XER

Z 17 DTH

Manual transmission/Easytronic/Automatic

transmission

urban

extra-urban

total

CO

2



8.0/–/–

5.0/–/–

6.1/–/–

146/–/–



8.8/ 8.6/–

5.3/ 5.1/–

6.6/ 6.4/–

158/ 154/–

10.0/–/10.5

5.9/–/  6.2

7.4/–/ 7.8

178/–/  187



6.4/–/–

4.2/–/–

5.0/–/–

135/–/–
