130

Instruments, controls

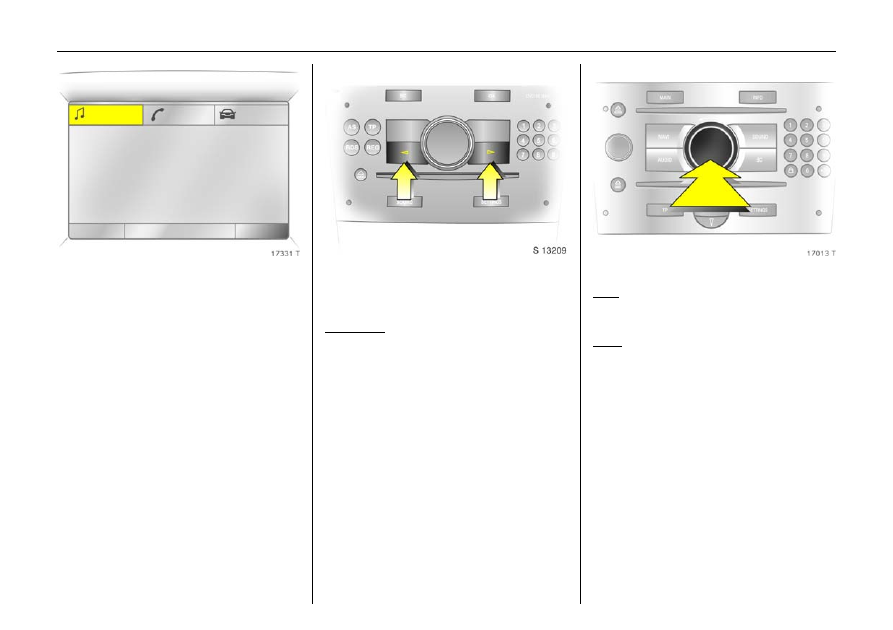

Graphical information display

3

or colour information display

3

,

selecting functions

The functions and settings of some

equipment 3 can be accessed via the

graphical information display or the colour

information display.
These functions are marked on the menu

on the display or performed using the

arrow keys 3 on the Infotainment system,

the multi-function button 3 on the

Infotainment system or with the left

adjuster wheel 3 on the steering wheel.
If warning messages from Check-control 3

are shown, the display is blocked for other

information. Confirm the warning

message. If there are several warning

messages, confirm these in succession.

Selection with arrow keys

Select menu options via menus and the

keys on the Infotainment system.
OK button

Select marked point, confirm command.
To exit a menu, press the right or left arrow

key to access Return or Main.

To select using the multi-function button

Turn

Mark menu options or commands, select

function ranges,
Press

Select marking, confirm commands.
To exit a menu, turn the multi-function

button left or right to Return or Main and

select.

FM

AS

[TP]

REG

CDin

MP3

���

90.6

MHz

19,5°

19:36

131

Instruments, controls

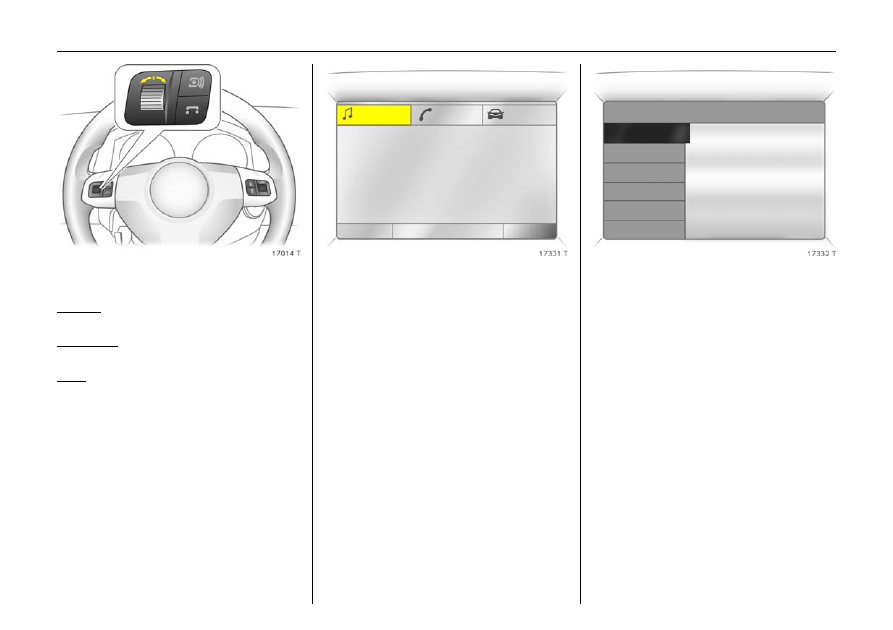

Select using left adjuster wheel 3 on

steering wheel

Turn up

previous menu point.
Turn down

next menu point.
Press

Select marking, confirm commands.

Function ranges

For each functional area there is a main

page (Main), which is selected at the top

edge of the display (not with the

Infotainment system CD 30 or the

Mobile Phone Portal):
z Audio

z Navigation 3

z Telephone 3

z Trip computer 3.
For Audio, Navigation 3 and Telephone 3

functions – see infotainment system

instructions.

System settings

The settings are accessed via the Settings

menu.
Press the Main button 3 (not found on all

infotainment systems) on the infotainment

system (call up main display).
Press the Settings button of the

infotainment system. On Infotainment

System CD 30, make sure no menu has

been selected.
The Settings menu is displayed.

FM

AS

[TP]

REG

CDin

MP3

���

90.6

MHz

19,5°

19:36

7

Settings

19,5° 19:36

Time, Date

19:36

Language

Units

10 . 07 . 2004

Contrast

Day / Night

6

 Ign. logic

132

Instruments, controls

Setting the date and time 3

Select menu item Time, Date from the

Settings menu.
The menu for Time, Date is displayed.
Select the menu items required:
Make the desired setting.

Correcting time 3

In systems with GPS receiver

1)

, date and

time are set automatically upon receipt of

a GPS satellite signal. If the displayed time

does not match local time, it can be

corrected manually or automatically by

receiving an RDS time signal

2)

3.

Some RDS transmitters do not send correct

time signals. If the incorrect time is

displayed often, deactivate automatic

time synchronisation 3 and set the time

manually.
To correct time with the help of RDS, select

menu item Synchron. clock automatical.

from the Time, Date menu.
The box in front of Synchron. clock

automatical. will be ticked; see

Fig. 17340 T.

Language selection

You can select the display language for

some functions.
Select menu item Language from the

Settings menu.
The available languages are displayed.

7

 Time,

Date

19,5° 19:36

Time

19:36

Date

10 . 07 . 2004

6

 Synchron. clock automatical.

1)

GPS = G

lobal

P

ositioning

S

ystem,

satellite system for world-wide positioning.

2)

RDS =



R

adio

D

ata

S

ystem.

7

Settings

19,5° 19:36

Time, Date

Language

Deutsch

Units

English

Contrast

Español

Day / Night

Nederlands

6

 Ign. logic

Français

133

Instruments, controls

Select the desired language.
Selections are indicated by a 6 in front of

the menu item.
In systems with voice output 3, when the

language setting of the display is changed

the system will ask whether the

announcement language should also be

changed – see Infotainment system

instructions.

Setting units of measure

You can select which units of measure are

to be used.
Select menu item Units from the Settings

menu.
The available units are displayed.
Select the desired unit.
Selections are indicated by a o in front of

the menu item.

Adjusting contrast 3

(graphical information display)

Select menu item Contrast from the

Settings menu.
The menu for Contrast is displayed.
Confirm the required setting.

7

13 Languages

19,5° 19:36

X

Deutsch

English

Español

Nederlands

Français

Italiano

7

 Settings

19,5° 19:36

Time, Date

Language

~

Europe-SI

Units

|

Japan

Contrast

|

Great Britain

Day / Night

|

USA

6

 Ign. logic

7

 Contrast

19,5° 19:36



12

134

Instruments, controls

Setting display mode 3

The display can be adjusted to suit the light

conditions, black or coloured text on a light

background or white or coloured text on a

dark background.
Select menu item Day / Night from the

Settings menu.
The options are displayed.
Automatic: adapted based on vehicle

lighting.
Always day design: black or coloured text

on light background.
Always night design: white or coloured

text on dark background.
Selections are indicated by a o in front of

the menu item.
Ignition logic 3

Adjustment, see Infotainment system

instructions.

Graphical information display

3

or colour information display

3

,

trip computer

3



The trip computers provide information on

driving data, which is continually recorded

and evaluated electronically.
The trip computer main menu (Main)

provides information about range,

average consumption 3 and current

consumption.
To display other trip computer data, press

the BC button on the infotainment

system 3, select the trip computer menu

front the display or press the left adjuster

wheel 3 on the steering wheel.

Range

Range is calculated from current fuel tank

content and instantaneous consumption.

The display shows average values.
After refuelling, the vehicle updates the

range automatically after a brief delay.

2

Board Computer

19,5° 19:36

BC 1

All values

BC 2

257.0

miles

Timer

Ø

40

mph

Tyres

7.0

gal

Ø



31.0

mpg

1

8

Range

257

miles

Aver. Consump.

33.0

mpg

Inst. consumpt.

31.0

mpg

19,5°

23°

5

Eco

x

19:36

135

Instruments, controls

If the fuel in the tank will allow less than

30 miles (50 km) of travel, the warning

"Range" appears on the display.
If less than 20 miles (30 km) can be driven

with the fuel remaining in the tank, the

warning "Please refuel!" 3 appears on the

display.
Acknowledge the menu item as described

on page 130.
Instantaneous consumption

Display changes depending on speed:

Distance travelled

Driven mileage display. The measurement

can be reset to zero and restarted at any

time, see "Resetting trip computer

information to zero".
Average speed

Average speed calculation. The

measurement can be reset to zero and

restarted at any time, see "Resetting trip

computer information to zero".
Stoppages in the journey with the ignition

off are not included in the calculations.
Effective consumption

Used fuel quantity display. The

measurement can be reset to zero and

restarted at any time, see "Resetting trip

computer information to zero".
Average consumption

Average consumption calculation. The

measurement can be reset to zero and

restarted at any time, see "Resetting trip

computer information to zero".

Resetting trip computer information to

zero (reset)

The following trip computer information

can be reset (restart measurements):
z Distance

z Average speed

z Effective consumption

z Average consumption.
Select BC 1 or BC 2 from the trip computer

menu.

Display in gal/h

Below 8 mph (13 km/h)

Display in mpg

Above 8 mph (13 km/h)

Range

33miles

OK

2

Board Computer

19,5° 19:36

BC 1

All values

BC 2

257.0

miles

Timer

Ø

40

mph

Tyres

7.0

gal

Ø



31.0

mpg

1

8

136

Instruments, controls

The information of the two trip computers

can be reset separately, making it possible

to evaluate data from different time

periods.
Select the desired trip computer

information.
The value for the selected function will be

reset and recalculated.

To reset all information of a trip computer,

select menu item All values.
After resetting, "- - -" is displayed for the

trip computer information selected. The

recalculated values are displayed after a

brief delay.

Interruption of power supply

If the power supply has been interrupted or

if the battery voltage has dropped too low,

the values stored in the trip computer will

be lost.

2

 Reset BC 1

19,5° 19:36

 All values

257.0

miles

Ø

40

mph

7.0

gal

Ø



31.0

mpg

2

 Reset BC 1

19,5° 19:36



All values

257.0

miles

Ø

40

mph

7.0

gal

Ø



31.0

mpg

137

Instruments, controls

Stop watch

Select menu item Timer from the Board

Computer menu.
The Timer menu is displayed.
To start, select menu item Start.
To reset, select menu item Reset.

The desired stop watch display can be

selected from the Options menu 3:
Driving Time excl. Stops

The time the vehicle is in motion is

recorded. Stationary time is not included.
Driving Time incl. Stops

The time the vehicle is in motion is

recorded. The time the vehicle is stationary

with the key in the starter switch is

included.
Travel Time

Measurement of the time from manual

activation via Start to manual deactivation

via Reset.

Display of current tyre pressure

3



Select menu item Tyres from the Board

Computer menu.
The current pressure of each tyre is

displayed.
Further information, see page 219.

2

 Board Computer

19,5° 19:36

BC 1

BC 2

00:00:00

Timer

Tyres

Start

Reset

Options

2

 Board Computer

BC 1

BC 2

Timer

Tyres

138

Instruments, controls

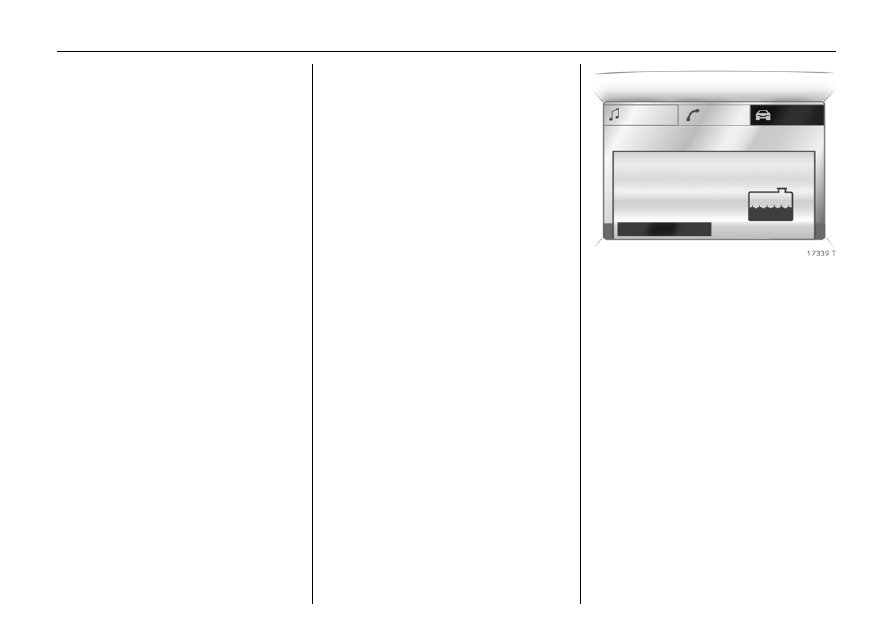

Check control

3



Check control monitors some fluid levels,

the tyre pressure 3, battery of the remote

control, the anti-theft warning system 3,

the brake light switch and important

exterior lights, including cable and fuses. In

trailer mode, the trailer lighting is

monitored.
Warning messages appear on the display.

If there are several warning messages, they

are displayed one after the other.
Some of the warning messages appear on

the display in an abbreviated form.

Examples of warning messages for the

graphical information display 3 and colour

information display 3 are depicted. On the

board information display, messages

appear in an abbreviated form.
Acknowledge warning messages as

described on pages 125, 130.

Unacknowledged warning messages can

be re-displayed later.
Warning messages:

Remote Control

Battery

check

Battery voltage of remote control or

electronic key in Open&Start system too

low 3, see page 34.

Brake light switch

check

Fault. Brake light does not come on during

braking. Have the cause of the fault

eliminated immediately by a workshop.

Safeguard

check

Fault. System fault in Vauxhall alarm

system. Have the cause of the fault

eliminated immediately by a workshop.

Coolant level

check

OK

139

Instruments, controls

If there is a fault in the vehicle lighting, the

respective fault source is displayed as text,

e.g.:

Brake light

check right

In vehicles with tyre pressure monitoring

system 3, if tyre pressure is too low, the

display indicates which tyre to check, e.g.:

Tyre pressure

check rear

right

(value in bar)

Check tyre pressure at next opportunity

using suitable gauge. Tyre pressure

monitoring system 3, see page 219.

Checking tyre pressure, see page 337.

In vehicles with tyre pressure control

system 3, if there is major loss of pressure

in a tyre, the display indicates the tyre at

fault, e.g.:

Attention!

Rear left tyre

pressure loss

(value in bar)

Stop immediately and check tyres and tyre

pressures. Tyre pressure monitoring

system 3 see page 219.

Wash

Fluid Level

check

Fluid level in windscreen wash system too

low. Topping up wash fluid, see page 305.
Rear window wash system and headlight

wash system 3 are deactivated if wash

fluid level is low.

Coolant level

check

Fluid level in engine cooling system is low.

Check coolant level immediately – see

page 300.
Interruption of power supply

Stored warning messages appear on the

display one after the other.

140

Instruments, controls

Warning buzzers

When starting the engine or whilst

driving:

z If the electronic key of the Open&Start

system 3 is not present or is not

recognised.

z If seat belt 3 is not fastened.
z If a door or the tailgate is ajar when the

vehicle starts off.

z Once you have reached a certain

speed 3 if the handbrake is applied.

z If a specified maximum speed 3 is

exceeded.

z With Easytronic 3 - if A, M or R is selected

while the engine is running and the

driver’s door is opened but the footbrake

is not depressed.

When the vehicle is parked and the

driver’s door is opened:

z When the key is in the starter switch 3.
z With parking lights or dipped beam on.
z With Open&Start system 3 and

automatic transmission if the selector

lever is not in P.

z With Easytronic 3, if the handbrake is

not applied and no gear is engaged

when the engine is off

Indicator and warning buzzers for Astra

TwinTop 3:

z Indicator buzzer upon completed

opening or closing of the convertible

hardtop.

z Indicator buzzer upon completed raising

or lowering of the electric luggage

compartment loading aid.

z Gong tone if the boot lid is not closed

during roof operation.

z Gong tone if the boot lid is not fully

opening during operation of the luggage

compartment loading aid.

z Gong tone during roof operation if

vehicle speed exceeds 20 mph (30 km/h).

z Gong tone when vehicle speed exceeds

20 mph (30 km/h) if the roof is not fully

open or closed.

z Three gong tones during roof or loading

aid operation if the luggage

compartment blind is not attached.

z Three gong tones during roof operation

if outside temperature is below –20 °C,

vehicle battery voltage is too low or the

system is overloaded.

z Continuous warning buzzer during roof

operation if the anti-roll bars 3 have

been triggered.

z Continuous warning buzzer starting one

minute before the end of the 9-minute

stand-by time with the roof in an

intermediate position.

z Continuous warning buzzer starting one

minute before the end of the 9-minute

stand-by time with the loading aid in a

raised position.

z Persistent warning buzzer when closing

the luggage compartment lid, if the

lowering process of the electric load aid

is not complete or has been interrupted.

141

Instruments, controls

Windscreen wiper

To activate, move stalk up lightly.

The stalk always moves back to starting

position. Shift to next higher or lower level:

move stalk slightly.
Move stalk past resistance point and hold:

the windscreen wiper stages are run

through; an acoustic signal sounds at

position §.
Move stalk down from position §: Single

swipe.

Adjustable timed interval wipe 3

Adjust wiper interval to a value between

2 and 15 seconds: switch ignition on, move

stalk downwards from position §, wait for

required interval time and move stalk to

interval wiping $.
The interval time selected remains stored

until it is next changed or until the ignition

is turned off.
After turning on the ignition and setting the

stalk to $, the interval is set to 6 seconds.

Automatic wiping with rain sensor 3:

To activate, move stalk up lightly.

The rain sensor detects the amount of

water on the screen and automatically

controls the wiper.
Keep the rain sensor detection field clear

by activating the screen wash system.

§

= Off

$

= Timed interval wipe

%

= Slow

&

= Fast

$

= Automatic wiping with rain sensor

§

= Off

142

Instruments, controls

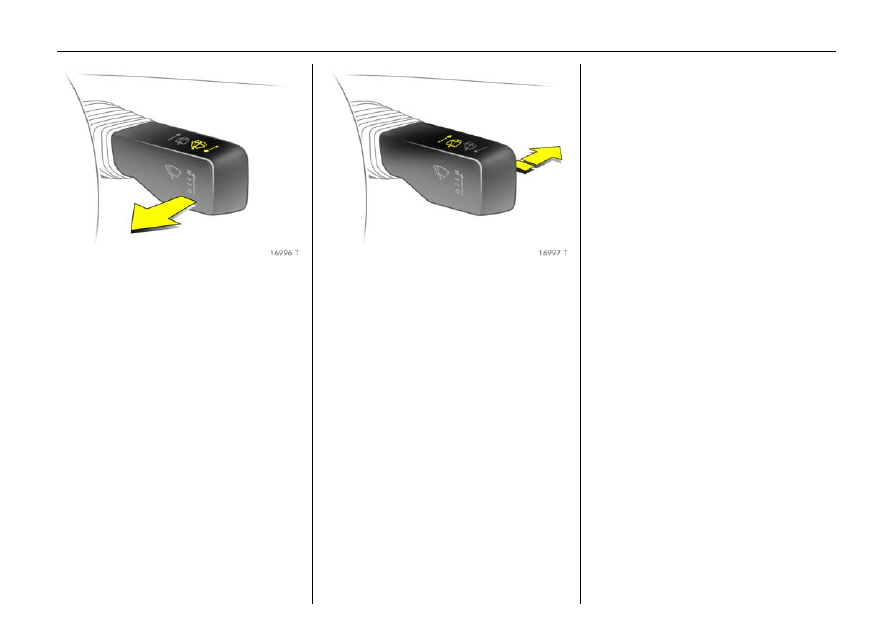

Empty windscreen wash system and

headlight wash system 3

To activate, pull stalk toward steering

wheel.
The wiper swipes for a few strokes. At low

speeds, there is a single post-wash swipe.
The headlight wash system 3 is ready for

operation when the headlights are

switched on. Wash fluid is sprayed onto the

headlights once. Then the headlight wash

system is disabled for 2 minutes.
On vehicles fitted with rain sensor 3, keep

the sensor area clean.

Rear screen wiper and wash system

To activate, push stalk forward lightly.
The rear screen wiper swipes in timed

interval mode.

To deactivate, push stalk forward lightly

again.
If the stalk is held forwards, the rear screen

wash system is activated.

143

Lighting

Lighting

Exterior lights

Turn light switch:

In positions 8 and 9, the tail lights and

number plate lights are also on.
Control indicator 8, see page 116.
If the ignition is switched off with the

dipped beam or main beam on, the

parking lights illuminate.

Versions with daytime running lights 3:

Parking lights are on when the ignition is

switched on and the light switch is set to 7

or AUTO. Dipped beam is on when the

engine is running.
The daytime running lights switch off when

the ignition is switched off.
Follow the regulations of the country in

which you are driving when using daytime

running lights and fog lights 3.
Driving abroad, see page 150.

Exterior lights .......................................  143
Main beam, headlight flash ...............  144
Automatic dipped beam activation

3 ......................................................... 144

Turn signal lights .................................  144
Fog lights > 3 ..................................... 145
Fog tail light r .................................... 145
Reverse lights .......................................  145
Hazard warning lights.........................  146
Headlight range adjustment ?.......... 146
Adaptive Forward Lighting 3 (AFL) .. 147
Door-to-door light function3.............. 148
Instrument illumination,

information display illumination......  148

Courtesy light.......................................  148
Battery discharge protection..............  150
Light covers..........................................  150
Headlights when driving abroad .......  150

7

=

Off

8

=

Parking lights

9

=

Dipped beam or main beam

144

Lighting

Main beam, headlight flash

To switch from dipped beam to main

beam, push stalk forward.
To switch back to dipped beam, push stalk

forward again or pull toward steering

wheel.
To activate the headlight flash, pull stalk

toward steering wheel. Main beam is

engaged for the duration of activation.
The blue control indicator

C

 is illuminated

when main beam or headlight flash is on.

Automatic dipped beam

activation

3



Light switch to AUTO: Dipped beam

switches itself on or off automatically when

the engine is running, depending on the

external lighting conditions.
The exterior lights switch off when the

ignition is switched off.
For reasons of safety, the light switch

should always remain in the AUTO

position.
Move light switch to 9 if visibility is poor

because of fog, for example.

Turn signal lights

To activate, move stalk up or down lightly.
Stalk up

= Right turn signal lights

Stalk down = Left turn signal lights

145

Lighting

After operation, the turn signal stalk

returns to its starting position.
If the stalk is moved past the resistance

point, the turn signal light remains on.

When the steering wheel moves back

toward the straight-ahead position, the

turn signal light is automatically

deactivated.
Tap signal: Move stalk to resistance point

and release to activate three flashes from

the turn signals when changing lanes or the

like.
Move the stalk to the resistance point and

hold for the turn signals to flash longer.
Switch the turn signal off manually by

moving the stalk slightly.

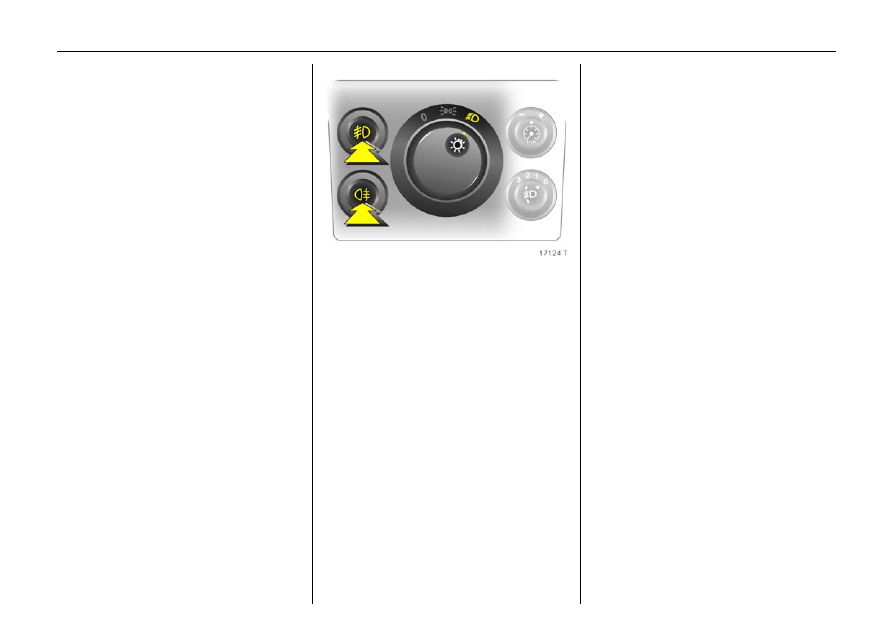

Fog lights

> 3

The fog lights can only be switched on

when both the ignition and lights are on.

Fog tail light

r

The fog tail light can only be switched on

both the ignition and dipped beam/

parking lights are on.

The vehicle fog tail light are deactivated

when towing.

Reverse lights

Come on when reverse gear is engaged

and ignition is switched on.

On

=

Press >, > illuminates in

instrument panel

Off

=

Press > again or turn off

ignition or light off

On

= Press >, > illuminates in

instrument panel

Off

= Press > again or turn off

ignition or light off
