114

Instruments, controls

R



Brake system, clutch system

Control indicator illuminates or flashes red.
It illuminates after the ignition is turned on,

when the handbrake is applied or if the

brake or clutch fluid level is too low. For

further information see pages 222, 302.
For vehicles with Easytronic 3, the control

indicator flashes for a few seconds when

the ignition is turned off if the handbrake is

not applied.

9

 Warning

If it illuminates when the handbrake is

released: stop vehicle immediately.

Contact a workshop for assistance.

v



Airbag systems 3, belt tensioners 3

,

deployable anti-roll bars 3

Control indicator illuminates red.
Illuminates when the engine is running

Fault in airbag system, belt tensioners

or extending anti-roll bars, see pages 87,

98, 104

v



Electronic Stability Programme

(ESP®

Plus

) 3

Control indicator flashes or illuminates

yellow.
Flashing during driving

System actively engaged, see

pages 210, 210, 239.
Illuminates while driving

System switched off or fault in system for

Electronic Stability Program, see page 210.

X



Seat belt 3

Control indicator illuminates or flashes red.
Illuminates when the ignition is turned on,

until the seat belt is fastened. After starting

to drive, the control indicator flashes.
Fasten seat belt, see page 88.

115

Instruments, controls

Q



Doors and luggage compartment open

Control indicator illuminates red.
It is illuminated when a door or the luggage

compartment is open.

p



Alternator

Control indicator illuminates red.
It illuminates when the ignition is switched

on and goes out shortly after the engine

starts.
Illuminates when the engine is running

Stop, switch off engine. Battery is not

charging. Cooling may be faulty. For diesel

engines, the effect of the brake servo may

be lost. Contact a workshop immediately.

W



Coolant temperature

Control indicator illuminates red.
Illuminates when the engine is running

Stop and switch off engine. Coolant

temperature too high: Risk of engine

damage. Check coolant level immediately –

see page 300.

A



Engine electronics,

transmission electronics 3,

immobiliser,

diesel fuel filter 3

Control indicator illuminates or flashes

yellow.
It illuminates for a few seconds when the

ignition is switched on.
Illuminates when the engine is running

Fault in engine or gearbox electronic

system. Electronics have switched to

emergency running programme fuel

consumption may be increased and the

vehicle’s driveability reduced, see

page 206. Contact a workshop

immediately.
Illuminated together with InSP4 in the

service display: Have the diesel fuel filter

drained of water – see page 300.
Flashes when the ignition is on

Fault in the electronic immobiliser system;

the engine cannot be started, see page 31.

j



Easytronic 3, start engine

Control indicator illuminates yellow.
It illuminates if the footbrake is not

operated. The indicator goes off as soon as

the footbrake is operated. The engine can

only be started with the footbrake

operated, see page 182.

IDS+

Interactive Driving System 3,

Continuous Damping Control (CDC) 3,

SPORT mode 3

Control indicator illuminates yellow.
It illuminates for a few seconds when the

ignition is switched on.
Illuminates while driving

Fault in system. Contact a workshop

immediately.
IDS+ – see page 209,

CDC – see page 211,

SPORT mode – see page 212.

116

Instruments, controls

S



Engine oil level 3

Control indicator illuminates yellow.
The engine oil level is checked

1)



automatically.
Illuminates when the engine is running

Engine oil level too low. Check engine oil

level and top up engine oil if necessary, see

page 298.

8



Exterior lights

Control indicator illuminates green.
It is illuminated when the exterior lights are

on – see page 143.

r



Parking distance sensor 3

Control indicator illuminates yellow.
Fault in system. Contact a workshop

immediately.
Parking distance sensor, see page 215.

1)

Not on Z 14 XEP or Z 20 LEH engine. Sales

designation – see page 310.

O



Turn signal lights

Control indicator flashes green.
Control indicator flashes at the side

concerned.
Both control indicators flash with the

hazard warning lights on.
Fast flashing: failure of a turn signal light

or associated fuse, failure of turn signal

light on trailer 3.
Change bulbs, see page 269. Fuses, see

page 262.

Y



Fuel level

Control indicator illuminates or flashes

yellow.
Illuminates

Low fuel level, fuel gauge in reserve area.
Flashing

Fuel supply exhausted, refuel immediately.
Never let the tank run dry!
Erratic fuel supply can cause catalytic

converter to overheat, see page 204.
Diesel engines: If the tank is run dry, bleed

the fuel system as described on page 241.

117

Instruments, controls

>



Fog lights 3

Control indicator illuminates green.
It is illuminated when the fog lights are on –

see page 145.

C



Main beam

Control indicator illuminates blue.
It is illuminated when main beam is on

and during headlight flash – see

pages 11, 144.

r



Fog tail light

Control indicator illuminates yellow.
It is illuminated when the fog tail lights are

on – see page 145.

T



Winter programme of automatic

transmission 3 or Easytronic 3

Control indicator illuminates in gear

display with Winter programme engaged.
Further information, see

pages 180, 186, 193.

1



SPORT mode of automatic transmission 3

or Easytronic 3

Control indicator illuminates in gear

display with Sport programme engaged.
Further information, see

pages 179, 185, 192.

y



Seat occupancy recognition 3

Control indicator illuminates or flashes in

odometer display.
Illuminates

Seat occupancy recognition has detected

a child restraint system with transponders.

Airbag systems for the passenger are

deactivated, see page 99.
If it flashes

Fault in system or child seats with

transponder incorrectly fitted, see page 99.

Z



Exhaust emission 3

Control indicator illuminates or flashes

yellow.
It illuminates when the ignition is switched

on and goes out shortly after the engine

starts.
Illuminates when the engine is running

Fault in emission control system. The

permitted emissions may be exceeded.

Contact a workshop immediately.
If it flashes when the engine is running:

Fault which could lead to damage to the

catalytic converter, see page 206. Contact

a workshop immediately.

u



Anti-lock Brake System (ABS) 3

Control indicator illuminates red.
Illuminates while driving

Fault in anti-lock brake system, see

page 224.

118

Instruments, controls

!



Preheating system 3,

diesel particle filter 3

Control indicator illuminates or flashes

yellow.
Illuminates

Preheating system active, switches on only

if outside temperature is low.
Flashing

(on vehicles with diesel particle filter)
The driving situation is such that the diesel

particle filter self-cleaning function can not

operate automatically. You may continue

to drive the vehicle normally. The vehicle

will not be damaged and does not require

service.

The self-cleaning function will

automatically operate while driving after

the engine has reached its normal

operating temperature. The control

indicator

!

 will continue to flash until the

self-cleaning operation is complete. This

may take up to 20 minutes of driving. The

time will be shorter at higher vehicle

speeds.
Further information, see page 207.

w



Deflation detection system 3,

tyre pressure monitoring system 3

Control indicator illuminates red

Tyre pressure loss – see page 218.
Control indicator illuminates yellow

Fault in system, see pages 218, 219.

Contact a workshop for assistance.

B



Adaptive Forward Lighting 3 (AFL)

Control indicator flashes yellow.
Flashing

Fault in system. Contact a workshop

immediately.
Flashes for 4 seconds when ignition

switched on

System converted for driving abroad.
AFL, see page 147.

m



Cruise control 3

Control indicator illuminates green.
It is illuminated when the system is on – see

page 213.

119

Instruments, controls

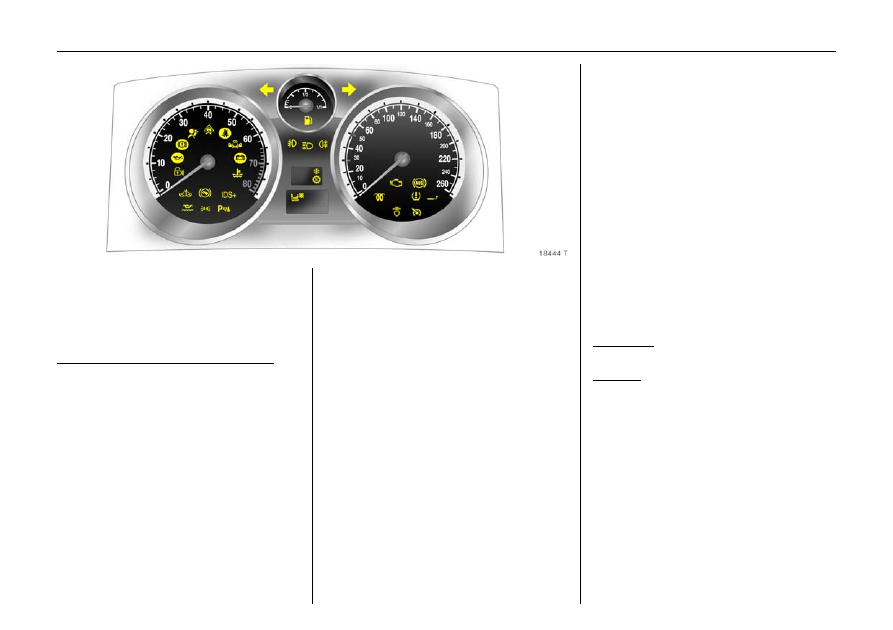

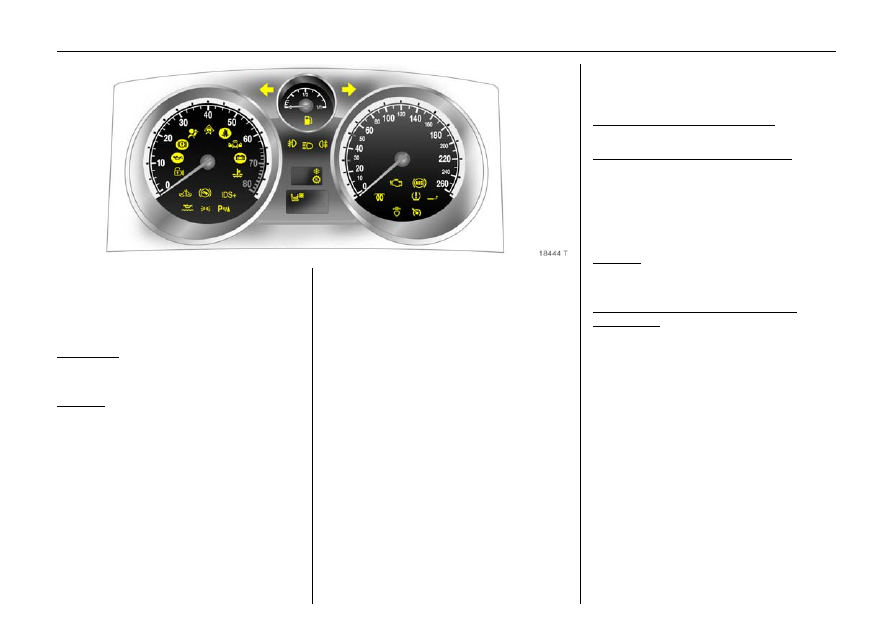

Instrument display

On some versions, the pointer of the

tachometer, speedometer and fuel gauge

briefly moves to its end position when the

ignition is switched on.
Tachometer

Indicates engine speed.
Warning zone: Maximum permissible

engine speed exceeded; danger to engine.

Speedometer

Speed display.

Fuel gauge

Never run the tank dry!
Diesel engines: If the tank is run dry, bleed

the fuel system as described on page 241.
Because of the fuel remaining in the tank,

the amount of fuel required to fill the tank

may be less than the specified tank

capacity.

Pointer in

left zone or

Y illuminated

= Reserve area

Pointer in

left zone or

Y flashing

= Refuelling, see

page 202

120

Instruments, controls

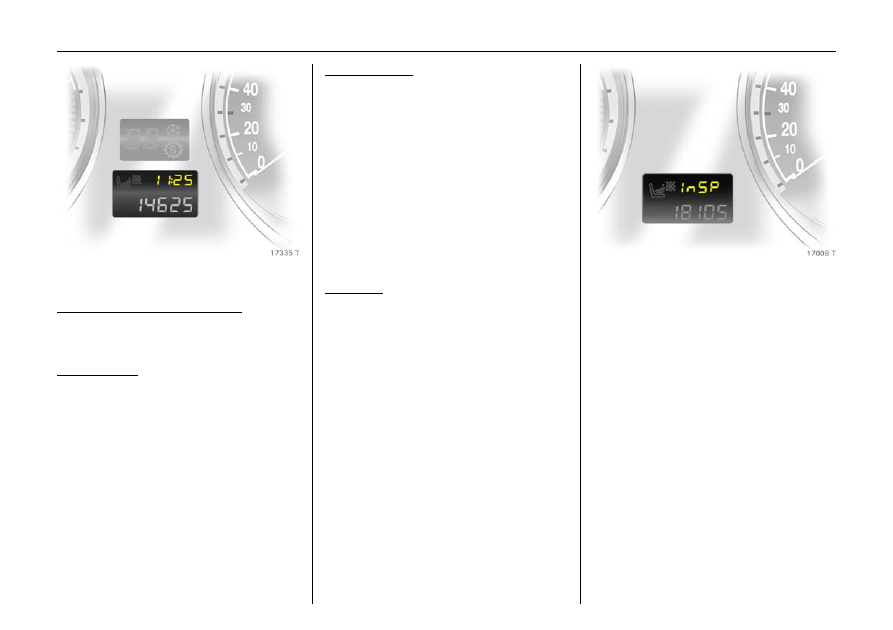

Odometer display

Top line:

Trip odometer or clock display 3

To switch between the trip odometer and

the clock display 3, press reset button

briefly, see page 119.
Trip odometer

Display of miles covered since reset.
To reset, hold reset button down for

around one second with the ignition turned

on, see page 119.
If the clock display is activated, first switch

to trip odometer.

Time display 3

To adjust the time, setting button in

instrument panel:

Bottom line:

Odometer

Records the miles counted.

Service Display

On vehicles with check control 3, an

appropriate message is shown on the info

display instead of InSP2 and InSP3.

Press for approx. 2 seconds:

Hours flash

Press briefly

Set hours

Press for approx. 2 seconds

Minutes flash

Press briefly

Set minutes

Press for approx. 2 seconds

Clock is started.

InSP

Service interval display. Shows

distance remaining to next

service. Further notes, see

page 296.

InSP2

Faulty bulb 3, see page 269.

InSP3

Battery voltage of remote control

or electronic key in Open&Start

system low 3, see pages 34, 39.

InSP4

Drain water from diesel fuel

filter 3. Contact a workshop for

assistance.

121

Instruments, controls

Transmission display 3

Display of gear selected in automatic

transmissions 3 or current gear or mode for

Easytronic 3:

For Easytronic 3, the display flashes for a

few seconds if A, M or R is selected when

the engine is running but the footbrake is

not depressed.

ESPoff Electronic Stability Programme 3

off, see page 210.

ESPon

Electronic Stability Programme 3

on, see page 210.

P

Part position on automatic

transmission

R

Reverse gear

N

Neutral

A

Automatic mode on Easytronic

M

Manual mode on Easytronic

D

Automatic mode on automatic

transmission

1 - 4

Current gear on automatic

transmission

1 - 5

1 - 6 3

Manual mode, current gear for

Easytronic

122

Instruments, controls

Information display

Triple information display

Display of time, outside temperature and

date/infotainment system (when it is on).
When the ignition is off, the time, date and

outside temperature can be presented for

15 seconds by briefly pressing one of the

two buttons below the display.
F in the display indicates a fault. Have the

cause eliminated by a workshop.

Board information display 3

Display of time, outside temperature and

date/infotainment system (when it is on).
F in the display indicates a fault. Have the

cause eliminated by a workshop.

Graphical information display 3,

colour information display 3

Display of time, outside temperature, date/

infotainment system (when it is on) and

climate control system 3.
The graphical information display presents

the information in monochrome. The colour

information display presents the

information in colour.

12:01  17

,0

°C

FM 3

90,6

MHz

REG

AS

RDS

TP

11:25

}

21

.5

°C

Range

RDS

[TP]

257miles

2

Board Computer

19,5° 19:36

BC 1

All values

BC 2

257.0

miles

Timer

Ø

40

mph

7.0

gal

Ø



31.0

mpg

1

8

123

Instruments, controls

The type of information and how it is

displayed depends on the equipment of

the vehicle and the settings of the

Infotainment system 3, the trip

computer 3 and the climate control

system 3.
Some information appears in the display in

an abbreviated form.
Infotainment system, see Infotainment

system instructions. Climate control

system, see page 168.
F in the display indicates a fault. Have the

cause eliminated by a workshop.

Outside temperature

A fall in temperature is indicated

immediately and a rise in temperature

after a time delay.
If outside temperature drops to 3 °C, the

symbol : illuminates in the triple

information display or the board

information display 3 as a warning for icy

road surfaces. : remains illuminated until

temperatures reach at least 5 °C.

In vehicles with graphical information

display 3 or colour information display 3, a

warning message appears the display as a

warning for icy road surfaces. There is no

message below -5 °C.

8:56

-5

,5

°C

07.04.2004

:

9

 Warning

Caution: The road surface may already

be icy even though the display indicates

a few degrees above 0 °C.

Slippery road

-2,5°C

OK

124

Instruments, controls

Triple information display

Set date and time

Infotainment system off: press Ö and ;

below the display as follows:

Correcting time 3

Some RDS transmitters do not send a

correct time signal. If the incorrect time is

continually displayed, switch off automatic

time synchronisation 3 and set the time

manually - see next column.
The automatic setting is indicated by } in

the display.

Deactivating/activating automatic time

synchronisation: infotainment system off,

press Ö and ; below the display:

Press Ö for approx. 2 seconds:

Day flashes

;: Set  day
Ö: Month  flashes

;: Set  month
Ö: Year  flashes

;: Set  year
Ö: Hours  flash

;: Set hours
Ö: Minutes flash

;: Set  minutes
Ö: Clock  is  started.

8:56



5

,5

°C

07.04.2004

Hold down Ö for approx. 2 sec., clock

display is now in setting mode.
Press Ö twice (until year flashes).
Press Ö and hold down for approx.

3 seconds until } flashes in display 3 and

"RDS TIME" appears (years flash during

this time).
Press ;, indication on display:

RDS TIME 0 = off.

Press ;, indication on display:

RDS TIME 1 = on.

Press Ö three times.

125

Instruments, controls

Board information display

3

,

selecting functions

Functions and settings of some

equipment 3 can be accessed via the

board information display.
This is done using the menus and buttons

of the Infotainment System 3 or with the

left adjuster wheel 3 on the steering wheel.

The corresponding menu options then

appear in the next line of the display.
If warning messages from Check-control 3

are shown, the display is blocked for other

information. Confirm the warning

message. If there are several warning

messages, confirm these in succession.

Selection with arrow keys

Select the menu points using the buttons

on the Infotainment system
OK button

Select marked point, confirm command.

Select using the left adjuster wheel 3 on

the steering wheel

Turn up

Previous menu point.
Turn down

Next menu point.
Press

Select marking, confirm commands.
System settings – see page 131.
Trip computer – see page 128.

11:25

}

21

.5

°C

Range

257miles

126

Instruments, controls

Board information display

3

,

system settings

Press the Settings button of the

infotainment system. Menu item Audio or

System will appear.
Press left arrow key to access menu point

System. Select menu point System. The

first function of the menu System is shown.
Some information appears in the display in

an abbreviated form.

The functions are displayed in the following

order:
z Time synchronisation

z Time, setting hours

z Time, setting minutes

z Date, setting day

z Date, setting month

z Date, setting year

z Ignition logic

z Language selection

z Setting units of measure

Correcting time 3

Some RDS transmitters do not send correct

time signals. If the incorrect time is

displayed often, deactivate automatic

time synchronisation 3 and set the time

manually.

11:25

}

21

.5

°C

System

11:25

}

21

.5

°C

Clock Sync.On

127

Instruments, controls

The automatic setting is indicated by } in

the display.
To correct time with the help of RDS, select

the menu item for time synchronisation

from the Settings menu.
Make the desired setting.
Setting date and time

Select the menu item for time and date

setting from the Settings menu.
Make the desired setting.
The setting is saved when the menu item is

exited.
Ignition logic 3

Adjustment, see Infotainment system

instructions.

Language selection

You can select the display language for

some functions.
Select the menu item for language from the

Settings menu and make the desired

setting.

Setting units of measure

You can select which units of measure are

to be used.
Select the menu item for units of measure

from the Settings menu and confirm the

desired setting.

11:25

}

21

.5

°C

English

11:25

}

21

.5

°C

Unit Europe-SI

128

Instruments, controls

Board information display

3

,

trip computer

3



The trip computer provides information on

driving data, which is continually recorded

and evaluated electronically.
Access trip computer vehicle data by

pressing the BC button on the infotainment

system or the left adjuster wheel 3 on the

steering wheel.
Some information appears in the display in

an abbreviated form.
Once an audio function has been selected,

the subsequent rows of the trip computer

function are displayed.
The functions are displayed in the following

order:
z Instantaneous consumption

z Average consumption

z Effective consumption

z Average speed

z Distance travelled

z Range

z Stop watch

Instantaneous consumption

Display changes depending on speed:

Average consumption

Average consumption display. The

measurement can be reset to zero and

restarted at any time, see "Resetting trip

computer information to zero".
Effective consumption

Used fuel quantity display. The

measurement can be reset to zero and

restarted at any time, see "Resetting trip

computer information to zero".
Average speed

Average speed display. The measurement

can be reset to zero and restarted at any

time, see "Resetting trip computer

information to zero".
Stoppages in the journey with the ignition

off are not included in the calculations.
Distance travelled

Driven mileage display. The measurement

can be reset to zero and restarted at any

time, see "Resetting trip computer

information to zero".

Display in gal/h Below 8 mph (13 km/h)
Display in mpg

Above 8 mph (13 km/h)

11:25

}

21

.5

°C

Inst. Consumpt.

3 1 . 0

miles/gal

129

Instruments, controls

Range

Range is calculated from current fuel tank

content and instantaneous consumption.

The display shows average values.
After refuelling, the vehicle updates the

range automatically after a brief delay.
If less than 30 miles (50 km) can be driven

with the fuel remaining in the tank, the

warning "Range" appears on the display.
If less than 20 miles (30 km) can be driven

with the fuel remaining in the tank, the

warning "Refuel!" 3 appears on the

display.
Acknowledge the menu item as described

on page 130.

Resetting trip computer information to

zero (reset)

The following trip computer information

can be reset (reset and restart

measurements or calculations):
z Average consumption

z Effective consumption

z Average speed

z Distance travelled.
Select the desired trip computer

information.
Reset by pressing the left adjuster wheel 3

on the steering wheel or the OK button on

the Infotainment system.

Stop watch

Select function, operate with arrow keys:
z Select Start menu item using left arrow

key, start/stop by pressing OK.

z Select Reset menu item using right arrow

key, reset by pressing OK.

Operate using left adjuster wheel 3 on

steering wheel:
z Press: start/stop.
Interruption of power supply

If the power supply has been interrupted or

if the battery voltage has dropped too low,

the values stored in the trip computer will

be lost.

11:25

}

21

.5

°C

Range

257miles

11:25

}

21

.5

°C

Stop Watch

01:22:32

h
