In brief

In brief

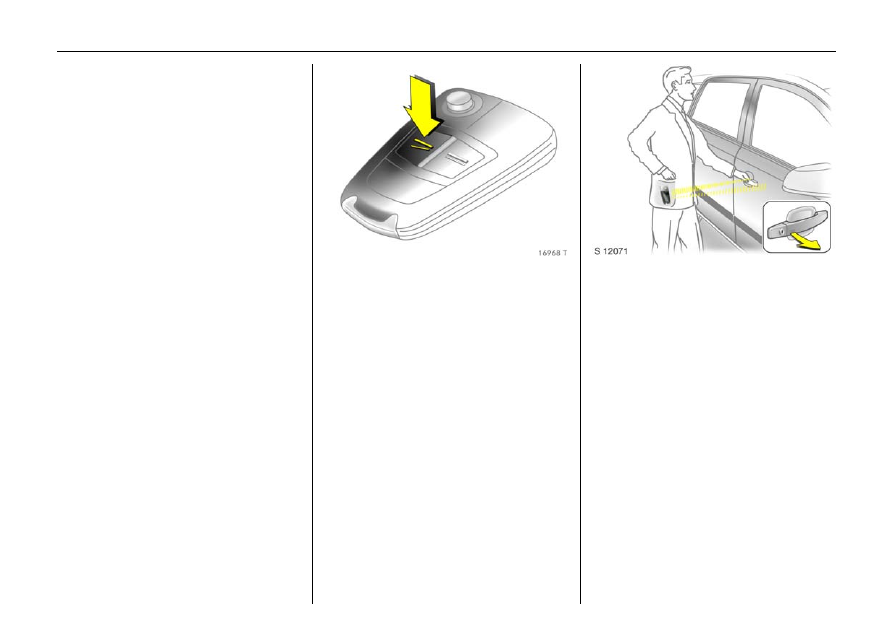

To unlock and open the vehicle:

Press button

q

, pull door handle

6 Door locks – see page 49,

keys – see page 30,

electronic immobiliser – see page 31,

remote control – see page 32,

central locking system – see page 40,

anti-theft locking system 3 – see page 41,

Vauxhall alarm system 3 – see page 46,

TwinTop roof operation 3 – see page 56,

child safety locks – see page 49.

To unlock and open the vehicle

with the Open&Start System

3

:

Bring electronic key into the

reception area of the vehicle,

pull handle

6 Open&Start System 3 – see page 34.

3

In brief

To unlock and open the luggage

compartment:

Press button

q

 on remote control,

or for the Open&Start System

3

:

Bring electronic key into the

reception area of the vehicle,

pull button below handle

6 Open&Start-System 3 – see page 34,

remote control – see page 32,

central locking system – see page 40,

Vauxhall alarm system 3 – see page 46.

To adjust front seat:

Pull handle, slide seat,

release handle

6 Seat – see page 64,

seat position – see page 67.

Adjust front seat backrests:

Turn handwheel

Move backrest to suit seating position.
Do not lean on seat backrest whilst

adjusting it.
6 Seats – see page 64,

seat position – see page 67,

fold front passenger seat backrest –

see pages 66, 75.

9

 Warning

Important: Do not sit nearer than 10

inches (25 cm) from the steering wheel, to

permit safe airbag deployment.

4

In brief

To adjust front seat height

3

:

Operate lever on outboard side

of seat

Pump action on lever

6 Seat – see page 64,

seat position – see page 67.

To adjust front seat inclination

3

:

Pull inner lever on front of seat,

adjust inclination, release lever,

engage seat in position

Adjust the inclination by distributing body

weight.

6 Seat – see page 64,

seat position – see page 67.

Tip the front seat backrests

forward

3

:

Lift release lever,

tilt backrest forward,

lower release lever,

seat back is engaged

in tilted position

3

,

slide seat forwards

3



To straighten the seat, slide back and it

engages in its original position 3. Raise

release lever 3, straighten backrest, lower

release lever, backrest engages.
The backrest can only be tipped forwards

from an upright position.
Panoramic windscreen 3: before folding

the seat, push the head restraints down

and close the sun visors.
6 Seats – see page 64,

fold front passenger seat backrest –

see pages 66, 75.

Up:

Seat higher

Down:

Seat lower

5

In brief

To adjust head restraint height of

front and rear outboard seats:

Press button to release,

adjust height,

engage in position

6 Head restraints – see page 68,

head restraint position – see page 69,

adjust rear centre head restraint –

see page 68,

head restraint removal – see page 69.

To fit seat belt:

Draw seat belt smoothly

from inertia reel,

guide over shoulder and

engage in buckle

The entire length of the seat belt must be

twist-free. The lap belt must lie closely

against the body. The seat backrests must

not be tilted too far backwards (maximum

recommended tilting angle approx. 25°).
To release belt, press red button on belt

buckle.
6 Three-point seat belts – see page 85,

airbag system – see page 92,

seat position – see page 67.

Adjusting interior mirror:

Swivel mirror housing

Swivel lever on underside of mirror housing

to reduce dazzle at night.
6 Mirrors – see page 49,

automatic dipping interior mirror –

see page 51.

6

In brief

To adjust exterior mirrors

manually:

From inside, swivel lever in

required direction

6 Mirrors – see page 49,

aspherically curved exterior mirror –

see page 49,

folding exterior mirror – see page 50,

heated exterior mirror – see page 157.

Electrical exterior mirrors

3



adjust:

Four-way switch in driver’s door

Press right or left mirror switch: four-way

switch controls the appropriate mirror.

Centre position: no adjustment.
6 Mirrors – see page 49,

aspherically curved exterior mirror –

see page 49,

folding exterior mirror – see page 50,

heated exterior mirror – see page 157.

Steering column lock and ignition:

Turn key to position 1;

disengage steering column lock

by moving steering wheel slightly

Positions:

6 Starting – see page 17,

electronic immobiliser – see page 31,

parking the vehicle – see page 18.

0 = Ignition off
1 = Steering free, ignition off
2 = Ignition on, with diesel engine:

preheating

3 = Starting

7

In brief

Steering column lock and ignition

on vehicles with Open&Start

system

3

:

Make sure electronic key is in the

interior reception range and press

the Start/Stop button;

disengage the steering column

lock by moving the steering wheel

slightly

To start the vehicle, also operate brake or

clutch pedal.
To activate the steering column lock,

switch ignition off by pressing the Start/

Stop button, open driver’s door and

engage steering wheel. Do not allow

vehicle to move while doing this.
6 Starting – see page 17,

electronic immobiliser – see page 31,

parking the vehicle – see page 18.

Steering wheel adjustment:

Move lever down,

adjust height and distance,

move lever up, engage

Adjust steering wheel only when vehicle is

stationary and steering column lock is

released.
6 Airbag System – see page 92.

Turn light switch:

Press button:

6 Lighting – see page 143,

headlight control indicator –

see pages 18, 140.

7

= Off

8

= Parking lights

9

= Dipped beam or main

beam

AUTO = Automatic dipped

beam activation

3

>

= Fog lights

3



r

= Fog tail light

8

In brief

9

In brief

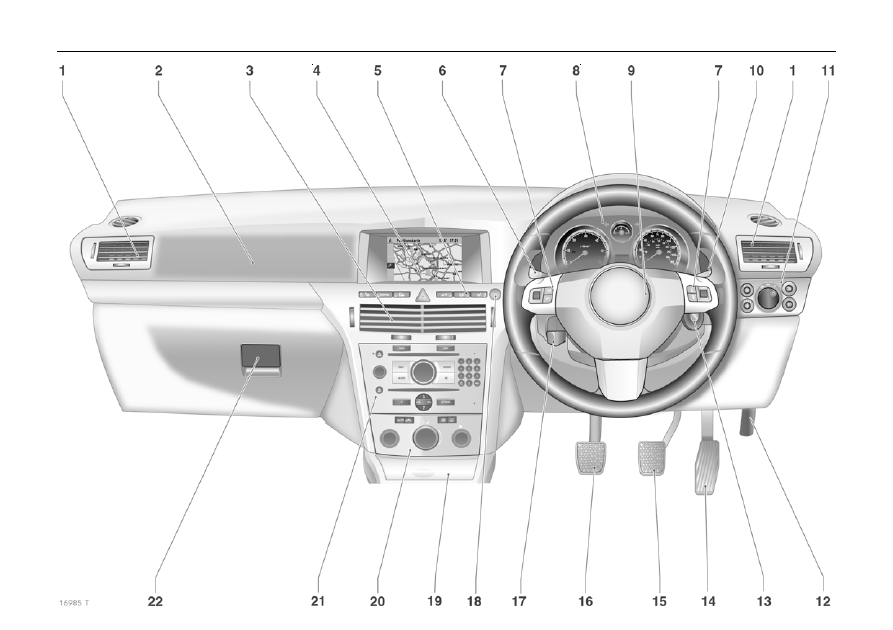

Page

1

Side air vents  .................................. 156

2

Front passenger airbag ..................  93

3

Centre air vents .............................  156

4

Central information display for

time, date, outside temperature,

Infotainment system 3,

Check control 3 .............................. 138

Trip computer 3 .....................128, 134

Climate control system 3 .............  168

5  Heated seat (left) 3 ......................  157

Deflation detection system 3 ....... 218

Tyre pressure

monitoring system 3 ...................... 219

Parking distance sensor 3 ............  215

Hazard warning lights ..................... 11

Central locking system  .................... 42

SPORT mode 3 ............................... 212

Heated seat (right) 3  ...................  157

6  Turn signal light  ............................... 11

Headlight flash,

Dipped beam, high beam ............... 11

Door-to-door light function 3 ........ 148

Cruise control 3 .............................  213

Page

7

Remote control on steering

wheel 3 ........................................... 151

8

Instruments ..................................... 112

9

Horn .................................................. 12

Driver’s Airbag  ................................  93

10 Windscreen wiper,

windscreen wash system,

headlight wash

system 3 and rear window

wash system .......................12, 13, 141

11  Parking lights, dipped beam  ........ 143

Instrument illumination ................. 148

Fog tail light  ................................... 145

Fog lights 3  .................................... 145

Headlight range adjustment 3  .... 146

12 Unlocking the bonnet....................  241
13  Starter switch with immobiliser  ........  6

and

sensor panel for emergency

operation Open&Start system 3 ....  37

Page

14 Accelerator pedal..................  198, 199
15 Brake pedal ...........................  199, 223
16  Clutch pedal 3...............................  199
17 Steering wheel adjustment ............... 7
18  Start/stop button 3  ..................  17, 34
19 Ashtray 3 ....................................... 108

Cigarette lighter 3 ........................  107

20 Climate control  .............................  154
21  Infotainment system 3 .................  151
22 Glove compartment  ....... 37, 110, 156

10

In brief

Control indicators

0

Open&Start system, fault,

see pages 34, 112.

I

Engine oil pressure,

see page 113.

R

Brake system, clutch system,

see pages 114, 223, 302.

v

Airbag systems, belt tensioners,

deployable anti-roll bars 3,

see pages 87, 98, 104.

v

Electronic Stability Programme

(ESP®

Plus

) 3,

see page 210.

X

Seat belt 3,

see pages 88, 114.

Q

Open doors and luggage

compartment,

see page 115.

p

Alternator,

see page 115.

W

Coolant temperature,

see pages 115, 300.

A

Engine electronics, gearbox

electronics 3, immobiliser,

diesel fuel filter 3, fault,

see pages 31, 115, 182, 188,

196, 206.

j

Easytronic 3, start engine 3,

see pages 115, 177.

IDS+

Continuous Damping Control 3,

SPORT mode 3,

see pages 212, 213.

S

Engine oil level 3,

see pages 116, 298.

8

Exterior lights,

see pages 116, 143.

r

Parking distance sensor 3,

see page 215.

O

Turn signal lights,

see pages 11, 116.

Y

Fuel level,

see pages 116, 119, 202.

>

Fog lights 3,

see pages 117, 145.

C

Main beam,

see pages 11, 117.

r

Fog tail light,

see pages 117, 145.

T

Winter programme of

automatic transmission 3 or

Easytronic 3,

see pages 180, 186, 193.

1

SPORT mode of automatic

transmission 3 or Easytronic 3,

see pages 179, 185, 192.

y

Seat occupancy recognition 3,

see page 99.

Z

Exhaust emission 3,

see pages 117, 206.

u

Anti-lock Brake System,

see page 225.

!

Preheating system 3,

diesel particle filter 3,

see page 118.

w

Deflation detection system 3,

tyre pressure monitoring

system 3,

see pages 118, 219, 221.

B

Adaptive Forward Lighting

(AFL) 3, fault,

see pages 147, 150.

m

Cruise control 3,

see page 214.

11

In brief

Headlight flash, main beam and

dipped beam:

6 Main beam, headlight flash –

see page 144.

Switch on turn signal lights:

6 Turn signal lights – see page 144.

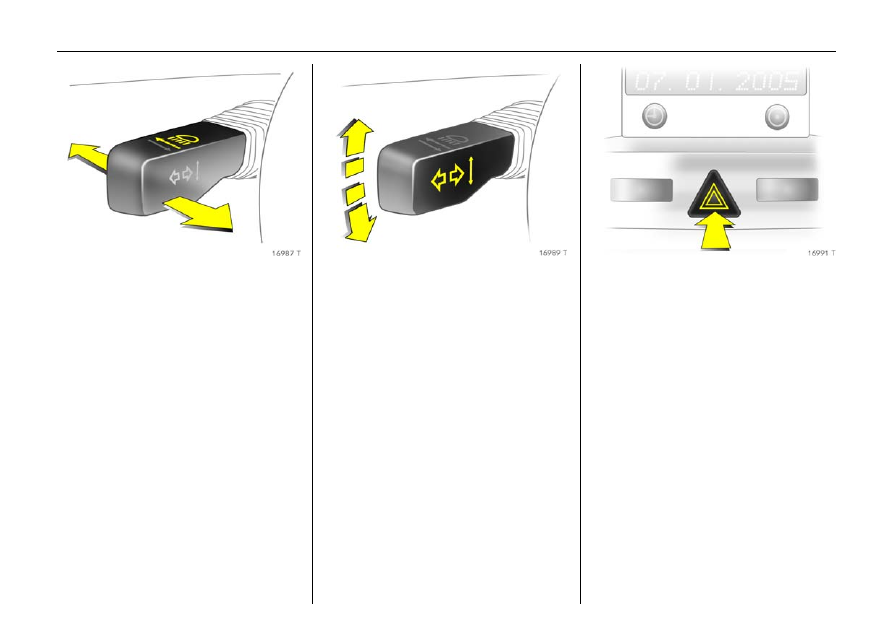

Hazard warning lights:

6 Hazard warning lights – see page 146.

Headlight

flash

= Pull stalk

toward steering

wheel

Main beam

= Push stalk

forward

Dipped beam = Push stalk

forward again

or pull toward

steering wheel

Right

= Move stalk up

Left

= Move stalk down

On

=

Press

¨



Off

=

Press

¨

 again

12

In brief

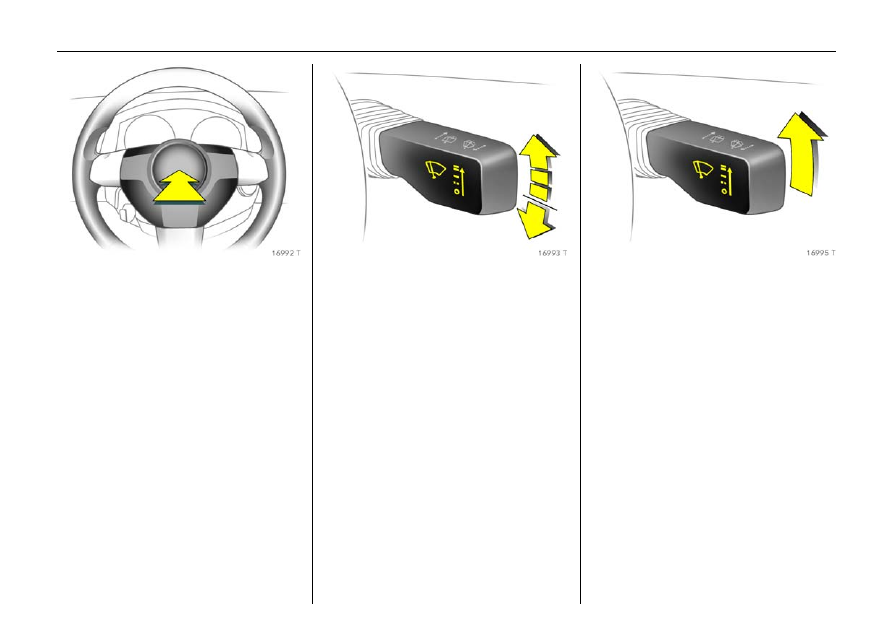

Activate horn:

Press

j

 in centre of steering

wheel

6 Airbag system – see page 93,

remote control on steering wheel 3 –

see page 151.

Windscreen wiper:

Move stalk up slightly

Move stalk down from position §: Single

swipe.
6 Windscreen wiper – see page 141,

adjustable wiper interval 3 – see page 141,

wiper blades – see pages 303, 304,

vehicle care – see page 291.

Automatic wiping with

rain sensor

3

:

Move stalk up slightly

6 Windscreen wiper – see page 141,

wiper blades – see pages 303, 304,

vehicle care – see page 291.

§ = Off

$ = Timed  interval  wipe

% = Slow

& = Fast

$ = Automatic wiping with

rain sensor

§ = Off

13

In brief

Operating windscreen and

headlight wash systems

3

:

Pull stalk toward steering wheel

6 Windscreen and headlight wash systems

– see page 142,

further notes – see pages 291,303

Activate rear screen wiper

3

 and

wash system

3

:

6 Rear screen wiper and wash system – see

page 142,

further notes – see pages 291, 303.

Heated rear window,

heated exterior mirrors:

6 Air conditioning – see page 154,

heated rear window – see page 157.

Wiper on

= Push stalk

forward

Wiper off

= Push stalk

forward again

Wash

= Hold stalk

pushed fully

forward

On = Press Ü

Off = Press Ü again

14

In brief

To demist or defrost windows:

Set air distribution to

l

,

rotary switch for temperature

and air flow clockwise;

Air conditioning system

3

:

also press button

n

;

Automatic air conditioning

system

3

:

press buttons

n

 and

V

,

turn rotary switch for

temperature clockwise,

air flow to A;

Climate control system

3

:

press button

V

6 Climate control system 3 – see page 154.

Set automatic mode on climate

control system

3

:

Press AUTO,

pre-select temperature

with rotary switch,

open air vents

6 Climate control system 3 – see page 168.

Manual transmission:

Reverse: with the vehicle stationary,

3 seconds after de-clutching pull the

button up on the selector lever and engage

gear.
If the gear does not engage, set the lever in

neutral, release the clutch pedal and

depress again; then repeat gear selection.

15

In brief

Easytronic

3

:

Always move selector lever as far as it will

go in the chosen direction.
It automatically returns to the centre

position after every operation. Observe

gear/mode indicator in transmission

display.
The footbrake must be depressed when

starting.
6 Easytronic 3 – see page 176.

Automatic transmission

3

:

P or N must be engaged when starting.

To exit P, switch ignition on, operate

footbrake and press button on selector

lever.
Press button on selector lever to engage P

or R.

6 Automatic transmission 3 –

see page 184.

N

= Idling

o

= Drive position

+

= Higher gear

-

= Lower gear

A/M = Switch between

Automatic and Manual

mode

R

= Reverse gear

(with selector lever lock)

P

= Park position.

R

= Reverse  gear.

N

= Neutral

(idle)

D

= Automatic gear selection

3

= 1st to 3rd gear

2

= 1st and 2nd gear

1

= 1st gear

P Only when vehicle is stationary, first

apply handbrake

R Only when vehicle is stationary

16

In brief

Automatic transmission with

ActiveSelect

3

:

Selector lever in D to left:

Manual mode

P or N must be engaged when starting.

To move from P or N, switch on ignition,

depress footbrake and press button on

selector lever.
To select P or R, press button on selector

lever.

6 Automatic transmission with

ActiveSelect 3 – see page 190.

Before starting off, check:

z Tyre pressure and tyre condition –

see pages 227, 337.

z Engine oil level and fluid levels in engine

compartment – see pages 298 to 305.

z All windows, mirrors, exterior lighting

and number plates are free from dirt,

snow and ice and operational.

z Do not place any objects in front of the

rear window, on the instrument panel or

in the area in which the airbags inflate.

z Seats, seat belts and mirrors are

correctly adjusted.

z Brake function.

P

= Park  position

R

= Reverse gear

N

= Neutral

(idle)

D

= Automatic gear selection

+

= Higher gear

-

= Lower gear

P Only when vehicle is stationary, first

apply handbrake

R Only when vehicle is stationary

17

In brief

To start engine:

Operate clutch and brake,

automatic transmission

3



in P or N,

Easytronic

3

: Depress brake,

do not accelerate;

Petrol engine: Turn key to 3;

Diesel engine: Turn key to 2,

when control indicator

!



goes out

1)

 turn key to 3;

release key once engine

is running

Before restarting or switching off the

engine, turn key back to 0.
To switch on the ignition, only turn the

key to 2.
6 Electronic immobiliser – see page 31,

diesel fuel system – see page 242.

To start engine with Open&Start

system

3

:

The electronic key must be inside

reception area inside the car,

operate clutch or brake,

automatic transmission

3



in P or N,

Easytronic

3

: Depress brake,

do not accelerate;

Petrol engine: Press button;

Diesel engine: Briefly press

button, when control indicator

!



goes out

1)

 press button again

for 1 second;

release button once engine

is running

Press button again to repeat the starting

procedure or switch off the engine.
To turn on the ignition, do not press the

brake or clutch pedal; just press the button

briefly.
Do not start unless vehicle is stationary.
6 Open&Start-System 3 – see page 34,

electronic immobiliser – see page 31,

diesel fuel system – see page 242.

1)

Preheating system switches on only if outside

temperature is low.
