Saturn Outlook (2010 year). Manual

3-62

Seats and Restraints

2. Put the child restraint on

the seat.

3. Pick up the latch plate, and run

the lap and shoulder portions of
the vehicle's safety belt through
or around the restraint. The child
restraint instructions will show
you how.

4. Push the latch plate into the

buckle until it clicks.

Position the release button on
the buckle so that the safety belt
could be quickly unbuckled if
necessary.

5. Pull the rest of the shoulder belt

all the way out of the retractor to
set the lock.

6. To tighten the belt, push down

on the child restraint, pull the
shoulder portion of the belt to
tighten the lap portion of the belt
and feed the shoulder belt back
into the retractor. When installing
a forward-facing child restraint, it
may be helpful to use your knee
to push down on the child
restraint as you tighten the belt.

7. Push and pull the child restraint

in different directions to be sure
it is secure.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

4-1

Storage

Storage Compartments

Instrument Panel Storage . . . . 4-1
Glove Box . . . . . . . . . . . . . . . . . . . . 4-1
Cupholders . . . . . . . . . . . . . . . . . . . 4-1
Armrest Storage . . . . . . . . . . . . . . 4-1
Center Console Storage . . . . . . 4-1
Floor Console Storage . . . . . . . . 4-2

Additional Storage Features

Cargo Cover . . . . . . . . . . . . . . . . . . 4-3
Cargo Tie Downs . . . . . . . . . . . . . 4-3
Cargo Management

System . . . . . . . . . . . . . . . . . . . . . . 4-3

Convenience Net . . . . . . . . . . . . . 4-3

Roof Rack System

Roof Rack System . . . . . . . . . . . . 4-4

Storage
Compartments

Instrument Panel Storage

This vehicle has an instrument
panel storage area located above
the radio. To open the cover, press
the button.

Glove Box

Lift the glove box handle up to open
it. Use the key to lock and unlock
the glove box.

Cupholders

There are two cupholders, with
removable liners, located in front of
the center console. There may be
cupholders located in the second
row seat armrest. To access, pull
the armrest down. There are
additional cupholders located on
each side of the third row seat and
in each door.

There may be cupholders located at
the rear of the center console. To
access, pull the handle down.

Armrest Storage

Vehicles with a rear seat armrest,
have two cupholders. Pull the
armrest down from the rear
seatback to access the cupholders.

Center Console Storage

Pull up on the lever, located on the
front of the center console armrest,
to slide it forward and backward.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-2

Storage

To open the armrest storage area,
press the button located on the front
of the armrest. There is additional
storage under the armrest. Move the
armrest all the way to the rear
position, slide the cover back and
remove the tray.

Floor Console Storage

For vehicles with a second row
center console, open each area to
access the storage compartment
inside.

To access the upper storage area,
press the upper button (B) and lift
up. To access the lower storage
area, press the lower button (C) and
lift up. The top of the console can
be folded forward for increased
storage area. Lift up on handle on
the rear of the console (A) and pull
forward.

{

WARNING

Never open more than one of the
three latches at a time to help
avoid personal injury and damage
to the console.

Notice: Slide the front console
as far forward as it will go before
folding the second row console
forward to help prevent damage
to the consoles.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

4-3

Additional Storage
Features

Cargo Cover

For vehicles with a cargo cover, it
can be used to cover items in the
rear of the vehicle. To install the
cover, place the loops on each
corner of the cover on the four
hooks in the rear of the vehicle. The
cover should be stored securely
when not in use.

Cargo Tie Downs

Four cargo tie-downs are located in
the rear compartment of the vehicle.
The tie-downs can be used to
secure small loads.

Cargo Management
System

This vehicle has a cargo
management center located in
the rear.

To remove the cargo management
cover:

1. Open the cover. It remains open

when lifted.

2. Pull the cover up making sure to

unhook the hinges at the rear of
the cover.

{

WARNING

An improperly latched and closed
cargo cover, or cargo cover left in
the open position, could be

(Continued)

WARNING (Continued)

thrown about the vehicle during a
collision or sudden maneuver.
Someone could be injured. Be
sure to return the cover to the
closed position and latch before
driving. If the cover is removed,
always store it outside of the
vehicle. When it is replaced,
always be sure that it is securely
reattached.

3. Remove the cover from the

vehicle and store outside of the
vehicle.

Convenience Net

For vehicles with a convenience net
in the rear, use it to store small
loads as far forward as possible.
The net should not be used to store
heavy loads.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-4

Storage

Roof Rack System

{

WARNING

If something is carried on top of
the vehicle that is longer or wider
than the roof rack— like paneling,
plywood, or a mattress— the wind
can catch it while the vehicle is
being driven. The item being
carried could be violently torn off,
and this could cause a collision,
and damage the vehicle. Never
carry something longer or wider
than the roof rack on top of the
vehicle unless using a GM
Certified accessory carrier.

For vehicles with a roof rack, the
rack can be used to load items. For
roof racks that do not have
crossrails included, GM Certified
crossrails can be purchased as an
accessory. See your dealer/retailer
for additional information.

Notice: Loading cargo on the
roof rack that weighs more than
91 kg (200 lbs) or hangs over the
rear or sides of the vehicle may
damage the vehicle. Load cargo
so that it rests evenly between
the crossrails, making sure to
fasten cargo securely.

To prevent damage or loss of cargo
when driving, check to make sure
crossrails and cargo are securely
fastened. Loading cargo on the roof
rack will make the vehicle’s center
of gravity higher. Avoid high speeds,
sudden starts, sharp turns, sudden
braking or abrupt maneuvers,
otherwise it may result in loss of
control. If driving for a long distance,
on rough roads, or at high speeds,
occasionally stop the vehicle to
make sure the cargo remains in its
place. Do not exceed the maximum
vehicle capacity when loading the
vehicle.

For more information on vehicle
capacity and loading, see Vehicle
Load Limits on page 9‑10.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-2

Instruments and Controls

Vehicle Personalization

Vehicle Personalization (With

DIC Buttons) . . . . . . . . . . . . . . . 5-42

Universal Remote System

Universal Remote System . . . 5-49
Universal Remote System

Programming . . . . . . . . . . . . . . . 5-49

Universal Remote System

Operation . . . . . . . . . . . . . . . . . . 5-53

Controls

Steering Wheel
Adjustment

The steering wheel can be adjusted.

The adjustment lever is on the
outboard side of the steering
column.

Pull the lever down to move the
steering wheel up or down and in or
out. Pull the lever up to lock the
steering wheel in place.

Do not adjust the steering wheel
while driving.

Power Tilt Wheel

For vehicles with the power tilt and
telescope wheel, the control is on
the outboard side of the steering
column.

Push the control up or down to tilt
the steering wheel up or down.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and Controls

5-3

Push the control forward or
rearward to move the steering wheel
toward the front or rear of the
vehicle. To set the memory position,
see Vehicle Personalization (With
DIC Buttons) on page 5‑42.

Steering Wheel Controls

Vehicles with audio steering wheel
controls could differ depending on
the vehicle's options. Some audio
controls can be adjusted at the
steering wheel.

(Next / Previous): Press to

select preset or favorite radio
stations, select tracks on a CD/
DVD, or to select tracks and
navigate folders on an iPod

USB device.

To select preset or favorite radio
stations:

Press and release

to go

to the next or previous radio
station stored as a preset or
favorite.

To select tracks on a CD/DVD:

Press and release

to go to

the next or previous track.

To select tracks on an iPod or USB
device for vehicles without a
navigation system:

1. Press and hold

while

listening to a song until the
contents of the current folder
display on the radio display.

2. Press and release

scroll up or down the list, then
press and hold

, or press

to play the highlighted track.

To select tracks on an iPod or USB
device for vehicles with a navigation
system:

1. Press and hold

while

listening to a song listed in the
main audio page, to quickly
move forward or in reverse
through the tracks. See the
separate Navigation System
manual for more information.

Track information is displayed on
the screen. Release

when the desired track is
reached.

2. Press and release

to begin

playing the track shown in the
display.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-4

Instruments and Controls

To navigate folders on an iPod or
USB device for vehicles without a
navigation system:

1. Press and hold

while

listening to a song until the
contents of the current folder
display on the radio display.

2. Press and hold

to go back to

the previous folder list.

3. Press and release

scroll up or down the list.

To select a folder, press
and hold

, or press

when the folder is

highlighted.

To go back further in
the folder list, press
and hold

To navigate folders on an iPod or
USB device for vehicles with a
navigation system:

1. Go to the Music Navigator by

first touching the center touch
screen folder button in the main
audio page.

2. While in Music Navigator, select

the folder/artist/genre/category,
etc. using the touch screen.

3. Press and release

to scroll

through the selected music list.
Touch the track label on the
touch screen to highlight and
begin playing the track from
that list.

4. Press and hold

to quickly

scroll through the selected
music list

b g

(Mute/Push to Talk): Press

to silence the vehicle speakers only.
Press again to turn the sound on.

For vehicles with Bluetooth or
OnStar

systems, press and hold

for longer than two seconds to

interact with those systems. See
Bluetooth on page 7‑45 and the
OnStar Owner's Guide for more
information.

(End): Press to reject an

incoming call, or end a current call.

SRCE (Source/Voice
Recognition): Press to switch
between the radio, CD, and for
vehicles with, DVD, front auxiliary,
and rear auxiliary.

For vehicles with the navigation
system, press and hold this button
for longer than one second to
initiate voice recognition. See “Voice
Recognition” in the Navigation
System manual for more
information.

(Seek): Press to go to the next

radio station while in AM,
FM, or XM™.

For vehicles with or without a
navigation system:

Press

to go to the next track or

chapter while sourced to the CD or
DVD slot.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and Controls

5-5

Press

to select a track or a

folder when navigating folders on an
iPod or USB device.

For vehicles with a navigation
system:

1. Press and hold

until a beep

is heard, to place the radio into
SCAN mode, a station will play
for five seconds before moving
to the next station.

2. To stop the SCAN function,

press

again.

3. In CD/DVD, iPod, or AUX USB,

press and hold to quickly move
forward through the tracks.
Release to stop on the desired
track.

−

(Volume): Press to

increase or to decrease the volume.

Horn

Press near or on the horn symbols
on the steering wheel pad to sound
the horn.

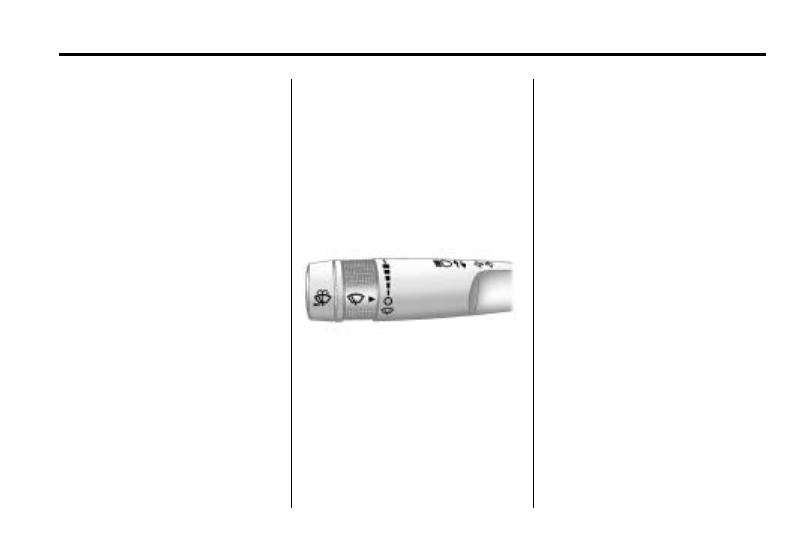

Windshield Wiper/Washer

The windshield wiper/washer lever
is located on the left side of the
steering column.

Turn the band with the wiper symbol
to control the windshield wipers.

(Mist): Single wipe, turn the

band to

and then release.

Several wipes, hold the band on

longer.

(Off): Turns the wipers off.

(Adjustable Interval Wipes):

Turn the band up for more frequent
wipes or down for less frequent
wipes.

1 : Slow wipes.

2 : Fast wipes.

Clear ice and snow from the wiper
blades before using them. If frozen
to the windshield, carefully loosen or
thaw them. Damaged wiper blades
should be replaced. See Wiper
Blade Replacement on page 10‑26.

Heavy snow or ice can overload the
wipers. A circuit breaker stops them
until the motor cools.

Windshield Washer

(Washer Fluid): Press the

button at the end of the turn signal/
lane change lever, to spray washer
fluid on the windshield. The wipers
clear the windshield and either stop
or return to the preset speed. The

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-6

Instruments and Controls

ignition key must be in ACC/
ACCESSORY or ON/RUN for this to
work. See Washer Fluid on
page 10‑21 Windshield Washer
Fluid .

{

WARNING

In freezing weather, do not use
your washer until the windshield
is warmed. Otherwise the washer
fluid can form ice on the
windshield, blocking your vision.

WASHER FLUID LOW ADD FLUID
is displayed on the Driver
Information Center (DIC) when the
washer fluid is low. See Washer
Fluid Messages on page 5‑41.

Rear Window Wiper/
Washer

The rear wiper and rear wash button
is located on the instrument panel
below the climate control system.

Z (Rear Wiper): Press to turn the
rear wiper on and off. The wiper
speed cannot be changed.

Y (Wash): Press to spray washer
fluid on the rear window. The
window wiper will also come on.
Release the button when enough
fluid has been sprayed on the
window. The rear wiper will run a
few more cycles after it is released.
If the rear wiper function was
already on, prior to pressing the
wash button, it stays on until the
wiper button is pressed again.

The rear window washer uses the
same fluid that is in the windshield
washer reservoir. See Washer Fluid
on page 10‑21.

Compass

Your vehicle may have a compass
in the Driver Information Center
(DIC). See Driver Information
Center (DIC) (With DIC Buttons) on
page 5‑24 or Driver Information
Center (DIC) (Without DIC Buttons)
on page 5‑30 for more information
about the DIC.

Compass Zone

The zone is set to zone eight upon
leaving the factory. Your dealer/
retailer will set the correct zone for
your location.

Under certain circumstances, such
as during a long distance
cross-country trip or moving to a
new state or province, it will be
necessary to compensate for
compass variance by resetting the
zone through the DIC if the zone is
not set correctly.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and Controls

5-7

Compass variance is the difference
between the earth's magnetic north
and true geographic north. If the
compass is not set to the zone
where you live, the compass may
give false readings. The compass
must be set to the variance zone in
which the vehicle is traveling.

To adjust for compass variance, use
the following procedure:

Compass Variance (Zone)
Procedure

1. Do not set the compass zone

when the vehicle is moving. Only
set it when the vehicle is in
P (Park).

Press the vehicle information
button until PRESS

CHANGE COMPASS ZONE
displays.

2. Find the vehicle's current

location and variance zone
number on the map.

Zones 1 through 15 are
available.

3. Press the set/reset button to

scroll through and select the
appropriate variance zone.

4. Press the trip/fuel button until

the vehicle heading, for
example, N for North, is
displayed in the DIC.

5. If calibration is necessary,

calibrate the compass. See
“Compass Calibration
Procedure” following.

Compass Calibration

The compass can be manually
calibrated. Only calibrate the
compass in a magnetically clean
and safe location, such as an open
parking lot, where driving the
vehicle in circles is not a danger.
It is suggested to calibrate away
from tall buildings, utility wires,
manhole covers, or other industrial
structures, if possible.

If CAL should ever appear in the
DIC display, the compass should be
calibrated.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-8

Instruments and Controls

If the DIC display does not show a
heading, for example, N for North,
or the heading does not change
after making turns, there may be a
strong magnetic field interfering with
the compass. Such interference
may be caused by a magnetic CB or
cell phone antenna mount, a
magnetic emergency light, magnetic
note pad holder, or any other
magnetic item. Turn off the vehicle,
move the magnetic item, then turn
on the vehicle and calibrate the
compass.

To calibrate the compass, use the
following procedure:

Compass Calibration Procedure

1. Before calibrating the compass,

make sure the compass zone is
set to the variance zone in which
the vehicle is located. See
“Compass Variance (Zone)
Procedure” earlier in this
section.

Do not operate any switches
such as window, sunroof,
climate controls, seats, etc.
during the calibration procedure.

2. Press the vehicle information

button until PRESS

CALIBRATE COMPASS
displays.

3. Press the set/reset button to

start the compass calibration.

4. The DIC will display

CALIBRATING: DRIVE IN
CIRCLES. Drive the vehicle in
tight circles at less than 5 mph
(8 km/h) to complete the
calibration. The DIC will display
CALIBRATION COMPLETE for a
few seconds when the
calibration is complete. The DIC
display will then return to the
previous menu.

Clock

To adjust the time and date:

1. Turn the ignition key to ACC/

ACCESSORY or ON/RUN, then
press

, to turn the radio on.

2. Press

to display HR, MIN,

MM, DD, YYYY (hour, minute,
month, day, and year).

3. Press the pushbutton located

under any one of the labels to be
changed.

4. To increase the time or date, do

one of the following:

Press the pushbutton below
the selected label.

Press

SEEK.

Press

FWD.

Turn

clockwise.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and Controls

5-9

5. To decrease the time or date, do

one of the following:

Press

SEEK.

Press

REV.

Turn

counter-clockwise.

To change the time default setting
from 12 hour to 24 hour or to
change the date default setting from
month/day/year to day/month/year:

1. Press

and then the

pushbutton located under the
forward arrow that displays on
the radio screen until the time
12H (hour) and 24H (hour), and
the date MM/DD (month and
day) and DD/MM (day and
month) displays.

2. Press the pushbutton located

under the desired option.

3. Press

again to apply the

selected default, or let the
screen time out.

Power Outlets

The vehicle has three 12-volt outlets
which can be used to plug in
electrical equipment, such as a
cellular telephone, a compact disc
player, etc.

The power outlets are located on
the instrument panel below the
climate controls, at the rear of the
center console, and in the rear
cargo area. Lift the cover to access
the outlet. Close the cover when not
using the outlet.

Notice: Leaving electrical
equipment plugged in for an
extended period of time while the
vehicle is off will drain the
battery. Power is always supplied
to the outlets. Always unplug
electrical equipment when not in
use and do not plug in equipment
that exceeds the maximum
20 ampere rating.

Certain accessory plugs may not be
compatible to the accessory power
outlet and could result in blown
vehicle and adapter fuses. If a
problem is experienced, see your
dealer/retailer for additional
information on the power accessory
outlets.

Notice: Adding any electrical
equipment to the vehicle can
damage it or keep other
components from working as
they should. The repairs would
not be covered by the vehicle
warranty. Do not use equipment
exceeding maximum amperage
rating of 20 amperes. Check with
your dealer/retailer before adding
electrical equipment.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Saturn Outlook (2010 year). Manual - part 8
