5-95

05

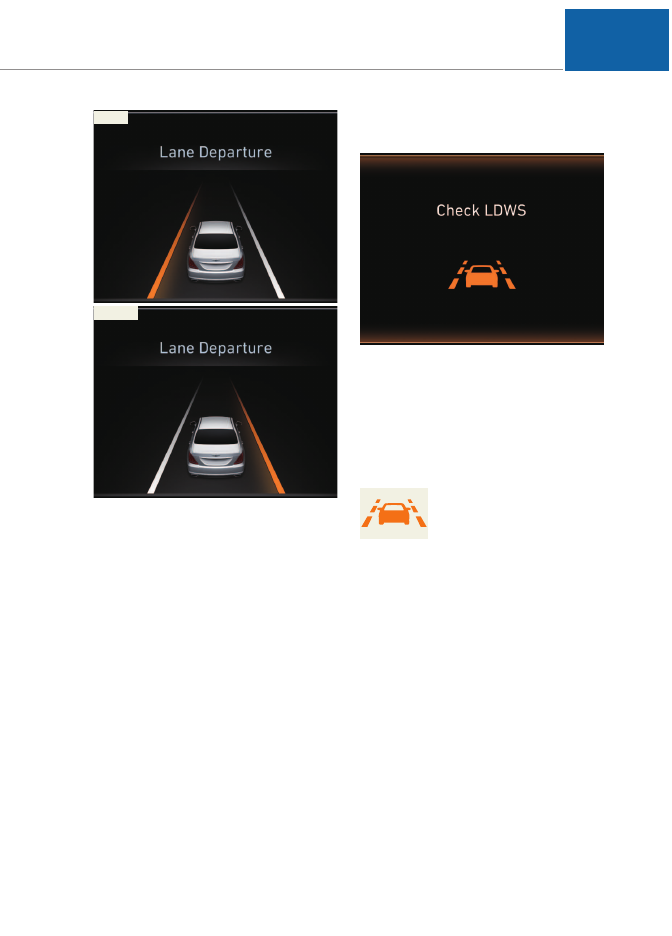

A visual warning appears on the
cluster LCD display. Either the left
lane line or the right lane line in the
cluster LCD display will blink
depending on which direction the
vehicle is veering. If you leave the
lane, the steering wheel will vibrate.

Warning light and message

Check LDWS

If there is a problem with the system
a message will appear for a few sec-
onds.
If the problem continues the LDWS
failure indicator will illuminate.

LDWS failure indicator

The LDWS failure indica-
tor (yellow) will illuminate
if the LDWS is not working
properly. We recommend

you to have your vehicle checked by
an authorized retailer of Genesis
Branded products.

When there is a problem with the
system, do one of the following:

• Turn the system on after turning

the engine off and on again.

• Check if the Engine Start/Stop but-

ton is in the ON position.

• Check if the system is affected by the

weather. (e.g. fog, heavy rain, etc.)

• Check if there is foreign matter on

the camera lens.

If the problem is not solved, we rec-
ommend that the system be checked
by an authorized retailer of Genesis
Branded products.

OHI056135L

OHI056138L

OHI056139L

■

Left

■

Right

5-96

Driving your vehicle

Limitations of the System

The LDWS may operate prematurely
even if the vehicle does not depart
from the intended lane, OR, the
LDWS may not warn you if the vehi-
cle leaves the intended lane under
the following circumstances:
• The lanes ahead are not visible

due to rain, snow, water on the
road, damaged or stained  road
surface, or other factors.

• The brightness outside changes

suddenly such as when entering or
exiting a tunnel.

• The brightness outside is too low

such as when the headlamps are
not on at night or the vehicle is
going through a tunnel.

• The surrounding of the inside rear

view mirror temperature is high
due to direct sunlight.

• It is difficult to distinguish the lane

marking from the road surface or
the lane marking is faded or not
clearly marked.

• Driving on a steep grade, over a

hill, or when driving on a curved
road.

• When light coming from a street

light or an oncoming vehicle is
reflected on a wet road surface
such as a puddle in the road.

• The windshield or the LDWS cam-

era lens is blocked with dirt or
debris.

• The field of view in front is

obstructed by sun glare.

• The lanes are incomplete or the

area is in a construction zone.

• There are more than two lane lines

on the road in front of you.

• The lane line is merged or divided.

(e.g. tollgate)

• The lane number increases or

decreases or the lane marker are
crossing complicatedly.

• The lane markings are not clearly

visible from the road.

• The lane width is too wide or too

narrow.

• The shadow is on the lane marker

by a median strip.

• The windshield glass is fogged up;

a clear view of the road is obstruct-
ed.

• There are markings on the road

surface that look like a lane line
that is inadvertently being detected
by the camera.

• There is a boundary structure in

the roadway such as a concrete
barrier that is inadvertently being
detected by the camera.

• There is not enough distance

between you and the vehicle in
front to be able to detect the lane
line or the vehicle ahead is driving
on the lane line.

• The adverse road conditions cause

excessive vehicle vibrations while
driving.

5-97

05

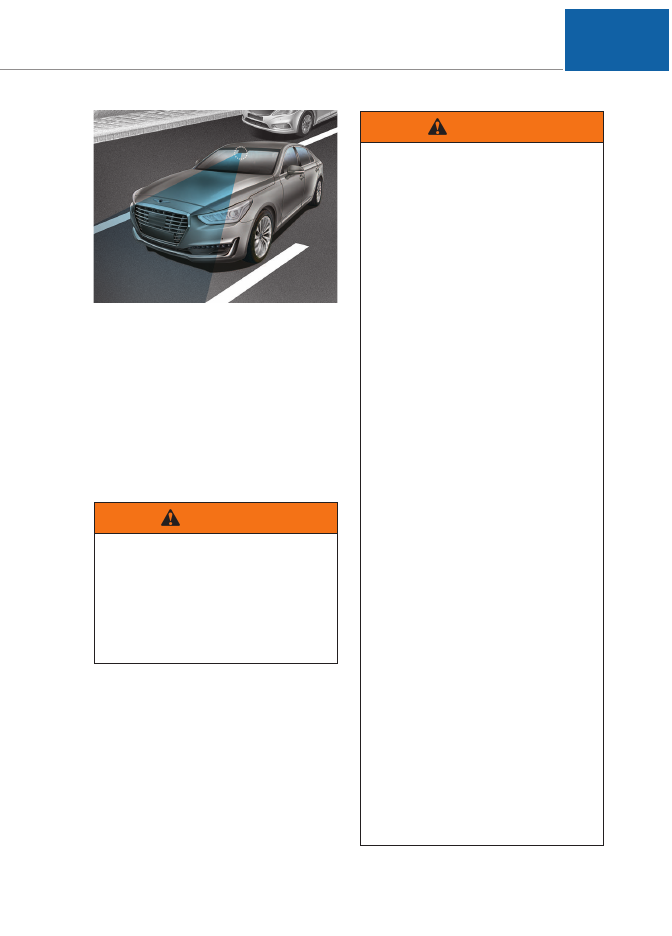

The Lane Keeping Assist System
detects lane markers on the road,
and assists the driver's steering to
help keep the vehicle between lanes.
When the system detects the vehicle
straying from its lane, it alerts the
driver with a visual and steering
wheel vibration warning, while apply-
ing a slight counter-steering torque,
trying to prevent the vehicle from
moving out of its lane.

L

LA

AN

NE

E  K

KE

EE

EP

PIIN

NG

G  A

AS

SS

SIIS

ST

T  S

SY

YS

ST

TE

EM

M  ((L

LK

KA

AS

S))  ((IIF

F  E

EQ

QU

UIIP

PP

PE

ED

D))

OHI056074

The Lane Keeping Assist
System is not a substitute for
safe driving practices, but a
convenience function only. It is
the responsibility of the driver
to always be aware of the sur-
rounding and steer the vehicle.

WARNING

Take the following precautions
when using the Lane Keeping
Assist System (LKAS):
• The steering wheel is not con-

tinuously controlled so if the
vehicle speed is at a higher
rate when leaving a lane the
vehicle may not be controlled
by the system.

• Do not steer the steering

wheel suddenly when the
steering wheel is being assist-
ed by the system.

• LKAS prevents the driver

from moving out of the lane
unintentionally by assisting
the driver's steering. However,
the driver should not solely
rely on the system but always
pay attention on the steering
wheel to stay in the lane.

• Always check the road condi-

tion and surroundings and be
cautious when the system
cancels, does not operate or
malfunctions.

• The system detects lane lines

and controls the steering
wheel by a camera, therefore,
if the lane lines are hard to
detect, the system may not
work properly.
Please refer to "Limitations of
the system".

• Do not attempt to repair the

LKAS camera and do not
remove any parts.

• Do not place objects that

reflect light on the dashboard
while driving.

(Continued)

WARNING

5-98

Driving your vehicle

LKAS operation

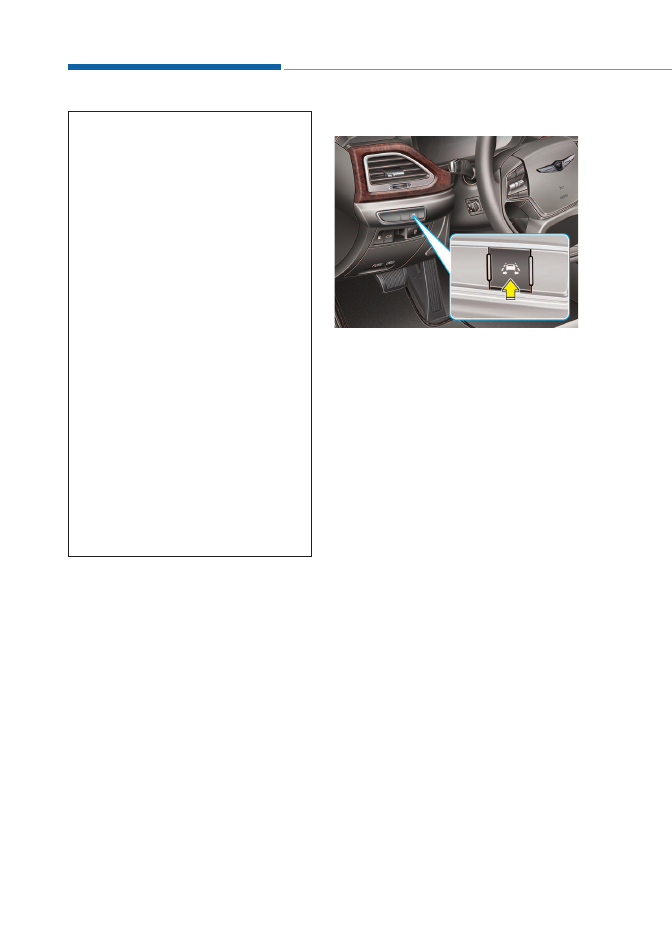

To activate the LKAS:
With the Engine Start/Stop button in
the ON position, press the LKAS but-
ton located on the instrument panel
on the lower left hand side of the
driver. The indicator in the cluster dis-
play will initially illuminate white. This
indicates the LKAS is in the READY
but NOT ENABLED state.

OHI056075

(Continued)
• Do not place any accessories

near the rearview mirror.

• The operation of the LKAS

may be affected by several
factors including environmen-
tal conditions that affect the
ability of the camera to detect
the lanes in front of you. It is
the responsibility of the driver
to pay careful attention to the
roadway and to maintain the
vehicle in its intended lane at
all times.

• Always have your hands on

the steering wheel while the
LKAS system is activated. If
you continue to drive with
your hands off the steering
wheel after the "Keep hands
on steering wheel" warning
message appears, the system
will will stop controlling the
steering wheel.

• Always be cautious when

using the system.

5-99

05

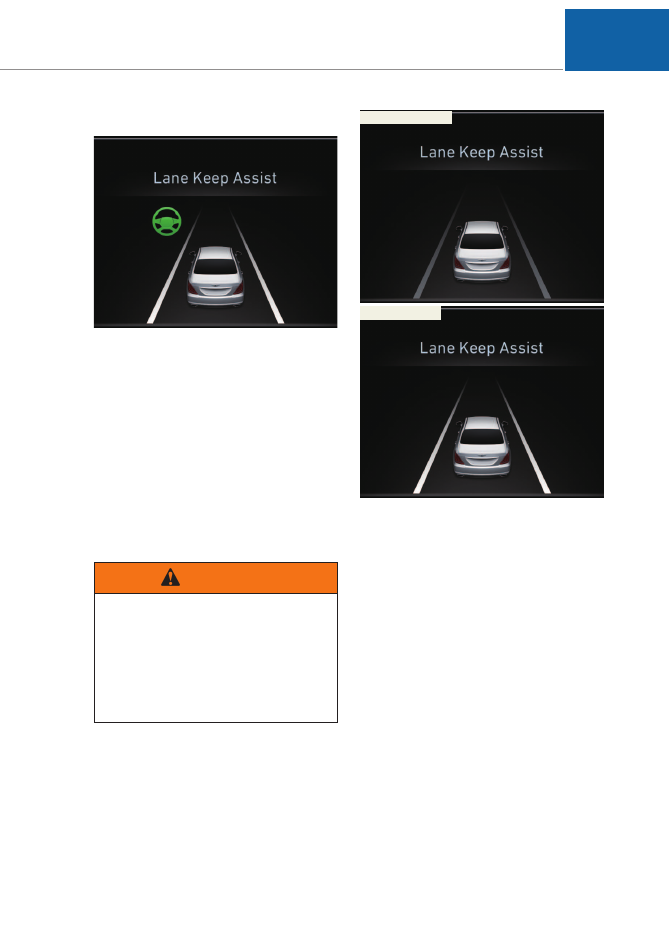

LKAS activation

• The LKAS screen will appear on

the SCC/LKAS screen of the LCD
display if the system is activated.

• When both lane lines are detected

and all the conditions to activate
the LKAS are satisfied, a green
steering wheel indicator will illumi-
nate and the LKAS indicator light
will change from white to green.
This indicates that the LKAS sys-
tem is in the ENABLED state and
the steering wheel will be able to
be controlled.

• If the system detects a lane line,

the color changes from gray to
white.

• If the system detects the left lane

line, the left lane line color will
change from gray to white.

• If the system detects the right lane

line, the right lane line color will
change from gray to white.

• Both lane lines must be detected

for the system to fully activate.

The Lane Keeping Assist
System is a system to prevent
the driver from leaving the lane.
However, the driver should not
solely rely on the system but
always check the road condi-
tions when driving.

WARNING

OHI056101L

OHI056104L

OHI056105L

■

Line undetected

■

Line detected

5-100

Driving your vehicle

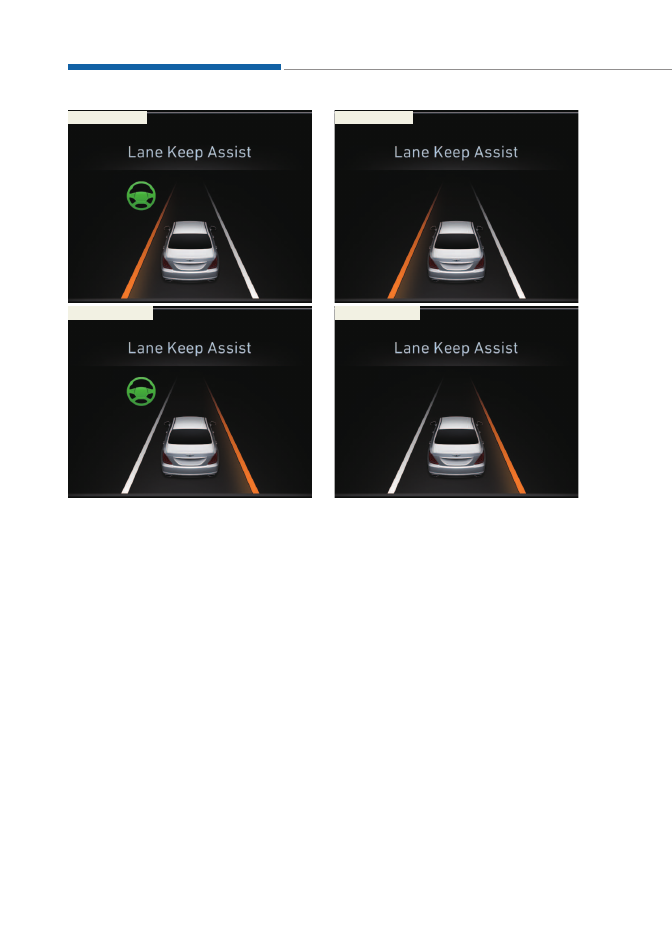

• If you cross a lane line, the lane

line you cross will blink (yellow) on
the LCD display with a steering
wheel vibration.

• If the steering wheel appears, the

system will control the vehicle’s
steering to prevent the vehicle from
crossing the lane line.

If all the conditions to activate LKAS
is not satisfied, the system will con-
vert to LDWS (Lane Departure
Warning System) and warn the driv-
er only when the driver crosses the
lane lines.

OHI056108L

OHI056109L

■

Left lane line

■

Right lane line

OHI056106L

OHI056107L

■

Left lane line

■

Right lane line

5-101

05

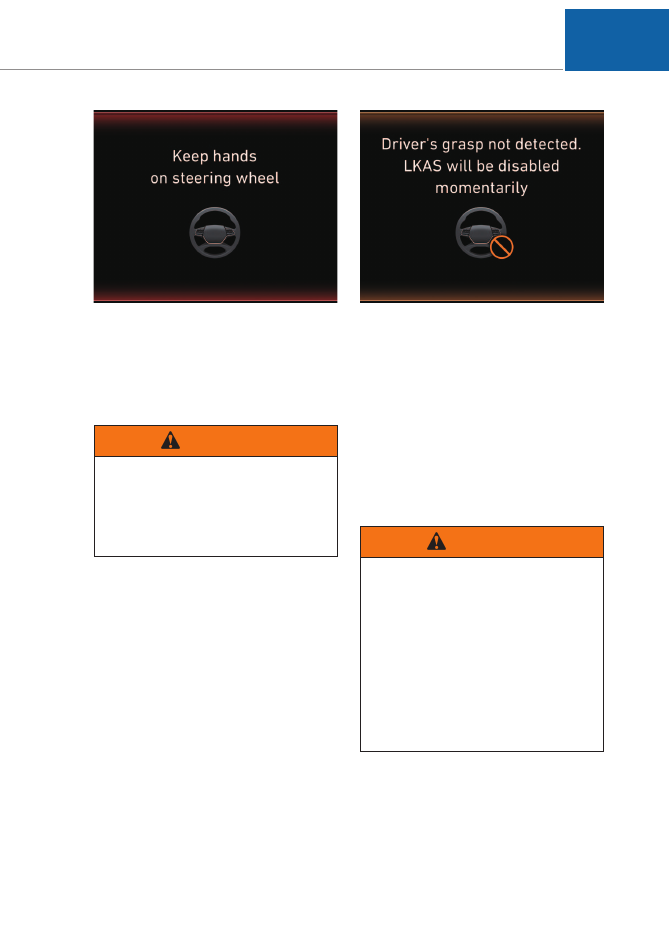

Keep hands on steering wheel

If the driver takes their hands off the
steering wheel for several seconds
while the LKAS is activated, the sys-
tem will warn the driver with a visual
and audible warning.

Driver's grasp not detected.
LKAS will be disabled momentarily

If the driver still does not have their
hands on the steering wheel after
several seconds, the system will not
control the steering wheel and warn
the driver only when the driver cross-
es the lane lines.
However, if the driver has their hands
on the steering wheel again, the sys-
tem will start controlling the steering
wheel.

OHI056100L

The warning message may
appear late according to road
conditions. Therefore, always
have your hands on the steering
wheel while driving.

WARNING

OHI056133L

• The driver is responsible for

accurate steering.

• Turn off the system and drive

the vehicle in below situa-
tions.
- In bad weather
- In bad road condition
-

When the steering wheel

needs to be controlled by the
driver frequently.

WARNING

5-102

Driving your vehicle

Information

• Even though the steering is assisted

by the system, the driver can still
steer to control the steering wheel.

• The steering wheel may feel heavier

when the steering wheel is assisted
by the system than when it is not.

The LKAS system will not be in the
ENABLED state and the steering
wheel will not be assisted when:

• Vehicle speed is below 60 km/h (37

mph) and over 180 km/h (112
mph).

• Only one lane line is detected.
• The turn signal is turned on before

changing a lane. If you change
lanes without the turn signal on,
the steering wheel might be con-
trolled.

• The hazard warning flasher is on.
• The width of the lane is below 2.6m

(8.5 feet) and over 4.5m (15 feet).

• ESC (Electronic Stability Control) or

VSM (Vehicle Stability Management)
is activated.

• The vehicle is driven on a sharp

curve.

• The vehicle brakes suddenly.
• The vehicle makes sharp lane

changes.

• There are more than two lane lines

on the road. (e.g. construction area)

• The vehicle is driven on a steep

incline.

Information

When the system is turned on or right
after changing a lane, drive in the
middle of the lane. If not, the system
will not provide steering assist func-
tion.

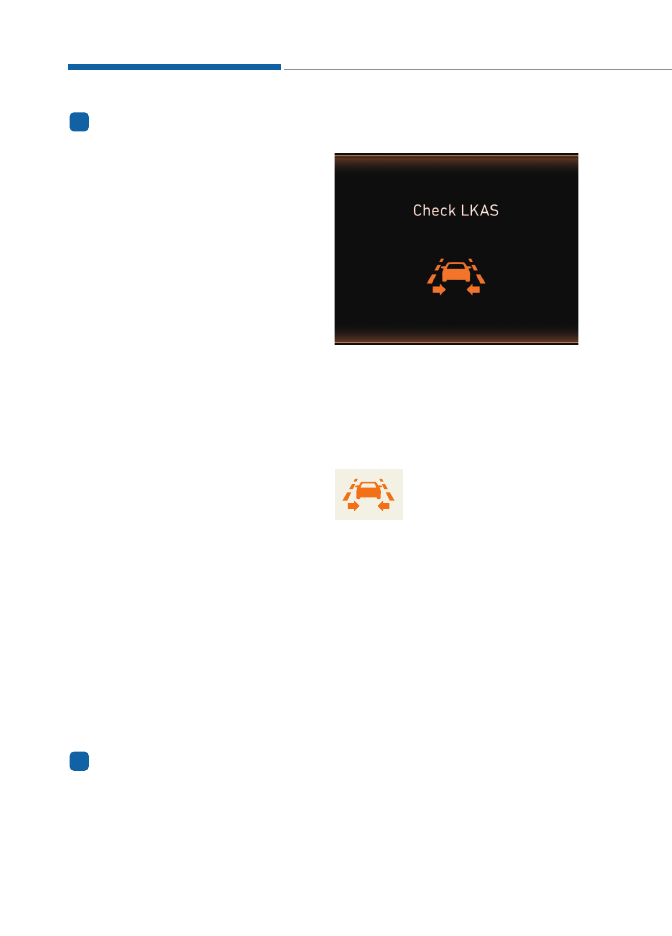

Warning light and message

Check LKAS

If there is a problem with the system
a message will appear for a few sec-
onds. If the problem continues the
LKAS failure indicator will illuminate.

LKAS failure indicator

The LKAS failure indica-
tor (yellow) will illuminate
if the LKAS is not working
properly. We recommend

that the system be checked by an
authorized retailer of Genesis Branded
products.

When there is a problem with the
system do one of the following:

• Turn the system on after turning

the engine off and on again.

• Check if the Engine Start/Stop but-

ton is in the ON position.

• Check if the system is affected by

the weather. (ex: fog, heavy rain,
etc.)

• Check if there is foreign matter on

the camera lens.

If the problem is not solved, we rec-
ommend that the system be checked
by an authorized retailer of Genesis
Branded products.

i

i

OHI056117L

5-103

05

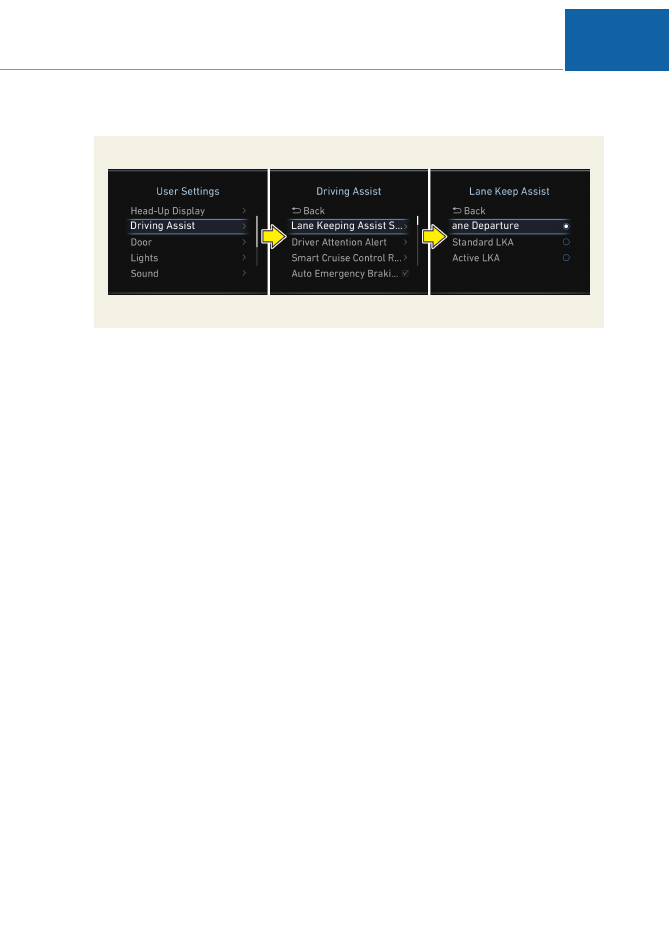

LKAS function change

OHI056118L

The driver can change LKAS to Lane Departure Warning System (LDWS) or
change the LKAS mode between Standard LKA and Active LKA from the
User Settings mode on the LCD display. The system is automatically set to
Standard LKA if a function is not selected.

Lane Departure

LDWS alerts the driver with a visual warning and steering wheel vibration
warning when the system detects the vehicle departing the lane. The steering
wheel will not be controlled.

Standard LKA

The Standard LKA mode guides the driver to keep the vehicle within the
lanes. It rarely controls the steering wheel, when the vehicle drives well inside
the lanes. However, it starts to control the steering wheel, when the vehicle is
about to deviate out of the lanes.

Active LKA

The Active LKA mode provides more frequent steering wheel control in com-
parison with the Standard LKA mode. The driver may not feel the onset of the
steering wheel control, because the Active LKA may be constantly controlling
the steering with lighter corrections.

5-104

Driving your vehicle

Limitations of the System

The LKAS may operate prematurely
even if the vehicle does not depart
from the intended lane, OR, the
LKAS may not warn you if the vehicle
leaves the intended lane under the
following circumstances:
• The lanes ahead are not visible

due to rain, snow, water on the
road, damaged or stained  road
surface, or other factors.

• The brightness outside changes

suddenly such as when entering or
exiting a tunnel.

• The brightness outside is too low

such as when the headlamps are
not on at night or the vehicle is
going through a tunnel.

• The surrounding of the inside rear

view mirror temperature is high
due to direct sunlight.

• It is difficult to distinguish the lane

marking from the road surface or
the lane marking is faded or not
clearly marked.

• Driving on a steep grade, over a

hill, or when driving on a curved
road.

• When light coming from a street

light or an oncoming vehicle is
reflected on a wet road surface
such as a puddle in the road.

• The windshield or the LKAS cam-

era lens is blocked with dirt or
debris.

• The field of view in front is

obstructed by sun glare.

• The lanes are incomplete or the

area is in a construction zone.

• There are more than two lane lines

on the road in front of you.

• The lane line is merged or divided.

(e.g. tollgate)

• The lane number increases or

decreases or the lane marker are
crossing complicatedly.

• The lane markings are not clearly

visible from the road.

• The shadow is on the lane marker

by a median strip.

• The lane width is too wide or too

narrow. See previous page.

• The windshield glass is fogged up;

a clear view of the road is obstruct-
ed.

• There are markings on the road

surface that look like a lane line
that is inadvertently being detected
by the camera.

• There is a boundary structure in

the roadway such as a concrete
barrier that is inadvertently being
detected by the camera.

• There is not enough distance

between you and the vehicle in
front to be able to detect the lane
line or the vehicle ahead is driving
on the lane line.

• The adverse road conditions cause

excessive vehicle vibrations while
driving.

5-105

05

The Driver Attention Alert (DAA),
system is to warn the driver with any
hazardous driving situations upon
detecting the driver’s fatigue level or
inattentive driving practices.

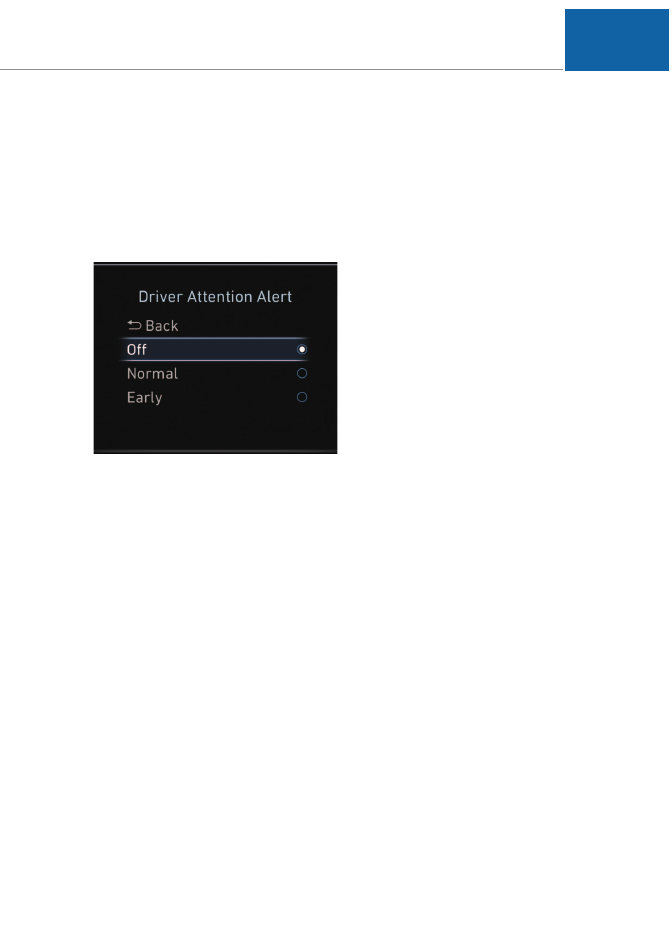

System setting and activation

System setting

• The Driver Attention Alert system

is set to be in the OFF position,
when your vehicle is first delivered
to you from the factory.

• To turn ON the Driver Attention

Alert system, turn on the engine,
and then select 'User Settings →
Driving Assist → Driver Attention
Alert → Normal/Early' on the LCD
display.

• The driver can select the Driver

Attention Alert system mode.
- Off : The Driver Attention Alert

system is deactivated.

- Normal : The Driver Attention

Alert system alerts the driver of
his/her fatigue level or inattentive
driving practices.

- Early : The Driver Attention Alert

system alerts the driver of his/her
fatigue level or inattentive driving
practices faster than Normal
mode.

• The set-up of the Driver Attention

Alert system will be maintained, as
selected, when the engine is re-
started.

Prerequisite for activation

The Driver Attention Alert system is
operable, when driving speed is
between 60 km/h and 180 km/h.

D

DR

RIIV

VE

ER

R  A

AT

TT

TE

EN

NT

TIIO

ON

N  A

AL

LE

ER

RT

T  S

SY

YS

ST

TE

EM

M  ((D

DA

AA

A,,  IIF

F  E

EQ

QU

UIIP

PP

PE

ED

D))

OHI056119L

5-106

Driving your vehicle

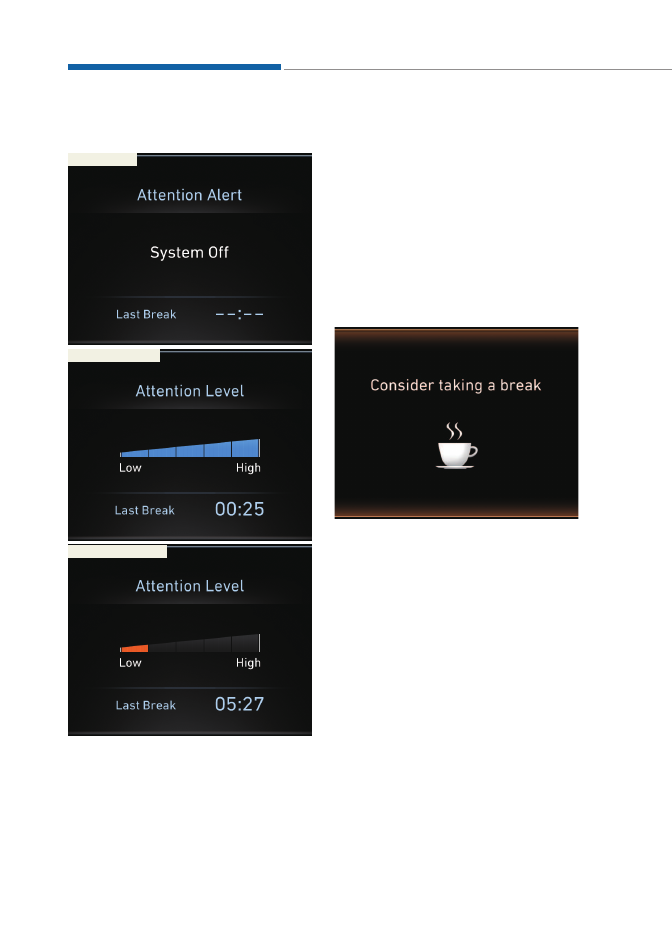

Display of the driver's attention
level

• The driver can monitor their driving

conditions on the LCD display.
- Select 'User Settings Mode' and

then 'Driving Assist' on the LCD
display. (For more information,
refer to "LCD Display" in chapter
3.)

• The driver’s attention level is dis-

played on the scale of 1 to 5. The
lower the number is, the more inat-
tentive the driver is.

• The number decreases when the

driver does not take a break for a
certain period of time.

• The number increases when the

driver attentively drives for a cer-
tain period of time.

Take a break

• The "Consider taking a break"

message appears on the LCD dis-
play and a warning sounds in order
to suggest the driver to take a
break, when the driver’s attention
level is below 1.

• The Driver Attention Alert system

suggests the driver to take a break
only once while driving.

• The Driver Attention Alert system

does not suggest the driver to take
a break, when the total driving time
is shorter than 1 hour.

OHI056122L

OHI056132L

OHI056120L

OHI056121L

■

System off

■

Attentive driving

■

Inattentive driving

5-107

05

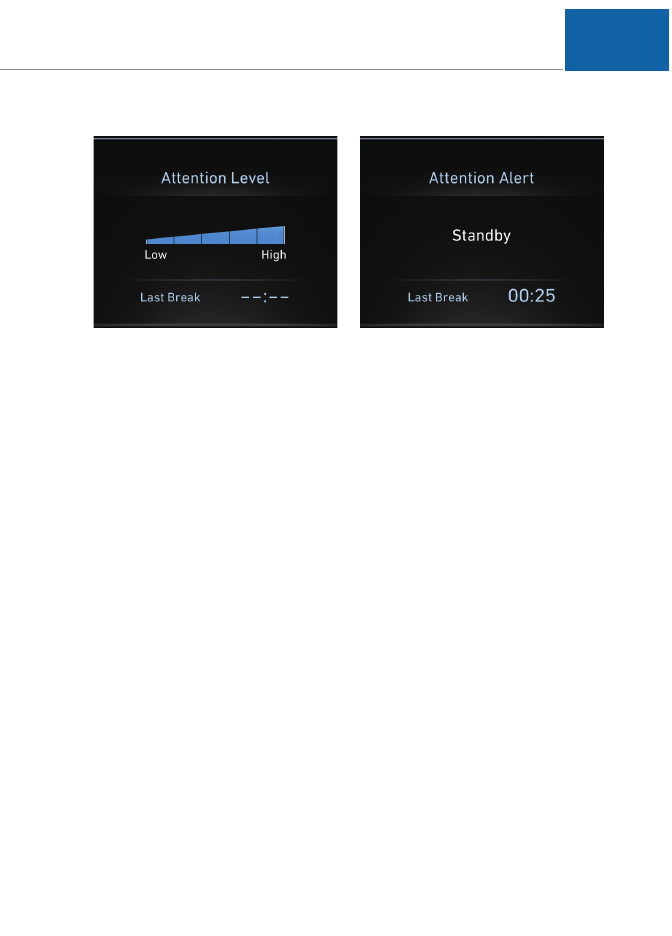

Resetting the system

• The last break time is set to 00:00

and the driver’s attention level is
set to 5 (very attentive) when the
driver resets the Driver Attention
Alert system.

• The Driver Attention Alert system

resets the last break time to 00:00
and the driver’s attention level to 5
in the following situations.
- The engine is turned OFF.
- The driver unfastens the seat belt

and then opens the driver’s door.

- The engine has been idled con-

tinuously over 10 minutes.

• The Driver Attention Alert system

operates again, when the driver
restarts driving.

System standby

The Driver Attention Alert system
enters the ready status and displays
the ‘Standby’ screen in the following
situations.
- The camera sensor keeps failing to

detect the lanes.

- Driving speed remains under 60

km/h or over 180 km/h.

OHI056218L

OHI056215L

5-108

Driving your vehicle

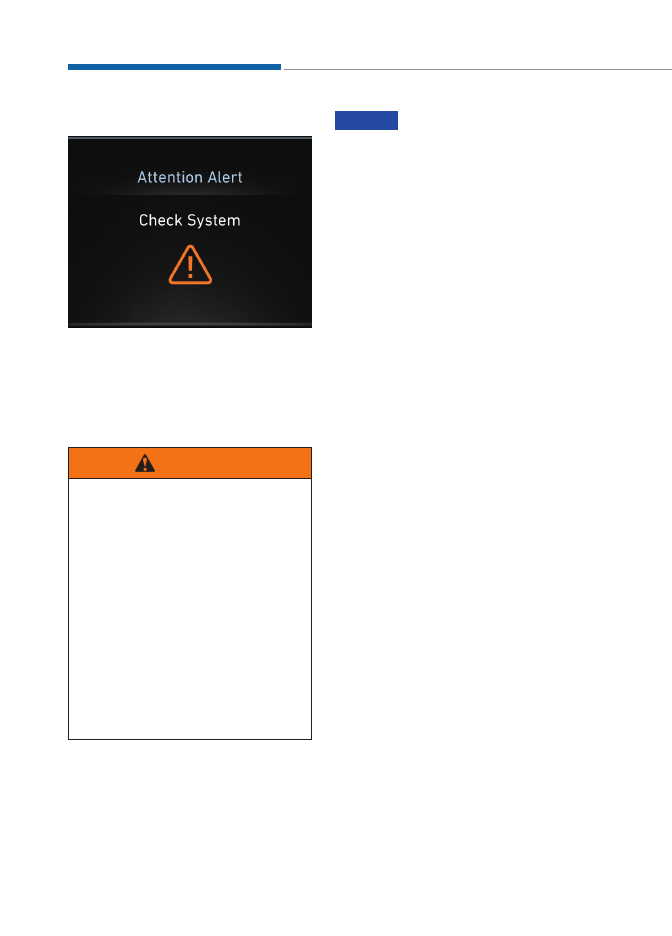

System malfunction

When the "Check System" warning
message appears, the system is not
working properly. In this case, we rec-
ommend you to have the vehicle
inspected by an authorized retailer of
Genesis Branded products.

The Driver Attention Alert  system
utilizes the camera sensor on the
front windshield for its operation.
To keep the camera sensor in the
best condition, you should observe
the followings:
• NEVER install any accessories or

stickers on the front windshield,
nor tint the front windshield.

• NEVER locate any reflective

objects (i.e. white paper, mirror)
over the dashboard. Any light
reflection may cause a malfunc-
tion of the Driver Attention Alert
(DAA) system.

• Pay extreme caution to keep the

camera sensor out of water.

• NEVER arbitrarily disassemble

the camera assembly, nor apply
any impact on the camera assem-
bly.

• Playing the vehicle audio sys-

tem at high volume may offset
the Driver Attention Alert sys-
tem warning sounds.

NOTICE

• The Driver Attention Alert sys-

tem is not a substitute for safe
driving practices, but a con-
venience function only. It is the
responsibility of the driver to
always drive cautiously to pre-
vent unexpected and sudden
situations from occurring. Pay
attention to the road condi-
tions at all times.

• The driver, who feels fatigued,

should take a break, even
though there is no break sug-
gestion by the Driver Attention
Alert system.

WARNING

OHI046141L

5-109

05

The Driver Attention Alert sys-
tem may not properly operate
with limited alerting in the fol-
lowing situations:
• The lane detection perform-

ance is limited. (For more
information, refer to "Lane
Keeping Assist System
(LKAS)" in this chapter.)

• The vehicle is violently driven

or is abruptly turned for
obstacle avoidance (e.g. con-
struction area, other vehicles,
fallen objects, bumpy road).

• Forward drivability of the

vehicle is severely under-
mined (possibly due to wide
variation in tire pressures,
uneven tire wear-out, toe-
in/toe-out alignment).

• The vehicle drives on a curvy

road.

• The vehicle drives on a bumpy

road.

• The vehicle drives through a

windy area.

• The vehicle is controlled by

the following driving assist
systems:
- Lane Keeping Assist System

(LKAS)

- Smart Blind Spot Detection

System

- Autonomous

Emergency

Braking (AEB) System

CAUTION

5-110

Driving your vehicle

Hazardous driving conditions

When hazardous driving conditions
are encountered such as water,
snow, ice, mud or sand:
Drive cautiously and allow extra dis-
tance for braking.
Avoid sudden movements in braking
or steering.
If stuck in snow, mud, or sand, use
second gear. Accelerate slowly to
avoid spinning the drive wheels.

Use sand, rock salt, or other non-slip
material under the drive wheels to
provide traction when stuck in ice,
snow, or mud.

Rocking the vehicle

If it is necessary to rock the vehicle
to free it from snow, sand, or mud,
first turn the steering wheel right and
left to clear the area around your
front wheels. Then, shift back and
forth between R (Reverse) and a for-
ward gear.
Try to avoid spinning the wheels, and
do not race the engine.
To prevent transmission wear, wait
until the wheels stop spinning before
shifting gears. Release the accelera-
tor pedal while shifting, and press
lightly on the accelerator pedal while
the transmission is in gear. Slowly
spinning the wheels in forward and
reverse directions causes a rocking
motion that may free the vehicle.

S

SP

PE

EC

CIIA

AL

L  D

DR

RIIV

VIIN

NG

G  C

CO

ON

ND

DIIT

TIIO

ON

NS

S

Downshifting with an automatic
transmission while driving on
slippery surfaces can cause an
accident. The sudden change in
tire speed could cause the tires
to skid. Be careful when down-
shifting on slippery surfaces.

WARNING

If the tires spin at high speed
the tires can explode, and you
or others may be injured. Do not
attempt this procedure if people
or objects are anywhere near
the vehicle.
The vehicle can overheat caus-
ing an engine compartment fire
or other damage. Spin the
wheels as little as possible and
avoid spinning the wheels at
speeds over 56 km/h (35 mph)
as indicated on the speedome-
ter.

WARNING
