Iran Khodro Pars. Service Manual - part 5

70

2

1- Locking Switch for Rear windows

(Child Safety)

By pressing this button, rear lifting window

switch (Left/Right) is deactivated.

By the first pressing, the keys are locked

and by repressing of keys operation, is

reactivated.

2- Flasher

Push  the  flasher    button.  All  indicator

lights  and  turn  signal  lights  will  flash

simultaneously on instrument panel.

This is an emergency action. Use this

mechanism when your car is on crossing

barrier position, or when you are in danger.

Flashers will keep flashing even when the

engine is off, therefore, turn them off after

emergency.

3- Trunk opener button*

After the ignition switch is on, to open

the trunk from inside the cabin press the

button for about 1.5 seconds the trunk lid

door will be opened.

WARNINGS

Avoid rubbing and scratching the rear

window and pasting any kind of label to

protect the heater elements.

4- Rear window heater

Push the related button to turn the heater

on. One LED will light on the button when

it is on.
Note: This mechanism is available with

the switch on.

Side view mirrors heater

Push the rear window heater button in

order to protect side view mirrors against

vapor and freeze effects.


INTERIOR EQUIPPMENTS

71

2

INTERIOR EQUIPPMENTS

Opening dashboard

- Push the related lever to open the

dashboard.

- A light will be turned on by opening the

dashboard, which will be turned off after

closing.

Note: Vehicle user manual booklet shall

be usually kept in dashboard.

Sun visor

Push the sub visor downside in order to

protect your eyes from direct sunlight.

Sun visors are designed to be used for

windshield and side shields.

72

2

INTERIOR EQUIPMENT

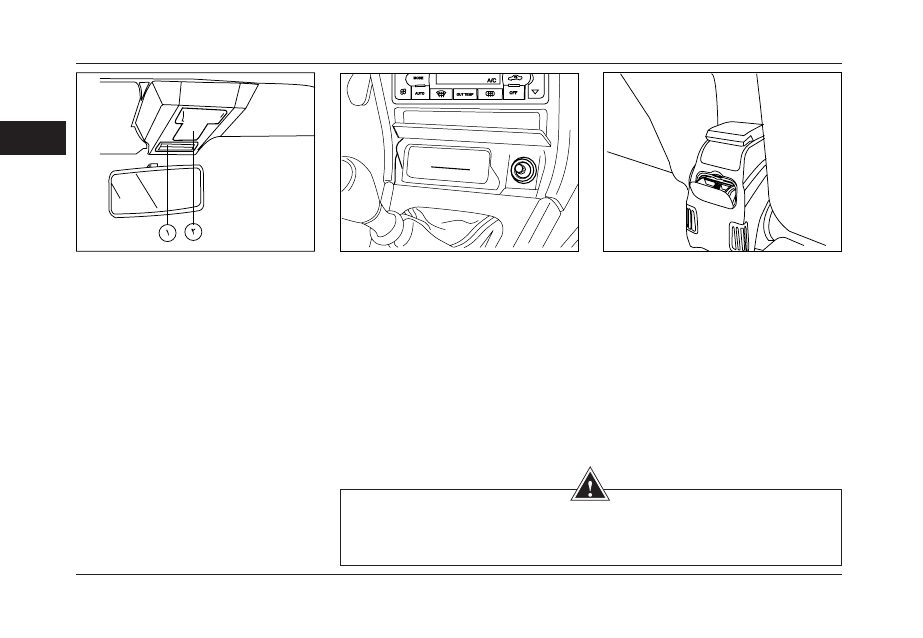

Interior Equipment

1-Front and rear ceiling lights:

- Pressing forward :Continuous light.

- Middle position :The ceiling lights will be

on and off by opening and closing of the

doors.

-Pressing backward: Off.

2- Map reading light ( Study light ): Turn

the switch key to the right or left.

Front ashtray and lighter:

Press ashtray door to open the trap

door. To discharge,pull out the ashtray.

Rear ashtray:

Press the upper edges of the ashtray

to open it and pull it out to discharge it.

WARNING

Ashtrays are dangerous spaces from fire catching point of view. Avoid putting paper

pieces or other inflammable materials in it.

73

2

WARNING

- if the air bag light, which is located on

the instrument cluster,  stays on after

6 times blinking, or when the ignition

switch is placed in the ON position, the

air bag light does not light up and does

not blink 6 times, vehicle’s owner should

have the air bag system inspected by an

authorized Iran Khodro dealer as soon as

possible, otherwise vehicle’s owner shall

be responsible for any and all loss due

to ignorance and delay in referring to an

authorized dealer.

with air bag system.

Passenger air bag is located in the upper

right hand dashboard and SRS AIRBAG

carved on it.

The air bags are designed to inflate only

in severe frontal collisions. They are not

designed  to  inflate  in  rear  impacts,  side

impacts, rollover or minor frontal collision.

The air bags deploy only one time during

an accident. They inflates and deflates so

quickly that you may not realize that it has

activated. An activated air bag does not

prevent you view and is not so tough that

you could not exit the vehicle.

Be aware that no system can prevent

all possible injuries that may occur in an

accident.

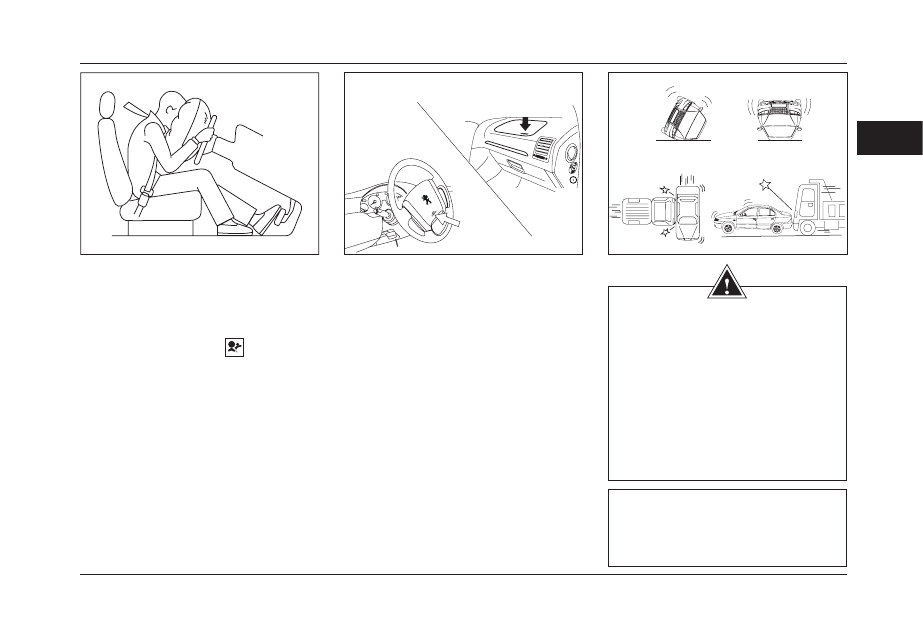

AIRBAG

Airbag

In addition to safety belt and force limiter,

your vehicle is equipped with air bag too.

When you turn the ignition switch to

the “ON” position, the Air Bag light on

the instrument cluster   comes on.

Otherwise, (as below) suggests a fault

in the air bag system or safety belt pre-

tension which should be referred to the

dealer of the car and fix it. Otherwise, the

vehicle owner will be responsible.

- Air bag light stay on after blinking 6

times.

- When the ignition switch is placed in the

ON position, the air bag light does not

light up and does not blink.The driver’s

front air bag is located behind the center

pad of the steering wheel. The words

“SRS Airbag” are molded into the air bag

covers to identify the vehicle is equipped

NOTE:

To control the air bag indicator flashes, in case

of any two consecutive placing the switch in

ON position, it should be placed at least three

seconds on the off position as well.

74

2

Servicing and maintenance of the air

bag system

If the air bags inflate once, have the air

bags and related components replaced

by an authorized Iran Khodro dealer as

soon as possible.

To prevent damage or unintended inflation

of the air bag system, be sure the battery

is disconnected and the ignition switch

has been in “LOCK” position for at least 90

seconds before performing any electrical

service work on your vehicle.

Scrapping  a  car  that  has  an  uninflated

air bag can be hazardous. Have an Iran

Khodro dealer to deactivate the trigger of

the air bag.

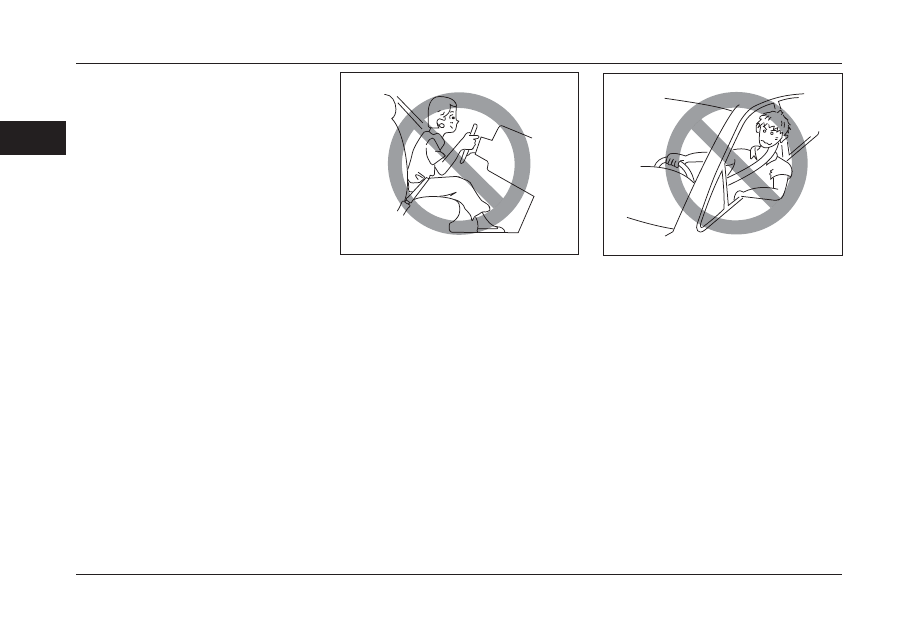

When driver is properly restrained by

wearing seat belts, the air bag has its

maximum protection effect. So adjust the

your seat to the most rear  position, sit up

straight and fully back in your seat.

Never lean over the vehicle’s steering

wheel or door.

Passengers are not in their position, very

close  to  the  air  bags  inflating  and  may

cause injury.

AIRBAG

75

2

AIRBAG

Passenger Air Bag Label*

This label is on the side part of the glove

box and it means if the air bag arming key

is in ON position, do not install rear facing

child restraint in the front passenger’s seat.

It is dangerous for passenger sitting on the

front seat while air bag arming key is in

OFF position.

Arm the air bag to protect the front

passenger as soon as taking out the child

restraint from front passenger’s seat. Make

sure that the front passenger air bag’s

disarming light on instrument cluster to be

off.

WARNING

- Make the seat belt as tight as possible

on the passenger body. If so, the seat

belt enjoy of better performance.

- To achieve the greater safety and better

performance of the seat belt at the time  of

air bag activation, always keep close the

seat belt.

-  Do not  install child safety seat in the

front passenger seat. Because if the front

passenger side air bag operation, the

probability of death or serious injury to a

child on the seat (rear facing) is very high.

If forced to use the front seat, deactivate

the air bag by deactivator which is located

in dashboard side. In which case the

indicator light on the front panel regarding

deactivation of the air bag will be on.

76

2

Warning

- Any servicing on the passenger security system (pre-tensioner, air bag, electronic control unit,

wiring) or re-use of this system in another vehicle, even if is the same vehicle, is expressly
forbidden.

- Use only factory standard steering wheel and never replace it.
- Covering of the air bag is expressly forbidden
- Do not attach anything (clip, logo, watch, mobile stalk, etc.) on the steering wheel air bag.
- No alteration is allowed on the air bag system.
- Opening of the steering wheel is forbidden.
- Have all securing equipments to be inspected after any collision
- in order to insure proper performance and avoid sudden inflation of the air bag and pre-tensioner

system, only trained personnel of the Iran Khodro dealers are permitted to repair or service the
air bag and/or pre-tensioner system.

- Arming or disarming front passenger air bag should be done only when the vehicle is off.
- Do not install rear-facing child restraint system on the front passenger seat when there is a fault

in function of the air bag arming or disarming switch.

- Non-use of safety belts by front seat passengers, if the air bag acts, will cause damages.
-When driving never get your hands on the steering wheel spokes and or not the central part

of the steering wheel.

- Putting feet on the dashboard, please avoid.
- One of the inevitable consequences of opening air bags, irritation of the skin in exposed

areas. In conjunction with the opening of the air bag, a sound is heard and the amount of
powder is released that is natural.

- Note that the air bag components after opening (action), are hot for a while.
- Air bags, are supplement safety belt protection system against accident. Driver and all

passengers must fasten their seat belt at all times to minimize the risk of severe injuries or
death in case of accident.

77

DRIVING

3

*If equipped

DIGITAL INSTRUMENT PANEL  ............................78

WARNING LAMPS .................................................82

DIGITAL DISPLAY INSTRUCTION  ........................85

STARTING AND DRIVING  .....................................86

FUEL ECONOMY....................................................88

DRIVING & ENVIRONMENT ...................................90

WINTER PRECAUTIONS .......................................91

STARTING AND DRIVING (CNG MODE)* ..............92

78

3

*If equipped

DIGITAL INSTRUMENT PANEL

Instrument panel indicators

Warning and indicator lights (above figure)

1- Low fuel warning light

2- Fuel gauge

3- Engine oil pressure warning light

4- Battery charge warning light

5- Brake oil level or handbrake applied warning light (two lights)

6- Brake pads wear warning light

7- Emergency stop warning light

8- Proof-meter warning light

9- Coolant fluid temperature indicator

10- High temperature of the coolant fluid warning light

11- Intelligent speed control system indicator *

12- CNG fuel indicator *

13- CNG engine digital instrument panel indicator *

14- ABS and EBD braking system indicator

15- Open door warning light

16- Air bag system activation indicator

17- ABS braking system warning

18- Immobilizer Indicator

Indicator lights and gages (below figure)

1- Anti-glare headlights

2- Tachometer

3- Left side flasher

4- Right side flasher

5- Engine digital indicator

6- Speed indicator

7- Adjusting the instrument panel illumination intensity

8- High beam headlight

9- Front fog lamp

10- Rear fog lamp

11- Anti-theft system indicator *

12- Driver seat belt

13- Activating gear box indicator *

14- Driver air bag indicator

15- Passenger air bag system deactivation warning

16- intensity of display light indicator

17- Fueling side indicator

79

3

DIGITAL INSTRUMENT PANEL

80

3

DIGITAL INSTRUMENT PANEL

Fuel Gauge:

The pointer falls to zero when the ignition

switch is off, but it shows the tank fuel

level when the switch gets on.

A warning indicator light in the fuel gauge

lights up when the fuel level falls to 7 litters.

Refuel as soon as possible. Fuel tank

capacity is 70 liters.

Tachometer:

 It shows the engine speed in revolutions

per minute. To avoid engine damage,

never let the tachometer pointer remain in

red section for a long time.

Speedometer:

It shows the speed of vehicle in Km/h.

Coolant Temperature Gauge:

This gauge indicates the temperature

of the engine coolant, When the engine

warms up, the pointer rises to the middle

of the gauge, and it remains until the

engine operates in normal condition.

If the pointer reaches the red section, it

shows that coolant is overheated causing

damage to the engine. In this situation

stop the vehicle immediately considering

safety conditions and seek help from

qualified persons to repair.

Possible Causes:

- A faulty fan- Check fuses, and change

them if necessary.

-The coolant system leakage; let the

engine cool down, and then check the

coolant liquid level.

-A fault in the water pump operation

Distance Recorder Reset Button (Trip

Recorder Reset Button):

It is used to show different situations in the

digital display panel and reset information

in the related condition.

81

3

WARNING LAMPS

*If equipped

Direction Indicators-Green

The directions of indicators (turning to the right and turning to the left) are defined by arrows. When you turn on the left or

right signals, the corresponding green arrow on the instrument panel will flash along with the respective turn signal lights.

If the flasher (hazard warning light) is used, both indicators flash together. If either warning light flashes very rapidly, this means that

the corresponding direction indicator is not operating.

NOTICE: This situation occurs only when one of the front or rear direction lights does not work properly, but if one of the side lights is

not working, it will have no effect on the warning light flash frequency.

NOTE: If the vehicle experiences an excessive speed fall, the alarm system automatically turns on the flasher for 10 seconds.

This is a warning sign for excessive speed fall.*

Headlamp Dipped Beam - Green

It lights up when using dipped (dimmed) headlights

Headlamp Main Beam – Blue

It lights up when using main-beam headlights

Front Fog Lamp – Green

It lights up when using front fog lights – green

Rear Fog Lamp – Orange

It lights up when using rear fog lights.

82

3

Instant Stop Warning – Red

Should this indicator lights on, stop immediately and switch off the engine. Contact with dealer or  authorized representative.

Warning

If the

 light comes on for any reason, driver should stop the vehicle. In case he continues driving, vehicle owner will be responsible

for any resulted damages.

Automatic Engine Troubleshooting Device – Orange

This indicator lights up when the engine troubleshooting device detects a failure.

When the switch is in the second position (on), as a sign of system check up, this light turns on and after the engine is turned on it will

turn off. It will resume lighting if any engine problem occurs while driving.

NOTICE: If the indicator lights up and the car operate normally, refer to an authorized dealer, although, you can still drive.

If the indicator lights up, the car does not operate normally. Do not drive on high speed and refer to an authorized workshop immediately.

Oil Pressure-Red

It lights up when the ignition switch is in the second position to indicate correct operation and it will turn off when the engine

starts. If the oil light stays on when starting the engine or turns on when driving the car, the engine is exposed to a serious damage,

the vehicle should be stopped immediately and the engine turned off while taking into account safety considerations . Get help from an

authorized expert before moving the vehicle once again

Battery Charging – Red

It lights up as a bulb functioning check when the ignition switch is in second position and it will turn off immediatyely when the

engine starts. If it remains on when starting or lights up when driving, there is a problem in the battery charging system. Immediately

refer to the workshop to conduct repair.

WARNING LAMPS

83

3

WARNING LAMPS

Doors Open-Red

It lights up when at least one of doors is not closed properly. It operates even when the engine is off. Avoid driving when indicator

lights up.

Brake System Alarm – Red

This indicator is turned on for a few seconds while starting the engine and then it turns off, and it turns on when the hand brake slides

up or when the brake fluid level is low. If the indicator of brake system alarm doesn’t work or remains on while starting the vehicle or

after sliding down of hand brake, without delay fill the brake liquid reservoir and if the indicator remains on after filling the reservoir and sliding

down of the hand brake, while considering safety precautions, transfer the vehicle to an authorized workshop for evaluation and repair.

Driver Safety Belt – Red

By locking of the metal tongue of the driver safety belt in the special buckle and with a “click”, we make sure of its locking. With

this action the indicator on the panel is turned off.

Anti – Lock Brake Warning System (ABS) – Orange

It lights up when starting the car and keeps on for a few seconds, and then it turns off. If it does not turn on when    starting

the engine or stays on after the engine starts running, it indicates that there is a problem in the anti-lock brake system.

In such a condition move the car immediately and with safety considerations to the authorized workshop for inspection and repair.

Driver’s air bag system warning – red

Starting the vehicle the indicator light blinks 6 times and then the vehicle must be turned off. Otherwise, (as below) suggests

a fault in the air bag system which should be referred to the dealer of the car and fix it. Otherwise, the vehicle owner will be

responsible.

- Air bag light stay on after blinking 6 times.

- When the ignition switch is placed in the ON position, the air bag light does not light up and does not blink.

Warning disabled passenger air bag - Orange

Turn on the lights indicate the passenger air bag is deactivated. Until the passenger air bag is deactivated, it remains light. In case of

activating the flashing lights of the vehicle, please contact one of the Iran Khodro authorized dealers.

84

3

*If equipped

WARNING LAMPS

Brake Pads – Orange

It lights up to alert that the brake pads should be check and replaced if necessary.

Low Fuel Level Warning- Orange

Next to the fuel gauge there is a warning light, when the light is on it shows that less than 7 liters of fuel remains in the fuel tank.

Refuel as soon as possible.

High Coolant Temperature Warning – Red

Beside the coolant temperature indicator, there is a warning light, if the coolant temperature pointer stands in the red section

and the lamp lights up, stop immediately ( without the engine turning off) and seek help from an authorized expert.

Theft Deterrent System- Red

It indicates that the theft deterrent system is activated when blinking.

CNG Fuel Position Indicator – Green*

If fuel consumption changes from gasoline to CNG the indicator will blinks, and if the CNG mode is running, the indicator turns on.

Immobilizer Indicator - Red

After turning off the car, the indicator flashes  once per 4 second to indicate that the vehicle immoblilizer system is activated.

85

3

*If equipped

DIGITAL DISPLAY

Digital display screen guide

This display is located at bottom of the

instrument panel (below the speed indicator)

and shows you following information by

pressing reset and change mode.

Push change mode knob quickly to switch

between different modes. If  you push it

for about 2 second  information of the

same mode is reset to zero (information

could be changed to zero).

Following information could be reset to

zero:

1-When the ignition switch is turned to “ON”

the display shows odometer. odometer

records the total distance (km) the vehicle

has been driven since being

delivered to the owner. The tripmeter

could not be reset to zero.

2-Trip meter indicates the distance (km)

the vehicle has been driven since it has

been reset to zero. Push reset knob for 2

second to reset the distance.

3-This indicates the pressure of the gas in

the LCD and is made

of 6 black stripes. When gas pressure is full

the 6 stripes are active and by decreasing

the gas pressure the number of these

stripes  decreases.  Gas  tank  insufficient

warning is indicated by the blinking of

the first stripes in LCD and gas pressure

become zero the last stripes goes off*.

4-If this indicator is on it means the

intelligent speed control system is active

and if it is off it means the intelligent speed

control system is inactive.*

5-This indication shows the average speed

since it has been reset to zero. Push reset

knob for 2 second to have it reset to zero.*

6-This indicates the intensity of the

instrument panel illumination which could

be changed by the illumination control

knob. Push reset knob for 2 second, the

indication starts to blink. Then every time

that you push the knob one of the symbols

comes on and the illumination intensity

of the instrument panel increases. To exit

this state, just push the knob for 2 second.

7-Indicator of the automatic gear box position*

8- Service Indicator: If  ABS، Brake Pads and

or Air bag light lights, the indicator on the LCD

turns on.

9- Outside Temperature Display
