Iran Khodro Pars. Service Manual - part 3

38

2

NOTICE:

 People under the age of 7or 8 considered

children because of the different ratio of

head to body weights.

In violent deceleration, the weight of the

head and relatively weakness of neck

muscle can make serious spinal injuries.

They can be considered as young children

till reached 10 years of age or at a height

of more than135 centimeters.

This is why most countries have envisaged

some rules for the purpose of using and

selling suitable child restraints.

The seat of the child from 9 months to

3 years (up to 18 Kg) should be placed

forward-facing in the rear of the car and

fixed with a three-point belt (lap-andsash

or inertia reel belt).

Babies under the 9 months (and less than

10 kg) must be secured on a rear-facing

seat in front of the car. Actually infant

restraints provide restraint with the

seating surface against the back of the

car with a three-point belt-seat belt with

locking mechanisms (or inertia reel belt).

WARNING

Nothing should be placed under the

driver’s feet; otherwise it may slide

under the pedals by a sharp braking

and lead to malfunction of the brake

in an emergency situation.

WARNING

Make sure of air bag deactivation while the infant seat back is located towards the

road in front passenger seat; otherwise there is every possibility of sever injury or

even death of the infant due to air bag being opened. locate the seat in the middle

position, longitudinally, adjust the back vertically and activate the air bag while the

infant seat is towards the road in front passenger seat.

CHILD SAFETY

39

2

CHILD SAFETY

WARNING

-The children shall not be seated on

the lap of the passengers; otherwise

they may be hurt by an accident.

-Never fasten a seat belt at a time for

two persons.

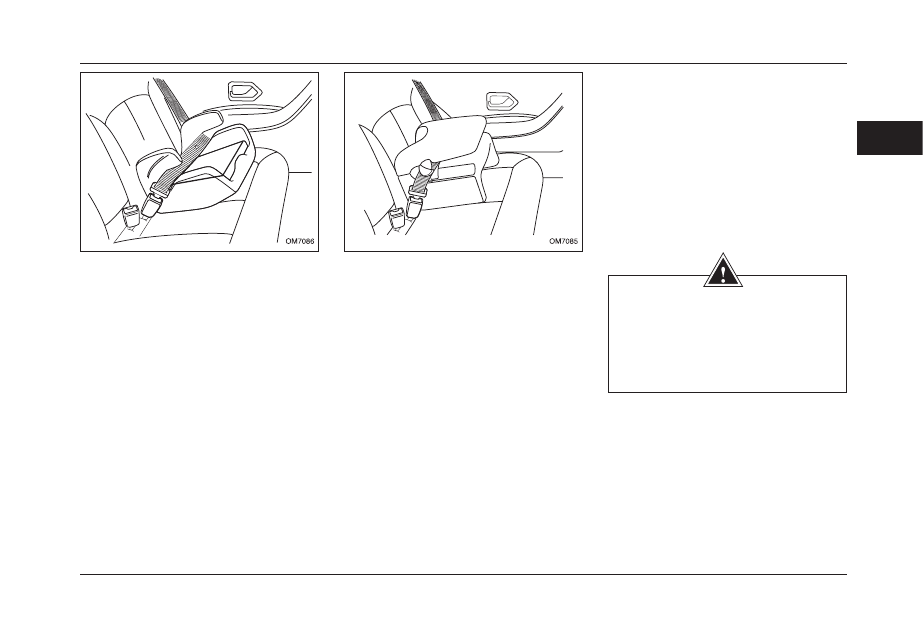

For children (weighing more than 15 kg)

equal or greater than 3 years old (more

than 15 Kg), a booster seat can be used

in the rear of the car, facing forward, using

a 2 or 3 point (lap or inertia reel) seat belt

(especially suitable for children roughly 3

to 6 years old).

For heavy children – whose weight exceeds

the limits of standard seat- who are equal or

greater than 3 years old should be seated,

a forward- facing booster cushion, in the

rear of the car, using a 2 or 3 point (lap or

inertia reel) seat belt. (Especially suitable

for children roughly 3 to 6 years old).

40

2

MIRRORS

WARNING

The reflect of the objects in the mirror

seems farther than their real distance.

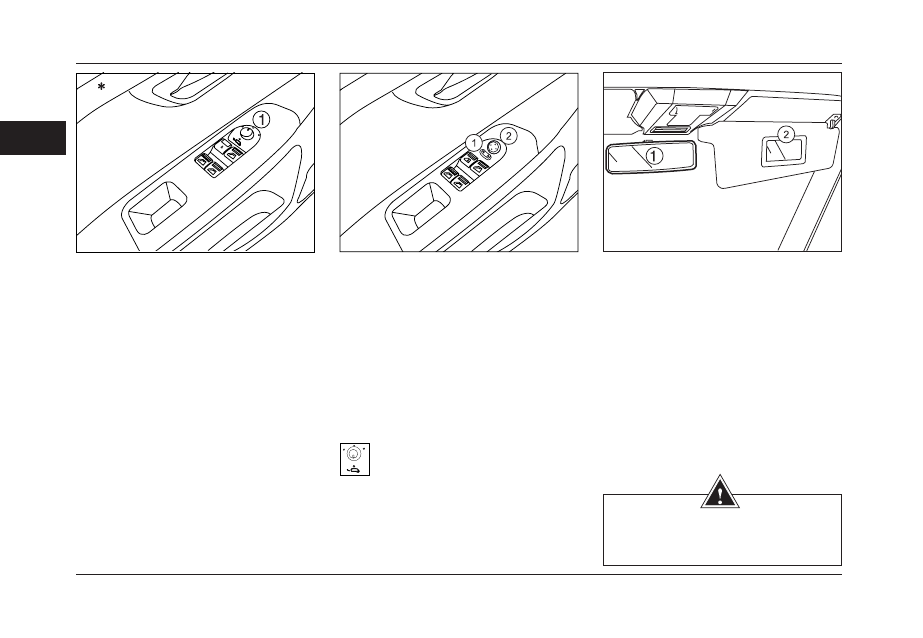

Adjusting Electric mirrors:

1- Selecting the right or left mirror for

adjustment:

By pushing the switch1 to the right or left,

the mirror on the same side will be ready

to get adjusted.

2- Electrical adjusting of the mirrors:

With the help of switch1, which can be

moved in all four directions, adjust the

mirror at your desired position.

Heaters for side mirrors:

To avoid sweating or freezing of side

mirrors, switch on the key for heater of

the rear glass.

*If equipped

Adjusting Electric mirrors:

1- Selecting the right or left mirror for

adjustment:

By pushing the switch1 to the right or left,

the mirror on the same side will be ready

to get adjusted.

2- Electrical adjusting of the mirrors:

With the help of switch1, which can be

moved in all four directions, adjust the

mirror at your desired position.

In addition to open and close the

Mirror via radio remote control,

rotating 90 degrees key 6 clockwise and

counterclockwise, mirrors alternatively

open and closed.

Mirrors:

Rear view mirror: (Inside Mirror)

1- The rear view mirror can be adjusted for

driving during daytime or during night time.

2- Make up mirror: It is fixed on the right

hand side Parasol.

41

2

FOLDING EXTERIOR MIRROR (ELECTRICAL)

Folding Exterior mirror (Electrical) *

Many of car owners are aware of the

advantages of the folding side mirrors

especially when the car is parked in a

passage. To mention the advantages,

one may point to the increase in safety

coefficient of the mirror when leaving the

car as well as the lower space required

for parking the car. Parallel with these

and with a view to increasing the comfort

of the drivter, the electrical exterior folding

mirrors are automatic and it can be folded

\ unfolded simultaneously by closing the

vehicle doors by remote control, no need

to manual control.

The folding mirror is closed after 2

seconds  of  the  first  remote  and  10

seconds by the 2nd remote. But the

mirrors and doors are opened together,

soon after soon after pressing of the

opening button on remote.

The manufacturing technology of these

mirrors’ motors (called “folding motors”)

is designed in such a manner that in the

event of any impact, the motor will be

locked and current voltage will be cut off.

This mechanism prevents the damage of

the motor as well as the destruction of the

mirror in itself by the application of undue

force. In addition, when passing through

narrow passages, the driver can fold the

mirror while the engine is operating or

when the vehicle is running by the unlock

switches on the ignition.

If  the  flasher  is  used  ,then    the  lamps

on the folding  mirrors starts blinking

simultaneously with relevant flasher.

*If equipped

42

2

*If equipped

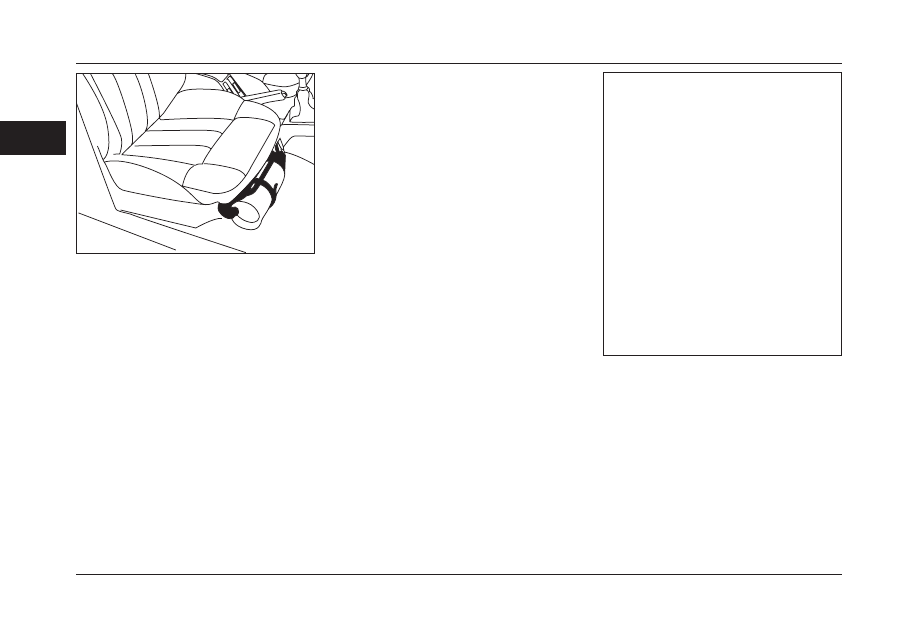

Fire Extinguisher*

It is necessary that owners learn about

usage of car extinguisher.

Product Specification:

1. This kind of capsule contains dry chemical

powder with 16 gr high pressure CO2

cartridge (capsule). During operation, after

release cotter pin, gas inside cartridge will

mixed with dry powder and mixture is ready

to void.

2. Maintenance and operational accordance

within -30 to 90° C temperature.

3. This kind of capsule doesn’t need to be

checked for 5 years and if it is used, it will

be easy to recharge again.

4. Non conglomeration of powder in the

case of any car vibration, high temperature

and car accident is one of the pros of this

capsule.

How to use:

Activation procedure of capsule is written

in English language on it’s body as follow

which must be read carefully.

- Pull out cotter pin

- Pull out cap cotter pin upward

- Aim the nozzle toward fire center and press

handle downward for powder discharge

NOTICE

To prevent of fire expanding due to air

feeding in engine compartment, do not

open the hood completely. After release

cotter pin and activation the capsule,

open the hood about 10 to 15 cm with

discretion and care then simultaneously

discharge  the  mixture  in  fire  center

about 1 to 2 seconds. After that open

the hood and completely discharge

the capsule in fire center. Pay attention

that the capsule weight is 1 kg and

it’s discharge duration is about 7 –10

seconds. there fore paying attention

during operation is so necessary.

FIRE EXTINGUISHER

43

2

FIRE EXTINGUISHER

Important tips:

1.Never  open  discharge  valve  of  fire

extinguisher. This cause to lose quality

of  material  inside  fire  extinguisher  and

reduces it’s power.

2.If the door and windows are locked and

impossible to open due to fire emergency

or  emergency  conditions,  take  the  fire

extinguisher which is placed under front

passenger seat and break the window by

its end then exit the car.

3.Although the material inside fire extinguisher

is not poisoning, never discharge it toward

face and eyes.

4.During installation inside the car, pay

attention  that  fire  extinguisher  is  well

placed and it’s plastic mounting belt is

properly locked, otherwise in case of

impact or accident it moves from it’s place.

5.During fire emergency, always be cool

and follow the procedure carefully.

6.The 1 kg fire extinguisher is just designed

for control and restrains the fire at beginning

so in case of fire emergency which expands

in  large  area,  notify  the  fire  department  to

help and control the fire. The mentioned fire

extinguisher has no efficiency in above case.

CAUTION

Experience and coolness are two

fundamental skills during usage of fire

extinguisher, so car manufacturer has

no commitment to owner due to non

correct usage of fire extinguisher.

CAUTION

- Avoid parking your car in unattended

on- street parking spaces.

- Avoid parking in dark places.

- Never leave the car's documents or

spare keys in your vehicle.

- Park in your garage if you have one,

and take the switch with you.

Safety precautions to avoid stealing of

vehicle:

Always follow these safety precautions

even when you are leaving your car for

few minutes:

1- Close the glass windows completely.

2- Take your valuable belongings with you,

or hide them at the rear trunk.

3- Do not leave the switch key inside.

4- Lock the steering wheel (when the engine

is off, the steering wheel will be locked by

slight turning it to the sides)

5-Lock all the doors.

Other than above precautions, you can

also think about ways to reduce possibility

of stealing your car.

44

2

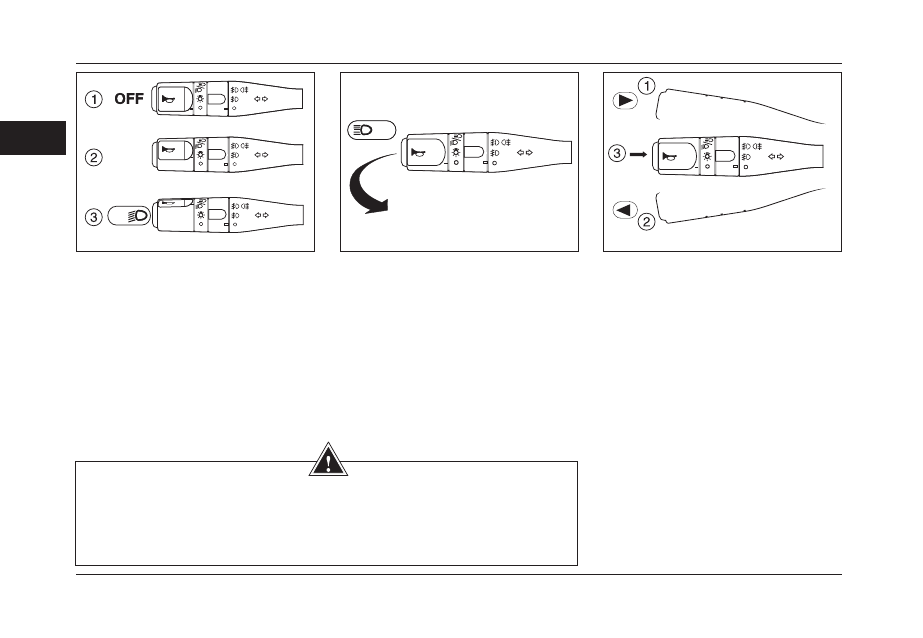

Lever's setting for lights

Status 1: all lights on.

Status 2: passing beam, tail light,

instrument panel

Status 3: headlights on

Warning beep

This warning beep will be heard if the driver

is leaving the car while the headlights are

on, the door is open and the switch is off.

High & Low Beam

Push the lever completely towards the

steering wheel in order to change the

status of low/high beam. (blue indicator

light will be displayed to show high beam

status).  In  order  to  flash  high  beam  at

once, push the lever near the steering

wheel and release it immediately.

Left and right indicator light

Status 1 & 2: Push the turn signal level on

downside before turning to left, and to the

upside before turning to right. (the green

indicator light on instrument panel will flash

on turning direction)

Tapping the lever on desired direction will

activate the indicator lights for 4 flashes.

(number  of  flashes  is  adjustable  by

troubleshooter device.)

Horn

Status 3: Push the end bottom of turn

signal lever to horn.

WARNING

Ensure the following items before driving at night:

Please be ensured of correct performance of electrical equipment and vehicle lights.

In case of vehicle overload, please make sure that the lights are not covered. (make

sure that some dirty material, snow or other things are not covering the lights.)

LAMPS / INDICATORS

45

2

LAMPS / INDICATORS

*If equipped

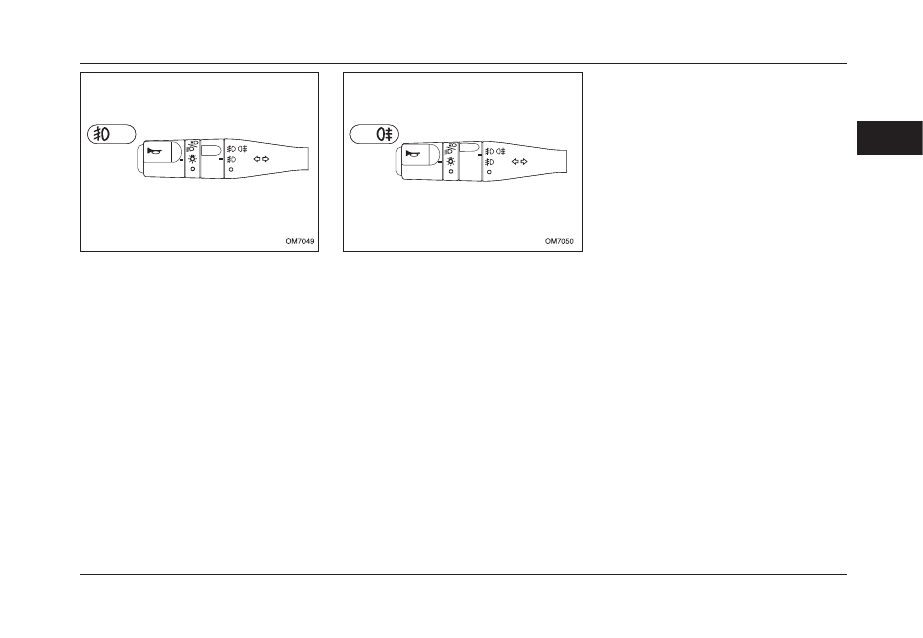

Front Fog Lamps*

Rotate up one level the center part of the stalk

to turn on the front fog lights. The warning

indicator on the instrument panel lights up

simultaneously when fog lights are on.

The lights operate only when the front

main headlights or indicator lights are on.

Rear Fog Lamps

Rotate up two levels the center part of the stalk

to turn on the front fog lights. The indicator on

the instrument panel lights up when the fog

lights are on. The lights operate if:

- main headlights or indicator lights are on

- The sidelights and front fog lights are on

(if they are installed)

Fog lights should be used

only when

the visibility area is severely limited since

drivers get dazzled when using fog lights in

normal conditions.

46

2

*If equipped

GLASS CLEANER & WINDSHIELD WIPER

Windshield washing

Push the lever towards yourself in order

to wash the windshield. The windshield

wiper will move thrice. The windshield

wiper will keep working while you hold the

lever.

The water spraying will be started for 0.7

seconds after pushing the lever, then

the wipers will start their cycle. Water

spraying and washing will continue as

long as you hold the lever, but the wipers

will stop when after three cycles when

you release the lever. The fourth cycle to

clean the windshield will be started after

three seconds from wipers stop.*

Windshield wiper single cycle

Push the lever once on downside and

release it for a single cycle action of the

wiper.

Holding the lever down keeps the wiper

moving continuously.

Windshield wiper

Windshield wiper and washer control will be

performed by the lever located on right side of

the steering wheel when the switch is open.

0- Off status:

1- Time dependent windshield wiper * (interval

between two wiper movements will be

increased by increasing of vehicle speed.

2- Low speed

3- High speed

CAUTION

In freezing climate please be ensure that the wipers are not frozen.  (risk of wipers engine overheat)

Check the wipers status. In case of wipers low performance, you'd better to replace them. (approximately

once a year)

Keep the vehicle windshield clean. If you turn off the engine before turning off the wipers (0 status), the

wipers will stop immediately in their current position. In this condition, you should changes the wipers to 0

status, then the wipers will move to their normal position.

Make sure that the wipers are on 0 status, before you take action to open the hood. (risk of injury)

47

2

REVERSE GEAR WARNING SYSTEM

Reverse Gear

Warning system:

This system gives the Driver the possibility

of an easy, confident, precise and ensured

parking, in all conditions and situations.

Details of operation:

Reverse gear sensors are installed in

the rear bumpers of the car and will be

activated only when the engine is in reverse

gear situation and warns the Driver of

obstructions by sounding the whistle. The

less is the distance between the car and

the obstruction, the more is the sensitivity

of the system and more number of whistles

will be heard in a defined period so that the

Driver comes to know out the situation of

his car in relation to the obstruction.

-Specification of the system:

This system in PEUGEOT  PARS,consists

four eye sensors installed in the rear bumpers

of the car which inform the driver about the

obstruction within following distances:

-Distance between  92 to 138  centimeters:

Three alarms in  two seconds.

-Distance between  46 to 92   centimeters:

Three alarms in  one second.

-Distance between  05 to 46  centimeters:

Continuous alarms.

-Trouble shooting of the system:

In case of malfunctioning or disconnection

of any sensors, this system sounds a

different alarm to 3 mentioned above

alarms. To rectify the problem take the car

to an authorized workshop.

WARNINGS

-This system is meant to help the

Driver to distinguish the objects (from

behind during parking), within  130

centimeters with speed of less than 5

kilometers per hour. It also has limitations

regarding estimation of detectable

distance and the obstructions, therefore

Driver’s precaution, in cases of having

undetectable obstructions, is necessary.

-This system uses the sound signals to

help facilitation of parking and obtaining

the distance to the obstruction, during

movements with reverse gear.

Therefore existence of this system,

should never cause sudden movement

and careless driving back side.

(Reverse gear).

-The Driver should always take

precautions about sudden cases that

might happen during usage of reverse

gear. Mobile obstructions (Kids,

trolleys, bicycles, pets, ...) or short and

very tin obstructions ( Road blocks, tin

guard rails, ...)

- In case the sensors being covered

with mud or any other obstructions,

this system will face disconnection or

malfunction problems.

It is recommended that the surface of

the sensors always kept clean.

48

2

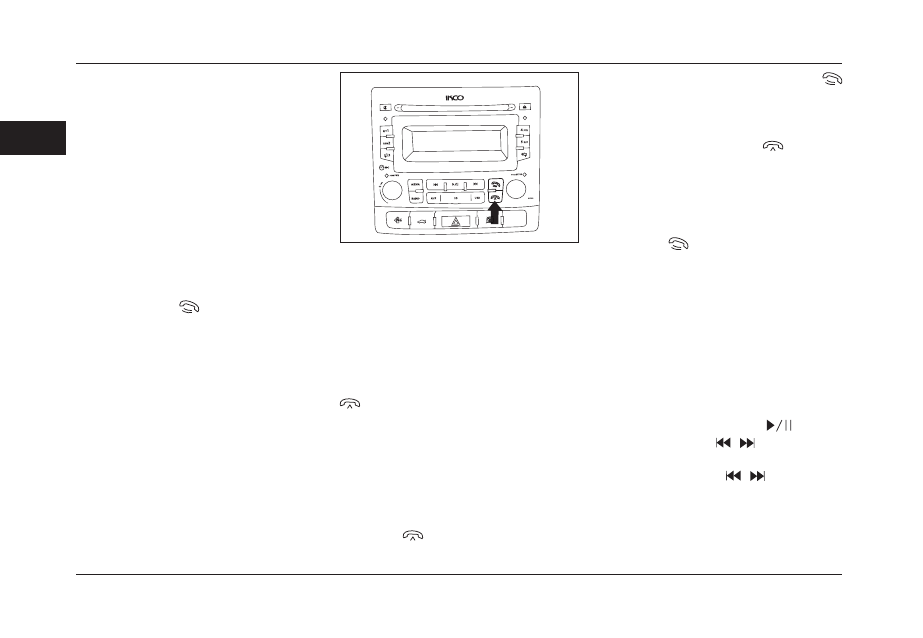

Hands free mobile with the Bluetooth

technology

Avoid talking with phone for your safety

as far as possible.

Bluetooth is used in short distance.

It can only connected to the devices

supporting the Bluetooth facilities.

After connection you can control your

mobile via the device.

pairing or mobile coordination with

hands free system:

To connect with mobile phone use this

function.

1- Turn on the device.

2- Hold the button

 for a few seconds

to activate bluetooth device sign of

bluetooth will appears and blinking  on

the top of display screen.

3- Turn on your mobile bluetooth and

keep your mobile in a distance less than

3 m, and search for bluetooth devices.

4- Select the name "IKCO" from the

list .in case of need enter the code of

"1234". Connection will be established

automatically.

In case of observing the two options

of "connect" or "disconnect" in

some mobile devices, please select

the connect option.some devices

don't need to enter the code. aftter

connection of your mobile set with that of

vehicle device the sign of bluetooth stops

blinking and stays in stationary position

on display screen.

How to disconnect mobile set with the

device

If you wish to disconnect the mobile set

from the bluetooth ;just press the button

 and hold it.

Receiving a call

1- After connecting with the bluetooth

and receiving a call ,device will go on BT

mode and the received no. will be shown

on display screen .

2- If you wish to reject the call ;just press

the button

 . Display screen will show

the "REJCALL"

3- To receive a call press the button

Display screen will show the "TALKING "

after connection .

4- After conversation and to disconnect

the call ,press the button

 . Diplsay

screen will show the " END CALL".

Call Transfer

To transfer the call from the device to

mobile while you're talking ;just press

the button

 . Dislay screen will show

"PRIVATE". To transfer the call from the

mobile to the device press the same

button again.

Audio  Bluetooth (BT AUDUIO)

1- To listen the music via the mobile set

and controlling it by the device press the

button "MEDIA " frequently so that you

can select the option of " BT AUDIO "

2- To make a pause or play the music

again ; just press the button

3- Press the button

 To  change the

track.

4- Press the button

 to review or

front the music tracks .

HANDS FREE MOBILE

49

2

HANDS FREE MOBILE

*If equipped

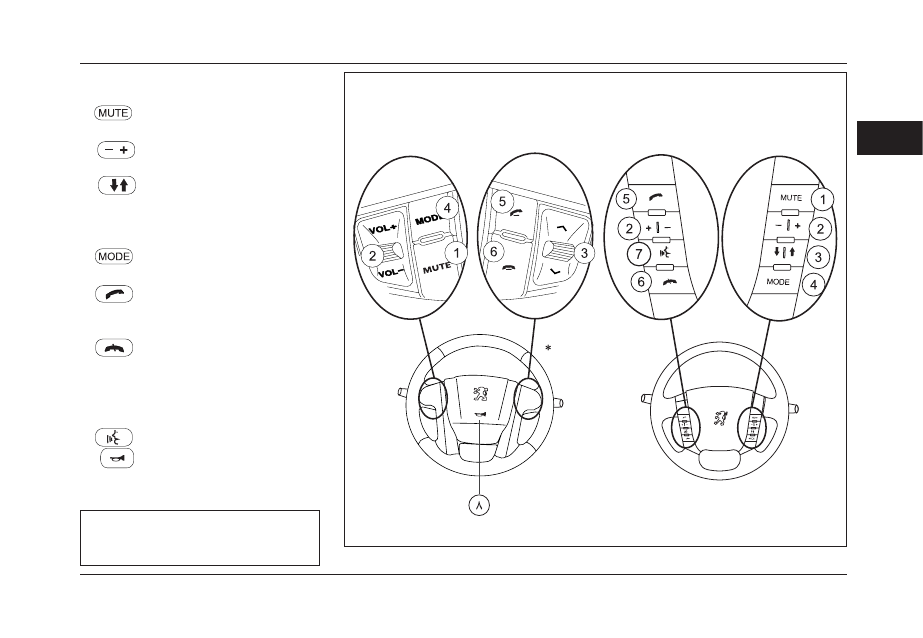

Audio equipment buttons installed on

the steering wheel *

1-

 The sound will be connected and

disconnected by pressing of this button.

2-

 To increase and decrease the

volume.

3-

 a) selecting the previous and

next track (USB/CD)

b) Automatic search for the stations (in

radio mode)

4-

 To enter to the menus of

RADIO >CD PLAYER> USB>AUX>BT

5-

 response to the received call (in

case of receiving any call) by pressing the

button for 2 seconds, pairing is possible.

6-

 disconnection of the device with

mobile phone.

To disconnect the Bluetooth connection

between your mobile phone and radio,

press and hold the button.

7-

 Private conversation.

8 -

 To use the horn, press steering

wheel cover nearly every one of the

foundations of the command button.

Note :

The background of key light are white and

it gets on by turning the SIDE LAMP  on.

50

2

Audio System Control Panel

1- Short Pressing: Turning on.

- Prolonged pressing more than 2 seconds:

Turning off.

- Volume Turning: Sound adjustment.

2- Radio Mode:

- Short Pressing: Memory No. 3

- Prolonged Pressing: Recording of current

frequency in memory No. 3

CD/USB/SD mode

- Short Pressing: Selection of the previous

folder in MP3/WMA files.

- Prolonged Pressing: Selection of 10 former

files in current folder.

3- Radio Mode:

- Short Pressing: Memory No. 2

- Prolonged Pressing: Recording of current

frequency in memory No. 2.

CD/USB/SD mode

- Random playing of melodies.

4- Radio Mode:

- Short Pressing: Memory No. 1

- Prolonged Pressing: Recording of current

frequency in memory No. 1

CD/USB/SD mode

- Repeating of the file/playing folder.

5-Disconnection of Sound output (MUTE)

6- Disc Input

AUDIO SYSTEM

7- Monitor

8- Disc eject button

9- Radio Mode:

- Short Pressing: Memory No. 4

- Prolonged Pressing: Recording of current

frequency in memory No. 4

CD/USB/SD mode

-  Introducing  of  the  audio  files  (10  seconds

playing).

10- Radio Mode:

- Short Pressing: Memory No. 5

- Prolonged Pressing: Recording of current

frequency in memory No. 5

CD/USB/SD mode

-  Introducing  the  audio  files  (playing  10

seconds).

- Displaying of the audio file information with

MP3/WMA Format.

11- Radio Mode:

- Short Pressing: Memory No. 6

- Prolonged Press: Recording of current

frequency in memory No. 6

CD/USB/SD mode

- Short Pressing: Selection of the next folder in

51

2

AUDIO SYSTEM

MP3/WMA files.

- Prolonged Pressing: Selection of 10 recent

files in current folder.

12- Short Pressing: Selection of the audio

Adjustments.

- Prolonged Pressing: Entering to the system

adjustments.

- Turning: Radio Mode: Frequency adjustment

manually.

CD/USB/SD mode: Selection of the previous/

next melody.

13- Short Pressing: Automatic searching &

saving of the radio stations.

- Prolonged Pressing: The button introduces

the radio stations t(10 seconds playing)

14- Short Pressing: Activation/Deactivation

of TA.

- Prolonged Pressing: Activation/Deactivation

of AF.

15- Radio Mode:

Short Pressing: Automatic searching of

the radio stations in order to increase the

frequency.

CD/USB/SD mode

- Short Pressing: Selection of the next melody.

- Prolonged Pressing: Rapid forwarding of the

melody while it’s playing.

16- Short Pressing: Play/Stop the melody.

-  Prolonged  Pressing:  Selection  of  the  first

track.

17- USB/SD/AUX Cover

18- Radio Mode:

Short Pressing: Automatic searching of

the radio stations in order to decrease the

frequency.

CD/USB/SD mode

- Short Pressing: Selection of the previous

melody.

- Prolonged Pressing: Rapid backward of the

melody while it’s playing.

19- Replacing of the Radio Band

20- Selection of the player (CD/USB/AUX IN)

52

2

PRECAUTIONS

Make sure of the speaker negative terminal

to be connected to the connector negative

terminal. Avoid connecting the speaker

positive and negative terminal to each other or

to the device body.

Make sure of the fuse ampere, if it is required

to be replaced. Using the higher ampere will

cause the device to be seriously damaged.

Make sure of the tiny parts and things not to be

entered into the device. In the case of entering,

it will cause malfunction of the device,

electric shock or laser radiation. The device

sound should be kept to such an extent that

external sounds especially the warning alarms

(The other vehicles horn sound etc) to be

heard.

Stop the car,  before doing any complex action

on the device.

Do not adjust or open the device ,in case of any

problem. Refer to the Iran Khodro Authorized

Dealers to solve any probable defect.

CD UTILIZATION POINTS

- Do not use dusty /damaged CD; it will cause

the sound noises.

- Do not touch the CDs surface but the edge

to carry them.

- Avoid sticking any labels on both sides of the

CDs.

- Avoid putting the CD against direct sunlight

and heat consumedly.

- To clean the CD, use soft tissues rubbing it

from the CD center towards the edges.

- To clean the dirty panel or display, use silky

tissue and natural cleanser.

Using of coarse tissue and chemical

substances like alcohol will cause  the surface

of it to be damaged and scratched

- The device may not be able to display the

labeled CDs. So, before inserting the CD,

remove the label.

- The 3-inch (8cm) CDs are not useable for

the device. Never use rugged and 3-inch Cds

instead in 8cm to 12 cm convertor .Otherwise,

the device will not be able to eject it.

- Dust existing inside of the CD holding

frame will cause the CD to be damaged and

scratched. So, clean the CD frame in an

definite intervals.

AUDIO SYSTEM

53

2

AUDIO SYSTEM

ANTI-THEFT SYSTEM OF THE AUDIO

SYSTEM

How to enter the password

For more security, your device is equipped with

4 digit code. In case of electrical disconnection

of the device for any reason and, after

reconnecting and turning on the device, the

monitor displays the phrase “PWD****”. To turn

on the device, the correct 4 digit code should

be entered through the buttons 1 to 4 on the

panel.

To enter the 1st No. from the left side of

(****PWD), press the radio button No. 1

frequently to display the correct number. (For

example: For selection the No.5, press the

button No. 1, 5 times. After correct adjusting

of  the  first  number,  to  enter  the  2nd  number

of (****PWD), press the radio button No. 2

frequently to display the correct number. To

enter 3rd and 4th Nos. press the same buttons

as  previous  ones.  To  confirm  the  password,

press the SETUP/AUDIO button. In case of

the correct password, the device turns on;

otherwise, displays (Error). After short seconds,

the system requests the password again on

which entering the correct password, the

device is turned on. If the incorrect password

is entered for six times, ERR20 is displayed

on panel which is indicating the blockage of

the system. Here, you should refer to the Iran

Khodre authorized dealers.

Note: The default password by Iran Khodro is

1111.

CHANGING THE PASSWORD

Whereas, the default password before

changing is considered 1111 by Iran Khodro,

it is better changing it for more security. To

change the password, hold the “RADIO” and

“RPT/1 buttons for 2 seconds simultaneously.

The “****PWD” message demands the

adjusted password. In case of entering the

correct 4 digit password, the “****PWD”

message is displayed to enter the new 4 digit

password. Enter the new code and press the

SETUP/AUDIO button. Now, the “****PWD”

message demands again the new 4 digit

password for comparing. Select the previous

new 4 digit code and press the SETUP/AUDIO

volume button. If the entered password are

matched, the “****PWD” message is displayed

and means that the password has been

changed. While the 2 entered password is not

the same, the “SETFAIL” message is displayed

and it means there is an error in changing the

password. Now, all the changing process

should be repeated again.
