Yanmar diesel tractor EF494T. OPERATOR'S MANUAL - part 14

EF494T OM

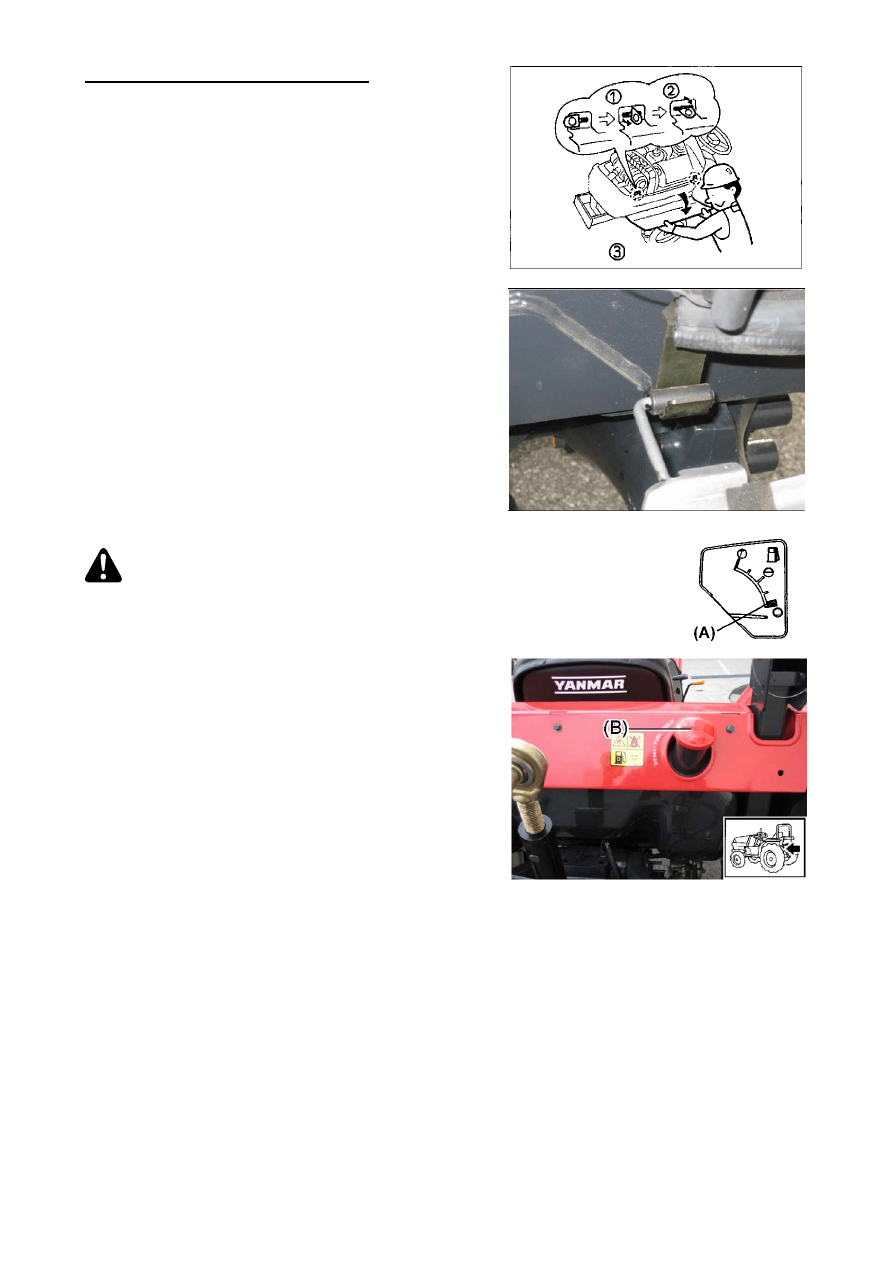

Removing/mounting the side covers

Removing

(1)

Open the bonnet.

(2)

Put the locking knobs in the vertical position

(each forward and rear).

(3)

Remove the side covers.

Mounting

(1)

Clamp the cover lower hooks (x 2).

(2)

Fix the cover top with the locking knob.

Checking and supplying fuel

DANGER

  Never smoke during re-fueling.
  Never use a bare lamp/light during re-fueling.
  After adding fuel, be sure to fasten the fuel cap and

clean off the fuel spill.

 Never refuel while the engine is running or still hot

after stopping. A fire can result.

Set the main key switch to ON. If the fuel gauge reads in
the red region, open the fuel cap and add the fuel.

(A) Red region
(B) Fuel cap

EF494T OM

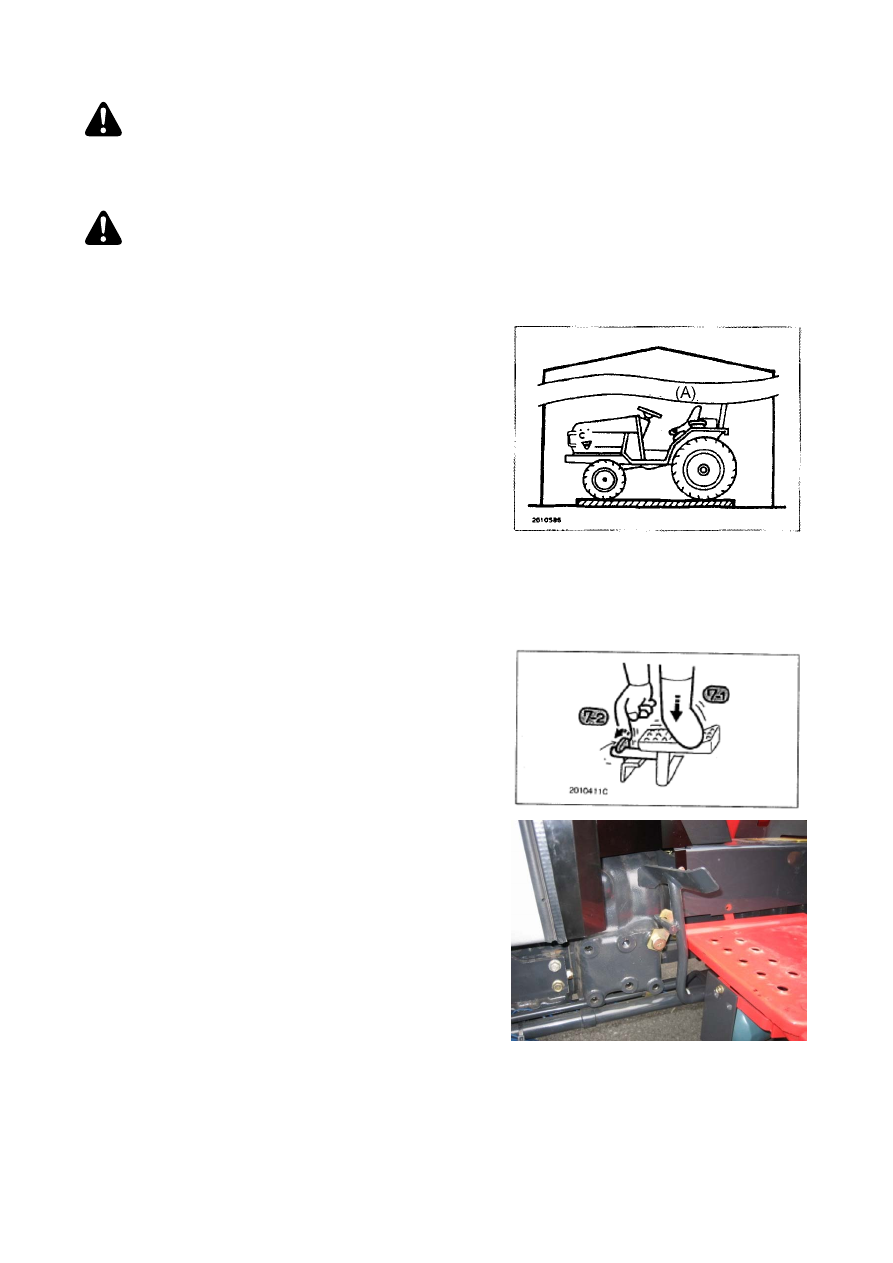

Care for long period of storage

WARNING

For stowage over a long period of time, remove the
battery from the tractor and remove the main key.
Otherwise, an accident may occur.

CAUTION

Lock the clutch pedal for stowage over a long period of
time. Otherwise, an accident may occur.
If the tractor is not to be used over a lengthy period of
time, take the following maintenance:

(1)

Place the tractor in a well ventilated place and

remove the weight or other attachments. Remove the
implement or lay it down on a wooden plate.

(A) Good ventilation

(2)

Coat the exposed metallic parts with anti-rusting

oil, engine oil or grease.

(3)

Fill the tank with fuel oil. Otherwise, moisture will

develop in the tank and cause rust. Put the fuel cock
in the CLOSE position.

(4) Fully charge the battery. It is recommended to

detach the battery from the tractor and keep it in a
dark cool place. If the battery is kept on the main
body, disconnect the ground line (negative lead).

(5) Remove the cooling water.
(6) Cover the opening of the air cleaner, muffler or

engine oil port with a polyethylene bag or the like to
prevent the moisture from getting in.

(7)

To prevent the clutch from being rusted, fully

depress the clutch pedal and put on the clutch pedal
lock.

(8)

Fill the front and rear tires with air to normal

pressure.

The periodic check and inspection during stowage over
a long period will ensure the preferable conditions of
your tractor.

NOTE:
The battery is subject to self-discharge. Fully charge it
up at least once a month.

EF494T OM

PERIODIC INSPECTION AND ADJUSTMENT

WARNING

Check or maintenance should be done with the tractor
fixed on the flat ground, free from normal traffic. Pay
attention not to topple the tractor. Put blocks to the
wheels.

CAUTION

 Do the periodic check and inspection every year.

Replace the fuel pipes and power steering hoses
every 2 years. Otherwise, an accident or machine
damage may result.

 Never fail to stop the engine before commencing

checks and service.

 Remount the covers which have been removed for

maintenance. The revolving parts may catch a
person nearby leading to a serious injury.

Periodic inspection and maintenance in off-season will
ensure the preferable conditions of your tractor. To keep
your machine working in good conditions, ask your
service shop for a regular inspection every year.

It is recommended to replace fuel pipes, rubber hoses,
and electrical wires every two years.

IMPORTANT

 Only use the Yanmar genuine parts.

Otherwise, service accidents can result.

 We recommend the use of the Yanmar lubricants

that are available from your local Yanmar dealer.

EF494T OM

1. Check

intervals

x: Checks required

CHECK

ITEMS

h 100h 150h

200h

250h

300h

350h

400h

450h 500h 550h

600h

Engine lubrication oil

Replace Replace

Replace

Engine oil element

Replace

Transmission oil

Replace

x x x x

Replace

x x x x x

Replace

Line filter (Hydraulic)

Replace

Transmission oil strainer

Clean

Fuel filter

Replace

Water separator

Drain Drain

Drain

Clean

Drain

Drain Clean

Radiator interior

Clean the interior of radiator when replacing cooling water

Cooling water

Check before every work / Replacing every year

Front axle oil

Replace

x x x x

Replace

x x x x x

Replace

Air cleaner element

x x x x x

Replace

x x x x x

Replace

Radiator screen

x x x x x x x x x x x x

Clean cooling fan,
radiator

x x x x x x x x x x x x

Battery liquid level

Check before every work

Battery liquid gravity

x x x x x x

Fuel piping, connections

x x x x x x x x x x x x

Rubber hoses
(Power steering)

x x x x x x x x x x x x

Radiator hoses

Replace hoses every two years

Hydraulic rubber hoses

Replace hoses every two years

Fuel pipe, electric wires

Replace pipes and wires every two years

Electric wiring,
connections

x x x x x x x x x x x x

Greasing

x x x x x x x x x x x x

Greasing, propeller shaft

Apply

Fastening of steering
wheel fix nut

x x x x x x

Important nuts and bolts

x x x x x x x

Cooling fan belt

x x x x x x x

Engine breather pipe

x x x x x x x x x x x x

Engine crank case

Clearance of exhaust
valve

Fuel injection valve

Generator, start motor

x x x

Hydraulic system

x x x

Fixing bolts of tires

x x x x x x x

Break-in period is 50 hours. If not reached, take up 1 year instead.
Items marked "Replace" should be replaced every two years even before suggested time intervals.
Replace the power steering hoses every 2 years.
