Model MA TOW Tractor. Manual - part 62

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 133

37-28

436 103868

T6-5001-153

grease plug

1

001 & Up

37-29

----- ----------------

T6-5006-103

steering sector lower mount

1

001-020

----- ----------------

T6-5006-111

steering sector lower mount

1

021-130

----- ----------------

T6-5006-119

steering sector lower mount, gasoline engine

1

131 & Up

----- ----------------

T6-5206-101

steering sector lower mount, diesel engine

1

"

37-30

----- ----------------

1/2-13ncx1-1/2"

hex head bolt

2

"

37-31

----- ----------------

1/2-13nc

locknut

2

"

37-32

----- ----------------

T6-5106-105

lower rear steer support strap

1

362 & Up

37-33

----- ----------------

3/8-16ncx1-1/2"

hex head bolt

1

001 & Up

37-34

----- ----------------

3/8

flat washer

1

"

37-35

----- ----------------

T6-5006-109

spacer, gasoline engine

1

362 & Up

----- ----------------

T6-5206-105

spacer, diesel engine

1

"

----- ----------------

T6-5006-107

spacer

1

001-361

37-36

----- ----------------

3/8-16nc

locknut

1

001 & Up

37-37

----- ----------------

T6-5106-109

steering sector reinforcement, gasoline engine

1

2735 & Up

----- ----------------

T6-5204-107

steering sector reinforcement, diesel engine

1

"

37-

----- ----------------

T6-5005-105

upper steering column clamp

1

"

37-

----- ----------------

T6-5005-107

spacer, upper steering column clamp

1

"

37-

----- ----------------

T6-5020-101

steering column lower support reinforcement angle

1

As Req'd

37-

----- ----------------

T6-5020-103

clamp, steering column lower support reinforcement angle 1

"

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 134

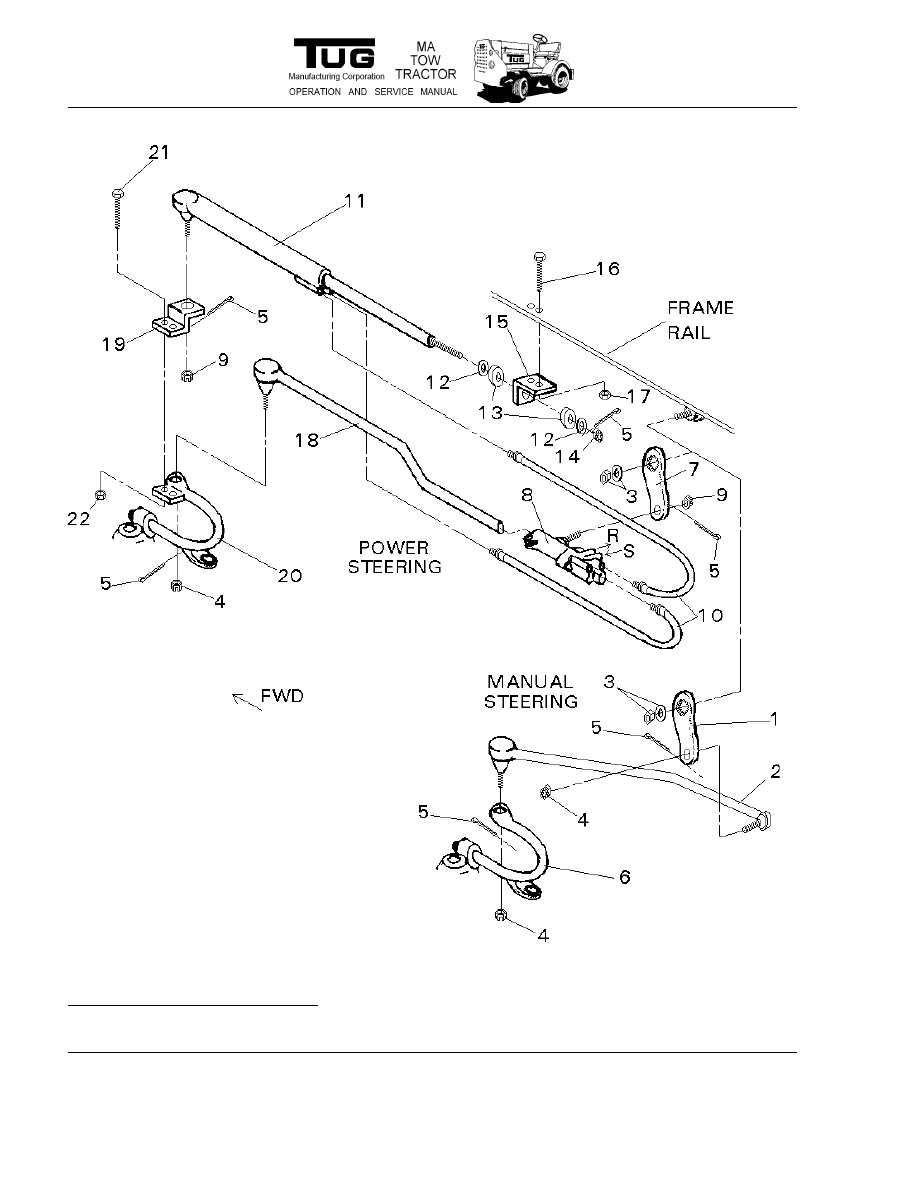

Figure 38: Steering Linkage Assembly

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 135

38-1

----- ----------------

T6-5002-101

pitman arm, manual steering

1

330 & Up

----- ----------------

T6-5002-105

pitman arm

1

001-329

38-2

----- ----------------

T6-5004-107

drag link, manual steering, gasoline engine

1

330 & Up

----- ----------------

T6-5204-101

drag link, manual steering, diesel engine

1

"

----- ----------------

T6-5004-101

drag link, manual steering

1

001-329

38-3

436 5667628/5697702 T6-5001-139

nut and lock washer

1

001 & Up

38-4

----- ----------------

5/8-18nf

castellated nut

Ref.

"

38-5

----- ----------------

1/8x1"

cotter pin

Ref.

"

38-6

171 3122e-733

T6-3001-137

spindle arm, lh, manual steering (discontinued)

1

As Req'd

38-7

----- ----------------

T6-5006-101

pitman arm, power steering

1

"

38-8

433 7825636

T6-5012-101

valve, power steering

1

"

38-9

----- ----------------

1/2-20nf

castellated nut

Ref.

"

38-10

----- F4212B28-4-4x49

T6-6012-111

hose, cylinder-to-valve, standard power steering

2

"

----- ----------------

T6-6012-201

hose, cylinder-to-valve, heavy-duty power steering

2

"

38-

250 149f-6-4

md-h09-115

elbow, 90°, heavy-duty power steering cylinder

2

"

38-11

433 5691112

T6-5010-101

cylinder actuator, standard power steering

1

"

38-

----- es262r

md-s01-140

tie rod end, heavy-duty power steering actuator

1

"

38-12

364 3938729

T6-5013-103

flat washer, standard power steering cylinder

2

"

38-13

364 3709452

T6-5013-101

grommet, standard power steering cylinder actuator

2

"

----- ----------------

T6-5010-207

washer, rubber, heavy-duty power steering cylinder actuator

2

"

38-

----- ----------------

T6-5010-211

jamb nut, front, heavy-duty power steering cylinder actuator

1

"

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 136

Figure 38: Steer Linkage Assembly
