Model MA TOW Tractor. Manual - part 61

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 129

36-1

246 d9az-6731a

T6-1001-207

oil filter, 300 cid gasoline engine

1

As Req'd

36-2

246 eam-6890a

T6-1001-159

threaded insert, 300 cid gasoline engine

1

"

36-3

256 c0122055000

122-0550

oil filter, cummins/onan engine

1

"

36-4

256 c0122059200

-----------------

oil filter head, cummins/onan engine

1

"

36-5

256 c0122059700

-----------------

gasket, filter head, cummins/onan engine

1

"

36-6

256 c0725105100

-----------------

socket head cap screw, cummins/onan engine

3

"

36-7

256 c0526210800

-----------------

flat washer

3

"

36-8

----- ----------------

1/8-27npt

pipe plug, cummins/onan engine

1

"

36-9

127 ph2821a

T6-1201-207

oil filter, perkins engine

1

"

36-10

110 37764181

-----------------

oil filter body, perkins engine

1

"

36-11

110 36862517

-----------------

gasket, perkins engine

1

"

36-12

110 33115118

-----------------

flat washer, perkins engine

2

"

36-13

110 o826608

-----------------

Stud, perkins engine

2

"

36-14

110 o576054

-----------------

locknut, perkins engine

2

"

36-15

388 40-0000401

-----------------

oil filter, hercules engine

1

"

36-16

388 40-0026501

-----------------

oil filter base, hercules engine

1

"

36-17

388 208642

-----------------

adaptor, hercules engine

1

"

36-18

388 40-0003836

-----------------

bracket, oil filter, hercules engine

1

"

36-19

388 1000-26153

-----------------

hex head bolt, hercules

2

"

36-20

388 14416

-----------------

lock washer, hercules

2

"

36-21

388 206210

-----------------

elbow, 90°

2

"

36-22

388 40-0005582

-----------------

fitting, 45°

2

"

36-23

388 40-0018208

-----------------

filter outlet line

1

"

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List Jan.  1997 Section  4-2   p. 130

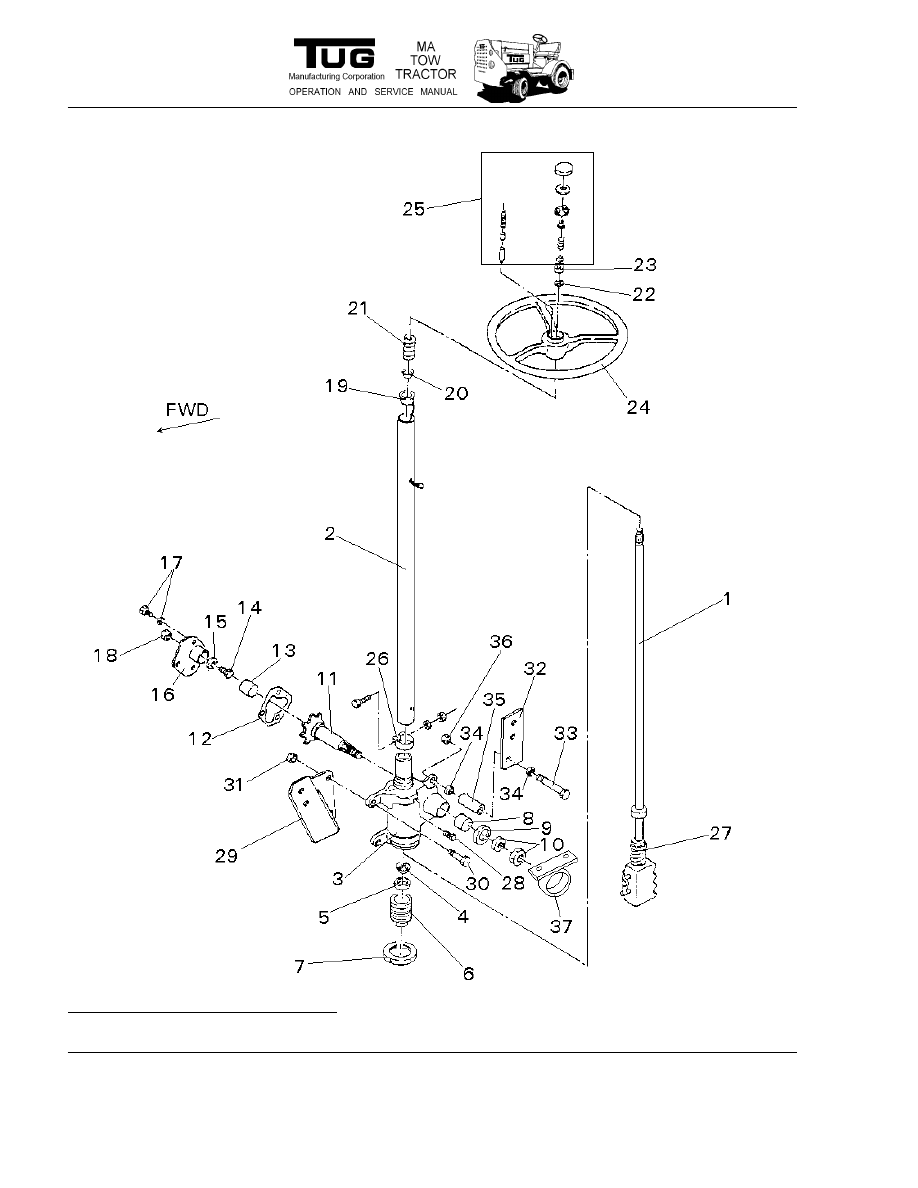

Figure 37 Steer Sector Assembly

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 131

37-

436 9512396

T6-5001-101

steering sector, complete

1

001 & Up

37-1

436 7812955

T6-5001-149

steering shaft assembly (obsolete)

1

"

37-2

436 7801598

T6-5001-113

tube, steering column

1

"

37-3

436 5692532

T6-5001-117

housing, steering gear

1

"

37-4

436 7840888

T6-5001-157

adjuster assembly

1

"

37-5

436 5666693

T6-5001-151

bearing, lower thrust

1

"

37-6

436 5668489

T6-5001-143

retainer, bearing

1

"

436 5666682

T6-5001-145

adjuster

1

"

436 5666683

T6-5001-155

race

1

"

37-7

436 5676217

T6-5001-147

bearing adjuster nut

1

"

37-8

436 266316

T6-5001-135

bushing, shaft side

1

"

37-9

436 7801626

T6-5001-137

seal, pitman shaft

1

"

37-10

436 5667628/ 5697702 T6-5001-139

nut and lock washer

1

"

37-11

436 7812834

T6-5001-119

pitman shaft and gear

1

"

37-12

436 5666734

T6-5001-121

gasket

1

"

37-13

436 7800853

T6-5001-123

bushing, gear side (obsolete)

1

"

37-14

436 7802482

T6-5001-125

lash adjuster

1

"

37-15

436 266903

T6-5001-127

shim, lash

1

"

37-16

436 7802483

T6-5001-129

cover, housing

1

"

37-17

436 7807009

T6-5001-133

bolt and lock washer

3

"

37-18

436 114495

T6-5001-131

nut, lash adjuster

1

"

37-19

436 7801596

md-cs3-109

upper bearing

1

"

37-20

436 264831

md-cs3-113

spring seat

1

"

37-21

436 264832

md-cs3-111

spring

1

"

37-22

----- ----------------

1/2

washer

1

"

37-23

----- ----------------

T6-5001-103

steering wheel mounting nut

1

"

37-24

182 7921a1

T6-5003-101

steering wheel

1

"

37-25

436 5692044

T6-7012-107

horn button kit

1

As Req'd

37-26

436 262545

T6-5001-115

steering column strap assembly

1

001 & Up

37-27

436 5666693

T6-5001-141

upper thrust bearing

1

"

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List Jan.  1997 Section  4-2   p. 132

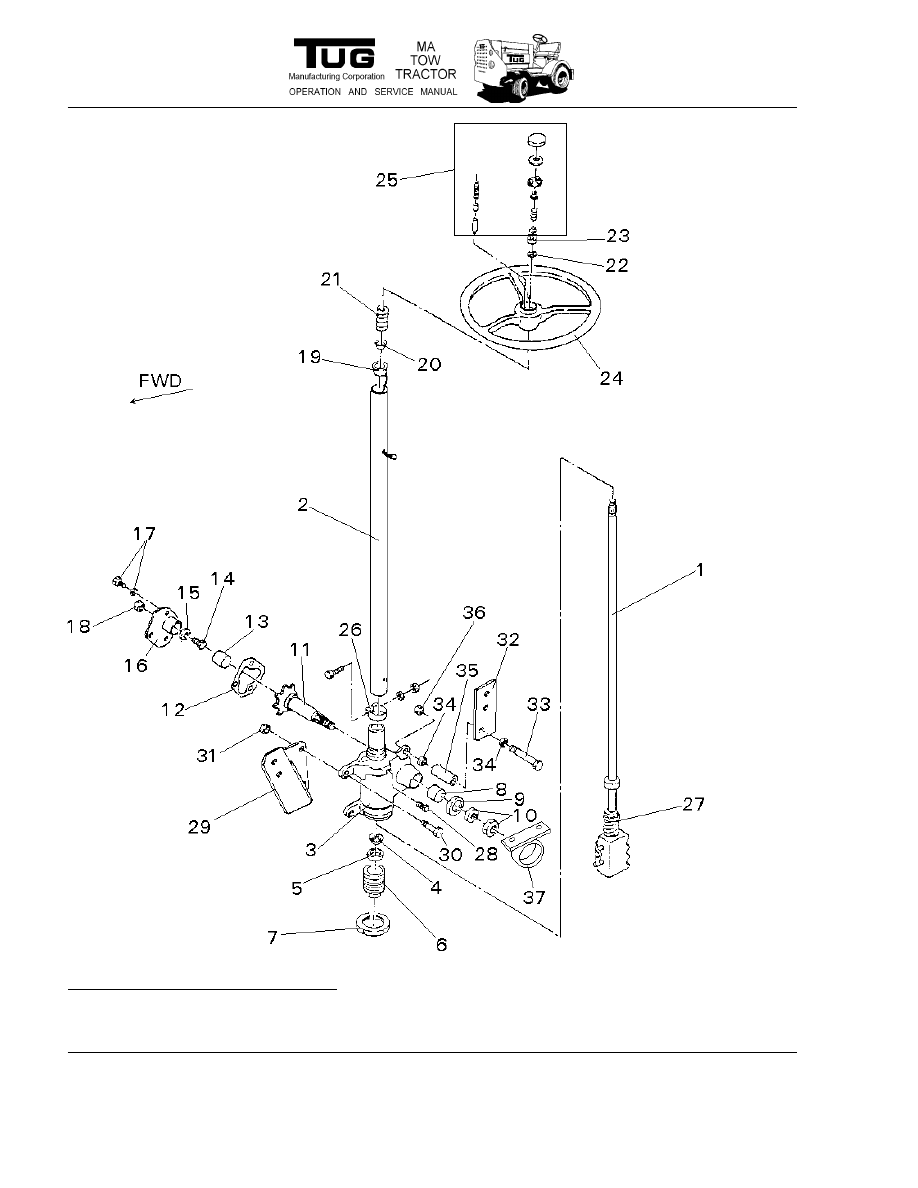

Figure 37 Steer Sector Assembly
