Model MA TOW Tractor. Manual - part 57

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 113

31-1

256 c0130315200

-----------------

fan

1

001 & Up

31-2

256 c0130187600

-----------------

fan spacer

1

"

31-3

256 c0131034400

-----------------

water pump pulley

1

"

31-4

256 c0131045900

-----------------

water pump

1

"

31-5

----- ----------------

m8x1.25x85

hex head bolt

4

"

31-6

----- ----------------

m8

flat washer

4

"

31-7

256 c0104146800

-----------------

crankshaft pulley

1

"

31-8

256 c01515024500 -----------------

woodruff key

1

"

31-9

----- ----------------

m16x2.00x60

hex head bolt

1

"

31-10

----- ----------------

m16

flat washer

1

"

31-11

256 c0309042400

T6-3200-159

gasket, thermostat housing

1

"

31-12

256 c0309042700

-----------------

thermostat

1

"

31-13

256 c0309050000

-----------------

thermostat

1

"

31-14

256 c0309051501

-----------------

thermostat housing, horizontal outlet

1

As Req'd

256 c0309044900

-----------------

thermostat housing, vertical outlet

1

"

31-15

----- ----------------

m8x1.25x60

socket head screw

4

001 & Up

31-16

127 81391

T6-3200-147

radiator hose, lower

1

"

31-17

127 82051

T6-3200-133

radiator hose upper

1

"

31-18

----- ----------------

#32

hose clamp

4

"

31-19

256 c0511014714

-----------------

water pump/alternator belt

1

"

31-20

----- ----------------

m8x1.25x45

hex head bolt

5

"

31-21

256 c0131045800

-----------------

gasket, water pump

1

"

31-22

256 c0509026400

-----------------

o-ring

1

"

31-

371 0202400

T6-1001-201

water temperature sensing unit

1

As Req'd

31-

371 104680

T6-7010-153

water temperature gauge

1

"

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 114

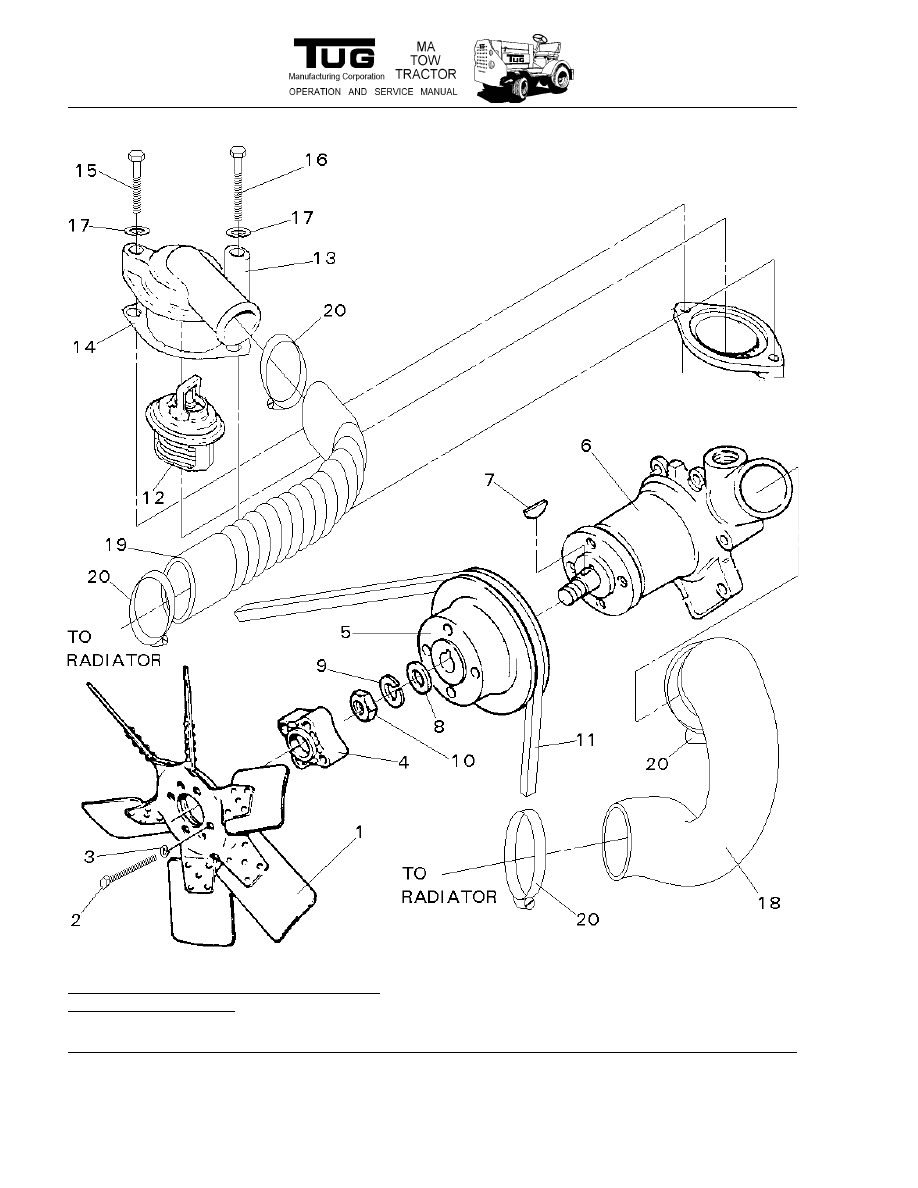

Figure 32: Fan and Water Pump Installation
- Perkins Diesel Engine

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 115

32-1

110 31257055

-----------------

FAN

1

001 & Up

32-2

110 oo96235

-----------------

hex head bolt, fan

4

"

32-3

110 o920053

-----------------

lock washer, fan

4

"

32-4

110 37413951

-----------------

fan spacer

1

"

32-5

110 31146013

-----------------

water pump pulley

1

"

32-6

110 41341A013

-----------------

water pump

1

"

32-

110 41341A018

-----------------

water pump gasket

1

"

32-7

110 36866721

-----------------

woodruff key

1

"

32-8

110 o920009

-----------------

flat washer

1

"

32-9

110 o920058

-----------------

lock washer

1

"

32-10

110 o576007

-----------------

nut

1

"

32-11

110 2614b153

-----------------

water pump/alternator belt

1

"

32-12

110 2485666

-----------------

thermostat

1

"

32-13

110 37735072

-----------------

thermostat housing

1

"

32-14

110 36834147

-----------------

thermostat housing gasket

1

"

32-15

110 oo96433

-----------------

hex head bolt, thermostat housing

1

"

32-16

110 oo96438

-----------------

hex head bolt, thermostat housing

1

"

32-17

110 o920054

-----------------

lock washer

2

"

32-18

127 70480

T6-4255-107a

Radiator hose, lower

1

"

32-19

127 81141

T6-4255-105

radiator hose, upper

1

"

32-20

----- ----------------

#28

hose clamp

4

"

32-

----- 403035067

T6-7200-180

Water Pump, Herc.

1

“

32-

----- 255360

T6-7200-180-1

Water Pump Gasket, Herc.

1

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 116

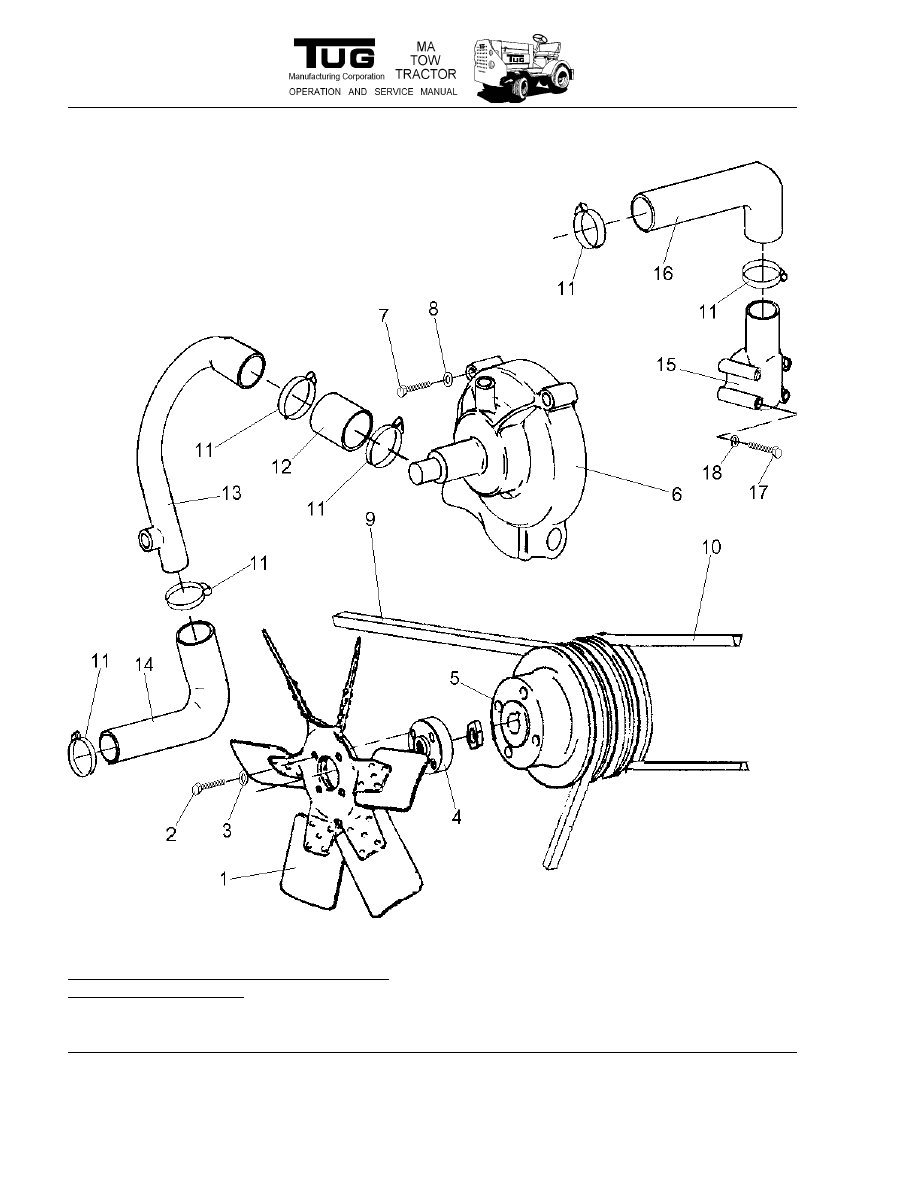

Figure 32A: Fan and Water Pump Installation
- Hercules Diesel Engine
