101

Operation

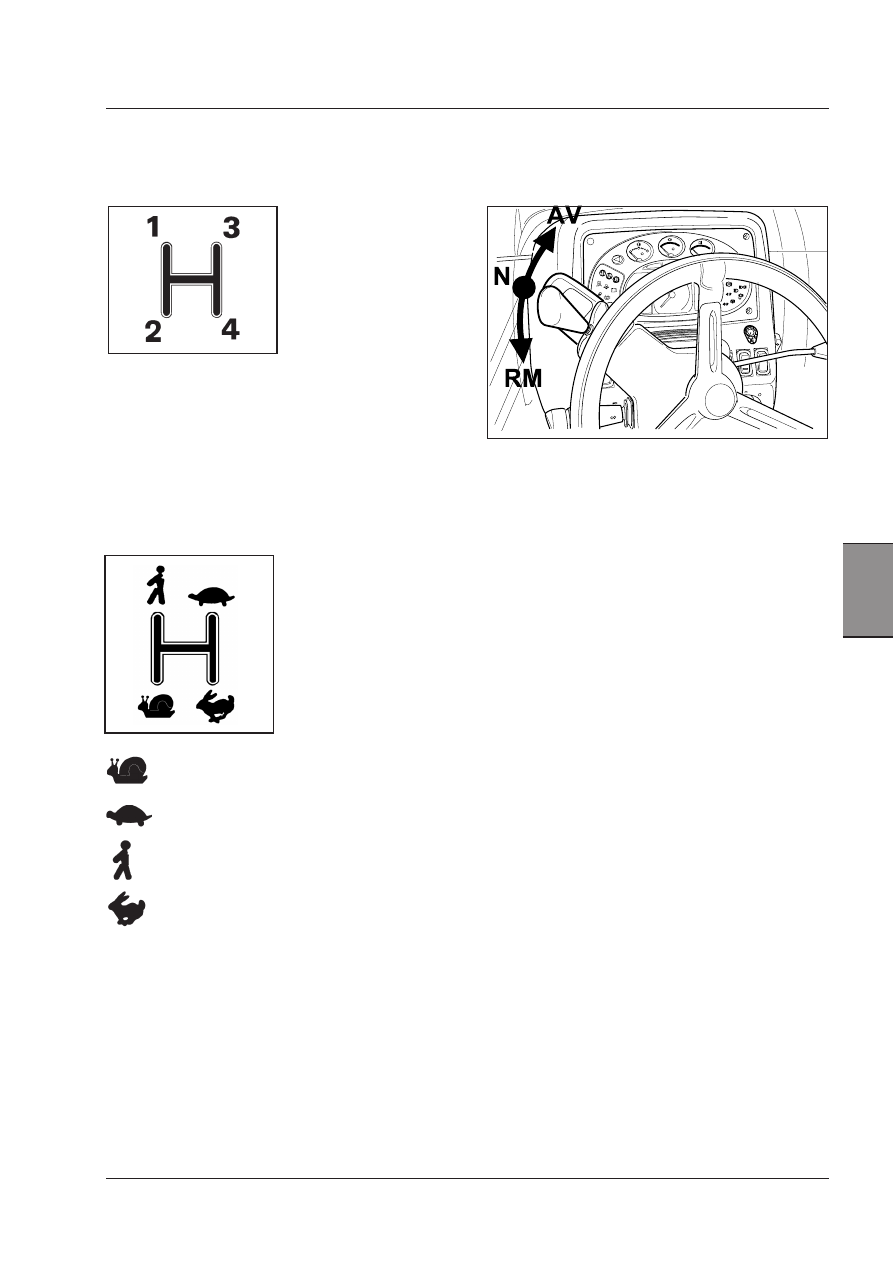

Speed range selector lever

The speed range selector lever has four possible posi-
tions corresponding to the creeper, low, standard and
high speed ranges.
Each speed range is identified by a symbol on the knob
of the lever.

Creeper range (optional)

Low range

Standard range

High range

To change from one speed range to another, disengage
the gearshift clutch pedal, and bring the tractor to a
complete standstill before moving the speed range
selector to its new position.

Power Shuttle control lever

AV - Lever forward: Forward gears.
N - Neutral: Always move the lever to this position to
start the engine.
RM - Lever backward: Reverse gears.

Four lever positions
equivalent to four
speed ranges.

Shuttle control lever.

Gearshift lever

The lever has 4 possible positions, corresponding to 4
totally synchronized speeds.

To shift gears in the same range, just operate the lever
after disengaging the drive, without stopping the tractor.

Xtrashift warning lamps

For warning lamps and information on the instrument
panel, see the Instruments and Programming Section in
this manual.

102

Operation

1 Creeper speed

0,29

0,35

0,46

0,31

0,38

0,49

2 Creeper speed

0,46

0,56

0,72

0,49

0,59

0,76

3 Creeper speed

0,58

0,70

0,90

0,62

0,75

0,96

4 Creeper speed

0,86

1,04

1,33

0,92

1,11

1,42

1 Low

1,40

1,69

2,17

1,49

1,80

2,32

2 Low

2,20

2,65

3,42

2,35

2,83

3,65

3 Low

2,78

3,35

4,32

2,96

3,57

4,61

4 Low

4,10

4,94

6,37

4,37

5,27

6,79

1 Standard

3,34

4,03

5,20

3,57

4,30

5,54

2 Standard

5,25

6,34

8,17

5,60

6,76

8,71

3 Standard

6,64

8,01

10,31

7,08

8,54

11,00

4 Standard

9,79

11,81

15,22

10,44

12,60

16,23

1 High

8,24

9,95

12,82

8,79

10,61

13,67

2 High

12,96

15,64

20,14

13,82

16,68

21,49

3 High

16,37

19,75

25,44

17,46

21,06

27,14

4 High

24,15

29,14

37,54

25,76

31,08

40,04

ENGINE AT 2200 RPM - Speed in Kph with rear tyres

FORWARD

SPEED

16.9 R 34 - 540/65 R 34

480/70 R 34 - 13.6 R 38

UNDERDRIVE DIRECT DRIVE OVERDRIVE*

POWERSHIFT

16.9 R 38

1 Creeper speed

0,36

0,38

2 Creeper speed

0,56

0,60

3 Creeper speed

0,71

0,76

4 Creeper speed

1,05

1,12

1 Low

1,71

1,82

2 Low

2,68

2,86

3 Low

3,39

3,61

4 Low

4,99

5,33

1 Standard

4,07

4,35

2 Standard

6,40

6,83

3 Standard

8,09

8,63

4 Standard

11,93

12,73

1 High

10,05

10,72

2 High

15,80

16,85

3 High

19,95

21,28

4 High

29,43

31,39

ENGINE AT 2200 RPM - Speed in Kph with rear tyres

16.9 R 34 - 540/65 R 34

480/70 R 34 - 13.6 R 38

POWERSHIFT

16.9 R 38

REVERSE

SPEED

UNDERDRIVE DIRECT DRIVE OVERDRIVE*

X60.20-X60.30-X60.40 - Xtrashift gearbox with Powershuttle electro-hydraulic reverse shuttle and 3 Powershift ranges
under load (only available for forward gears): 36FWD + 12REV without Creeper; 48 FWD + 16 REV with Creeper.
* In tractors with mechanically adjusted engine, the Overdrive is automatically downshifted as soon as a 40 kph speed
is reached.

103

Operation

1 Creeper speed

0,29

0,35

0,46

0,31

0,38

0,49

2 Creeper speed

0,46

0,56

0,72

0,49

0,59

0,76

3 Creeper speed

0,65

0,79

1,02

0,70

0,84

1,08

4 Creeper speed

1,02

1,23

1,59

1,09

1,31

1,69

1 Low

1,40

1,69

2,17

1,49

1,80

2,32

2 Low

2,20

2,65

3,42

2,35

2,83

3,65

3 Low

3,12

3,76

4,85

3,33

4,01

5,17

4 Low

4,87

5,88

7,57

5,20

6,27

8,08

1Standard

3,34

4,03

5,20

3,57

4,30

5,54

2 Standard

5,25

6,34

8,17

5,60

6,76

8,71

3 Standard

7,45

8,99

11,58

7,95

9,59

12,35

4 Standard

11,64

14,04

18,09

12,41

14,98

19,29

1 High

8,24

9,95

12,82

8,79

10,61

13,67

2 High

12,96

15,64

20,14

13,82

16,68

21,49

3 High

18,38

22,18

28,57

19,61

23,65

30,47

4 High

28,70

34,63

38,53*

30,62

36,94

41,10*

ENGINE AT 2200 RPM - Speed in Kph with rear tyres

FORWARD

SPEED

16.9 R 34 - 540/65 R 34

480/70 R 34 - 13.6 R 38

POWERSHIFT

16.9 R 38

1 Creeper speed

0,36

0,38

2 Creeper speed

0,56

0,60

3 Creeper speed

0,80

0,85

4 Creeper speed

1,24

1,33

1 Low

1,71

1,82

2 Low

2,68

2,86

3 Low

3,80

4,05

4 Low

5,94

6,33

1 Standard

4,07

4,35

2 Standard

6,40

6,83

3 Standard

9,08

9,69

4 Standard

1,18

15,13

1 High

10,05

10,72

2 High

15,80

16,85

3 High

22,40

23,89

4 High

34,98

37,32

ENGINE AT 2200 RPM - Speed in Kph with rear tyres

16.9 R 34 - 540/65 R 34
480/70 R 34 - 13.6 R 38

POWERSHIFT

16.9 R 38

REVERSE

SPEED

UNDERDRIVE DIRECT DRIVE OVERDRIVE*

X60.50 - Xtrashift gearbox with Powershuttle electro-hydraulic reverse shuttle and 3 Powershift ranges under load (only
available for forward gears): 36FWD + 12REV without Creeper; 48 FWD + 16 REV with Creeper.
* In the 4th high Overdrive range the engine speed rate is reduced to 1900 RPM.

104

Operation

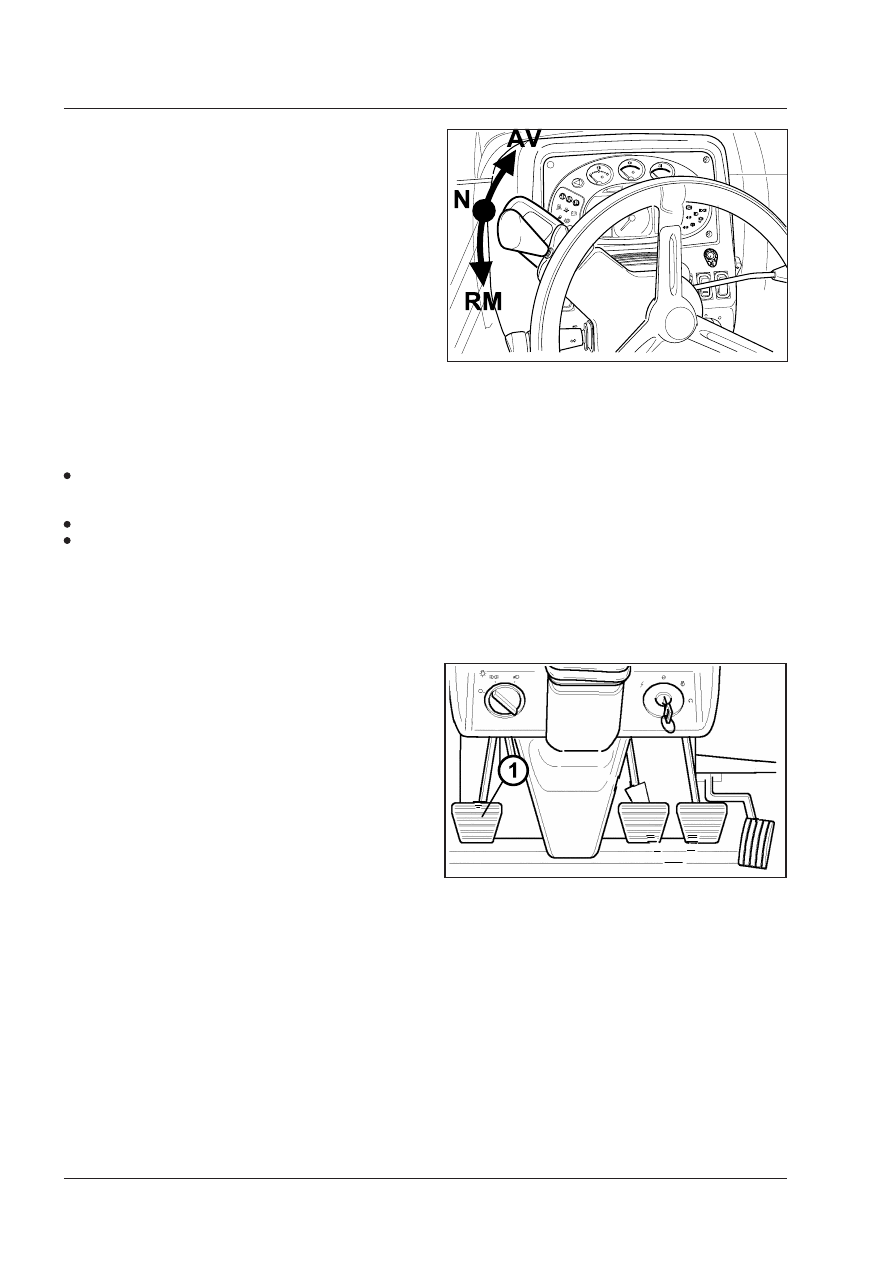

Use of the Xtrashift

Starting the engine

Put in neutral:
1. Orange coloured reverse shuttle control lever at the

left of the steering wheel.

2.PTO switch on the cab right-hand post.
3. Turn the ignition key clockwise to position 1 (contact),

then to position 3 (engine starting).

Forward starting

WARNING: To start the tractor when the weather is
particularly cold, it is advisable to heat the tran-
smission oil by running the engine until it reaches
a temperature of 20°C. This ensures that Deltashift
is able to operate correctly. During the first few
minutes of work with the tractor, only change gear
with Deltashift when strictly necessary until the
normal operating temperature has been reached.

After engine ignition, select the range (Low, Standard

or High) with the relative lever according to the job on
hand.

Engage the required gear.
Move forward the orange shuttle control lever at the

left of the steering wheel.

Thus the tractor moves automatically forward without

using the clutch pedal.

Reverse starting

Proceed as described above, only moving the shuttle
lever back.
The tractor automatically starts in reverse.

Starting with the clutch pedal

The clutch pedal should only be used for precision
approaches and manoeuvres.
1. Depress the clutch pedal (1) completely.
2. Move the reverse shuttle lever (1) forward or back-

wards.

3. Gradually release the pedal to control the tractor

movement as necessary.

Starting is usually in direct drive mode. Press the
relative buttons on the control lever handle to start the
tractor in underdrive mode.

Clutch pedal (1)

The clutch pedal is only used for:
- Safety manoeuvres, sudden obstacles, etc.
- Precision approaches, such as implement hitching.
- When the clutch pedal (or the Declutch button) is de-

pressed to select the gear, the gearbox remains in the
previously engaged range.
