Snowmobile Ski Doo REV SERIES (2006 year). Manual - part 95

Section 09 REAR SUSPENSION

Subsection 01 (SC SUSPENSION)

Expedition (Sport)/GTX/Summit Fan Cooled Models

A33F5AS

Suspension synthetic

grease

19.5 N•m

(173 lbf•in)

3 N•m

(27 lbf•in)

19.5 N•m

(173 lbf•in)

Suspension synthetic

grease

3 N•m

(27 lbf•in)

11 N•m

(97 lbf•in)

Suspension

synthetic

grease

3 N•m

(27 lbf•in)

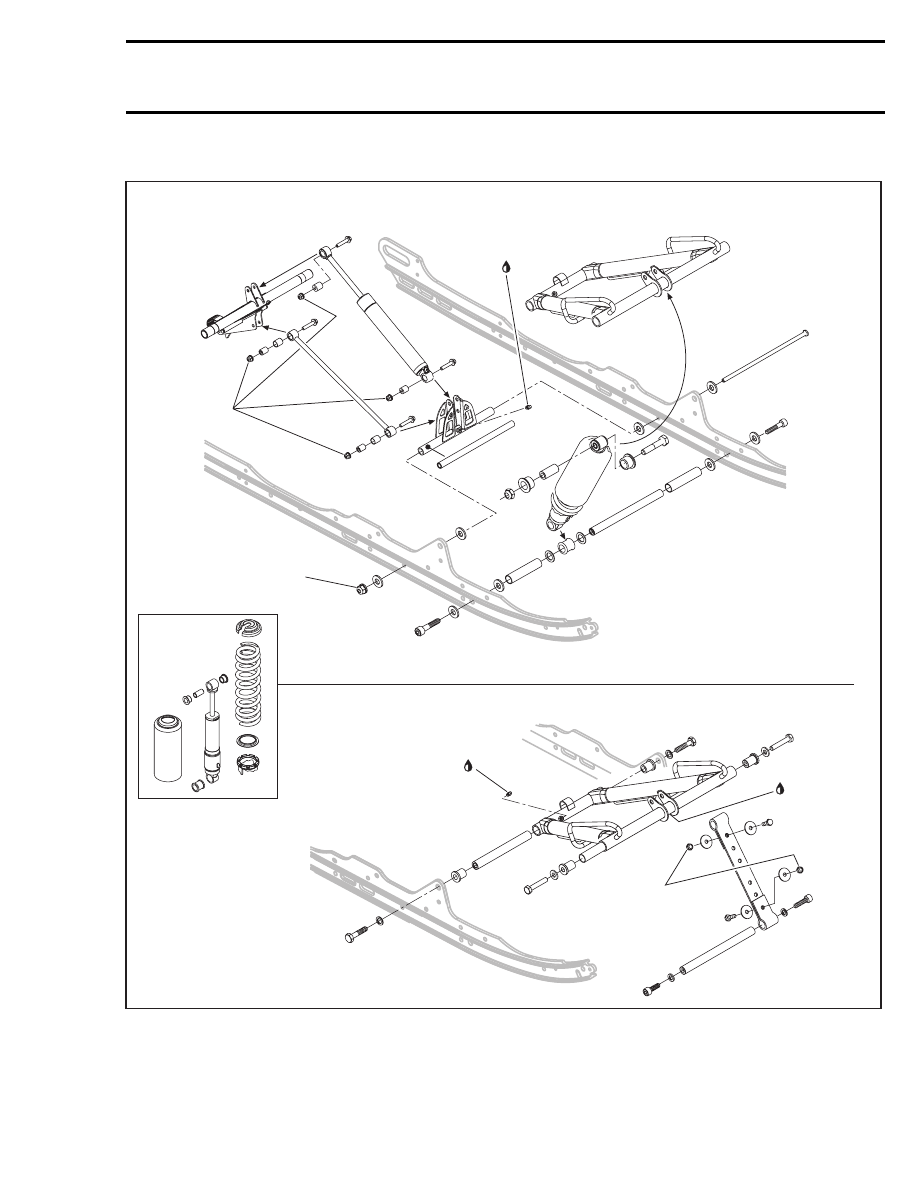

ARMS AND SHOCK ABSORBERS

mmr2005-094

383

Section 09 REAR SUSPENSION
Subsection 01 (SC SUSPENSION)

Summit Liquid Cooled Models

A33F56S

Suspension synthetic

grease

19.5 N•m

(173 lbf•in)

19.5 N•m

(173 lbf•in)

3 N•m

(27 lbf•in)

Suspension synthetic

grease
3 N•m

(27 lbf•in)

19 N•m

(168 lbf•in)

21 N•m

(15 lbf•ft)

11 N•m

(97 lbf•in)

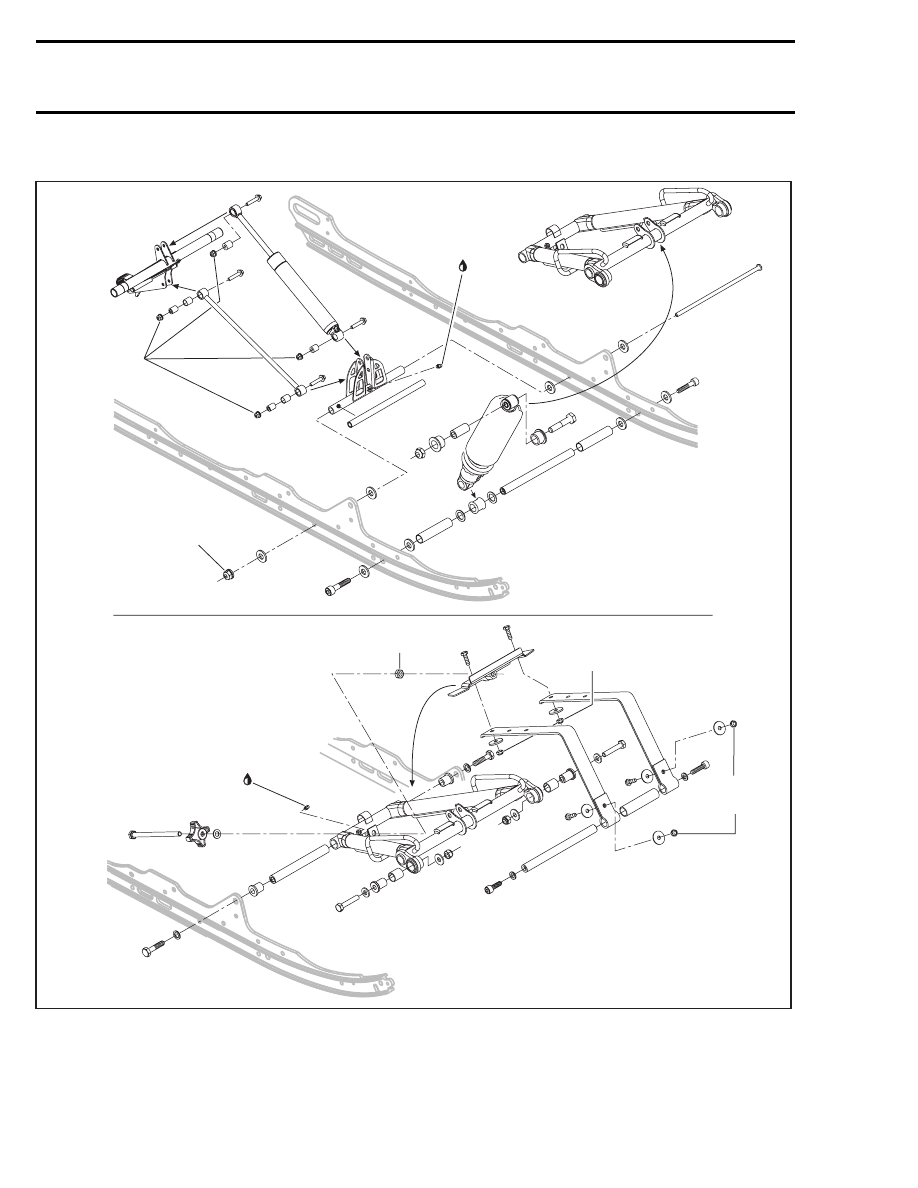

ARMS AND SHOCK ABSORBERS

384

mmr2005-094

Section 09 REAR SUSPENSION

Subsection 01 (SC SUSPENSION)

A33F55S

Suspension synthetic

grease

2.5 N•m

(22 lbf•in)

2.5 N•m

(22 lbf•in)

3 N•m

(27 lbf•in)

Suspension synthetic

grease

3 N•m

(27 lbf•in)

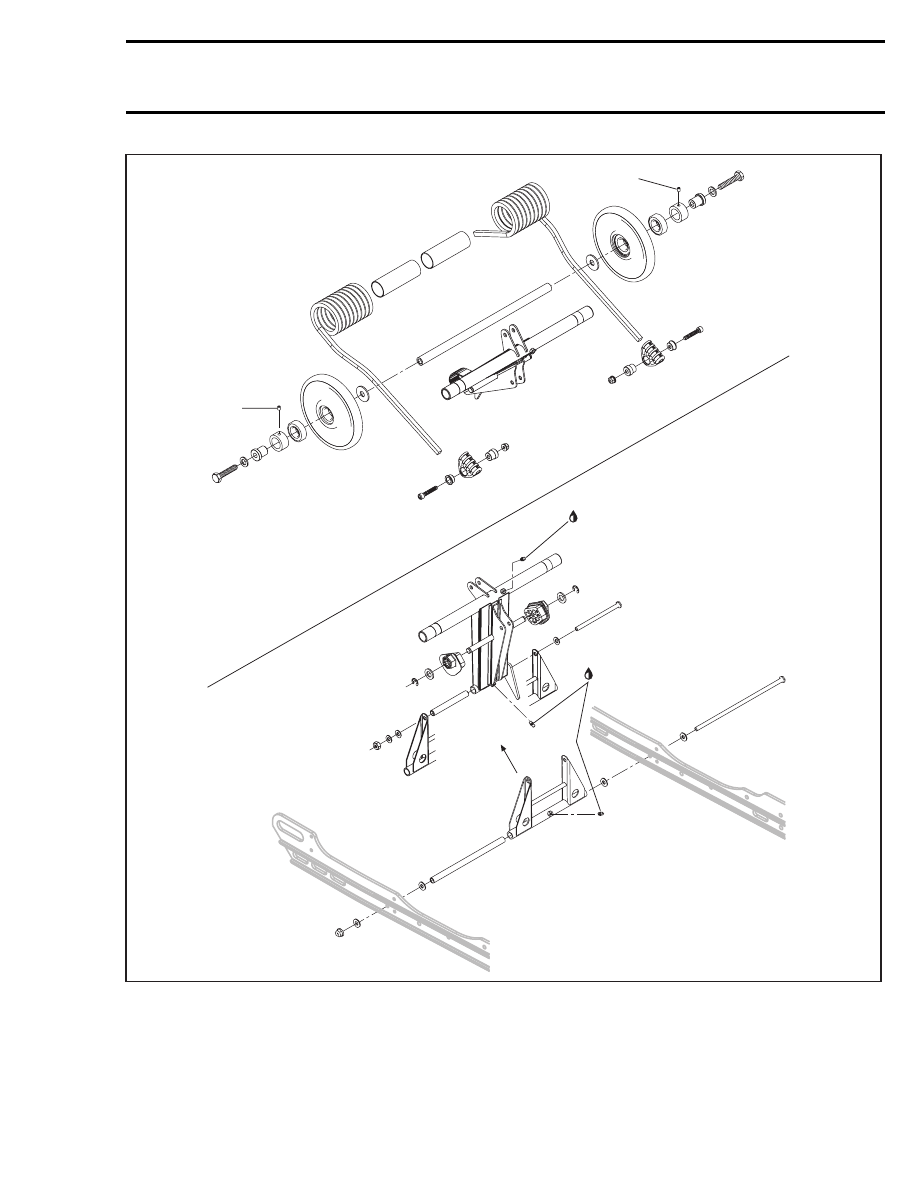

REAR ARM, SPRINGS AND TOP IDLER WHEELS

mmr2005-094

385

Section 09 REAR SUSPENSION
Subsection 01 (SC SUSPENSION)

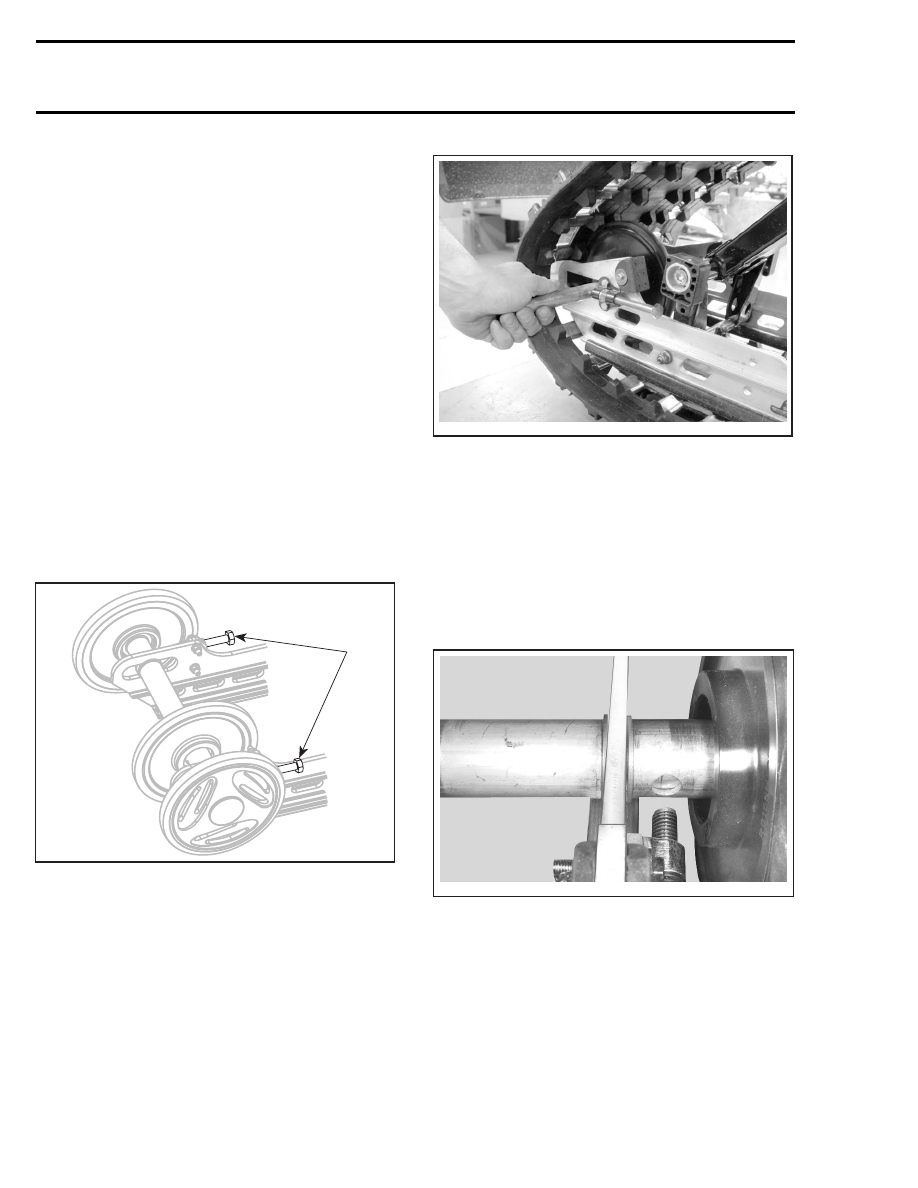

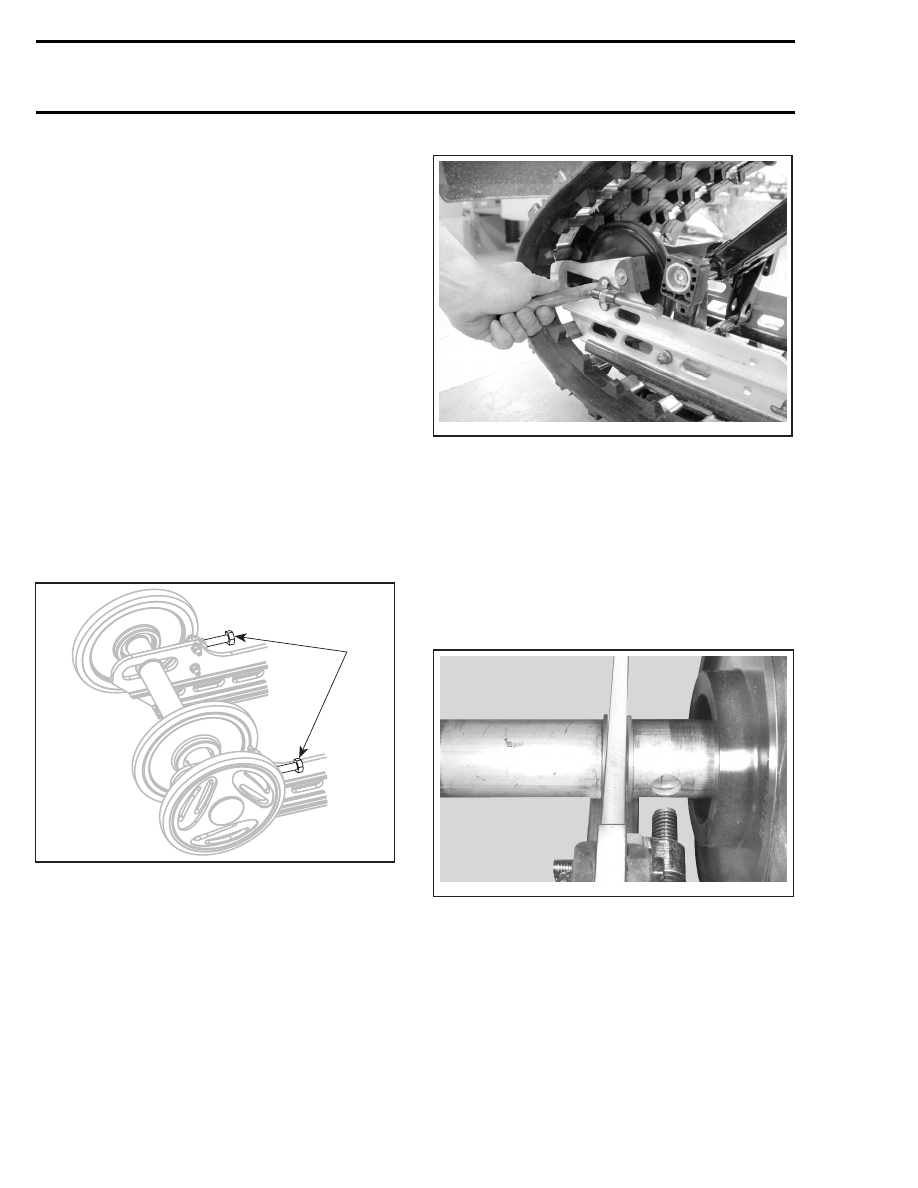

AXLE SELF-LOCKING SCREWS
REMOVAL

CAUTION: These self-locking screws must al-
ways be replaced by new ones everytime they
are removed.

NOTE: To prevent axle from turning when un-
screwing self-locking screws, proceed as follows:

– Remove one self-locking screw then install a

10 mm shorter non-self-locking one in place.
Torque as specified in exploded view.

– Remove the opposite self-locking screw.
– Remove the temporary installed non-self-lock-

ing screw.

– If it doesn’t work, heat bolt head to melt thread-

locker.

REAR AXLE REMOVAL

Lift rear of vehicle and support it off the ground.

Remove screws on rear axle.

Completely loosen track tension.

A33F57A

1

1. Completely loosen track tension

Pull out rear axle from RH side of vehicle.

A33F5JA

TYPICAL — PULL OUT REAR AXLE

REAR AXLE INSTALLATION

Installation is the reverse of removal procedure.
Pay attention to the following details.

Hole of outer bushing must face adjustment
screw.

Make sure to reinstall washer on each side of run-
ner.

A32F12A

OUTER BUSHING POSITION

REAR SHOCK ABSORBER
REMOVAL

Lift rear of vehicle and support it off the ground.

Remove shock upper and lower bolt and nut
