Section 03 ENGINES
Subsection 10 (OIL INJECTION SYSTEM)

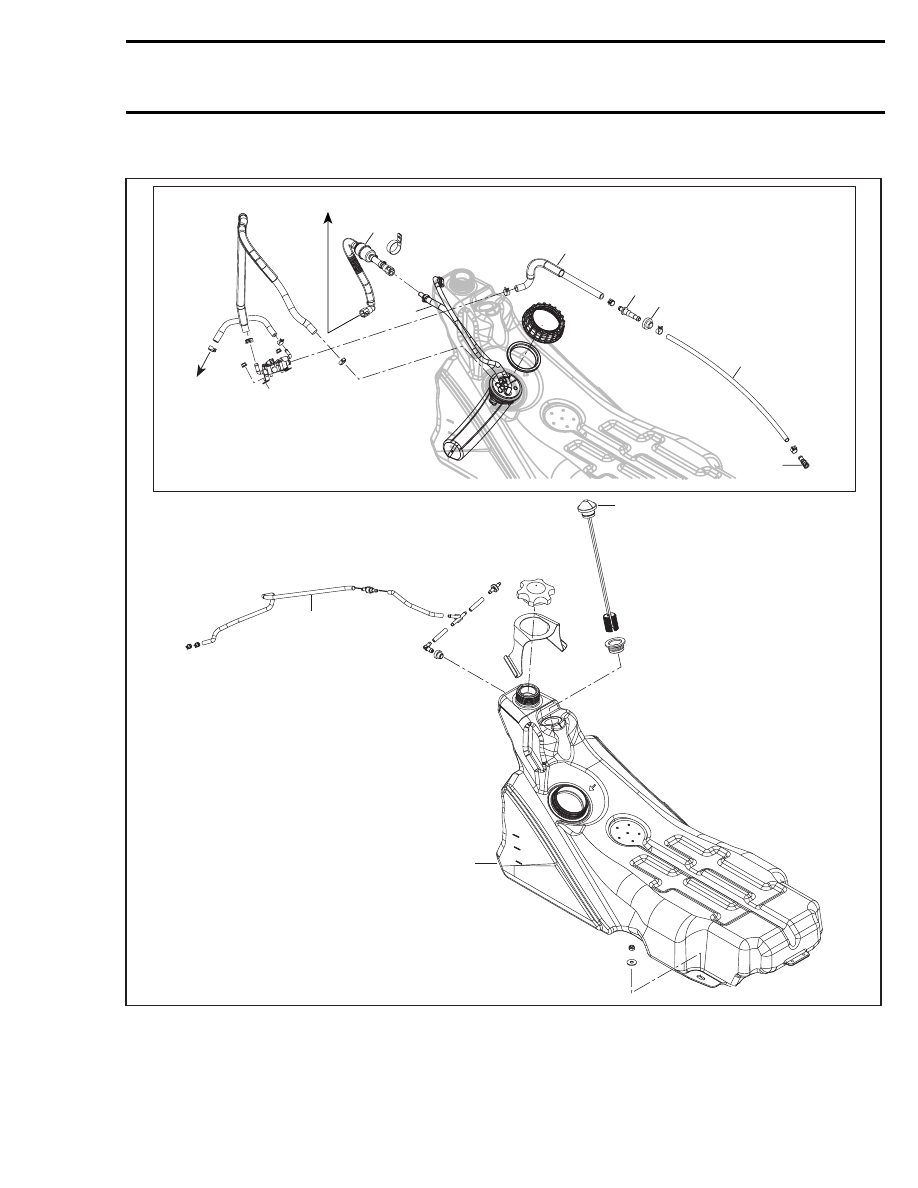

Liquid-cooled Models
Before processing with the oil pump cable adjust-
ment, verify throttle cable adjustment. Refer to
CARBURETOR AND THROTTLE CABLE or COM-
PONENT INSPECTION, REPLACEMENT AND AD-
JUSTMENT (SDI models).
Depress the throttle lever lightly until the cable is
under tension but carburetors or throttle body are
not yet opened.
Using a feeler gauge, measure the visible distance
between throttle lever and the end of cable hous-
ing.
A33C3QA
1
A
2
3

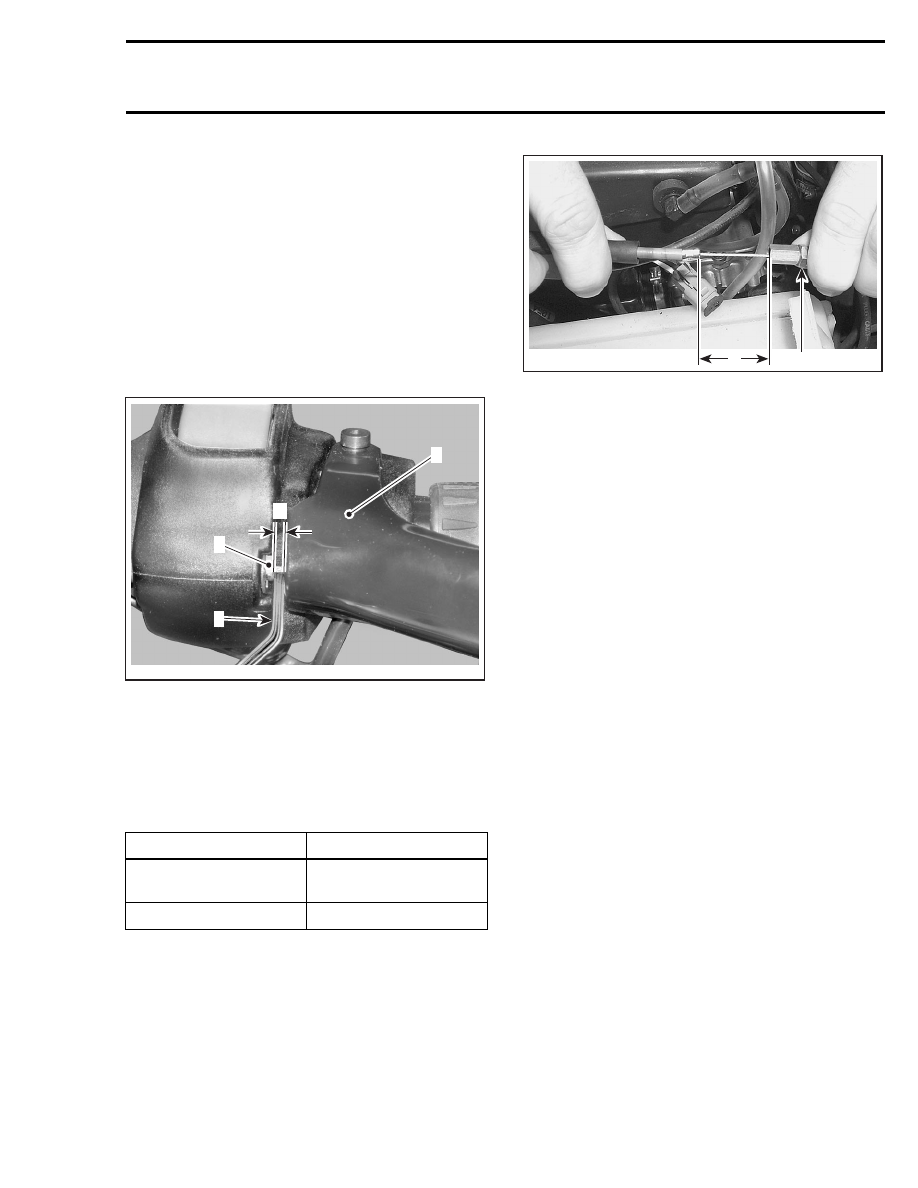

1. Feeler gauge
2. Throttle lever
3. End of cable housing
A. Visible distance
Note this measure.
Next, add to measurement “A” the appropriate
specification “B”, using the chart below.
ENGINE TYPE
SPECIFICATION “B”
All liquid-cooled engines
except SDI models
16.5 mm (.650 in)
SDI engines
18 mm (.709 in)

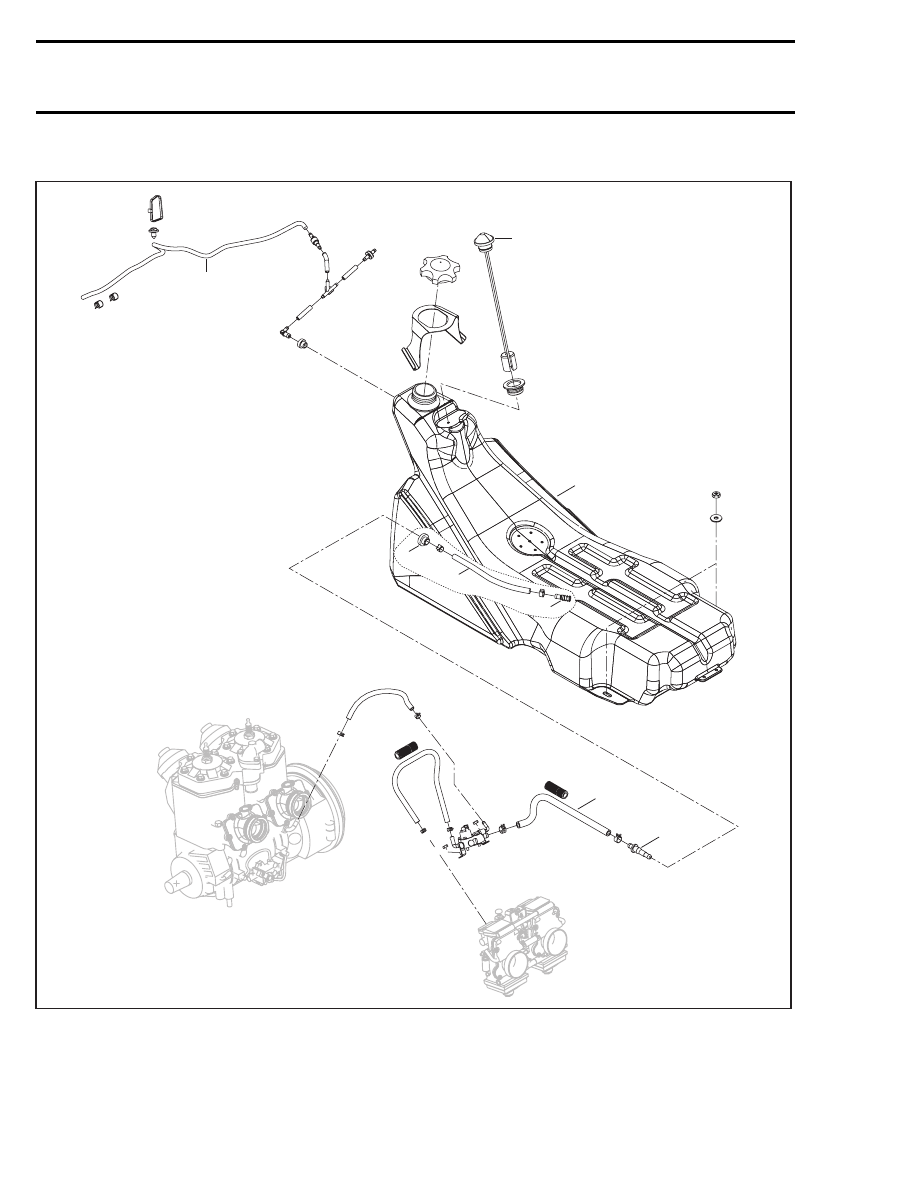

Stretch oil pump cable with a force of 32 N (7.2 lbf)
and measure the length of its visible distance “C”.
1
A32D1OB
C
1. Adjusting screw lock nut
C. Visible distance for oil pump adjustment
If the visible distance is less or more than “A” +
“B”, adjust cable distance. To do so, loosen lock
nut, turn adjusting screw in or out and retighten
lock nut.
mmr2005-076
