Drive Sprocket Locations

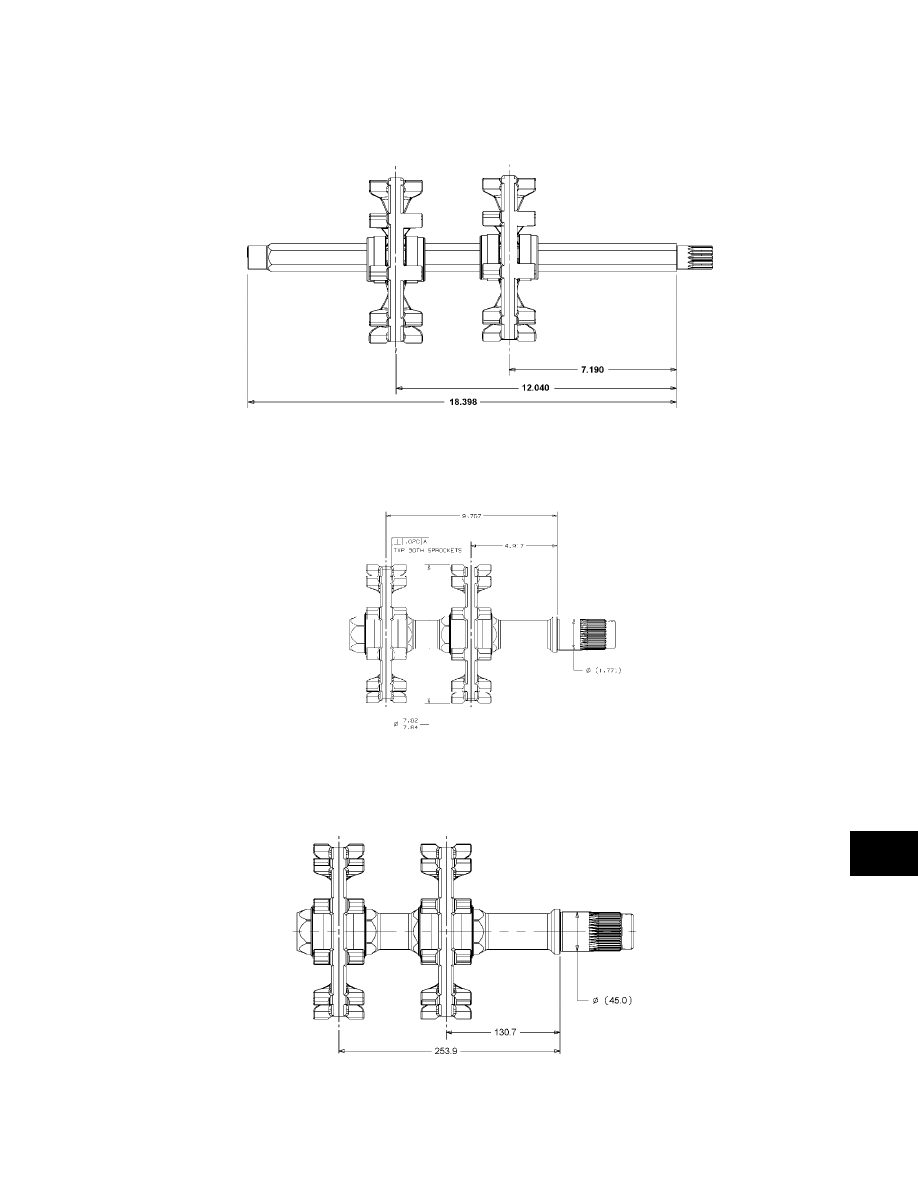

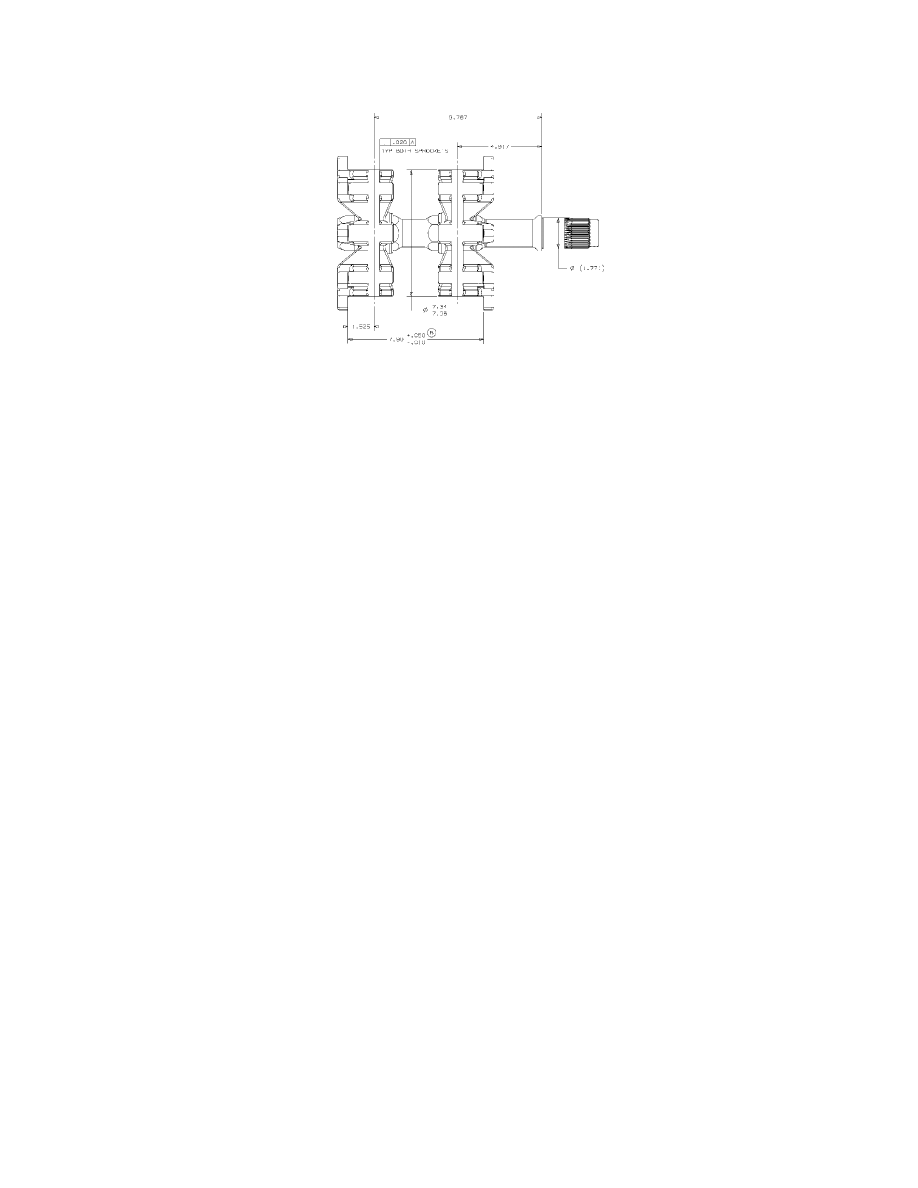

The following illustrations will provide all necessary
information to relocate sprockets on the driveshaft.
When information is required to assemble the drive-
shaft, refer to the parts manual for model being worked
on; then refer to the following illustrations using the
part number listed in the parts manual as a reference.

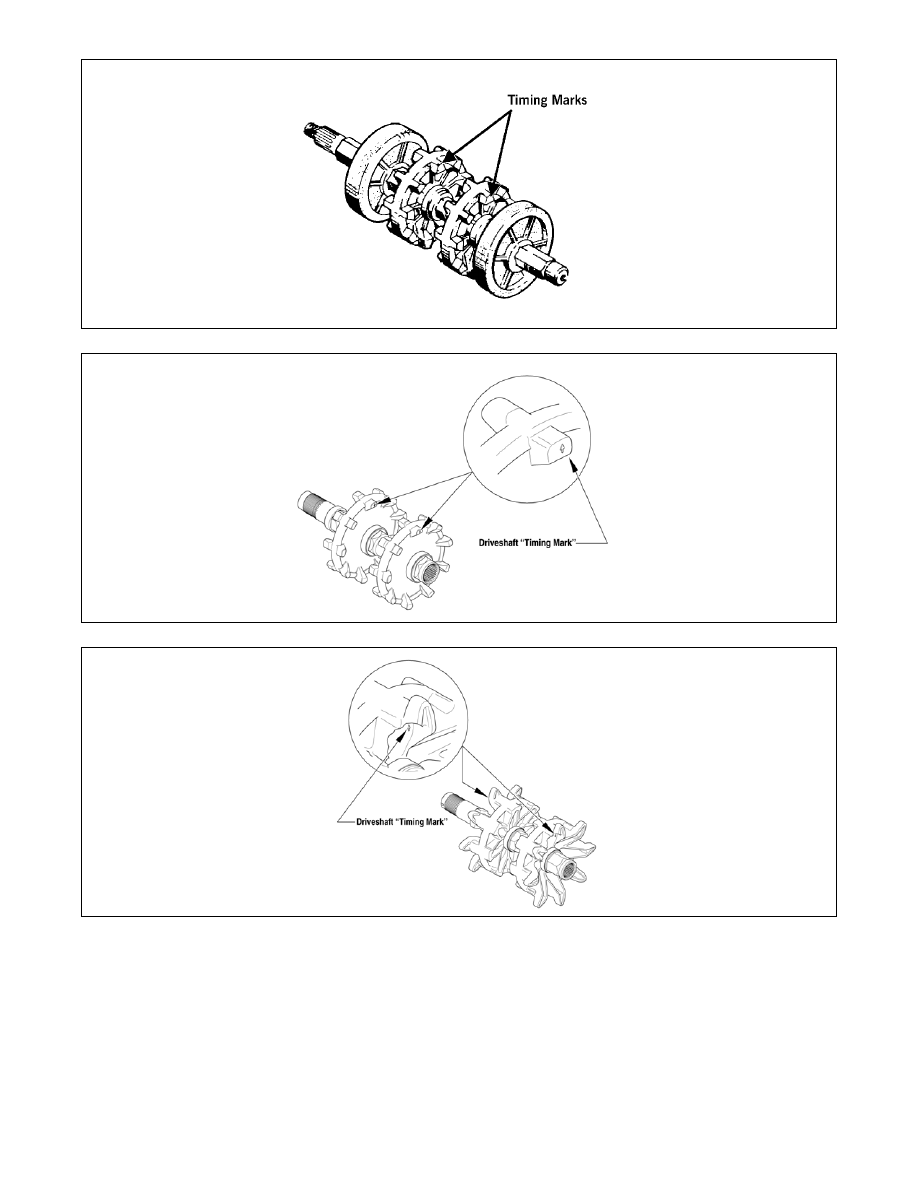

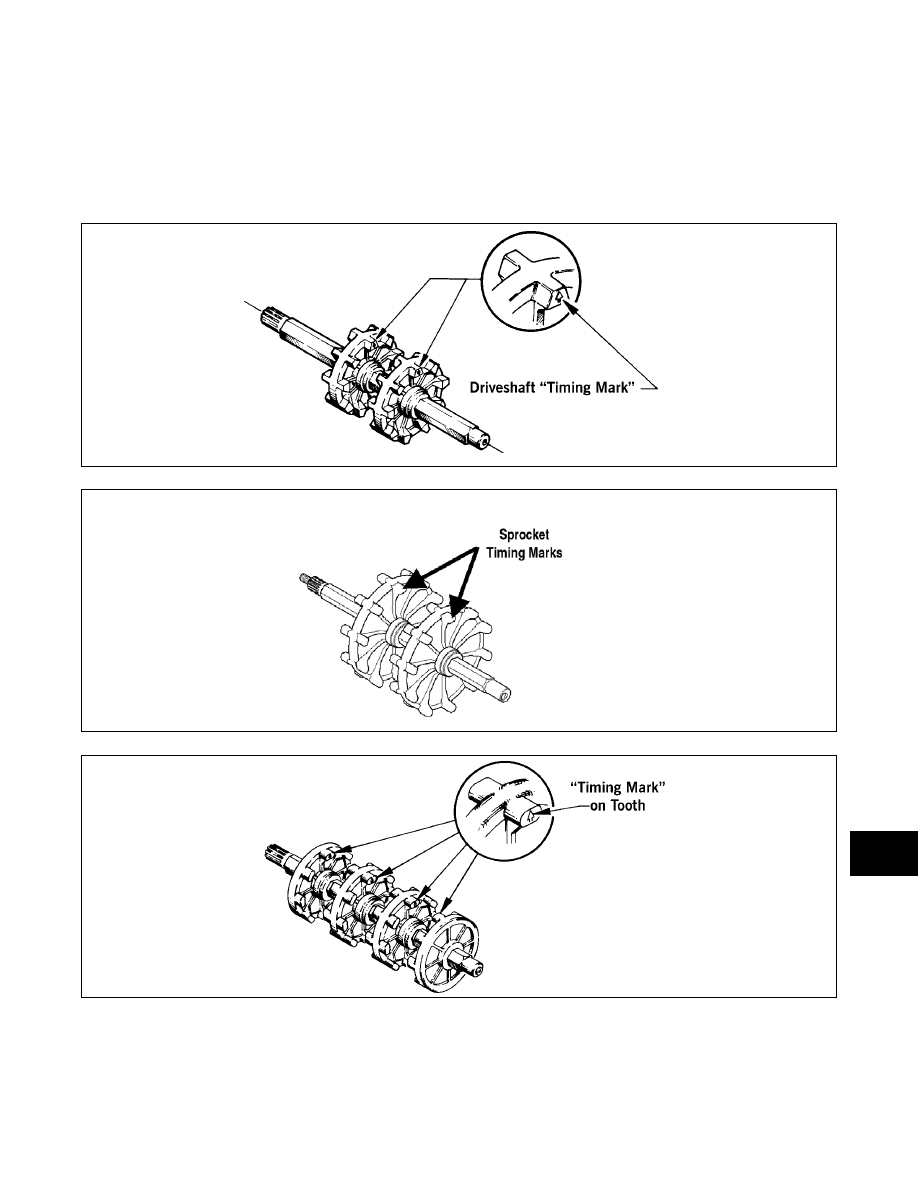

When pressing new sprockets on the driveshaft,
remember to align the sprocket alignment marks or the
sprockets won’t be timed correctly. See following
illustrations.
0728-351
737-870A
0727-829
