„NOTE: Some EFI models are equipped with a
control rod activated oil pump. If it must be
removed, the rod simply snaps off and on at the
control arm.

INSTALLING/ADJUSTING

1. Install the throttle cable into the throttle switch

assembly making sure the cable snaps into place.

2. Install the throttle cable end on the throttle lever.

3. Route the throttle cable from the throttle switch

assembly to the throttle body assembly and oil-

injection pump; avoid any sharp bends or moving

components.

4. Attach the throttle cable to the pulley on the throt-

tle body shaft.

5. On the 500 cc, install the oil-injection cable

adjuster on the oil-injection pump; secure with the

jam nuts.

6. On the 500 cc, install the oil-injection cable on the

control arm; secure with a washer and E-clip.

7. Secure the throttle cable to the handlebar and

steering post with cable ties.

8. On the other models, install the handlebar pad and

the console (if applicable).

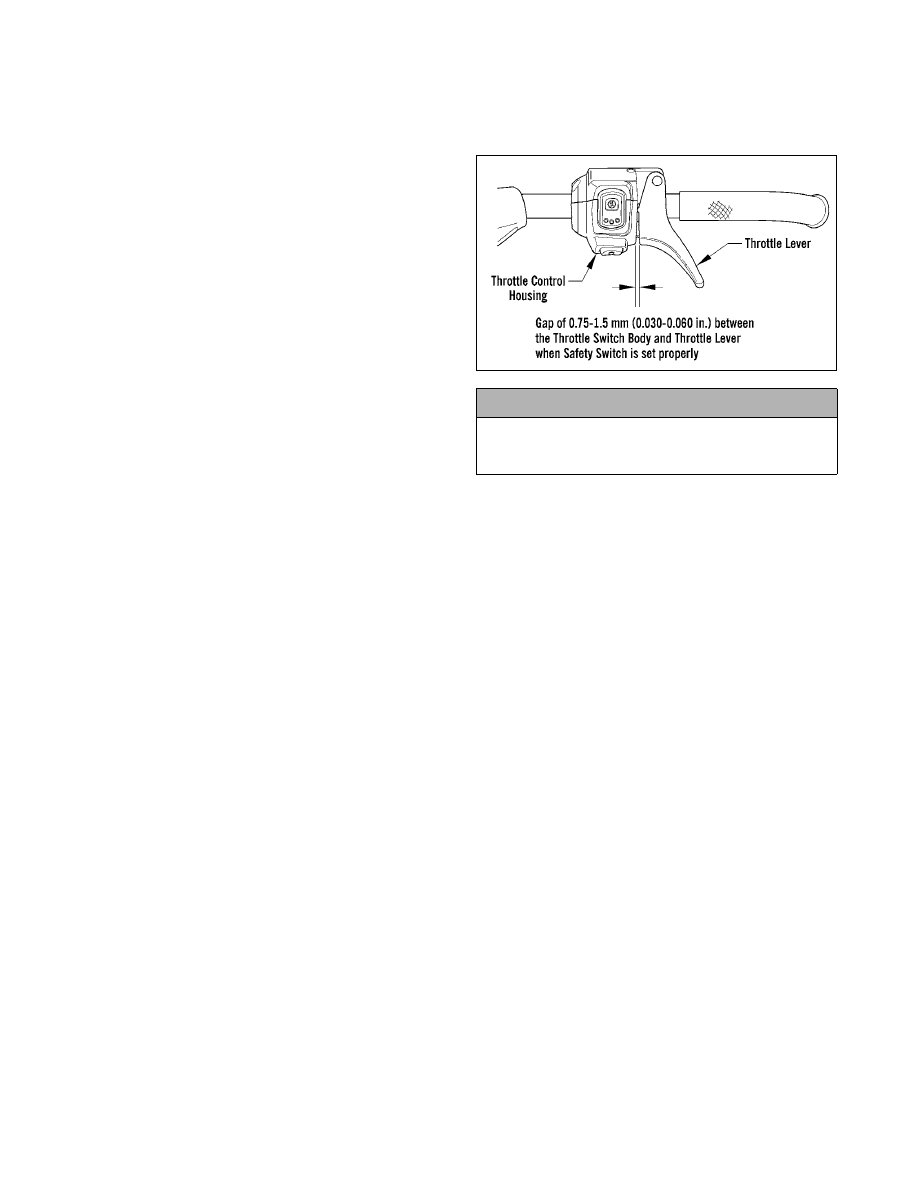

9. Adjust the throttle cable tension by turning the jam

nuts in the appropriate direction until there is 0.75-

1.5 mm (0.030-0.060 in.) free-play in the throttle

lever and the butterfly completely opens and

closes. Tighten the jam nuts securely.

0741-518

10. Synchronize the oil-injection pump.

! CAUTION

Compress the throttle control lever to ensure free
movement. If the throttle cable sticks or binds, cor-
rect the problem before starting the engine.

4

4-35

EFI Component Voltage/Resistance Chart -

Air Temperature

TEMP/C

TEMP/F

VOLTAGE

OHMS

100

212

0.113

555

98

208

0.121

595

96

205

0.128

635

94

201

0.136

675

92

198

0.143

715

90

194

0.151

755

88

190

0.162

819

86

187

0.173

883

84

183

0.184

947

82

180

0.195

1011

80

176

0.206

1075

78

172

0.222

1160

76

169

0.238

1245

74

165

0.253

1330

72

162

0.269

1415

70

158

0.285

1500

68

154

0.308

1640

66

151

0.331

1780

64

147

0.353

1920

62

144

0.376

2060

60

140

0.399

2200

58

136

0.432

2410

56

133

0.465

2620

54

129

0.498

2830

52

126

0.531

3040

50

122

0.564

3250

48

118

0.612

3595

46

115

0.659

3940

44

111

0.707

4285

42

108

0.754

4630

40

104

0.802

4975

38

100

0.869

5490

36

97

0.937

6005

34

93

1.004

6520

32

90

1.072

7035

30

86

1.139

7550

TEMP/C

TEMP/F

VOLTAGE

OHMS

28

82

1.230

8540

26

79

1.322

9530

24

75

1.413

10520

22

72

1.505

11510

20

68

1.596

12500

18

64

1.716

14020

16

61

1.836

15540

14

57

1.955

17060

12

54

2.075

18580

10

50

2.195

20100

8

46

2.323

23060

6

43

2.452

26020

4

39

2.580

28980

2

36

2.709

31940

0

32

2.837

34900

-2

28

2.969

39940

-4

25

3.101

44980

-6

21

3.233

50020

-8

18

3.365

55060

-10

14

3.497

60100

-12

10

3.610

76080

-14

7

3.722

92060

-16

3

3.835

108040

-18

-0.4

3.947

124020

-20

-4

4.060

140000

-22

-8

4.142

156000

-24

-11

4.224

172000

-26

-15

4.306

188000

-28

-18

4.388

204000

-30

-22

4.470

220000

-32

-26

4.522

261000

-34

-29

4.574

302000

-36

-32

4.625

343000

-38

-36

4.677

384000

-40

-40

4.729

425000

4-36

EFI Component Voltage/Resistance Chart -

Water Temperature

TEMP/C

TEMP/F

VOLTAGE

OHMS

110

230

0.115

129

108

226

0.129

137

106

223

0.143

145

104

219

0.157

153

102

216

0.171

161

100

212

0.185

169

98

208

0.192

180

96

205

0.199

191

94

201

0.206

202

92

198

0.213

213

90

194

0.220

224

88

190

0.235

240

86

187

0.250

256

84

183

0.265

273

82

180

0.280

289

80

176

0.295

305

78

172

0.317

327

76

169

0.339

349

74

165

0.361

371

72

162

0.383

393

70

158

0.405

415

68

154

0.438

445

66

151

0.471

475

64

147

0.504

505

62

144

0.537

535

60

140

0.570

565

58

136

0.598

609

56

133

0.626

653

54

129

0.654

697

52

126

0.682

741

50

122

0.710

785

48

118

0.759

849

46

115

0.808

913

44

111

0.857

977

42

108

0.906

1041

40

104

0.955

1105

38

100

1.023

1214

36

97

1.091

1323

34

93

1.159

1432

32

90

1.227

1541

30

86

1.295

1650

TEMP/C

TEMP/F

VOLTAGE

OHMS

28

82

1.377

1800

26

79

1.459

1950

24

75

1.541

2100

22

72

1.623

2250

20

68

1.705

2400

18

64

1.806

2670

16

61

1.907

2940

14

57

2.008

3210

12

54

2.109

3480

10

50

2.210

3750

8

46

2.327

4170

6

43

2.444

4590

4

39

2.561

5010

2

36

2.678

5430

0

32

2.795

5850

-2

28

2.901

6510

-4

25

3.007

7170

-6

21

3.113

7830

-8

18

3.219

8490

-10

14

3.325

9150

-12

10

3.421

9422

-14

7

3.517

9694

-16

3

3.613

9966

-18

-0.4

3.709

10238

-20

-4

3.805

10510

-22

-8

3.885

13688

-24

-11

3.965

16866

-26

-15

4.045

20044

-28

-18

4.125

23222

-30

-22

4.205

26400

-32

-26

4.267

30520

-34

-29

4.329

34640

-36

-32

4.391

38760

-38

-36

4.453

42880

-40

-40

4.515

47000

-42

-44

4.553

55100

-44

-47

4.591

63200

-46

-51

4.629

71300

-48

-54

4.667

79400

-50

-58

4.705

87500

4

4-37

Troubleshooting Fuel System

Fuel System

(Related Items)

Some components may vary from model to model.

The technician should use discretion and sound judg-

ment when removing and installing components.

Whenever any maintenance or inspection is made on

the fuel system in which fuel leakage may occur, there

should be no welding, smoking, or open flames in the

area.

„NOTE: Some illustrations and photographs
used in this section are used for clarity purposes
only and are not designed to depict actual condi-
tions.

Fuel System

(Related Items)

Table of Contents

Oil-Injection Pump................................................. 4-37
Synchronizing Oil-Injection Pump ......................... 4-38
Bleeding Oil-Injection System

(370/500/570 cc) ................................................ 4-39

Bleeding Oil-Injection System

(600/800/1000 cc) .............................................. 4-40

Testing Oil-Injection Pump .................................... 4-40
Testing Oil-Injection Check Valves ........................ 4-41
Fuel Pump (Carbureted Models)........................... 4-41
Air-Intake Silencer (Carbureted Models) ............... 4-42
Air-Intake Silencer (Crossfire/M-Series)................ 4-42
Air-Intake Silencer (F-Series)................................ 4-42
Gas Tank/Seat Assembly ...................................... 4-44

Oil-Injection Pump

REMOVING

„NOTE: On EFI models to service the oil-injec-
tion pump, the exhaust system and the air silencer
must be removed (see Section 2); then proceed to
step 2.

1. On carbureted models, turn the gas tank shut-off

valve to the CLOSED position.

2. Remove the carburetors/throttle bodies.

3. Disconnect the oil-supply hose from the pump and

plug to prevent oil drainage.

4. Remove the two oil-delivery hoses from the

adapter plates/intake flanges.

5. Disconnect the oil-injection cable/control rod.

6. Remove the two screws, lock washers (if applica-

ble), and washers (if applicable) securing the oil-

injection pump and retainer to the crankcase.

7. Pull the oil-injection pump away from the engine

and account for a gasket.

8. Turn the pump sideways; then remove the lower

union bolt. Account for two gaskets. Remove the

pump.

9. Remove the remaining union bolts securing the

check valves to the pump. Account for two gas-

kets.

10. Remove the check valves. Account for two gas-

kets.

Problem: Too Rich

Condition

Remedy

1. Diagnostic trouble code activated

1. Replace problem sensor

2. Fuel pressure too high

2. Replace regulator

3. Fuel return hose obstructed

3. Service — replace hose — remove obstruction

4. Injectors leaking

4. Replace injectors

Problem: Too Lean

Condition

Remedy

1. Diagnostic trouble code activated

1. Replace problem sensor

2. Fuel pressure too low

2. Replace regulator/fuel pump

3. Vent hose obstructed

3. Remove obstruction

4. Fuel filter(s) obstructed

4. Replace fuel filter(s)
