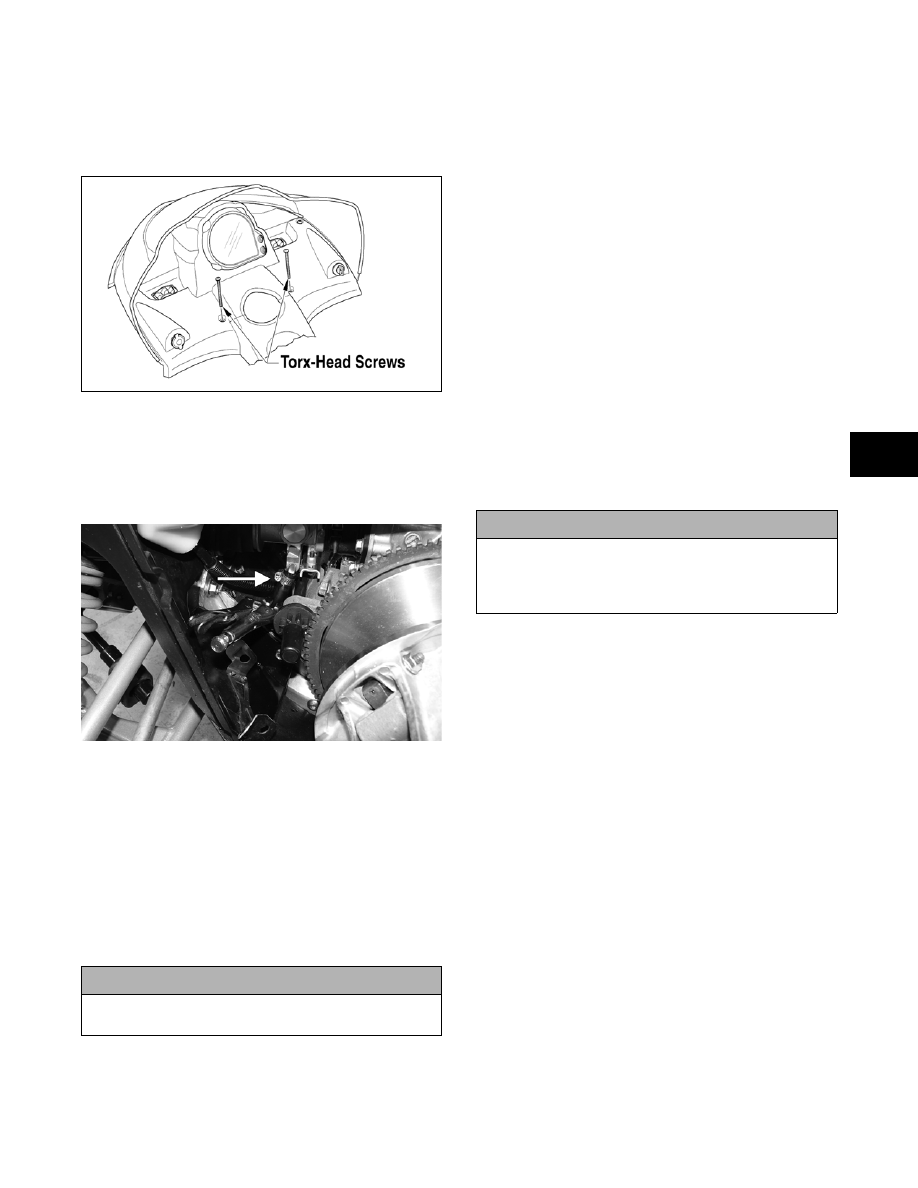

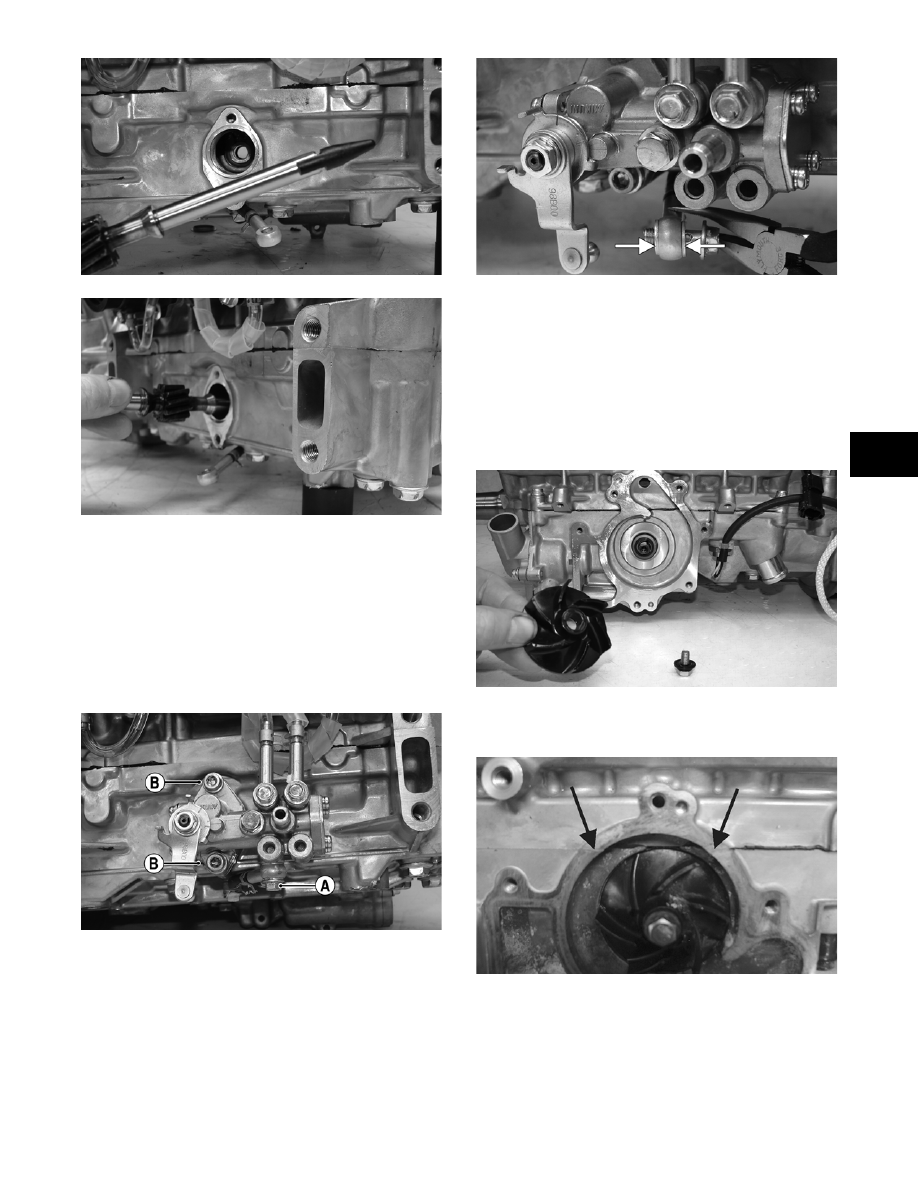

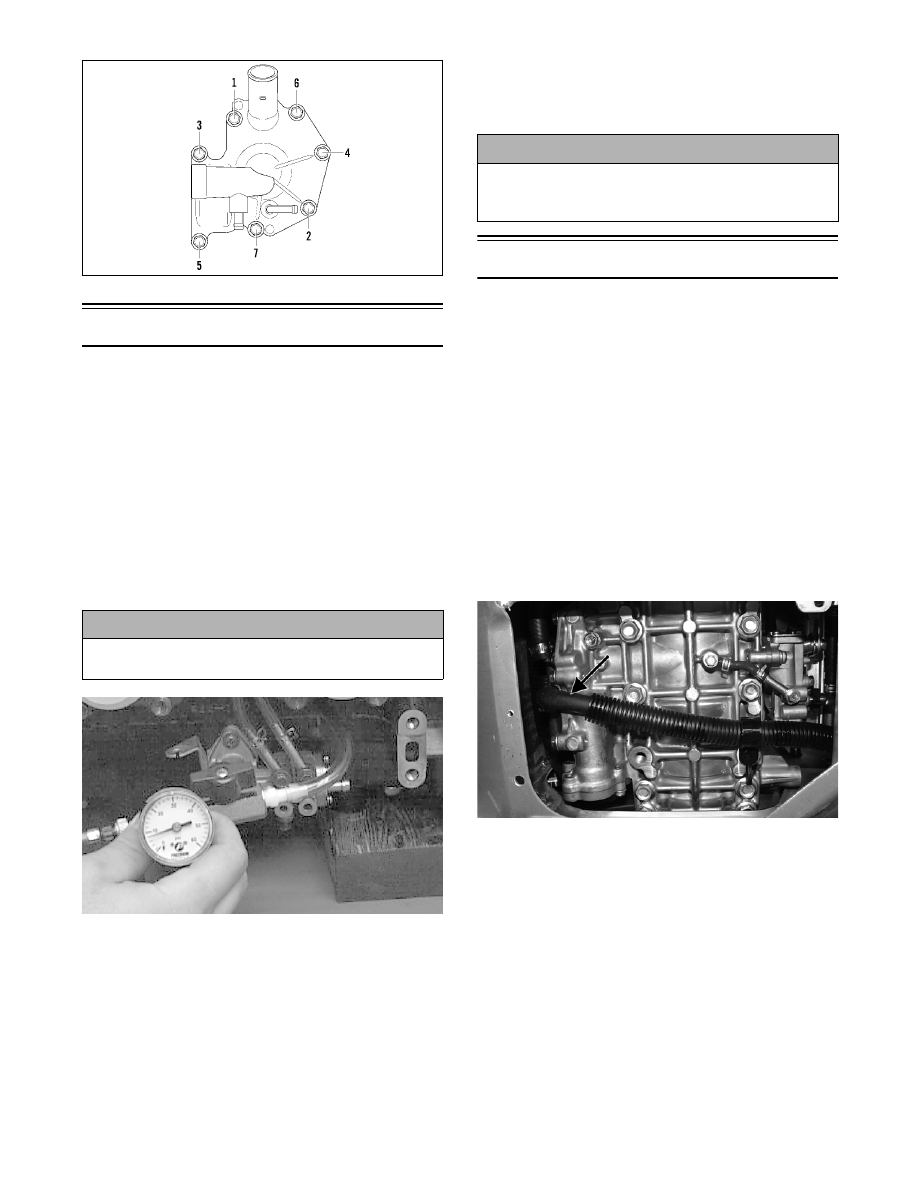

3-11 3 FS233 FS234 7. Position the shim on the oil pump end of the shaft; then with the O-ring installed on the retainer, install the oil-injection pump retainer. 8. With the O-ring in place on the oil-injection pump, align the pump with the shaft; then install the pump. Secure with two cap screws. Tighten the two cap screws to 0.7 kg-m (5 ft-lb). Place the lower check valve into position; then secure with the gaskets and cap screw (A). Tighten securely. FS220A NOTE: When installing the lower check valve, FS235A NOTE: After the oil pump has been secured, 9. Place the impeller into position and secure with a cap screw and washer. Be sure the rubber side of the washer is directed towards the impeller. Apply blue Loctite #243 to the threads of the cap screw and tighten to 1.1 kg-m (8 ft-lb). FS225 10. Apply sealant to the crankcase seam; then install the alignment pins into the crankcase (if removed). FC133A 11. Position the O-ring into the water pump cover; then install the cover. Install the cap screws; then using the pattern shown, tighten to 1.1 kg-m (8 ft-lb). |
