2006 Panther 570

15

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

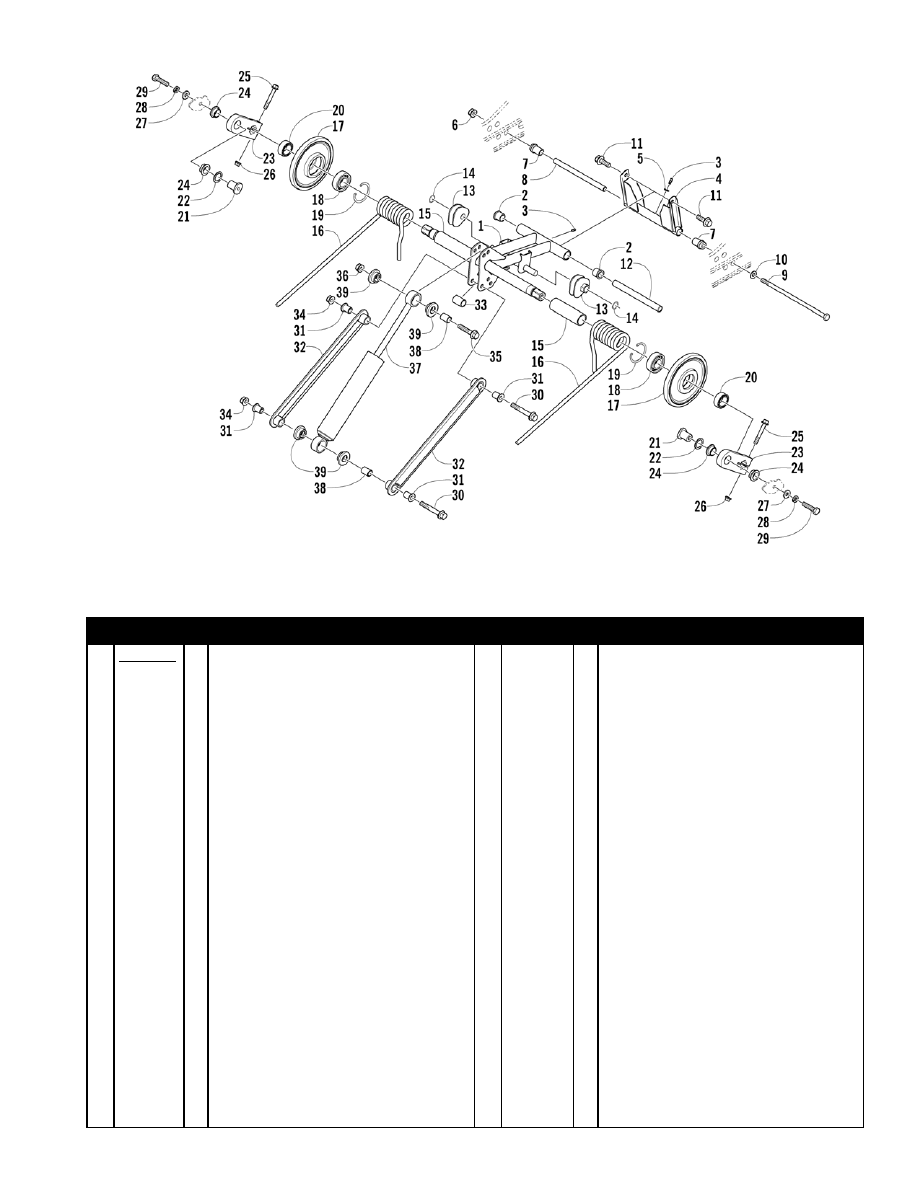

REAR SUSPENSION REAR ARM ASSEMBLY



0739-927

1 1704-460

1

Arm, Idler (inc. 2 and one No. 3)

2 1604-100

2

‹ Bushing

3 1623-010

2

‹ Fitting, Grease

4 1704-019

1

Arm, Rear (inc. one No. 3 and 5)

5 1623-011

1

‹ Washer, Grease Fitting

6 8047-490

1

Nut, Lock

7 2604-664

2

Bushing, Rear Arm

8 2604-663

1

Axle, Inner

9 1623-037

1

Screw, Cap

10 8050-272

1

Washer

11 8020-220

2

Screw, Cap

12 1604-208

1

Axle, Aluminum

13 1604-204

1

Block, Spring Adjuster - Right

1604-205

1

Block, Spring Adjuster - Left

14 0623-138

2

Ring, Retainer

15 0114-254

2

Sleeve, Spring

16 1704-044

1

Spring, Suspension - Right

1704-045

1

Spring, Suspension - Left

17 2604-699

2

Wheel, Idler (inc. 18-19)

18 0107-598

2

‹ Bearing

19 0123-798

2

‹ Ring, Retaining

20 1604-507

2

Spacer, Pivot Idler Arm

21 1604-181

2

Axle, Powder Metal

22 1604-187

2

Washer, Pivot Idler Arm

23 0704-981

2

Arm, Pivot Idler (inc. 24-26)

24 1604-202

4

‹ Bushing, Flared

25 8020-138

4

‹ Screw, Cap

26 8048-426

4

‹ Nut, Lock

27 0623-044

2

Washer

28 8051-277

2

Washer, Lock

29 8002-224

2

Screw, Cap

30 0623-793

2

Screw, Cap

31 1604-498

4

Axle, Link - Flanged

32 0704-928

2

Link, Inner Carriage

33 0704-854

1

Spacer, Shock Link

34 8047-486

2

Nut, Lock

35 8020-226

1

Screw, Cap

36 8041-486

1

Nut, Lock

37 2604-614

1

Shock Absorber - Rear Arm (inc. 38-39)

38 1604-185

2

‹ Sleeve, Shock

39 0604-310

4

‹ Bushing, Shock

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

16

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

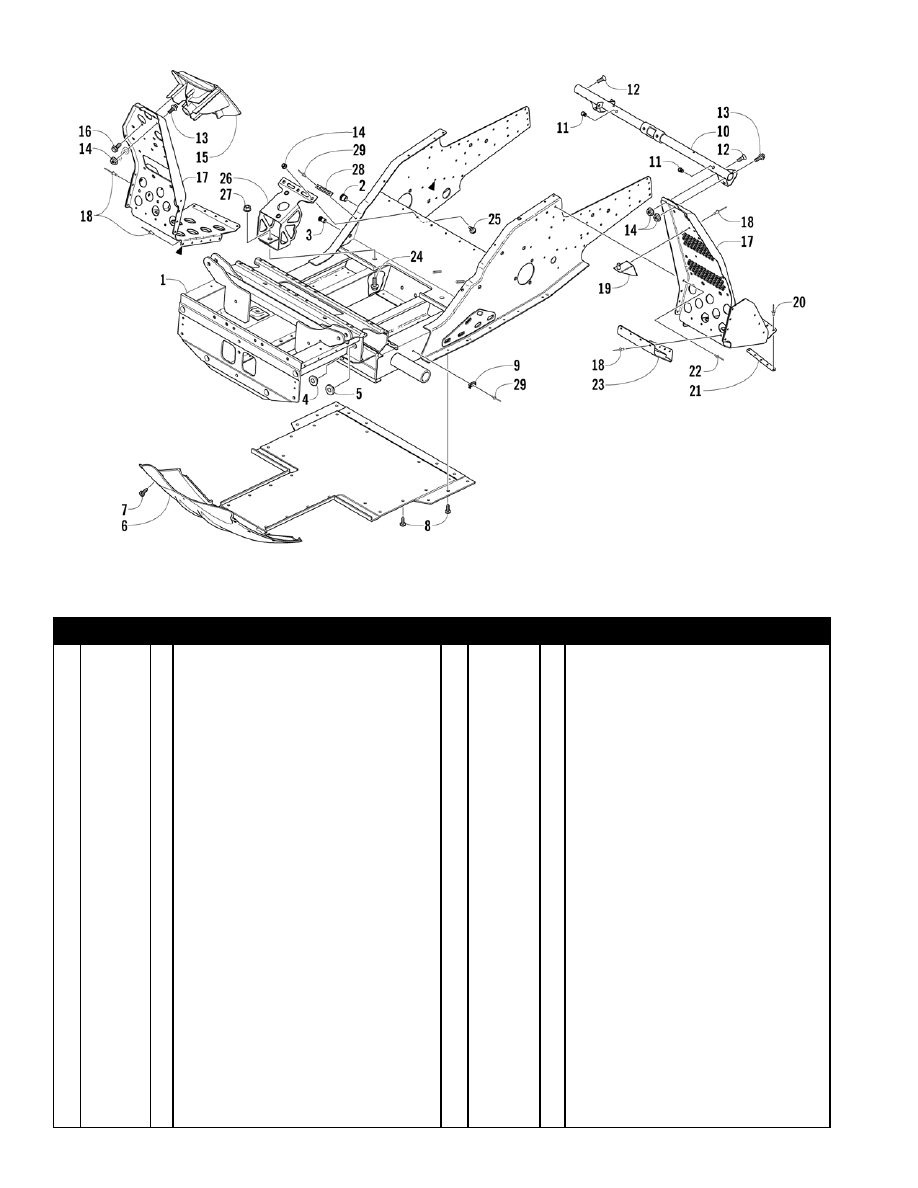

FRONT FRAME AND FOOTREST ASSEMBLY



0739-556

1 0707-642

1

Chassis Assembly (inc. 2-5)

2 0623-581

1

‹ Insert

3 0623-582

4

‹ Insert

4 0607-420

4

‹ Insert, Lower A-Arm Mount

5 0607-421

4

‹ Insert, Upper A-Arm Mount

6 1606-719

1

Belly Pan - Center

7 0623-784

7

Screw, Self-Tapping

8 1623-129

30 Screw, Self-Tapping

9 0623-228

1

Mount, Cable Tie

10 0705-866

1

Support, Steering (inc. 11)

11 0623-779

2

‹ Insert

12 8019-614

4

Screw, Machine

13 8020-040

2

Screw, Cap

14 8048-366

9

Nut, Lock

15 1706-099

1

Cup, Recoil Rope

16 0623-297

3

Screw, Self-Tapping

17 1706-884

1

Footrest - Right - Black

2706-113

1

Footrest - Left - Black

18 0623-166 AR Rivet
19 0705-173

1

Bracket, Mounting - Belt Guard

20 0623-282

10 Rivet

21 2706-110

2

Plate, Backing - Footrest

22 0623-341

8

Rivet

23 1706-886

1

Plate, Backing - Right - Black

1706-887

1

Plate, Backing - Left - Black

24 8020-130

1

Screw, Cap

25 8020-039

3

Screw, Cap

26 0708-398

1

Bracket, Engine Mounting

27 8048-426

1

Nut, Lock

28 3002-964

1

Clamp, Wire

29 8060-506

2

Rivet

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

17

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

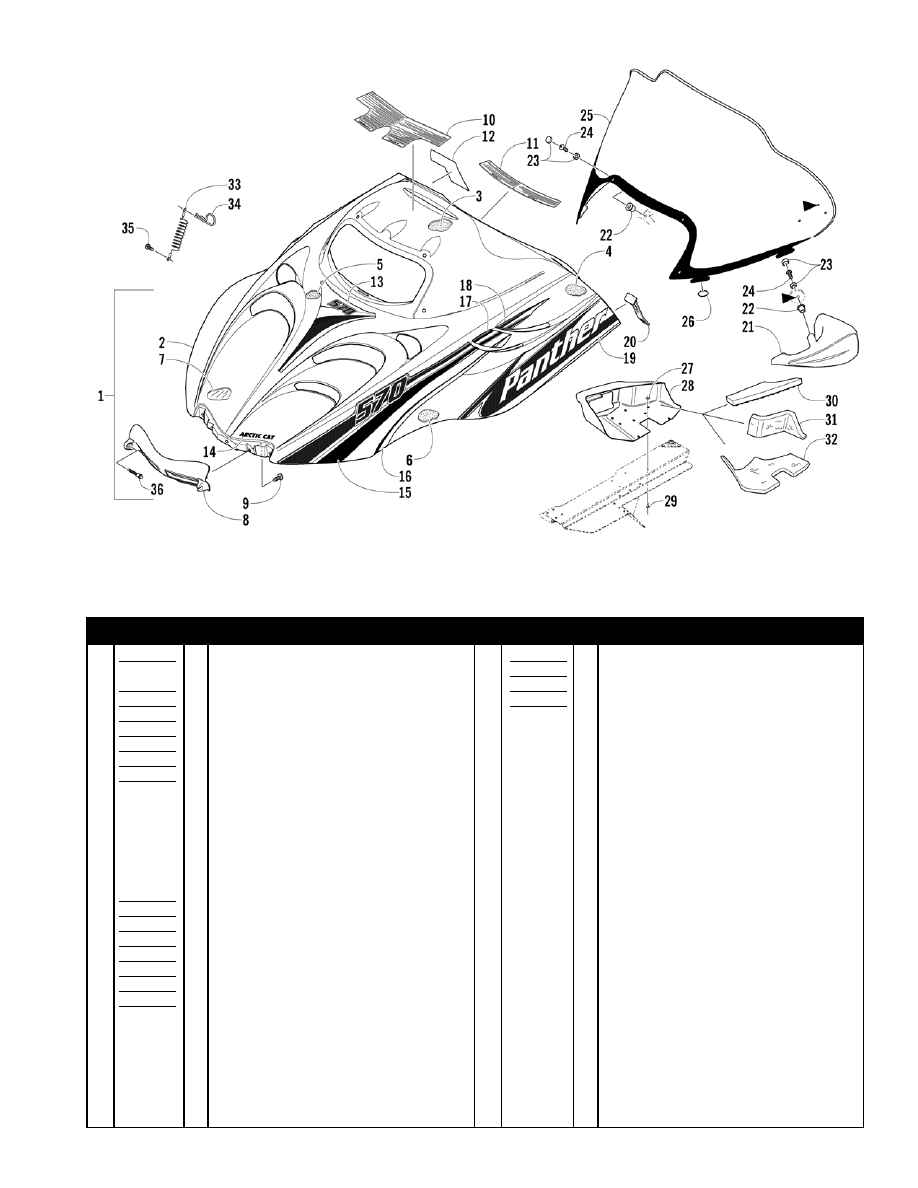

HOOD AND WINDSHIELD ASSEMBLY



0740-414

1 1718-889

1

Hood w/Decals - Black (inc. 2-19)

2 1718-555

1

‹ Hood w/o Decals - Black (inc. 3-12)

3 0617-478

1

‹ ‹ Foam, Hood - Upper Middle - Right

0617-479

1

‹ ‹ Foam, Hood - Upper Middle - Left

4 0617-476

1

‹ ‹ Foam, Hood - Upper Right

0617-505

1

‹ ‹ Foam, Hood - Upper Left

5 0617-475

1

‹ ‹ Foam, Hood - Middle

6 0617-326

1

‹ ‹ Foam, Hood - Rear - Right

0617-327

1

‹ ‹ Foam, Hood - Rear - Left

7 1606-938

1

‹ ‹ Foil, Hood - Right

1606-939

1

‹ ‹ Foil, Hood - Left

8 1606-720

1

‹ ‹ Hinge, Hood

9 0623-797

5

‹ ‹ Screw, Self-Tapping

10 3611-485

1

‹ ‹ Decal, Warning - General and Brake

11 3611-970

1

‹ ‹ Decal, Caution - Engine/Battery/Fuel

12 3611-580

1

‹ ‹ Decal, Reverse

13 6611-606

1

‹ Decal, Hood - Crest

14 6611-614

1

‹ Decal, “Arctic Cat” - Hood

15 6611-636

1

‹ Decal, Hood - Forward Right

6611-637

1

‹ Decal, Hood - Forward Left

16 6611-602

1

‹ Decal, Hood - Center Right

6611-603

1

‹ Decal, Hood - Center Left

17 6611-638

1

‹ Decal, Hood - Vent - Center Right

6611-639

1

‹ Decal, Hood - Vent - Center Left

18 6611-640

1

‹ Decal, Hood - Vent - Rear Right

6611-641

1

‹ Decal, Hood - Vent - Rear Left

19 6611-604

1

‹ Decal, Hood - Lower Right

6611-605

1

‹ Decal, Hood - Lower Left

20 1606-067

2

Strap, Hold-Down

21 2639-477

2

Kit, Mirror (inc. six No. 22-24)

22 0623-845

10 ‹ Nut, Expansion

23 0124-054

10 ‹ Snap Cap w/Washer

24 0623-902

10 ‹ Screw, Machine

25 2606-366

1

Windshield

26 0616-032

4

O-Ring

27 0123-802

4

Washer

28 2606-370

1

Duct, Air-Out

29 8060-508

4

Rivet

30 0617-427

1

Foam, Air-Out Duct - Top

31 0617-428

1

Foam, Air-Out Duct - Side

32 0617-425

1

Foam, Air-Out Duct - Bottom

33 2606-247

1

Cable, Hood

34 0623-805

1

Clip, Hairpin

35 0623-057

1

Screw, Self-Tapping

36 1623-016

2

Screw, Machine

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

18

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

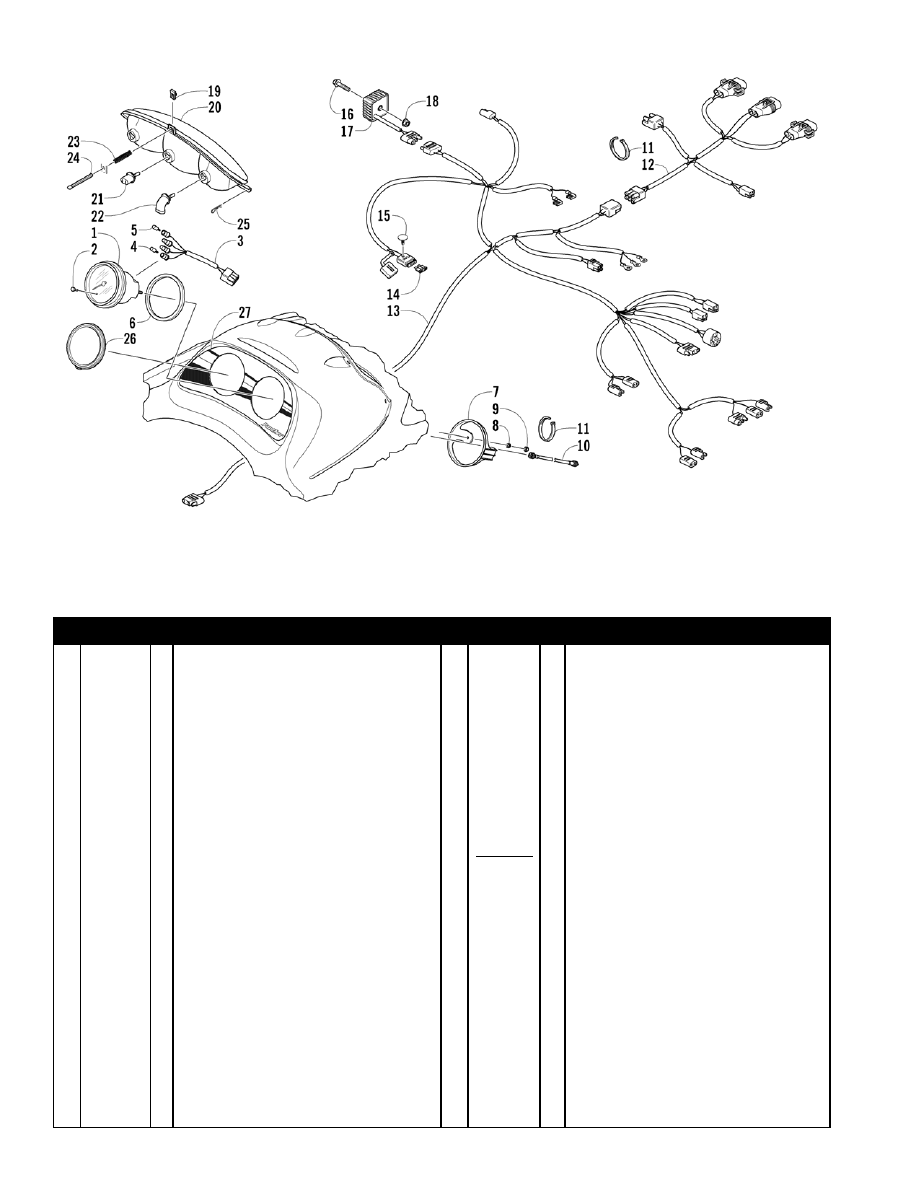

HEADLIGHT, INSTRUMENTS, AND WIRING ASSEMBLIES



0740-432 *Included in Hood w/Decals

1 0620-238

1

Speedometer (inc. 2-5)

0620-239

1

Speedometer (inc. 2-5) (International)

2 0620-073

1

‹ Knob, Tripmeter

3 0620-151

1

‹ Harness, Bulb - Speedometer (inc. 4-5)

4 0620-149

3

‹ ‹ Bulb, Indicator

5 0230-020

1

‹ ‹ Bulb, Instrument

6 0620-135

1

Ring, Rubber Cushion

7 0620-134

1

Ring, Retaining Bracket

8 8050-212

2

Washer

9 0623-038

2

Nut w/Washer

10 0620-269

1

Cable, Speedometer

11 0123-788 AR Cable Tie - 8 in.
12 0686-515

1

Harness, Hood

13 1686-085

1

Harness, Main (inc. 14)

14 0630-100

1

‹ Fuse

15 0623-589

1

Clip, Retaining

16 8020-045

1

Screw, Cap

17 0630-182

1

Regulator, Voltage

18 8048-366

1

Nut, Lock

19 0623-757

1

Nut, Speed

20 0609-250

1

Lens/Reflector - Headlight

21 0609-252

1

Bulb, Headlight - Low Beam

22 0609-251

2

Bulb, Headlight - High Beam

23 0623-466

1

Spring, Adjustment

24 0623-467

1

Screw, Thumb

25 0623-847

2

Clip, Hairpin

26 2606-069

1

Plug, Gauge Hole*

27 6611-607

1

Decal, Instrument - Hood*
