Snowmobile Arctic Cat Panther 570 (2006 year). Manual - part 3

2006 Panther 570

7

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

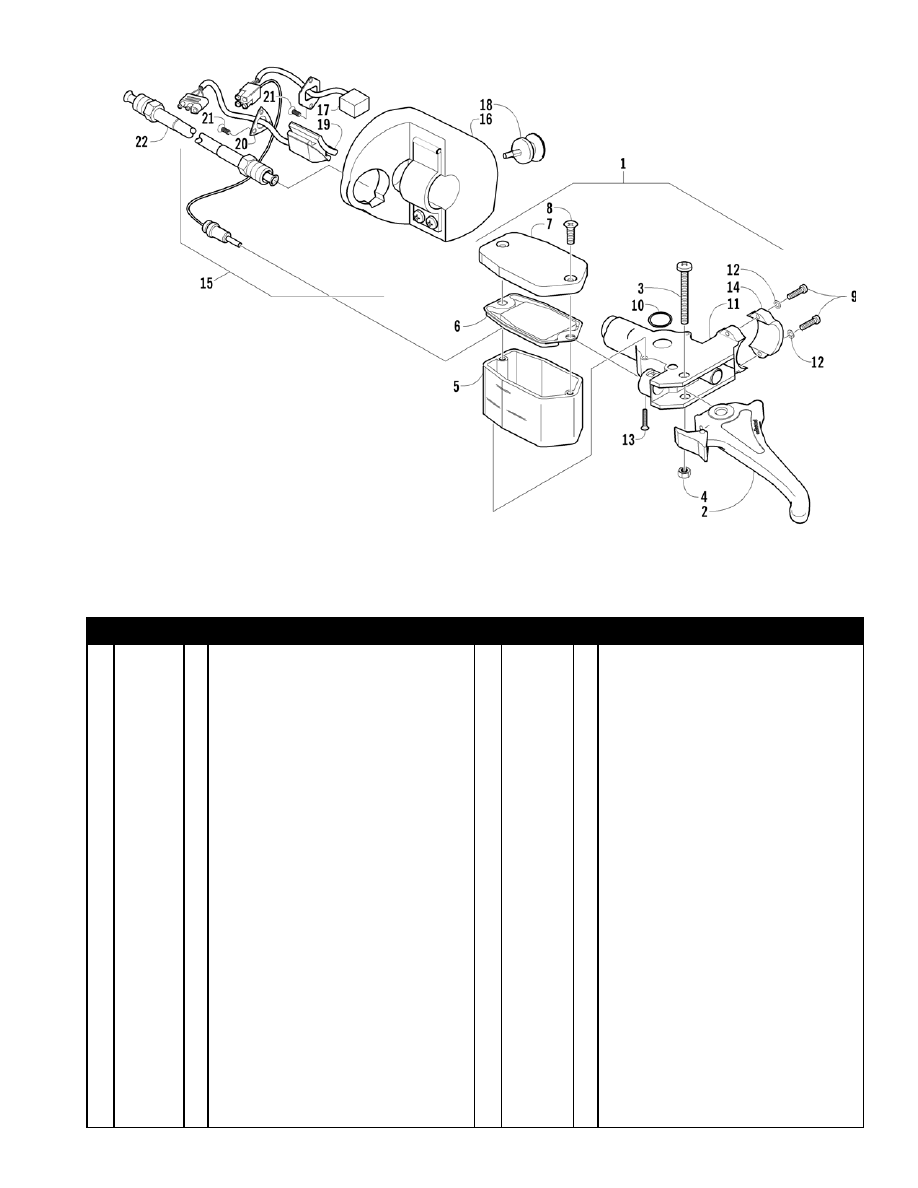

HYDRAULIC BRAKE CONTROL ASSEMBLY



0737-603  *Not a Service Part  **Not Illustrated

1 0602-943

1

Brake Assembly (inc. 2-14)

2 1602-740

1

‹ Lever, Brake

3 0623-430

1

‹ Screw, Lever Mounting

4 0623-056

1

‹ Nut, Lock

5 0602-740

1

‹ Reservoir

6 0602-741

1

‹ Gasket, Cover

7 0602-742

1

‹ Cover, Reservoir

8 0623-506

2

‹ Screw, Cover

9 0623-613

2

‹ Screw, Machine

10 0602-587

1

‹ O-Ring

11

*

1

‹ Master Cylinder

12 8052-212

2

‹ Washer, Lock - Internal Tooth

13 0623-432

2

‹ Screw, Master Cylinder Mounting

14 0602-907

1

‹ Clamp, Master Cylinder

** 0638-315 AR Fluid, Brake - High Temperature

15 0609-407

1

Control, Dimmer - Assembly (inc. 16-21)

16 0609-480

1

‹ Housing, Dimmer Control

17 0609-267

1

‹ Switch, Dimmer and Brake - Assembly

18 0609-474

1

‹ Knob, Dimmer Switch

19 0609-385

1

‹ Switch, HI/LO Handwarmer - Assembly

(inc. 20 and three No. 21)

20 0609-378

1

‹ ‹ Plate, Cover

21 0609-312

7

‹ ‹ Screw, Self-Tapping

22 1602-488

1

Brakeline, Hydraulic

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

8

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

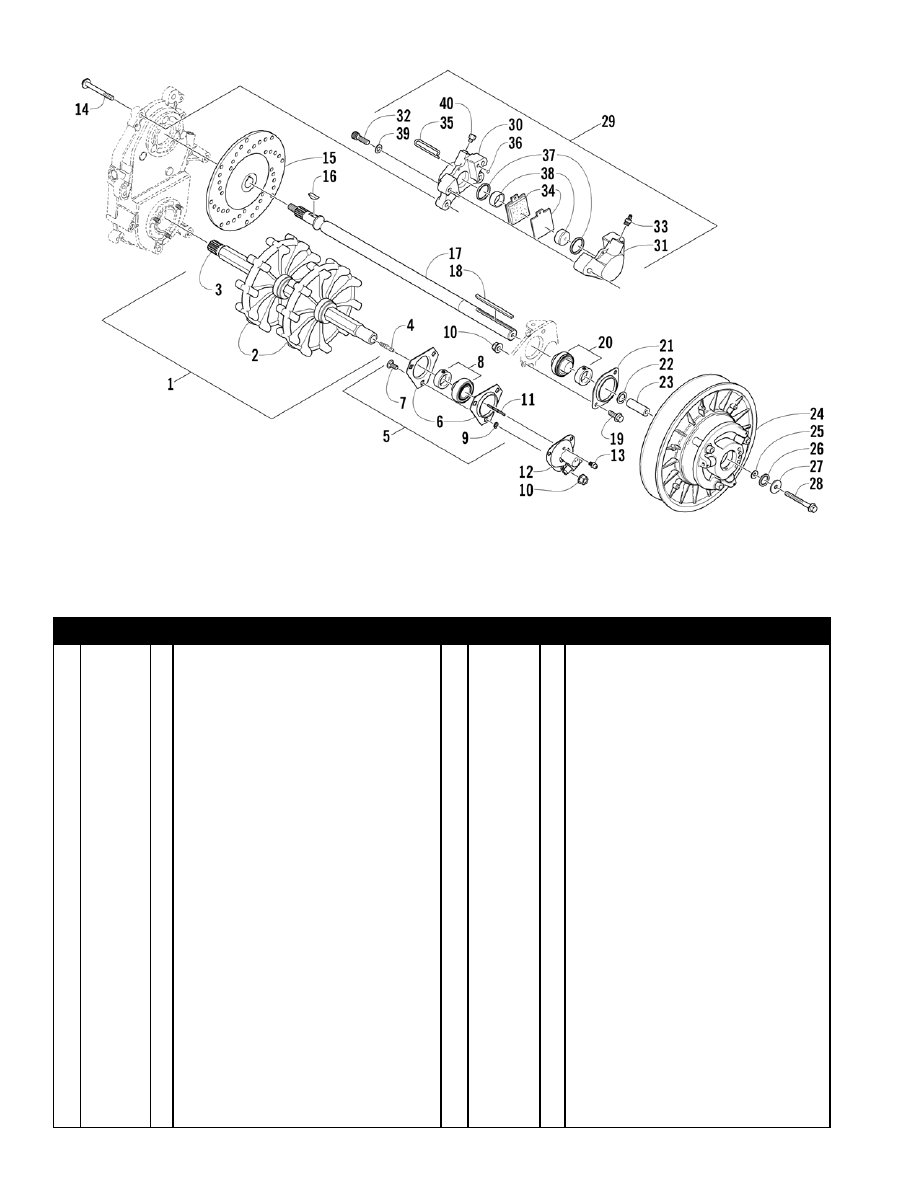

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES



0738-426 * Not a Service Part

1 0728-105

1

Track Drive Assembly (inc. 2-4)

2 1602-507

2

‹ Sprocket, Drive

3 0602-487

1

‹ Driveshaft

4 0120-247

1

‹ Bushing, Drive

5 0702-476

1

Plate, Flange - Bearing Assembly

(inc. 6-9)

6 0602-198

2

‹ Plate, Flange

7 8011-130

3

‹ Bolt, Carriage

8 1602-375

1

‹ Bearing, 1 in. w/Lock Collar

9 0623-810

3

‹ Ring, Solder

10 8048-426

5

Nut, Lock

11 0602-154

1

Cable, Adapter

12 0720-005

1

Adapter, Drive (inc. 13)

13 0104-062

1

‹ Fitting, Grease

14 8020-315

2

Screw, Cap

15 1602-205

1

Disc, Brake

16 0602-598

1

Key

17 0702-266

1

Shaft, Driven

18 0101-076

1

Key

19 8020-132

2

Screw, Cap

20 1602-099

1

Bearing, 1 in. w/Lock Collar -

Re-Lubricative

21 0602-892

1

Plate, Flange

22 0623-118 AR Washer

0623-119 AR Washer

23 0648-066

1

Shaft, Stub

24 0726-162

1

Clutch, Driven

25 0123-053 AR Washer
26 0123-578 AR Washer
27 0123-019

1

Washer

28 8020-142

1

Screw, Cap

29 0602-829

1

Caliper, Brake - Assembly (inc. 30-40)

30

*

1

‹ Housing

31

*

1

‹ Housing

32 8005-677

2

‹ Screw, Cap

33 0602-707

1

‹ Screw, Bleed - Assembly

34 0702-229

1

‹ Pad, Brake - Set (inc. 35)

35 0602-706

1

‹ ‹ Pin, Retaining

36 0602-729

1

‹ O-Ring, Housing

37 0602-583

2

‹ O-Ring

38 0602-708

2

‹ Piston

39 8050-272

2

‹ Washer

40 0602-590

1

‹ Fitting, Adapter

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

9

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

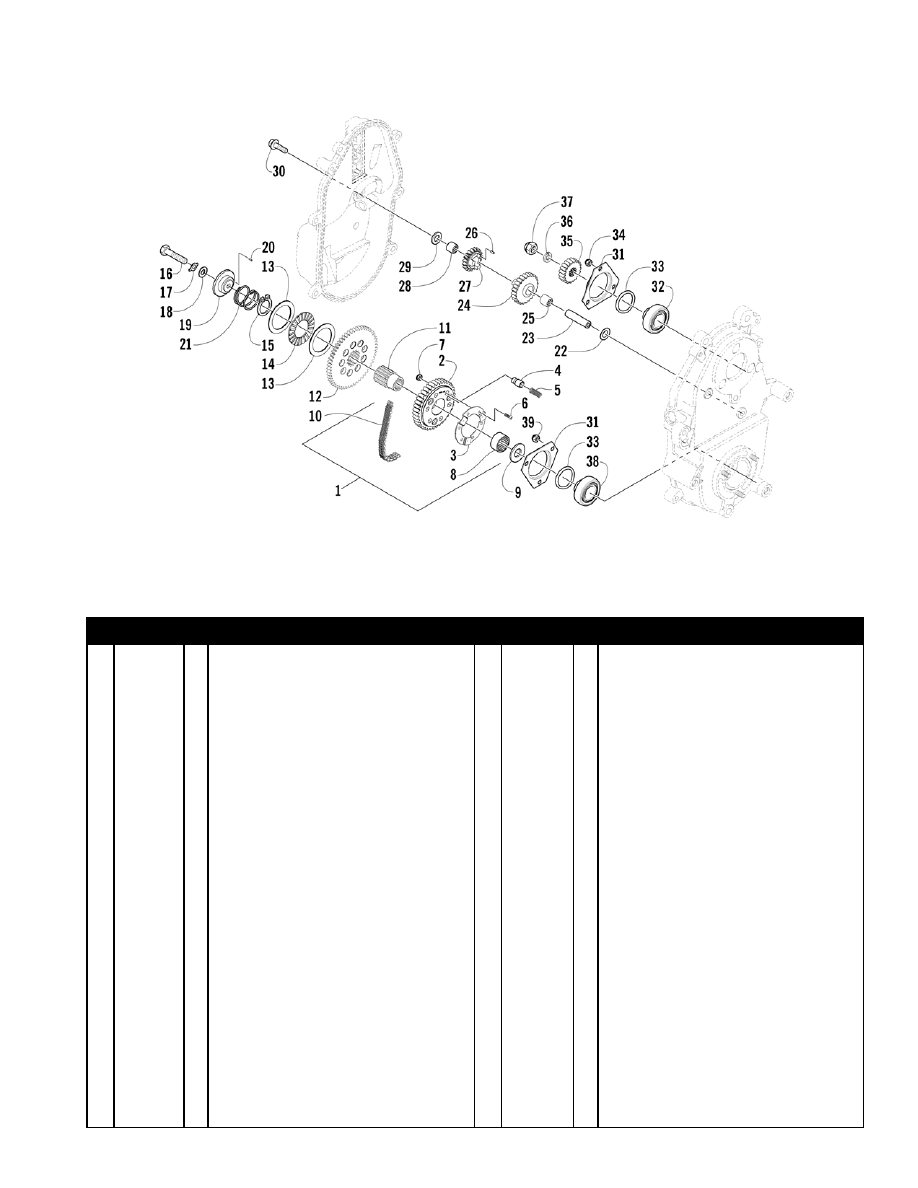

DRIVE/REVERSE DROPCASE ASSEMBLY

0738-421  *Not a Service Part

1 0702-170

1

Sprocket Assembly - 39T (inc. 2-8)

2

*

1

‹ Sprocket

3 0602-144

1

‹ Retainer, Spring

4 0602-133

3

‹ Pin, Slip

5 0602-138

3

‹ Spring, Compression

6 0623-182

6

‹ Screw, Cap

7 0123-430

6

‹ Nut, Lock

8 0602-016

1

‹ Bearing

9 0602-012

1

Spacer, Shaft

10 1602-041

1

Chain - 70P

11 1602-048

1

Extension, Driveshaft

12 0702-048

1

Gear, Reverse - 55T (inc. 13-15)

13 0602-023

2

‹ Washer, Thrust

14 0602-022

1

‹ Bearing, Thrust

15 0602-024

1

‹ Ring, Retaining

16 8002-231

1

Screw, Cap

17 1602-046

1

Washer, Tab Lock

18 8050-272

1

Washer

19 0702-372

1

Retainer, Shaft (inc. 20)

20 8070-153

1

‹ Pin, Spring

21 0602-028

1

Spring, Return

22 0602-215

1

Spacer, Reverse Idler

23 0602-094

1

Shaft, Reverse

24 0702-260

1

Idler, Reverse - Assembly - 24T (inc. 25)

25 0602-018

1

‹ Bearing

26 0602-366

1

Aligner, Idler - Pin

27 0702-366

1

Idler, Reverse - Assembly - 19T (inc. 28)

28 1602-045

1

‹ Bearing

29 1602-044

1

Washer, Thrust

30 8020-130

1

Screw, Cap

31 1602-521

2

Plate, Flange

32 1602-052

1

Bearing, 7/8 in.

33 0107-003

2

O-Ring

34 8041-426

3

Nut, Lock

35 0602-444

1

Sprocket - 19T

36 0623-231

1

Washer, Spring

37 0623-465

1

Nut, Lock

38 1602-051

1

Bearing, 1 in.

39 8040-426

3

Nut, Lock

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

10

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

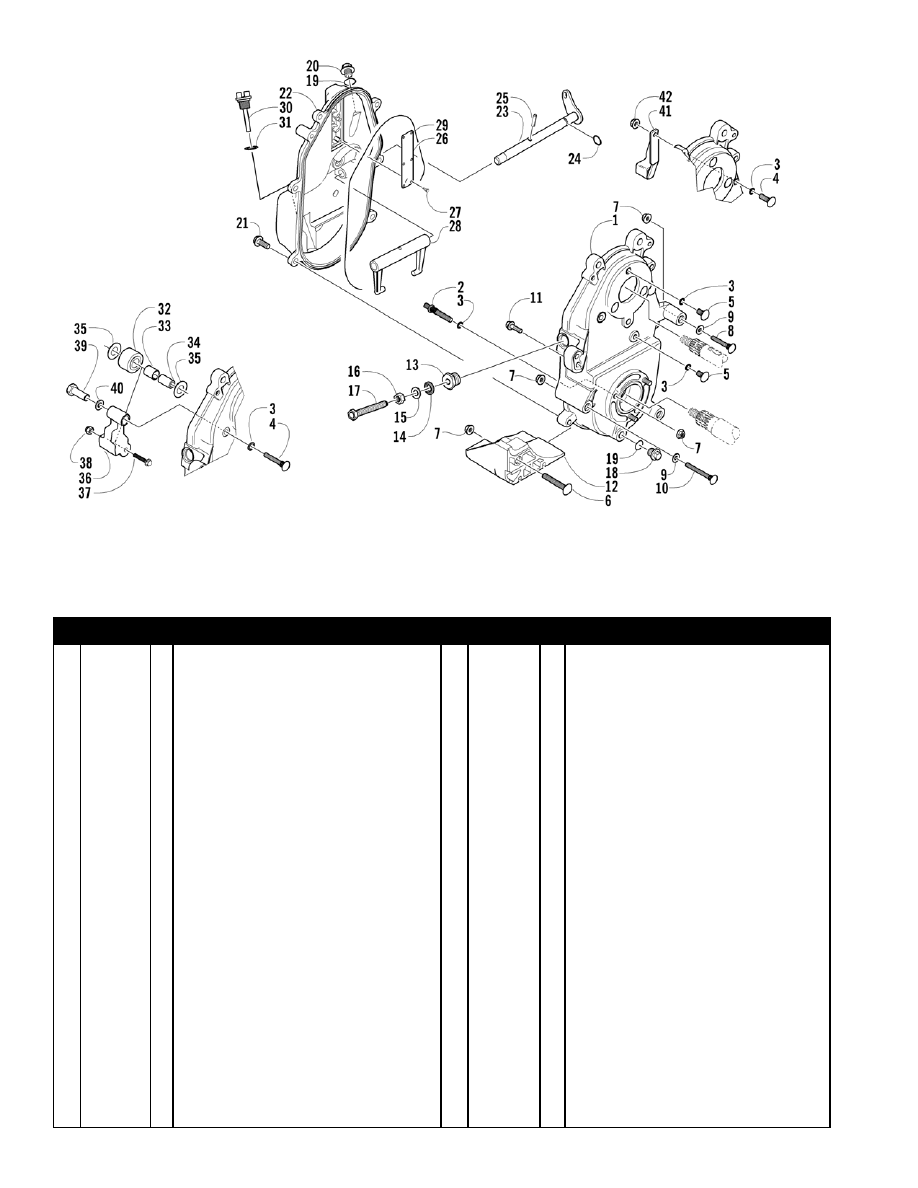

DROPCASE AND CHAIN TENSION ASSEMBLY



0738-458

1 0702-420

1

Dropcase w/Studs (inc. 2-5)

2 0623-317

3

‹ Stud, Ribbed

3 0607-025

9

‹ O-Ring, Stud

4 0623-117

2

‹ Bolt, Ribbed

5 0123-523

4

‹ Bolt, Ribbed

6 8011-135

1

Bolt, Carriage

7 8047-426

7

Nut, Lock

8 8011-139

2

Bolt, Carriage

9 8050-247 AR Washer

10 8011-143

1

Bolt, Carriage

11 8020-135

1

Screw, Cap

12 0616-964

1

Guard, Dropcase

13 0602-876

1

Adapter, Manual Adjust

14 0623-905

1

Seal, Chain Adjuster

15 8050-272

1

Washer

16 0123-150

1

Nut

17 1602-101

1

Adjuster, Chain

18 0602-479

1

Plug, Drain - Magnetic

19 1602-213

3

O-Ring

20 0623-293

2

Plug, Drain

21 8020-134

5

Screw, Cap

22 0702-442

1

Cover, Dropcase

23 0702-350

1

Shaft, Shift Fork

24 0602-021

1

Seal, O-Ring

25 0623-542

1

Pin, Spring

26 1602-151

1

Cover, Oil Vent

27 0623-081

6

Screw, Self-Tapping

28 0602-085

1

Fork, Shift

29 0602-437

1

Seal, Dropcase

30 0602-483

1

Stick, Oil Level

31 0670-183

1

O-Ring, Oil Level Stick

32 0702-129

1

Roller, Chain Tightener (inc. 33)

33 0602-383

1

‹ Bearing, Chain Tightener

34 0602-676

1

Shaft, Chain Roller

35 0623-525

2

Washer

36 0602-675

1

Arm, Chain Roller

37 8002-045

1

Screw, Cap

38 0623-122

1

Nut, Lock

39 0602-681

1

Nut, Roller Arm

40 8050-222

1

Washer

41 0702-553

1

Bracket, Chain Backing

42 8048-366

1

Nut, Lock
