Snowmobile Arctic Cat Panther 570 (2006 year). Manual - part 2

2006 Panther 570

3

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

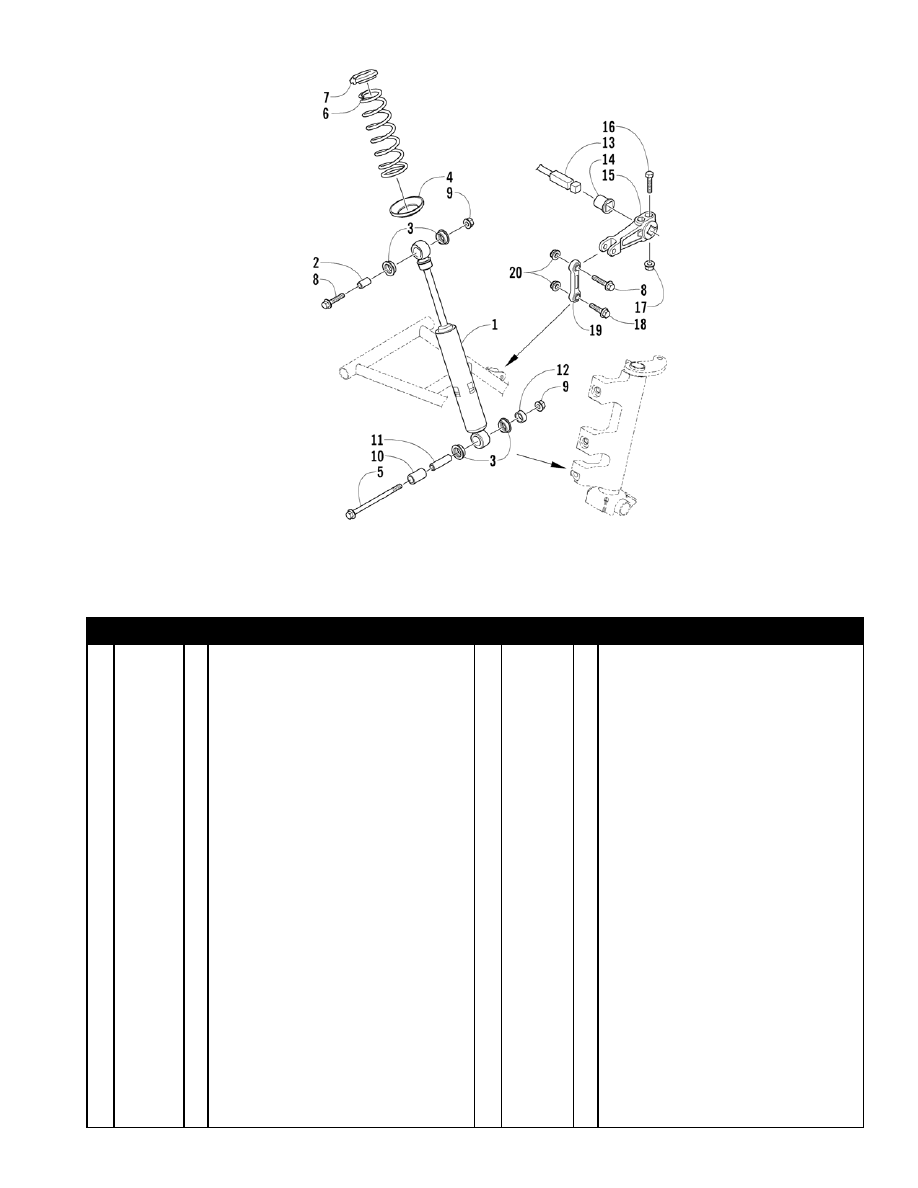

SHOCK ABSORBER AND SWAY BAR ASSEMBLY



0741-021

1 1603-253

2

Shock, Front Suspension (inc. 2-3)

2 0604-309

2

‹ Sleeve, Shock

3 0604-310

8

‹ Bushing, Shock

4 0603-900

2

Retainer, Spring - Shock

5 8020-234

2

Screw, Cap

6 1703-665

2

Spring, Compression - Red

7 1603-889

2

Retainer, Spring

8 8020-226

4

Screw, Cap

9 8048-486

6

Nut, Lock

10 0603-854

2

Spacer, Shock

11 1604-184

2

Sleeve, Shock

12 0603-855

2

Spacer, Shock

13 1703-618

1

Sway Bar

14 0603-151

2

Bearing, Sway Bar

15 2603-307

2

Arm, Sway Bar

16 8002-137

4

Screw, Cap

17 8047-426

4

Nut, Lock

18 8020-225

2

Screw, Cap

19 1603-414

2

Link, Sway Bar

20 8047-486

2

Nut, Lock

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

4

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

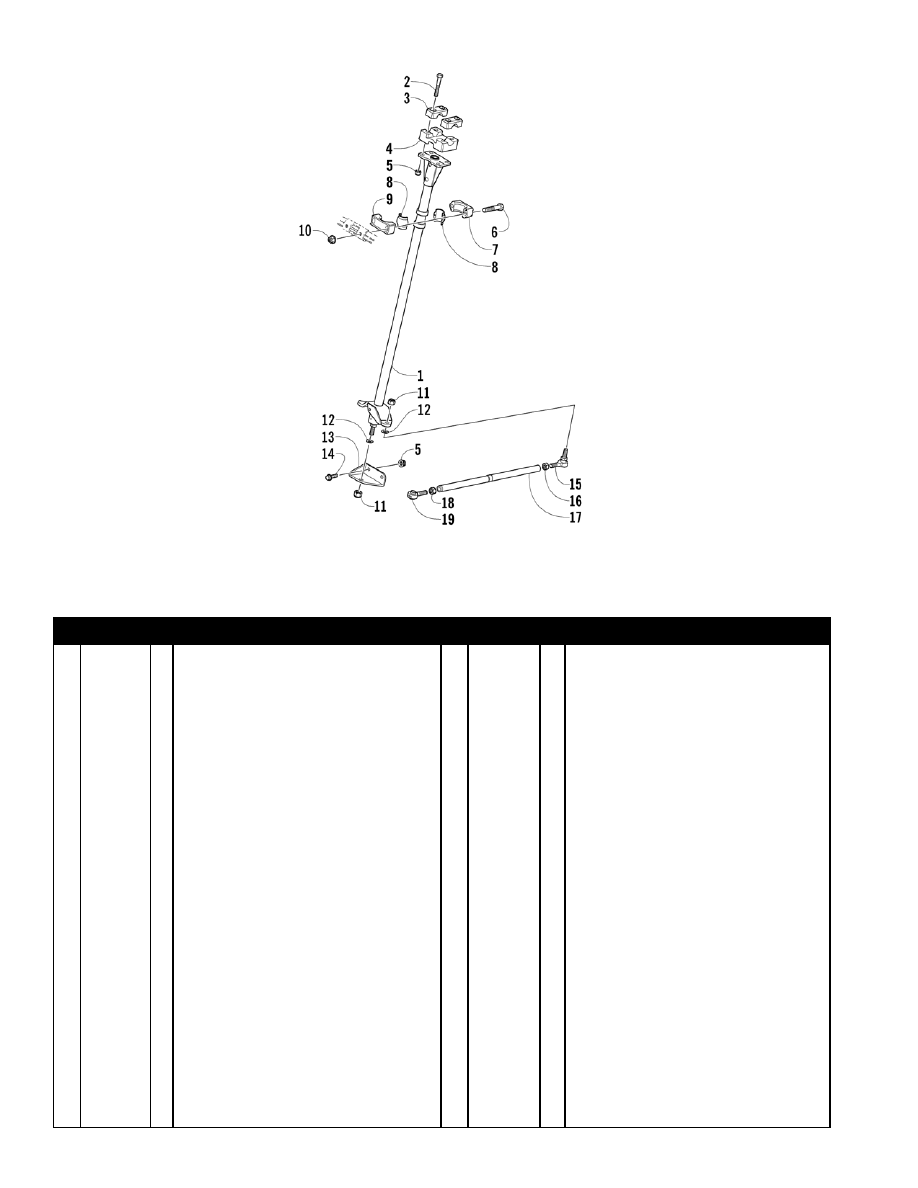

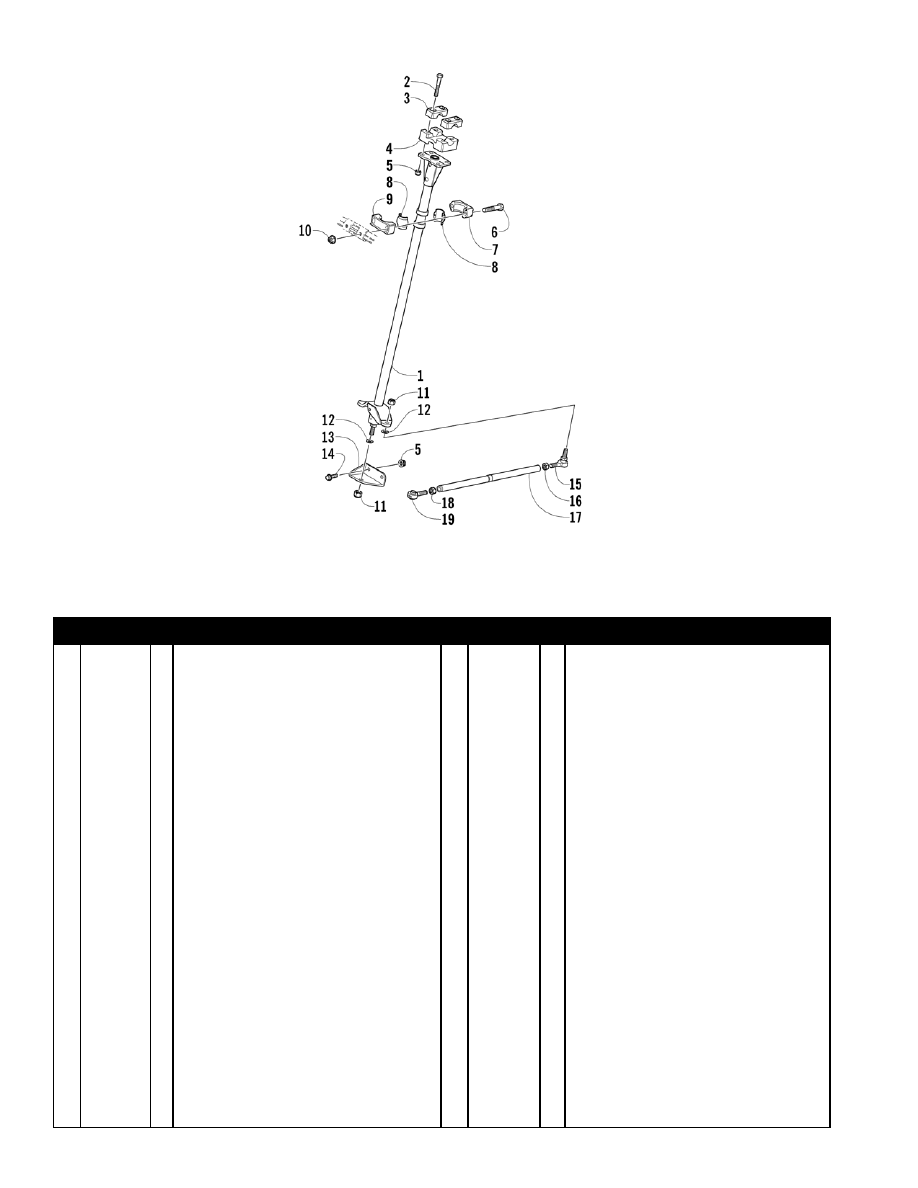

STEERING POST ASSEMBLY



0738-352

1 0705-837

1

Post, Steering

2 8002-137

4

Screw, Cap

3 0605-506

2

Cap, Adjusting Block

4 0605-507

1

Block, Adjusting

5 8048-426

6

Nut, Lock

6 0623-814

2

Screw, Cap

7 0605-406

1

Cap, Bearing Housing

8 0405-020

2

Bearing, Half

9 0605-147

1

Housing, Bearing

10 8048-366

2

Nut, Lock

11 0623-025

2

Nut, Lock

12 0623-044

2

Washer

13 0705-407

1

Plate, Backing

14 8020-130

2

Screw, Cap

15 0605-423

1

Ball Joint, Steering - Left

16 0123-917

1

Nut, Hex - Left

17 0605-626

1

Tube, Tie Rod

18 0623-294

1

Nut, Hex - Right

19 0605-504

1

Ball Joint, Tie Rod - Right

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

5

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

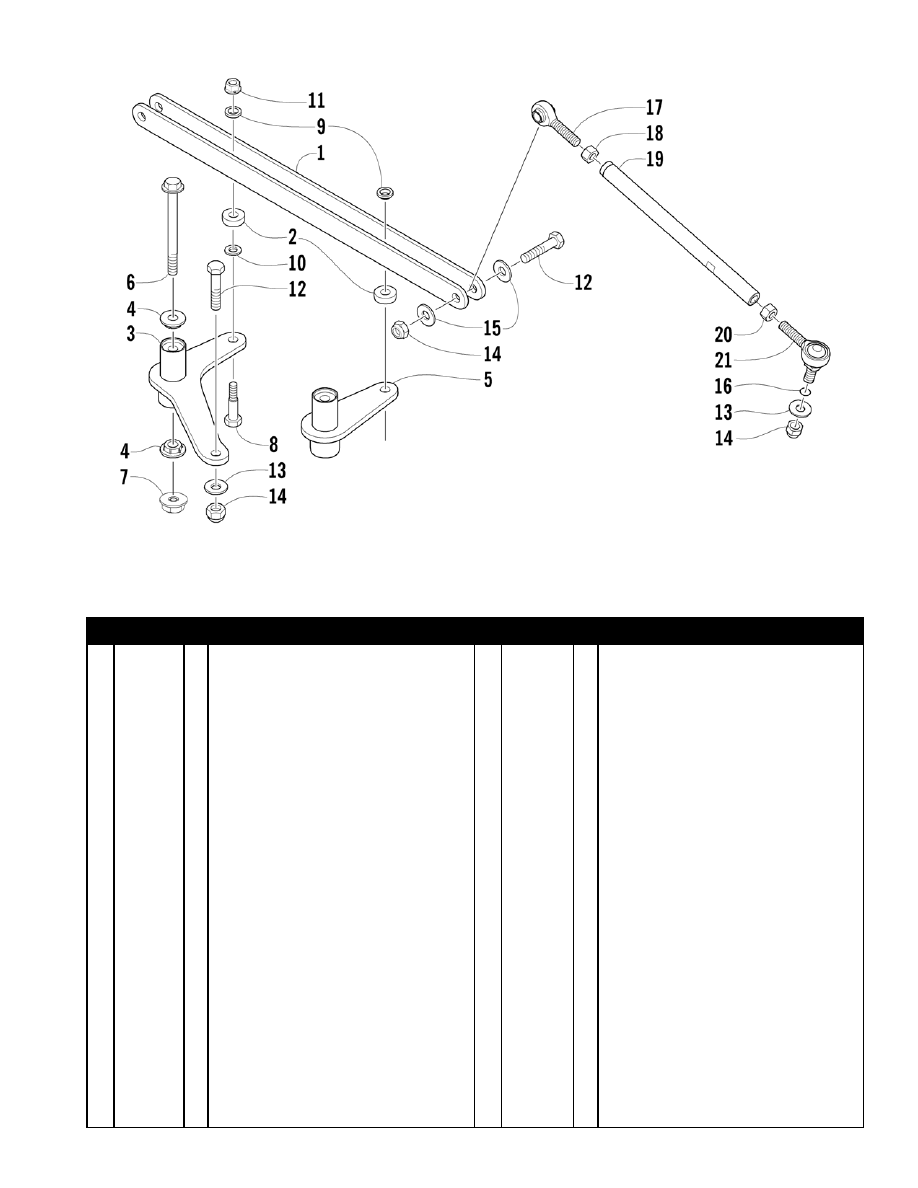

TIE ROD ASSEMBLY



0738-354

1 0705-370

1

Drag Link (inc. 2)

2 0605-541

2

‹ Bearing

3 1705-058

1

Arm, Steering - Assembly

4 0605-540

4

Insert

5 1705-060

1

Arm, Steering - Idler - Assembly

6 8020-234

2

Screw, Cap

7 8048-486

2

Nut, Lock

8 0623-920

2

Screw, Cap

9 0605-522

2

Axle, Drag Link

10 8050-272

2

Washer

11 8048-426

2

Nut, Lock

12 8004-226

3

Screw, Cap

13 0623-044

3

Washer

14 0623-025

5

Nut, Lock

15 8050-277

4

Washer

16 0605-014

2

O-Ring

17 0605-504

2

Ball Joint, Tie Rod - Right

18 0623-294

2

Nut, Hex - Right

19 0605-312

2

Tube, Tie Rod - Spindle

20 0123-917

2

Nut, Hex - Left

21 0605-511

2

Ball Joint, Steering - Left

Parts available from    www.Worldofpowersports.com     217-233-1245

2006 Panther 570

6

Ref. Part No. Qty. Description

Ref. Part No.

Qty. Description

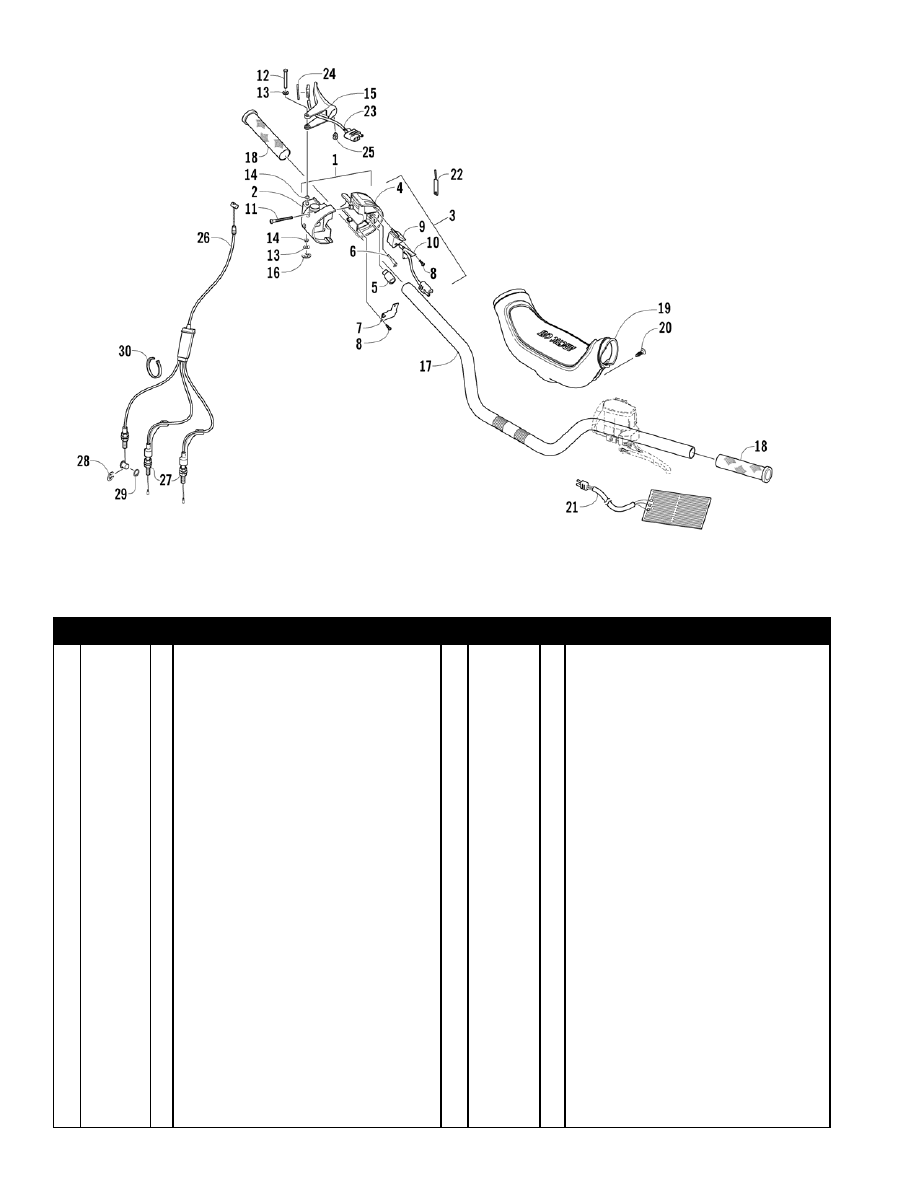

HANDLEBAR AND CONTROLS



0739-628

1 0609-483

1

Control, Throttle (High/Low) (inc. 2-10)

2 0609-493

1

‹ Control, Throttle - Stop Switch Half

3 0609-499

1

‹ Control, Throttle - Thumbwarmer

Assembly Half (High/Low) (inc. 4-10)

4 0609-494

1

‹ ‹ Control, Throttle - Thumbwarmer

(High/Low) w/o Components

5 0609-497

1

‹ ‹ Plug, Rubber

6 0609-498

1

‹ ‹ Clip, Retaining - Throttle Cable

7 0609-496

1

‹ ‹ Plate, Cover

8 0609-312

7

‹ ‹ Screw, Self-Tapping

9 0609-384

1

‹ ‹ Switch, Thumbwarmer Assembly (High/

Low) (inc. three No. 8 and 10)

10 0609-378

1

‹ ‹ ‹ Plate, Cover

11 0609-492

2

Screw, Machine

12 0609-317

1

Axle, Lever - Throttle

13 0609-036

2

Washer

14 0609-501

2

Washer, Shoulder - Throttle

15 0609-363

1

Lever, Throttle

16 0609-040

1

Ring, Retaining

17 0705-361

1

Handlebar

18 2606-084

2

Grip, Handlebar

19 0616-995

1

Pad, Handlebar

20 0623-128

4

Screw, Self-Tapping

21 0609-684

2

Element, Handwarmer

22 1639-963

1

Tool, Removal - Kit - Throttle Cable

23 0609-685

1

Element, Thumbwarmer

24 0617-248

1

Pad, Insulator

25 0623-262

1

Clip, Wire

26 0687-183

1

Cable, Throttle (inc. 27)

27 0623-464

2

‹ Nut, Locking - Throttle Cable

28 0124-057

1

E-Ring

29 0124-056

1

Washer

30 0123-788 AR Cable Tie - 7 in.
