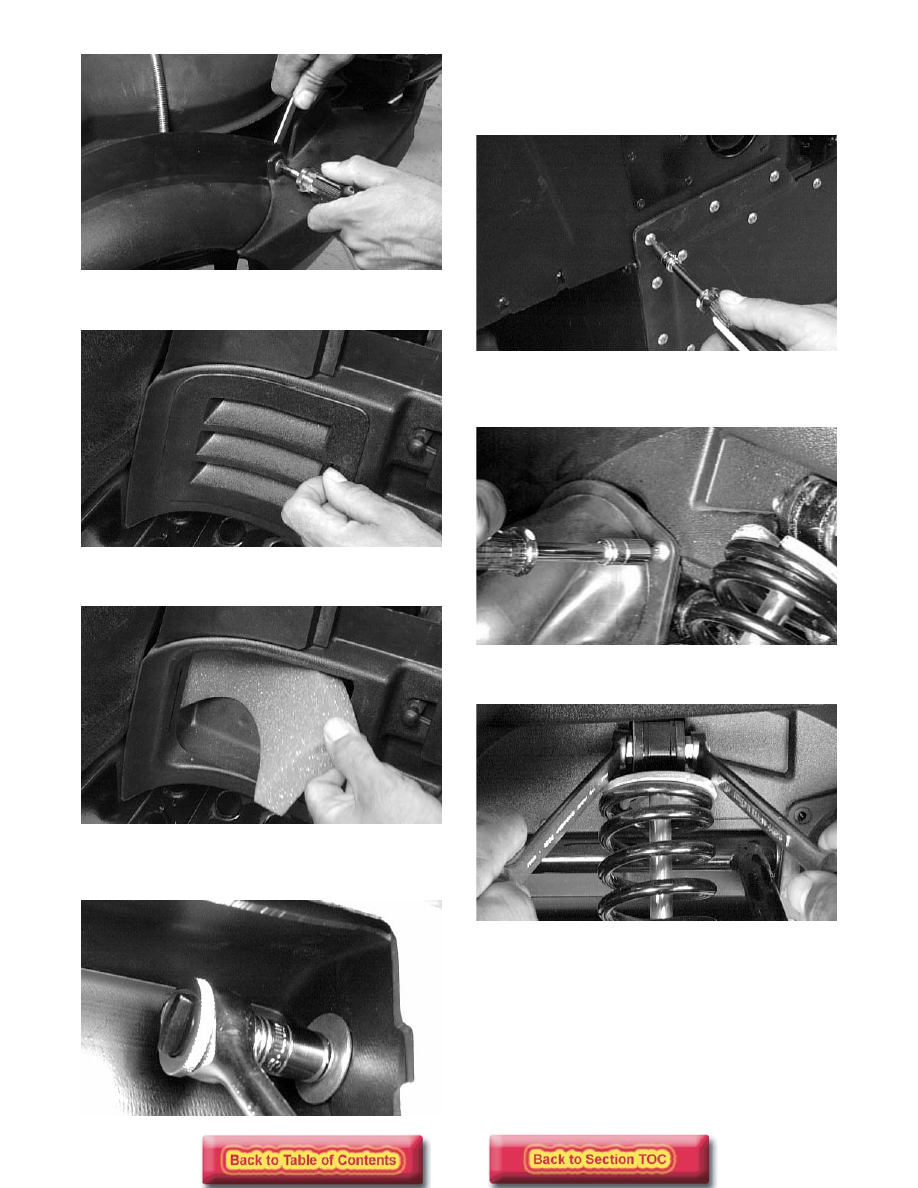

7-40

AL183D

2. Remove the right-side louver.

AL184D

3. Remove the right-side louver foam.

AL185D

4. Remove the right-side cap screws securing the

bumper to the air-intake silencer plenum.

AL186D

5. Using a piece of cardboard to protect the finish, tip

the snowmobile on the left side; then remove the
right-side belly pan torx-head screws from the
center belly pan and tunnel.

AL188D

6. Remove the screws securing the right-side steering

tie rod boot; then remove the boot.

AL190D

7. Remove the shock absorber.

AL178D

8. Remove the belly pan torx-head screws under-

neath the shock mount.

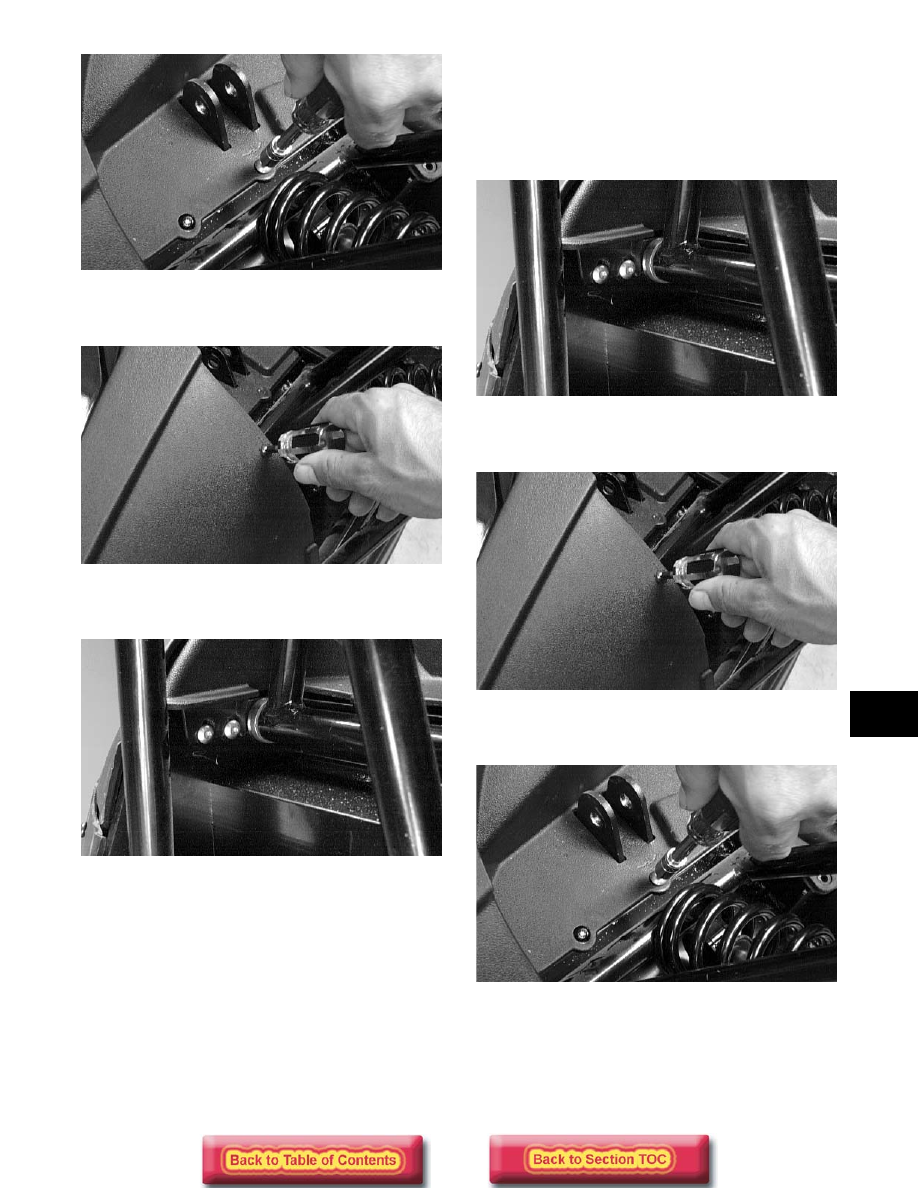

7-41

7

AL179D

9. Remove the front belly pan-to-nosepiece Phillips-

head screw.

AL181D

10. Remove the front belly pan-to-nosepiece torx-

head screws.

AL182D

11. Remove the belly pan from the frame.

INSPECTING RIGHT-SIDE

1. Inspect for gouges, cuts, and tears.

2. Inspect all belly pan threaded bosses that they are

in good shape.

INSTALLING RIGHT-SIDE

1. Place the belly pan assembly in position in the

frame.

2. Install the nosepiece torx-head screws to the front

belly pan.

AL182D

3. Install the nosepiece Phillips-head screw to the

front belly pan.

AL181D

4. Install the belly pan torx-head screws underneath

the shock mount.

AL179D

5. Install the shock absorber. Tighten to 2.8 kg-m

(20 ft-lb).

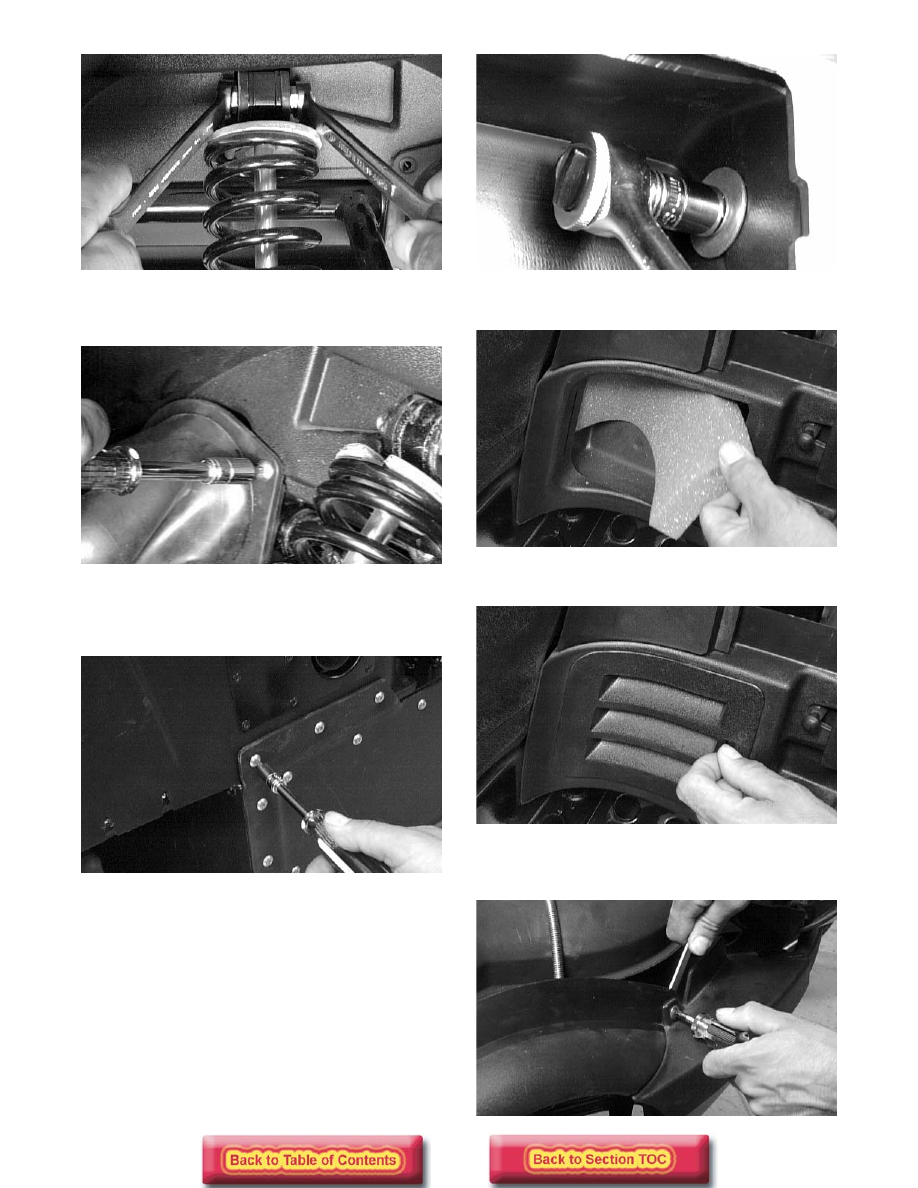

7-42

AL178D

6. Install the right-side steering tie rod boot. Secure

with the screws.

AL190D

7. Install the right-side belly pan torx-head screws to

the center belly pan and tunnel; then return the
snowmobile to an upright position.

AL188D

8. Install the right-side cap screws securing the

bumper to the air-intake silencer plenum.

AL186D

9. Insert the right-side louver foam.

AL185D

10. Install the right-side louver.

AL184D

11. Install the right-side front belly pan cap screw,

washer, and lock nut.

AL183D

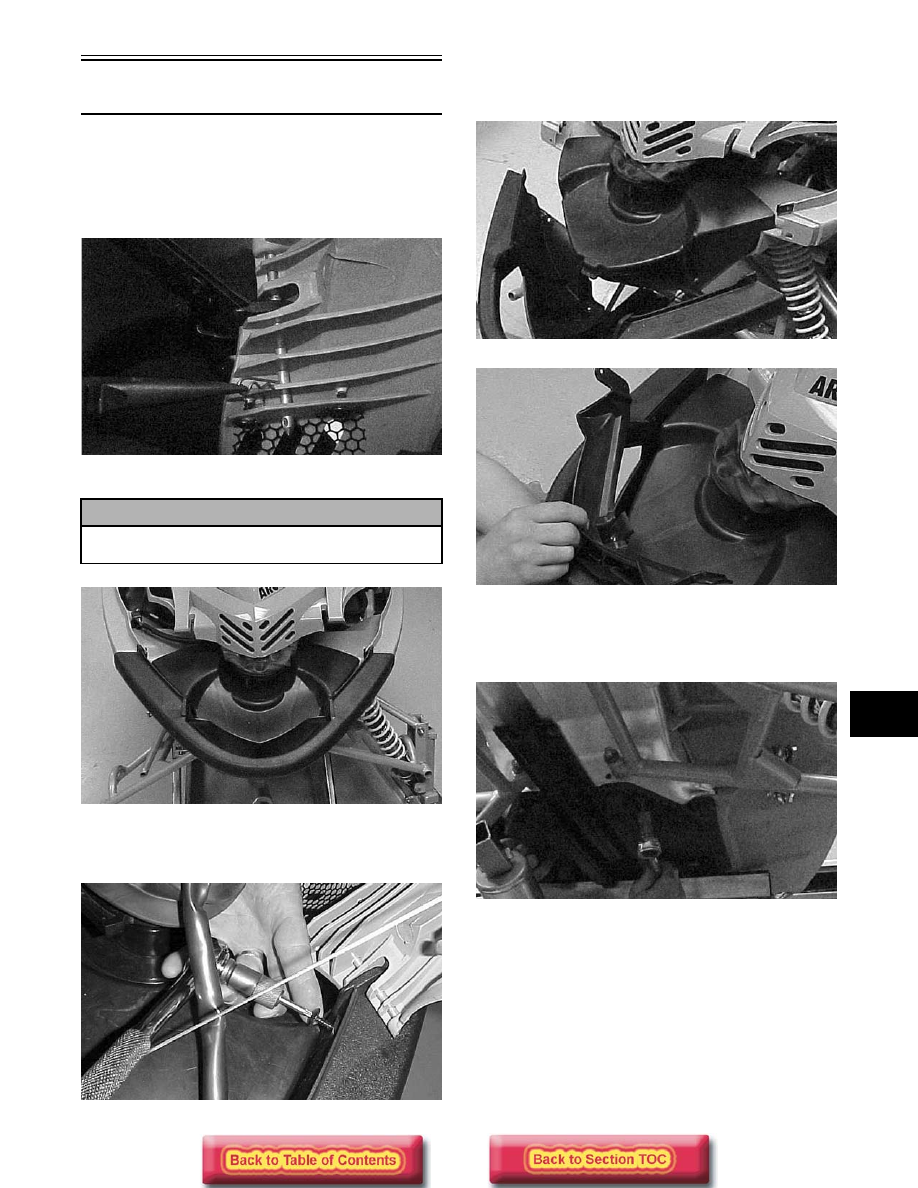

7-43

7

Belly Pan

(AWS VI)

REMOVING

1. Remove the hairpin clips from the hood pins; then

remove the pins securing the hood to the front
bumper.

FC219

FC220

2. Remove the three torx-head screws securing the

air silencer to the front bumper.

FC217

3. Remove the remaining torx-head screws securing

the front bumper. Account for the center belly pan
screen.

FC221

FC222

4. Remove the 10 torx-head screws securing the rear

belly pan to the frame. Note the location of
different-length screws for installing purposes.

FC224

5.  Remove the rear belly pan.

! CAUTION

To avoid damage to the hood, carefully close it
and rest it on the handlebar.
