4-27

4

3. Route the throttle cable from the carburetor to the

throttle switch assembly making sure it snaps into
place.

4. Install the throttle cable on the throttle lever.

5. Install the handlebar pad and console.

6. Install the throttle cable into the throttle lever shaft

pulley.

7. Install the throttle cable into the bracket; then

adjust the jam nut to attain no free-play between
the throttle lever and the control housing.

„

NOTE: There must be no free-play between the

lever and the control housing.

8. Synchronize the oil-injection pump (see Related

Items sub-section).

9. Install the drive belt; then close and secure the belt

guard.

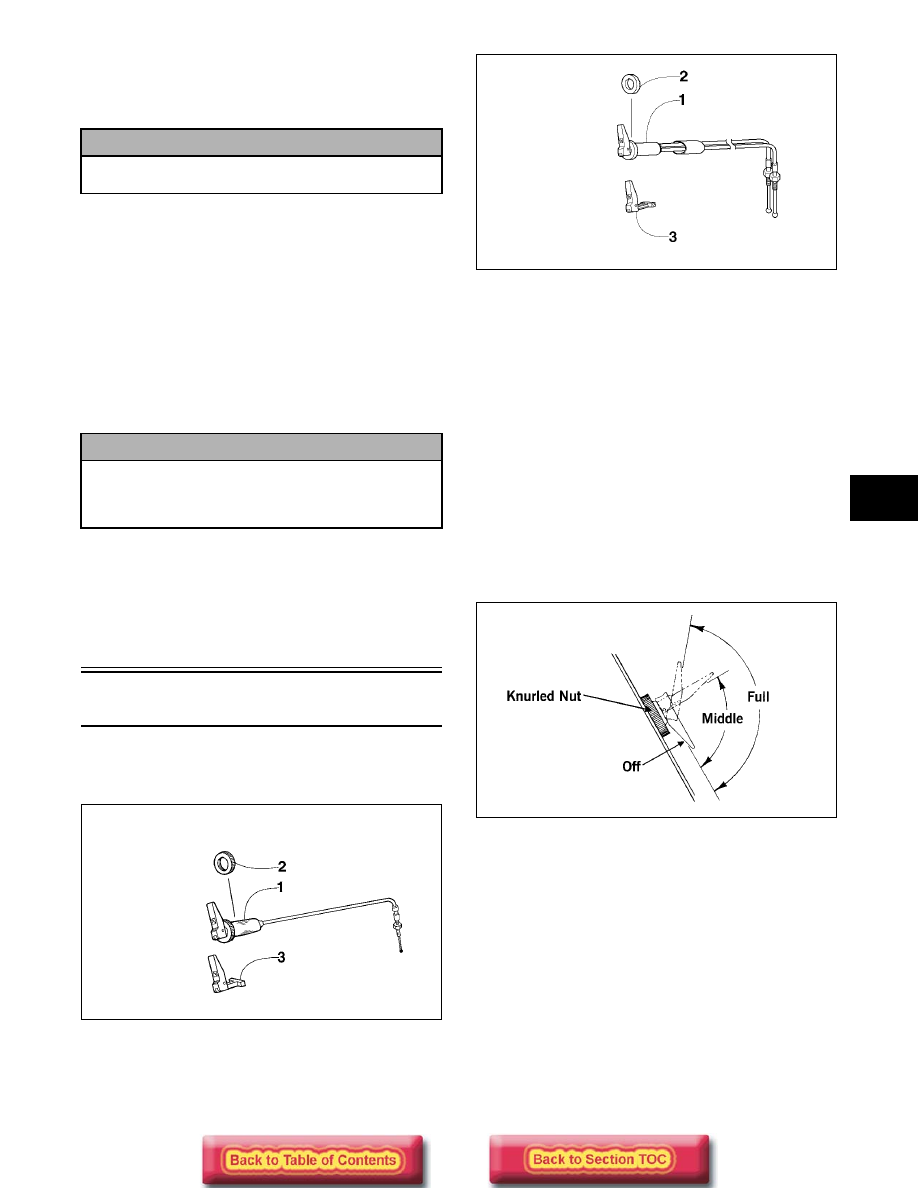

Choke Cable

(VM-Style)

„

NOTE: Determine which type of cable is being

replaced and remove and install accordingly.

737-490A

736-596A

REMOVING

1. Bend down the lock tabs locking each brass choke

cable housing on each carburetor.

2. Using a 12-mm wrench, remove each brass choke

cable housing from each carburetor. Account for
the lock tab washers.

3. Remove each brass plunger and spring from the

cable end; then remove each brass choke cable
housing.

4. Remove the screws securing the console.

5. Position the choke lever in the middle-choke

position; then remove the knurled nut securing the
choke lever housing to the console.

725-001A

6. Slide the choke lever housing from the console.

7. Cut any cable ties used to secure the choke cable

and remove the choke cable from the engine
compartment.

INSTALLING

1. Position the choke lever in the middle-choke

position; then from the back side of the console,
insert the choke lever housing through the console.
Secure with the knurled nut.

2. Route the choke cable from the console to each

carburetor; avoid any sharp bends or moving parts.

! CAUTION

Avoid any sharp bends and hot or moving
components or damage may occur.

! CAUTION

Compress the throttle control lever to ensure
free movement. If the throttle cable sticks or
binds, correct the problem before starting the
engine.

KEY

1. Choke Cable
2. Knurled Nut
3. Choke Lever Kit

KEY

1. Choke Cable
2. Knurled Nut
3. Choke Lever Kit

4-28

3. Install each brass choke cable housing onto the

cable end; then install each spring and brass
plunger.

4. Place the lock tab washer on each brass housing

and insert a choke plunger into each carburetor.

5. Thread each brass choke cable housing into each

carburetor and tighten. Bend the lock tab up to
secure the brass housing. Adjust the choke cable
(see appropriate Adjusting Carburetors in this sub-
section).

6. Place the console into position and secure with the

screws.

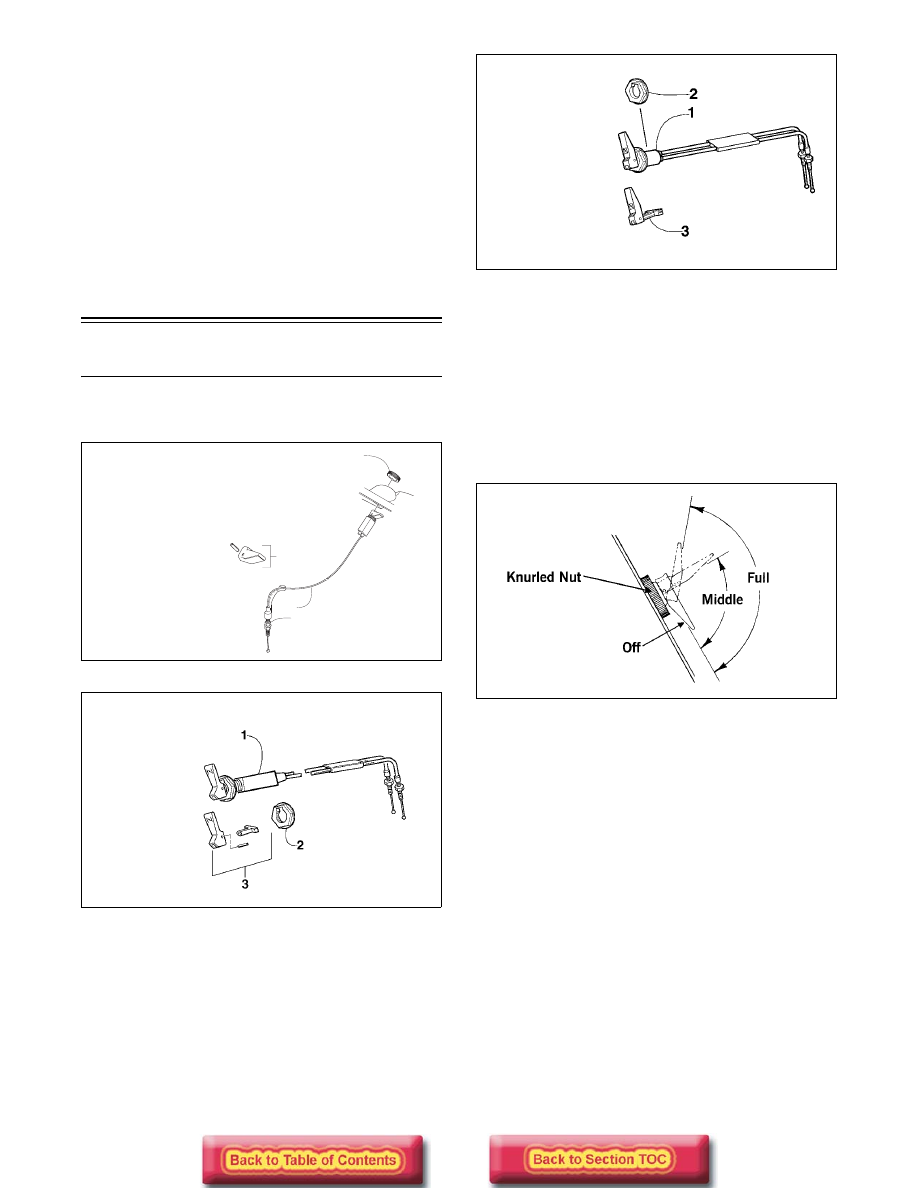

Choke Cable

(TM-Style)

„

NOTE: Determine which type of cable is being

replaced and remove and install accordingly.

737-894A

736-811A

736-796A

REMOVING

1. Loosen the jam nuts securing the choke cable to

the bracket.

2. Remove the cable from the starter plunger lever.

3. Position the choke lever in the middle-choke

position; then remove the knurled nut securing the
choke housing to the console.

725-001A

4. Remove the console.

5. Slide the choke cable from the console.

INSTALLING

1. Position the choke lever in the middle-choke

position; then from the back side of the console,
insert the choke lever housing through the console.
Secure with the knurled nut.

2. Route the choke cable from the console to the

carburetors; avoid any sharp bends or moving
parts.

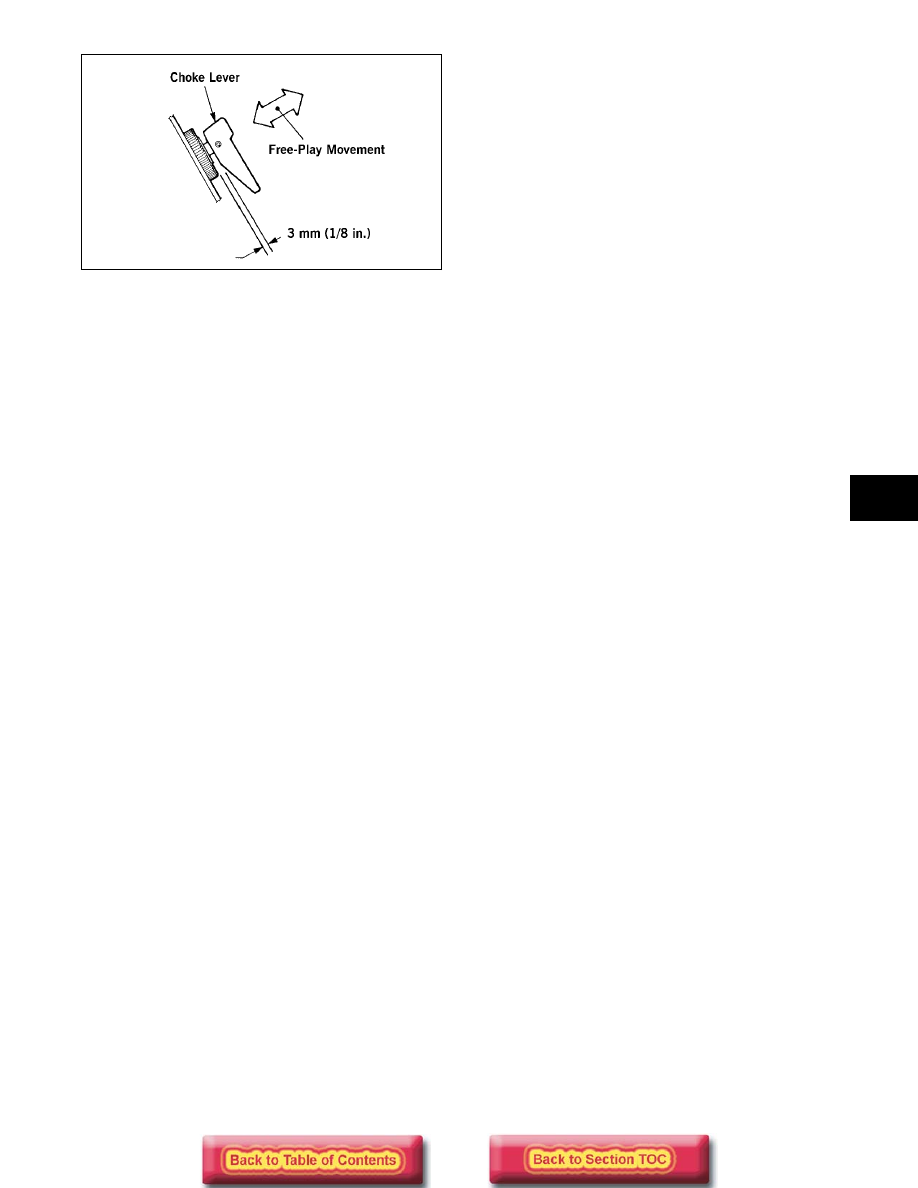

3. Install the choke cable into the bracket; then

secure with jam nuts making sure the choke lever
has 3 mm (1/8 in.) free-play between the edge of
the lever and the housing.

1

2

3

4

KEY

1. Choke Cable
2. Jam Nut
3. Knurled Nut
4. Choke Lever Kit

KEY

1. Choke Cable
2. Choke Nut
3. Choke Lever Kit

KEY

1. Choke Cable
2. Choke Nut
3. Choke Lever Kit

4-29

4

732-848B

4. Place the console into position and secure.

4-30

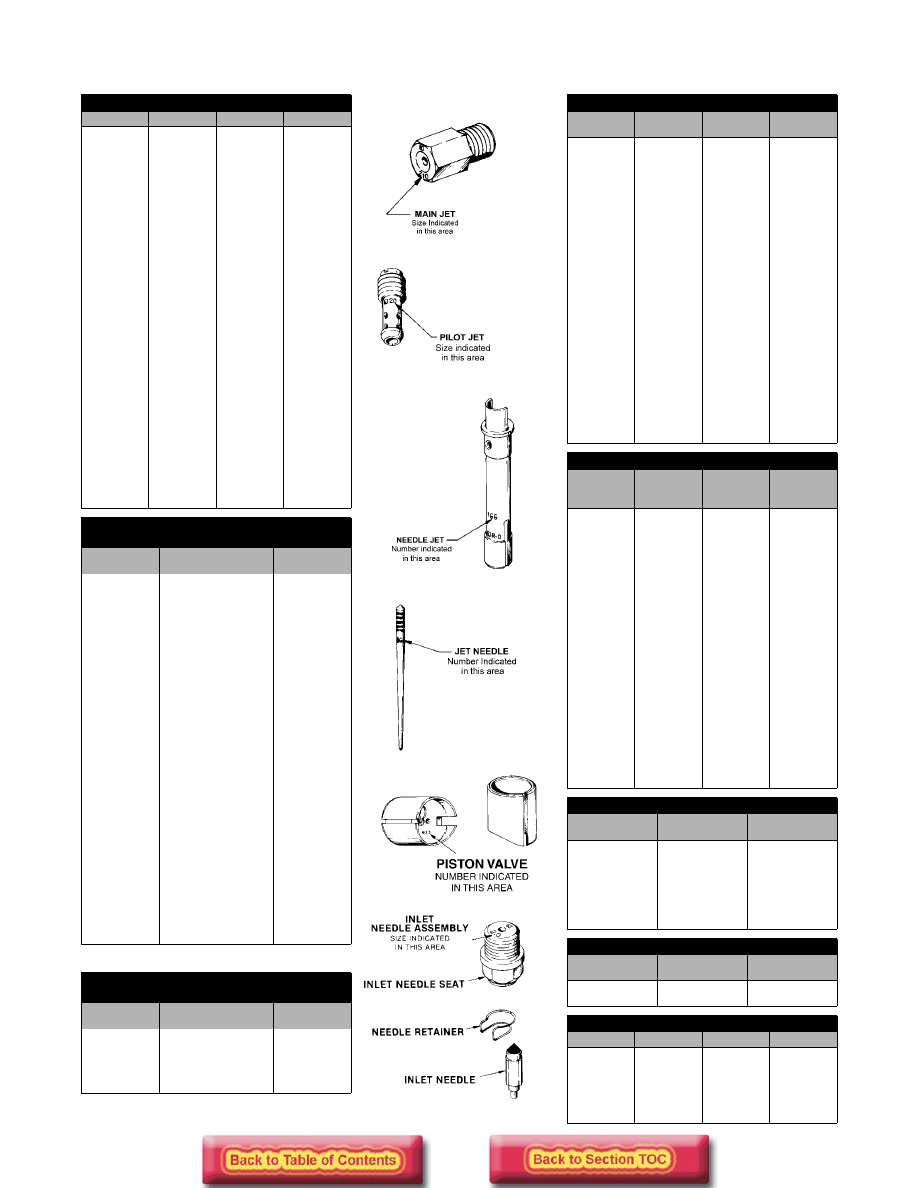

MIKUNI TUNING COMPONENTS

MAIN JETS AVAILABLE

JET

P/N

JET

P/N

120

6505-270

420

6505-125

130

6505-216

430

6505-146

140

6505-217

440

6505-126

150

6505-168

450

6505-147

160

6505-064

460

6505-127

170

6505-065

470

6505-148

180

6505-056

480

6505-149

190

6505-066

490

6505-150

200

6505-144

500

6505-151

210

6505-145

510N

6506-378

220

6505-137

520

6505-530

230

6505-067

520N

6506-379

240

6505-079

530

6505-170

250

6505-068

530N

6506-380

260

6505-017

540

6505-531

270

6505-069

540N

6506-381

280

6505-080

550N

6506-382

290

6505-123

560

6505-172

300

6505-128

560N

6506-383

310

6505-136

580

6505-211

320

6505-074

590

6505-173

330

6505-070

600

6505-532

340

6505-076

620

6505-174

350

6505-071

640

6505-533

360

6505-038

650

6505-534

370

6505-072

660

6505-535

380

6505-077

680

6505-169

390

6505-078

700

6505-536

400

6505-124

710

6505-537

410

6505-212

720

6505-538

PISTON VALVES AVAILABLE

(VM-Style)

SLIDE

CARBURETOR

SIZE (mm)

P/N

2.0

28-30

6505-048

3.0

28-30

6505-161

3.0

30

6505-510

3.5

30

6505-528

1.5

32-34

6505-256

2.5

32-34

6505-246

3.0

32-34

6505-439

3.5

32-34

6505-248

2.5

34

6505-500

2.5

34

6505-614*

3.0

34

6505-507

3.0

34

6505-561*

2.0

36

6505-877

3.0

36

6505-592*

2.5

38

6505-254

3.0

38

6506-643

3.5

38

6505-436

3.5

38

6505-525

3.5

38

6505-526

3.5

38

6505-554

3.5

38

6505-613*

4.0

38

6505-504

3.5

40

6505-575*

1.0

40-44

6505-092

2.0

40-44

6505-179

2.5

40-44

6505-570

3.5

40-44

6505-548

3.0

40-44

6506-809

3.5

40-44

6505-813*

*  For models with carburetor switch.

THROTTLE VALVES AVAILABLE

(TM-Style)

SLIDE

CARBURETOR

SIZE (mm)

P/N

2.0

38

6506-119

3.0

38

6506-120

3.0

38

6506-232

3.5

38

6506-210

2.5

40

6506-273

NEEDLE JETS AVAILABLE(VM-Style)

NEEDLE

JET

P/N

NEEDLE

JET

P/N

O-6 (480)

6505-931

Q-2 (480)

6505-641

O-8 (182)

6505-181

Q-3 (480)

6505-599

O-8 (480)

6505-824

Q-4 (166)

6505-214

P-0 (159)

6505-155

Q-4 (480)

6505-636

P-0 (166)

6505-007

Q-5 (159)

6505-119

P-0 (169)

6505-051

Q-5 (166)

6505-520

P-0 (480)

6505-598

Q-5 (480)

6505-580

P-2 (480)

6505-595

Q-6 (166)

6505-506

P-4 (159)

6505-221

Q-8 (480)

6506-112

P-4 (166)

6505-502

R-0 (166)

6505-505

P-4 (480)

6505-540

Z-4 (224)

6505-808

P-4 (169)

6505-164

Z-5 (224)

6505-541

P-5 (480)

6505-542

Z-6 (224)

6505-597

P-6 (159)

6505-247

Z-8 (224)

6505-572

P-6 (166)

6505-268

Z-9 (224)

6505-618

P-6 (480)

6505-539

 AA-0 (224)

6505-544

P-6 (251)

6505-235

AA-1 (224)

6505-609

P-8 (159)

6505-298

AA-2 (224)

6505-545

P-8 (166)

6505-433

AA-3 (224)

6505-604

P-8 (480)

6505-543

AA-4 (224)

6505-605

Q-0 (159)

6505-260

AA-5 (224)

6505-099

Q-0 (166)

6505-190

AA-8 (224)

6505-571

Q-0 (480)

6505-529

 BB-0 (224)

6505-182

Q-2 (166)

6505-508

BB-5 (224)

6505-180

JET NEEDLES AVAILABLE

JET

NEEDLE

(VM-Style)

P/N

JET

NEEDLE

(TM-Style)

P/N

6CH3

6505-519

9CFH1-56

6506-116

6DH2

6505-252

9DH2-59

6506-110

6DH3

6505-509

9DH5-61

6506-114

6DH4

6505-003

9DEH1-55

6506-118

6DH7

6505-215

9DEH2-57

6506-115

6DH8

6505-236

9EGY01-57

6506-192

6DF7

6506-297

9EH09

6506-173

7DJ2

6505-549

9EH2-57

6506-111

7DH2

6505-097

9EH6-60

6506-117

7DH5

6505-814

9EJ1-60

6506-384

9EH7-62

6506-113

9DFH2-58

6506-200

9DFH2-59

6506-201

9DFH3-56

6506-186

9DEH3

6506-182

9DFH1-56

6506-221

9DFH9-59

6506-304

9EH6-59

6506-228

9DH9-54

6506-272

9EH6-58

6506-290

9DFH4-60

6506-260

9EFH9-60

6506-374

INLET NEEDLE ASSEMBLIES AVAILABLE (VM-Style)

SEAT DIA.

CARB. SIZE

(mm)

P/N

1.5 mm (Steel)

28, 30, 32, 34

6505-026

1.5 mm (Viton)

28, 30, 32, 34

6505-160

1.5 mm (Steel)

28 — 34 GVM

6505-245

1.5 mm (Steel)

36, 38, 40, 44

6505-103

1.5 mm (Viton)

36, 38, 40, 44

6505-171

1.8 mm (Viton)

36, 38, 40, 44

6505-175

2.0 mm (Viton)

36, 38, 40, 44

6505-176

INLET NEEDLE ASSEMBLIES AVAILABLE (TM-Style)

SEAT DIA.

CARB. SIZE

(MM)

P/N

1.5 mm (Steel)

38

6506-121

1.8 mm (Steel)

38

6506-144

PILOT JETS AVAILABLE

JET NO.

P/N

JET NO.

P/N

17.5

6505-218

35

6505-029

20

6505-138

40

6505-047

22.5

6505-310

45

6505-278

25

6505-075

50

6505-262

27.5

6505-503

52.5

6505-261

30

6505-073

55

6505-255
