The Arctic Power Valve (APV) System adjusts the size
of the exhaust ports to produce maximum horsepower
on the top end while providing excellent low end
power and increased touring fuel economy.

THEORY

Two-cycle engines and their exhaust systems are
designed to produce maximum horsepower in a given
RPM range. This RPM range will change according to
how high (or low) the exhaust port is in relation to the
cylinder. Engines designed for racing have a “high
port” exhaust system and will produce more horse-
power at higher RPM but only with the loss of low end
power and overall fuel economy. “Low port” engines
will produce maximum horsepower in the low RPM
ranges and provide good mid-range fuel economy, but
they sacrifice top end performance.

The APV system does not increase engine horsepower,
but it does allow the engine to be designed for maxi-
mum top end horsepower without the losses associated
with a “high port” exhaust system.

735-476B

COMPONENTS

The main components of the APV system are the
exhaust valves, return springs, actuating cables, and
the servomotor (servo).

The exhaust valves are connected to the actuating
cables and, along with the return springs, are contained
inside the APV housing on the exhaust side of each
cylinder. The other end of the actuating cable is con-
nected to the servo. There is also a vent hose on each
APV housing to relieve the pressure of “blowby”
gases that may escape from the cylinder.

OPERATION

At idle and low speed operation, the exhaust valves are
held in the “low port” position by the return spring.
When engine RPM reaches a predetermined point, the
CDI/ECU will send a signal to the servo which will
cycle and pull the exhaust valves into the up or “high
port” position. The RPM at which the valves open is
different with each model.

MAINTENANCE

The APV system requires only periodic cleaning and
cable adjustment. The cables should be checked every
1000-2000 miles and adjusted as necessary. To ensure
maximum performance and minimize maintenance
requirements, Arctic Cat recommends using Arctic Cat
Synthetic APV 2-Cycle Oil. Using oils other than the
recommended oil may increase the frequency of
required cleaning due to increased buildup of carbon
deposits.

CABLE ADJUSTMENT
(Standard Models)

Proper cable adjustment is critical to the operation of
the APV system. While it is recommended that the
cable adjustment be inspected every 1000-2000 miles,
the cable should not need adjustment often. To check
the cable adjustment, use the following procedure.

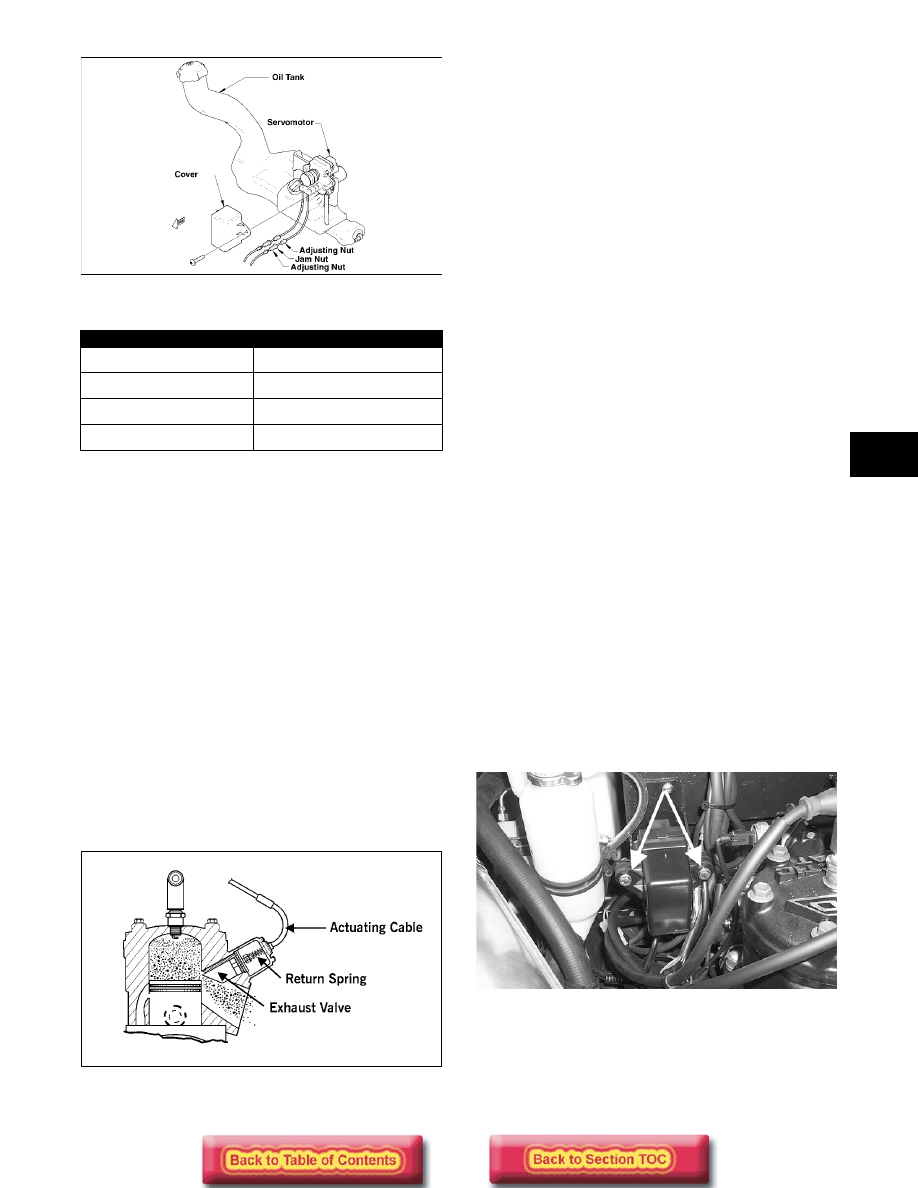

1. Remove the two bolts securing the servo cover.

AP116A

2. Using a small screwdriver, remove the cable

retaining cover.

APV CABLE LENGTH (“Laydown”)

ENGINE MODEL

CENTER

± 1 mm (0.039 in.)

500 cc

34.5 mm

(1.35 in.)

600 cc

34.5 mm

(1.35 in.)

700 cc

34.5 mm

(1.35 in.)

3-20

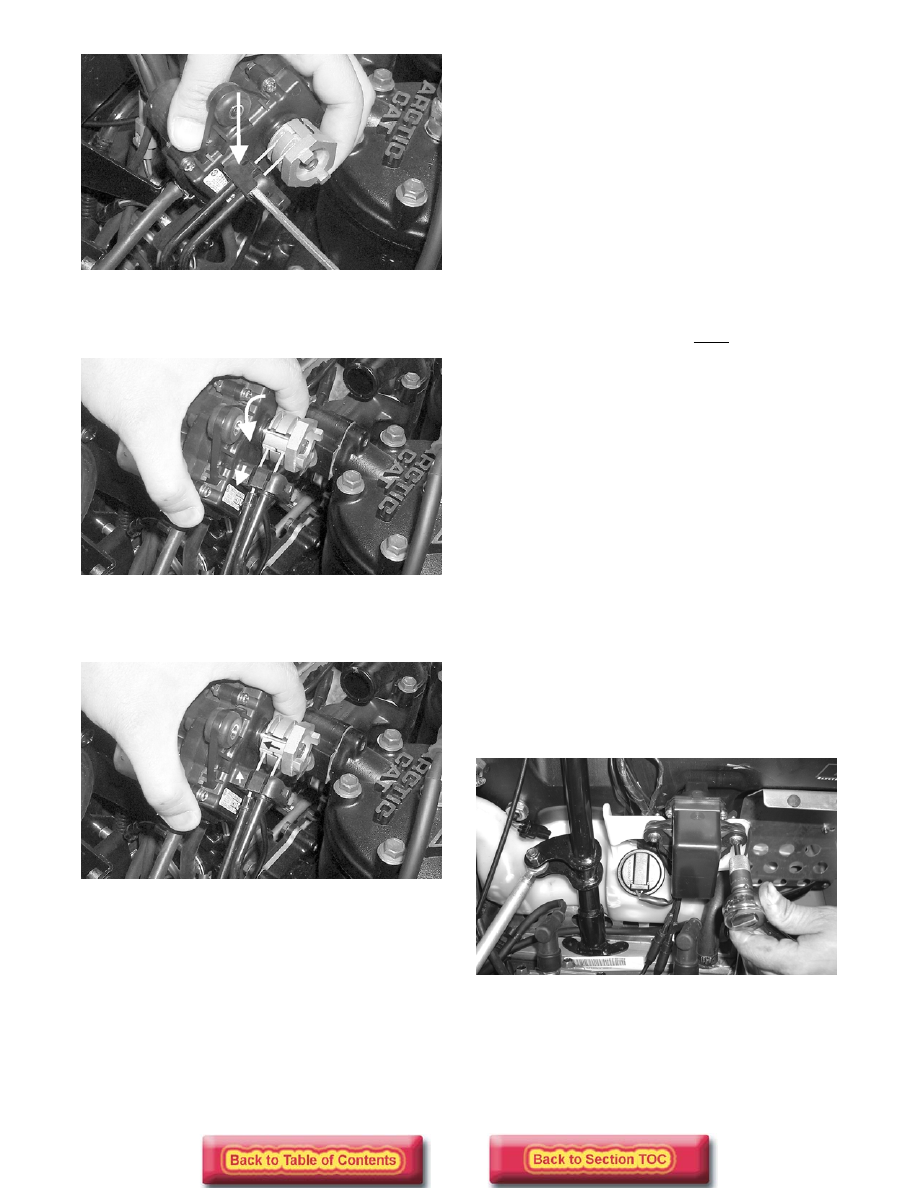

AP117A

3. Rotate the servo actuator counterclockwise to

loosen the cable; then pull the cable housings out
of the holder.

AP118A

4. Pull the cable up and out of the cable housing

holder; then slide each cable drum to the left and
out of the servo actuator.

AP118B

„

NOTE: Before proceeding with the cable adjust-

ment, ensure that the exhaust valves are free to
move.

5. While holding the cable housing firmly, pull the

cable as far out as it will go; then release. Repeat
three to four times. The cable/exhaust valve
should move freely without binding. If the cable/
exhaust valve does not move freely, the exhaust
valve assembly will need to be removed for further
inspection.

„

NOTE: When measuring the cables, they are to

be routed and as close to their installed position
as possible.

6. While holding the cable housing, lightly pull on

one cable end to remove any slack.

7. Measure the amount of exposed cable from the

cable housing to the end of the cable.

„

NOTE: The two cable measurements must be

equal in length or less than 0.5 mm (0.020 in.) dif-
ference in length from each other.

„

NOTE: Repeat steps 6 and 7 for each cable; then

compare the measurements to the appropriate
chart.

„

NOTE: The measurements must be within the

specifications from the chart. If the measurements
are within specifications, no adjustment is neces-
sary. If they are not within specifications, proceed
to step 8.

8. Loosen the jam nut on the cable to be adjusted;

then using the adjusting nuts, lengthen or shorten
the housing as needed.

9. Once the proper length has been attained, hold the

adjusting nut in place and tighten the jam nut
securely.

10. Install the actuating cables into the servo.

CABLE ADJUSTMENT
(“Laydown” Engine Models)

Proper cable adjustment is critical to the operation of
the APV system. While it is recommended that the
cable adjustment be inspected every 1000-2000 miles,
the cable should not need adjustment often. To check
the cable adjustment, use the following procedure.

1. Remove the two bolts securing the servomotor

cover.

FC004

2. Using a small screwdriver, remove the cable

retaining cover.

3-21

3

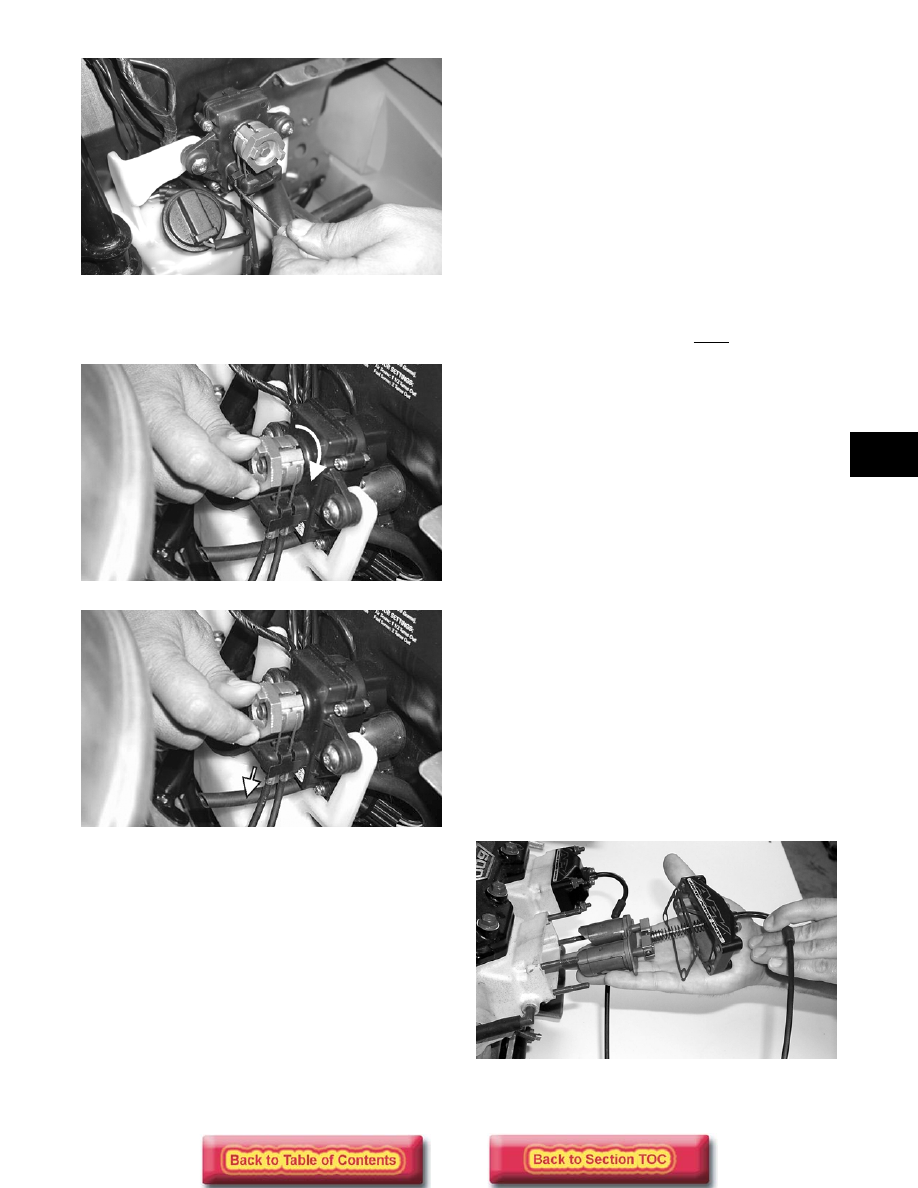

FC005

3. Rotate the servomotor actuator counterclockwise

to loosen the cable; then pull the cable housings
out of the holder.

FC006A

FC006B

4. Pull the cable up and out of the cable housing

holder; then slide each cable drum back and out of
the actuator.

„

NOTE: Before proceeding with the cable adjust-

ment, ensure that the exhaust valves are free to
move.

5. While holding the cable housing firmly, pull the

cable as far out as it will go; then release. Repeat
three to four times. The cable/exhaust valve
should move freely without binding. If the cable/
exhaust valve does not move freely, the exhaust
valve assembly will need to be removed for further
inspection.

„

NOTE: When measuring the cables, they are to

be routed and as close to their installed position
as possible.

6. While holding the cable housing, lightly pull on

one cable end to remove any slack.

7. Measure the amount of exposed cable from the

cable housing to the end of the cable.

„

NOTE: The two cable measurements must be

equal in length or less than 0.5 mm (0.020 in.) dif-
ference in length from each other.

„

NOTE: Repeat steps 6 and 7 for each cable; then

compare the measurements to the appropriate
chart.

„

NOTE: The measurements must be within the

specifications from the chart. If the measurements
are within specifications, no adjustment is neces-
sary. If they are not within specifications, proceed
to step 8.

8. Loosen the jam nut on the cable to be adjusted;

then using the adjusting nuts, lengthen or shorten
the housing as needed.

9. Once the proper length has been attained, hold the

adjusting nut in place and tighten the jam nut
securely.

10. Install the actuating cables into the servomotor.

SERVICING

There are two styles of power valves in use in the 2004
Arctic Cat engines. The “flat style” valve is on the
500, 600 (“Laydown”), 700, 800, and 900 cc engines,
and the “round style” valve is on the 600 cc (STD)
engine.

Removing/Disassembling (600 cc STD)

„

NOTE: To avoid a parts mix-up, it is recom-

mended that only one valve assembly at a time be
removed from the engine.

1. Remove the valve assembly from the engine (see

Section 2).

AP154

3-22

2. Slide the exhaust valve/valve guide assembly off

the retaining pin and free of the valve stopper.
Repeat with the second exhaust valve/valve guide
assembly.

AP162

3. Remove the retaining pin from the valve stopper.

AP163

4. Slide the valve stopper back on the cable until the

cable end and return spring clear the stopper.
Remove the valve stopper and return spring from
the cable.

AP164

Cleaning and Inspecting

1. Remove all carbon deposits with solvent and a soft

abrasive such as a Scotch-Brite pad.

2. Inspect all parts for nicks, burrs, or other signs of

unusual wear.

Assembling/Installing (600 cc STD)

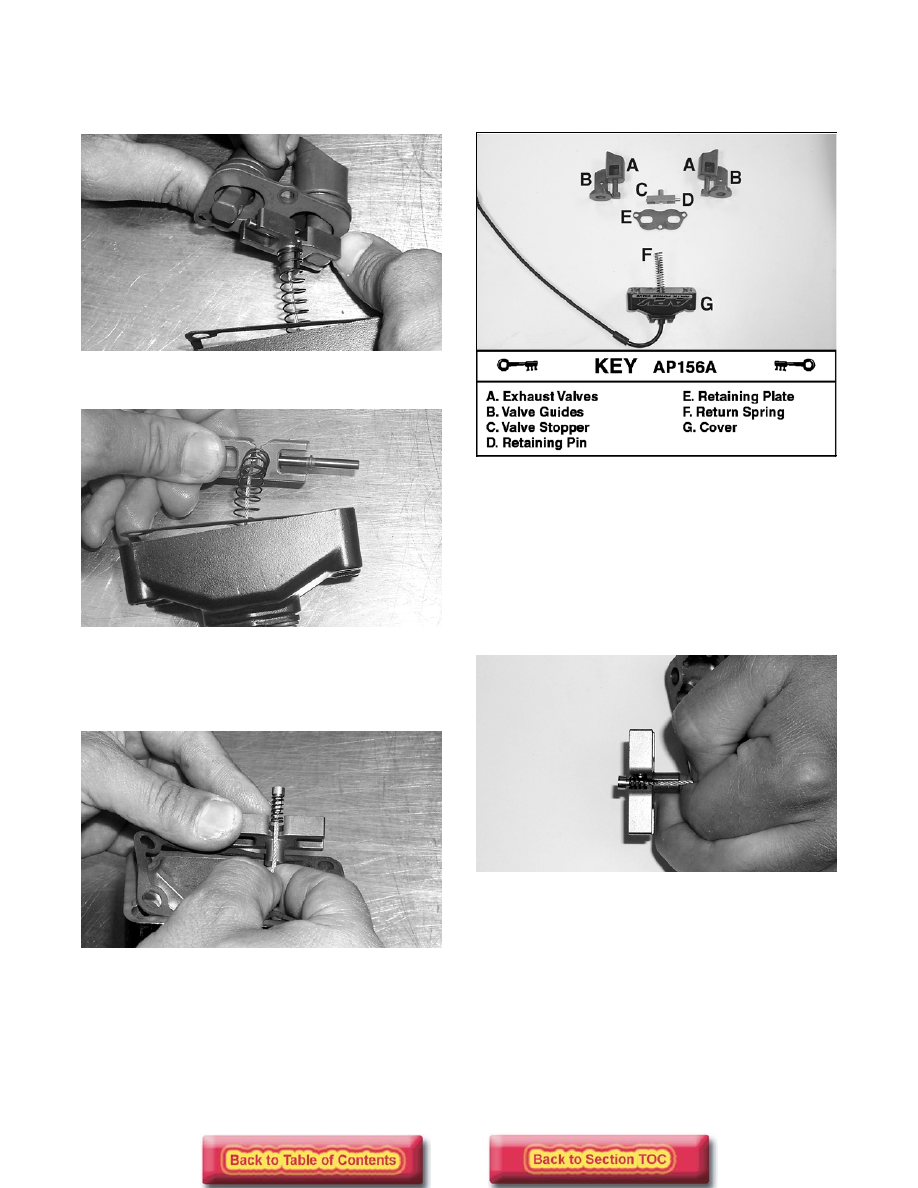

AP156A

1. Slide the return spring onto the cable end.

„

NOTE: Make sure the small cable end spring

stays in place at the end of the cable.

2. Place the valve stopper on a clean surface with the

slotted side up; then place the cable in the slot and
pull the cable through the stopper until the cable
end and return spring are in place in the stopper.
Secure with the retaining pin.

AP157

„

NOTE: The retaining pin is inserted long end first

from the right side of the valve stopper. Ensure
that the retaining pin washer is in the recess in the
valve stopper.

3. Assemble the exhaust valve and valve guide as

shown.
