Snowmobile Arctic Cat (2004 year). Manual - part 37





3-11

3

FC072B

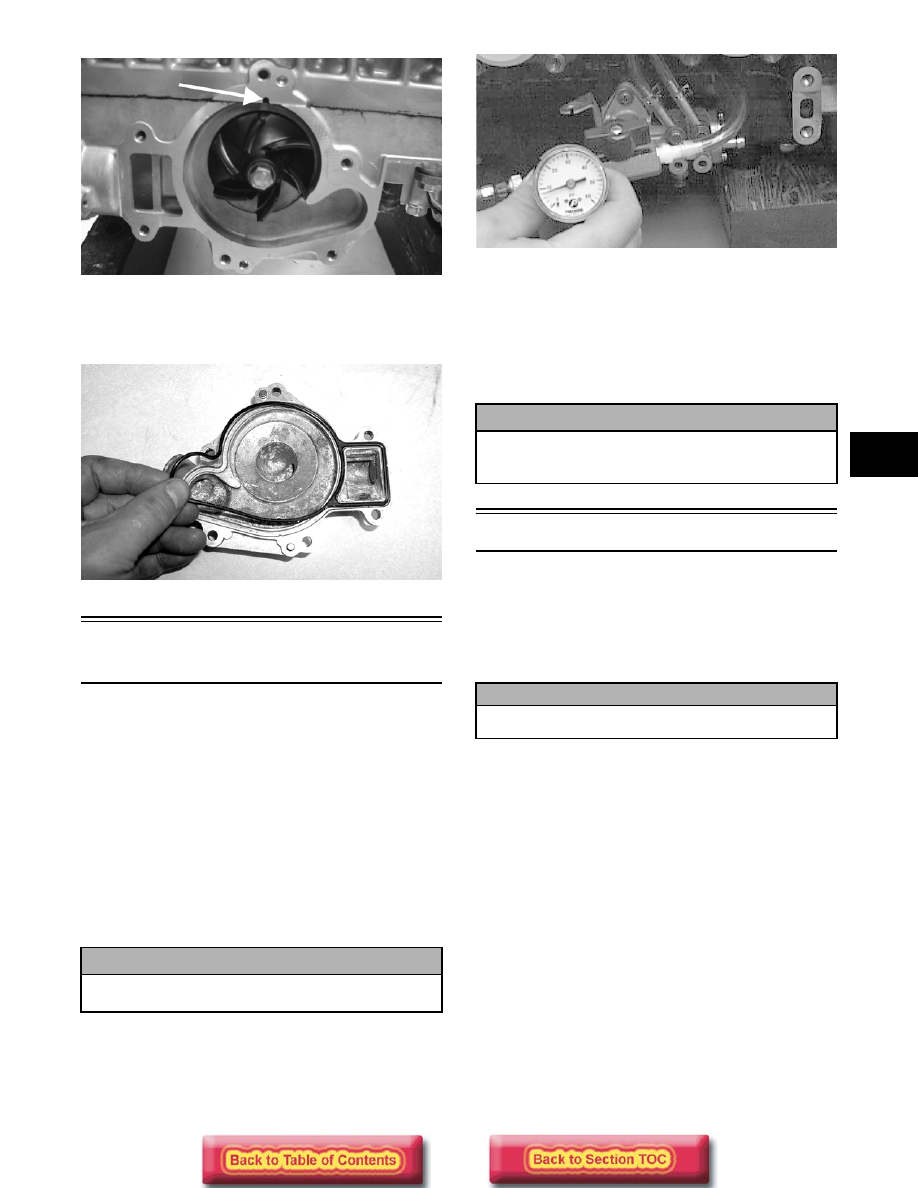

12. Position the O-ring into the water pump cover;

then install the cover. Secure with the screws.
Tighten to 1.1 kg-m (8 ft-lb).

FC134

Pressure Testing

Engine

1. Test the engine for air leaks using the following

procedure and Pressure Testing Kit (p/n 0144-
127).

a. Install a plug into each intake-manifold port

and tighten the flange clamps securely.

b. Place a rubber plug and cover on each exhaust

port and secure.

c. Connect the tester pump to an impulse fitting

on the crankcase; then plug any remaining
impulse fittings and pressurize the crankcase to
8 psi and close the valve.

AN128D

d. Monitor the pressure gauge. The pressure must

not drop at a rate of more than 1 psi per minute.

e. If the pressure drops faster than specified,

inspect for an air leak with soapy water or by
completely submerging the pressurized engine
in clean fresh water. Repair as needed.

Liquid Cooling System

The liquid cooling system consists of heat exchangers,
waterpump, and thermostat. The system should be
inspected for leaks or damage whenever an overheat-
ing problem is experienced.

FILLING COOLING SYSTEM

1. Elevate the front of the snowmobile 30-60 cm (12-

14 in.).

2. Remove the coolant tank cap and check coolant

level. The coolant tank should be filled to the
coolant level line.

3. Install the coolant tank cap; then start the engine.

Run the engine at 3000-3500 RPM until the
bottom heat exchangers become hot to the touch.
Stop the engine and allow the system to cool.

4. Lower the front of the snowmobile and elevate the

rear of the snowmobile 12-14 in. Repeat the
procedures in step 3.

5. Check the coolant level. Add coolant as required

to the coolant tank (coolant tank should be filled to
coolant level line). Repeat procedure until coolant
level stabilizes in the coolant tank.

! CAUTION

DO NOT exceed 8 psi pressure or damage to the
seals will result.

! CAUTION

When submerging the engine to test for air leaks,
all external electrical components must be
removed to avoid damage.

! CAUTION

Be sure the cooling system is throughly filled
using the following procedure.

3-12

„

NOTE: If coolant is required, mix coolant for a

temperature of -36°C (-34°F). Follow mixing recom-
mendations of the manufacturer of the coolant.

INSPECTING COOLANT HOSES
AND CLAMPS

All coolant hoses and connections should be checked
annually for deterioration, cracks, and wear.

All coolant hoses and clamps should be replaced every
four years.

Cooling System

Schematics

INSPECTING THERMOSTAT

1. Inspect the thermostat for corrosion, wear, or

spring damage.

2. Using the following procedure, inspect the

thermostat for proper operation.

a. Suspend the thermostat in a container filled

with water.

b. Heat the water and monitor the temperature

with a thermometer.

c. The thermostat should open at 50°C (122°F).

Once the thermostat starts to open,
IMMEDIATELY remove the thermostat as it
will lock in the open position if allowed to open
fully.

„

NOTE: The thermostat is of the lock-open type. If

the thermostat is ever allowed to fully open, it will
remain open and replacement will be necessary.

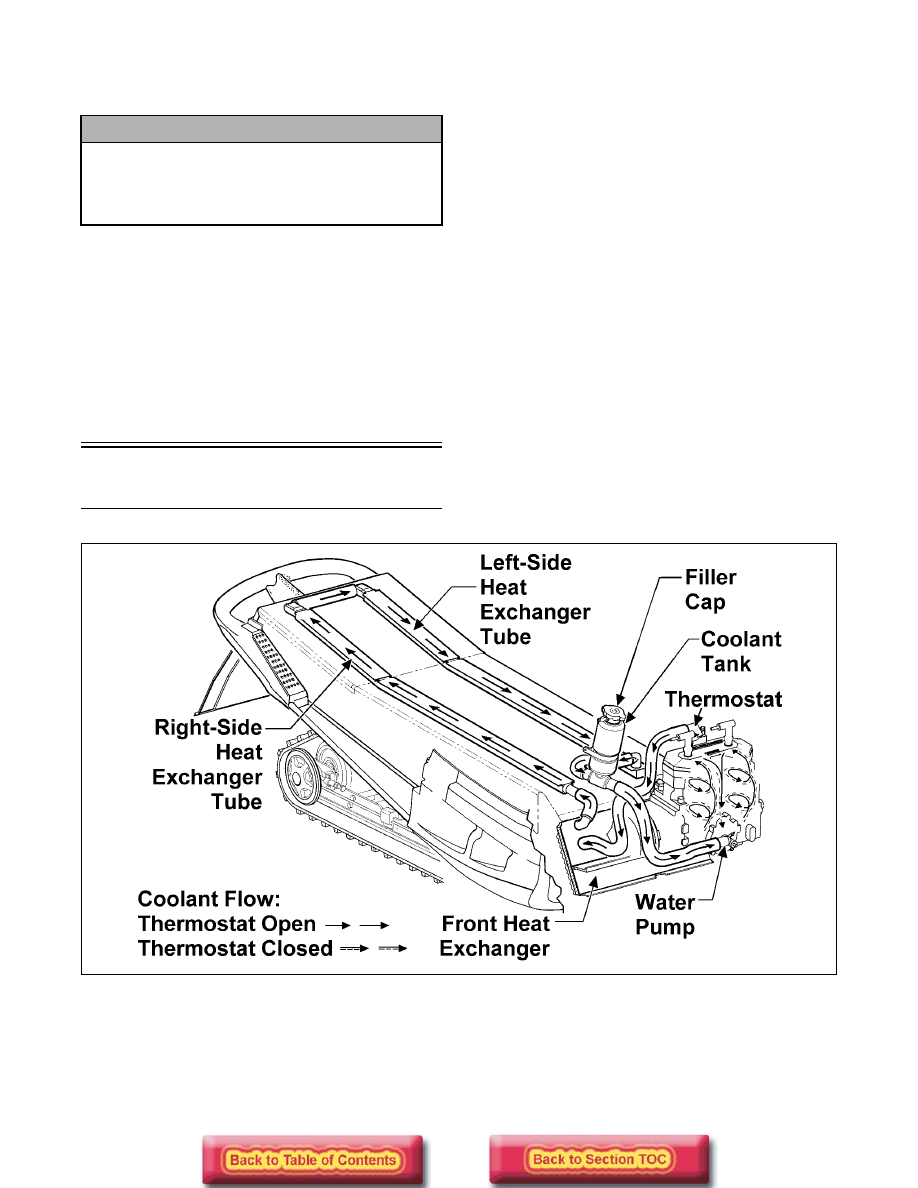

The following schematics are representative of the dif-
ferent styles of 2-stroke cooling systems in the 2004
Arctic Cat snowmobiles. Some components may vary
from model to model; therefore, the technician should
use discretion and sound judgment when servicing a
particular cooling system.

0734-451

! CAUTION

It is extremely important that the Filling Cooling
System procedure is followed very closely and
the cooling system is properly filled. If the
system isn’t properly filled, piston damage will
occur.

3-13

3

738-067A

0738-676

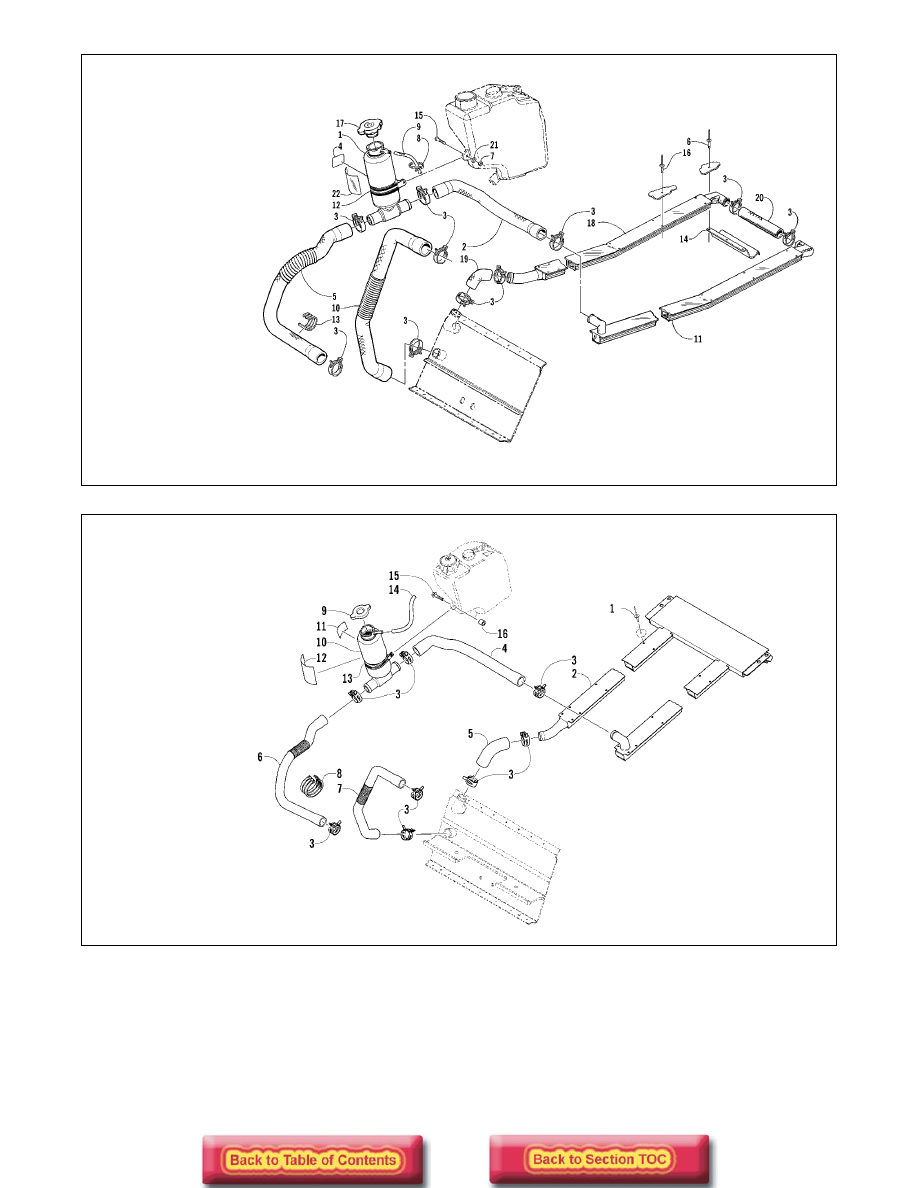

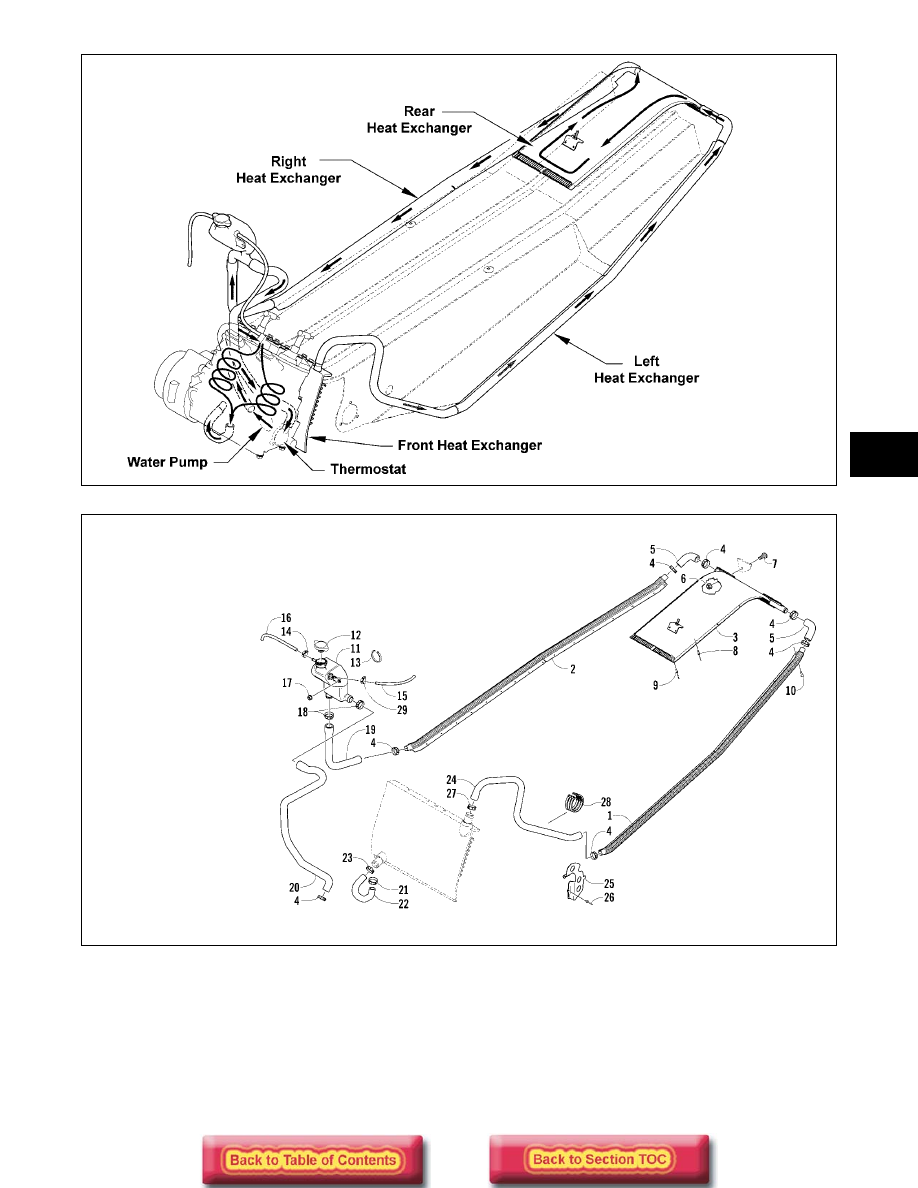

KEY

1. Left Heat Exchanger
2. Right Heat Exchanger
3. Rear Heat Exchanger
4. Hose Clamp
5. Hose
6. Lock Nut
7. Machine Screw
8. Rivet
9. Rivet

10. Self-Tapping Screw
11. Coolant Tank
12. Cap
13. Cable Tie
14. Hose Clamp
15. Hose
16. Hose
17. Lock Nut
18. Hose Clamp
19. Hose
20. Hose
21. Hose Clamp
22. Hose
23. Hose Clamp
24. Hose
25. Hose Protector
26. Rivet
27. Hose Clamp
28. Cable Tie
29. Hose Clamp

3-14

0736-803

0738-611

KEY

1. Coolant Tank
2. Hose
3. Clamp
4. Decal
5. Hose
6. Rivet
7. Lock Nut
8. Cable Tie
9. Hose

10. Hose
11. Heat Exchanger
12. Clamp
13. Cable Tie
14. Hose Guard
15. Machine Screw
16. Rivet
17. Cap
18. Heat Exchanger
19. Hose
20. Hose
21. Washer
22. Foil Tape

KEY

1. Rivet
2. Heat Exchanger
3. Clamp
4. Hose
5. Hose
6. Hose
7. Hose
8. Cable Tie
9. Cap

10. Coolant Tank
11. Decal
12. Foil Tape (800 cc)
13. Clamp
14. Hose
15. Cap Screw
16. Spacer
