9-130
DRIVE SPROCKET LOCATION

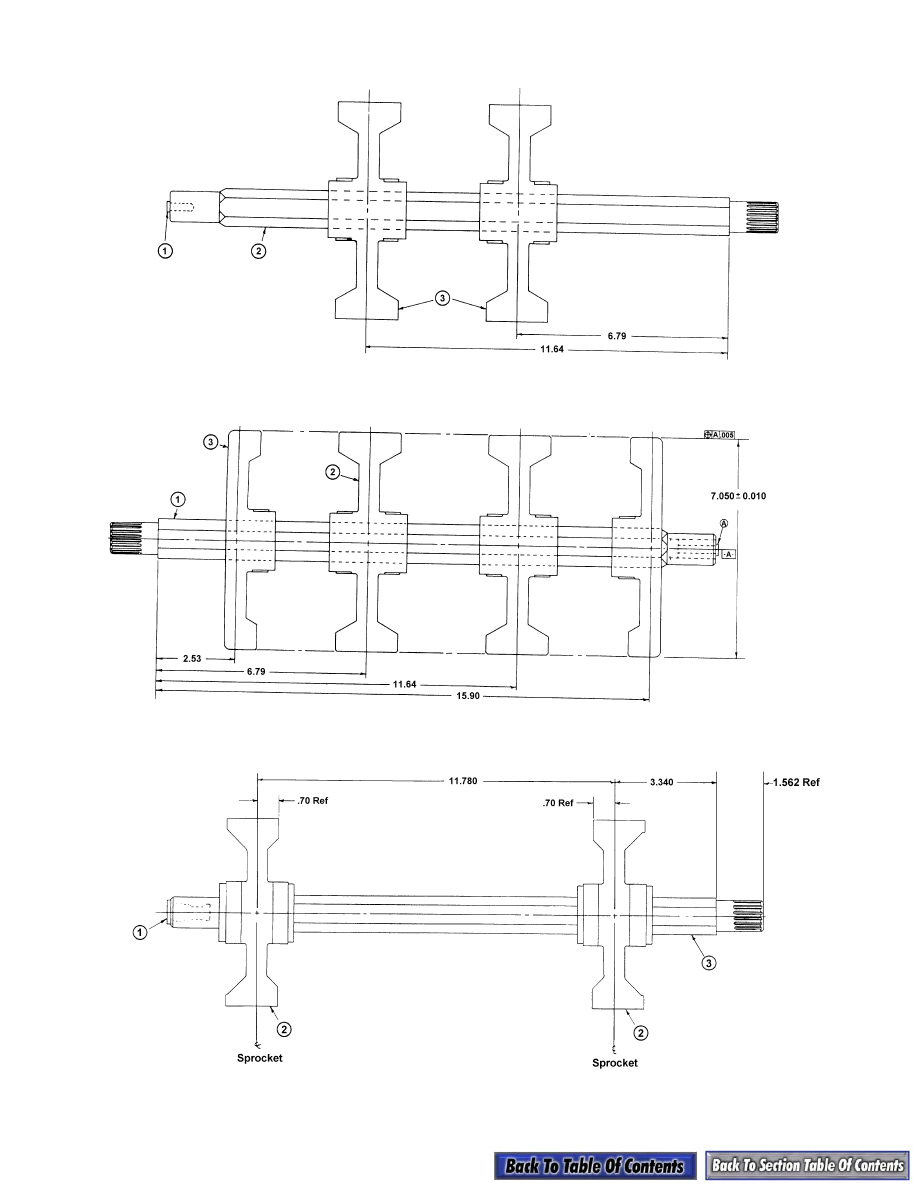

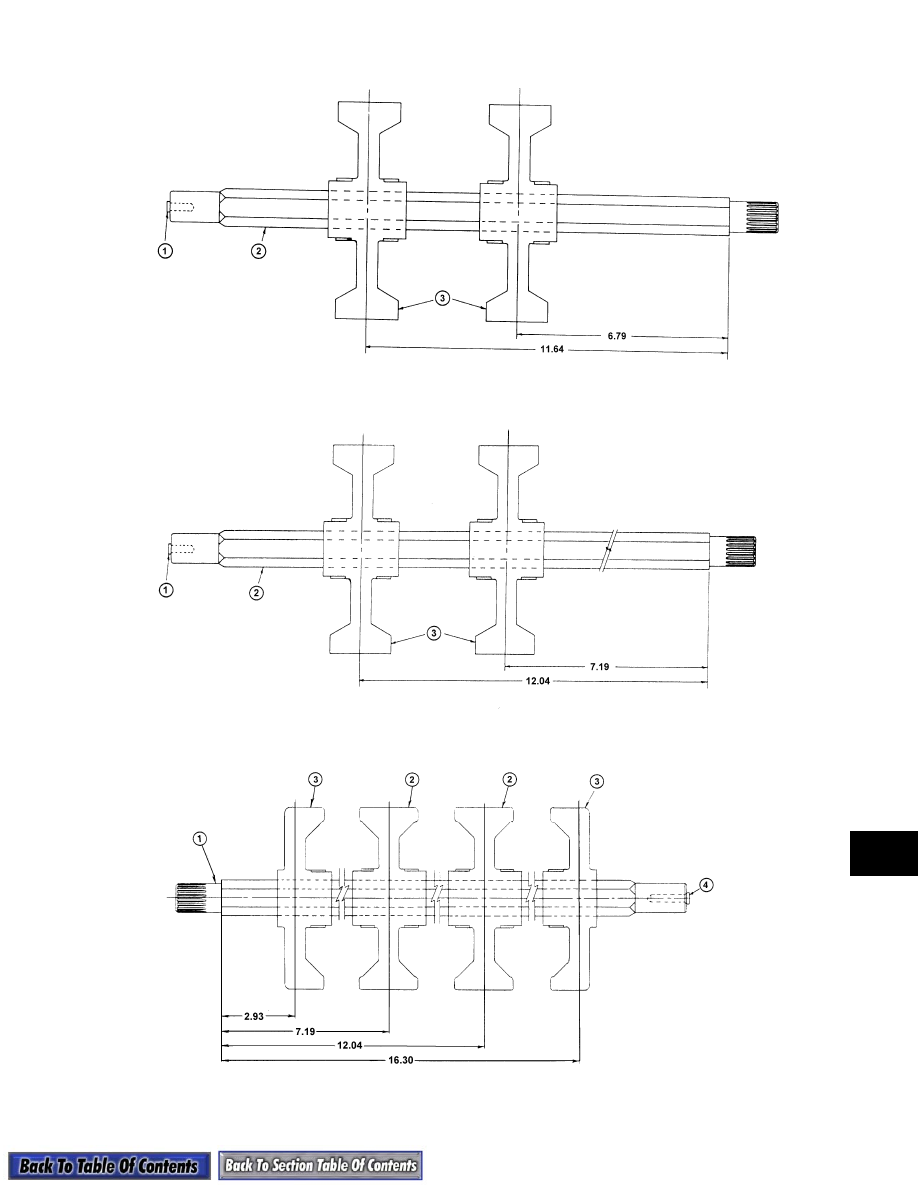

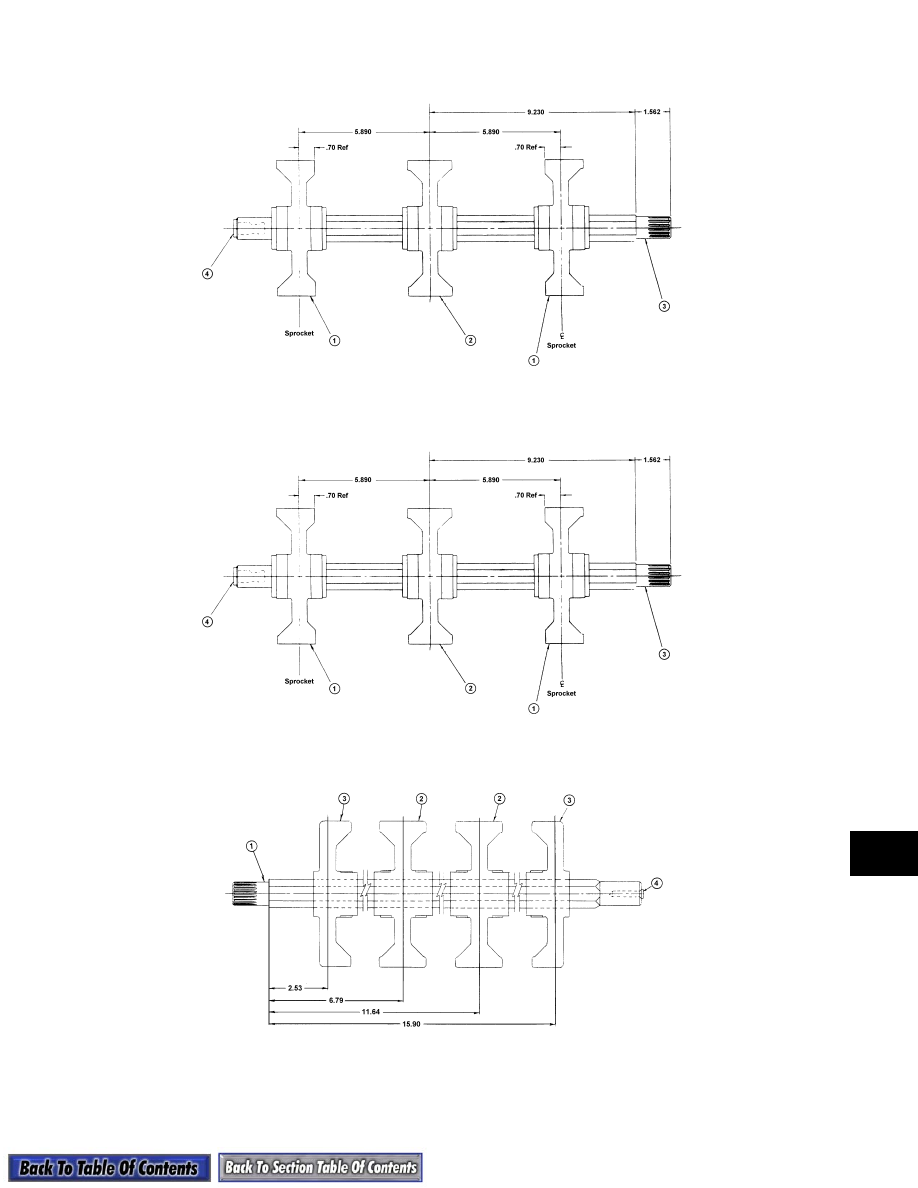

The following illustrations will provide all necessary
information to relocate sprockets on the driveshaft.
When information is required to assemble the drive-
shaft, refer to the parts manual for model being worked
on; then refer to the following illustrations using the
part number listed in the parts manual as a reference.

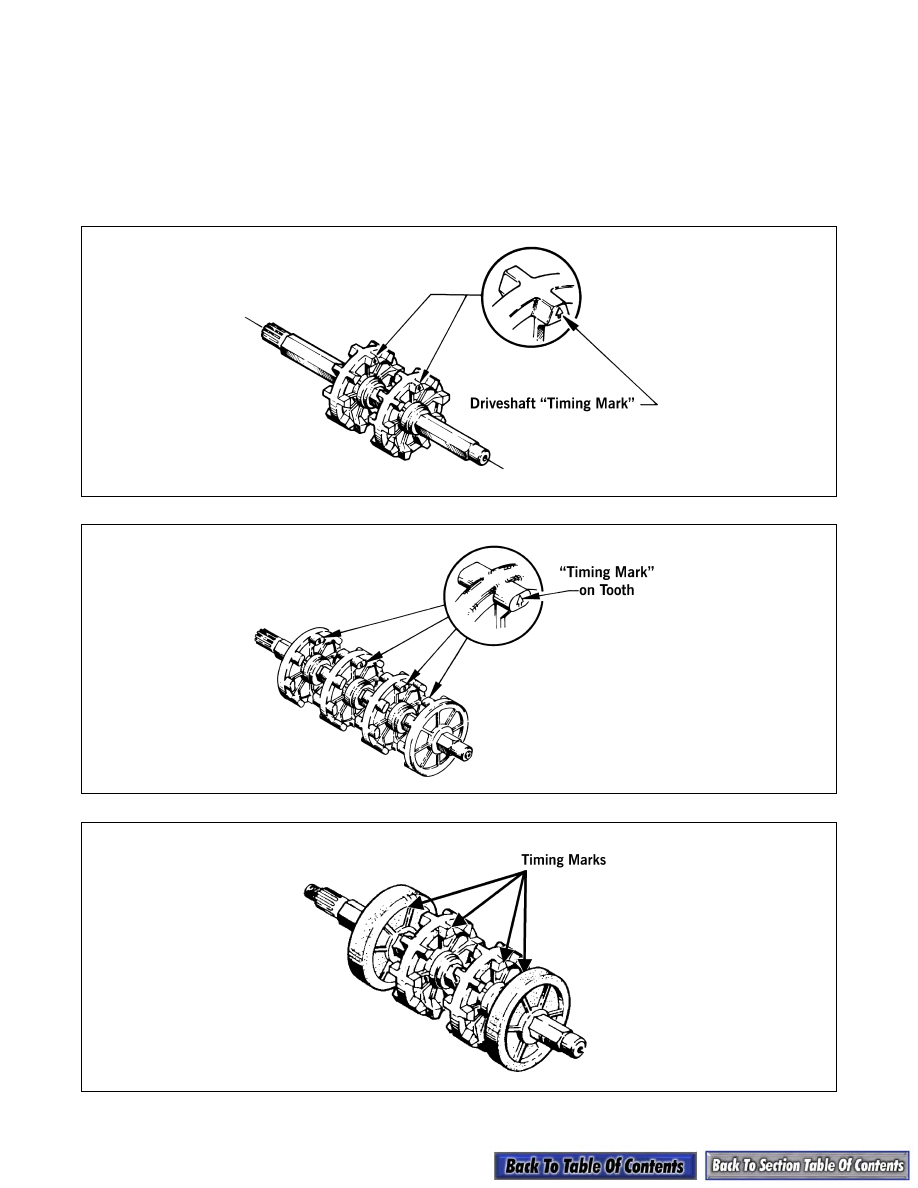

When pressing new sprockets on the driveshaft,
remember to align the sprocket alignment marks or the
sprockets won’t be timed correctly. See illustration
below.
0728-351
0727-829
727-829A
