Snowmobile Arctic Cat (2002 year). Manual - part 136

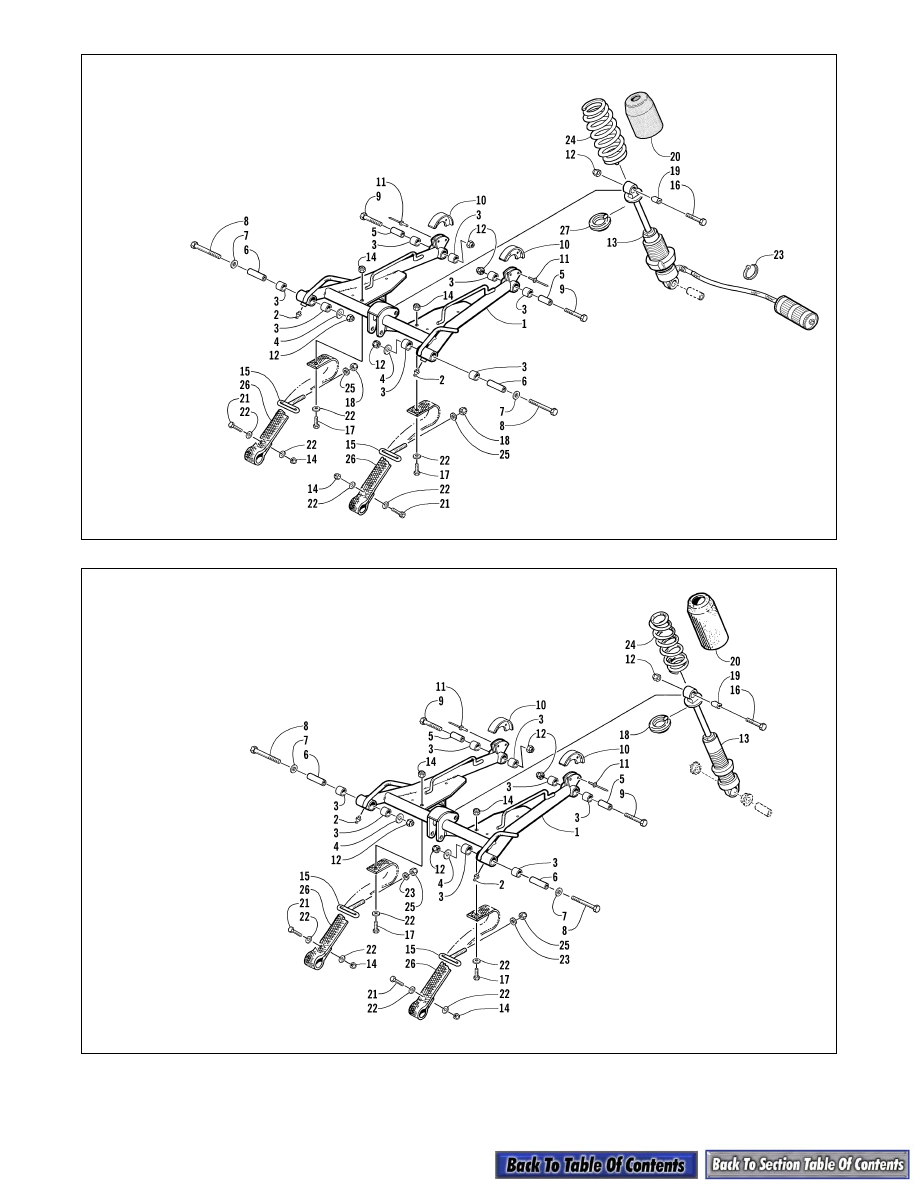

9-22

0736-430

0736-032

Style G

KEY

1. Front Suspension Arm
2. Grease Fitting
3. Bushing
4. Washer
5. Spacer
6. Axle
7. Washer
8. Cap Screw
9. Cap Screw

10. Bumper
11. Rivet
12. Lock Nut
13. Shock Absorber
14. Lock Nut
15. Adjuster
16. Cap Screw
17. Cap Screw
18. Lock Nut
19. Axle
20. Cover
21. Cap Screw
22. Washer
23. Cable Tie
24. Spring
25. Washer
26. Limiter Strap
27. Retainer

KEY

1. Front Suspension Arm
2. Grease Fitting
3. Bushing
4. Washer
5. Spacer
6. Axle
7. Washer
8. Cap Screw
9. Cap Screw

10. Bumper
11. Rivet
12. Lock Nut
13. Shock Absorber
14. Lock Nut
15. Adjuster
16. Cap Screw
17. Cap Screw
18. Retainer
19. Axle
20. Cover
21. Cap Screw
22. Washer
23. Washer
24. Spring
25. Lock Nut
26. Limiter Strap

Style H

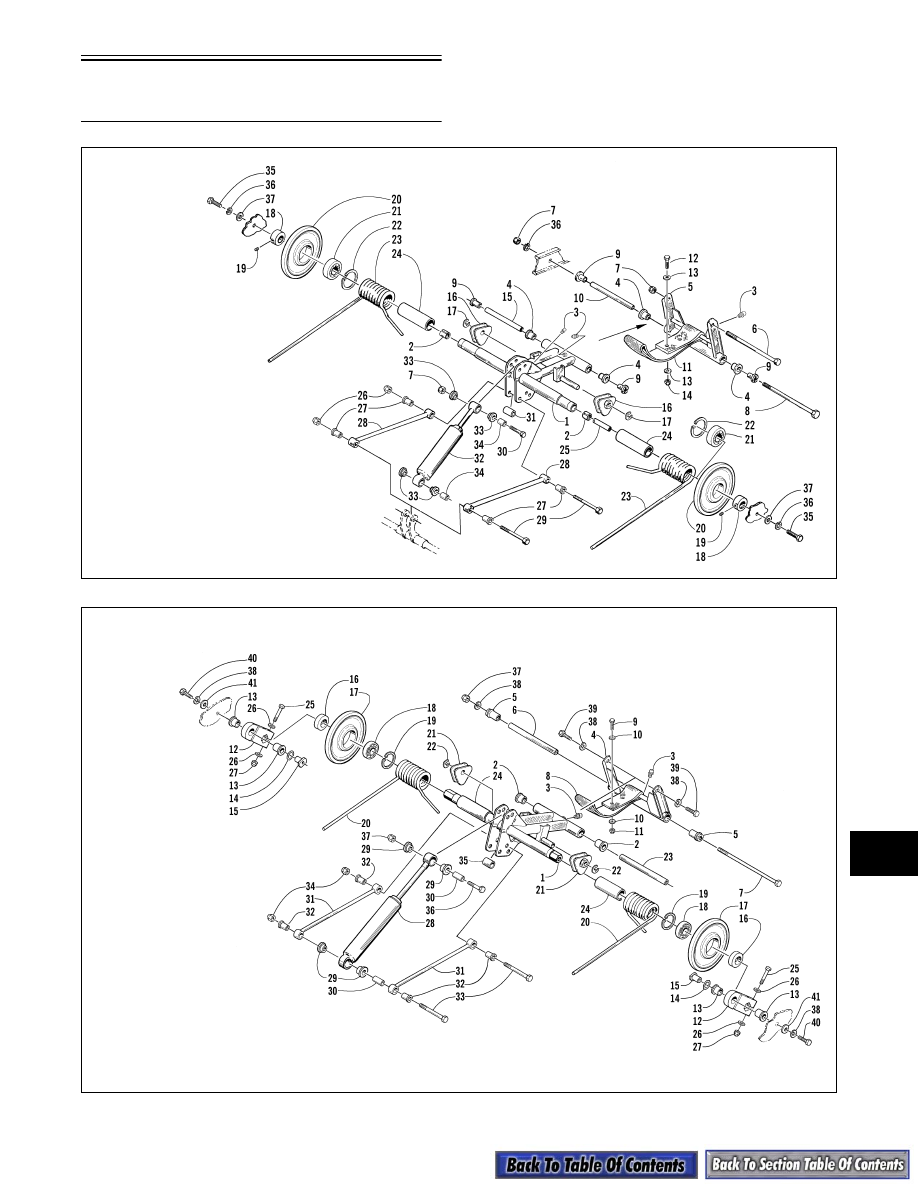

9-23

Rear Arm

Schematics

0736-498

0736-735

KEY

1. Idler Arm
2. Bearing
3. Grease Fitting
4. Bushing
5. Rear Arm
6. Cap Screw
7. Lock Nut
8. Cap Screw
9. Axle

10. Axle Tube
11. Limiter Strap
12. Cap Screw
13. Washer
14. Lock Nut
15. Axle
16. Adjuster Block
17. Ring
18. Collar
19. Set Screw
20. Idler Wheel
21. Bearing
22. Ring
23. Spring
24. Sleeve
25. Axle
26. Lock Nut
27. Axle
28. Link
29. Cap Screw
30. Cap Screw
31. Spacer

32. Shock Absorber
33. Bushing
34. Sleeve
35. Cap Screw
36. Lock Washer
37. Washer

Style A

36. Cap Screw
37. Lock Nut
38. Lock Washer
39. Cap Screw
40. Cap Screw
41. Washer

KEY

1. Idler Arm
2. Bushing
3. Grease Fitting
4. Rear Arm
5. Axle
6. Axle Tube
7. Cap Screw
8. Limiter Strap
9. Cap Screw

10. Washer
11. Lock Nut
12. Arm
13. Bushing
14. Washer
15. Axle
16. Spacer
17. Idler Wheel
18. Bearing
19. Ring
20. Spring
21. Adjuster Block
22. Ring
23. Axle
24. Sleeve
25. Cap Screw
26. Washer
27. Lock Nut
28. Shock Absorber
29. Bushing
30. Sleeve
31. Link
32. Axle
33. Cap Screw
34. Lock Nut
35. Spacer

Style B

NOTE: Some components illustrated in this

sub-section may vary from actual conditions.
The technician should use discretion and sound
judgment when removing and installing compo-
nents.

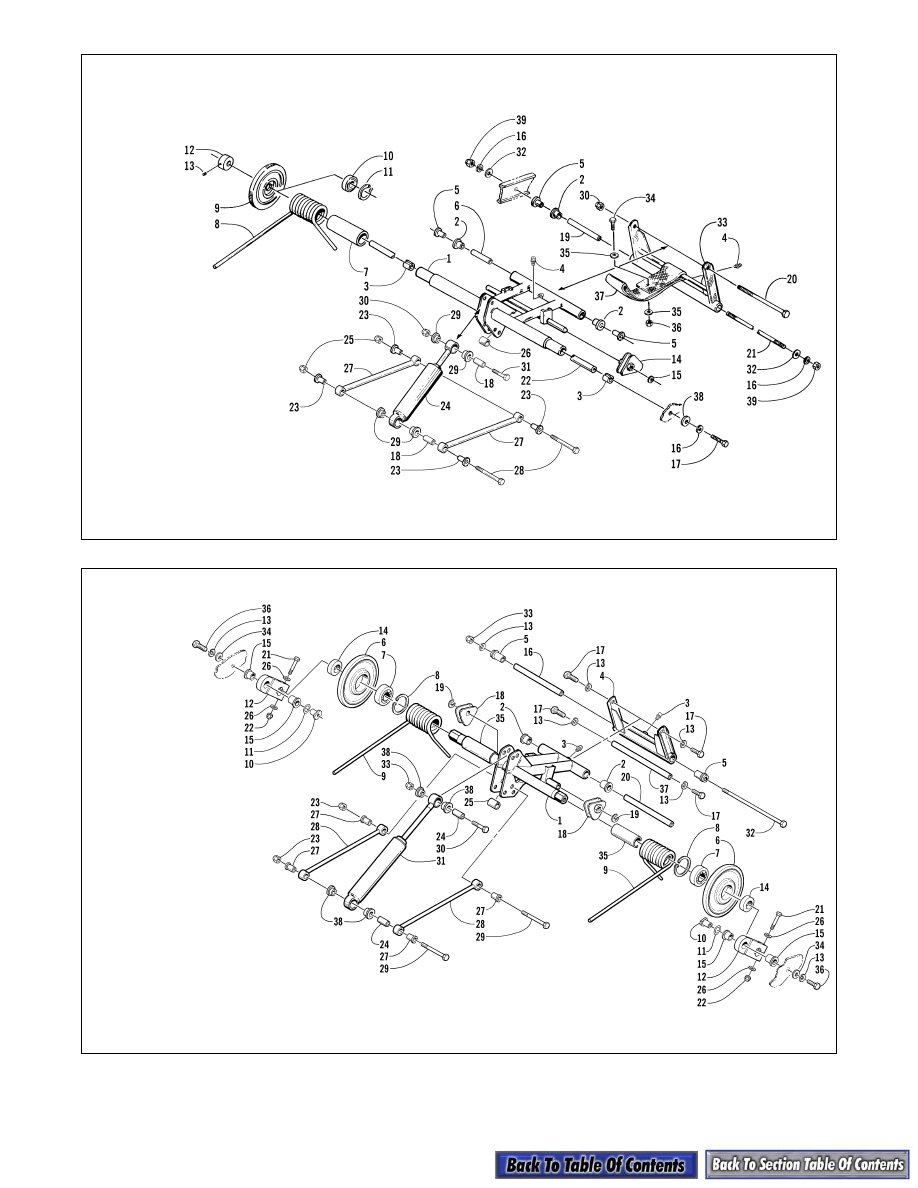

9-24

0736-584

0736-532

KEY

1. Idler Arm
2. Bushing
3. Bearing
4. Grease Fitting
5. Serrated Axle
6. Idler Axle
7. Sleeve
8. Spring
9. Idler Wheel

10. Bearing
11. Retaining Ring
12. Lock Collar
13. Set Screw
14. Spring Adjuster Block
15. Retaining Ring
16. Lock Washer
17. Cap Screw
18. Sleeve
19. Axle Tube
20. Cap Screw
21. Stud Bolt
22. Inner Carriage Axle
23. Link Axle
24. Shock Absorber
25. Lock Nut
26. Spacer
27. Shock Link
28. Cap Screw
29. Bushing
30. Lock Nut
31. Cap Screw
32. Washer
33. Rear Arm
34. Cap Screw
35. Washer

36. Lock Nut
37. Limiter Strap
38. Washer
39. Lock Nut

Style C

KEY

1. Idler Arm
2. Bushing
3. Grease Fitting
4. Rear Arm
5. Axle
6. Idler Wheel
7. Bearing
8. Retaining Ring
9. Suspension Spring

10. Axle
11. Washer
12. Pivot Idler Arm
13. Lock Washer
14. Spacer
15. Bushing
16. Axle Tube
17. Cap Screw
18. Spring Block
19. Retainer Ring
20. Axle
21. Cap Screw
22. Lock Nut
23. Lock Nut
24. Sleeve
25. Spacer
26. Washer
27. Link Axle
28. Link
29. Cap Screw
30. Cap Screw
31. Shock Absorber
32. Cap Screw
33. Lock Nut
34. Washer
35. Sleeve

36. Cap Screw
37. Axle
38. Bushing

Style D

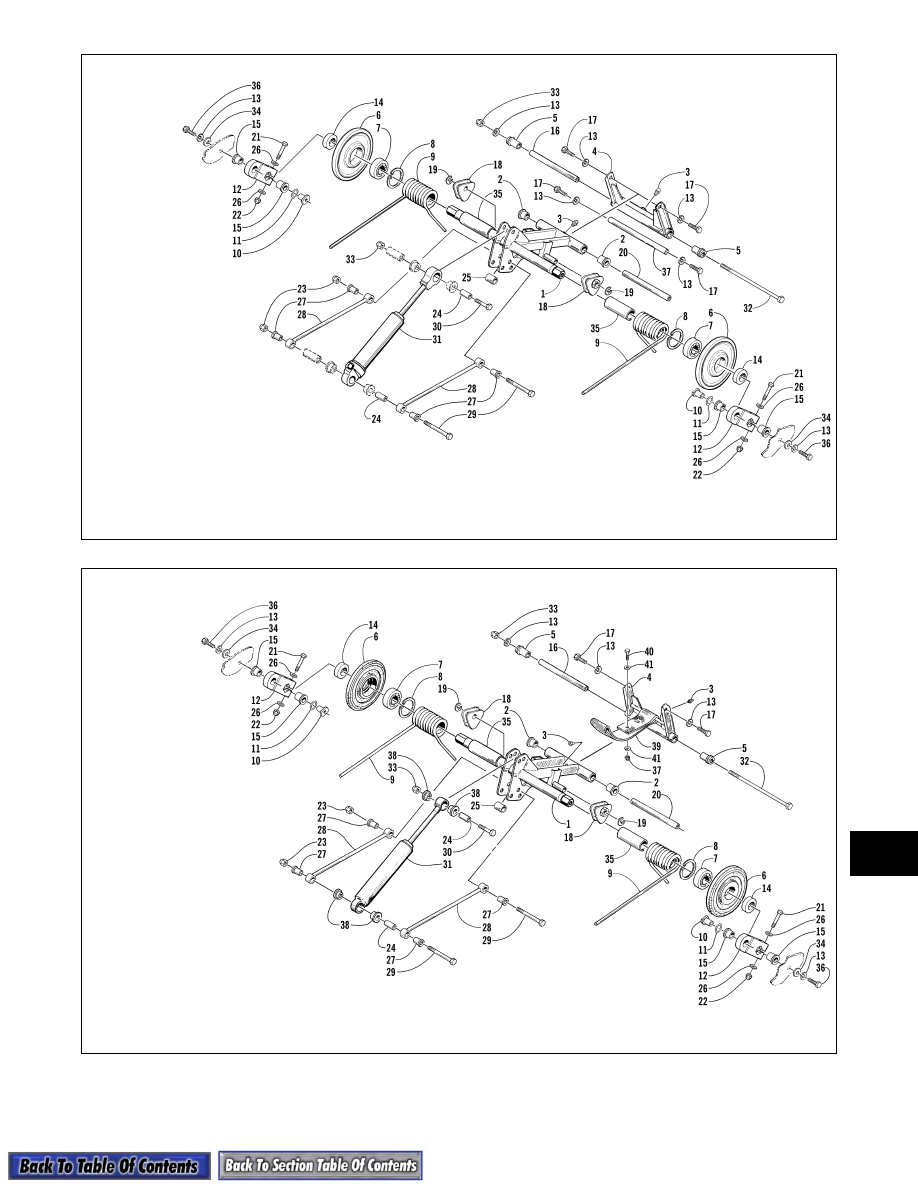

9-25

0736-667

0735-317

KEY

1. Idler Arm
2. Bushing
3. Grease Fitting
4. Rear Arm
5. Axle
6. Idler Wheel
7. Bearing
8. Retaining Ring
9. Suspension Spring

36. Cap Screw
37. Axle

Style E

KEY

1. Idler Arm
2. Bushing
3. Grease Fitting
4. Rear Arm
5. Axle
6. Idler Wheel
7. Bearing
8. Retaining Ring
9. Suspension Spring

36. Cap Screw
37. Lock Nut
38. Bushing
39. Limiter Strap
40. Cap Screw
41. Washer

Style F
