8-70

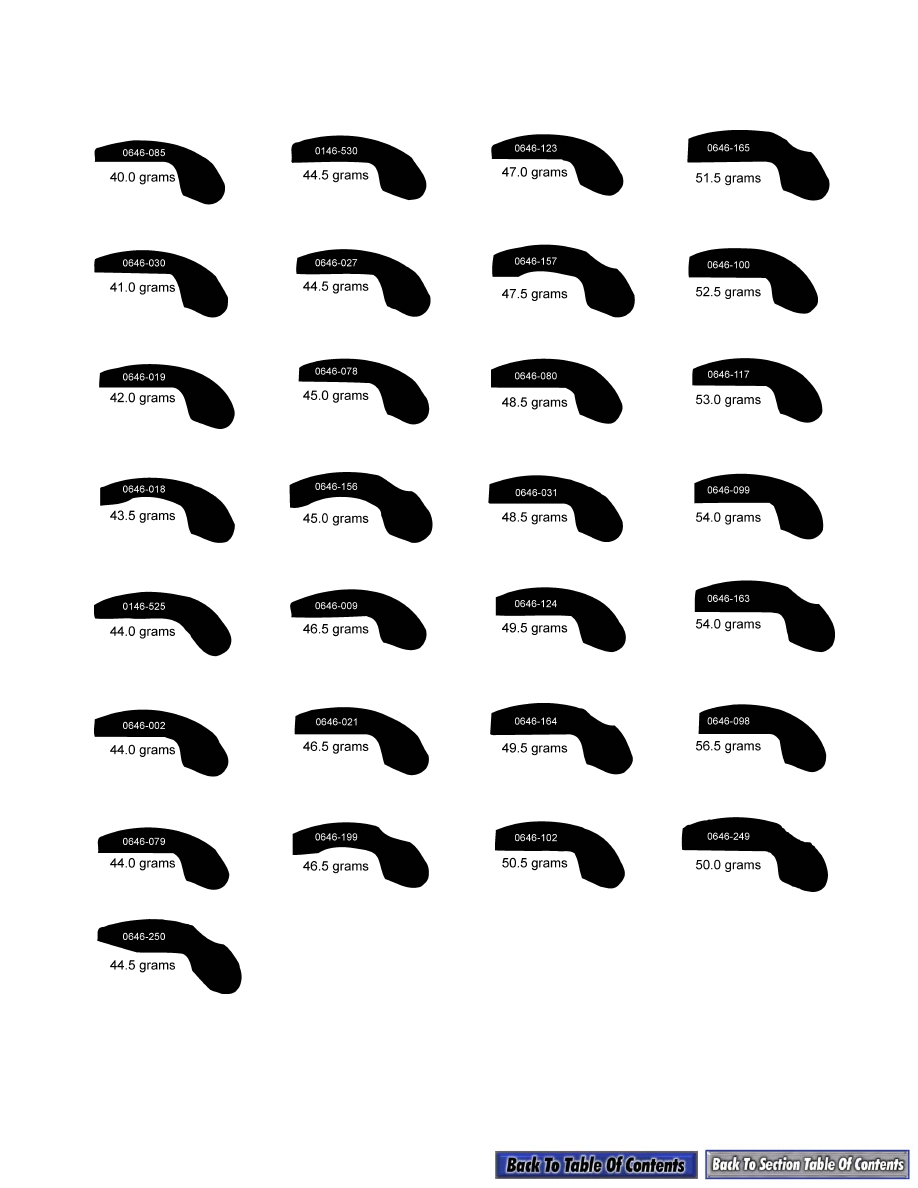

COMET CAM ARMS

COMET-CM

8-71

8

COMET-TO-ARCTIC CAT CAM ARM

CONVERSION CHART

CHAINS & SPROCKETS

For reference, all spockets and chains available from Arctic Cat are listed below.

„ NOTE: Added to the list are wide 15 link chains with corresponding wide sprockets. These chains and
sprockets are 3 mm (1/8 in.) wider than the 13 link chains and corresponding sprockets and approximately
25% stronger.

* Reverse and 2-Speed Chain

* Reverse and 2-Speed Sprocket

COMET P/N

ARCTIC CAT

P/N

COMET P/N

ARCTIC CAT

P/N

COMET P/N

ARCTIC CAT

P/N

COMET P/N

ARCTIC CAT

P/N

0646-085

N/A

0146-530

0746-531

0646-123

N/A

0646-165

0746-534

0646-030

0746-503

0646-027

0746-502

0646-157

0746-533

0646-100

0746-535

0646-019

0746-526

0646-078

N/A

0646-080

0746-524

0646-117

0746-539

0646-018

N/A

0646-156

0746-536

0646-031

0746-501

0646-099

0746-500

0146-525

N/A

0646-009

N/A

0646-124

0746-538

0646-163

0746-530

0646-002

N/A

0646-021

0746-540

0646-164

0746-529

0646-098

N/A

0646-079

0746-525

0646-199

0746-528

0646-102

0746-527

0646-249

N/A

0646-250

N/A

UPPER SPROCKETS

NUMBER OF TEETH

P/N

15

0107-217

16

0107-340

17

0107-218

18

0107-341

19

0107-219

20

0107-409

21

0107-408

22

0107-301

23

0602-363

24

0107-508

LOWER SPROCKETS

NUMBER OF TEETH

P/N

33

0107-513

35

0107-325

35*

0702-074

37

0107-407

39

0107-220

39*

0702-072

40

0107-903

41

0107-369

STANDARD CHAINS

PITCH

P/N

64

0107-322

66

0107-358

68

0107-215

70

0107-216

70*

0602-371

72

0107-372

WIDE CHAIN (13 Link)

PITCH

P/N

68

0602-495

70

1602-041

72

1602-042

WIDE CHAIN (15 Link)

68

1602-036

70

0602-968

72

0602-972

74

1602-037

WIDE SPROCKET (w/13 Link Chain)

(UPPER)

NUMBER OF TEETH

P/N

18

0602-445

19

0602-444

20

0602-456

21

0602-494

22

0602-455

23

0602-452

24

0602-446

19*

0602-470

WIDE SPROCKET (w/15 Link Chain)

(UPPER)

20

0602-967

18

0602-995

19

0602-973

23

1602-118

24

0602-974

WIDE SPROCKET (w/13 Link Chain)

(LOWER)

NUMBER OF TEETH

P/N

35

0602-457

39

0602-451

40

0602-453

39*

0702-170

40*

0702-393

41

1602-119

42

0602-909

44

0602-812

44*

0702-400

WIDE SPROCKET (w/15 Link Chain)

(LOWER)

35*

0602-142

39*

0702-370

40*

0702-394

44*

0702-383

8-72

ARCTIC CAT DRIVE BELT DIMENSION CHART

* High Performance Belt

** Double-Cog High Performance Belt

*** Double-Cog High Performance Belt w/Hard Compound

„ NOTE: The difference between Drive Belt (p/n 0627-010) and Drive Belt (p/n 0627-020) is width. If one of
these belts is substituted for the other, the driven pulley will need a shim added or a shim removed to
obtain correct belt deflection. Both of these belts are constructed of “hard compound” and should be used
only when recommended. If these belts are used when a softer compound belt is recommended (such as a
p/n 0627-012 or 0627-021), the engine will run at a higher RPM.

BELT P/N

LENGTH

WIDTH

0100-022

41 3/8 ± 3/64 inch

1 3/16 inch

0100-032

43 1/2 ± 3/64 inch

1 3/16 inch

0100-042

46 3/4 ± 3/64 inch

1 3/16 inch

0100-043

46 9/16 ± 3/64 inch

1 3/16 inch

0100-066

45 7/16 ± 3/64 inch

1 3/16 inch

0100-080

44 1/8 ± 3/8 inch

1 3/16 inch

0100-088

43 1/8 ± 3/16 inch

1 3/16 inch

0100-092

43 13/16 ± 3/16 inch

1 1/4 inch

0227-002

47 1/2 ± 3/16 inch

1 1/4 inch

0227-007

43 1/4 ± 3/16 inch

1 1/4 inch

0227-010

49 ± 3/16 inch

1 1/4 inch

0227-011

44 ± 3/16 inch

1 1/4 inch

0227-014

45 1/2 ± 3/16 inch

1 1/4 inch

0227-016

45 1/16 ± 3/16 inch

1 1/4 inch

0227-017

42 13/16 ± 3/16 inch

1 1/4 inch

0227-019

43 1/4 ± 3/16 inch

1 1/4 inch

0227-020

46 11/16 ± 3/16 inch

1 1/4 inch

0227-022

45 1/2 ± 3/16 inch

1 1/4 inch

0227-023

45 7/16 ± 1/8 inch

1 1/4 inch

0227-026

43 1/4 ± 3/16 inch

1 1/4 inch

0227-027

43 1/4 ± 3/16 inch

1 1/4 inch

0227-030

43 1/2 ± 3/16 inch

1 3/8 inch

0227-032

43 5/8 ± 3/16 inch

1 3/8 inch

0227-100

45 1/2 ± 3/16 inch

1 3/8 inch

0227-101

43 5/16 ± 3/16 inch

1 3/8 inch

0227-103

43 5/8 ± 3/16 inch

1 3/8 inch

*0627-001

43 5/8 ± 3/16 inch

1 3/8 inch

*0627-002

43 3/8 ± 3/16 inch

1 3/8 inch

*0627-004

43 5/16 ± 3/16 inch

1 3/8 inch

*0627-006

43 5/8 ± 3/16 inch

1 3/8 inch

*0627-008

45 3/4 ± 3/16 inch

1 3/8 inch

**0627-009

47 3/4 ± 3/16 inch

1 3/8 inch

***0627-010

47 3/4 ± 3/16 inch

1 3/8 inch

**0627-011

45 3/4 ± 3/16 inch

1 3/8 inch

**0627-012

47 3/4 ± 3/16 inch

1 3/8 inch

0627-013

49 ± 3/16 inch

1 7/16 inch

0627-014

49 ± 3/16 inch

1 7/16 inch

***0627-020

47 3/4 ± 3/16 inch

1 13/32 inch

**0627-021

47 3/4 ± 3/16 inch

1 13/32 inch

8-73

8

ARCTIC CAT DRIVE BELT REPLACEMENT CHART

1967

Panther P8, P12, P15 .......................... 0100-022

1968

Cougar ................................................. 0100-022
Panther P-20 w/o Kohler Eng............... 0100-032

w/Kohler Eng. .................................. 0100-022

1969

Panther Models, P35H ......................... 0100-042
P17J, P19J, K or S, P22J or H ............. 0100-043
P12K, P19H, P20W, P23K ................... 0100-066
P17H .................................................... 0100-080
P27H .................................................... 0100-088

1970

Panther P246, P292, P295, P340 Eng. 0100-080
P303, P299 Eng. ................................. 0100-088
P440 Eng.  ........................................... 0100-092
P634, P760, P793 Eng.  ...................... 0100-042

1971

Panther & Puma

P303 (303cc), P340,
PM340 (340cc) ...............................  0100-088
P399, PM399 (398cc), P440,
PM440 (436cc) ................................ 0100-092
P650, PM650 (634cc)...................... 0100-042

Lynx L295 (292cc), L303 (303cc),

L340 (340cc) ..................................  0100-080

Ext E295 (292cc) ................................. 0100-088
E340 (339cc), E399 (398cc),

E440 (436cc) ................................... 0100-092

1972

Lynx 292AL, Panther 292AP

Kawasaki KT 150B) ......................... 0100-080

Puma 340APU, Cheetah 340AC,

Panther 340AP (Kawasaki TIA 340S1),
Panther 303WP
(Wankel KM 914)............................  0100-088

Puma 399APU, Cheetah 399AC,

Panther 399AP (Kawasaki TIA 400S1),
Cheetah 440AC, Panther 440AP
(Kawasaki TIA 440S1)..................... 0100-092

Ext (All Engines) .................................. 0227-002

1973

Lynx 292 .............................................. 0100-080
Puma 440............................................. 0100-092
Cheetah 340 ........................................ 0227-007 *
Cheetah 400, 440 ................................ 0227-007 *
Panther 340.......................................... 0227-007 *
Panther 400, 440.................................. 0227-007 *
Panther Wankel.................................... 0100-088
El Tigre 250, 340.................................. 0227-011
El Tigre 400, 440.................................. 0227-011
Ext 290, 340......................................... 0227-020
Ext 440, 650......................................... 0227-020

1974

Lynx I 292 ............................................ 0227-011
Lynx I 295 ............................................ 0227-007 *
Lynx II 340, 440 ................................... 0227-007 *
Cheetah 340, 440 ................................ 0227-007 *
Panther 295W, 340, 440 ...................... 0227-007 *
El Tigre 295, 340, 400, 440.................. 0227-014

1975

El Tigre Z, 340, 440 ............................. 0227-020
Pantera................................................. 0227-007 *
Lynx 250 .............................................. 0227-017
Cheetah 295 ........................................ 0227-016
Cheetah 340, 440 ................................ 0227-007
Panther 340, 440.................................. 0227-007
Jag 340 ................................................ 0227-014

1976

El Tigre 4000, 5000.............................. 0227-020
Pantera 5000........................................ 0227-020
Panther 4000........................................ 0227-007 *
Cheetah 4000 ...................................... 0227-007 *
Panther 5000........................................ 0227-019
Cheetah 5000 ...................................... 0227-019
Jag 2000, 3000 .................................... 0227-014
Lynx 250 .............................................. 0227-017
Arctic Z................................................. 0227-022
Cross Country Cat ............................... 0227-020

1977

El Tigre 4000, 5000 ............................. 0227-020
Pantera 5000F/A, 5000F/C .................. 0227-020
Panther 4000 ....................................... 0227-007 *
Panther 5000 ....................................... 0227-019
Cheetah 4000 ...................................... 0227-019
Jag 3000 .............................................. 0227-014
Lynx 2000T, 2000S .............................. 0227-007 *

1978

Lynx 2000S, 2000T .............................. 0227-007 *
Jag 2000, 3000 .................................... 0227-014
Panther 4000 ....................................... 0227-007 *
Panther 5000 ....................................... 0227-019
Cheetah 5000 ...................................... 0227-019
El Tigre 5000F/A, 6000L/C .................. 0227-019
Pantera 5000F/A, 5000F/C .................. 0227-020

1979

Lynx 2000S, 2000T .............................. 0227-007 *
Jag 2000, 3000, FC/OI ........................ 0227-014
Panther 5000F/C.................................. 0227-019
El Tigre 5000F/A, 6000L/C .................. 0227-019
Pantera 5000F/C.................................. 0227-020
Trail Cat................................................ 0227-019
El Tigre 340 & 440

.....................................................Special Edition

0227-026

1980

Lynx 2000S, 2000T .............................. 0227-007 *
Jag 2000, 3000, 3000F/C .................... 0227-014
Trail Cat 3000, 4000............................. 0227-019
Panther, Pantera,

............................................. El Tigre 5000, 6000

0227-019

1981

Jag ....................................................... 0227-014
Trail Cat................................................ 0227-019
Panther, Pantera .................................. 0227-019
El Tigre 5000 ....................................... 0227-030
El Tigre 6000 ....................................... 0227-032

1984

Panther ................................................ 0227-030
El Tigre 6000 ....................................... 0227-032

1985

Jag ....................................................... 0227-100
Panther, Pantera .................................. 0227-030
Cougar ................................................. 0227-030
El Tigre 6000 ....................................... 0227-032

1986

Jag ....................................................... 0227-100
Panther, Pantera .................................. 0227-030
Cougar, Cheetah F/C ........................... 0227-030
El Tigre, Cheetah L/C .......................... 0227-032

1987

Jag 340, 440 ........................................ 0227-100
Super Jag ............................................ 0227-030
Panther, Pantera .................................. 0227-030
Cougar, Cheetah F/C ........................... 0227-030
El Tigre 5000, 6000 ............................. 0227-032
Cheetah L/C......................................... 0227-032

1988

Jag 340, 440, Jag Deluxe .................... 0227-100
Super Jag, Panther .............................. 0227-030
Cougar, Pantera................................... 0227-101
El Tigre 5000, 6000 ............................. 0227-101
Cheetah Touring, L/C........................... 0227-101
Wildcat 650 .......................................... 0627-004

1989

Jag 340, Jag Deluxe ............................ 0227-100
Super Jag, Jag AFS............................. 0227-032
Panther, Cougar................................... 0227-032
Pantera, Cheetah Touring .................... 0227-032
El Tigre 6000, EXT .............................. 0227-032
Wildcat 650 .......................................... 0627-001

1990

Jag 340 ................................................ 0227-100
Jag Mountain Cat................................. 0227-100
Panther, Jag AFS ................................. 0227-103
Cougar, Cheetah Touring..................... 0227-103
Pantera, El Tigre EXT .......................... 0227-103
Wildcat 650 .......................................... 0627-006
Prowler................................................. 0227-103

1991

Lynx ..................................................... 0227-030
Jag AFS, Panther................................. 0227-103
Jag Long Track .................................... 0227-103
Super Jag ............................................ 0227-103
Jag 340 Mountain Cat.......................... 0227-100
Cougar, Cheetah Touring..................... 0227-103
Pantera, Prowler .................................. 0227-103
El Tigre EXT ........................................ 0227-103
Prowler Special.................................... 0227-103
EXT Special ......................................... 0227-103
Wildcat 700 .......................................... 0627-006

1992

Jag, Jag Special .................................. 0227-103
Super Jag ............................................ 0227-103
Jag AFS L/T......................................... 0227-103
Cheetah ............................................... 0227-103
Cougar ................................................. 0227-103
Lynx, Lynx Deluxe................................ 0227-030
Lynx Mountain Cat............................... 0227-103
Pantera ................................................ 0227-103
Prowler, Prowler Special...................... 0227-103
EXT, EXT Special ................................ 0227-103
Panther ................................................ 0227-103
Wildcat (AWS) ..................................... 0627-008
Wildcat EFI (AFS) ................................ 0627-006

1993

Jag, Jag 440 Z ..................................... 0227-103
Jag AFS L/T......................................... 0227-103
Cheetah ............................................... 0227-103
Cougar ................................................. 0227-103
Lynx, Lynx Deluxe................................ 0227-030
Lynx Mountain Cat............................... 0227-103
Pantera ................................................ 0227-103
Prowler, Prowler 440Z ......................... 0227-103
EXT, EXT 580 Z ................................... 0227-103
Panther ................................................ 0227-103
Wildcat ................................................. 0627-011
Thundercat .......................................... 0627-010
ZR Models ........................................... 0627-012

1994

Puma, Puma Deluxe, Puma 2-Up........ 0227-103
Jag, Jag 440Z ...................................... 0227-103
Cheetah Models .................................. 0227-103
Cougar ................................................. 0227-103
Pantera ................................................ 0227-103
Prowler EFI .......................................... 0227-103
EXT 580 Models .................................. 0627-012
Panther Deluxe .................................... 0227-103
Wildcat EFI .......................................... 0627-011
ZR Models ........................................... 0627-012
Thundercat .......................................... 0627-010

1995

Puma, Puma Deluxe, Puma 2-Up........ 0227-103
Jag, Jag Deluxe ................................... 0227-103
Panther ................................................ 0227-103
Bearcat 340 ......................................... 0627-013
Bearcat 440 & 550 ............................... 0627-014
Cougar ................................................. 0627-012
Prowler................................................. 0627-012
Pantera ................................................ 0627-012
EXT...................................................... 0627-012
EXT Powder Special ............................ 0627-010
Wildcat, Wildcat Touring ...................... 0627-010
Thundercat .......................................... 0627-010
Z440 .................................................... 0627-012
ZR440, ZR580 ..................................... 0627-012
ZR700 .................................................. 0627-010
ZRT800................................................ 0627-010

Extended life drive belts for high altitude operation

are available under the following part numbers:

Standard

Extended

Belt

Life Belt

0227-030

=

0627-002

0227-032

=

0627-001

0227-100

=

0627-003

0227-101

=

0627-004

0227-103

=

0627-006

0627-008

=

0627-011

* Also Available in Kevlar (Fiber B)

Material — part 0227-019
