8-18

2. Recheck both offset and parallelism to ensure

accuracy and make further adjustments as

necessary.

„ NOTE: After parallelism and offset have been
corrected, check for proper drive belt deflection.
This is critical for optimum performance.

DRIVE BELT DEFLECTION

Drive belt length, condition, and deflection are all

important for peak performance. To check and adjust

drive belt deflection, use the following procedure.

1. Turn the engine off; then open the belt guard.

2. Make sure the drive belt is sitting at the top of the

driven pulley sheaves.

3. Place a straightedge on top of the drive belt. The

straightedge should reach from the drive clutch to

the top of the driven pulley.

4. Using a stiff ruler centered between the drive

clutch and driven pulley, push down on the drive

belt just enough to remove all slack. Note the

amount of deflection on the ruler at the bottom of

the straightedge. The deflection should be within

the range of 25-31 mm (1-1 1/4 in.).

„ NOTE: Push down on the belt with the ruler only
until the bottom of the belt flexes upward; then
read the amount of deflection.

5. To correct drive belt deflection, washers can be

removed or added between the stationary and

movable sheaves of the driven pulley.

„ NOTE: If the drive belt deflection is above speci-
fications, the snowmobile will bog and lack power
at clutch engagement. For good performance,
proper belt deflection is critical.

6. Secure the belt guard.

8-19

8

Drive Train

Schematics

(w/Reverse)

„ NOTE: Determine which type of drive train is
being serviced and refer to the appropriate illustra-
tion for component details; then disassemble and
assemble accordingly. Some components will vary
from model to model. The technician should use
discretion and sound judgment when removing
and installing components.

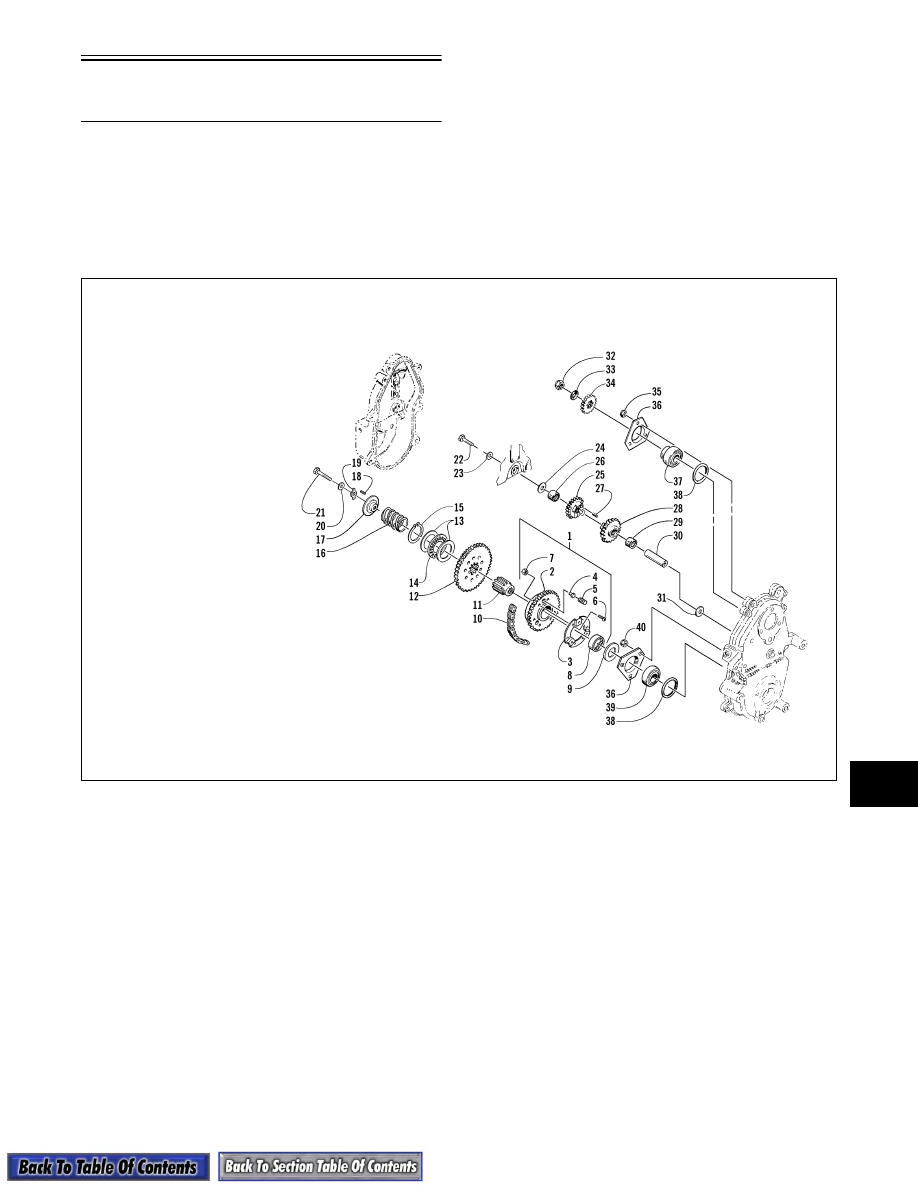

0736-617

Chain Case Assy

KEY

1. Sprocket Assy
2. Sprocket
3. Spring Retainer
4. Slip Pin
5. Compression

Spring

6. Cap Screw
7. Lock Nut
8. Bearing
9. Shaft Spacer

10. Chain
11. Driveshaft Exten-

sion

12. Reverse Gear
13. Thrust Washer
14. Thrust Bearing
15. Retaining Ring
16. Return Spring
17. Shaft Retainer
18. Spring Pin
19. Tab Lock Washer
20. Washer
21. Cap Screw
22. Cap Screw
23. Washer
24. Thrust Washer
25. Reverse Idler

Assy

26. Bearing
27. Aligner Pin
28. Reverse Idler

Assy

29. Bearing
30. Reverse Shaft
31. Reverse Idler

Spacer

32. Lock Nut
33. Spring Washer
34. Sprocket
35. Lock Nut
36. Flange Plate
37. Bearing
38. O-Ring Seal
39. Bearing
40. Lock

Nut

8-20

0736-488

0736-535

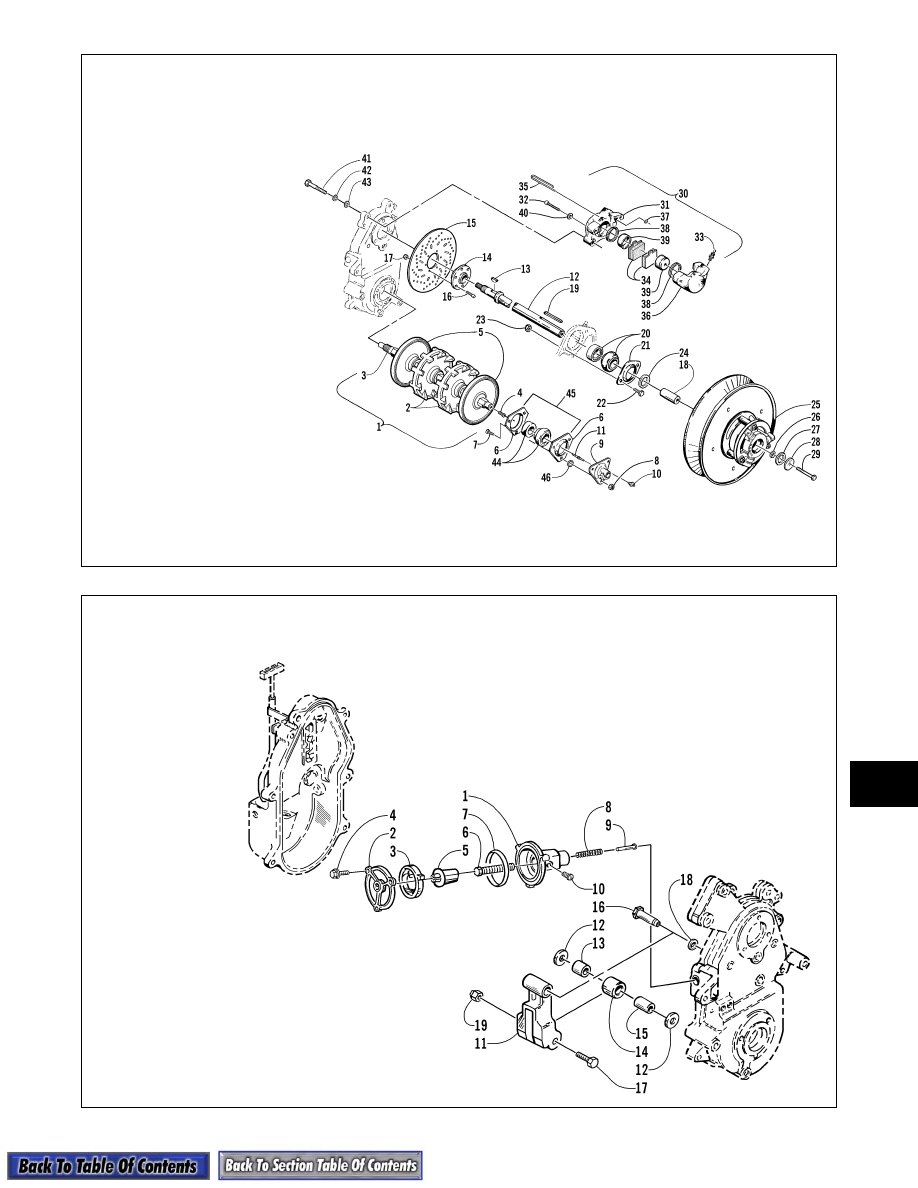

Drive & Driven Shafts/
Quick-Adjust Brake Assy

KEY

1. Track Drive Assy
2. Drive Sprocket
3. Driveshaft
4. Drive Bushing
5. Flange Plate/

Bearing Assy

6. Bearing
7. Flange Plate
8. Carriage Bolt
9. Solder Ring

10. Drive Adapter
11. Grease Fitting
12. Cable Adapter
13. Lock Nut
14. Brake Disc
15. Key
16. Driven Shaft
17. Key
18. Cap Screw
19. Bearing
20. Flange Plate
21. Lock Nut
22. Washer
23. Stub Shaft
24. Driven Pulley
25. Washer
26. Washer
27. Washer
28. Cap Screw
29. Snap Ring
30. Stationary Pad

Backing Plate

31. Brake Pad Set
32. Brake Pad Piston
33. Cap Screw
34. Lock Washer
35. Brake Cable

Bracket

36. Brake Caliper

Assy

37. Alignment Ball
38. Compression

Spring

39. Washer
40. Brake Caliper Nut
41. Spring Pin
42. Return Spring
43. Brake Adjuster

Knob

44. Compression

Spring

45. Brake Adjuster

Screw

46. E-Ring
47. Activator Arm
48. Clevis Pin
49. Washer
50. Cotter Pin
51. Clevis
52. Brake Caliper

Mounting Bolt

53. Washer

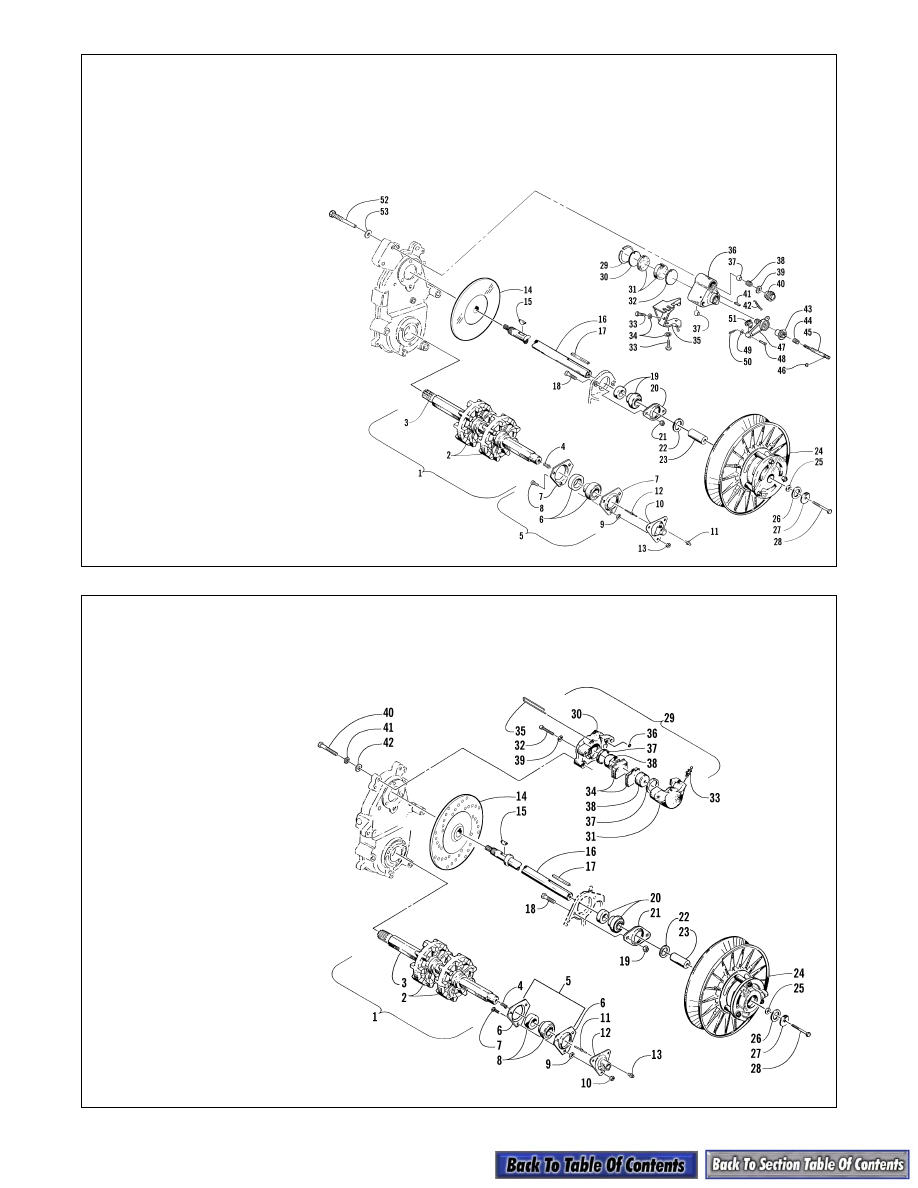

Drive & Driven Shafts/
Hydraulic Brake Assy

KEY

1. Track Drive Assy
2. Drive Sprocket
3. Driveshaft
4. Drive Bushing
5. Flange Plate/

Bearing Assy

6. Flange Plate
7. Carriage Bolt
8. Bearing
9. Solder Ring

10. Lock Nut
11. Cable Adapter
12. Drive Adapter
13. Grease Fitting
14. Brake Disc
15. Key
16. Driven Shaft
17. Key
18. Cap Screw
19. Lock Nut
20. Bearing
21. Flange Plate

22. Washer
23. Stub Shaft
24. Driven Pulley
25. Washer
26. Washer
27. Washer
28. Cap Screw
29. Brake Caliper

Assy

30. Housing
31. Housing
32. Cap Screw
33. Bleed Screw
34. Brake Pad Set
35. Retaining Pin
36. O-Ring
37. O-Ring
38. Piston
39. Washer
40. Cap Screw
41. Lock Washer
42. Washer

8-21

8

0735-974

0735-834

Drive & Driven Shafts/
Hydraulic Brake Assy

KEY

1. Track Drive

Assy*

2. Drive Sprocket
3. Driveshaft
4. Drive Bushing
5. Sprocket
6. Flange Plate
7. Carriage Bolt
8. Lock Nut
9. Drive Adapter

10. Grease Fitting
11. Cable Adapter
12. Driven Shaft
13. Key
14. Disc Hub
15. Brake Disc
16. Socket Head

Screw

17. Lock Nut
18. Stub Shaft
19. Key
20. Bearing
21. Flange Plate
22. Cap Screw
23. Lock Nut
24. Washer
25. Driven Pulley
26. Washer
27. Washer
28. Washer
29. Cap Screw
30. Brake Caliper

Assy

31. Housing

32. Cap Screw
33. Bleed Screw
34. Brake Pad Set
35. Retaining Pin
36. Housing
37. O-Ring
38. O-Ring
39. Piston
40. Washer
41. Cap Screw
42. Lock Washer
43. Washer
44. Bearing
45. Flange Plate
46. Solder Ring

* Sprocket style will vary from model to model.

Chain Tensioner Assy

KEY

1. Screw Housing
2. Cover
3. Power Spring
4. Self-Tapping

Screw

5. Chain Adjuster

Shaft

6. Chain Adjuster

Screw

7. O-Ring
8. Compression

Spring

9. Button Head

Rivet

10. Machine Screw
11. Roller Arm
12. Washer
13. Bearing
14. Tightener Roller
15. Shaft
16. Roller Arm Nut
17. Cap Screw
18. Washer
19. Lock Nut
