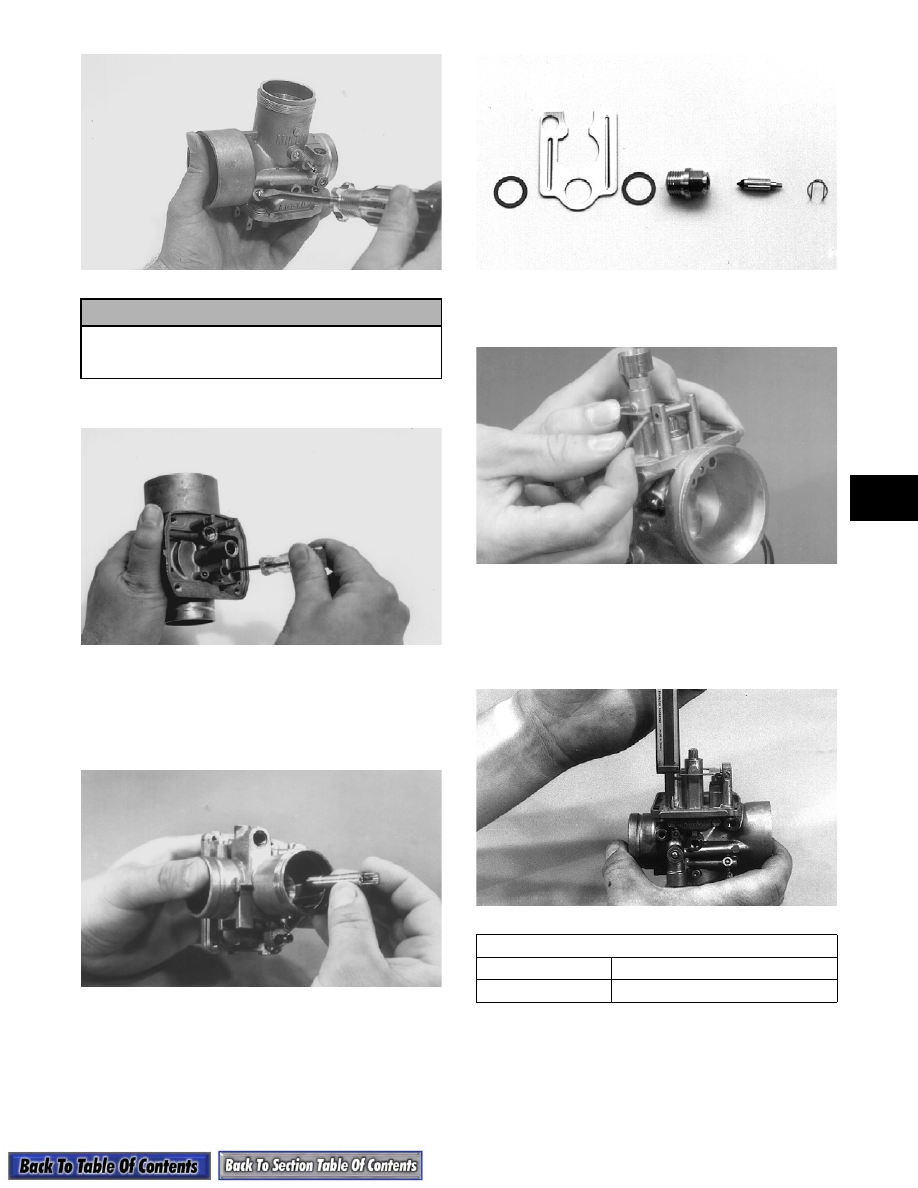

3. Install the pilot jet.

B352

4. Insert the needle jet into position from the top of

the carburetor making sure the groove in the

needle jet is aligned with the pin in the mixing

body; then place the jet extender, baffle ring, and

main jet into position and secure.

AH084

5. In order, place a washer, plate, washer, and inlet

seat into position and secure. Install the inlet

needle valve and secure with the retainer.

B347

6. Place the float arm into position and secure with

the pin.

AH138

7. Check the float arm height. Using a calipers,

measure the distance from the gasket surface to the

top of the float arm (with the carburetor inverted).

If measurement is not within specifications, adjust

by bending the actuating tab.

AH046

8. Place the O-ring and drain plug into position and

secure; then place the floats into position making

sure the word UP is properly positioned. Press the

caps onto the float towers.

! CAUTION

DO NOT force the pilot air screw when seating.
Forcing the screw will result in damage to the
carburetor body.

FLOAT ARM HEIGHT

VM-32/34

22-24 mm (0.86-0.94 in.)

VM-38

17-19 mm (0.66-0.74 in.)

4-18

B344

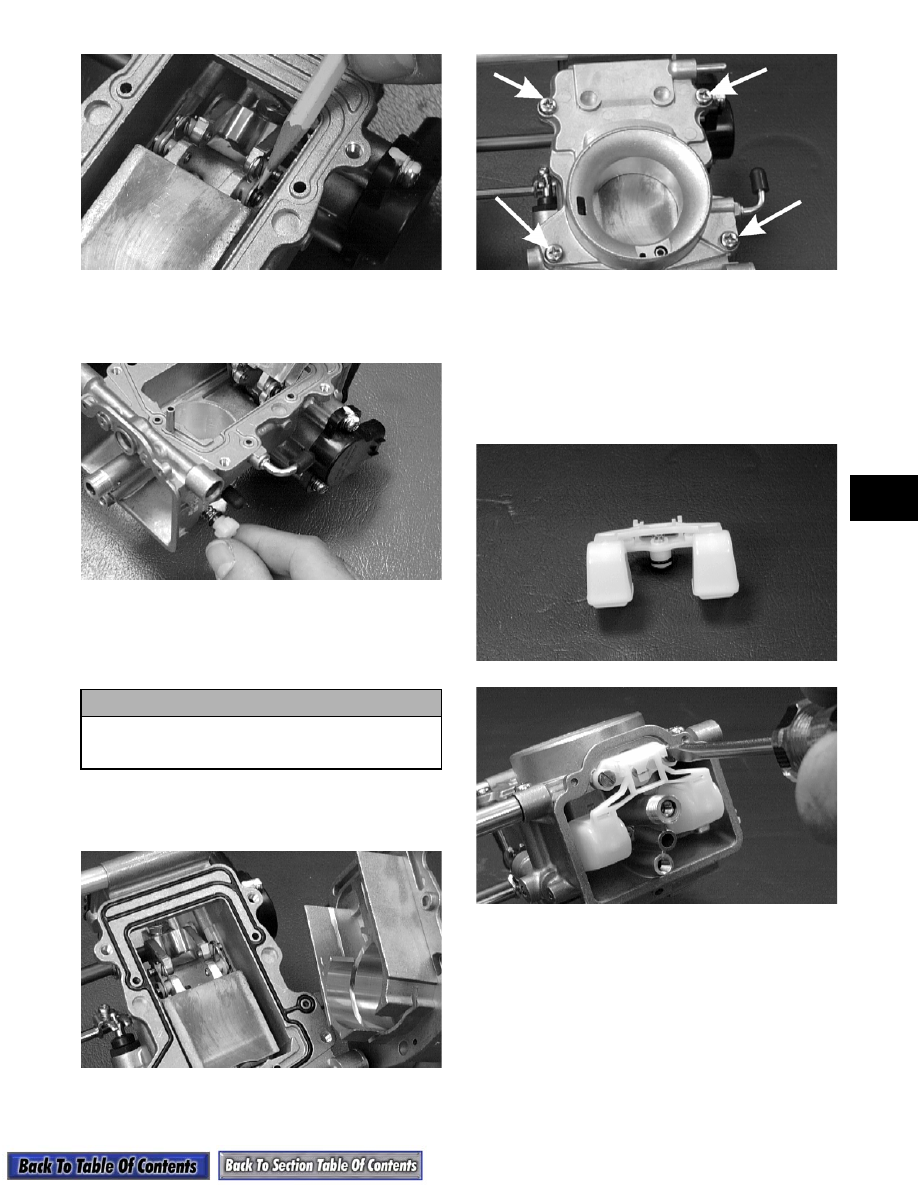

9. Place the gasket and float chamber into position

and secure with the four screws and lock washers

making sure the hose plates are properly

positioned on the two front screws. Install the vent

hoses.

AH137

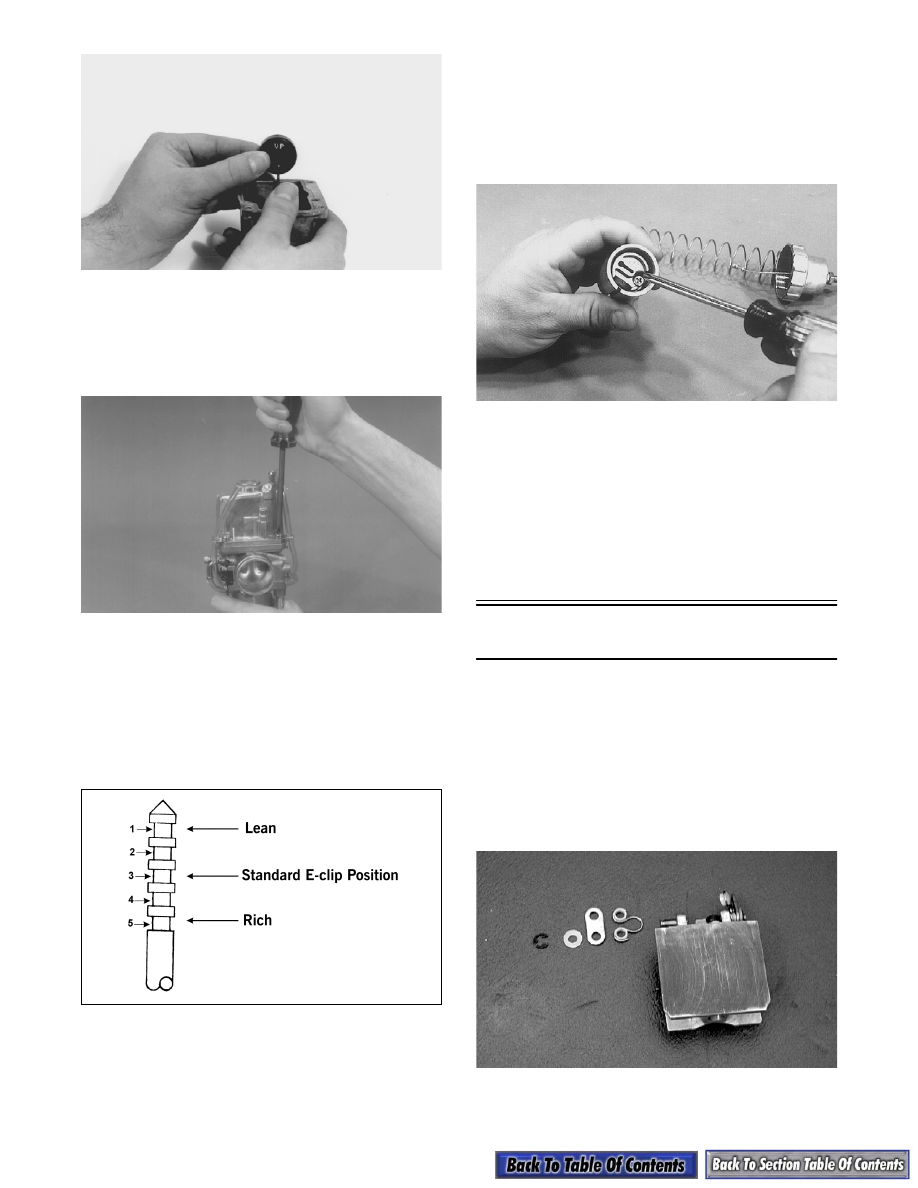

10. Place the E-clip into position on the jet needle.

From the bottom of the jet needle, slide the E-clip

washer up against the E-clip. Place the jet needle

into the piston valve. Place an E-clip washer on

the jet needle above the E-clip.

„

NOTE: Place the E-clip in the proper position as

noted in disassembly.

725-266C

11. Place the cable retainer into the piston valve and

secure with the Phillips-head screw. Place the

spring and plate over the throttle cable and

compress the spring. Guide the cable end down

into the cable retainer slot and slide the cable end

to the center of the piston valve. Release the spring

and retainer plate to lock the cable in position.

AH075

„

NOTE: The round part of the cable end must

come through the hole in the plate. If it doesn't, the
cable isn't assembled to the piston valve correctly.

12. Thread the plunger cap onto the choke cable. Place

the spring over the cable end and compress.

Position the cable end into the starter plunger and

release the spring.

Assembling Carburetors

(TM-Style)

1. Place the throttle valve into the mixing body

making sure the cutaway faces the funnel

assembly side; then slide the bushing assembly/

plate onto the lever assembly. Secure the assembly

with the remaining bushings with clip, plate,

washer, and E-clip.

„

NOTE: When installing the throttle valve, the cut-

away must face the funnel assembly side.

AH628D

4-19

4

AH627D

2. Making sure the cap, spring, washer, and rubber

washer are accounted for from disassembly, install

the fuel mixture screw in the mixing body.

AH626D

3. Rotate the fuel mixture screw clockwise until

lightly seated; then rotate the mixture screw

counterclockwise the same number of turns as

noted in disassembling for an initial setting.

4. Move the throttle lever to the full-open position;

then secure the funnel assembly w/gasket to the

mixing body.

AH623D

AH622DA

5. Accounting for the O-ring from disassembly,

install the float assembly by pressing in on the

screw mounting holes; then secure the float

assembly with the screws.

„

NOTE: It may be necessary to use a spray lubri-

cant such as WD-40 to aid in installing the float
assembly.

AH621D

AH620D

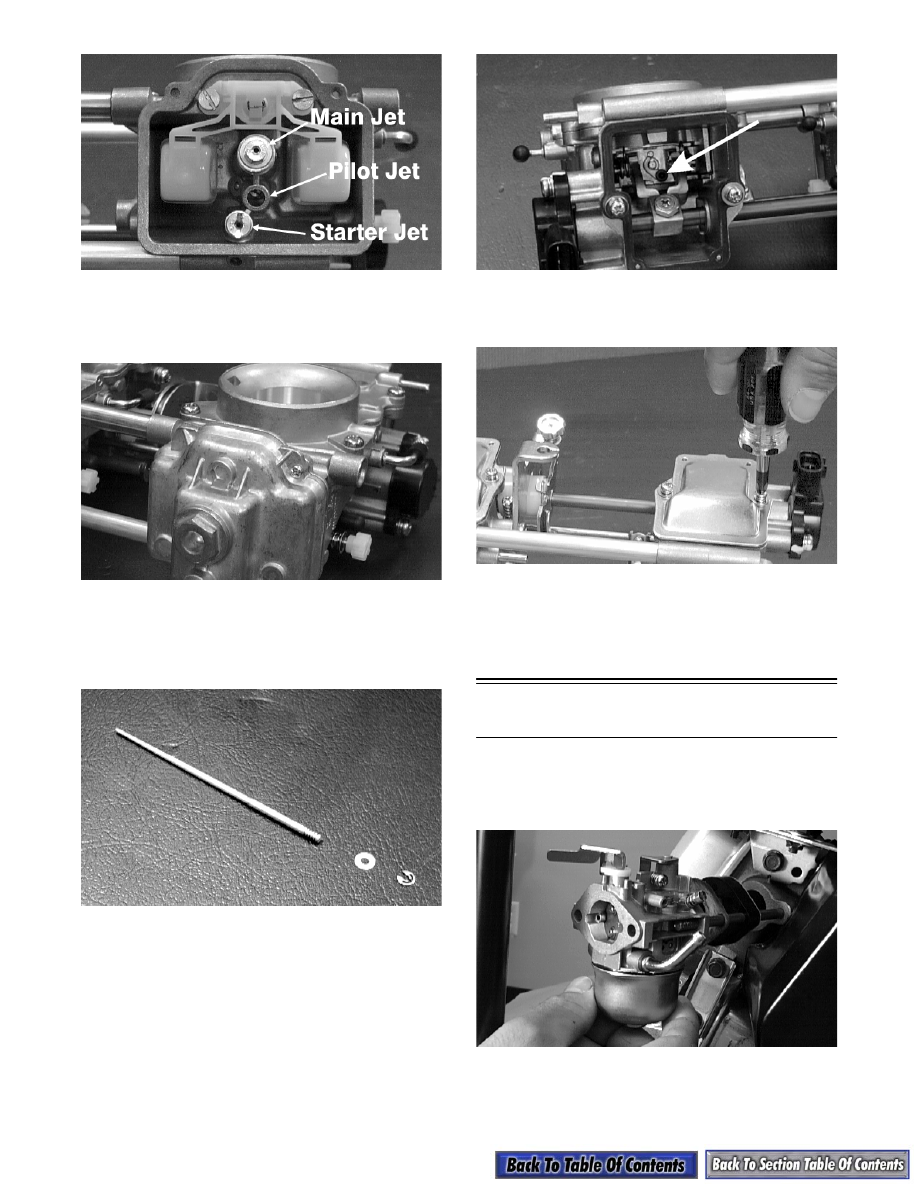

6. Install the starter jet, pilot jet, and main jet (with

washer).

! CAUTION

Do not force the mixture screw when seating.
Forcing the mixture screw may result in damage
to the screw taper and/or mixing body.

4-20

AH619DA

7. Place the float chamber and O-ring into position

on the mixing body; then secure with the screw

and drain plug (with O-ring).

AH618D

8. Place the washer and E-clip (above the washer)

onto the jet needle; then install the jet needle

assembly into the mixing body. Secure with the

retaining plate and screw.

AH617D

AH616DA

9. Place the top cap and gasket on the mixing body;

then secure with the screws (with washers).

AH615D

„

NOTE: If the lever assembly was loosened from

the throttle lever shaft, the carburetors must be
synchronized.

Installing Carburetor

(BV-Style)

1. Place the carburetor into position on the mounting

studs accounting for a gasket, insulator block, and

a gasket.

GF318D

2. Connect the rod and spring to the carburetor.
