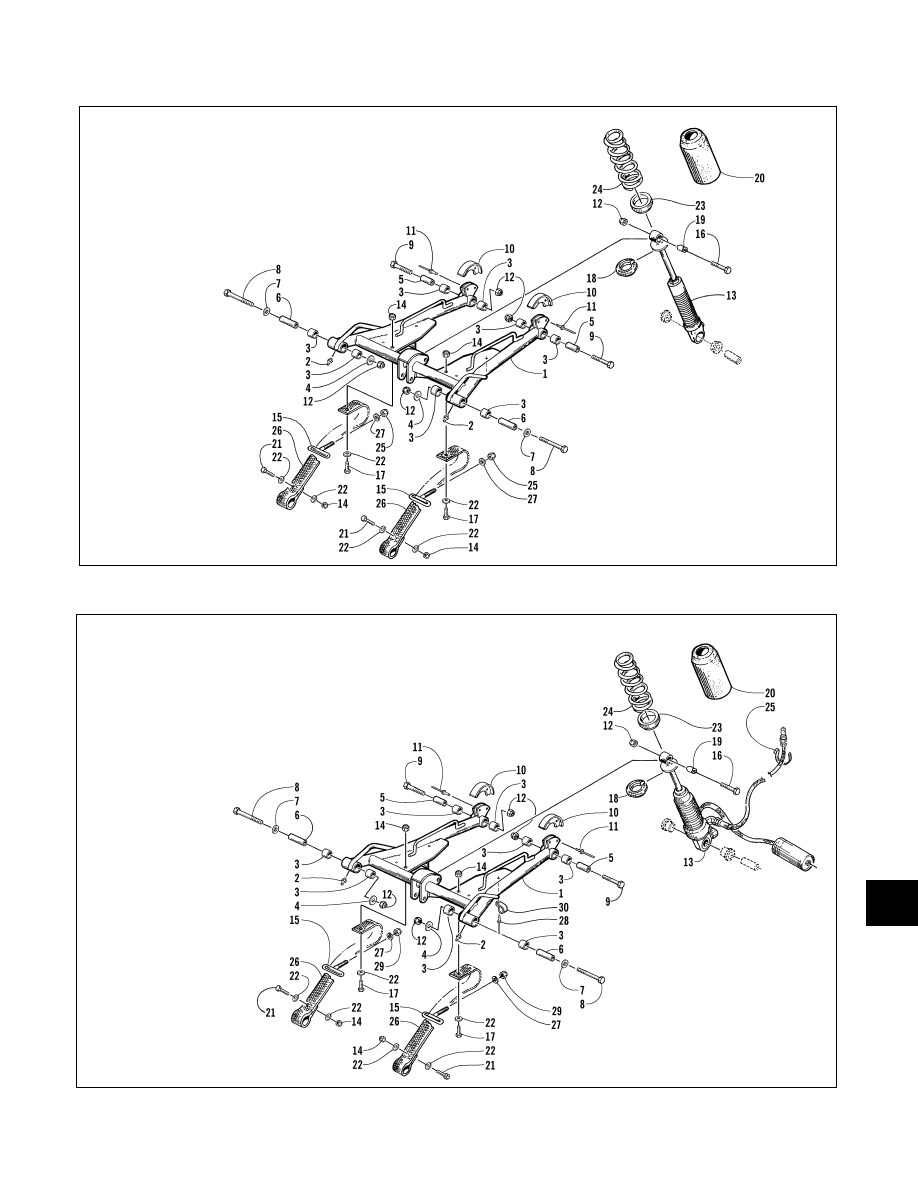

Fig. 9-34

0735-036

Fig. 9-35

0735-415

KEY

1. Front Suspension Arm
2. Grease Fitting
3. Bearing
4. Washer
5. Spacer
6. Axle
7. Washer
8. Cap Screw
9. Cap Screw

10. Bumper
11. Rivet
12. Lock Nut
13. Shock Absorber
14. Lock Nut
15. Adjuster
16. Cap Screw
17. Cap Screw
18. Retainer
19. Axle
20. Cover
21. Cap Screw
22. Washer
23. Adjuster Nut
24. Spring
25. Lock Nut
26. Limiter Strap
27. Washer

Style F

KEY

1. Front Suspension Arm
2. Grease Fitting
3. Bushing
4. Washer
5. Spacer
6. Inner Carriage Axle
7. Washer
8. Cap Screw
9. Cap Screw

Style G

9-23

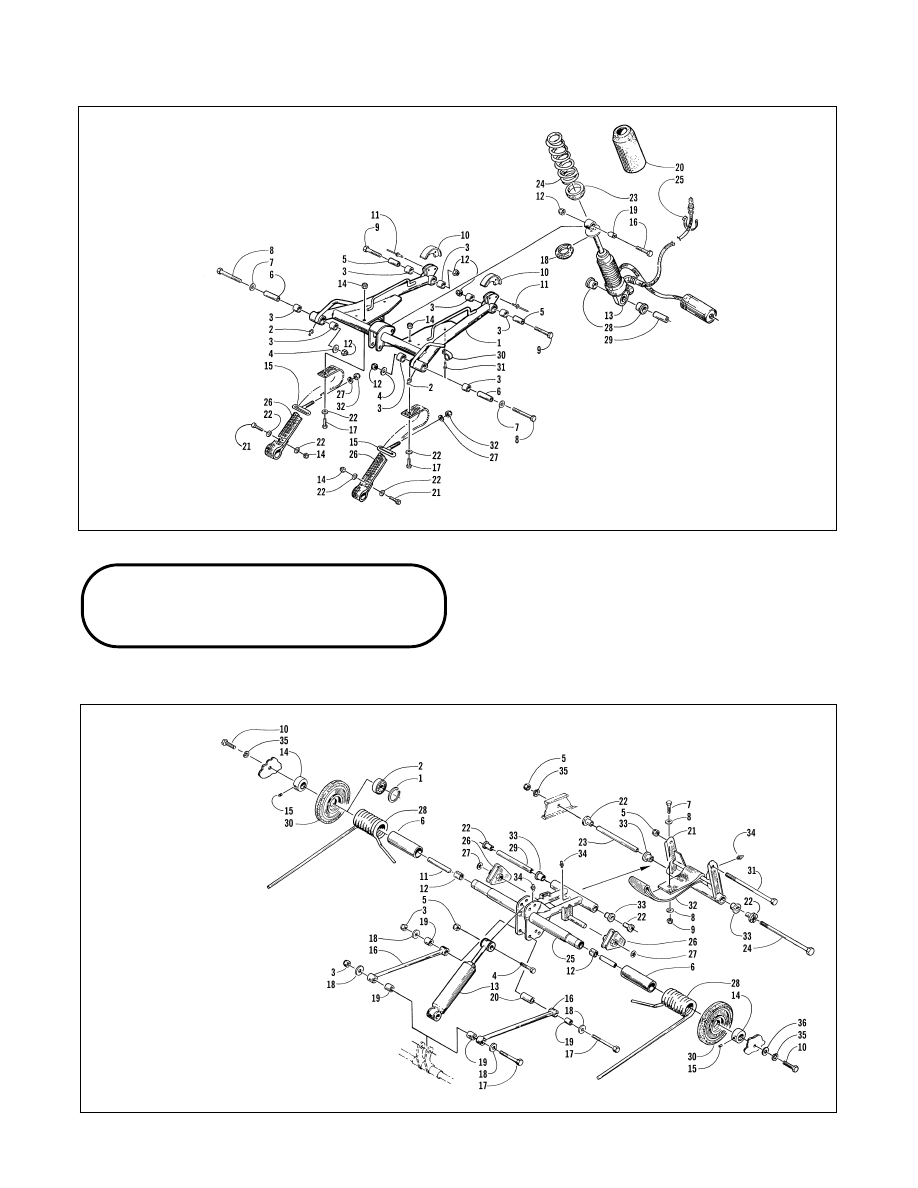

Fig. 9-36

0734-662

Rear Arm

Schematics

Fig. 9-37

0735-075

Style H

KEY

1. Front Suspension Arm
2. Grease Fitting
3. Bearing
4. Washer
5. Spacer
6. Axle
7. Washer
8. Cap Screw
9. Cap Screw

Style A

KEY

1. Retaining Ring
2. Bearing
3. Lock Nut
4. Cap Screw
5. Lock Nut
6. Spring Sleeve
7. Cap Screw
8. Washer
9. Lock Nut

10. Cap Screw
11. Inner Carriage Axle
12. Bearing
13. Shock Absorber
14. Lock Collar
15. Set Screw
16. Rear Shock Link
17. Cap Screw
18. Washer
19. Link Axle
20. Link Spacer
21. Rear Arm
22. Serrated Axle
23. Axle Tube
24. Cap Screw
25. Idler Arm
26. Spring Adjuster Block (Cam)
27. Retaining Ring
28. Spring
29. Idler Axle
30. Idler Wheel
31. Cap Screw

32. Limiter Strap
33. Bushing
34. Grease Fitting
35. Lock Washer
36. Washer

9-24

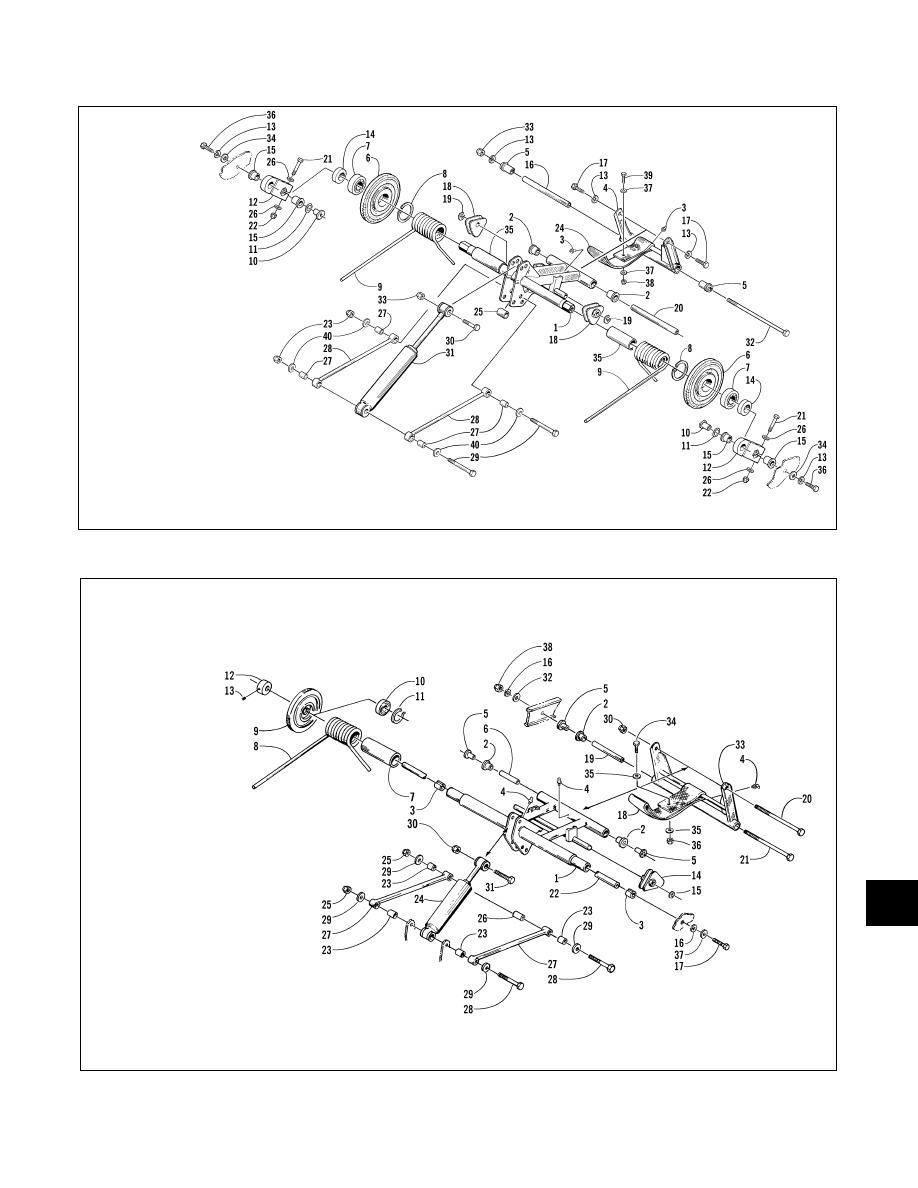

Fig. 9-38

0735-042

Fig. 9-39

0735-010

KEY

1. Idler Arm
2. Bushing
3. Grease Fitting
4. Rear Arm
5. Axle
6. Idler Wheel
7. Bearing
8. Retaining Ring
9. Suspension Spring

10. Axle
11. Washer
12. Offset Pivot Idler
13. Lock Washer
14. Spacer
15. Bushing
16. Axle Tube
17. Cap Screw
18. Spring Block
19. Retainer Ring
20. Axle
21. Cap Screw
22. Nut
23. Lock Nut
24. Limiter Strap
25. Spacer
26. Washer
27. Link Axle
28. Link
29. Cap Screw
30. Cap Screw
31. Shock Absorber
32. Cap Screw

33. Lock Nut
34. Washer
35. Sleeve
36. Cap Screw
37. Washer
38. Lock Nut
39. Cap Screw
40. Washer

Style B

KEY

1. Idler Arm
2. Bushing
3. Bearing
4. Grease Fitting
5. Serrated Axle
6. Idler Axle
7. Sleeve
8. Suspension Spring
9. Idler Wheel

10. Bearing
11. Retaining Ring
12. Lock Collar
13. Set Screw
14. Cam (Adjuster Block)
15. Retaining Ring
16. Lock Washer
17. Cap Screw
18. Limiter Strap
19. Axle Tube
20. Cap Screw
21. Cap Screw
22. Inner Carriage Axle
23. Link Axle
24. Shock Absorber
25. Lock Nut
26. Spacer
27. Rear Shock Link
28. Cap Screw
29. Washer
30. Lock Nut
31. Cap Screw
32. Washer
33. Rear Arm
34. Cap Screw
35. Washer
36. Lock Nut
37. Washer

Style C

9-25

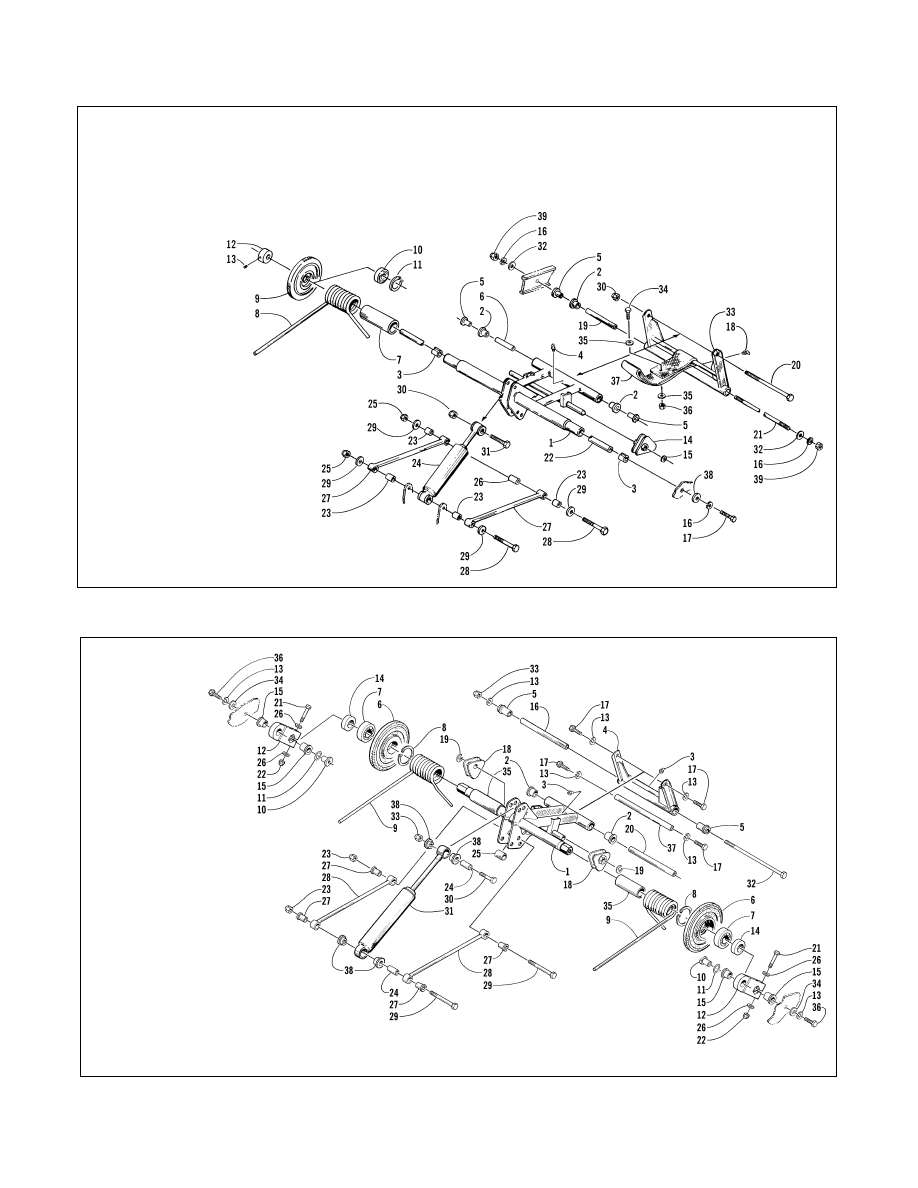

Fig. 9-40

0734-941

Fig. 9-41

0734-972

KEY

1. Idler Arm
2. Bushing
3. Bearing
4. Grease Fitting
5. Serrated Axle
6. Idler Axle
7. Sleeve
8. Spring
9. Idler Wheel

10. Bearing
11. Retaining Ring
12. Lock Collar
13. Set Screw
14. Spring Adjuster Block
15. Retaining Ring
16. Lock Washer
17. Cap Screw
18. Grease Fitting
19. Axle Tube
20. Cap Screw
21. Stud Bolt
22. Inner Carriage Axle
23. Link Axle
24. Shock Absorber
25. Lock Nut
26. Spacer
27. Rear Shock Link
28. Cap Screw
29. Washer
30. Lock Nut
31. Cap Screw
32. Washer
33. Rear Arm
34. Cap Screw
35. Washer
36. Lock Nut

37. Limiter Strap
38. Washer
39. Lock Nut

Style D

KEY

1. Idler Arm
2. Bushing
3. Grease Fitting
4. Rear Arm
5. Axle
6. Idler Wheel
7. Bearing
8. Retaining Ring
9. Suspension Spring

10. Axle
11. Washer
12. Pivot Idler
13. Lock Washer
14. Spacer
15. Bushing
16. Axle Tube
17. Cap Screw
18. Spring Block
19. Retainer Ring
20. Axle
21. Cap Screw
22. Nut
23. Lock Nut
24. Sleeve
25. Spacer
26. Washer
27. Link Axle
28. Link
29. Cap Screw
30. Cap Screw
31. Shock Absorber
32. Cap Screw
33. Lock Nut

34. Washer
35. Sleeve
36. Cap Screw
37. Axle
38. Bushing

Style E

9-26
