Snowmobile Arctic Cat (2000 year). Manual - part 84
2000 Wiring
Diagrams

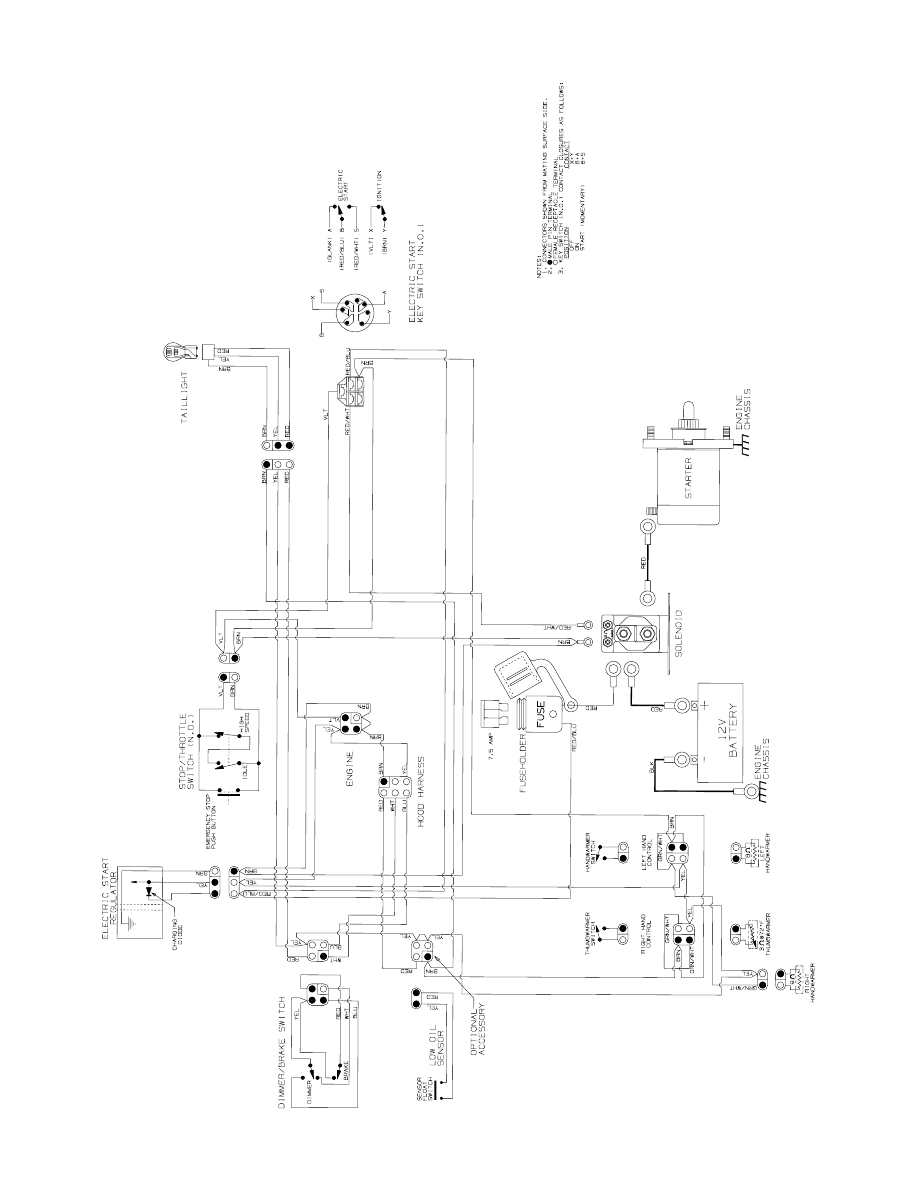

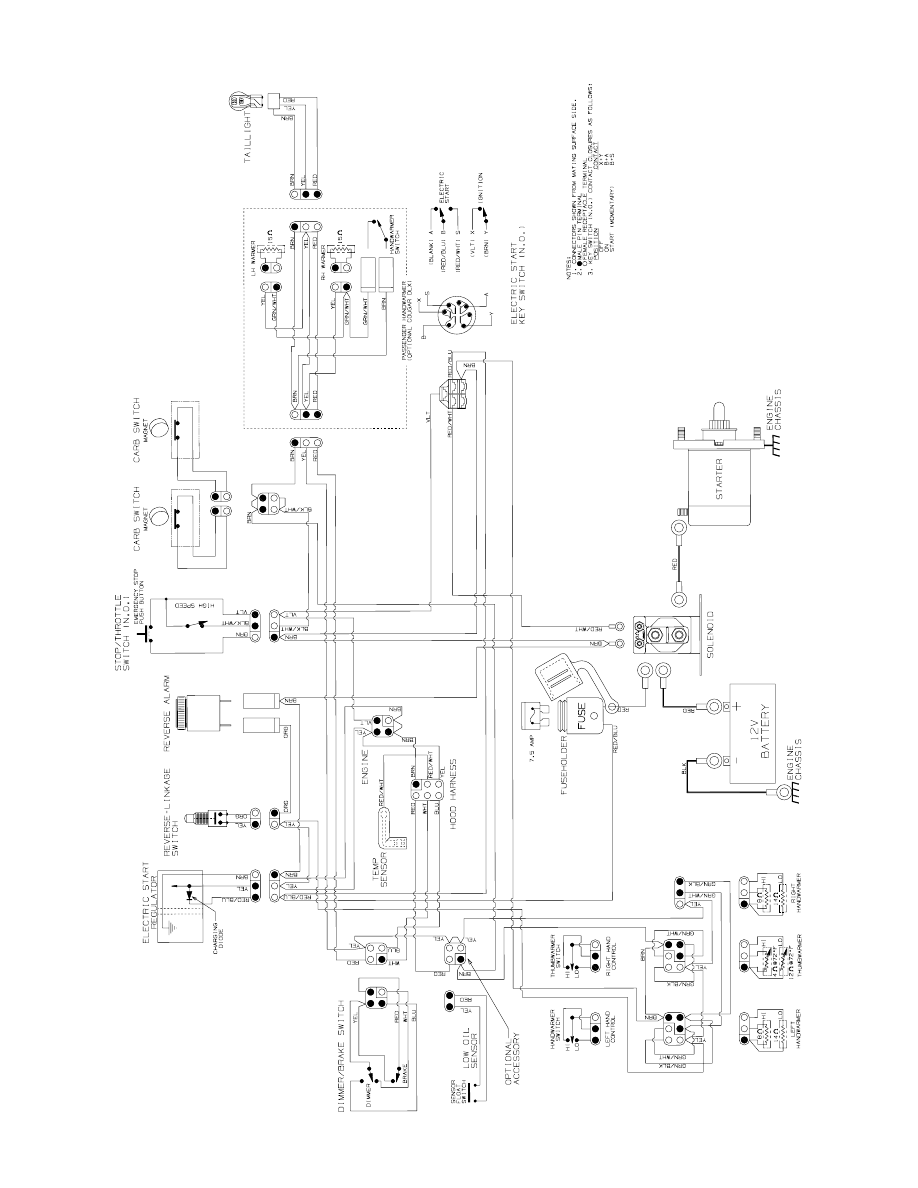

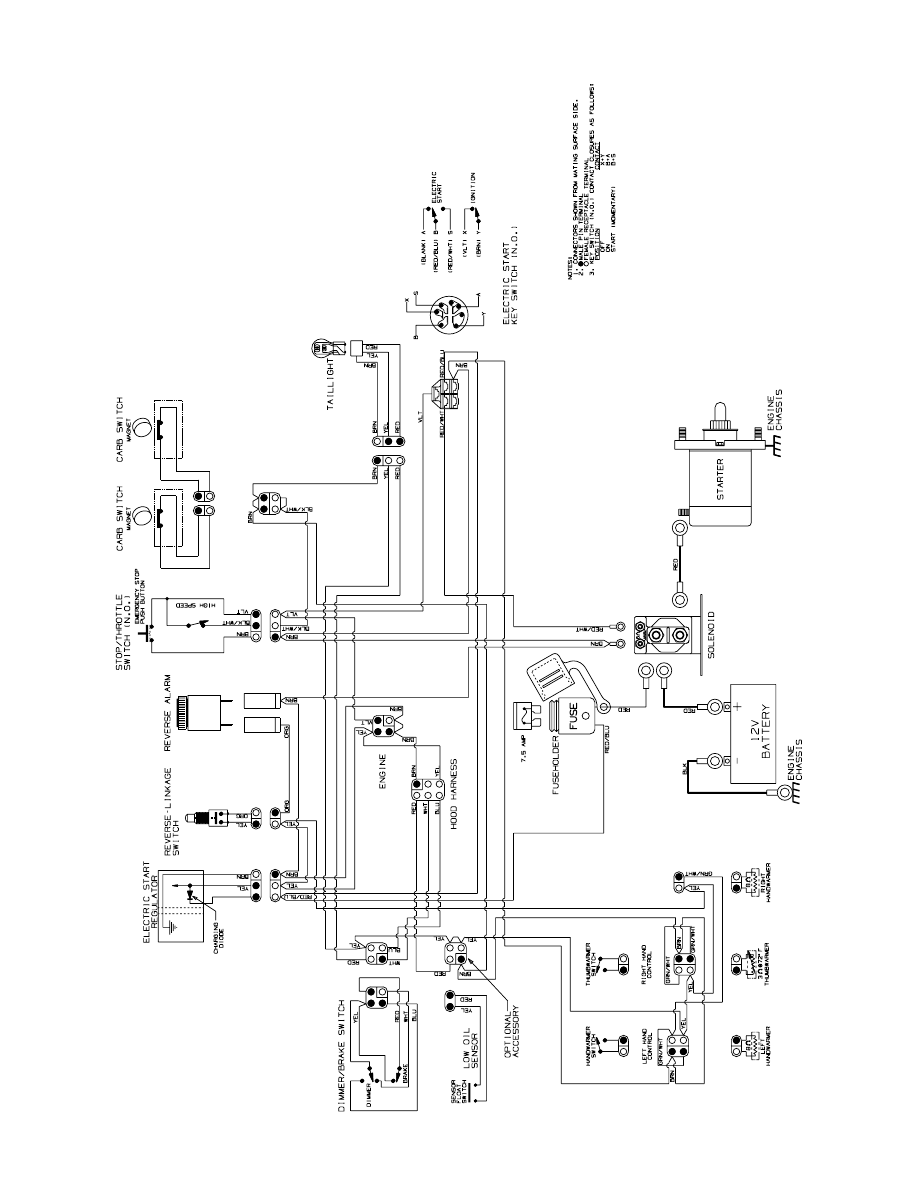

This chart is designed to direct the technician to the
appropriate Main Harness Wiring Diagram and Hood
Harness Wiring Diagram. Select the snowmoible from
the chart to determine the correct diagram.
6
Snowmobile Models
Main
Harness
Hood
Harness
Snowmobile Models
Main
Harness
Hood
Harness
Bearcat 340
D
I
Z 370
L (es A)
IV
Bearcat 440 I
D
I
Z 440
M (es A)
IV
Bearcat 440 II
E
I
ZL 440
N
IV
Bearcat W/T
F
III
ZL 500
O
IV
Pantera 580 EFI
I
V
ZL 500 EFI
G
IV
Pantera 1000
J
V
ZL 550
P
IV
Panther 340
A
I
ZL 580 EFI
I
IV
Panther 440
B
I
ZL 600
H
IV
Panther 550
C
II
ZL 600 EFI
G
IV
Powder Special 500 EFI
G
IV
ZL 700
H
IV
Powder Special 500 EFI LE
G
IV
ZR 500
O
IV
Powder Special 600
H
IV
ZR 500 EFI
G
IV
Powder Special 600 LE
H
IV
ZR 600
H
IV
Powder Special 600 EFI
G
IV
ZR 600 EFI
G
IV
Powder Special 600 EFI LE
G
IV
ZR 600 EFI LE (Clicker)
G
IV
Powder Special 700
H
IV
ZR 600 EFI LE (Reverse)
Q
IV
Powder Special 700 LE
H
IV
ZR 700
H
IV
Thundercat
T
IV
ZR 700 LE (Clicker)
H
IV
Thundercat M/C
T
IV
ZR 700 LE (Reverse)
R
IV
Triple Touring 600
K
IV
ZRT 600
S
IV
ZRT 800
T
IV
