Drive track

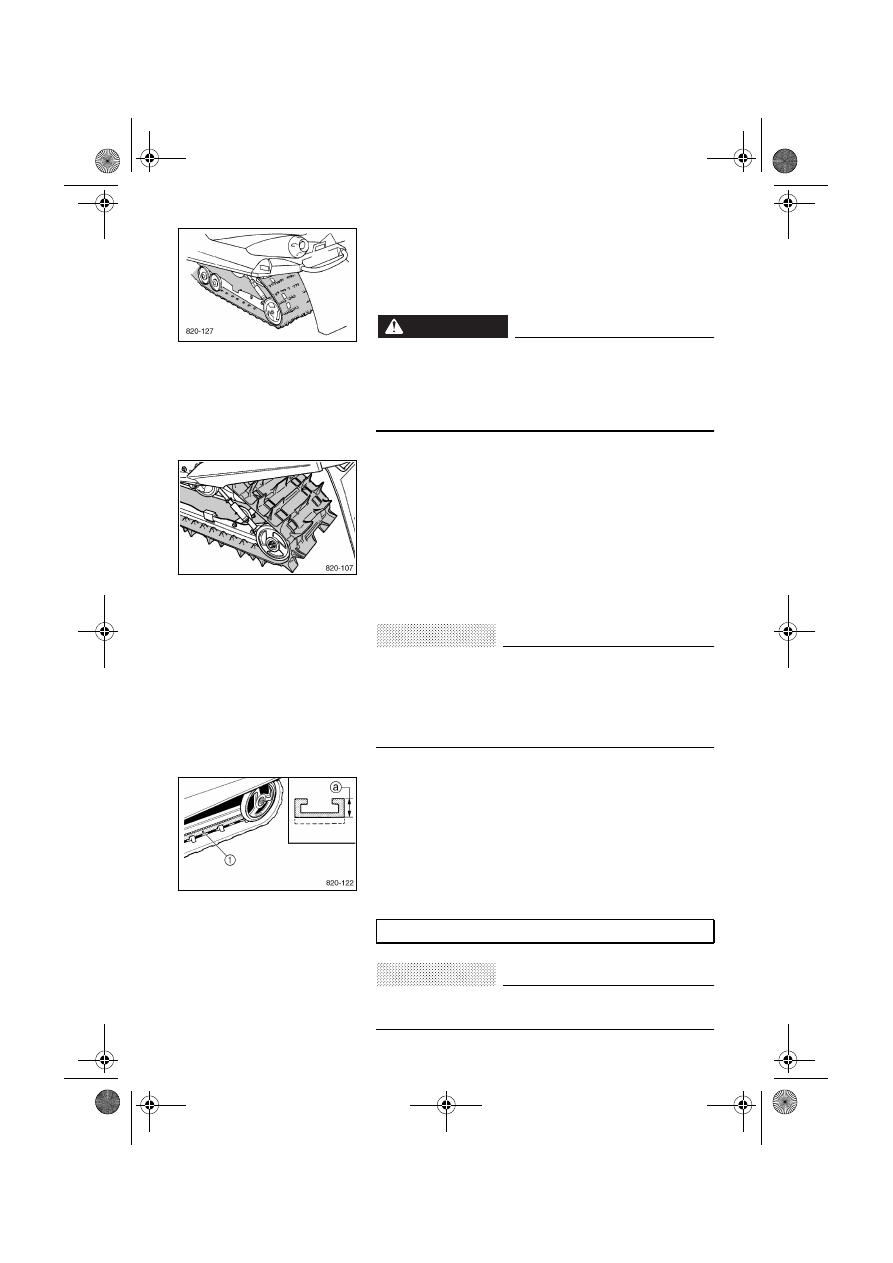

Check the drive track for deflection, wear, or damage.
Adjust or replace if necessary. (See pages 8-26–8-28 for
more details.)

WARNING

@

Do not operate the snowmobile if you find damage to
the drive track, or if it has been maladjusted. Drive
track damage or failure could result in loss of brak-
ing ability and snowmobile control, which could
cause an accident.

@

ESU00243

51-mm (2.0-in) high-profile pattern drive track

For RX10M/RX10MS
This snowmobile is originally equipped with a 51-mm
(2.0-in) high-profile pattern drive track specifically for use
in deep snow riding conditions.
Therefore, avoid prolonged operation on hard surfaces
such as ice, hard-packed snow, dirt, etc., to extend the
life of the track and slide runners.

CAUTION:

@

●

Only use in deep snow riding conditions.

●

Operation on areas with light snowfall, ice, hard-
packed snow, dirt, or grass will result in rapid
wear or damage to the track and slide runners
from lack of snow which serves as a lubricant.

@

ESU00098

Slide runners

Check the slide runners for wear and damage.
If the slide runners reach the wear limit, they should be
replaced.

1 Slide runners
a Wear limit

CAUTION:

@

Ride on fresh snow frequently. Operating on ice or
hard packed snow will rapidly wear the slide runners.

@

Wear limit height: 10 mm (0.4 in)

6-9

ESU00102

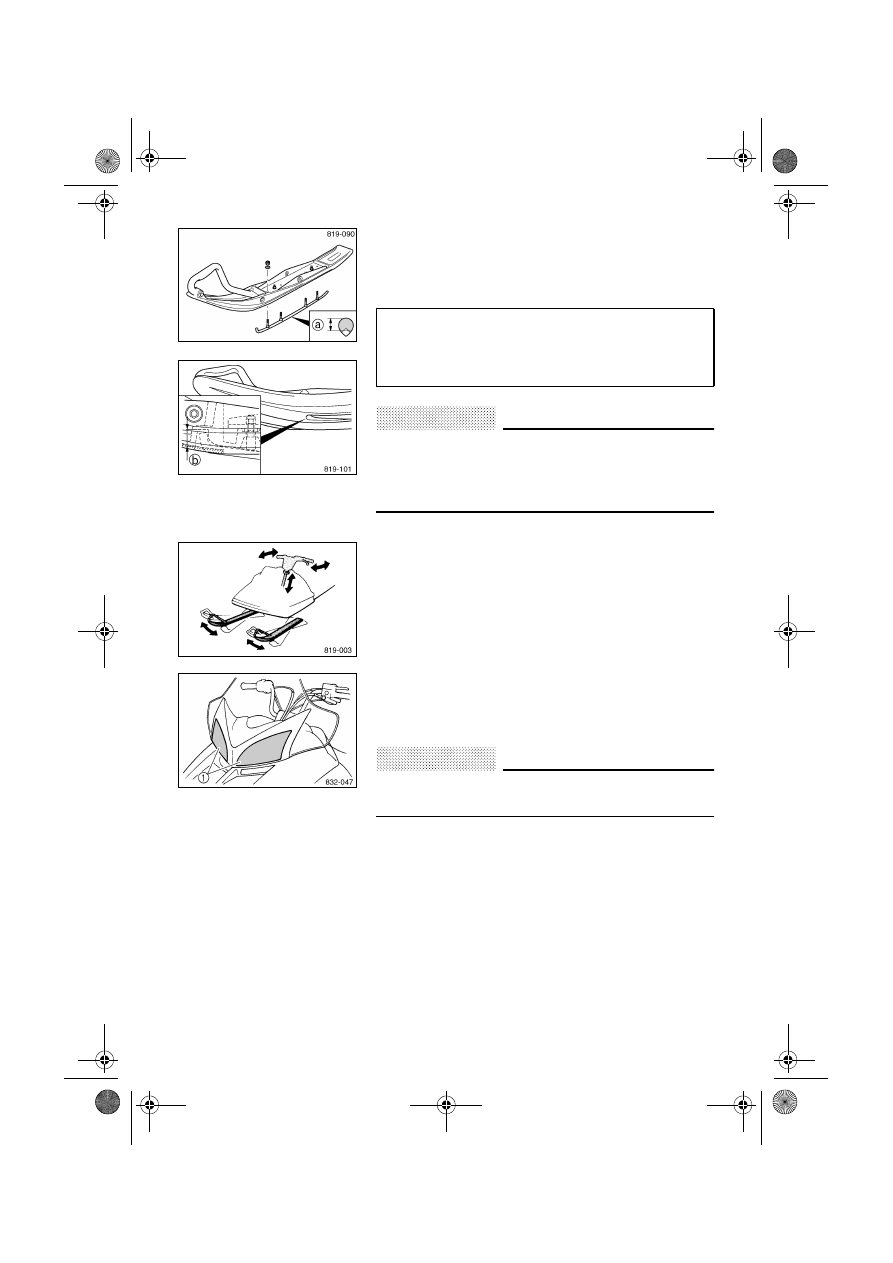

Skis and ski runners

Check the skis and ski runners for wear and damage.
Replace if necessary.

CAUTION:

@

Avoid scratching the skis when loading and unload-
ing the snowmobile, when riding in areas with little
or no snow, or on sharp edges such as concrete,
curbs, etc. This will wear or damage the skis.

@

ESU00103

Steering system

Check the handlebar for excessive free play:

1. Push the handlebar up and down and back and forth.
2. Turn the handlebar slightly to the right and left.

If excessive free play is noticed, consult a Yamaha
dealer.

ESU00378

Lights

Check the lights.
Replace any burned out bulbs.

CAUTION:

@

Avoid using a scraper or hot water for cleaning the
plastic lenses

1.

@

Ski runner wear limit

a:

8 mm (0.31 in)

Ski wear limit

b:

24 mm (0.95 in)

6-10

ESU00350

Air filter

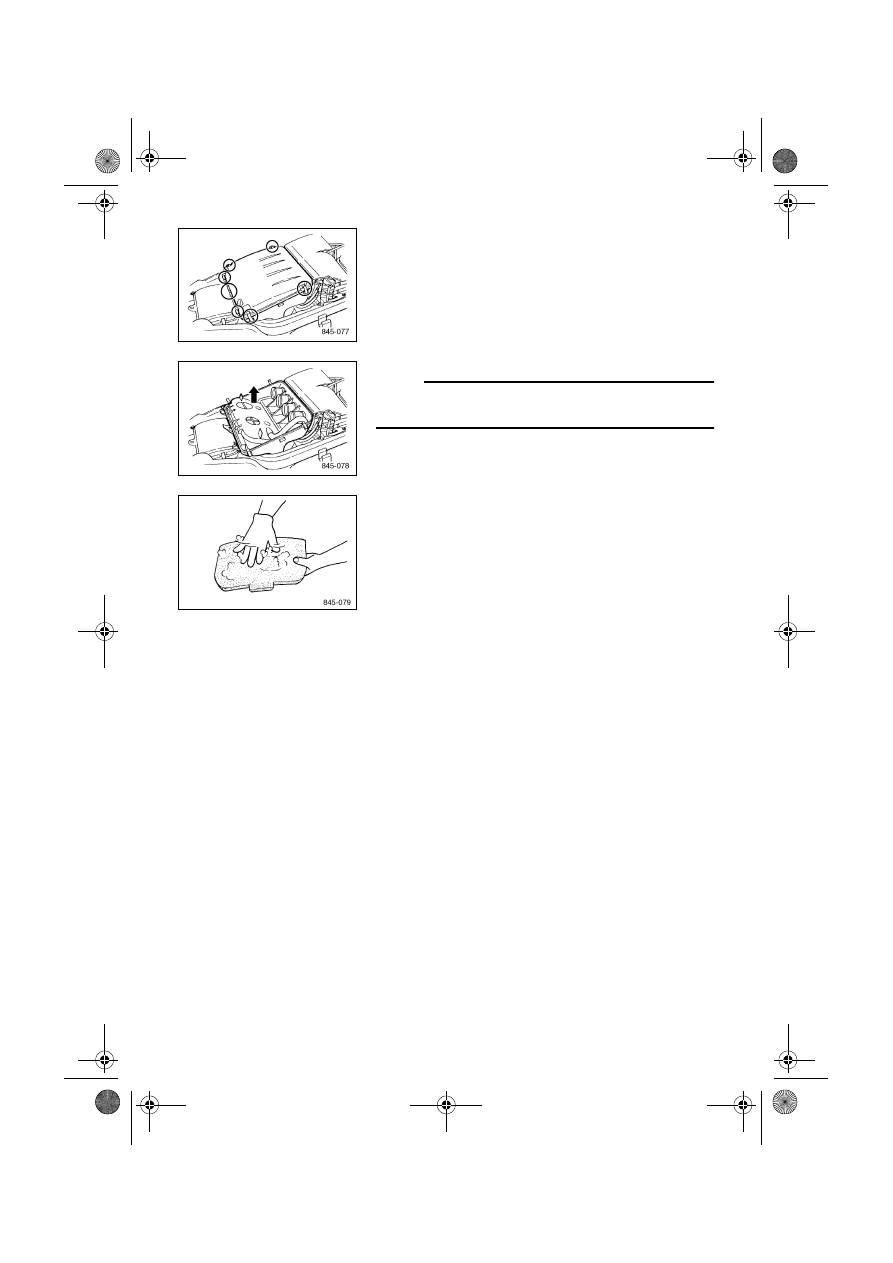

Always check that no snow is under the air filter element.
Remove the air filter case cover and take out the air filter
element. If there is any snow under the air filter element,
remove the snow. Then install the air filter element
beneath the holding guides on the case and install the air
filter case cover.

NOTE:

@

After riding the snowmobile, make sure that there is no
snow under the air filter element.

@

ESU00110

Fittings and fasteners

Check the tightness of the fittings and fasteners.
Tighten in proper sequence and torque if necessary.

ESU00345

Tool kit and recommended equipment

It is good practice to carry the tool kit, spare parts, and
other necessary equipment with you while riding the
snowmobile so that minor repairs can be done if neces-
sary. The following should be carried at all times:

●

Tool kit

●

Flashlight

●

Roll of plastic tape

●

Steel wire

●

Towrope

●

Jumper cables

●

V-belt

●

Light bulbs

●

Spark plugs

When you start out for a long distance trip, extra fuel and
oil should be carried as well.

7-1

ESU00112

7-

OPERATION

ESU00366

Starting the engine

WARNING

@

●

Be sure to check the “SAFETY INFORMATION”
section carefully before starting the engine.

●

Make sure that the parking brake is applied.

@

NOTE:

@

Make sure that the engine stop switch is in the on posi-
tion. The starter motor cannot be operated when the
engine stop switch is in the off position.

@

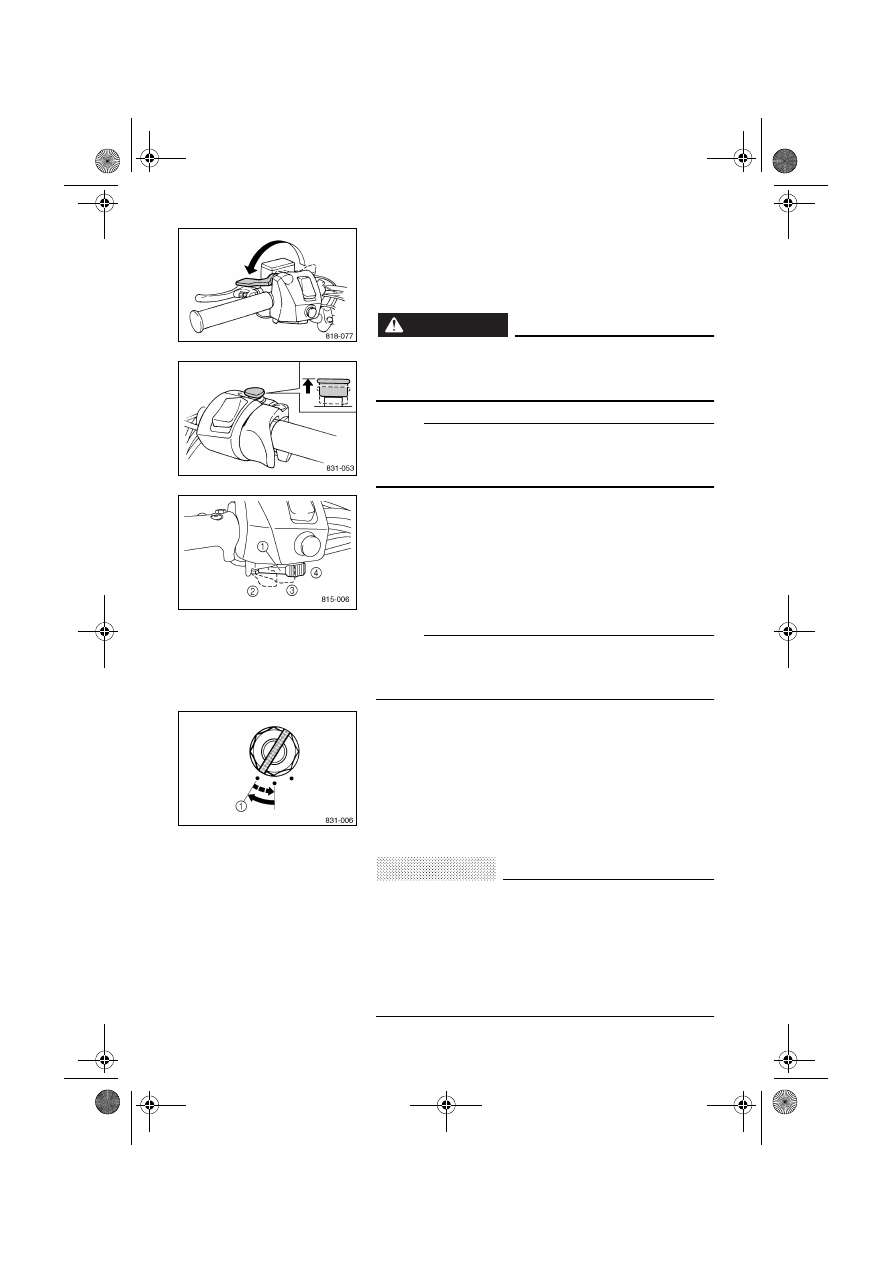

1. Fully open the starter lever (choke).

1 Starter lever (choke)
2 Fully open (cold engine starting)
3 Half-open (warm engine up)
4 Closed (warm engine starting)

NOTE:

@

The starter lever (choke) is not required when the engine
is warm. Put the starter lever (choke) in the closed posi-
tion.

@

2. Turn the main switch to the “START” position. After

the engine starts, put the starter lever (choke) in the
half-open position. Warm up the engine until it does
not run roughly or begin to stall when the starter lever
is returned to the closed position.

1 “START”

CAUTION:

@

●

Release the switch immediately after the engine
starts.

●

If the engine fails to start, release the switch, wait
a few seconds, then try again. Each attempt
should be as short as possible to preserve the
battery. Do not crank the engine more than 10
seconds on any one attempt.

@
