Snowmobile Yamaha Phazer PZ50W, PZ50GTW, PZ50FXW, PZ50MW, PZ50VTW, PZ50MPW. Manual - part 21

3-3

CHAS

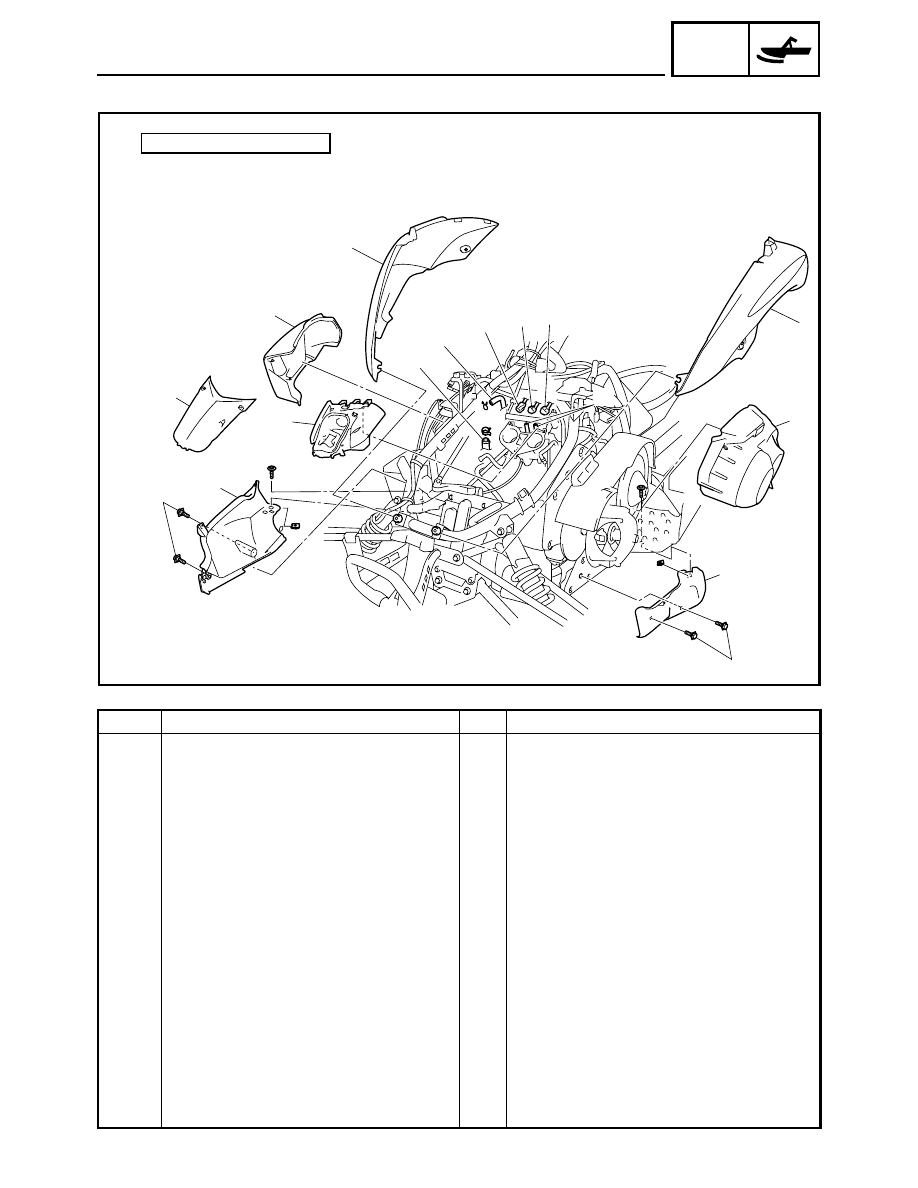

COWLINGS

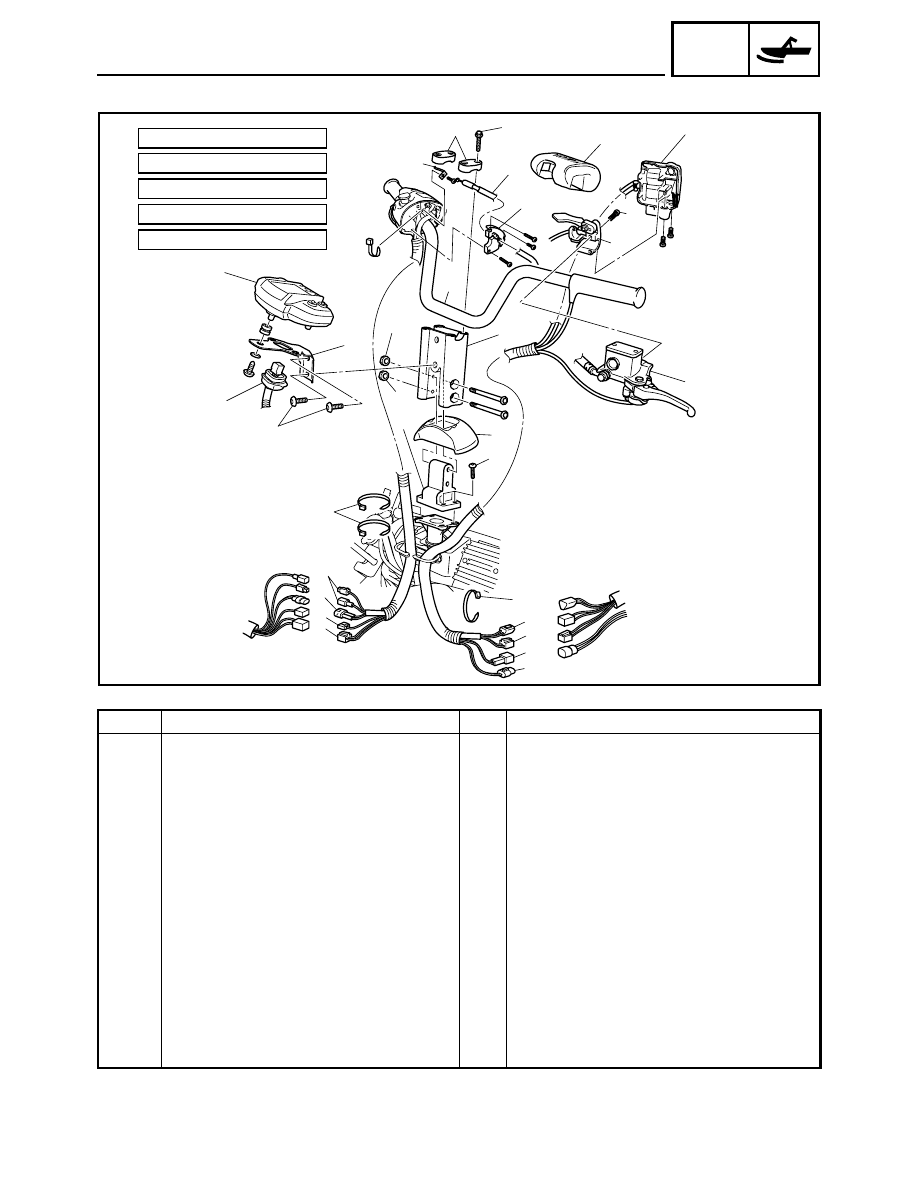

PZ50VT/PZ50MP

Order

Job name/Part name

Q’ty

Remarks

Cowling removal

Remove the parts in the order listed below.

1

Air filter case cover

1

2

Left side panel

1

3

Right side panel

1

4

Left side cover

1

5

Right side cover

1

6

Left lower cover

1

7

Right lower cover

1

8

Cylinder-#2 intake air pressure sensor cou-
pler

1

Disconnect.

9

Cylinder-#1 intake air pressure sensor cou-
pler

1

Disconnect.

10

Intake air temperature sensor coupler

1

Disconnect.

11

Cylinder head breather hose

1

Disconnect.

12

Oil tank breather hose

1

Disconnect.

13

Air filter case assembly

1

14

Intake air pressure sensor hose

2

Disconnect.

For installation, reverse the removal proce-
dure.

2

3

1

13

9

12

8

10

11

5

7

4

È

È

6

8 Nm (0.8 m

•

 kg, 5.8 ft

•

 lb)

È:

14

3-4

CHAS

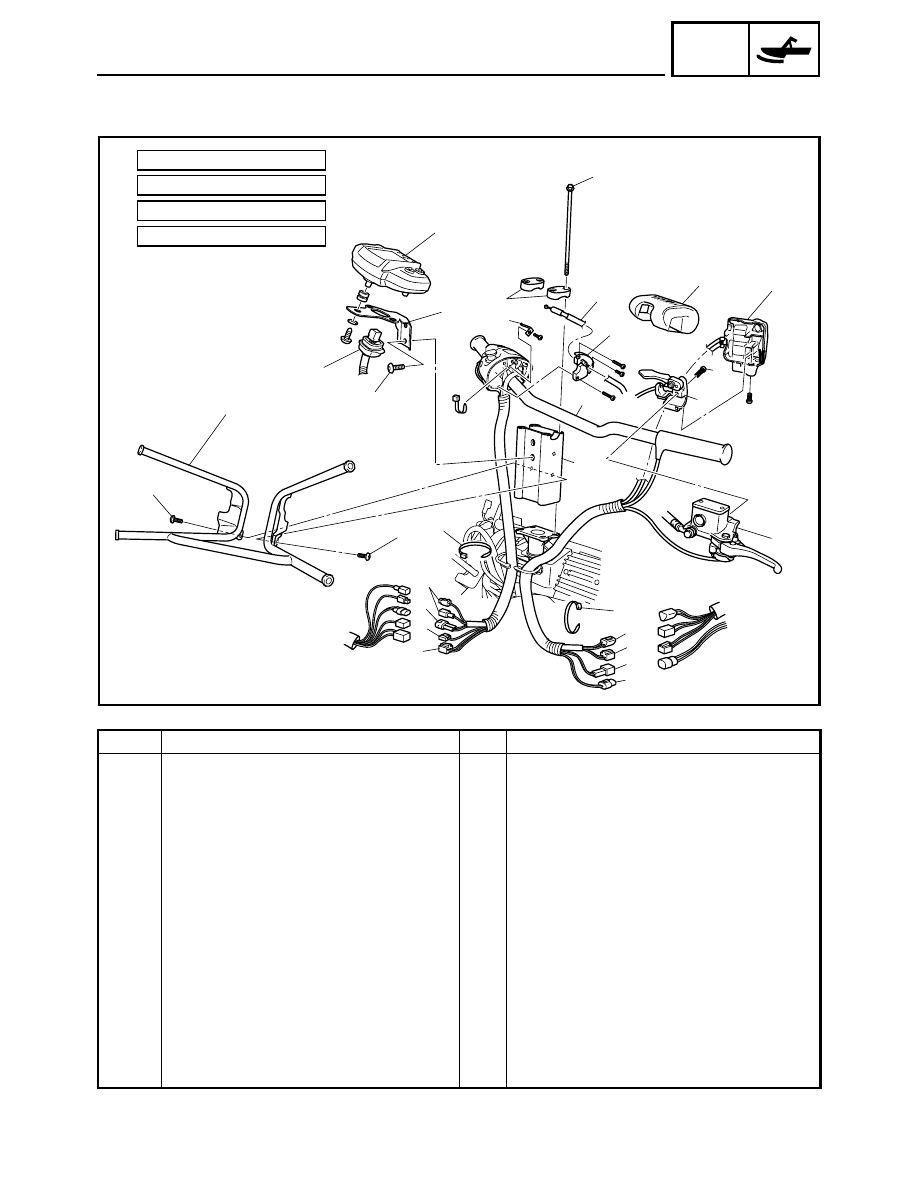

STEERING

STEERING

PZ50/PZ50GT/PZ50FX/PZ50M

Order

Job name/Part name

Q’ty

Remarks

Handlebar removal

Remove the parts in the order listed below.

Windshield/left side panel/right side panel

Refer to “COWLINGS”.

1

Windshield bracket

1

PZ50GT/PZ50FX/PZ50M

2

Multi-function meter coupler

1

3

Multi-function meter

1

4

Multi-function meter bracket

1

5

Steering pad

1

PZ50GT/PZ50FX/PZ50M

6

Plastic band

2

7

Thumb warmer lead coupler

1

Disconnect.

8

Engine stop switch coupler

1

Disconnect.

9

Throttle switch coupler

2

Disconnect.

10

Grip warmer lead connector

2

Disconnect.

11

Grip thumb warmer adjustment switch lead
coupler

1

Disconnect.

12

Brake light switch coupler

1

Disconnect.

13

Headlight beam switch coupler

1

Disconnect.

22

20

É

16

17

18

È

Ë

15

14

19

9

2

8

10

7

11

10
12
13

21

6

6

5

3

4

1

Ê

Ê

20 Nm (2.0 m

•

 kg, 14 ft

•

 lb)

Ë:

15 Nm (1.5 m

•

 kg, 11 ft

•

 lb)

16 Nm (1.6 m

•

 kg, 11 ft

•

 lb)

10 Nm (1.0 m

•

 kg, 7.2 ft

•

 lb)

È:
É:
Ê:

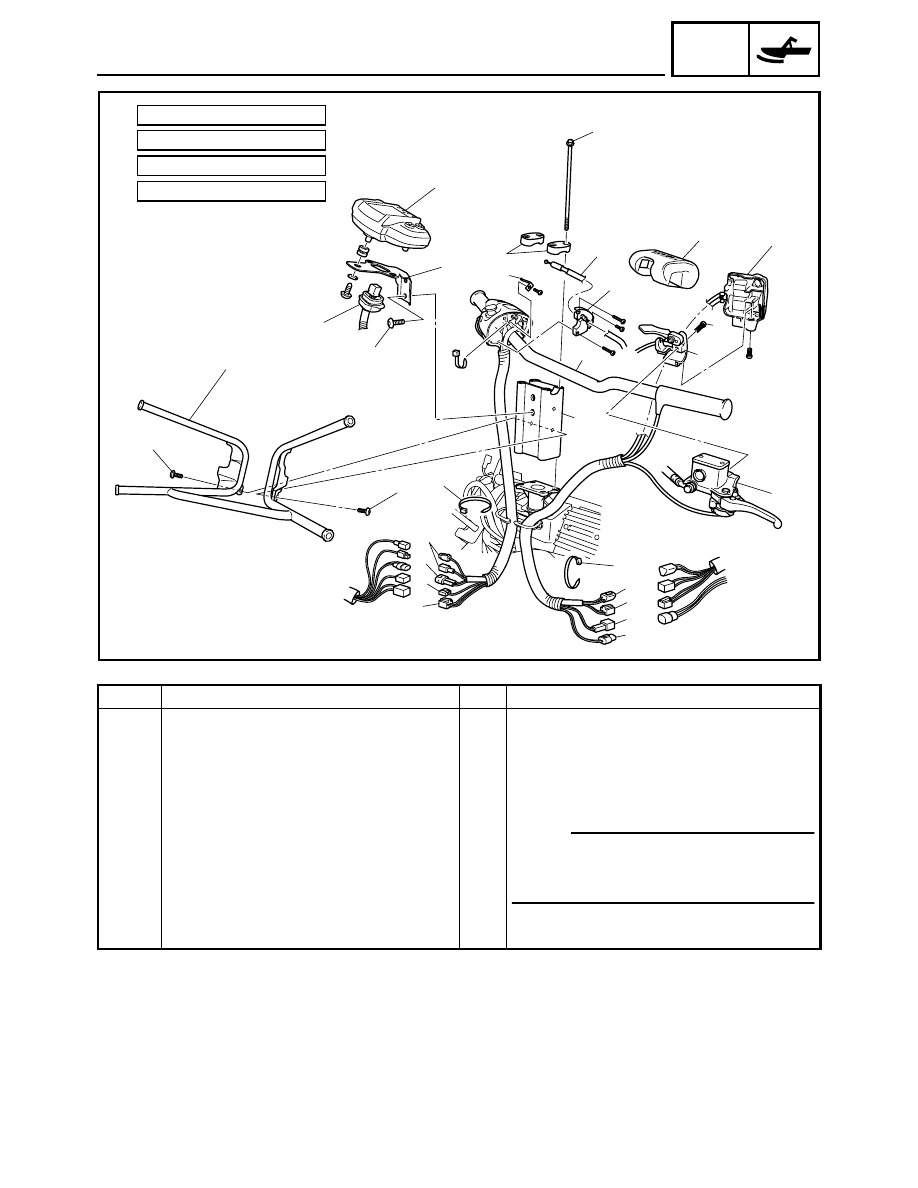

3-5

CHAS

STEERING

Order

Job name/Part name

Q’ty

Remarks

14

Right handlebar switch cover

1

15

Throttle cable holder

1

16

Throttle cable

1

17

Left handlebar switch

1

18

Brake master cylinder holder

1

19

Master cylinder assembly

1

NOTE:

After installing all parts, refer to “CABLE
ROUTING” in CHAPTER 9, to check the
cable and lead routings.

20

Handlebar holder

2

21

Handlebar

1

22

Steering joint

1

For installation, reverse the removal proce-
dure.

22

20

É

16

17

18

È

Ë

15

14

19

9

2

8

10

7

11

10
12
13

21

6

6

5

3

4

1

Ê

Ê

20 Nm (2.0 m

•

 kg, 14 ft

•

 lb)

Ë:

15 Nm (1.5 m

•

 kg, 11 ft

•

 lb)

16 Nm (1.6 m

•

 kg, 11 ft

•

 lb)

10 Nm (1.0 m

•

 kg, 7.2 ft

•

 lb)

È:
É:
Ê:

3-6

CHAS

STEERING

PZ50VT/PZ50MP

Order

Job name/Part name

Q’ty

Remarks

Handlebar removal

Remove the parts in the order listed below.

Windshield/left side panel/right side panel

Refer to “COWLINGS”.

1

Multi-function meter coupler

1

2

Multi-function meter

1

3

Multi-function meter bracket

1

4

Steering pad

1

PZ50GT/PZ50FX/PZ50M

5

Plastic band

3

6

Thumb warmer lead coupler

1

Disconnect.

7

Engine stop switch coupler

1

Disconnect.

8

Throttle switch coupler

2

Disconnect.

9

Grip warmer lead connector

2

Disconnect.

10

Grip thumb warmer adjustment switch lead
coupler

1

Disconnect.

11

Brake light switch coupler

1

Disconnect.

12

Headlight beam switch coupler

1

Disconnect.

13

Right handlebar switch cover

1

21

19

É

15

16

17

È

Ë

14

13

18

8

1

7

9

6

20

5

5

4

2

3

23

22

Ì

10

9

12

11

Ê

(4)

(4)

Ì

15 Nm (1.5 m

•

 kg, 11 ft

•

 lb)

21 Nm (2.1 m

•

 kg, 15 ft

•

 lb)

Ì:

16 Nm (1.6 m

•

 kg, 11 ft

•

 lb)

10 Nm (1.0 m

•

 kg, 7.2 ft

•

 lb)

È:
É:
Ê:

20 Nm (2.0 m

•

 kg, 14 ft

•

 lb)

Ë:
