5-8

ENG

EXHAUST PIPE AND MUFFLER

6. Tighten:

• Muffler band bolt

7. Tighten:

• Exhaust pipe bolts

T



R

.

.

Muffler band bolt:

20 Nm (2.0 m · kg, 14 ft · lb)

T



R

.

.

Exhaust pipe bolt:

23 Nm (2.3 m · kg, 17 ft · lb)

5-9

ENG

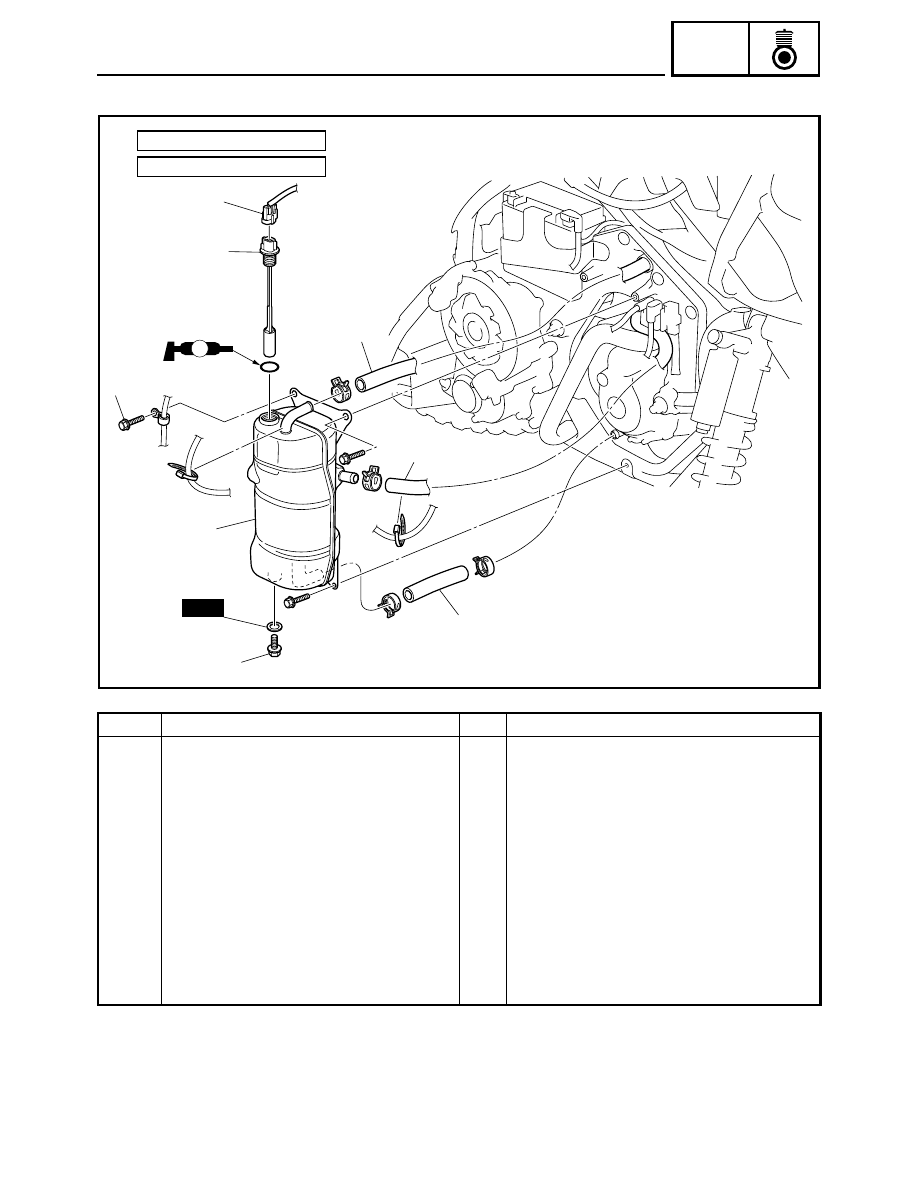

OIL TANK

Order

Job name/Part name

Q’ty

Remarks

Oil tank removal

Remove the parts in the order listed below.

Lower side cover (left and right)

Refer to “COVERS” in CHAPTER 3.

Engine oil

Drain.
Refer to “ENGINE OIL REPLACEMENT” in
CHAPTER 2.

1

Oil level switch coupler

1

Disconnect.

2

Oil tank breather hose

1

Disconnect.

3

Oil tank inlet hose

1

Disconnect.

4

Oil tank

1

5

Oil level gauge

1

6

Oil tank outlet hose

1

Disconnect.

For installation, reverse the removal proce-
dure.

New

1

5

È

3

2

4

É

6

LS

10 Nm (1.0 m

•

 kg, 7.2 ft

•

 lb)

È:

16 Nm (1.6 m

•

 kg, 11 ft

•

 lb)

É:

OIL TANK

5-10

ENG

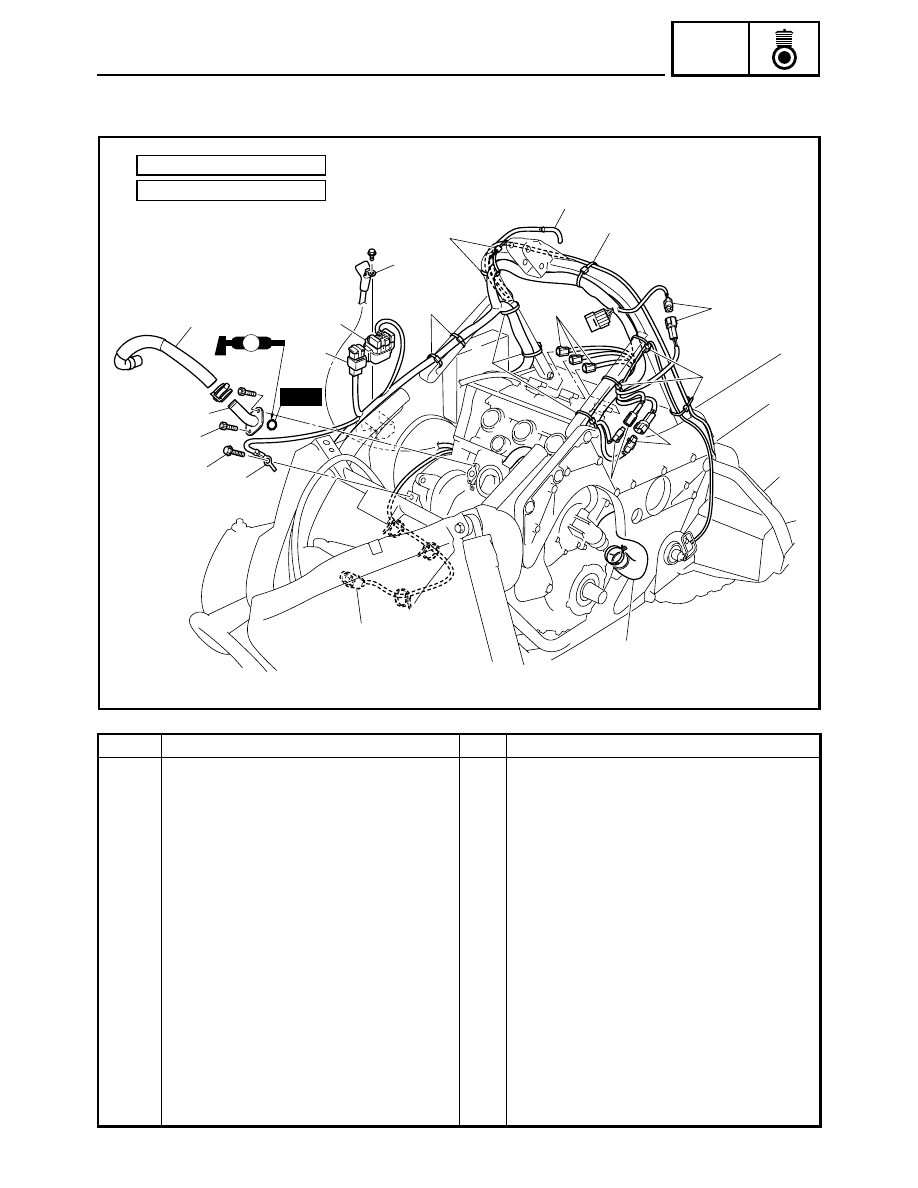

ENGINE ASSEMBLY

ENGINE ASSEMBLY

HOSES AND LEADS

Order

Job name/Part name

Q’ty

Remarks

Hoses and leads removal

Remove the parts in the order listed below.

Coolant

Drain.
Refer to “COOLING SYSTEM” in CHAPTER 2.

Engine oil/Oil filter cartridge

Drain.
Refer to “ENGINE OIL REPLACEMENT” in
CHAPTER 2.

Handlebar/Steering column

Refer to “STEERING” in CHAPTER 3.

Air filter case

Refer to “AIR FILTER CASE” in CHAPTER 7.

Throttle body

Refer to “THROTTLE BODY” in CHAPTER 7.

Primary sheave

Refer to “PRIMARY SHEAVE AND DRIVE V-
BELT” in CHAPTER 4.

Secondary sheave

Refer to “SECONDARY SHAFT” in CHAP-
TER 4.

Secondary shaft

Refer to “SECONDARY SHAFT” in CHAP-
TER 4.

Radiator/Radiator bracket

Refer to “RADIATOR” in CHAPTER 6.

Thermostat

Refer to “THERMOSTAT” in CHAPTER 6.

Oil tank

Refer to “OIL TANK”.

3

2

2

9

11

11

10

12

1

11

11

11

11

6

8

7

5

13

14

4

É

È

LS

New

25 Nm (2.5 m

•

 kg, 18 ft

•

 lb)

É:

10 Nm (1.0 m

•

 kg, 7.2 ft

•

 lb)

È:

5-11

ENG

ENGINE ASSEMBLY

Order

Job name/Part name

Q’ty

Remarks

Fuel tank

Refer to “SEAT AND FUEL TANK”.

Exhaust pipe/Muffler

Refer to “EXHAUST PIPE AND MUFFLER”.

1

Ignition coil coupler

3

Disconnect.

2

Oil pressure switch coupler

1

Disconnect.

3

Crankshaft position sensor coupler

1

Disconnect.

4

Stator coil coupler

1

Disconnect.

5

Frame ground lead

1

Disconnect.

6

Starter motor lead

1

Disconnect.

7

Oil tank inlet hose

1

8

Oil tank inlet pipe

1

9

Water pump inlet hose

1

Disconnect.

10

Speed sensor coupler

1

Disconnect.

11

Plastic band

11

12

Fuel tank breather hose

1

13

Main fuse

1

14

Starter relay

1

For installation, reverse the removal proce-
dure.

3

2

2

9

11

11

10

12

1

11

11

11

11

6

8

7

5

13

14

4

É

È

LS

New

25 Nm (2.5 m

•

 kg, 18 ft

•

 lb)

É:

10 Nm (1.0 m

•

 kg, 7.2 ft

•

 lb)

È:
