Snowmobile Yamaha FX10X, FX10RTX, FX10RTRX, FX10RTRAX, FX10MTX, FX10MTRX, FX10MTRAX. Manual - part 35

4-29

POWR

TR

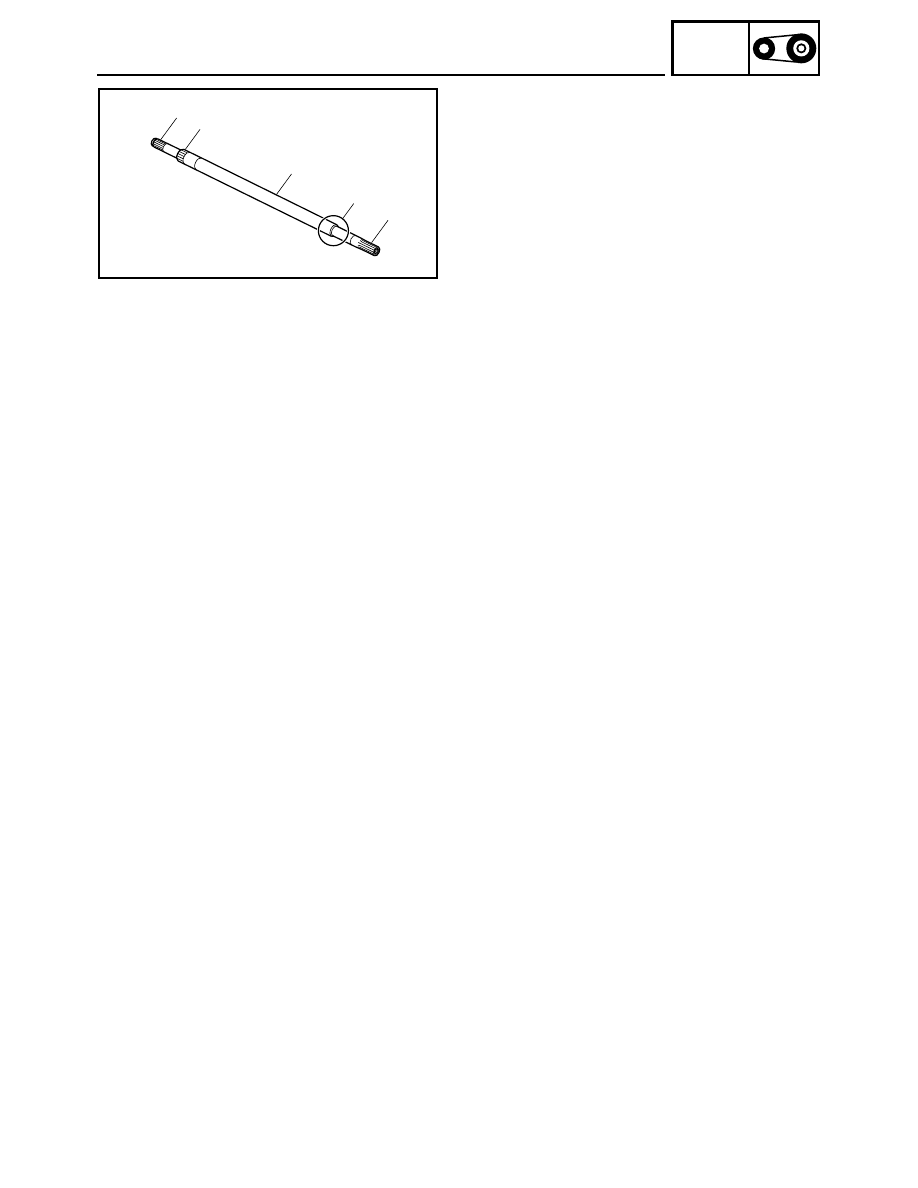

SECONDARY SHAFT

INSPECTION

1. Inspect:

• Secondary shaft 1

Scratches (excessive)/damage

→ Replace.

• Splines 2

Wear/damage

→ Replace the secondary

shaft.

• Bearing contact surface 3

Scratches/wear/damage

→ Replace the sec-

ondary shaft.

2

3

1

2

2

4-30

POWR

TR

SECONDARY SHAFT

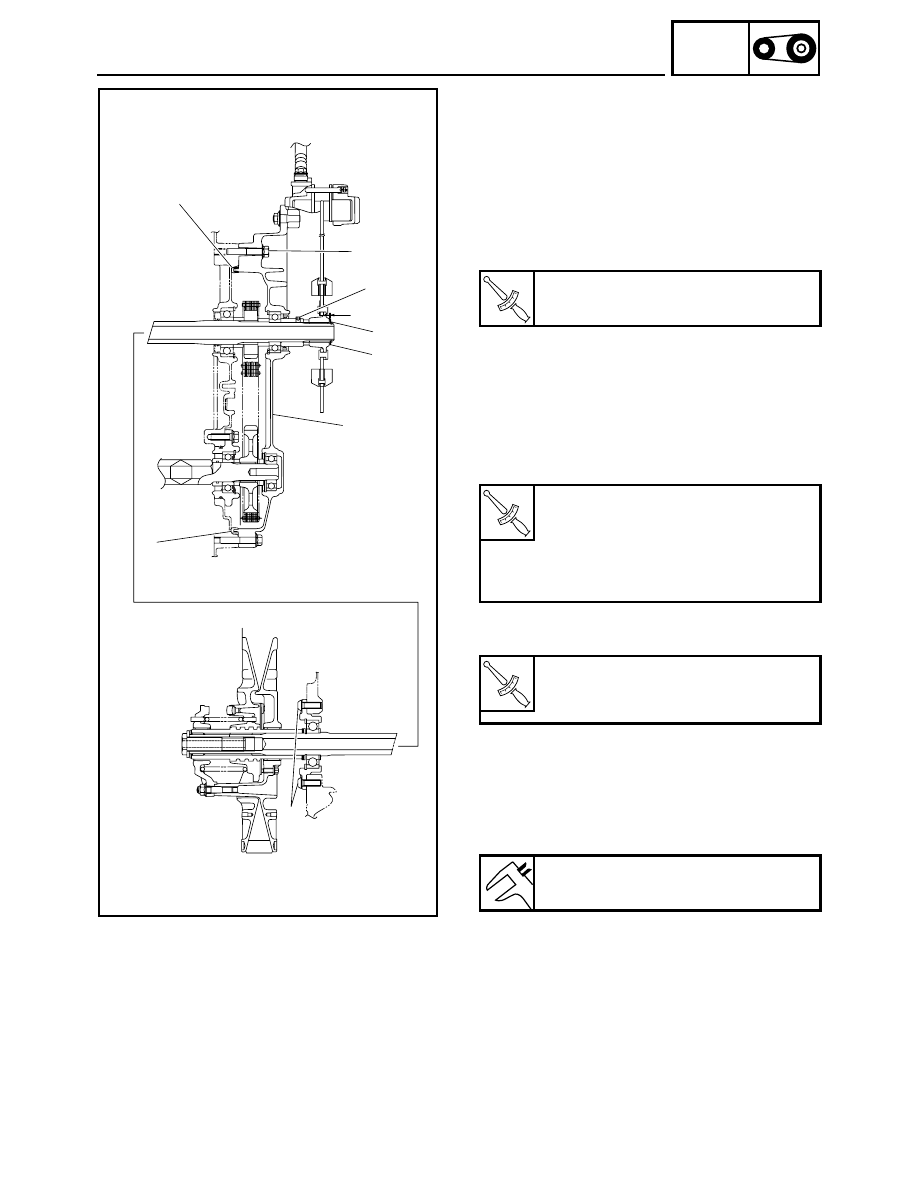

SECONDARY SHAFT AND DRIVE CHAIN
COVER INSTALLATION

1. Install:

• Secondary shaft
• Drive chain cover

Installation steps:

• Install the secondary shaft.
• Tighten the bolts 1.

• Install the drive chain, drive sprocket and driven

sprocket.

• Install the drive chain cover 2.

È Properly install the rubber seal onto the drive chain

cover, making sure that there are no gaps.

• Tighten the bolts 3.

• Install the collar.
• Tighten the collar set bolt 4.

• Install the brake disc.
• Adjust the brake disc clearance.

2. Measure:

• Brake disc clearance

a

Out of the specification

→ Adjust.

T



R

.

.

Bearing housing bolt:

30 Nm (3.0 m · kg, 22 ft · lb)

T



R

.

.

Drive chain cover bolt:

M8 bolt:

28 Nm (2.8 m · kg, 20 ft · lb)

M6 bolt:

10 Nm (1.0 m · kg, 7.2 ft · lb)
LOCTITE

®

T



R

.

.

Collar set bolt:

6 Nm (0.6 m · kg, 4.3 ft · lb)
LOCTITE

®

Brake disc clearance:

0.2 ~ 0.7 mm (0.008 ~ 0.028 in)

È

È

3

4

5

2

a

1

6

4-31

POWR

TR

SECONDARY SHAFT

3. Adjust:

• Brake disc clearance

Adjustment steps:

• Remove the circlip 5.
• Adjust the brake disc clearance by adding or

removing shim(s) 6.

• Install the new circlip.

Shim size

Part number

Thickness

90201-222F0

0.5 mm (0.02 in)

90201-225A4

1.0 mm (0.04 in)

4-32

POWR

TR

BRAKE

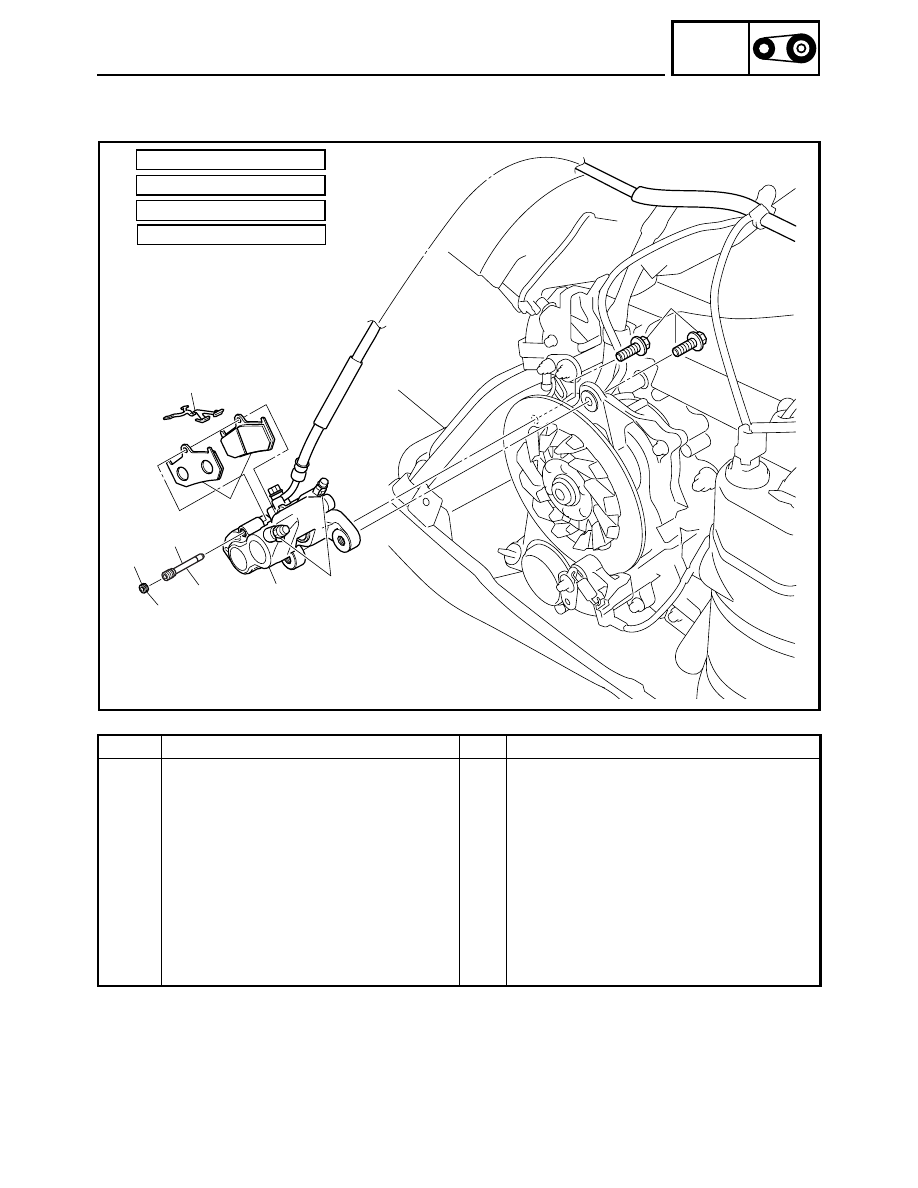

BRAKE

BRAKE PAD

Order

Job name/Part name

Q’ty

Remarks

Brake pad removal

Remove the parts in the order listed below.

Right side cover

Refer to “COVERS” in CHAPTER 3.

Battery

Refer to “BATTERY INSPECTION” in CHAP-
TER 2.

1

Screw plug

1

2

Retaining pin

1

3

Brake pad spring

1

4

Brake pad

2

5

Brake caliper assembly

1

For installation, reverse the removal proce-
dure.

3

2

1

4

5

É

6 Nm (0.6 m

•

 kg, 4.3 ft

•

 lb)

É:

2 Nm (0.2 m

•

 kg, 1.4 ft

•

 lb)

È:

17 Nm (1.7 m

•

 kg, 12 ft

•

 lb)

Ê:

48 Nm (4.8 m

•

 kg, 35 ft

•

 lb)

Ë:

Ë

È

Ê
