CHAS

STEERING

FX10RT/FX10RTR/FX10RTRA

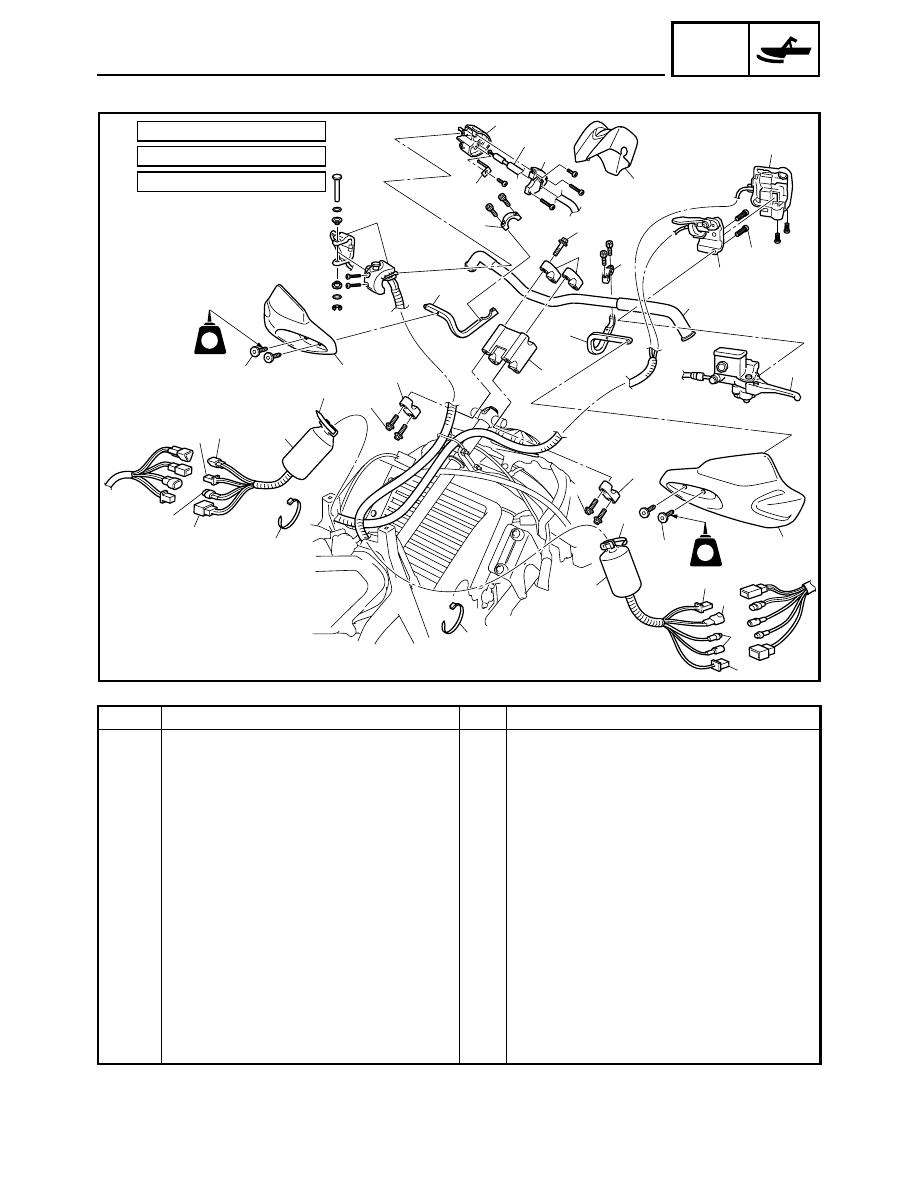

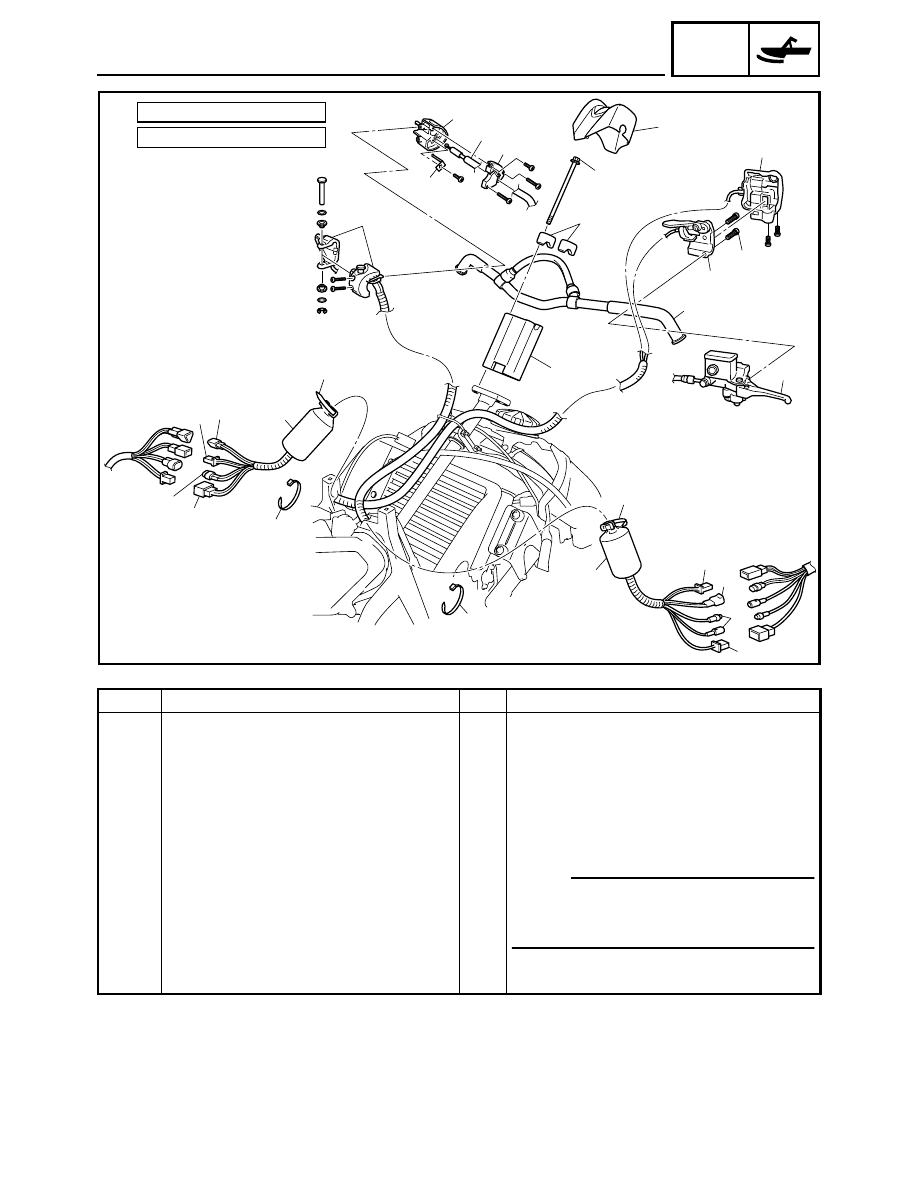

Order

Job name/Part name

Q’ty

Remarks

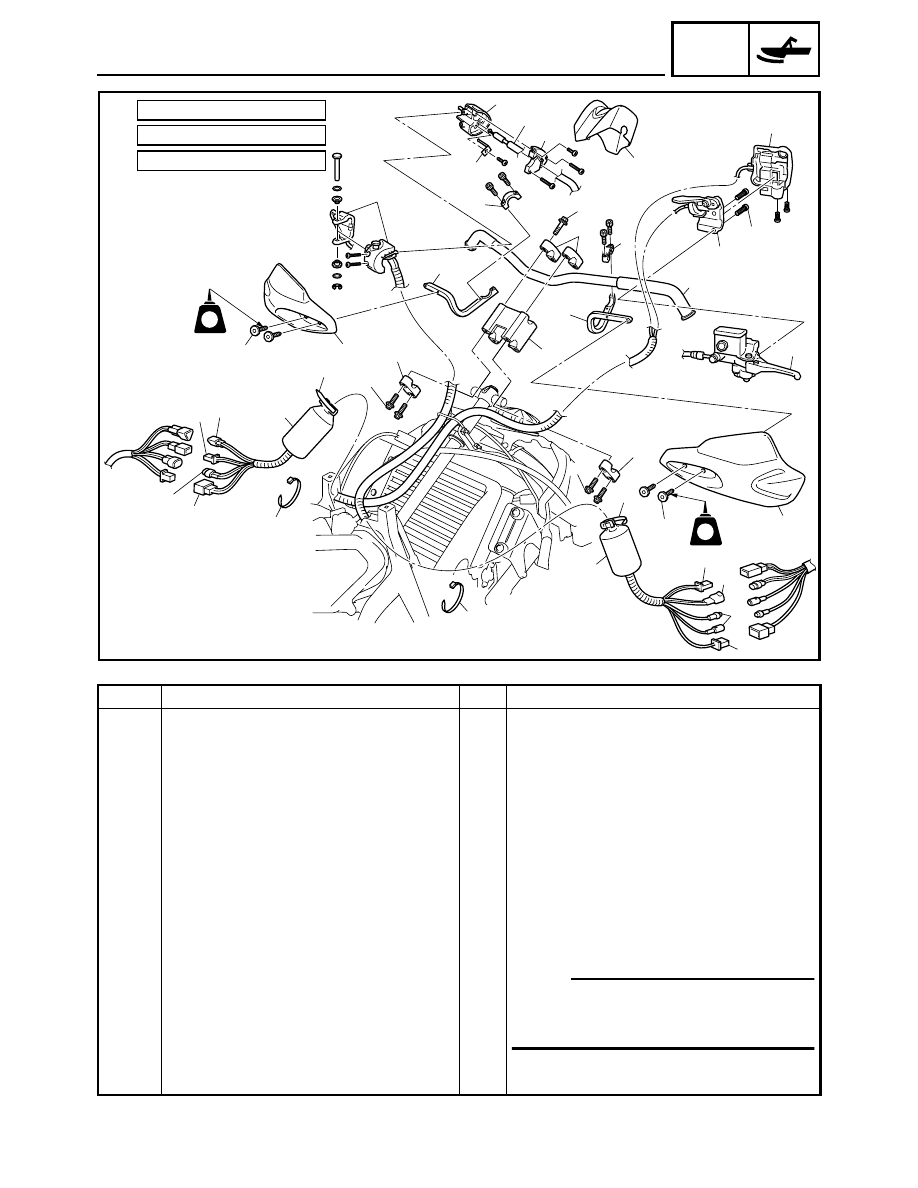

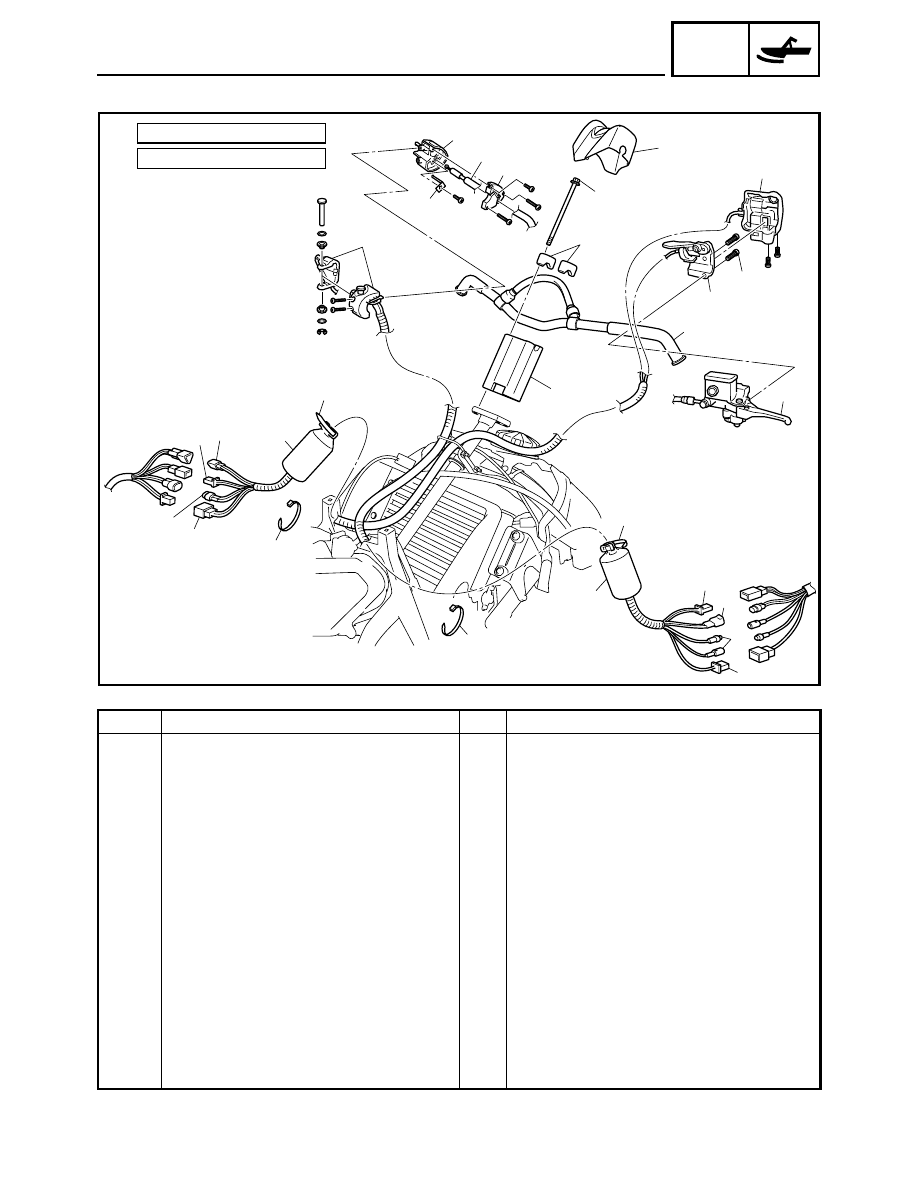

Handlebar removal

Remove the parts in the order listed below.

Shroud/Side covers/Speedometer cover

Refer to “COVERS”.

1

Handlebar cover

1

2

Wind deflector (left and right)

2

3

Wind deflector bracket holder

2

4

Wind deflector bracket (left and right)

2

5

Plastic band

4

6

Rubber cover

2

7

Grip/thumb warmer adjustment switch cou-
pler

1

Disconnect.

8

Brake light switch coupler

1

Disconnect.

9

Headlight beam switch coupler

1

Disconnect.

10

Grip warmer coupler

2

Disconnect.

11

Throttle switch coupler

2

Disconnect.

12

Engine stop switch coupler

1

Disconnect.

13

Thumb warmer coupler

1

Disconnect.

2

2

1

3

3

5

5

6

6

7

8

9

10

4

4

10

12

13

14

17

18

19

20

(4)

21

22

15

16

11

23

23

24

7 Nm (0.7 m

•

 kg, 5.1 ft

•

 lb)

10 Nm (1.0 m

•

 kg, 7.2 ft

•

 lb)

23 Nm (2.3 m

•

 kg, 17 ft

•

 lb)

È:

È

È

É:

É

Ê:

Ê

Ê

Ê

LT

LT

20

5

5

3-7

CHAS

STEERING

Order

Job name/Part name

Q’ty

Remarks

14

Left handlebar switch

1

15

Brake master cylinder holder

1

16

Master cylinder assembly

1

17

Right handlebar switch cover

1

18

Throttle cable holder

1

19

Throttle cable

1

Disconnect.

20

Right handlebar switch/throttle lever
assembly

1

21

Handlebar holder

2

22

Handlebar

1

23

Steering joint holder

2

24

Steering joint

1

NOTE:

After installing all parts, refer to “CABLE
ROUTING” in CHAPTER 9, to check the
cable and lead routing.

For installation, reverse the removal proce-
dure.

2

2

1

3

3

5

5

6

6

7

8

9

10

4

4

10

12

13

14

17

18

19

20

(4)

21

22

15

16

11

23

23

24

7 Nm (0.7 m

•

 kg, 5.1 ft

•

 lb)

10 Nm (1.0 m

•

 kg, 7.2 ft

•

 lb)

23 Nm (2.3 m

•

 kg, 17 ft

•

 lb)

È:

È

È

É:

É

Ê:

Ê

Ê

Ê

LT

LT

20

5

5

3-8

CHAS

STEERING

FX10MT/FX10MTR/FX10MTRA

Order

Job name/Part name

Q’ty

Remarks

Handlebar removal

Remove the parts in the order listed below.

Shroud/Side covers/Speedometer cover

Refer to “COVERS”.

1

Handlebar cover

1

FX10MTRA

2

Plastic band

4

3

Rubber cover

2

4

Grip/thumb warmer adjustment switch cou-
pler

1

Disconnect.

5

Brake light switch coupler

1

Disconnect.

6

Headlight beam switch coupler

1

Disconnect.

7

Grip warmer coupler

2

Disconnect.

8

Throttle switch coupler

2

Disconnect.

9

Engine stop switch coupler

1

Disconnect.

10

Thumb warmer coupler

1

Disconnect.

11

Left handlebar switch

1

12

Brake master cylinder holder

1

13

Master cylinder assembly

1

14

Right handlebar switch cover

1

(4)

É

18

2

20

10 Nm (1.0 m

•

 kg, 7.2 ft

•

 lb)

23 Nm (2.3 m

•

 kg, 17 ft

•

 lb)

È:
É:

2

3

3

4

5

6

7

7

9

10

8

11

14

15

16

17

19

17

12

13

È

1

2

2

3-9

CHAS

STEERING

Order
