Snowmobile Yamaha FX10X, FX10RTX, FX10RTRX, FX10RTRAX, FX10MTX, FX10MTRX, FX10MTRAX. Manual - part 22

3-2

CHAS

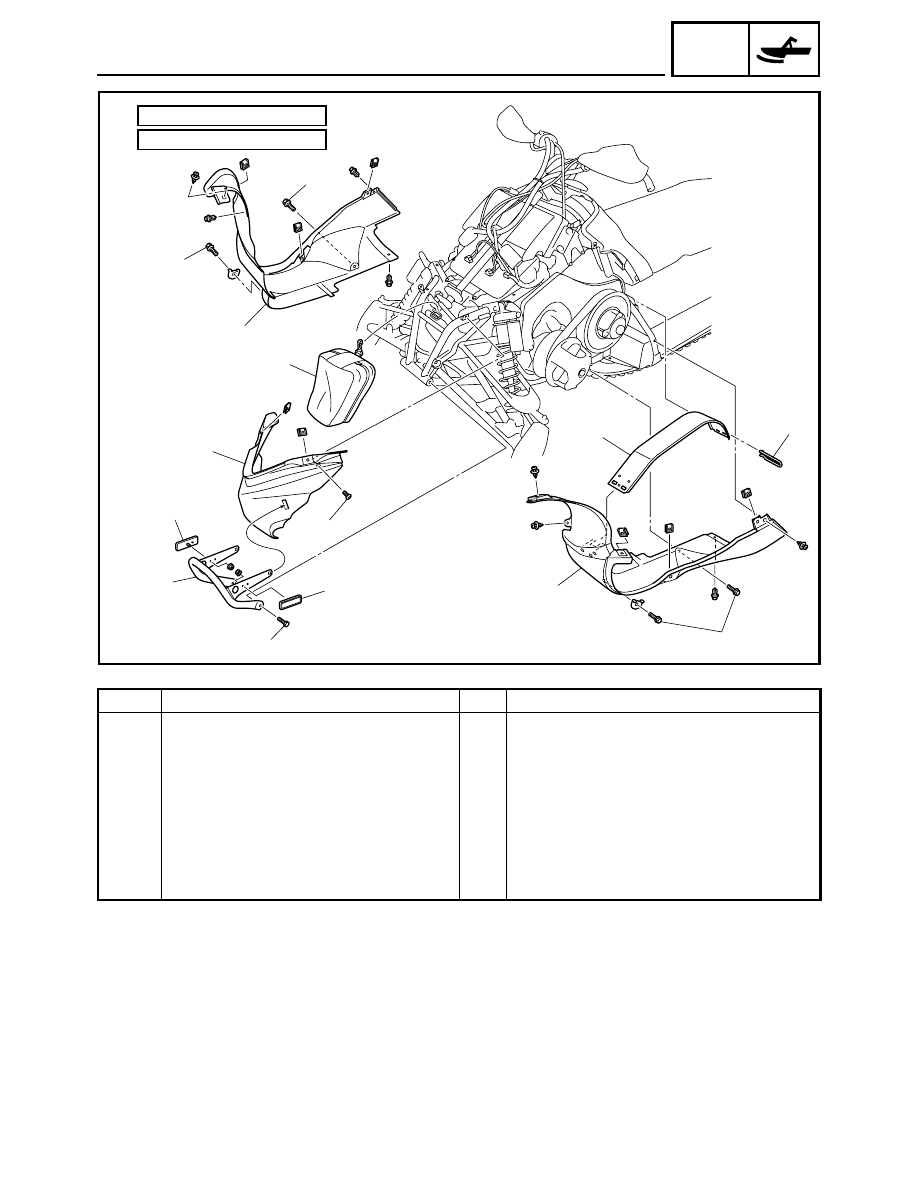

COVERS

Order

Job name/Part name

Q’ty

Remarks

15

Drive guard pin

1

16

Drive guard

1

17

Lower cover (left and right)

2

18

Storage pouch

1

19

Reflector

2

20

Front cover

1

21

Front bumper

1

For installation, reverse the removal proce-
dure.

16

17

(3)

15

(4)

19

19

18

17

20

21

È

É

È

È

È

7 Nm (0.7 m

•

 kg, 5.1 ft

•

 lb)

23 Nm (2.3 m

•

 kg, 17 ft

•

 lb)

È:
É:

3-3

CHAS

INSTALLATION

1. Install:

• Headlight assembly 1

2 Headlight stay

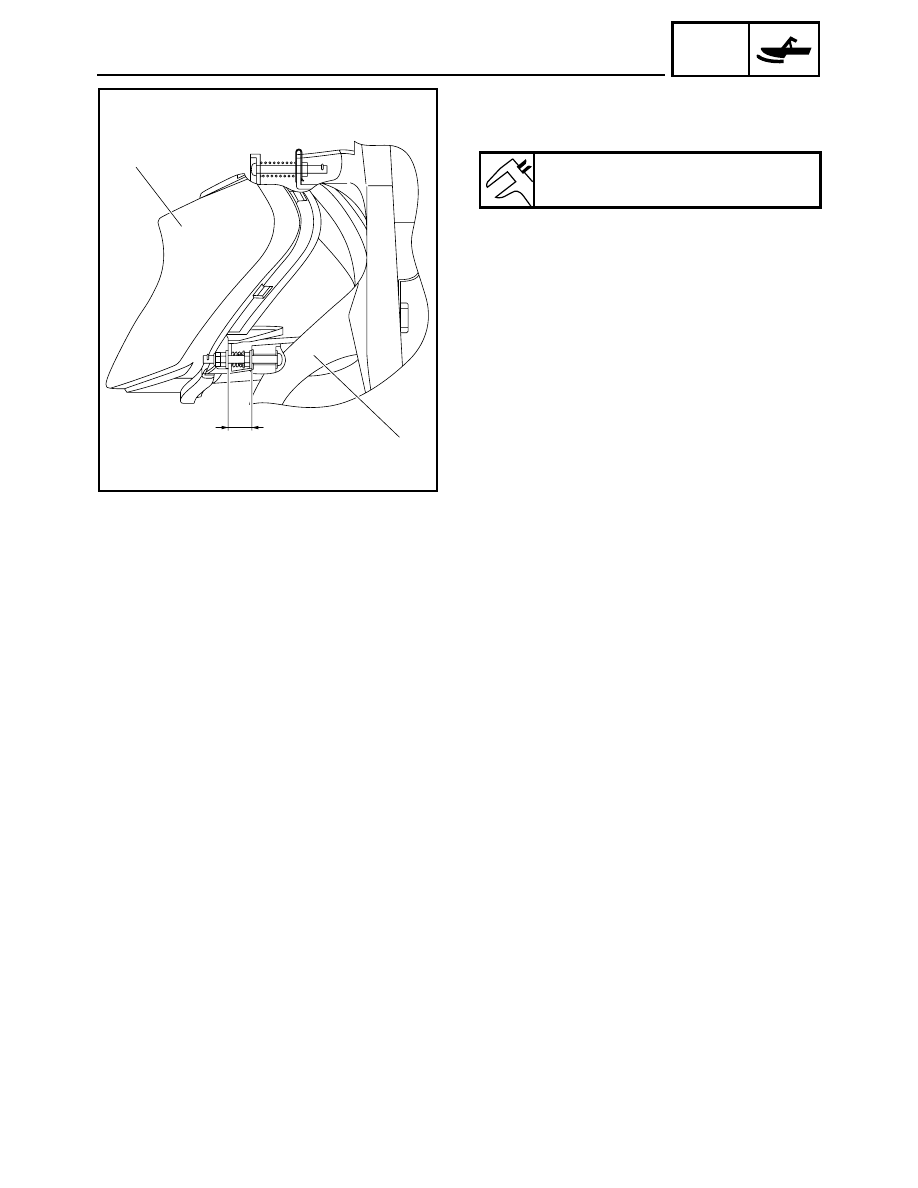

Installed position

a:

16.0 mm (0.63 in)

a

1

2

COVERS

3-4

CHAS

STEERING

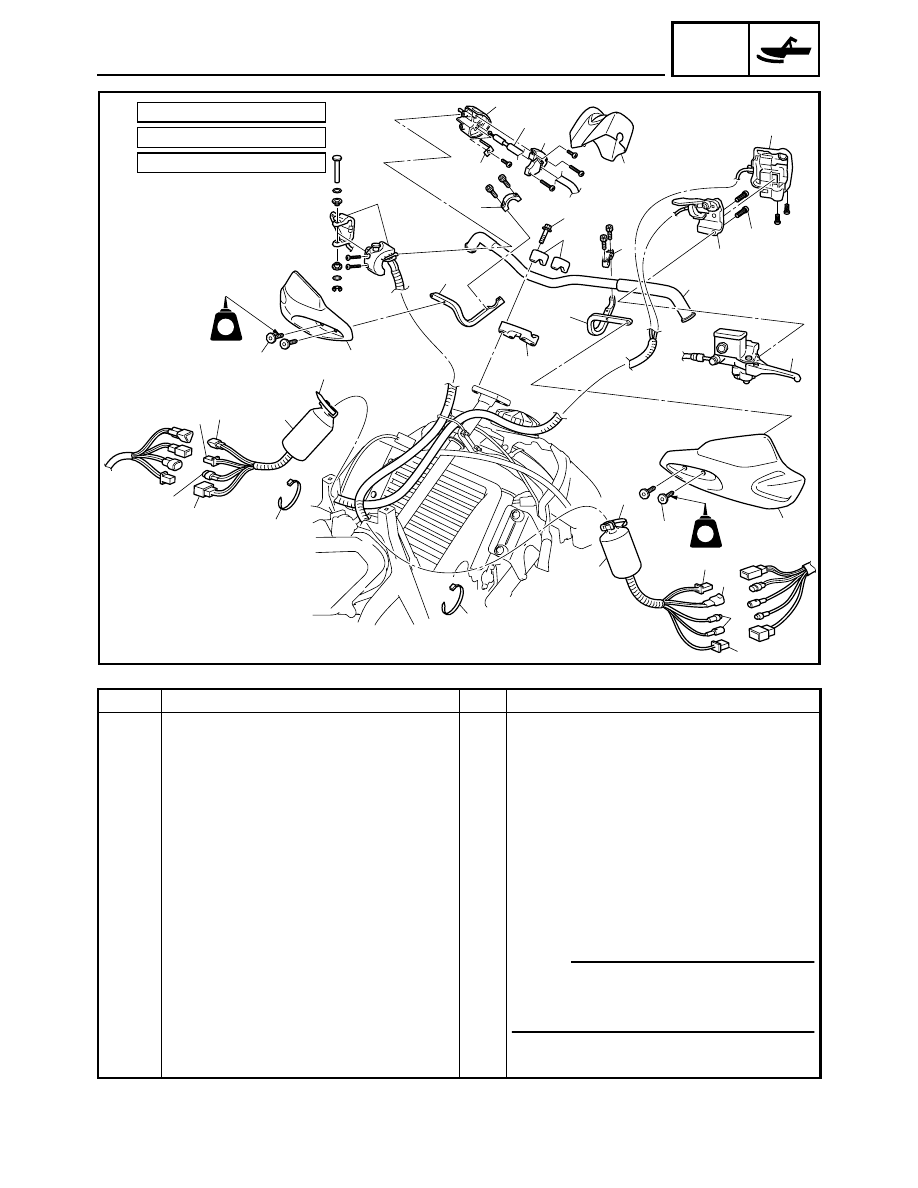

STEERING

FX10

Order

Job name/Part name

Q’ty

Remarks

Handlebar removal

Remove the parts in the order listed below.

Shroud/Side covers/Speedometer cover

Refer to “COVERS”.

1

Handlebar cover

1

2

Wind deflector (left and right)

2

3

Wind deflector bracket holder

2

4

Wind deflector bracket (left and right)

2

5

Plastic band

4

6

Rubber cover

2

7

Grip/thumb warmer adjustment switch cou-
pler

1

Disconnect.

8

Brake light switch coupler

1

Disconnect.

9

Headlight beam switch coupler

1

Disconnect.

10

Grip warmer coupler

2

Disconnect.

11

Throttle switch coupler

2

Disconnect.

12

Engine stop switch coupler

1

Disconnect.

13

Thumb warmer coupler

1

Disconnect.

(4)

21

Ê

5

22

23

7 Nm (0.7 m

•

 kg, 5.1 ft

•

 lb)

10 Nm (1.0 m

•

 kg, 7.2 ft

•

 lb)

23 Nm (2.3 m

•

 kg, 17 ft

•

 lb)

È:
É:
Ê:

5

6

6

7

8

9

10

10

12

13

11

2

2

1

3

3

4

4

14

17

18

19

20

20

15

16

È

È

É

LT

LT

5

5

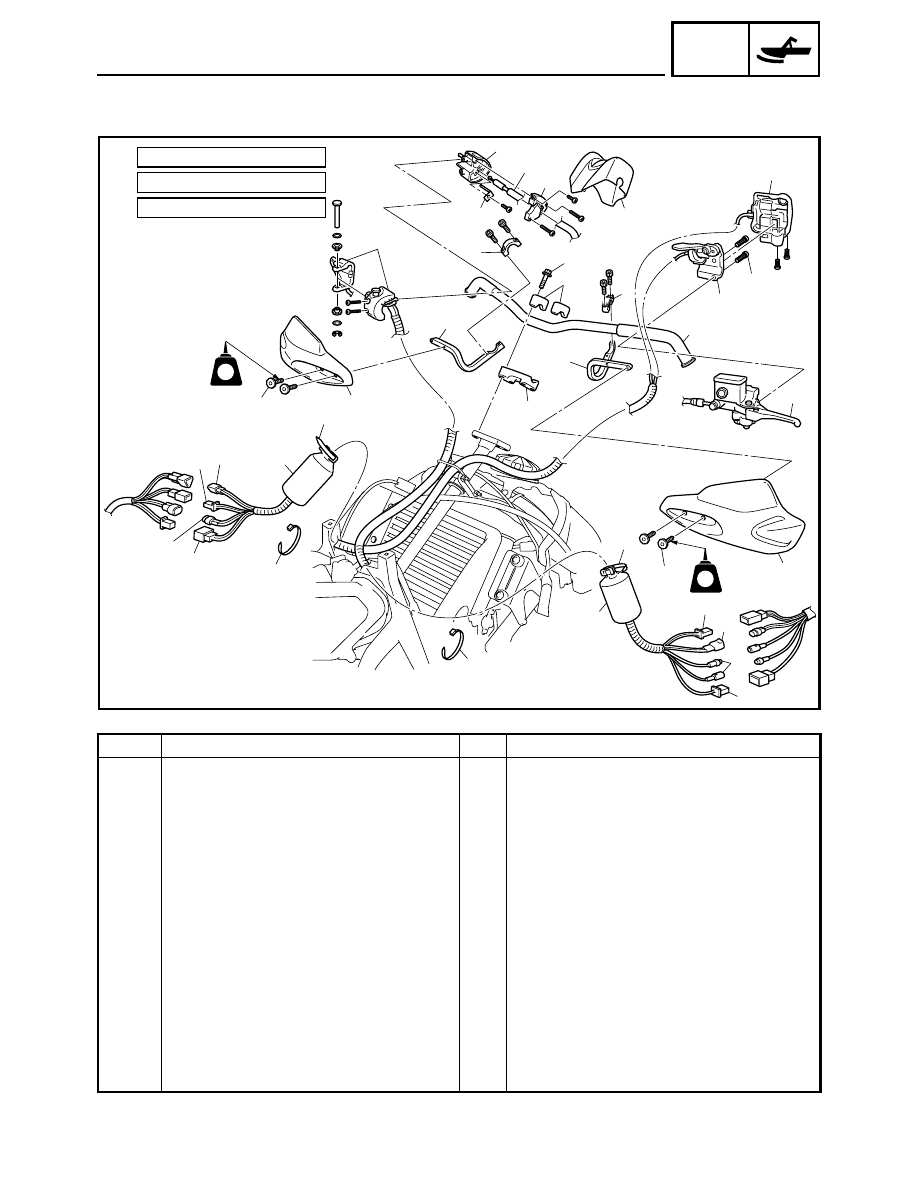

3-5

CHAS

STEERING

Order

Job name/Part name

Q’ty

Remarks

14

Left handlebar switch

1

15

Brake master cylinder holder

1

16

Master cylinder assembly

1

17

Right handlebar switch cover

1

18

Throttle cable holder

1

19

Throttle cable

1

Disconnect.

20

Right handlebar switch/throttle lever
assembly

1

21

Upper handlebar holder

2

22

Handlebar

1

23

Lower handlebar holder

1

NOTE:

After installing all parts, refer to “CABLE
ROUTING” in CHAPTER 9, to check the
cable and lead routing.

For installation, reverse the removal proce-
dure.

(4)

21

Ê

5

22

23

7 Nm (0.7 m

•

 kg, 5.1 ft

•

 lb)

10 Nm (1.0 m

•

 kg, 7.2 ft

•

 lb)

23 Nm (2.3 m

•

 kg, 17 ft

•

 lb)

È:
É:
Ê:

5

6

6

7

8

9

10

10

12

13

11

2

2

1

3

3

4

4

14

17

18

19

20

20

15

16

È

È

É

LT

LT

5

5
