MPE 750 HO Snow. Manual - part 6

10055_abMJ07_ETK_Rev1.4_090128

MPE 750 HO Snow

1

6

6

1
2

3

5

4

7

11

10

9

4

8

12

13

13

13

Spare Parts Catalogue

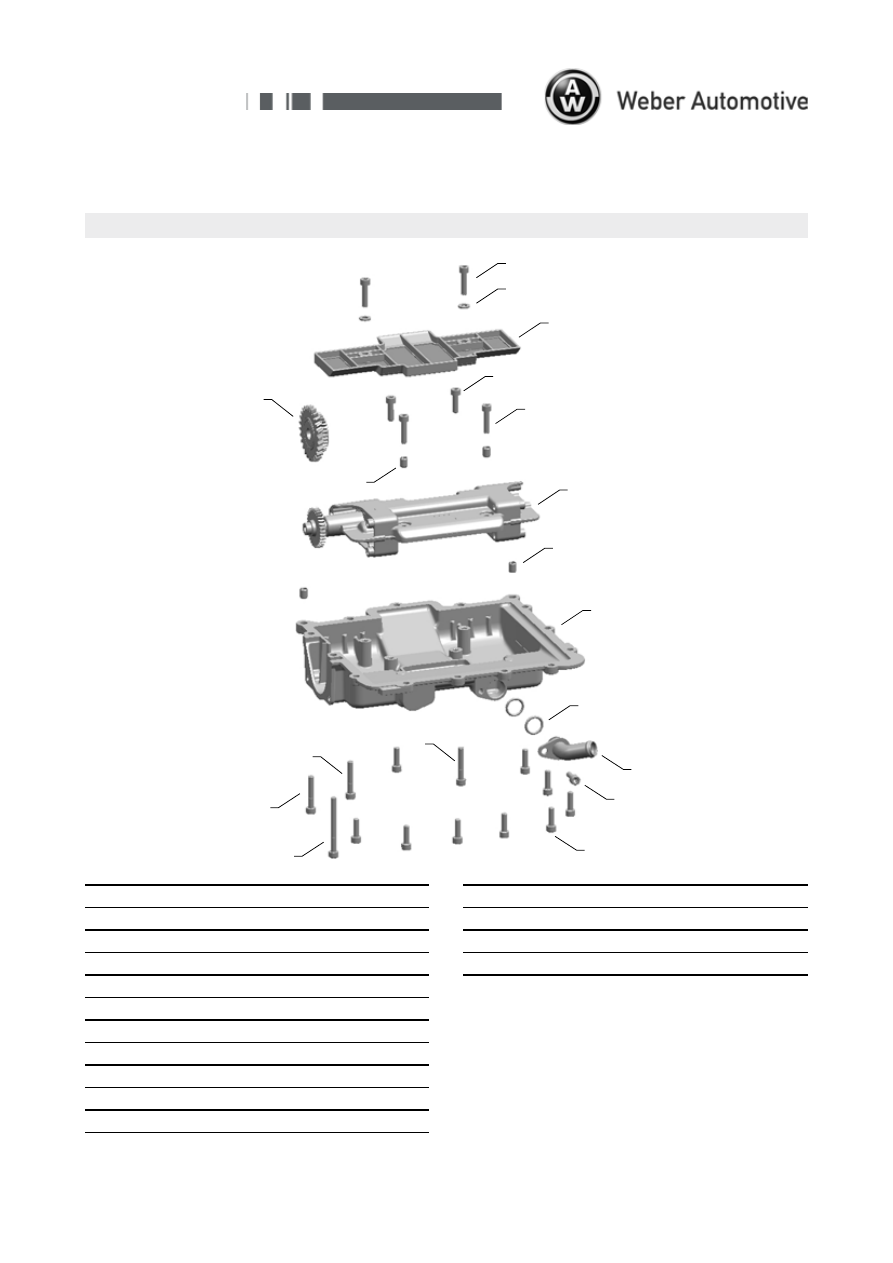

Page 19

110

Lubrication System

01 Dry Sump

Pos. Part No Description

QTY

1

100502 Bolt

M6x25 8.8

4

2

100448 Washer

2

3

100195 Oil Screen

1

4

100501 Bolt

M6x20 8.8

11

5

401428 Intermediate Gear Suction Pump

1

6

100280 Sleeve

4

7

102225 Suction Pump

1

8

102243 Suction Pump Cover

1

9

100491 O-Ring

2

10

102864 Connector

1

Pos. Part No Description

QTY

11

100507 Bolt

M6x16 8.8

1

12

100506 Bolt

M6x60 8.8

1

13

100505 Bolt

M6x35 8.8

3

10055_abMJ07_ETK_Rev1.4_090128

MPE 750 HO Snow

1

1

2

3

4

5

6

7

8

9

10

11

10

12

(13)

13

14

15

16

17 17

18

19

Spare Parts Catalogue

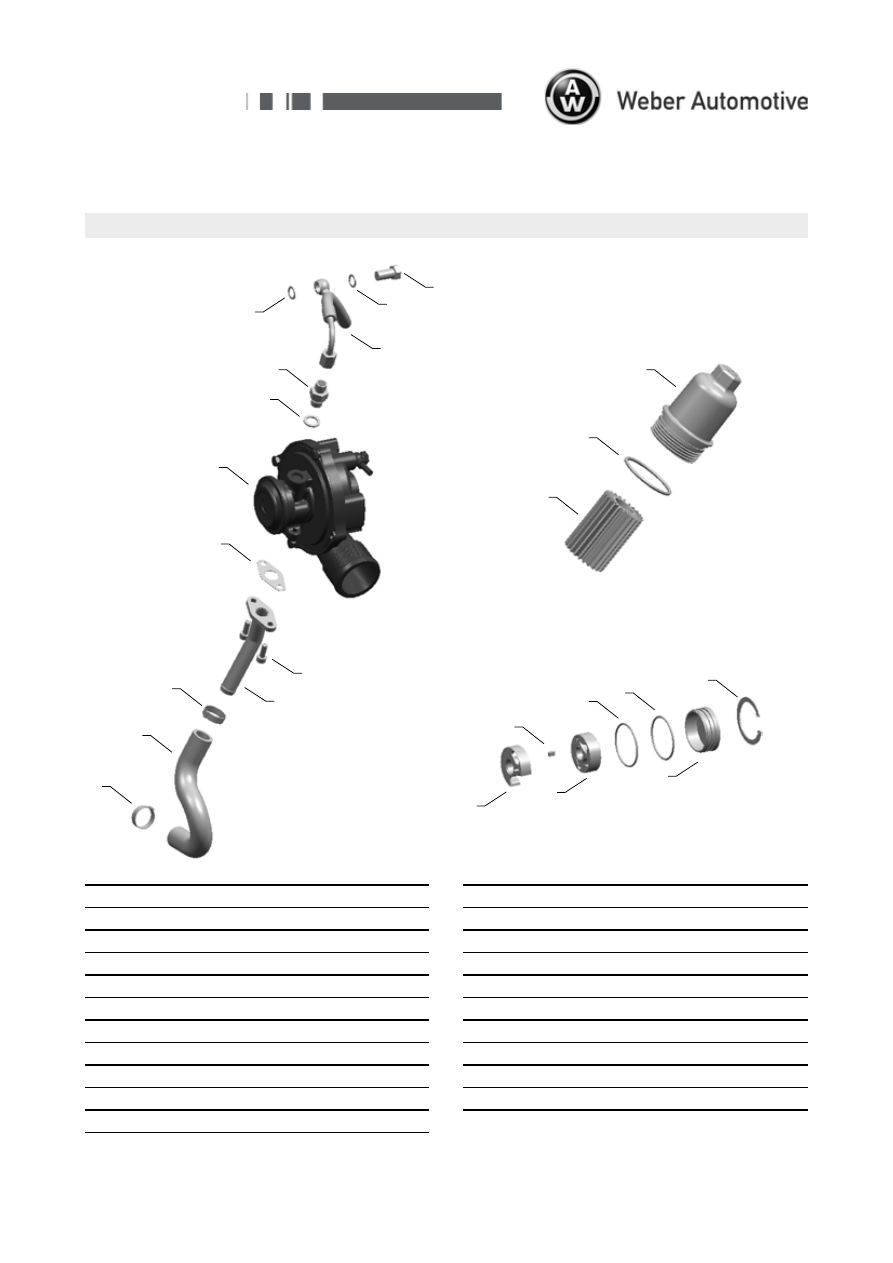

Page 20

110

Lubrication System

02 Turbocharger, Oil Filter, Oil Pump

Pos. Part No Description

QTY

1

101107 Seal

10x14x1 Al

2

2

100085 Banjo Bolt

M10x1

1

3

101953 Hose

1

4

100664 Fitting

1

5

100449 Seal

12x18x1.5 Al

1

6

*

Turbocharger

1

7

101917 Gasket

1

8

100507 Bolt

M6x16 8.8

2

9

101916 Flange

1

10

100471 Hose Clamp

16-27/9

2

Pos. Part No Description

QTY

11

103032 Hose

1

12

401243 Oil Filter Cover incl. Pos. 13

1

13

103563 Oil Filter

1

14

100137 Timing Insert

1

15

100293 Key

1

16

100275 Oil Pump

1

17

102398 O-Ring

2

18

100104 Oil Pump Cover

1

19

100294 Circleclip

1

*  See Chapter Turbocharging

10055_abMJ07_ETK_Rev1.4_090128

MPE 750 HO Snow

1

1

1

1

1

1

Spare Parts Catalogue

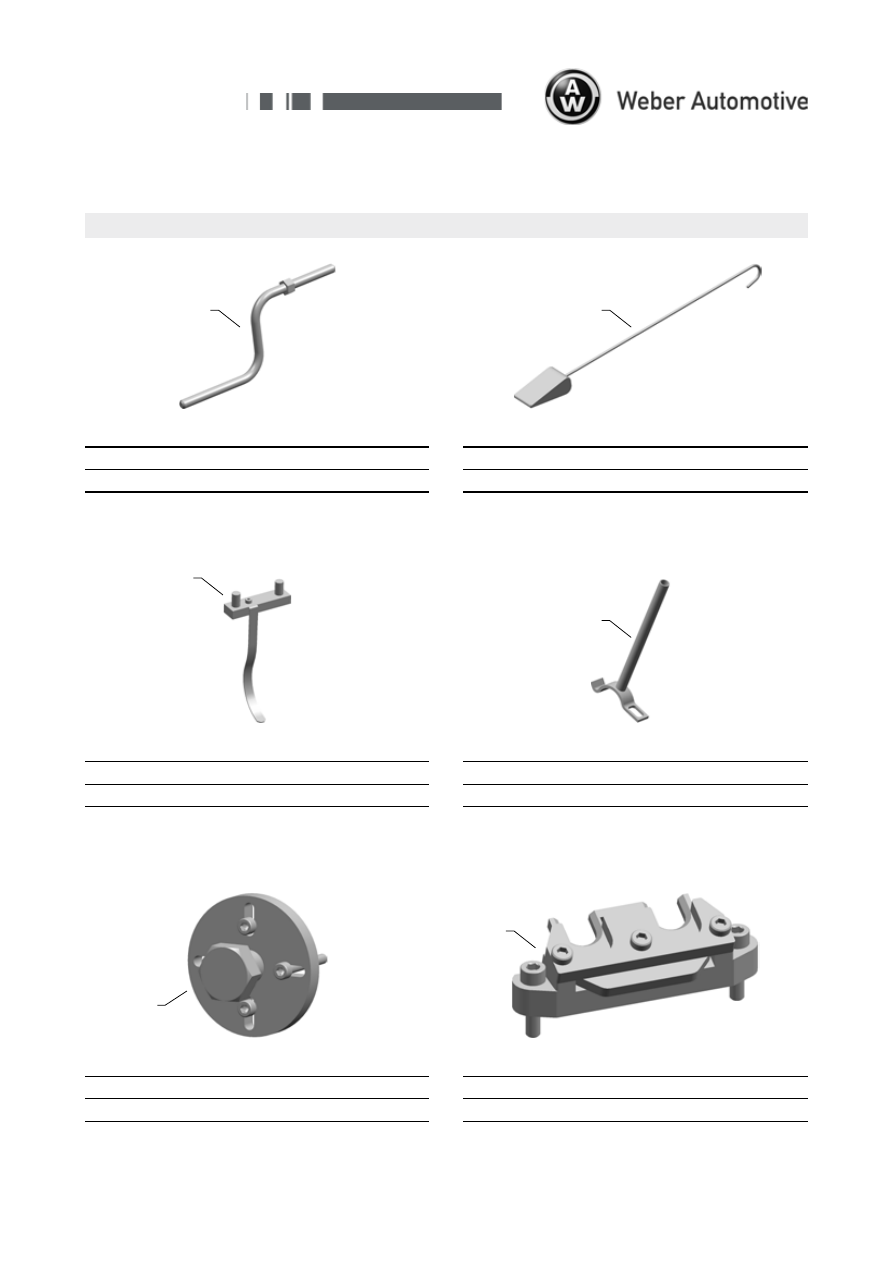

Page 21

Pos. Part No Description

QTY

1

401386 Hand Crank

1

Pos. Part No Description

QTY

1

401401 Chain Tool

1

Pos. Part No Description

QTY

1

401402 Valve Installation Tool

1

Pos. Part No Description

QTY

1

401370 Hook-Wedge

1

Pos. Part No Description

QTY

1

401355 Removal Tool

1

900  Special Tools

Pos. Part No Description

QTY

1

103330 Valve Adjustment Tool

1

10055_abMJ07_ETK_Rev1.4_090128

MPE 750 HO Snow

1

1

3

3

8

7

6

9

4

5

1

2

Spare Parts Catalogue

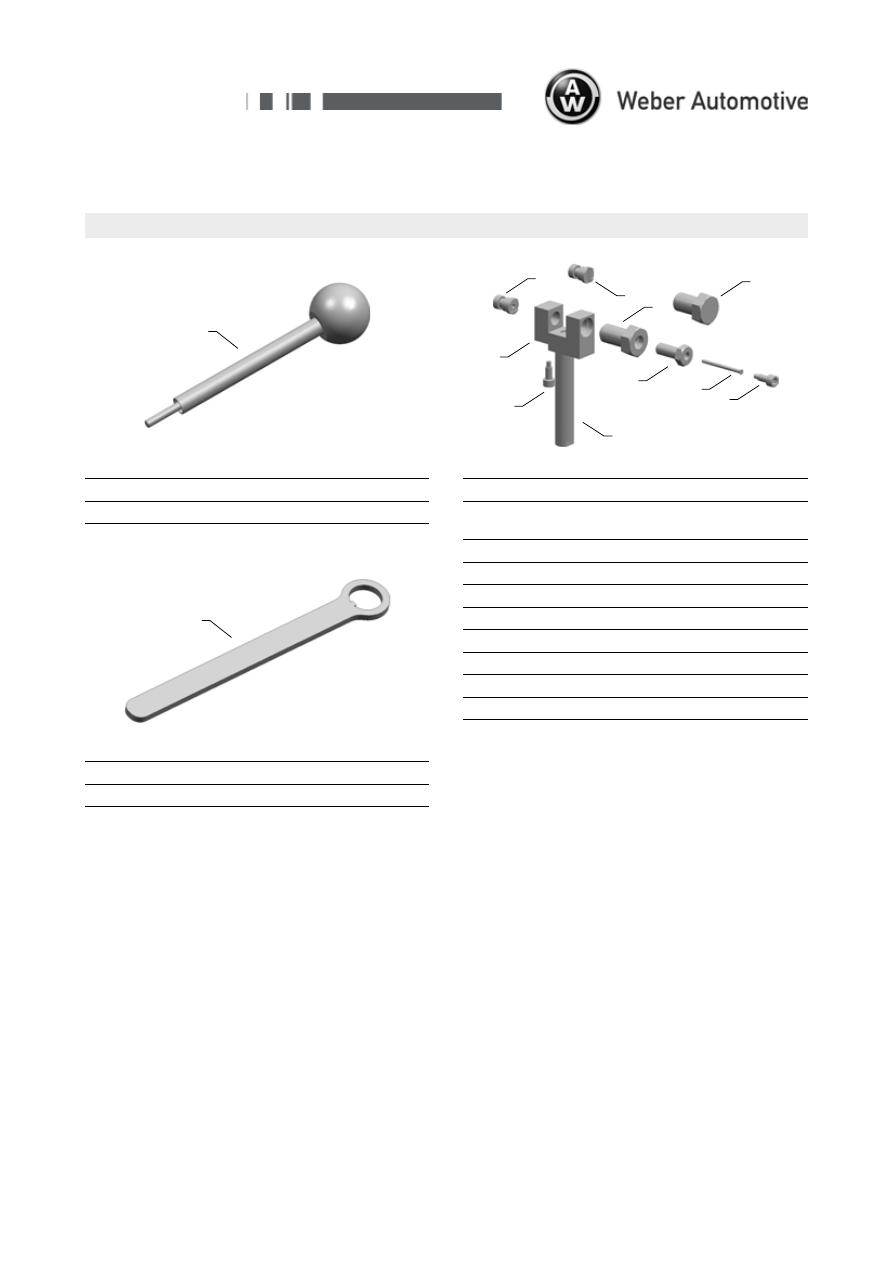

Page 22

900  Special Tools

Pos. Part No Description

QTY

1

103701

Chain Breaking Tool consisting of

Pos. 2 - 9

1

2

402921 Header

1

3

401389 Bolt

M6x16 8.8

2

4

401376 Counterpart Break

1

5

401377 Counterpart Rivet

1

6

401378 Bolt

M16 12.9

1

7

401381 Bolt

M10x1 12.9

1

8

401383 Spike

1

9

401391 Bolt

M16 12.9

1

Pos. Part No Description

QTY

1

103609 Installation Spike Valve Stem Seal

1

Pos. Part No Description

QTY

1

401356 Crankshaft Counterholder

1
