Snowmobile Polaris 600 RUSH (2010 year). Manual - part 21





3.34

Engine/Cooling/Exhaust

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

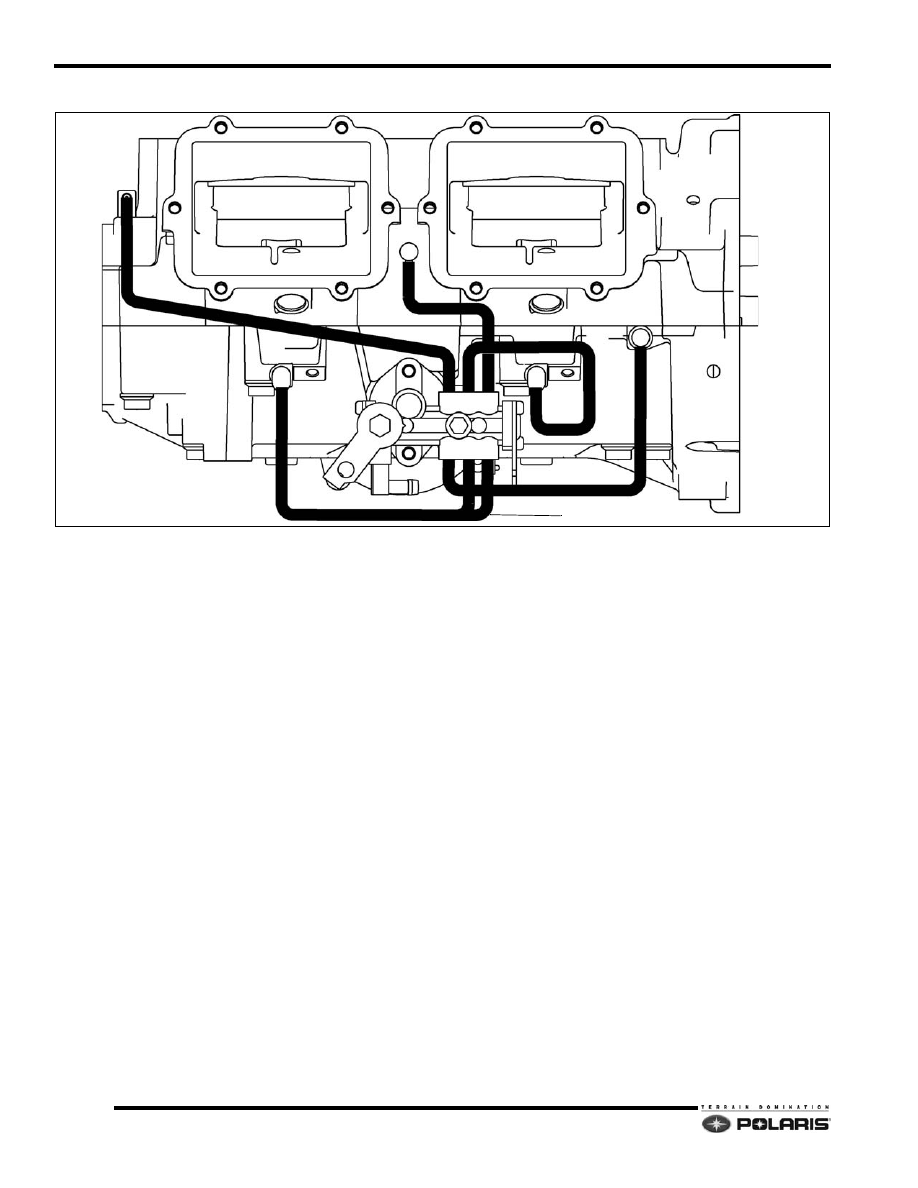

Oil Hose Routing

TEE FITTING

3.35

Engine/Cooling/Exhaust

3

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

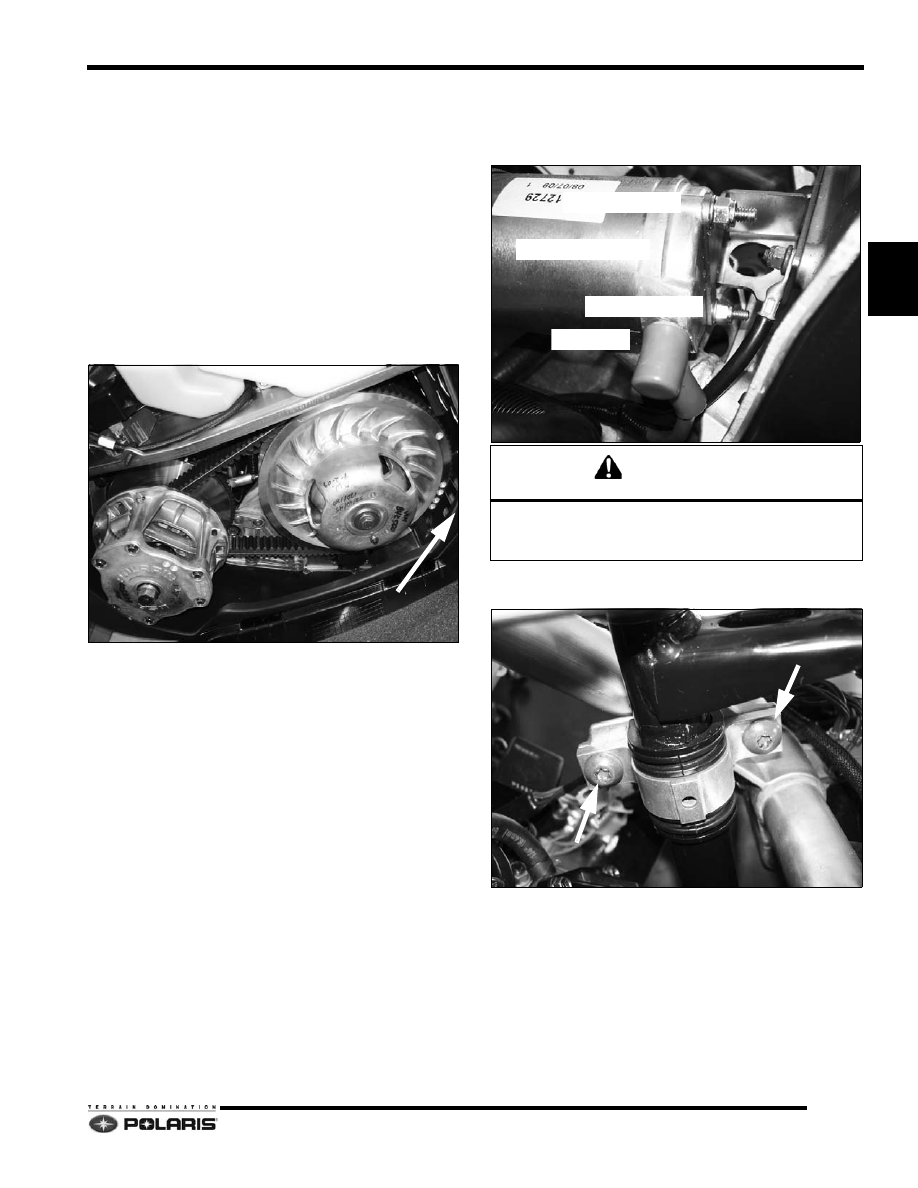

Engine Removal

NOTE: Inspect all parts for wear or damage during
disassembly. Replace all seals, o-rings, and gaskets
with Genuine Pure Polaris parts during assembly.


Torx screws are used throughout the engine
compartment. Always use good-quality Torx
wrenches when removing or installing these screws.
Do not use worn or damaged tools.

1.

Remove the left and right door panels. Remove the
hood assembly.

2.

Remove the drive belt, fender screw, drive clutch, and
driven clutch.

3.

Remove the oil tank/clutch cover assembly.See “Oil
Tank/Clutch Cover Service” on page 2.14.

4.

Remove the exhaust pipe, and exhaust silencer.

NOTE: Disconnect the exhaust temperature sensor
probe wiring harness. Do not remove probe from pipe
unless service is required.

5.

If the snowmobile is equipped with electric start,
disconnect the battery. Remove the starter motor from
the motor bracket. Remove the worm drive shaft from
the case-mounted drive gear.

6.

Remove the two screws securing the lower steering
shaft bushing clamp shaft to the over structure.

FENDER SCREW

CAUTION

Remove the RED (+) battery cable first, and then the
BLACK (-) cable last. Reverse order when attaching
cables to battery.

(+) CABLE

STARTER MOTOR

MOUNTING NUT

MOUNTING NUT

3.36

Engine/Cooling/Exhaust

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

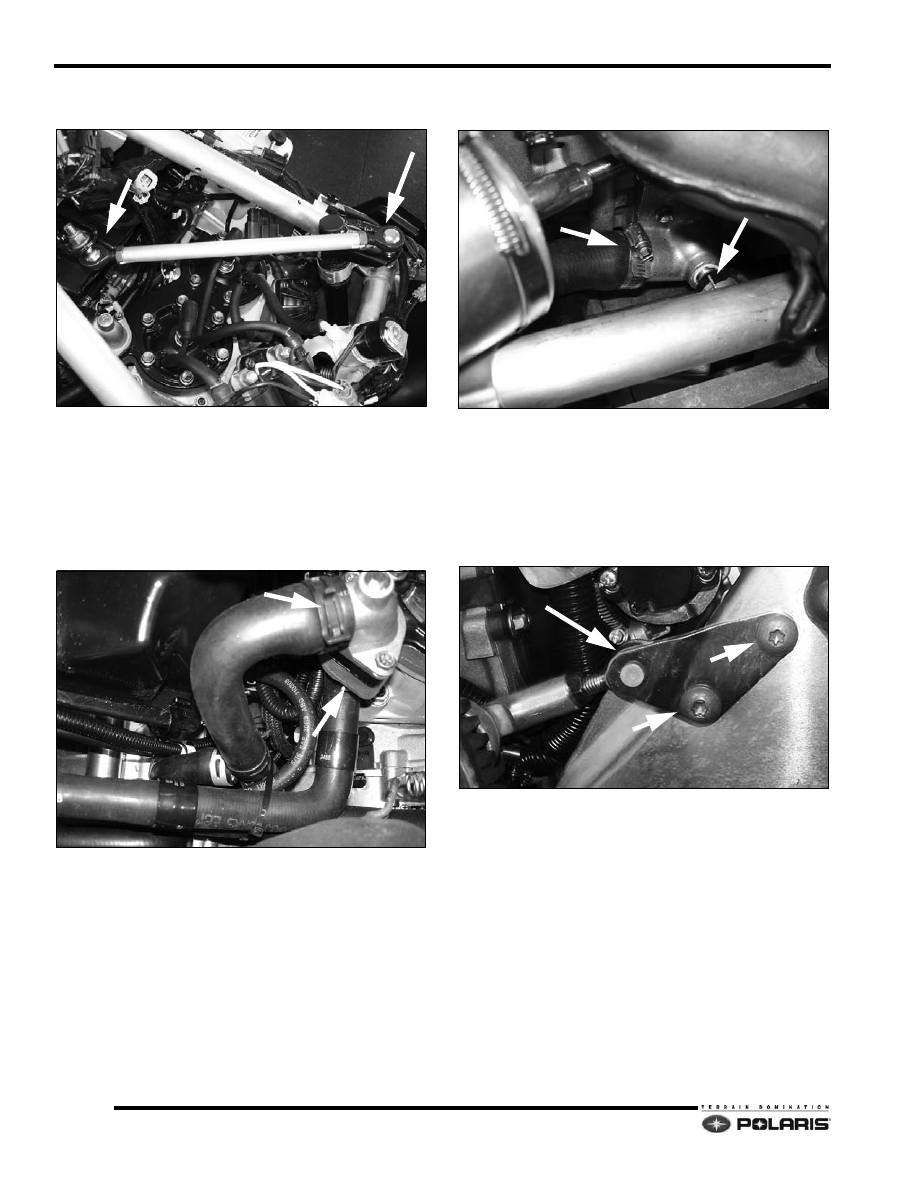

7.

Remove the upper steering drag link from the lower
steering shaft.

8.

Remove the airbox assembly.See “Air Box Servicing”
on page 2.23.

9.

Remove the fuel supply and return hoses between the
fuel tank and fuel rail mounted to the engine.

10. Remove the surge tank cap. Extract the engine

coolant with a siphon or wet/dry vacuum.

11. Remove the thermostat bypass and main outlet hoses

from the thermostat housing.

12. Remove the coolant return hoses from the water

pump cover.

13. Disconnect the throttle cable from the throttle body.

14. Cut the knot at the end of the recoil rope to remove

the handle. Pass the recoil rope through the console
and guide. Tie the recoil rope in a knot to prevent it
from retracting into the recoil housing.

15. Disconnect the engine torque link by removing the two

screws securing the bracket to the bulk, and then the
torque link lock nut.

NUT ON BACKSIDE

3.37

Engine/Cooling/Exhaust

3

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

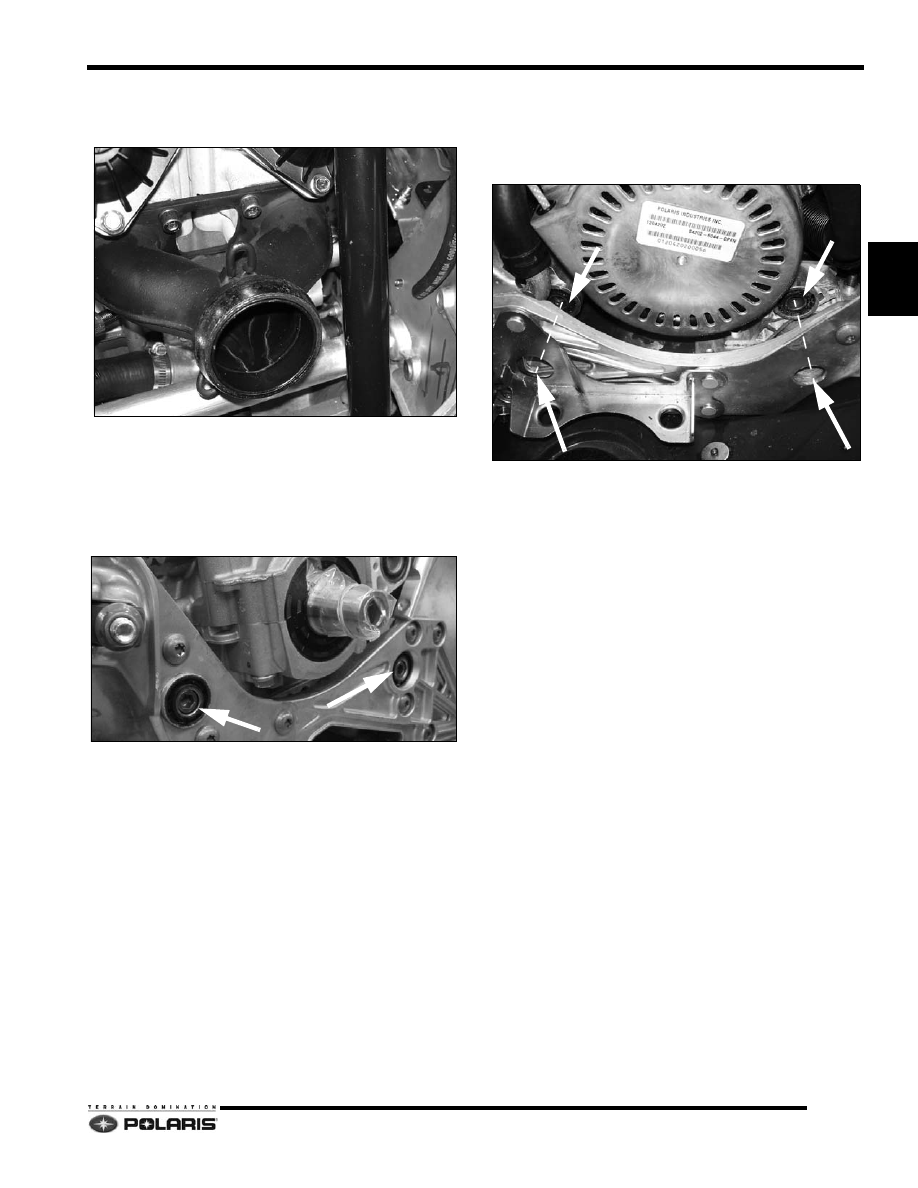

16. Remove the exhaust y-pipe from the engine using a

ball-end Allen wrench. Remove the exhaust gaskets.
If un-damaged, they can be re-used during assembly.

17. Remove the PTO and MAG exhaust valve assemblies

from the cylinder. Doing this will provide clearance
between the engine and bulkhead so the engine can
be removed from the PTO-side of the engine
compartment.

18. Remove the two engine mounting screws from the

PTO-side of the engine.

19. Remove the two engine mount screws from the MAG-

side of the engine.

NOTE:  Use a six to eight inch extended Allen wrench
to access the MAG-side engine mounting bolts.

20. With the help of an assistant carefully remove the

engine from the PTO-side of the engine compartment.

21. Use care when lifting the engine up and over the

tunnel and side support plate. Do not damage the oil
pump when pulling the engine out.
