Spark Plugs

Spark plug condition is indicative of engine operation. The spark plug
firing end condition should be read after the engine has been warmed up
and the vehicle has been driven at higher speeds. Immediately check the
spark plug for correct color.

CAUTION! A hot exhaust system and engine can cause burns. Wear
protective gloves when removing a spark plug for inspection.

Tip: Incorrect fuel mixture can often cause a spark plug to appear too dark or too

light in color. Before changing spark plug heat ranges, be sure the correct
main jet is installed in the carburetor(s). Refer to the specifications section
beginning on page 104.

Normal Plug

The normal insulator tip is gray, tan or light brown. There will be few
combustion deposits. The electrodes are not burned or eroded. This
indicates the proper type and heat range for the engine and the service.

The tip should not be white. A white insulator tip indicates overheating,
caused by use of an improper spark plug or incorrect carburetion
adjustments.

Wet Fouled Plug

The wet fouled insulator tip is black. A damp oil film covers the firing
end. There may be a carbon layer over the entire nose. Generally, the
electrodes are not worn. General causes of fouling are excessive oil, use
of non-recommended injection oil, improper use of the choke, or
incorrect carburetion adjustments.

Spark Plug Removal and Replacement

1. Remove the spark plug cap.

2. Using the special wrench provided in the tool pouch, rotate the

spark plug counterclockwise to remove it.

3. Reverse the procedure for spark plug installation. Torque to 18-22

ft. lbs. (24.4-29.8 Nm).

4. Reinstall the spark plug cap.

71

MAINTENANCE

Intake Filter

The intake foam filter and screen limits snow ingestion into the intake
system. When operating in loose powder snow, check the top of the
foam filter and screen periodically to remove any accumulation of snow.

NOTICE: Operating the snowmobile with the intake filters removed may cause

carburetor icing. The result will be poor fuel economy or carburetor
malfunction. Always reinstall the intake filters before operating the
snowmobile.

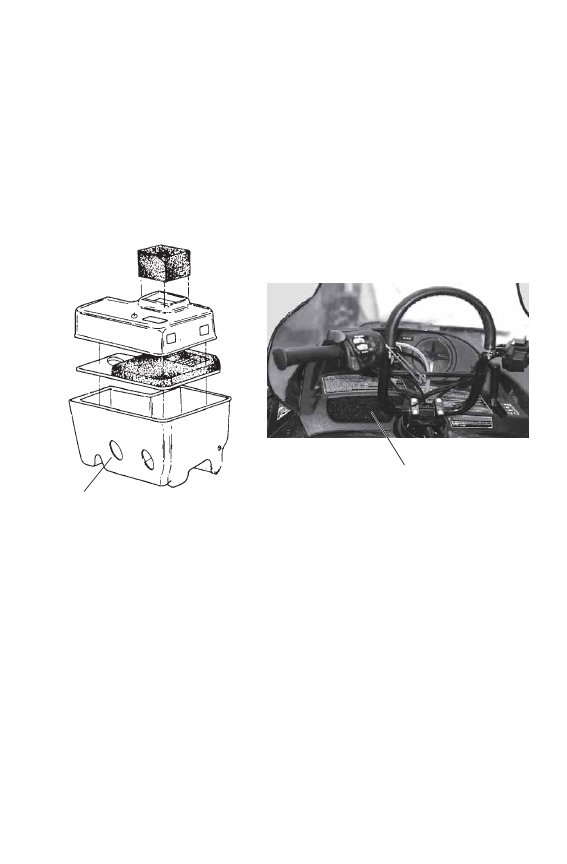

These illustrations are general representations.Your model may differ.

Intake

Foam Filter and Screen

Foam Filter

Air Intake Box

72

MAINTENANCE

Carburetor

Water/Sediment Trap Service

Most POLARIS snowmobiles contain patented carburetor bowl water/
sediment traps located at the bottom of each carburetor. The trap,
consisting of a hose with a plug, should be drained about every 1000
miles (1600 km) and inspected for contamination.

WARNING! When draining the traps, fuel spillage will occur. Always work in a
well ventilated area away from anything that may cause the fuel to ignite, such
as open flames, sparks, heaters, trouble lights, cigarettes, etc. Review the
gasoline warnings found on page 50.

Plug Cleaning Procedure

1. Turn the fuel valve off.

2. Position a container or shop towels to

catch the contaminated gasoline.

3. Slide the clamp away from the drain

plug and remove the drain plug from the
sediment tube.

4. Wipe residue from the plug and reinstall

it. Reposition and tighten the clamps.
Continue until all the traps have been
emptied.

Clamp

Drain
Plug

73

MAINTENANCE

Carburetor

The number stamped in the end of the main jet indicates the jet size. The
jet installed at the time of manufacture is not necessarily correct for your
elevation.

NOTICE: Operating the snowmobile with incorrect jetting can result in serious

engine damage. Have your POLARIS dealer perform all carburetor
adjustments to ensure all adjustments are done correctly.

Carburetor Adjustments

The frequency at which the carburetors are synchronized or balanced is
important. Properly adjusted carburetors can greatly improve engine
performance, fuel economy, engine life, and reliability.

If you notice any of the following conditions, the carburetor may need
adjustment:
• Hard starting
• Poor idle
• Overheated pistons and cylinder walls
• Plug fouling
• Poor engine response to various throttle valve openings
